Product Type	Portable Bluetooth Speaker
Brand	Infiniton
Model	SBV08H13
Dimensions (W x H x D)	200 x 100 x 100 mm
Weight	0.8 kg
Power Supply	Built-in rechargeable battery, DC 5V via USB
Battery Capacity	1800 mAh
Charging Time	Approx. 3 hours
Playback Time	Up to 6 hours at moderate volume
Bluetooth Version	5.0
Bluetooth Range	Up to 10 meters
Output Power	10W RMS
Frequency Response	80 Hz - 20 kHz
Connectivity	Bluetooth, AUX 3.5mm, USB port, TF card slot, FM radio
Controls	Buttons for power, volume, mode, play/pause, track skip
Additional Features	TWS pairing, built-in microphone, LED light effects
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use liquid or aerosol cleaners.
Safety Precautions	Do not expose to water or extreme temperatures. Keep away from children.
Spare Parts Availability	Contact Infiniton support for replacement battery or charger.
Repairability	Designed for professional repair only. Do not disassemble.
Included Accessories	USB charging cable, AUX cable, user manual
Warranty	2 years (check local regulations)

Frequently Asked Questions - SBV08H13 Infiniton

How do I pair the speaker with my phone via Bluetooth?

Turn on the speaker by pressing and holding the power button. The speaker will enter pairing mode automatically (indicated by a flashing LED). On your phone, enable Bluetooth and select Infiniton SBV08H13 from the list. If prompted, enter '0000' as the PIN.

Can I use the speaker while it is charging?

Yes, you can use the speaker while it is connected to a power source via the USB cable. However, charging time may be longer during use.

How do I switch between Bluetooth, AUX, USB, TF card, and FM radio modes?

Press the Mode button on the speaker to cycle through the available sources. Each mode will be indicated by a different color LED or sound prompt.

How long does it take to fully charge the battery?

A full charge typically takes about 3 hours using a standard 5V/1A USB charger.

What is the battery life of the speaker?

At moderate volume, the battery lasts up to 6 hours. Higher volume and use of LED lights will reduce playback time.

How can I reset the speaker?

If the speaker becomes unresponsive, press and hold the power button for about 10 seconds until it turns off. Then turn it on again normally.

Does the speaker have a microphone for hands-free calls?

Yes, the speaker features a built-in microphone. When a call comes in while connected via Bluetooth, press the Play/Pause button to answer, and press it again to hang up.

How do I clean the speaker?

Use a soft, dry cloth to wipe the exterior. Do not use any liquid, abrasive cleaners, or spray directly on the speaker. Avoid getting moisture into the ports.

What should I do if the speaker does not turn on?

First, charge the speaker for at least 30 minutes. If it still does not turn on, try a different USB cable and charger. If the problem persists, contact Infiniton customer support.

Is it possible to pair two speakers together for stereo sound?

Yes, if you have two Infiniton SBV08H13 speakers, you can use TWS (True Wireless Stereo) pairing. Turn on both speakers and double-press the Mode button on one speaker to initiate TWS. They will automatically pair and create a left-right stereo setup.

USER MANUAL SBV08H13 Infiniton

Line drawing of a smart air purifier in a living room with sofa and TV (no text or symbols)

SBV08H13
ean: 8445639001769

Warning symbol depicting a traffic cone inside a triangle (no text or numbers)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Symbol of a trash bin crossed with two crossed lines, representing waste or discharge (no text or labels)

Top-down view of a device casing with internal components and directional arrows indicating flow or movement (no text or symbols)

Top-down view of a mechanical device casing with internal components and mounting holes (no visible text or symbols)

Panel de control

1. CONEXIÓN BT

Line drawing of a smart air purifier in a living room with sofa and TV (no text or symbols)

SBV08H13 ean: 8445639001769

Before using your new Infiniton product, please read this user manual carefully to learn how to safely and efficiently use the features offered by this device.

Index	English
Safety information	14
How to use	17
Cleaning & Maintenance	19

For your safety and to ensure correct use, before installing and using the device for the first time, please read this user manual carefully, including its tips and warnings. To avoid unnecessary errors and accidents, it is important to ensure that all persons using the device are thoroughly familiar with its operation and safety features. Keep these instructions and ensure that they remain with the device if it is moved or sold, so that all those who use it throughout its lifetime are adequately informed about the use and safety of the device.

For the safety of life and property, observe the precautions in these user instructions, as the manufacturer is not liable for damage caused by omission.

• Do not obstruct ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as radiators, heat registers, cookers, or other apparatus (including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a grounding prong. The wide blade or the third prong is provided for your protection. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
  • To disconnect completely from the power cord, unplug the power plug from the electrical outlet.
• The power plug of the power cord shall remain readily operable.
• Do not expose batteries to excessive heat such as sunshine, fire or the like.
• This appliance should only be used with the power cord and/or charger supplied by the manufacturer.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN THE APPLIANCE.

THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED "DANGEROUS VOLTAGE" WITHIN THE PRODUCT'S ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.

THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE ALERTS THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS. IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE INFORMATION ACCOMPANYING THE PRODUCT. INFORMATION ACCOMPANYING THE PRODUCT.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

Caution: Use of headphones at high volume levels for prolonged periods of time may result in permanent hearing loss. For France, the products have been tested to ensure that they meet the sound pressure level requirement set out in the relevant NF EN 50332 L.5232-1.

Note: To avoid possible hearing damage, do not listen at high volumes for long periods of time.

Environment protection

This appliance does not contain gases that could damage the ozone layer, neither in its refrigerant circuit nor in the insulation materials. The appliance must not be disposed of with municipal waste and rubbish. The insulation foam contains flammable gases. The appliance must be disposed of in accordance with the regulations of the appliance to be obtained from the local authorities. Avoid damaging the cooling unit, especially the heat exchanger. The materials used in this appliance marked with the symbol are recyclable.

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

This symbol on the product or on its packaging indicates that this product must not be treated as household waste. Instead, it must be taken to the appropriate collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local authorities, your household waste disposal service or the shop where you purchased the product.

Packing materials

Materials with the symbol 📁 are recyclable. Dispose of the packaging in a suitable collection container for recycling.

Disposal of the appliance

1. Disconnect the plug from the socket.
2. Cut the power cord and discard it.

Warning! During use, service and disposal of the appliance, pay attention to this symbol, which is located on the back of the appliance (rear panel or compressor). This symbol will be yellow or orange in colour. It is a fire hazard warning sign. There are flammable materials in the refrigerant and compressor piping. Keep away from the source of fire during use, service and disposal..

RoHS Compliance

This equipment complies with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

For products including batteries

EU Battery Directive 2013/56/EU

On 01/07/2015 a new directive on batteries and accumulators, 2013/56/EU, came into force. The directive is applicable to all types of batteries and accumulators (AA, AAA, button cells, rechargeable

rechargeable packs), including those incorporated in devices, except those for military, medical and power tool applications. The directive sets standards for the collection, treatment, recycling and disposal of batteries and aims to ban certain hazardous substances and improve the environmental performance of batteries and all operators in the supply chain.

Instructions for users on battery take-back, recycling and disposal.

To remove batteries from your equipment or remote control, reverse the procedure described in the owner's manual to insert the batteries. In the case of products with an integrated battery that lasts for the lifetime of the equipment, the user cannot remove the battery. In this case, for recycling or recovery, if the battery needs to be replaced, this procedure must be carried out by authorised service centres. In the European Union and other locations, it is illegal to dispose of any battery with household waste. All batteries must be disposed of in an environmentally safe manner. Contact your local waste management authorities for information on the environmentally safe collection, recycling and disposal of used batteries.

WARNING: Danger of explosion if battery is incorrectly replaced. To reduce the risk of fire or burns, do not disassemble, crush, puncture, short circuit, expose to temperatures above 60^ C or dispose of in fire or water. Replace only with specified batteries. The “separate collection” symbol for all batteries and accumulators is the crossed-out wheeled bin below:

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Batteries, accumulators and button cells containing more than 0,0005 % mercury, more than 0,002 % cadmium or more than 0,004 % lead must be marked with the chemical symbol of the relevant metal: Hg, Cd or Pb respectively. Please pay attention to the following symbol:

WARNING: DO NOT SWALLOW BATTERIES, CHEMICAL BURN HAZARD [supplied with the remote control]

This product contains a button cell battery. If swallowed, it can cause severe internal burns in as little as two hours and result in death. Keep new and used batteries out of the reach of children. If you think batteries may have been swallowed or inserted into any part of the body, seek immediate medical attention.

EPILEPSY

WARNING

people may experience epileptic seizures when viewing flashing lights.

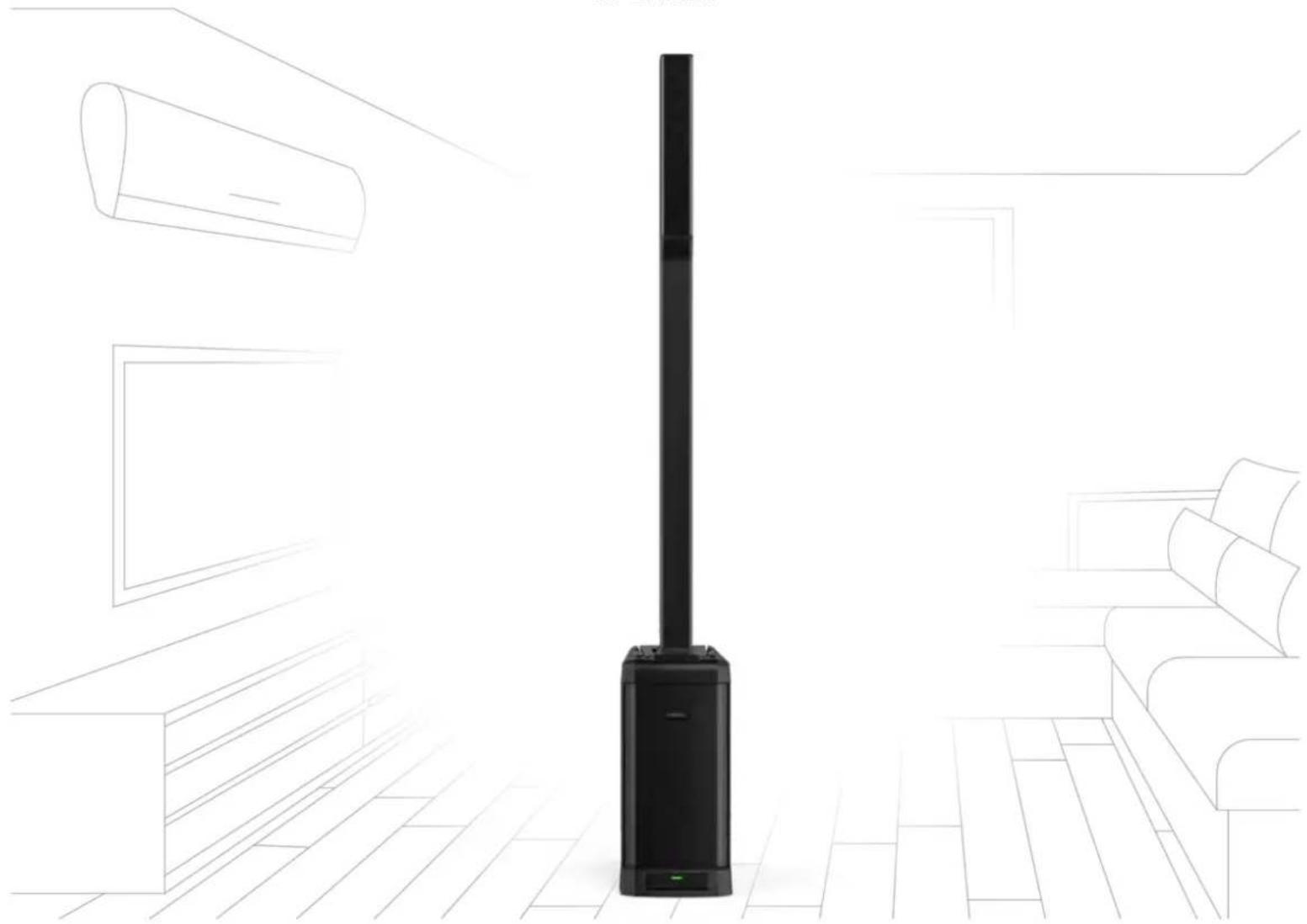

Product description

Due to technological innovations, the product description in this manual may not completely match your appliance. More detailed information corresponds to the final product.

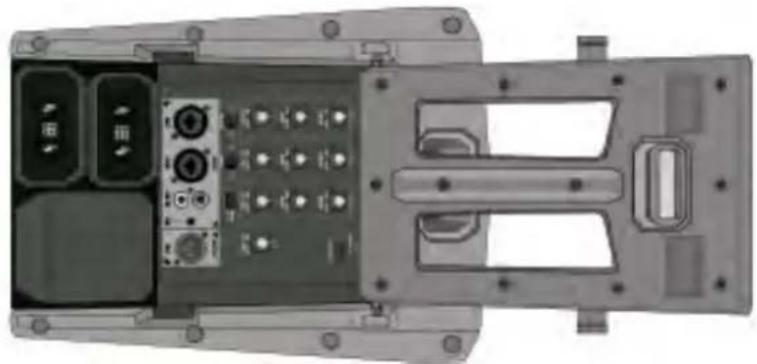

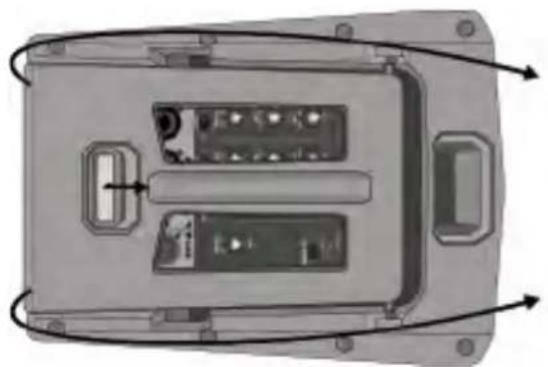

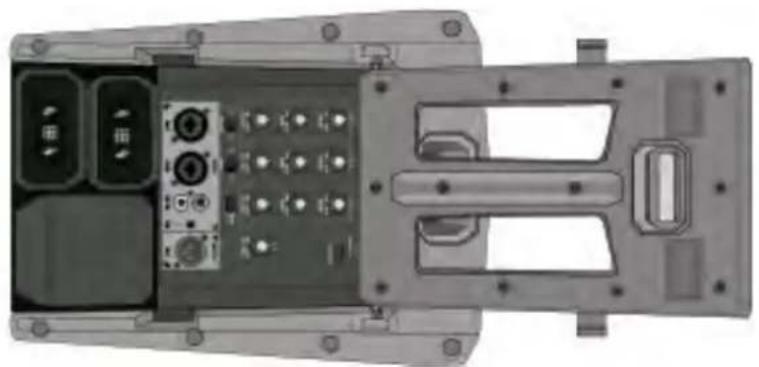

Open the lid

Slide the locking lever inward to unlock the cover. Tilt the cover until the control panel and column storage area are exposed.

Top-down view of a vehicle electronic panel with internal components and directional arrows indicating flow or movement (no text or symbols)

Top-down view of a mechanical device casing with internal components and mounting holes (no visible text or symbols)

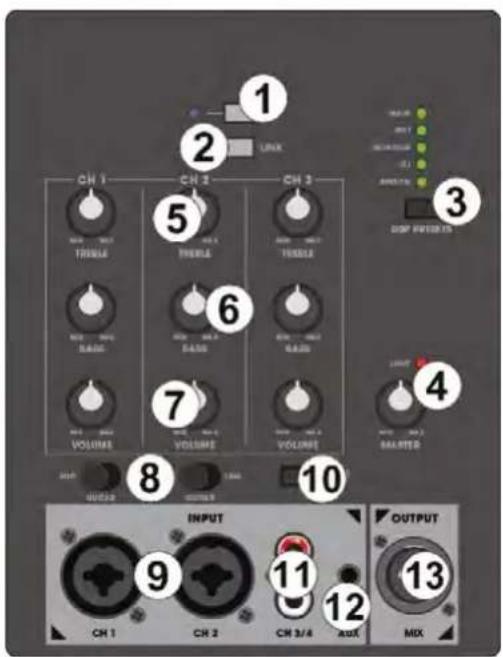

Control panel

BT CONNECTION

Press to activate the Bluetooth connection. When pressed, the SBV08H13 receiving device is detected on the transmitting device.

1. LINK (TWS/STEREO PAIRING)

If you have two SBV08H13 column speaker systems, you can establish a pairing between them by pressing this button on both systems. Both portable systems will transmit the same signal from the audio streaming function.

1. DSP PRESETS

Press to switch between presets (main, hifi, monitor, dj and voice).

1. MASTER

Turn to adjust the master output level.

1. TREBLE

Turn to adjust the treble level of the corresponding channel.

1. BASS

Turn to adjust the bass level of the corresponding channel.

1. CHANNEL VOLUME

Turn to adjust the output volume of the channel.

1. INPUT SWITCH

Slide switch to switch between the different inputs of channels 1 and 2 (microphone, guitar and line).

1. INPUT CHANNELS 1 AND 2

XLR and 6.3 mm combo jack inputs for connecting microphones, guitars or as line input.

1. LINE/TB SWITCH

Press to switch between line and BT input modes.

1. INPUT CHANNEL 3/4

RCA line input connections for channels 3/4.

1. AUX INPUT

3.5 mm auxiliary input for connecting an external audio device (CD or MP3 players, etc.).

1. MIX OUT

XLR mix output.

1. POWER INPUT

Connection for the supplied power cable.

1. POWER SWITCH

Press to turn the unit on or off.

Bluetooth connection

Turn on the Bluetooth function on the device (cell phone, tablet, etc.) on which you want to play the music. Refer to the user manual of that device.

1. Press the "BT" button to turn on the Bluetooth function.

Select "SBV08H13" on your BT device and pair it.

Note: BT distance is about 10 meters without obstacles.

TWS connection

If you have two SBV08H13 column speaker systems, it is possible to pair them together. Both portable systems will output the same signal via the audio streaming function. Follow the steps below to set up this stereo pairing:

1. Turn on both SBV08H13 column speaker systems.

2. Press the TWS button on both systems.

3. You will hear a beep to confirm the pairing.

4. Press the BT button and connect a streaming device (cell phone, tablet, etc.), input the signal to be played on the SBV08H13.

5. Press and hold the TWS button to cancel the function.

WARNING! Before cleaning, unplug the power plug first; do not connect or disconnect the power plug with wet hands, as there is a risk of electric shock and injury.

injury. Do not spill water directly on the appliance, thus avoiding rust, electricity leakage and accidents.

External cleaning

Clean dust accumulated on the surface of the appliance frequently.

WARNING! Do not use bristle brushes, wire brushes, detergent, soap powder, alkaline detergent, benzene, gasoline, acid, hot water and other corrosive or soluble elements to clean the surface of the Device, plastic decorative parts, etc. to avoid damage.

Disconnect the power plug after using this product.

Be careful of accumulated dust and dirt.

If the sound is distorted, turn down the volume.

Safety checks after servicing

Is the power cord broken or damaged?

Is the plug firmly inserted into the socket?

Is the power outlet abnormally overheated?

Note:

Electric shock and fire may occur if the power cord and plug are damaged or stained.

plug are damaged or stained with dust. If there is any abnormality, unplug the power cord and contact your dealer.
