Party EQ09 - Loudspeaker Infiniton - Free user manual and instructions

Product Type	Portable Speaker
Brand	Infiniton
Model	Party EQ09
EAN	8445639004449
Power Supply	AC 100-240V ~50/60Hz (mains adapter) or built-in rechargeable battery
Bluetooth	Yes (wireless audio streaming)
FM Tuner	Yes (auto-scan and preset memory)
USB Playback	Yes (supports USB flash drive)
TF Card Playback	Yes (supports microSD/TF card)
LINE IN	Yes (3.5mm auxiliary input)
Microphone Inputs	2 x 6.3mm jacks
Microphone Priority	Yes (dedicated button)
Echo Control	Yes (adjustable +/- via remote and control panel)
EQ Settings	Yes (multiple presets via EQ button)
Light Effects	Yes (multiple modes, switchable via button)
TWS Pairing	Yes (connect two speakers for stereo sound)
Remote Control	Yes (included)
Recording Function	Yes (record to USB/TF via microphone)
Display	LED display (shows frequency, track info, etc.)
Charging Indicator	Yes (LED)
Volume Controls	Main volume knob, microphone volume knob, remote control
Treble / Bass Adjustment	Yes (via remote)
Repeat Function	Yes (one / all) via remote
Power On/Off	Yes (switch on unit)
Cleaning	Use dry cloth; do not use solvents or water directly
Safety Certifications	CE, RoHS, WEEE compliant

Frequently Asked Questions - Party EQ09 Infiniton

How do I pair my phone with the speaker via Bluetooth?

Press the MODE button repeatedly until Bluetooth is selected. On your phone, enable Bluetooth and search for devices. Select Infiniton EQ09 from the list. The speaker will pair automatically.

How can I connect two speakers together for stereo sound (TWS)?

Place both speakers within 10 meters. Switch both to Bluetooth mode. On one speaker, press and hold the TWS button for 5 seconds to establish the connection. To exit TWS, press and hold TWS again or turn off the speakers.

Can I use a microphone with this speaker?

Yes, the speaker has two 6.3mm microphone inputs (MIC1 and MIC2). You can adjust microphone volume, echo, and enable microphone priority via the control panel or remote.

How do I use the FM radio function?

Press MODE until FM is selected. Press the Play/Pause button to auto-scan and store available stations. Use the Previous/Next buttons to browse stored stations, or use number buttons on the remote to select a preset.

What should I do if there is no sound from the speaker?

Check that the speaker is powered on and the volume is turned up. Ensure the correct mode is selected (Bluetooth, USB, etc.). If using Bluetooth, make sure the source device is connected and playing. If the sound is distorted, reduce the volume.

How do I clean the speaker?

Unplug the speaker before cleaning. Use a dry soft cloth to wipe the exterior. Do not use water, solvents, or abrasive cleaners, as they may damage the surface or cause electrical hazards.

Can I record my voice using this speaker?

Yes, in USB or TF card mode, press the REC button on the remote control to start recording from the microphone. Press REC PLAY to playback the recording, and R.DEL to erase it.

How long does the battery last on a full charge?

Battery life depends on volume level and usage (e.g., light effects, microphone). For optimal performance, charge the speaker fully before first use. The exact duration is not specified by the manufacturer.

What batteries does the remote control use?

The remote control uses a coin cell battery (likely CR2025 or similar). Refer to the battery compartment for the exact type. Replace with the same type and observe polarity.

Is the speaker waterproof or splashproof?

No, the speaker is not waterproof. Avoid exposure to rain, moisture, or liquids. Do not place any object filled with water (e.g., a vase) on the speaker.

USER MANUAL Party EQ09 Infiniton

Red and black portable electric heater with orange LED lights (no visible text or symbols)

Party EQ09
ean: 8445639004449

Warning symbol depicting a traffic cone inside a triangle (no text or numbers)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Red and black electric heater with LED display and orange buttons (no visible text or symbols)

Party EQ09

ean: 8445639004449

Before using your new Infiniton product, please read this user manual carefully to learn how to safely and efficiently use the features offered by this device.

Index	English
Safety information	14
How to use	17
Cleaning & Maintenance	19

For your safety and to ensure correct use, before installing and using the device for the first time, please read this user manual carefully, including its tips and warnings. To avoid unnecessary errors and accidents, it is important to ensure that all persons using the device are thoroughly familiar with its operation and safety features. Keep these instructions and ensure that they remain with the device if it is moved or sold, so that all those who use it throughout its lifetime are adequately informed about the use and safety of the device.

For the safety of life and property, observe the precautions in these user instructions, as the manufacturer is not liable for damage caused by omission.

• Do not obstruct ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as radiators, heat registers, cookers, or other apparatus (including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a grounding prong. The wide blade or the third prong is provided for your protection. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
  • To disconnect completely from the power cord, unplug the power plug from the electrical outlet.
• The power plug of the power cord shall remain readily operable.
• Do not expose batteries to excessive heat such as sunshine, fire or the like.
• This appliance should only be used with the power cord and/or charger supplied by the manufacturer.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN THE APPLIANCE.

THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED "DANGEROUS VOLTAGE" WITHIN THE PRODUCT'S ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.

THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE ALERTS THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS. IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE INFORMATION ACCOMPANYING THE PRODUCT. INFORMATION ACCOMPANYING THE PRODUCT.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

Caution: Use of headphones at high volume levels for prolonged periods of time may result in permanent hearing loss. For France, the products have been tested to ensure that they meet the sound pressure level requirement set out in the relevant NF EN 50332 L.5232-1.

Note: To avoid possible hearing damage, do not listen at high volumes for long periods of time.

Environment protection

This appliance does not contain gases that could damage the ozone layer, neither in its refrigerant circuit nor in the insulation materials. The appliance must not be disposed of with municipal waste and rubbish. The insulation foam contains flammable gases. The appliance must be disposed of in accordance with the regulations of the appliance to be obtained from the local authorities. Avoid damaging the cooling unit, especially the heat exchanger. The materials used in this appliance marked with the symbol are recyclable.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

This symbol on the product or on its packaging indicates that this product must not be treated as household waste. Instead, it must be taken to the appropriate collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local authorities, your household waste disposal service or the shop where you purchased the product.

Packing materials

Materials with the symbol 📁 are recyclable. Dispose of the packaging in a suitable collection container for recycling.

Disposal of the appliance

1. Disconnect the plug from the socket.

2. Cut the power cord and discard it.

Warning! During use, service and disposal of the appliance, pay attention to this symbol, which is located on the back of the appliance (rear panel or compressor). This symbol will be yellow or orange in colour. It is a fire hazard warning sign. There are flammable materials in the refrigerant and compressor piping. Keep away from the source of fire during use, service and disposal..

RoHS Compliance

This equipment complies with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

For products including batteries

EU Battery Directive 2013/56/EU

On 01/07/2015 a new directive on batteries and accumulators, 2013/56/EU, came into force. The directive is applicable to all types of batteries and accumulators (AA, AAA, button cells, rechargeable

rechargeable packs), including those incorporated in devices, except those for military, medical and power tool applications. The directive sets standards for the collection, treatment, recycling and disposal of batteries and aims to ban certain hazardous substances and improve the environmental performance of batteries and all operators in the supply chain.

Instructions for users on battery take-back, recycling and disposal.

To remove batteries from your equipment or remote control, reverse the procedure described in the owner's manual to insert the batteries. In the case of products with an integrated battery that lasts for the lifetime of the equipment, the user cannot remove the battery. In this case, for recycling or recovery, if the battery needs to be replaced, this procedure must be carried out by authorised service centres. In the European Union and other locations, it is illegal to dispose of any battery with household waste. All batteries must be disposed of in an environmentally safe manner. Contact your local waste management authorities for information on the environmentally safe collection, recycling and disposal of used batteries.

WARNING: Danger of explosion if battery is incorrectly replaced. To reduce the risk of fire or burns, do not disassemble, crush, puncture, short circuit, expose to temperatures above 60^ C or dispose of in fire or water. Replace only with specified batteries. The “separate collection” symbol for all batteries and accumulators is the crossed-out wheeled bin below:

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Batteries, accumulators and button cells containing more than 0,0005 % mercury, more than 0,002 % cadmium or more than 0,004 % lead must be marked with the chemical symbol of the relevant metal: Hg, Cd or Pb respectively. Please pay attention to the following symbol:

WARNING: DO NOT SWALLOW BATTERIES, CHEMICAL BURN HAZARD [supplied with the remote control]

This product contains a button cell battery. If swallowed, it can cause severe internal burns in as little as two hours and result in death. Keep new and used batteries out of the reach of children. If you think batteries may have been swallowed or inserted into any part of the body, seek immediate medical attention.

EPILEPSY

WARNING

Some people may experience epileptic seizures when viewing flashing lights.

Product description

Due to technological innovations, the product description in this manual may not completely match your appliance. More detailed information corresponds to the final product.

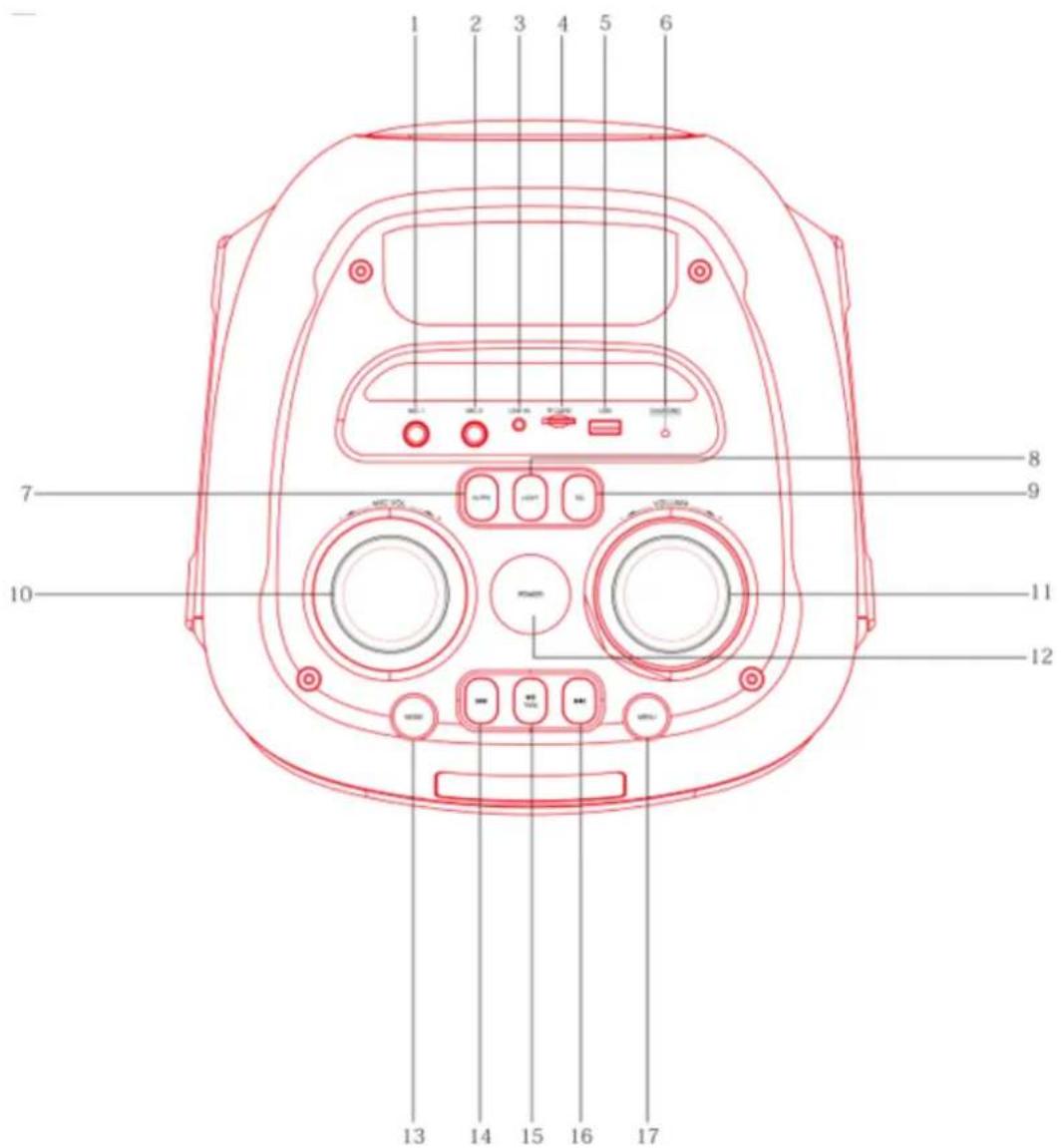

Top control panel

1 Microphone input

2 Microphone input

3 Line input

4 TF card input

5 USB input

6 Charging indicator light

7 MIC priority

8 Light mode

9 EQ function

10 MIC volume

11 Main volume

12 On/Off

13 Mode:(Line in, USB, TF Card, Wireless BT, FM)

14 Previous song

15 Short press to play/pause in USB/TF/BT, and press once to scan all stations and store them automatically in FM mode. Long press to switch on TWS function.

16 Next song

17 Menu

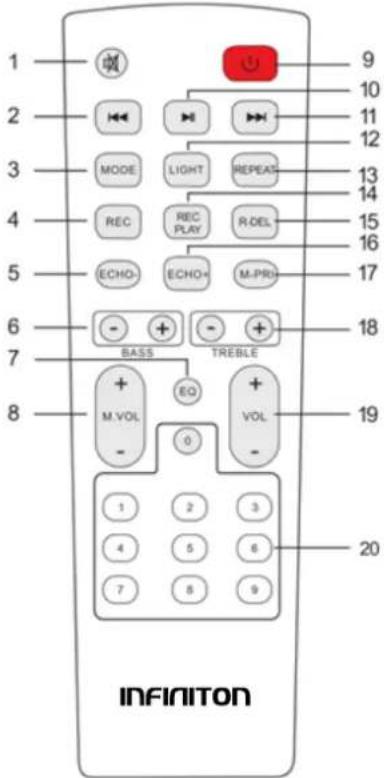

Remote control

1. Mute

Available to be muted in any mode.

2.Previous song

Short press to play the previous song (in USB/TF/BT/FM mode), long press to fast backward (in USB/TF mode).

1. Mode

Short press to jump to BT/LINE IN/USB/TF/FM mode.

1. Recording function

In USB/TF mode, press the "REC" button to record.

1. Echo

Press to microphone echo decrease.

1. BASS+/-

Press to increase or decrease the bass.

7.EQ function

Press to select different EQ settings.

1. Microphone volume+/-

Press to increase or decrease the microphone volume.

1. Stand by

2. Pause and playback

Short press to play/pause (In USB/TF/BT), long press to connect TWS, and one press to scan all stations and automatically store in FM mode.

1. Next song

Short press to go to the next song (in USB/TF/BT/FM mode), long press to fast forward (in USB/TF mode).

1. Light mode

Switch and turn on/off the light effect.

1. Repeat function

Press to repeat one song or repeat all songs. In BT/LINE IN mode, this button has no function.

1. Recording playback

In USB/TF mode, press to playback the recording.

1. Delete recording

In USB/TF mode, press to erase the recording.

1. Echo+

Press to increase the Echo in any mode.

1. Microphone priority

When the Microphone is in use, press once to have priority over the music program, press again to disable this function.

1. Treble+/-

Press to increase or decrease the treble in any mode.

1. Main volume

2. Number buttons

In USB/TF mode to choose songs. In FM mode you can choose the received station.

Bluetooth pairing mode:

Press the MODE button on the unit or remote control until Bluetooth is selected.

1. Bring the cell phone within 10 meters;
2. Activate the Bluetooth functions of your cell phone to start searching for the Bluetooth device. 3.
3. Select the corresponding device name (Infiniton EQ09) on your cell phone. The cell phone will be paired to the device.
4. Briefly press the "Pause" button to play or pause the music. Short press the "Previous Song" or "Next Song" key to select the previous or next track.

LINE IN mode:

Press the MODE button on the unit or remote control until LINE is selected. Play music from the device connected to the LINE input.

USB / TF CARD mode:

1. After power on, press MODE button to select "USB or TF card" mode, or insert USB or TF card into this speaker, the unit will play the songs automatically.
2. Short press "Pause" button to pause or play.
3. Short press "Previous song" key to go to the previous song.
4. Briefly press the "Next Song" button to go to the next song.

FM mode:

1. Turn on the device and repeatedly press the MODE button to select the FM function (the frequency is shown on the display).
2. Press the play button to activate the automatic memorization (the tuner searches for available stations and memorizes them automatically). The number of memorized stations depends on the reception in your area.
3. Use the next/previous buttons to listen to the memorized stations.
4. To select a preset station directly, press the corresponding number button on the remote control.

TWS mode:

It is possible to connect two speakers together in TWS mode.

1. Place the two TWS loudspeakers close to each other (the distance should not exceed 10 meters).

2. Switch on the two speakers, both speakers selected in Bluetooth mode,

Press and hold the TWS button of one of the speakers as the master speaker for 5 seconds.

If the TWS button of the master speaker is pressed for 5 seconds, the TWS connection will be established.

1. In TWS mode, press and hold the TWS button for about 5 seconds on either speaker or turn off the speaker to exit TWS mode.

WARNING! Before cleaning, unplug the power plug first; do not connect or disconnect the power plug with wet hands, as there is a risk of electric shock and injury.

injury. Do not spill water directly on the appliance, thus avoiding rust, electricity leakage and accidents.

External cleaning

Clean dust accumulated on the surface of the appliance frequently.

WARNING! Do not use bristle brushes, wire brushes, detergent, soap powder, alkaline detergent, benzene, gasoline, acid, hot water and other corrosive or soluble elements to clean the surface of the Device, plastic decorative parts, etc. to avoid damage.

Disconnect the power plug after using this product.

Be careful of accumulated dust and dirt.

If the sound is distorted, turn down the volume.

Safety checks after servicing

Is the power cord broken or damaged?

Is the plug firmly inserted into the socket?

Is the power outlet abnormally overheated?

Note:

Electric shock and fire may occur if the power cord and plug are damaged or stained.

plug are damaged or stained with dust. If there is any abnormality, unplug the power cord and contact your dealer.
