Party EQ90 - Loudspeaker Infiniton - Free user manual and instructions

Product Type	Portable Bluetooth Speaker with Karaoke Function
Brand	Infiniton
Model	Party EQ90
Dimensions (L x W x H)	35 x 36 x 101 cm
Weight	2.882 kg (may be 28.82 kg; see note)
Total RMS Power Output	370 W
Tweeter Driver	70 mm (1.3 inch), 1 x 35 W RMS, 6 Ω
Subwoofer Driver	385 mm (15 inch), 2 x 170 W RMS, 4 Ω
Frequency Response	40 Hz - 15 kHz (overall)
Signal-to-Noise Ratio	80 dB
Sensitivity	550 mV ± 50; 95 dB
Bluetooth Version	V5.0
Bluetooth Profiles	A2DP
Bluetooth Range	2.4 GHz (2402 - 2480 MHz)
Battery Type	Lead-acid, 12 V, 9 Ah
Charging Time	3 hours
Play Time at 50% Volume	2 - 3.5 hours
Play Time at 100% Volume	1 - 1.5 hours
Power Supply	AC 110-240 V, 50/60 Hz; DC 15 V, 6 A
Max Supported USB/SD Card Size	128 GB
Inputs	TF, USB, AUX, Guitar, Microphone (2x), DC 15V
Outputs	AUX out
Wireless Microphones Included	2 (UHF type)
Remote Control Included	Yes
Special Features	LED light effects, DJ effects, G-BASS, Vocal enhancement, Bluetooth TWS (pair two units)
Material	ABS + Metal
Cleaning	Unplug before cleaning; use dry cloth; avoid abrasive cleaners
Safety Warnings	Do not expose to rain or moisture; avoid overheating; use only specified charger
Disposal	Do not dispose with household waste; recycle at designated points

Frequently Asked Questions - Party EQ90 Infiniton

How do I pair my smartphone with the Infiniton Party EQ90 via Bluetooth?

Turn on the speaker and press the MODE button to select Bluetooth mode (display shows 'BLUE'). On your phone, search for Bluetooth devices and select 'INFINITON Eq90'. A beep confirms connection. If pairing fails, ensure no other devices are connected and try again.

Can I connect two Party EQ90 speakers together for stereo sound?

Yes, the speaker supports Bluetooth TWS (True Wireless Stereo). While both speakers are in Bluetooth mode, press and hold the MODE button on one speaker to enable TWS pairing. They will automatically connect, giving you left and right channels. Note: TWS disconnects if either speaker switches input or turns off.

How long does the battery last on a full charge?

Battery playtime depends on volume: at 50% volume, expect 2 to 3.5 hours; at 100% volume, approximately 1 to 1.5 hours. Charging time is about 3 hours. The battery is a 12V 9Ah lead-acid type.

What is the correct way to clean the speaker?

Always unplug the power cord before cleaning. Use a soft, dry cloth to wipe the surface. Do not use water, detergents, or abrasive cleaners. Avoid getting moisture into any openings to prevent electric shock or damage.

How do I use the wireless microphones?

Insert two 1.5V AA batteries into each microphone (not included). Slide the microphone switch up to turn it on. The indicator light will show when the battery is low. Speak into the receiver area. Adjust Mic volume using the center microphone control on the speaker.

What should I do if there is no sound from the speaker?

Check that the speaker is turned on and volume is not at minimum. Verify the source device is playing and connected. If using Bluetooth, ensure the device is paired. Try a different input (USB, AUX) to isolate the problem. If distorted, lower the volume. If issue persists, inspect cables and power supply.

Can I use a USB flash drive to play music?

Yes, insert a USB drive (FAT32 format) with MP3 files into the USB input. The speaker will automatically detect and play music. Maximum supported capacity is 128 GB. Use the PREV/NEXT buttons to navigate tracks.

How do I activate the LED light effects?

Press the LIGHT button on the top control panel to cycle through different lighting modes. Some modes synchronize with the music. The LED can also be turned off by pressing the button until lights are off.

What safety precautions should I observe when using the speaker?

Do not expose the speaker to rain or moisture. Avoid blocking ventilation openings. Keep away from heat sources. Use only the supplied power cord. Do not open the casing (risk of electric shock). If using a cart, be careful to avoid tipping. Unplug during thunderstorms or prolonged non-use.

How should I dispose of the speaker when it reaches end of life?

Do not throw the speaker in household waste. It contains electronic components and a battery that must be recycled. Take it to a designated collection point for electrical and electronic equipment. The crossed-out wheeled bin symbol on the product indicates separate collection. Contact local authorities for details.

USER MANUAL Party EQ90 Infiniton

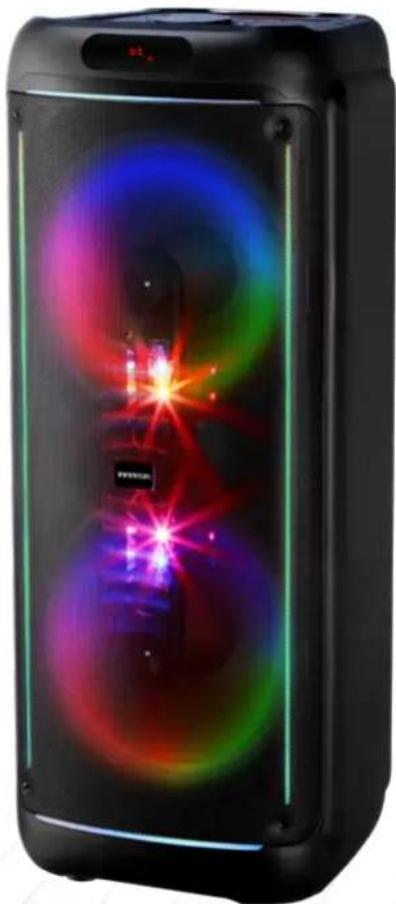

Black electronic device with colorful laser effects and a glowing 'eV' logo (no visible text or symbols)

Party EQ90

ean: 8445639004470

Warning symbol depicting a traffic cone inside a triangle (no text or numbers)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or restriction (no text present)

Black electronic device with glowing purple and blue light effects, no visible text or symbols

Party EQ90

ean: 8445639004470

Before using your new Infiniton product, please read this user manual carefully to learn how to safely and efficiently use the features offered by this device.

Index	English
Safety information	14
How to use	17
Cleaning & Maintenance	19

For your safety and to ensure correct use, before installing and using the device for the first time, please read this user manual carefully, including its tips and warnings. To avoid unnecessary errors and accidents, it is important to ensure that all persons using the device are thoroughly familiar with its operation and safety features. Keep these instructions and ensure that they remain with the device if it is moved or sold, so that all those who use it throughout its lifetime are adequately informed about the use and safety of the device.

For the safety of life and property, observe the precautions in these user instructions, as the manufacturer is not liable for damage caused by omission.

• Do not obstruct ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as radiators, heat registers, cookers, or other apparatus (including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a grounding prong. The wide blade or the third prong is provided for your protection. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
  • To disconnect completely from the power cord, unplug the power plug from the electrical outlet.
• The power plug of the power cord shall remain readily operable.
• Do not expose batteries to excessive heat such as sunshine, fire or the like.
• This appliance should only be used with the power cord and/or charger supplied by the manufacturer.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN THE APPLIANCE.

THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED "DANGEROUS VOLTAGE" WITHIN THE PRODUCT'S ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.

THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE ALERTS THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS. IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE INFORMATION ACCOMPANYING THE PRODUCT. INFORMATION ACCOMPANYING THE PRODUCT.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

Caution: Use of headphones at high volume levels for prolonged periods of time may result in permanent hearing loss. For France, the products have been tested to ensure that they meet the sound pressure level requirement set out in the relevant NF EN 50332 L.5232-1.

Note: To avoid possible hearing damage, do not listen at high volumes for long periods of time.

Environment protection

This appliance does not contain gases that could damage the ozone layer, neither in its refrigerant circuit nor in the insulation materials. The appliance must not be disposed of with municipal waste and rubbish. The insulation foam contains flammable gases. The appliance must be disposed of in accordance with the regulations of the appliance to be obtained from the local authorities. Avoid damaging the cooling unit, especially the heat exchanger. The materials used in this appliance marked with the symbol are recyclable.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

This symbol on the product or on its packaging indicates that this product must not be treated as household waste. Instead, it must be taken to the appropriate collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local authorities, your household waste disposal service or the shop where you purchased the product.

Packing materials

Materials with the symbol 📁 are recyclable. Dispose of the packaging in a suitable collection container for recycling.

Disposal of the appliance

1. Disconnect the plug from the socket.

2. Cut the power cord and discard it.

Warning! During use, service and disposal of the appliance, pay attention to this symbol, which is located on the back of the appliance (rear panel or compressor). This symbol will be yellow or orange in colour. It is a fire hazard warning sign. There are flammable materials in the refrigerant and compressor piping. Keep away from the source of fire during use, service and disposal..

RoHS Compliance

This equipment complies with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

For products including batteries

EU Battery Directive 2013/56/EU

On 01/07/2015 a new directive on batteries and accumulators, 2013/56/EU, came into force. The directive is applicable to all types of batteries and accumulators (AA, AAA, button cells, rechargeable rechargeable packs), including those incorporated in devices, except those for military, medical and power tool applications. The directive sets standards for the collection, treatment, recycling and disposal of batteries and aims to ban certain hazardous substances and improve the environmental performance of batteries and all operators in the supply chain.

Instructions for users on battery take-back, recycling and disposal.

To remove batteries from your equipment or remote control, reverse the procedure described in the owner's manual to insert the batteries. In the case of products with an integrated battery that lasts for the lifetime of the equipment, the user cannot remove the battery. In this case, for recycling or recovery, if the battery needs to be replaced, this procedure must be carried out by authorised service centres. In the European Union and other locations, it is illegal to dispose of any battery with household waste. All batteries must be disposed of in an environmentally safe manner. Contact your local waste management authorities for information on the environmentally safe collection, recycling and disposal of used batteries.

WARNING: Danger of explosion if battery is incorrectly replaced. To reduce the risk of fire or burns, do not disassemble, crush, puncture, short circuit, expose to temperatures above 60^ C or dispose of in fire or water. Replace only with specified batteries. The “separate collection” symbol for all batteries and accumulators is the crossed-out wheeled bin below:

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Batteries, accumulators and button cells containing more than 0,0005 % mercury, more than 0,002 % cadmium or more than 0,004 % lead must be marked with the chemical symbol of the relevant metal: Hg, Cd or Pb respectively. Please pay attention to the following symbol:

WARNING: DO NOT SWALLOW BATTERIES, CHEMICAL BURN HAZARD [supplied with the remote control]

This product contains a button cell battery. If swallowed, it can cause severe internal burns in as little as two hours and result in death. Keep new and used batteries out of the reach of children. If you think batteries may have been swallowed or inserted into any part of the body, seek immediate medical attention.

EPILEPSY

WARNING

Some people may experience epileptic seizures when viewing flashing lights.

Product description

Due to technological innovations, the product description in this manual may not completely match your appliance. More detailed information corresponds to the final product.

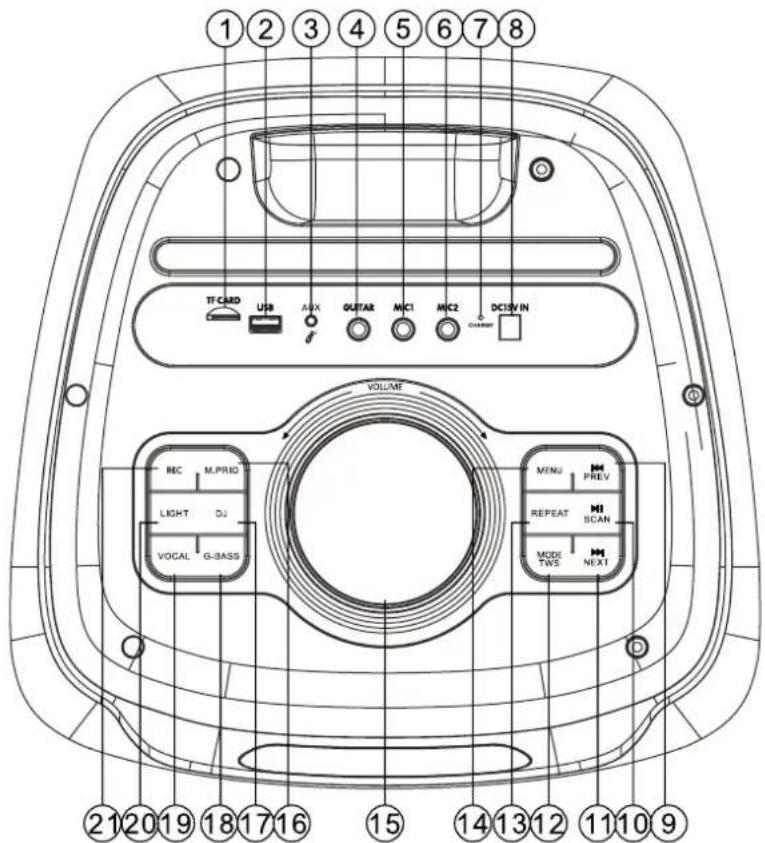

Top control panel

1 TF input

2 USB input

3 AUX audio input

4 Guitar input

5 Mic 1 input

6 Mic 2 input

7 Charging light

8 DC 15V input

9 Previous song

10 Pause/Play

11 Next song

12 Mode selection. Scan Bluetooth connectivity

13 Repeat

14 MENU

15 Master volume adjustment

16 Center microphone

17 DJ

18 G-BASS

19 VOCAL

20 LED LIGHT

21 Rec / Play

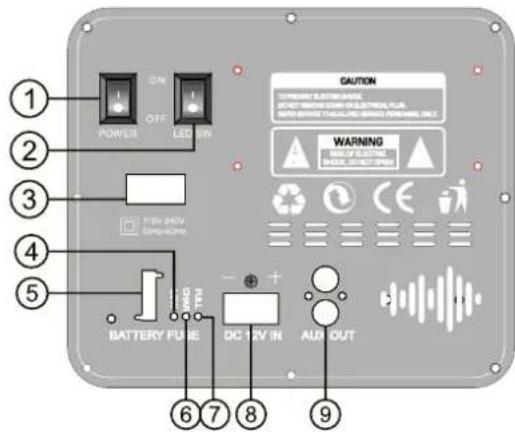

Rear Control panel

1 On/Off
2 LED	on/off
3 Input AC110-240V 50/60Hz
4 Low battery
5 Battery fuse
6 Charging indication
7 Full charge indication
8 12V DC input
9 AUX output

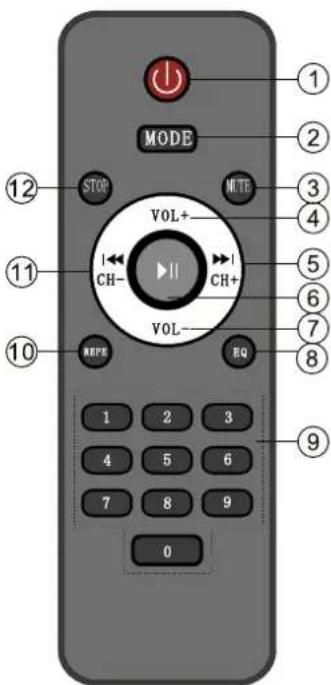

Remote control

1 Power on/off

2 Mode selection

3 Mute

4 Volume

5 Next song

6 Pause / Play / Scan

7 Volume

8 Equalize

9 Program

10 Repeat

11 Previous song

12 Stop song

Wireless microphone

1 Receiver: Please speak into this location.

2 Indicator light: Lights up when voltage is insufficient.

3 Microphone switch: Up is on, down is off.

4 Battery compartment: Two 1.5v batteries.

Bluetooth

Turn on the power, switch the input to bluetooth, and the display will show "BLUE" and you will hear a sound. Open the bluetooth device to connect and turn on Bluetooth and see "INFINITON Eq90", which will connect with the device. You will hear a beep sound after the connection is successful.

At the same time in Bluetooth status of the same model, two devices can be paired simultaneously by pressing and holding the Mode button to turn on the Bluetooth interconnection. As long as one of them switches to other inputs or is turned off, the Bluetooth interconnection will be automatically disconnected.

WARNING! Before cleaning, unplug the power plug first; do not connect or disconnect the power plug with wet hands, as there is a risk of electric shock and injury.

injury. Do not spill water directly on the appliance, thus avoiding rust, electricity leakage and accidents.

External cleaning

Clean dust accumulated on the surface of the appliance frequently.

WARNING! Do not use bristle brushes, wire brushes, detergent, soap powder, alkaline detergent, benzene, gasoline, acid, hot water and other corrosive or soluble elements to clean the surface of the Device, plastic decorative parts, etc. to avoid damage.

Disconnect the power plug after using this product.

Be careful of accumulated dust and dirt.

If the sound is distorted, turn down the volume.

Safety checks after servicing

Is the power cord broken or damaged?

Is the plug firmly inserted into the socket?

Is the power outlet abnormally overheated?

Note:

Electric shock and fire may occur if the power cord and plug are damaged or stained.

plug are damaged or stained with dust. If there is any abnormality, unplug the power cord and contact your dealer.

INFINITON

SPEAKER

Black electronic device with glowing purple and blue light effects, no visible text or symbols

Party EQ90
ean:8445639004470

Symbol of a trash bin crossed with two crossed lines and a horizontal bar below (no text or labels)

Warning symbol of a flame inside a triangle (no text or numbers)

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Product		Color Option	black
		Material	ABS+Metal
Specifications	Bluetooth Wireless	Bluetooth Version	V5.0
		Bluetooth Chipset	1048B
		Bluetooth Profiles	A2DP
		Bluetooth Range	2.4GHz (2402MHz~2480MHz)
	General	Battery:	Lead-acid battery12V9A
		Charging Time:	3hours
		Charge Input or Power Supply ?	AC input
		Output Current	15V/6A
		Play Time at 50% volume	2-3.5huors
		Play Time at 100% volume	1-1.5huors
		Max Size for SD Card	128G
		Max Size for Flash USB input	128G
		Signal to Noise Ratio:	80dB
		Frequency Response:	40-15KHZ
		Sensitivity:	550mV +/-50 ; 95DB
		Product Size (L*W*H)	35*36*101cm
		Product Weight (KGS)	2,882
		Total RMS Power Output	370W
	Tweeter	Driver Size	70mm
		Unit Size:	1.3inch
		Number of speaker	1
		RMS Power per speaker	35W
		Impedance	6Ω
		Frequency Response	1-15KHZ
	Subwoofer	Driver Size	385mm
		Unit Size:	15inch、Φ35、120Head
		Number of speaker	2
		RMS Power per speaker	170W
		Impedance	4Ω
		Frequency Response	40-2KHZ
