USER MANUAL DBP-4010UDCI DENON

The serial number of this product may be found on the back of the unit. No others have the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft.

Date of Purchase Dealer Purchase from Dealer Address Dealer Phone No. Model No. Serial No.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Only use attachments/accessories specified by the manufacturer. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Batteries shall not be exposed to excessive heat such as sunshine, fire or

• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, tablecloths, curtains, etc.
• No naked flame sources, such as lighted candles, should be placed on the unit.
• Observe and follow local regulations regarding battery disposal.
• Do not expose the unit to dripping or splashing fluids.
• Do not place objects filled with liquids, such as vases, on the unit. ATTENTION:

• No colocar sobre el aparato objetos llenos de líquido, como jarros. CAUTION: To completely disconnect this product from the mains, disconnect the plug from the wall socket outlet. The mains plug is used to completely interrupt the power supply to the unit and must be within easy access by the user. PRECAUTION: CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. THIS PRODUCT SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL. n Laser Class (IEC 60825-1:2001) $-"44 -"4&3 130%6$5

FCC INFORMATION (For US customers)

This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this product may not cause harmful interference, and (2) this product must accept any interference received, including interference that may cause undesired operation. n NOTE ON USE / OBSERVATIONS RELATIVES A L’UTILISATION /

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modification not expressly approved by DENON may void your authority, granted by the FCC, to use the product.

This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the product into an outlet on a circuit different from that to which the receiver is connected.
• Consult the local retailer authorized to distribute this type of product or an experienced radio/TV technician for help. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. n Copyrights / Droits d’auteur / Derechos de Autor

• It is prohibited by law to reproduce, broadcast, rent or play discs in public without the consent of the copyright holder.
• De acuerdo con las leyes está prohibido reproducir, emitir, alquilar o interpretar discos en público sin la autorización del propietario de los derechos de autor.

• Avoid high temperatures. Allow for sufficient heat dispersion when installed in a rack.
• Evite altas temperaturas. Permite la suficiente dispersión del calor cuando está instalado en la consola.

• Do not let foreign objects into the unit.

• Do not let insecticides, benzene, and thinner come in contact with the unit.

• Handle the power cord carefully. Hold the plug when unplugging the cord.

• Never disassemble or modify the unit in any way.

ENGLISH Contents Features··························································································· 2 Getting Started Accessories····················································································· 2 Cautions on Handling····································································· 3 Cautions on Installation································································· 3 About Media··················································································· 3 Playable Media·············································································· 3 Cautions on Using Media······························································ 6 About the Remote Control Unit···················································· 7 Inserting the Batteries··································································· 7 Operating Range of the Remote Control Unit······························ 7 Remote Control Settings (Remote Control Side) ························· 7 Part Names and Functions····························································· 8 Front Panel····················································································· 8 Display··························································································· 8 Rear Panel······················································································ 9 Remote Control Unit··································································· 10 Connections Preparation··················································································· 12 Cables Used for Connections····················································· 12

1. Home Theater Playback – Playing Back Using Multi-channel

System –························································································ 13 Using an HDMI Cable to Connect to an AV Amp or Television···· 13 Required Settings for HDMI Connection···································· 13 Connection to an AV Amp with No HDMI Audio Input··············· 15 Connecting to a Device with an Analog Multi-channel · Audio Input Terminal··································································· 16 DENON LINK Connection q Making a Jitter-free Connection··· 17 DENON LINK Connection w Making a Normal Connection······· 17 Connection to an AV Amp with No HDMI Video Input··············· 17

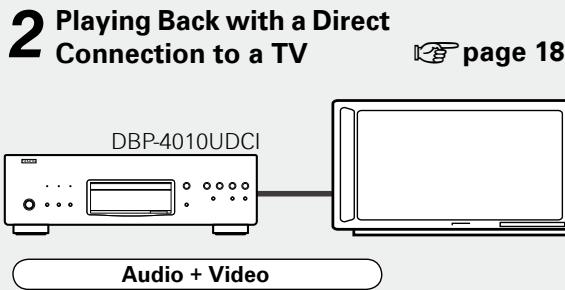

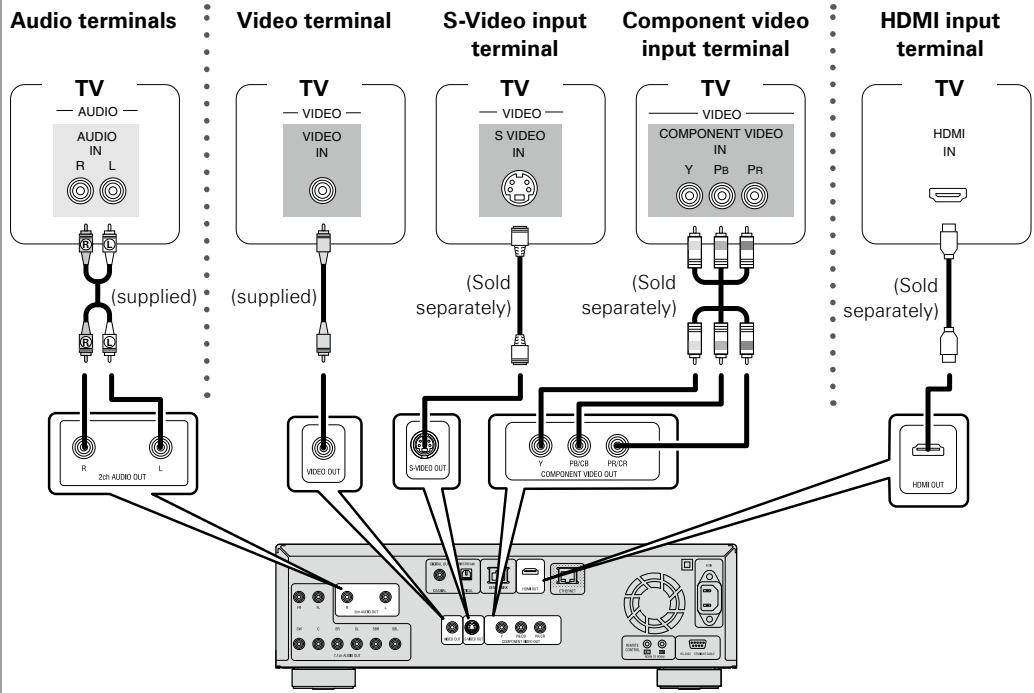

2. Playing Back with a Direct Connection to a TV····················· 18

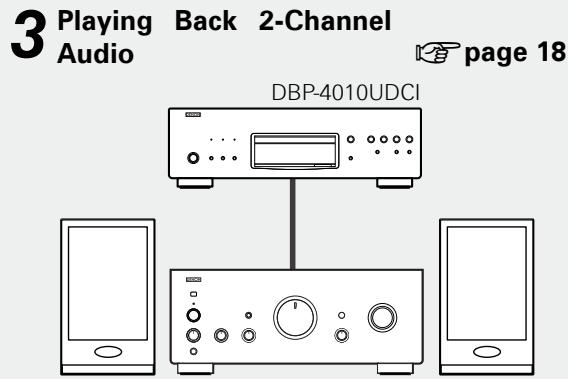

3. Playing Back 2-Channel Audio················································ 18

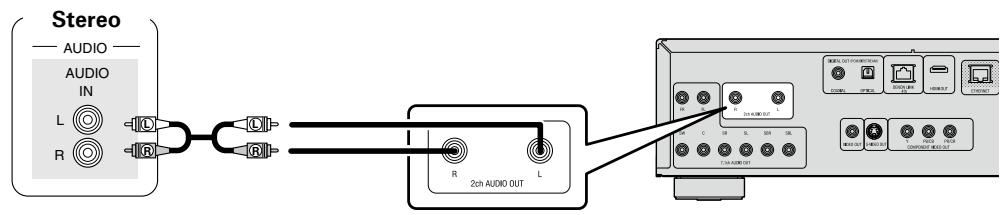

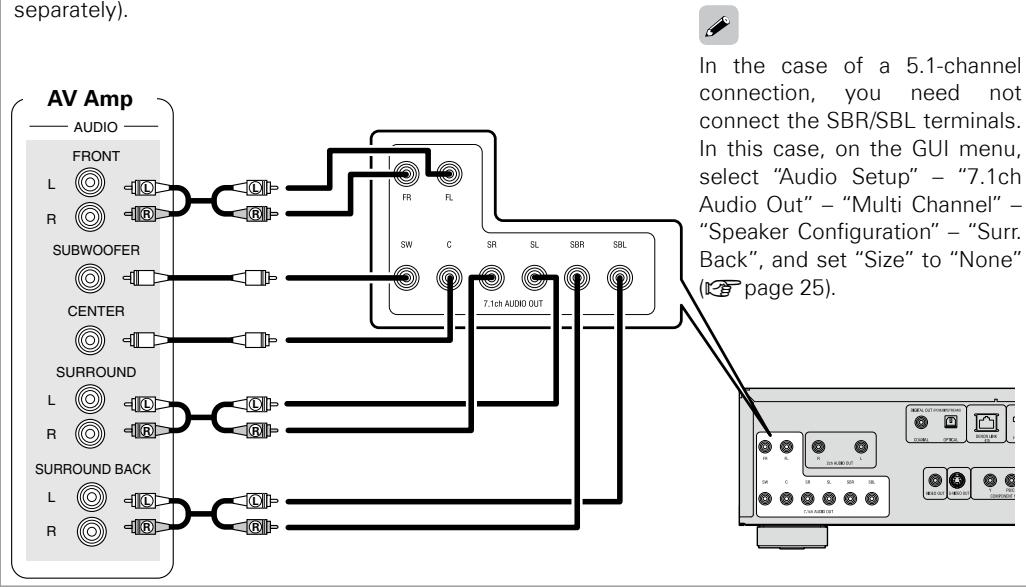

Connecting to a Device with Analog 2-channel Audio Input Terminal with Stereo Pin Plug Cable··········································· 18

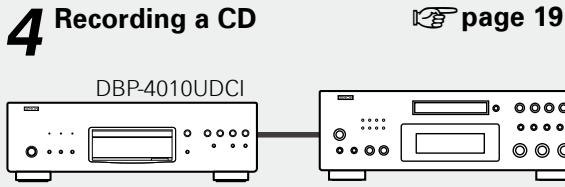

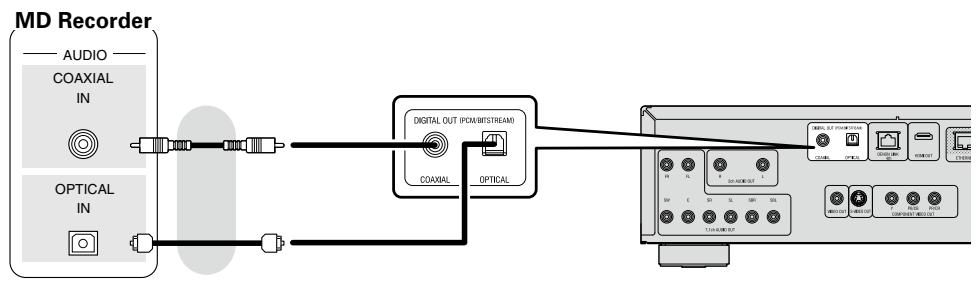

4. Recording a CD········································································· 19

Connecting to a Digital Recording Device·································· 19

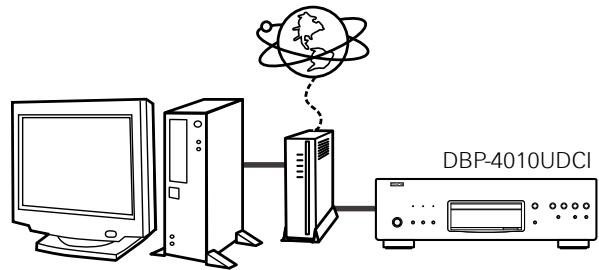

5. Using BD-LIVE function or updating the software version of

DBP-4010UDCI·············································································· 19 Connecting to the Network························································· 19 Connecting the Power Cord························································ 20 Once Connections are Completed·············································· 20 Turning the Power On·································································· 20

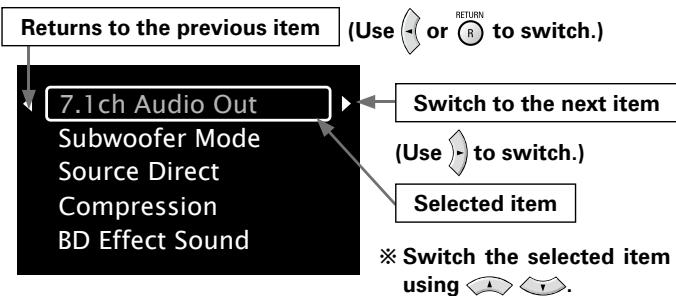

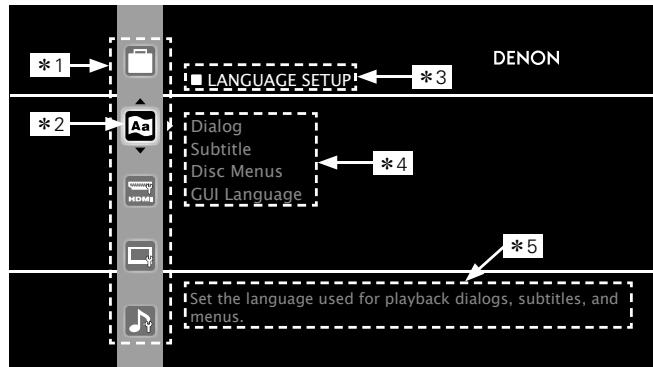

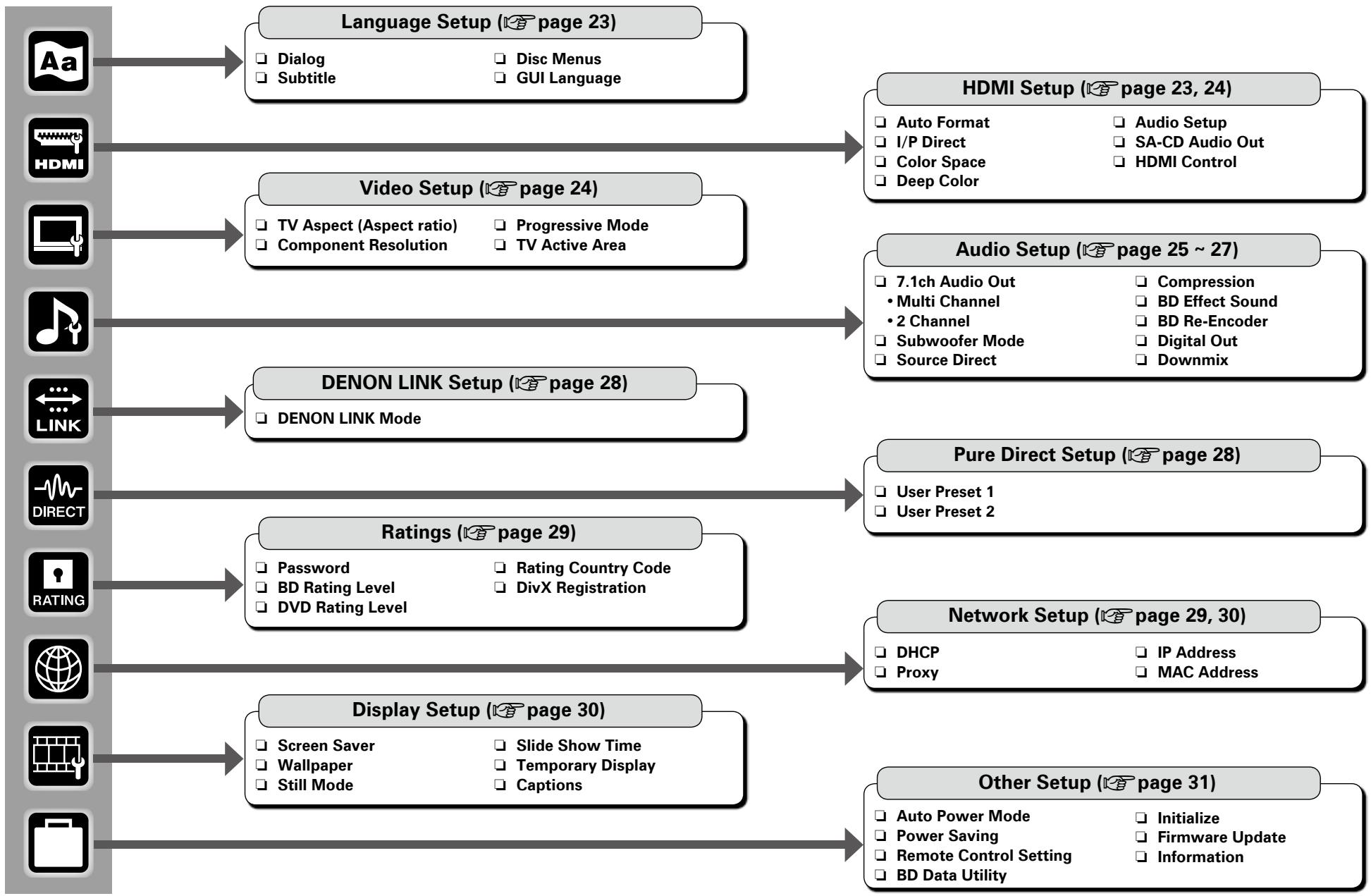

• GUI Menu Setup Menu Map····················································································· 21 GUI Menu Operation···································································· 22 Examples of GUI Menu Screen Displays···································· 22 Language Setup············································································ 23 HDMI Setup··················································································· 23 Video Setup·················································································· 24 Audio Setup·················································································· 25 DENON LINK Setup······································································ 28 Pure Direct Setup········································································· 28 Ratings·························································································· 29 Network Setup············································································· 29 Display Setup················································································ 30 Other Setup·················································································· 31 Various Settings Setting the Audio Mode······························································· 32 Changing the Playback File Display············································ 32 Making Other Settings································································· 32 Adjusting the Picture Quality (Picture Control)························· 33 Operations Enabled During Playback········································· 41 Pause Playback············································································ 41 Stop Playback (Resume Function)·············································· 41 Skipping to the Chapter/Track/File You Want to Playback·········· 41 Looking for Specific Sections Using the Search Modes············ 42 Memorizing Locations You Want to Replay · (Marker Function) ······································································· 43 Fast Forward/Fast Reverse·························································· 43 Step-by-Step Playback································································ 43 Slow Forward/Slow Reverse Playback········································ 43 Playback in Any Order (Random Playback)································· 44 Playing Back Repeatedly (Repeat Playback)······························· 44 Repeat Playback Between Specified Points (A-B Repeat)·········· 44 Playing Back in Your Preferred Order (Program Playback)·········· 45 Switching Audio·········································································· 45 Changing the Subtitles and Subtitle Style·································· 46 Switching the Angle···································································· 47 Changing the Brightness of the Display (Dimmer Control)······ 47 HDMI Control Function················································ 47 Other Information Playback Introduction·················································································· 34 Before Playing a Disc·································································· 34 Before Playing a SD Memory Card············································· 34 About Playback Information························································ 34 Information Bar Display······························································· 34 Media Player Display··································································· 35 Playing BD and DVD-Video························································· 36 Playing Back Super Audio CD····················································· 37 CD Playback·················································································· 37 DVD-Audio Playback···································································· 37 Playing Back High-Quality Audio (Pure Direct Function)·········· 38 File Playback················································································· 38 File Playback················································································ 39 About Screen Display During Playback······································· 40 Operation During Playback························································· 40 About DENON LINK····································································· 48 About Advanced AL24 Processing·············································· 48 About Copyright Protection Technology··································· 48 Trademark Information································································ 48 Language Code List······································································ 49 Country Code List········································································ 50 Explanation of Terms··································································· 51 Index······························································································ 52 Troubleshooting································································ 53 Specifications····································································· 55 ENGLISH HDMI control ready vpage 47 “HDMI Control Function” vpage 3, 4 “Playable Media” Equipped with Dolby TrueHD, DTS-HD Master Audio decoder Employs 6-block construction to eliminate mutual electrical and magnetic interference Accessories Check·that·the·following·parts·are·supplied·with·the·product. q· Owner’s·manual· p. 1
• w· Service·station·list· p. 1
• e· Power·cord·(Cord·length:·Approx.·5.9ft/1.8m)· p. 1

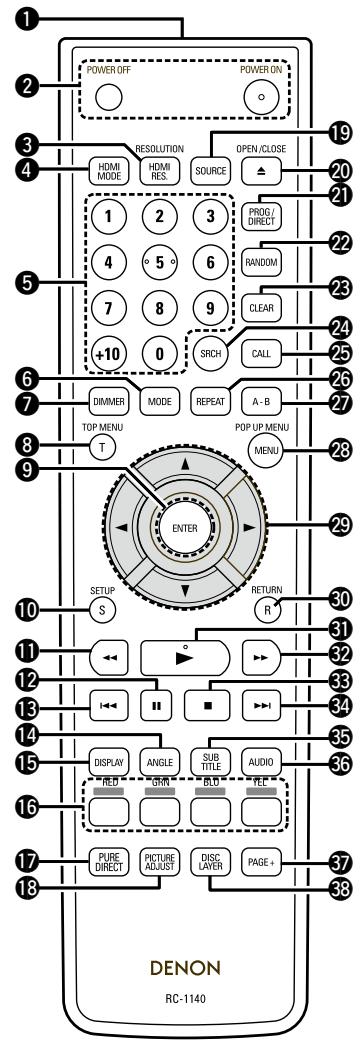

• r· Remote·control·(RC-1140)· p. 1
• t· R6/AA·batteries· p. 2

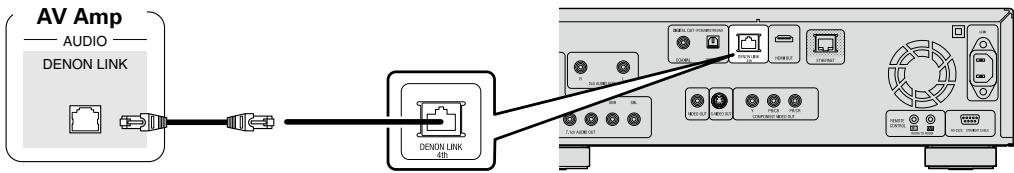

• y· DENON·LINK·cable·(Cord·length:·Approx.·4.9ft/1.5·m)· p. 1
• u· Audio·cable·(Cord·length:·Approx.·4.9ft/1.5m)· p. 1
• i· Video·cable·(Cord·length:·Approx.·4.9ft/1.5m)· p. 1
• o· Warranty·(for·North·America·model·only)· p. 1

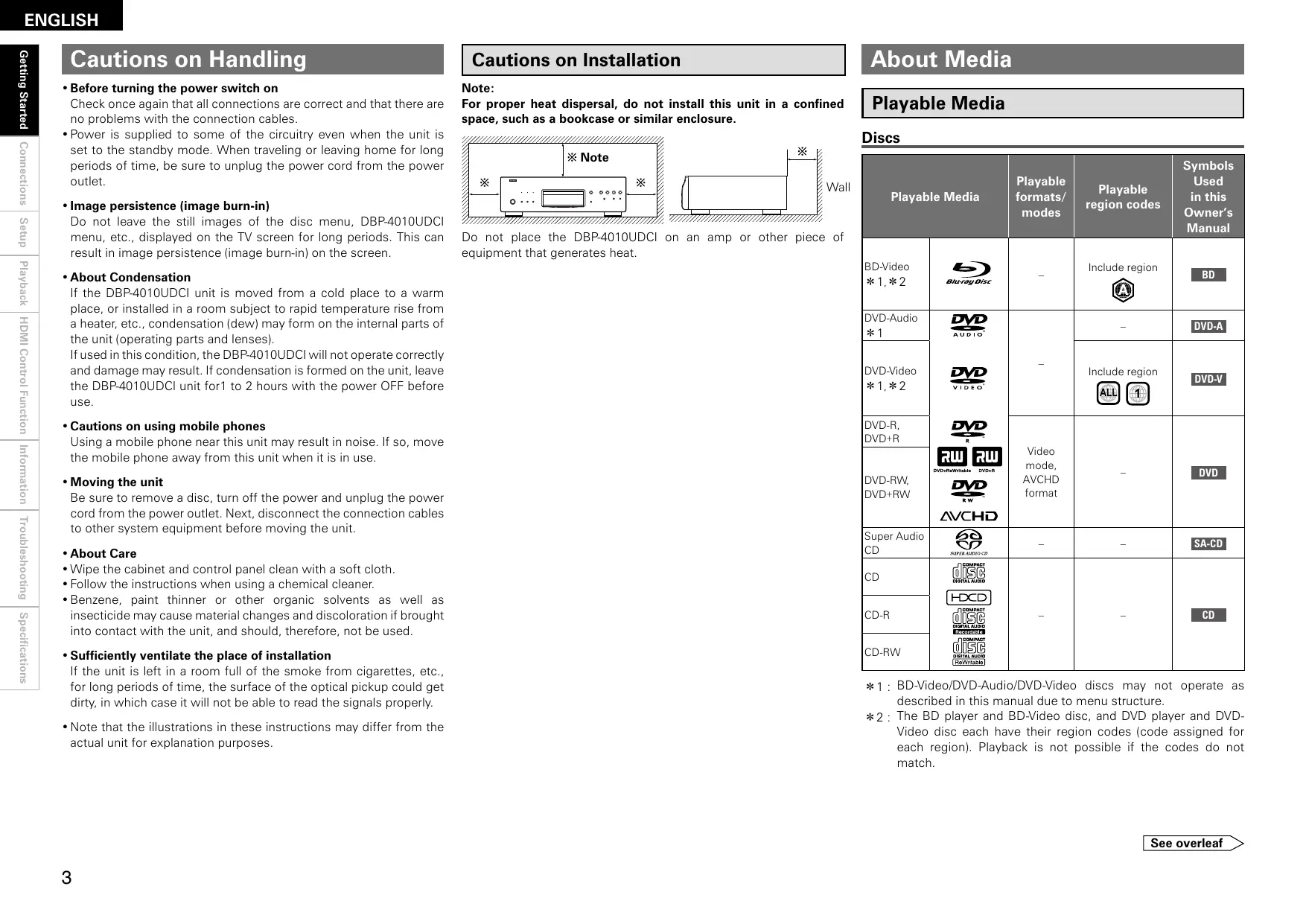

ENGLISH Getting Started Cautions on Handling Connections

• Before turning the power switch on Check once again that all connections are correct and that there are no problems with the connection cables.
• Power is supplied to some of the circuitry even when the unit is set to the standby mode. When traveling or leaving home for long periods of time, be sure to unplug the power cord from the power outlet. Setup

• Image persistence (image burn-in) Do not leave the still images of the disc menu, DBP-4010UDCI menu, etc., displayed on the TV screen for long periods. This can result in image persistence (image burn-in) on the screen. Playback HDMI Control Function Information

• About Condensation If the DBP-4010UDCI unit is moved from a cold place to a warm place, or installed in a room subject to rapid temperature rise from a heater, etc., condensation (dew) may form on the internal parts of the unit (operating parts and lenses). If used in this condition, the DBP-4010UDCI will not operate correctly and damage may result. If condensation is formed on the unit, leave the DBP-4010UDCI unit for1 to 2 hours with the power OFF before use. About Media Cautions on Installation Note: For proper heat dispersal, do not install this unit in a confined space, such as a bookcase or similar enclosure.

• Moving the unit Be sure to remove a disc, turn off the power and unplug the power cord from the power outlet. Next, disconnect the connection cables to other system equipment before moving the unit. DVD-RW, DVD+RW Specifications

• Note that the illustrations in these instructions may differ from the actual unit for explanation purposes. Include region Super Audio

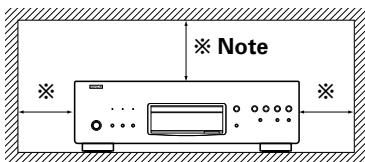

• Sufficiently ventilate the place of installation If the unit is left in a room full of the smoke from cigarettes, etc., for long periods of time, the surface of the optical pickup could get dirty, in which case it will not be able to read the signals properly.

• Cautions on using mobile phones Using a mobile phone near this unit may result in noise. If so, move the mobile phone away from this unit when it is in use.

• Wipe the cabinet and control panel clean with a soft cloth.
• Follow the instructions when using a chemical cleaner.
• Benzene, paint thinner or other organic solvents as well as insecticide may cause material changes and discoloration if brought into contact with the unit, and should, therefore, not be used. Playable formats/ modes DVD-V Video mode, AVCHD format

CD-R CD-RW z1 : BD-Video/DVD-Audio/DVD-Video discs may not operate as described in this manual due to menu structure. z2 : The BD player and BD-Video disc, and DVD player and DVDVideo disc each have their region codes (code assigned for each region). Playback is not possible if the codes do not match. See overleaf

microSD Card z2 · (8 MB ~ 2 GB) AAC JPEG DivX

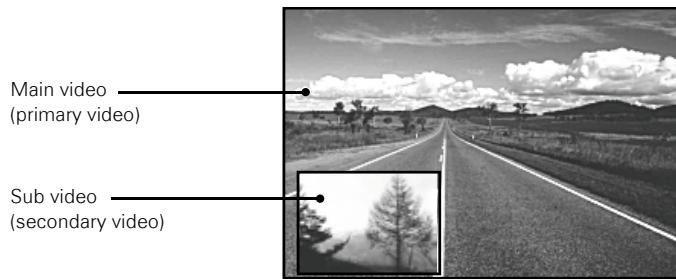

• Data recorded for BD BONUS VIEW use
• See “Files” “Playable Media” (vpage 4) for more information on files. z1 : This unit supports SD Memory Card with FAT16 file system, and SDHC Memory Card with FAT32 file system. z2 : For miniSD Card and microSD Card adapter is necessary. miniSD Card Adapter miniSD Card DVD

• Number of channels: 2 ch
• Maximum resolution: 4,096 x 4,096 pixels
• Minimum resolution: 32 × 32 pixels
• Maximum file size: 12 MB
• Compatible versions: Up to DivX® 6
• Maximum size: 2 GB Troubleshooting

• This unit does not support mini SDHC and micro SDHC Memory Card.
• Insert or remove a SD Memory Card while the power is in standby. If you insert a SD Memory Card while the power is ON, the SD Memory Card may not be read.
• The SD card used for the Bonus View function must have a capacity of 1GB or greater. Also the SD card must be initialized on the DBP4010UDCI (vpage 31). File specification Symbols Used in this Owner’s Manual Playback HDMI Control Function Information miniSD Card z2 · (8 MB ~ 2 GB) WMA DVD-R/ Playable -RW/ files +R/+RW Memory (Extension) CD-R/-RW Cards Setup The following discs will not play back on this unit.
• BD-RE Ver1.0 (BD disc with cartridge)
• BD-ROM/BD-R/BD-RE discs containing recorded movie, still image, audio, etc., files
• BD-R/BD-RE in which BDMV/BDAV is recorded
• CDV (Only the audio part can be played)
• CD-G (Only the audio signals can be output)
• Non-standard CD (CD with copy protection, etc.)
• Unauthorised disc (Pirated disc)
• Disc with recording area less than 55 mm in diameter
• Video Single Disc (VSD) / CVD/ Video CD / Super Video CD / CompactDisc-Interactive (CD-I) / Photo CDs SD Memory Cards Connections

• A disc may not be accessible or play back incorrectly due to audio and video interruptions, etc., depending on the recording conditions when recorded with a BD recorder or DVD recorder.
• Unfinalised DVD-R/-RW/+R/+RW, and CD-R/-RW discs may not play back. Finalise discs before playing. Getting Started About Media DivX z : This unit cannot play back files recorded under DRM (Digital Rights Management) other than DivX® files.

• The abovementioned file type may also fail to play back depending on conditions at the time of recording.
• If characters not supported on the menu screen are included in a file name, title, artist name or album title, those are not displayed correctly.

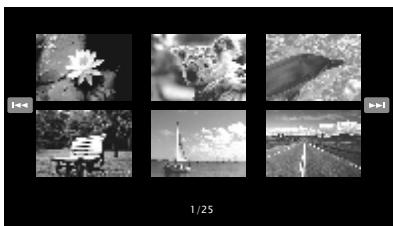

• JPEG format images stored in progressive format cannot be played back.

• When you purchase or rent a DivX® file through the official site of DivX® Video-On-Demand (VOD) services, a DBP-4010UDCI registration code is required. For details, see “DivX® Registration” (vpage 29). DivX Authorization Error
• A DivX® VOD file recorded with Authorization Error. This player is not authorized a different code from the DBPto play this video. 4010UDCI registration code cannot be played back.
• Some DivX® VOD files are restricted with limited playable times. If your DivX® VOD file has such a limit, DivX Rental the number of playable times is View DivX(R) VOD Rental displayed on the DivX VOD display This rental has 3 views left. screen. Do you want to use Use to select “Yes” if you want to play back the file, or to select “No” if you do not want to play it back. The press to confirm the selection. Yes Single layer Super Audio CD with only an HD layer z. HD layer
• Dual layer disc HD layer
• Hybrid disc Two-layer Super Audio CD with an HD layer z and a CD layer. The signals on the CD layer can be played on a regular CD player. CD layer HD layer z : All Super Audio CDs contain an HD (High Density) layer with high density Super Audio CD signals. This layer can contain a stereo channel area, a multi-channel area, or both a stereo channel and multi-channel area. Troubleshooting n DVD-Audio DVD-Audio discs are divided into several large sections (groups) and small sections (tracks). These sections are all allotted numbers, called the group numbers and track numbers. DVDオーディオ DVD-Audio Specifications About Discs and Files グループ1 Group1 n BD-Video, DVD-Video BD/DVD-Video discs are divided into several large sections (titles) and small sections (chapter). These sections are all allotted numbers, called the title numbers and chapter numbers. GExampleH BD, DVD BD、 DVD Title2 トル 2 Chapter チャプター11 Chapter チャプター22 Chapter チャプター11 Chapter チャプター22 Chapter チャプター33

Track2 Track1 Track2 Track3 Track4 Track5 n File Super Audio CD with a double HD layer z, offering extended playing time and high sound quality.

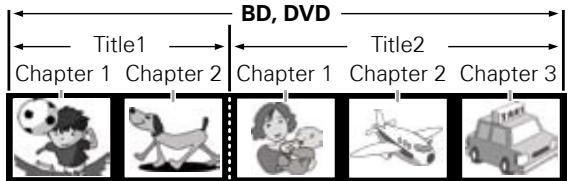

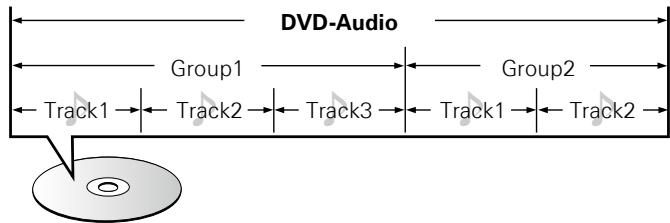

CDs are divided into several sections (tracks). These sections are all allotted numbers, called the track numbers. one of your 3 views now?

• ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official Divx Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.
• ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Title1 トル 1 n CD GType of Super Audio CDH
• Single layer disc グループ2 Group2

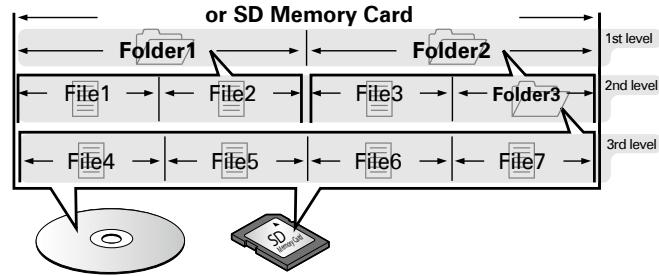

Track2 MP3/WMA/AAC/LPCM/JPEG/DivX® files recorded on DVD-R/-RW/ +R/+RW, CD-R/-RW and SD Memory Card are divided into large segments (folders) and small segments (files). Files are stored in folders, and folders can be placed for storage in a hierarchy. The DBP-4010UDCI can recognize up to 8 hierarchies of folder.

Folder3 1st level 2nd level 3rd level SDMemory Card When writing MP3/WMA/AAC/JPEG/DivX® files on a CD-R/-RW disc, set the writing software’s format to “ISO9660”. The files may not play properly if they are recorded in other formats. For details, refer to the instructions of your writing software. ENGLISH Cautions on Using Media Cleaning Discs

• Set the disc with the labeled side facing up.
• Make sure the disc tray is fully open when inserting the disc.
• Place the disc horizontally in the tray, aligned with the tray guide.

• Do not get fingerprints, oil or dirt on discs.
• Take special care not to scratch discs when removing them from their cases.
• Do not bend or heat discs.
• Do not enlarge the hole at the center.
• Do not write on the labeled (printed) surface with ball-point pens, pencils, etc., or stick new labels on discs.
• Water droplets may form on discs if they are moved suddenly from a cold place (outdoors for example) to a warm place, but do not try to dry them off using a hairdryer, etc.
• Do not eject an SD Memory Card or turn off the DBP-4010UDCI’s power while the card content is in playback. This may result in malfunction or loss of the card’s data.
• Do not attempt to open or modify SD Memory Cards.
• SD Memory Cards and files can be damaged by static electricity. Do not touch the metal contacts of an SD Memory Card with your fingers.
• Do not use warped SD Memory Cards.
• After use, be sure to remove any disc or SD Memory Card, and store it in its proper card case, to avoid dust, scratches and deformation.
• Do not store discs in the following places: 1.Places exposed to direct sunlight for long periods of time 2.Dusty or humid places 3.Places exposed to heat from heating appliances, etc.

• If there are fingerprints or dirt on discs, wipe them off before using the disc.
• Use a commercially available disc cleaning set or a soft cloth to clean discs. If a disc that cannot be played is loaded or the disc is loaded upsidedown, “NO DISC” is displayed on the player’s display. Inserting an SD Memory Card NOTE Do not use record spray, antistatic agents, or benzene, thinner or other solvents. About Copyright
• Unauthorised copying, broadcasting, public performance and lending of discs are prohibited.
• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights.
• Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
• Portions of this product are protected under copyright law and provided under license by ARIS/SOLANA/4C. SMeDmory Card

• Insert an SD Memory Card in the direction of the arrow into the SD CARD slot with the label facing up.
• Insert the card straight into SD CARD slot until it clicks.
• To remove the card, push it in the direction of insertion, and then release to eject. Do not wipe with a circular motion. Troubleshooting

• Do not push the disc tray in by hand when the power is turned off. Doing so could damage the set. Gently wipe the disc from the inside towards the outside. Playback HDMI Control Function Information NOTE
• Only load one disc at a time. Loading two or more discs can damage the unit or scratch the discs.
• Do not use cracked or warped discs or discs that have been repaired with adhesive, etc.
• Do not use discs on which the sticky part of cellophane tape or labels is exposed or on which there are traces of where labels have been removed. Such discs can get caught inside the player and damage it.
• Do not use discs with special shapes, as they could damage the player. Setup About Handling of Media Connections Inserting a Disc Getting Started About Media ENGLISH Getting Started About the Remote Control Unit Inserting the Batteries Connections q Remove the remote control w Set three R6/AA batteries in unit’s rear cover. the battery compartment in the indicated direction. Operating Range of the Remote Control Unit Point the remote control unit at the remote sensor when operating it. Setup Playback HDMI Control Function Information e Put the rear cover back on. 30° NOTE Troubleshooting Specifications

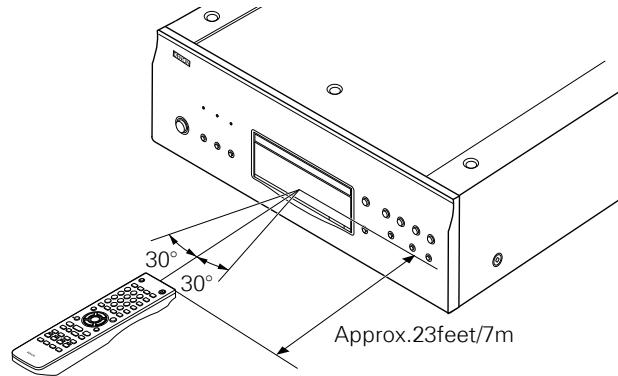

• Use R6/AA batteries in this remote control.
• Replace the batteries with new ones if the set does not operate even when the remote control unit is operated close to the unit. (The supplied batteries are only for verifying operation.)
• When inserting the batteries, be sure to do so in the proper direction, following the “q” and “w” marks in the battery compartment.
• To prevent damage or leakage of battery fluid: Do not use a new battery together with an old one. Do not use two different types of batteries. Do not attempt to charge dry batteries. Do not short-circuit, disassemble, heat or dispose of batteries in flames.
• If the battery fluid should leak, carefully wipe the fluid off the inside of the battery compartment and insert new batteries.
• Remove the batteries from the remote control unit if it will not be in use for long periods.
• Used batteries should be disposed of in accordance with the local regulations regarding battery disposal. Remote Control Settings (Remote Control Side) Switches when the DBP-4010UDCI’s remote control operates another DENON BD players in the vicinity. Set the remote control code simultaneously on the main unit, too. For how to set codes, see GUI menu: “Other Setup” – “Remote Control Setting” – “Remote ID” (vpage 31). 30° Approx.23feet/7m NOTE The set may function improperly or the remote control unit may not operate if the remote control sensor is exposed to direct sunlight, strong artificial light from an inverter type fluorescent lamp or infrared light. GRemote control code settingH

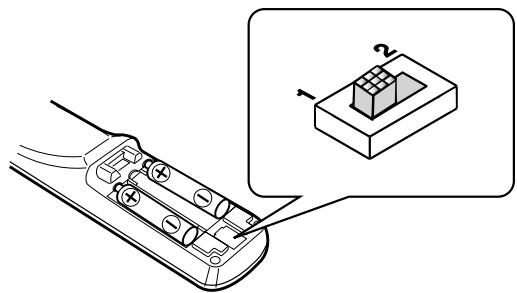

: Set the remote control code to “1”.

: Set the remote control code to “2”.

• If the signal code of the remote control does not match the signal code of the unit, the remote control code set on the unit is shown on the display. GExampleH If the code setting on the unit is “DENON 1”, and the setting on the remote control is “2”, “PLAYER 1” is shown on the display. NOTE
• Match the signal code of the remote control with the signal code of the unit. If the remote control code is different, you cannot operate the DBP-4010UDCI with the remote control.
• Even if you change the remote control code, set GUI menu “Other Setup” – “Remote Control setting” – “Receive Legacy Remocon” (vpage 31) to “Off” when operating the DBP-4010UDCI with a remote control other than DENON’s.

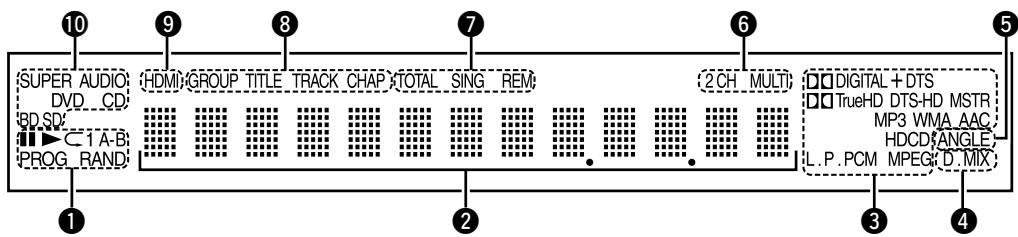

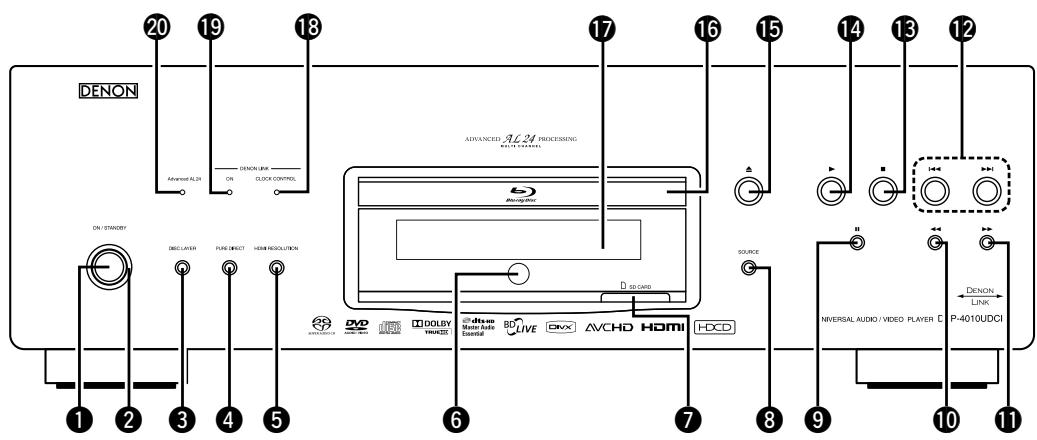

ENGLISH Front Panel Display For buttons not explained here, see the page indicated in parentheses ( ).

w Power indicator··········································· (20) e DISC LAYER button····································· (37) r PURE DIRECT button··································· (38) t HDMI RESOLUTION button························ (13) y Remote control sensor·································· (7) u SD CARD slot················································· (6) i SOURCE button··········································· (34) o Pause/Still button (3)··························· (41, 43) Q0 Fast reverse/slow button (6)·················· (43) Q1 Fast forward/slow button (7)················· (43) Q3 Stop button (2)············································ (41) Q4 Play button (1)············································ (37) Q5 Disc tray open/close button (5)················· (34) Q6 Disc tray························································· (6) Q7 Display···························································· (8) Q8 CLOCK CONTROL indicator················· (17, 28) (ON/STANDBY)············································ (20) (8, 9)··················································· (41) Lights when playing BD with DENON LINK 4th (jitter free) connections. Q9 DENON LINK indicator································ (48) W0 ADVANCED AL24 indicator························ (48) Displays various information or elapsed time and so on of the disc. playback playing back being played back i Group/Title/Track/Chapter indicators o HDMI output indicator Display when HDMI video or audio signals are being output. e Playback format indicators r Downmix indicator Displayed when permitted audio. being played back REM : Remaining time of title/chapter/track/file downmix t Angle information indicator Displayed when a scene on the currently playing disc has been shot at various angles. y Audio channel indicators Displays the number of audio signal channels during playback. 2CH : 2-channel playback MULTI : Multi-channel playback Does not display when the HDMI cable is not correctly connected and when the HDMI connection is not verified. Q0 Media indicators BD : BD DVD : DVD-Video, DVD-R/+R/-RW/+RW DVD AUDIO : DVD-Audio SUPER AUDIO CD : Super Audio CD CD : CD SD : SD Memory Card Specifications Q2 Revers-skip/Forward-skip buttons u Time mode indicators TOTAL : Total time of Super Audio CD and CD SING : Elapsed time of title/chapter/track/file Troubleshooting q Power operation button w Information display

1 : During Playback 3 : During pause and step-by-step playback PROG : During program playback RAND : During random playback 1 A-B : During repeat playback

Connections W0 Q9 Getting Started Part Names and Functions Displays the inserted media. When power is in standby mode, press Q4 and Q5 to turn the power on.

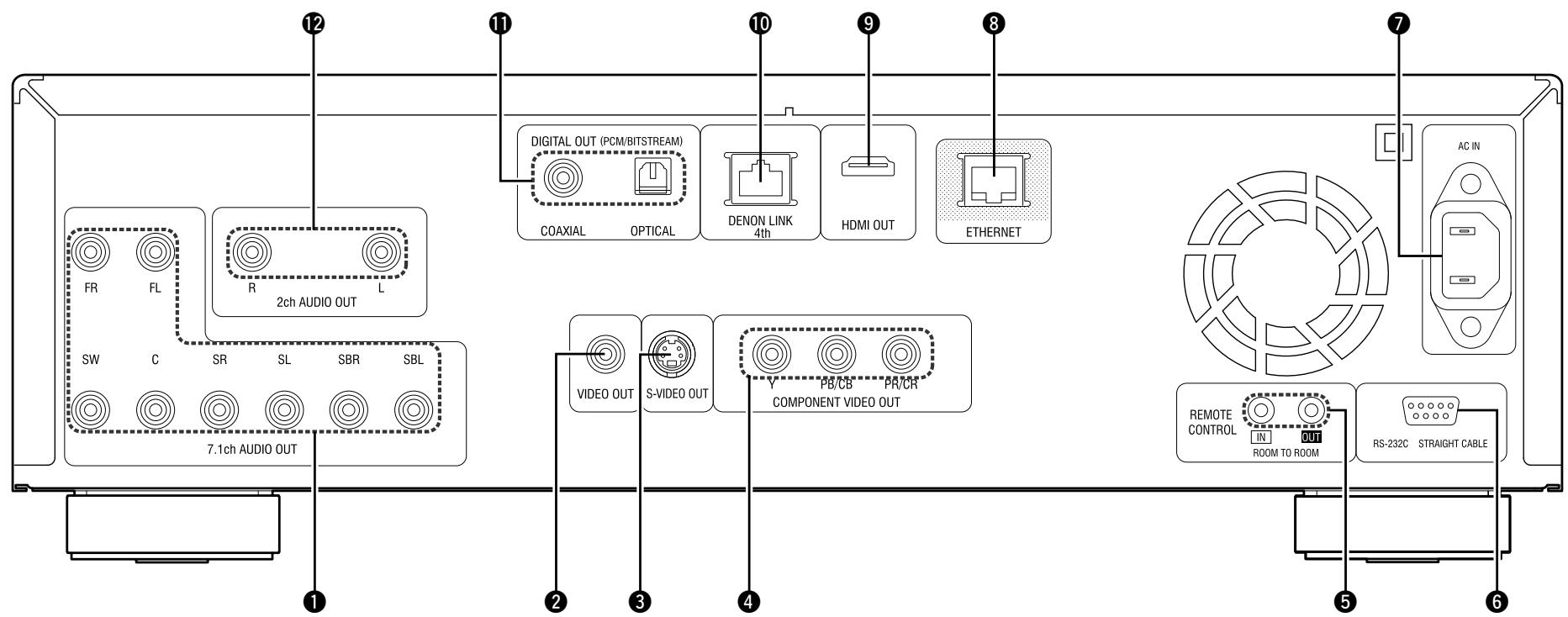

ENGLISH Getting Started Part Names and Functions Rear Panel For buttons not explained here, see the page indicated in parentheses ( ). Connections

Specifications q 7.1ch AUDIO OUT connectors···················· (16) w VIDEO OUT connector································ (18) e S-VIDEO OUT connector····························· (18) r COMPONENT VIDEO OUT connectors······ (18) t ROOM TO ROOM IN/OUT jacks Extension jack for future use. y RS-232C connector Extension connector for future use. u AC inlet (AC IN)············································ (20)

i ETHERNET connector···························· (19, 20) o HDMI OUT connectors································ (13) Q0 DENON LINK 4th connector······················· (17)

Q1 DIGITAL OUT OPTICAL/COAXIAL

connectors···················································· (15) Q2 2ch AUDIO OUT connectors······················· (18) For software recorded in multi-channel, analog signals that have been down-mixed into 2 channels are output.

• Do not touch the inner pins of the connectors on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
• Do not put your finger or foreign object in the fan opening. Doing so could cause injury or unit failure.
• When outputting audio from a DTS-HD 7.1-channel source to HDMI or analog 7.1 channel audio, and to 2-channel analog audio, perform the following settings so that the audio is down mixed to the correct 2-channel analog audio output signal as intended by the producer of the source and DTS, Inc.
• In “HDMI Setup”, set “Audio Setup” to “2Ch” (vpage 23).

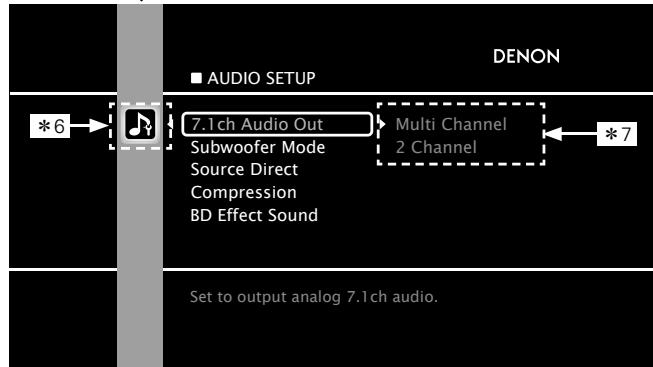

• In “Audio Setup”, set “7.1ch Audio Out” to “2 Channel” (vpage 25). If “Audio Setup” in “HDMI Setup” and “7.1ch Audio Out” in “Audio Setup” are not set to “2Ch” or “2 Channel” respectively, 2-channel analog audio is output using this unit’s own downmix. In this case, the downmix may differ from that intended by the producer of the source and DTS, Inc. ENGLISH Remote Control Unit For buttons not explained here, see the page indicated in parentheses ( ).

• When power is in standby, press W0 and E1 to turn the power on.

W6 REPEAT button ·········································································(44) W7 A-B button··················································································(44) W8 MENU/POP UP MENU button··················································(36) W9 Cursor buttons (uiop)··························································(22) E0 RETURN button (R)····································································(22) E1 Play button (1)··········································································(37) E2 Fast-forwarding button (7)···················································(43) E3 Stop button (2)··········································································(41) E4 Forward-skip button (9)·······················································(41) E5 SUBTITLE button·······································································(46) E6 AUDIO button······································································(45, 46) E7 PAGE + button···········································································(38) E8 DISC LAYER button···································································(37) Setup

q Remote control signal transmitter·············································(7) w POWER buttons (POWER OFF, POWER ON)···························(20) e HDMI RESOLUTION button (HDMI RES.)································(13) r HDMI MODE button··································································(14) t Number buttons (0 ~ 9, +10)···············································(35, 36) y MODE button·············································································(32) u DIMMER button·········································································(47) i TOP MENU button (T)·······························································(36) o ENTER button············································································(22) Q0 SETUP button (S)·······································································(21) Q1 Fast-reversing button (6)······················································(43) Q2 Pause/Still button (3)·························································(41, 43) Q3 Revers-skip button (8)··························································(41) Q4 ANGLE button············································································(47) Q5 DISPLAY button·········································································(34) Q6 RED/GRN/BLU/YEL buttons Q7 PURE DIRECT button·································································(38) Q8 PICTURE ADJUST button·························································(33) Q9 SOURCE button·········································································(34) W0 Disc tray OPEN/CLOSE button (5)··········································(34) W1 PROGRAM/DIRECT button (PROG/DIRECT)···························(45) W2 RANDOM button·······································································(44) W3 CLEAR button············································································(33) W4 SEARCH button (SRCH)····························································(37) W5 CALL button···············································································(45) Connections

Getting Started Part Names and Functions

ENGLISH Getting Started Connections Connect the DBP-4010UDCI as follows before using. Make connections according to the equipment you are connecting. Some DBP-4010UDCI settings may be necessary depending on the connection method. Check each connection item for more information. Connections vpage 13 Theater Playback 1 Home – Playing Back Using Multi-Channel System – Back with a Direct 2 Playing Connection to a TV vpage 18 3 Playing Audio Back 2-Channel vpage 18 DBP-4010UDCI Setup DBP-4010UDCI Playback HDMI Control Function Information Audio + Video DBP-4010UDCI

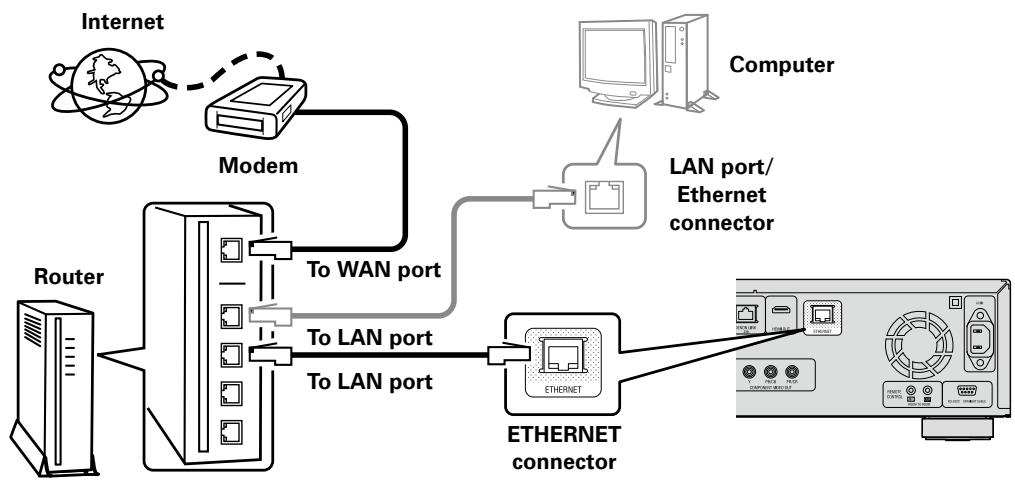

• LAN connection “Connecting to the Network” (vpage 19) Video

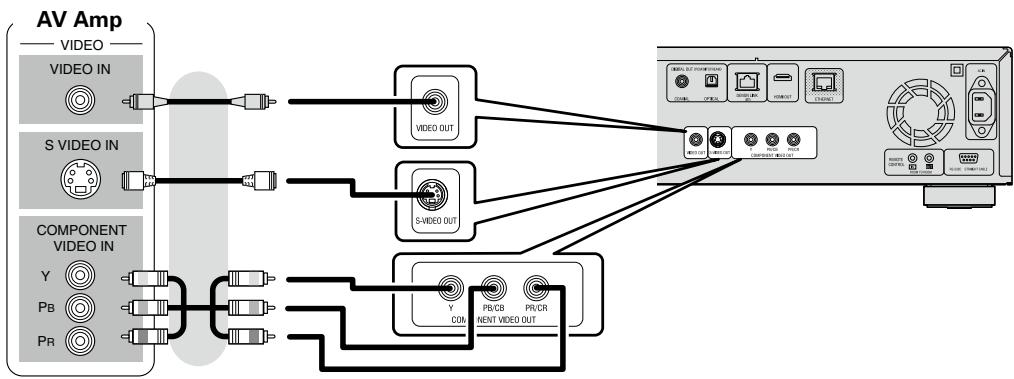

• Analog video connection “Connection to an AV Amp with No HDMI Video Input” (vpage 17)

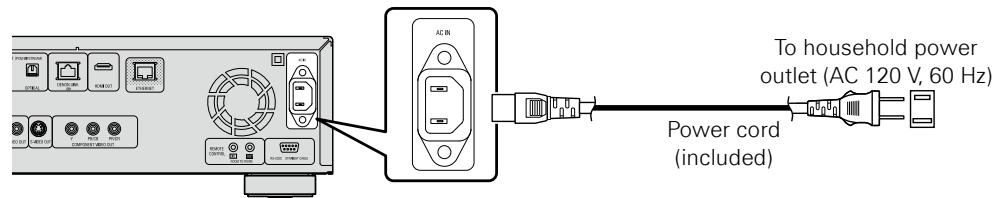

• Connecting the Power Cord
• Once Connections are Completed

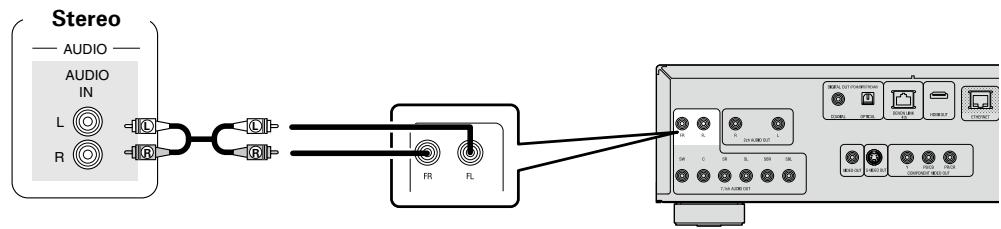

• 2ch stereo pin plug cable (unbalanced) connection “Connecting to a Device with Analog 2-channel Audio Input Terminal with Stereo Pin Plug Cable” (vpage 18) vpage 20 ENGLISH Getting Started Preparation Cables Used for Connections NOTE Prepare the cables to match the devices you are to use. HDMI connections (Sold separately) 19-pin HDMI cable Component video connections (Y) (Sold separately) (PB/CB) (Sold separately) Coaxial digital (75 Ω/ohms pin-plug) cable (Sold separately) (Included)

Stereo pin plug cable Analog connections (center, subwoofer) S-Video cable Video connections Optical cable (Sold separately) (1 included) S-Video connections (Sold separately) Optical digital connections Analog connections (stereo, surround) (PR/CR) Component video (75 Ω/ohms) cable Other cables DENON connections (Included) Pin-plug cable 75 Ω/ohms pin-plug video cable Network connections (Sold separately) LINK

• Use only HDMI (High Definition Multimedia Interface) cable that bears the HDMI logo (genuine HDMI product). Using cable without the HDMI logo (non-genuine HDMI product) may result in abnormal playback.
• When outputting deep colour or 1080p, etc., we recommend you use High Speed HDMI cable for enhanced high-quality playback. DENON LINK cable Ethernet cable Playback HDMI Control Function Information Coaxial digital connections Setup Audio cables

• Do not plug the power cord into the power outlet until all connections are completed.
• Be sure to read the owner’s manuals for the connected devices.
• First check the connection channels, and then correctly connect the input and output channels.
• Do not bundle the power cord together with the connection cables. This can result in noise. Connections Video cables Audio and video cables Troubleshooting Specifications

ENGLISH Getting Started

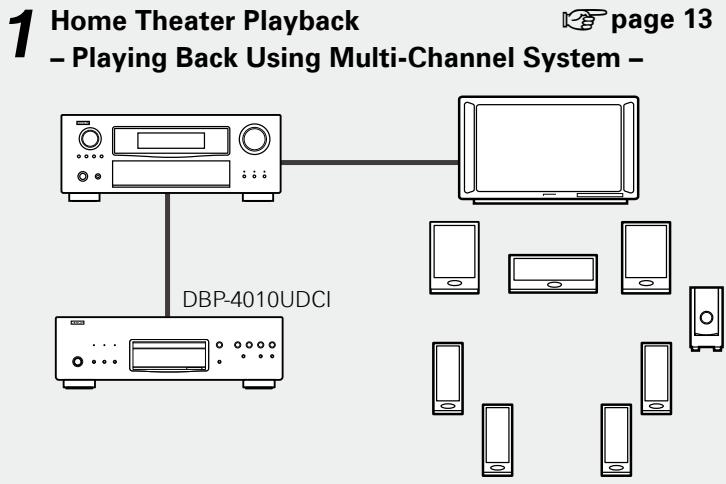

1. Home Theater Playback – Playing Back Using Multi-channel System –

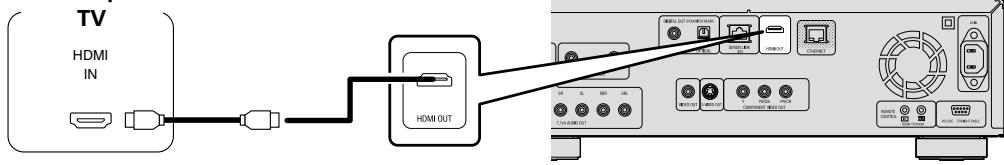

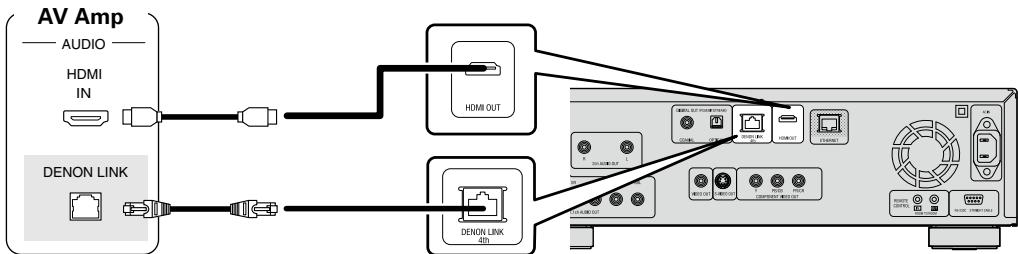

Using an HDMI Cable to Connect to an AV Amp or Television Connections

• When connecting with an HDMI cable, press and set it to “HDMI On”.
• DBP-4010UDCI automatically detects audio/video signal supported by the connected HDMI device and outputs the signal. To change the setting, see “HDMI Setup” on the GUI menu (vpage 23, 24). Setup NOTE Playback HDMI Control Function Information

• When you press and set it to “HDMI On”, no video signals are output from the component video outputs.
• To disable video or audio output from the HDMI terminal, set “Video Out” of “Pure Direct Setup”, which outputs high quality analog audio to “Off”. To enable the HDMI signal output, set the Pure Direct mode to one of the following setting:
• Pure Direct mode“Off” or “User Preset 1” or “User Preset 2” (b) (“Playing Back High-Quality Audio (Pure Direct Function) ” vpage 38) b Do this after setting “Pure Direct Setup” – “User Preset 1” or “User Preset 2” – “Video Out” on GUI menu to “On” (vpage 28). During “HDMI On” Audio/video signals are output from the HDMI terminal. When the HDMI video resolution is set to “Auto” as described in “About HDMI Video Resolution Setting” (vpage 13), the DBP-4010UDCI outputs the highest resolution video signal that is supported by the connected equipment. AV Amp or

n Connection to a device with a DVI-D terminal If you use a HDMI/DVI-D conversion cable (sold separately), HDMI video signals are converted to DVID signals, enabling connection to a device with a DVI-D terminal. NOTE

• In this case, the audio signal is not output. Make the appropriate audio connections for your devices. (vpage 14 ~ 20).
• The video signal will be in RGB format.
• You cannot output to a DVI-D device that does not support HDCP (high-bandwidth digital content copyright protection system).
• Video may not be output depending on the combination of devices. Required Settings for HDMI Connection Setting HDMI video output n Make HDMI Output Signal and HDMI Control Function Settings “HDMI Setup” (vpage 23, 24) n Make the Video Output Signal Setting for the Connected Television “Video Setup” (vpage 24) n About HDMI Video Resolution Setting

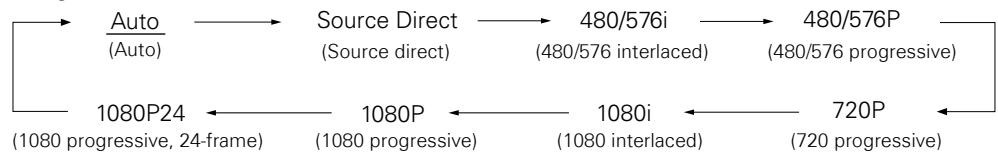

• Change the HDMI video resolution by pressing settings are underlined. Auto Source Direct 480/576i (Auto) (Source direct) (480/576 interlaced) 1080P24 (1080 progressive, 24-frame) Specifications NOTE
• When audio/video signals are output from the HDMI terminal, no video signals are output from the component terminals.
• When a signal comprising 24 frames per second, such as 1080P24, is output from the HDMI terminal, no video signals are output from the video or S-Video outputs. During “HDMI Off” Audio/video is not output from the HDMI terminal. . Switch the output mode as follows. Default 1080P (1080 progressive) 1080i (1080 interlaced) 480/576P (480/576 progressive) 720P (720 progressive)

• If the HDMI resolution is not set to “Auto”, set it to correspond with the resolution of your television. Images will not be projected normally if the television resolution and DBP-4010UDCI’s output resolution do not match.
• Audio and video will be temporarily interrupted if the power of the connected device currently playing back is turned off, or input is switched.
• When you change the HDMI video resolution of the DBP-4010UDCI, it takes from a few seconds up to about 10 seconds for validation between the DBP-4010UDCI and the connected device. Audio/video is not output during this period.
• When outputting deep colour or 1080p, etc., we recommend you use High Speed HDMI cable for enhanced high-quality playback. When outputting a video signal comprising 24 frames per second from the HDMI terminal, select “1080P24” or “Source Direct” after setting the GUI menu “HDMI Setup” – “I/P Direct” (vpage 23) to “On”. See overleaf

ENGLISH n Audio signal from the HDMI output terminal NOTE You can change the audio format and playback number of channels according to the specifications of the device to which the DBP-4010UDCI’s HDMI audio output signals are input. Make settings while checking the specifications of the audio device to be connected as well as the audio format/number of channels stored in media and files for playback. Media/Files Device with the following built-in decoder

Dolby Digital Plusz1 Dolby TrueHD Dolby TrueHDz1 DTS DTSz1 DTS-HD DTS-HDz1 LPCM Multi LPCM Setting items About output signal and speaker settings AVCHD Auto DBP-4010UDCI outputs a bitstream signal that is decoded by the connected device. b In this case, you cannot make a speaker setting for HDMI audio with the DBP-4010UDCI. Make the setting with the connected device. b When outputting the Dolby TrueHD or DTS-HD audio, press and set “BD Audio Mode” to “HD Audio Output” (vpage 32). Outputs multi-channel Linear PCM audio signals with speaker setting by the DBP-4010UDCI. b For speaker setting, on the GUI menu, “Audio Setup” – “7.1ch Audio Out”– “Multi Channel” – “Speaker Configuration” (vpage 25). b BM : Bass Management (means multi-channel speaker setting) Super audio CDz2 Stereo area Multi LPCM BM On Multi LPCM BM Off Output of multi-channel Linear PCM audio signals from the DBP-4010UDCI. Perform the speaker setting with the connected device. b BM : Bass Management (means multi-channel speaker setting) Device compatible with 2channel HDMI audio input 2Ch Downmixed 2-channel Linear PCM audio signals are output from the DBP-4010UDCI. Perform the speaker setting with the connected device. Device not compatible with HDMI audio signal input Mute Audio signal are not output from the DBP-4010UDCI’s HDMI terminal. Only video signals are output from the HDMI terminal. b Make the audio connection. DVD-Audio Dolby Digital Dolby Digital LPCM Multi LPCM Dolby Digital Dolby Digital DTS DTS LPCM 2 ch LPCM LPCM, PPCM Multi area CD layer DivX® Dolby Digital MP3, MP2

CD, MP3, WMA, AAC, LPCM

DTS-CD Multi LPCM 2 ch Downmix LPCM Multi LPCM 2 ch Downmix LPCM 2 ch Downmix LPCM Multi LPCM 2 ch LPCM Dolby Digital Multi LPCM 2 ch Downmix LPCM Multi LPCM 2 ch Downmix LPCM 2 ch LPCM DTS z1 : Multi LPCM signals are output when “BD Audio Mode” is set to “Mix Audio Output ” (vpage 32). Multi LPCM signals are output when outputting HDMI video signals with resolutions of 480i/576i or 480p/576p. z2 : Super Audio CD audio signals are output at 44.1 kHz 16-bit. Even if “HDMI Setup” – “Audio Setup” on the GUI menu is set to “Auto” (vpage 23), multilinear PCM or downmixed 2-channel linear PCM signals are output if a device that does not support bitstreams is connected.

• When you press and set “HDMI Setup” – “Audio Setup” to “Auto” (vpage 23) on the GUI menu, audio mode is set according to the connected device.
• When you want to set the HDMI audio output separately, change according to the following table.
• Refer to the owner’s manual of the connected device regarding HDMI audio input specifications compatible with the connected device. Multi LPCM BM On/Off Setup Auto Setting HDMI Audio Output Device to be connected Audio format Setting “HDMI Setup” – “Audio Setup” (vpage 23) on the GUI menu Connections

• When the HDMI video resolution is set to “1080P24”, HDMI video signals are output from the DBP4010UDCI with a resolution of 1080P and a frame rate of 24 frames per second, regardless of the video signals on the disc being played. Because of this, when playing discs containing video signals recorded with a frame rate of something other than 24 frames per second, the movement of the picture may be unnatural. If this happens, set the HDMI video resolution to something other than “1080P24”.
• When the “I/P Direct” (vpage 23) setting is “On” and a disc with a frame rate of 24 frames per second is played, no video signals are output from the video or S-Video outputs.
• When the “I/P Direct” (vpage 23) setting is “Off”, “1080P24” is not displayed. Getting Started

1. Home Theater Playback – Playing Back Using Multi-channel System –

ENGLISH Getting Started

1. Home Theater Playback – Playing Back Using Multi-channel System –

Copyright protection system Connections In order to play back digital video and audio such as BD-Video or DVD-Video via HDMI connection, both the player and TV or the AV Amp need to support the copyright protection system known as HDCP（High-bandwidth Digital Content Protection System). HDCP is copyright protection technology comprised of data encryption and authentication of the connected AV device. The DBP-4010UDCI supports HDCP. NOTE Setup Playback HDMI Control Function Information

• If a device that does not support HDCP is connected, video and audio are not output correctly. Read the owner’s manual of your television or AV Amp for more information.
• The audio signal from the HDMI output terminal (sampling frequency, number of channels, etc.) may be limited by the HDMI audio specifications of the connected device regarding permissible inputs. For example, if the HDMI audio specification of the connected device is 5.1 channels, 5.1-channel audio will be automatically output even when playing back 7.1 channels by the DBP-4010UDCI. In this case, analog audio output will also be 5.1-channel.
• Audio signal input may not be supported depending on the HDMI compatible monitor (projector, etc.) being used. When the DBP-4010UDCI is connected to this kind of device, audio signals are not output from the HDMI terminal. Troubleshooting Specifications

Connection to an AV Amp with No HDMI Audio Input When playing back Dolby Digital Plus/Dolby TrueHD/DTS-HD audio recorded on a BD disc, the DBP4010UDCI outputs Dolby Digital or DTS bitstream from its digital audio output terminal. AV Amp "6%*0 $0"9*"*/ 015*$"*/ NOTE

• Dolby TrueHD/Dolby Digital Plus/DTS-HD audio signals are not output with this connection. When outputting Dolby TrueHD/Dolby Digital Plus/DTS-HD audio signals, do so with an HDMI connection (vpage 13, “Using an HDMI Cable to Connect to an AV Amp or Television”). Match the
• Super Audio CD’s DSD signal cannot be output. Also, during CD layer shapes playback, 44.1 kHz/16-bit Linear PCM is output.
• Do not output DTS audio signals to an AV Amp that does not support DTS. Playing back a BD/DVD disc with recorded DTS content can generate noise and even damage your speakers.
• When connecting with an optical transmission cable (sold separately), make sure the plug shape aligns with the socket, and insert fully. ENGLISH Audio Signal from the Digital Audio Output (Optical/Coaxial) Terminal The DBP-4010UDCI can convert and output digital audio signal format recorded on media. Convert the digital audio signal in accordance with the specifications of the device that is to input digital audio output signals from the DBP-4010UDCI. Audio format PCM/PCM Down Sampling AV Amp "6%*0 Dolby Digital

DTS 2 ch Downmix LPCM (DTSz2) Specifications DTS-CD Playback HDMI Control Function Information Dolby Digital Plus '30/5 In the case of a 5.1-channel connection, you need not connect the SBR/SBL terminals. In this case, on the GUI menu, select “Audio Setup” – “7.1ch Audio Out” – “Multi Channel” – “Speaker Configuration” – “Surr. Back”, and set “Size” to “None” (vpage 25). Setup Bitstream Outputs multi-channel audio decoded by the DBP-4010UDCI. If your audio system has an analog multi-channel audio input terminal, connect using audio cable (sold separately). Connections Media/Files Setting “Audio Setup” – “Digital Out” (vpage 27) on the GUI menu Connecting to a Device with an Analog Multi-channel Audio Input Terminal Getting Started

1. Home Theater Playback – Playing Back Using Multi-channel System –

z1 : Bitstream signals are output in accordance with the BD re-encode setting when “BD Audio Mode” is set to “Mix Audio Output” (vpage 32). z2 : When “HDMI Setup” – ”Audio Setup” is set to “Auto” on the GUI menu and bit stream is output from HDMI , the DTS bit stream is output from the digital audio output (optical/coaxial) as well. For content with copyright protection, audio signal is down sampled to 48kHz 16bit and is output.

ENGLISH Getting Started

Connections When you connect the DBP-4010UDCI to a DENON LINK 4th compatible AV Amp using DENON LINK cable and HDMI cable, during BD playback the DBP-4010UDCI’s circuit operates with the AV Amp’s master clock signal. (The clock control indicator of the DBP-4010UDCI lights.) This enables transmission of high-quality digital audio with minimal jitter. AV Amp Setup "6%*0

• When connecting to a DENON LINK-compatible AV Amp, the multi-channel signals of DVD-Audio discs, Super Audio CDs, etc., can be transferred as such in digital format.
• DENON LINK connection requires that the version of AV Amp to be connected match the DBP4010UDCI version. Check the version of the AV Amp, and then on the GUI Menu, set “DENON LINK Setup” – “DENON LINK Mode” (vpage 28). If the DBP-4010UDCI and AV Amp versions do not match, audio cannot be output correctly. AV Amp "6%*0 %&/0/-*/, Playback HDMI Control Function Information %&/0/-*/, NOTE NOTE
• When using DENON LINK 4th functions, press the and set to “HDMI On”.
• The jitter-free function does not work except during BD playback. In this case, the video signal is output from the HDMI OUT terminal, and the audio signal from the DENON LINK terminal. DENON LINK does not support BD audio transmission.

• DENON LINK supports digital transmission up to 24 bit/2 ch at 192/176.4 kHz, and up to 24 bit/6 ch at 96 kHz or less.
• When you have made a DENON LINK connection, the DBP-4010UDCI’s speaker setting becomes invalid. (Make the speaker setting on the connected AV Amp)
• DENON LINK 2nd cannot transmit multi/stereo area audio of Super Audio CD. Troubleshooting Connection to an AV Amp with No HDMI Video Input
• Check the video terminals and make the connection to one of them.
• When connecting using the component video outputs, press AV Amp Specifications 7*%&0 7*%&0*/ 47*%&0*/ $0.10/&/5 7*%&0*/

and set it to “HDMI Off”. ENGLISH Check the television’s audio and video terminals and make the connection to one of them. Video terminal S-Video input terminal Component video input terminal

(Sold separately) (Sold separately) (Sold separately)

For software recorded in multi-channel, analog signals that have been down-mixed into 2 channels are output. When connecting using the analog 7.1-channel audio output terminals Do not connect the DBP-4010UDCI’s video output via a VCR (Video Cassette Recorder). Some media contain copy prohibit signals, which will disturb the screen image. When playing NTSC disc, DBP-4010UDCI’s video output becomes NTSC signal format. When playing PAL disc, DBP-4010UDCI’s video output becomes PAL signal format.

• The DBP-4010UDCI’s component video output supports 480i/576i/480p/576p/720p/1080i output. Match the output to the corresponding resolution of the connected television by setting, on the GUI menu: “Video Setup” – “Component Resolution” (vpage 24). Images will not be projected normally if the television resolution and DBP-4010UDCI’s output resolution do not match. Copyright protected DVD is output in 480i/576i or 480p/576p. Stereo "6%*0 "6%*0

For software recorded in multi-channel, analog signals that have been down-mixed into 2 channels are output. NOTE When you press and set it to “HDMI On”, no video signals are output from the component video terminals. When using the component video terminals, set HDMI mode to “HDMI Off”.

Connecting to a Device with Analog 2-channel Audio Input Terminal with Stereo Pin Plug Cable

HDMI input terminal Outputting both digital video and digital audio signals. See “Required Settings for HDMI Connection” (vpage 13) for HDMI video output and audio output settings. Connections Audio terminals n When connected to the HDMI input terminal Getting Started

2. Playing Back with a Direct Connection to a TV

ENGLISH Getting Started

5. Using BD-LIVE function or updating the software

version of DBP-4010UDCI Connecting to the Network

• You can use a disc which offers BD-LIVE function by connecting the unit to the Internet (vpage 36).
• You can update by downloading the latest firmware from the Internet. For more information, on the GUI menu, select “Other Setup” – “Firmware Update” (vpage 31).
• See “Network Setup” (vpage 29) on the GUI menu for more information on network setting. Playback HDMI Control Function Information Internet Computer When converting multi-channel audio to 2-channel for output, on the GUI menu, select “Audio Setup” – “Digital Out”, and set it to “PCM Down Sampling” (vpage 27). If you play back DVD or other media with incorrect configuration, deafening noise occurs that may damage the speaker. Modem Router LAN port/ Ethernet connector To WAN port To LAN port To LAN port ETHERNET connector Troubleshooting Specifications

ENGLISH System Requirement n Internet Connection by Broadband Circuit Connecting the Power Cord Connect the included power cord to the DBP-4010UDCI, and plug it into an AC outlet. To household power outlet (AC 120 V, 60 Hz) Device that connects to the broadband circuit and conducts communications on the Internet. A type that is integrated with a router is also available. Power cord (included) n Router For Internet connection, use an ISP (Internet Service Provider). Ask your local dealer for details. NOTE

• It is necessary to subscribe to an ISP in order to connect to the Internet. If you already have a broadband connection, there is no need to subscribe anew.
• The router you can use varies with the ISP. For more information, contact your ISP or PC dealer.
• DENON assumes no responsibility whatsoever for any communication errors or troubles resulting from customer's network environment or connected devices. NOTE
• Be sure to insert the power plug firmly. Incomplete connection results in noise generation. Once Connections are Completed Turning the Power On Press the unit’s or the remote control’s

The power is turned on, and the power indicator lights green. “LOADING” appears on the display, and disc information is read. b The “NO DISC” message is displayed when a disc is not loaded. (Remote control unit) On the GUI menu, when “Other Setup” – “Auto Power Mode” – “On” (vpage 31), the following states are maintained for about 30 minutes, and then the power is turned automatically to standby.

• Playback has stopped
• Stopped due to resume function n When power is switched to standby Either press on the unit, or press on the remote control. The power indicator lights red. NOTE During power standby, a slight amount of power is consumed. To totally cut off the power, remove the power cord from the power outlet.

• The DBP-4010UDCI can use the DHCP function to automatically set the network.
• With the type of circuit in which network setting is performed manually, when subscribed to a provider, conduct the setting in accordance with “Network Setup” on the GUI menu (vpage 29).
• If you connect the DBP-4010UDCI to a network without a DHCP function, conduct IP address and other settings according to “Network Setup” on the GUI menu (vpage 29).
• The DBP-4010UDCI does not support PPPoE. If you subscribe to a circuit that is set with PPPoE, a PPPoE-compatible router is required.
• When setting manually, check the setting contents with the network administrator. (DBP-4010UDCI) Troubleshooting n Others Playback HDMI Control Function Information

• An Ethernet cable is not included with the DBP-4010UDCI.
• For Ethernet cable, we recommend you use shielded straight cable (normal type). If you use the flat type or a non-shielded cable, the noise may adversely affect other devices. Setup n Ethernet cable (CAT-5 or greater recommended) Connections n Modem When using the DBP-4010UDCI, we recommend a router with the following features.
• Built-in DHCP (Dynamic Host Configuration Protocol) server. Function that automatically assigns an IP address on the LAN.
• Built-in 100BASE-TX switch (built-in switching hub compatible with speeds upwards of 100 Mbps) Getting Started

to enter the setting.

• The·GUI·menu·display·disappears.

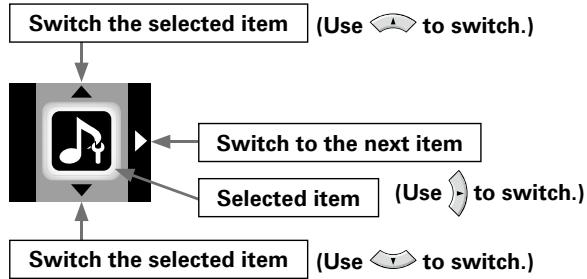

(Use to switch.) Troubleshooting Switch to the next item (Use Selected item

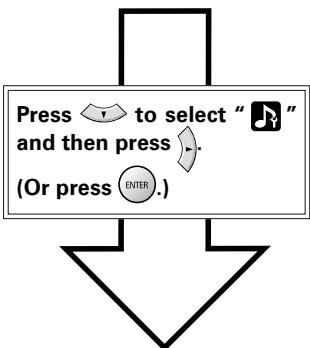

Press Examples of GUI Menu Screen Displays Connections 1 Press . to select the menu to 2 Press be set or operated. Getting Started GUI Menu Operation to switch.) Selected item b Switch the selected item using

Remote control operation buttons :Displaying·the·menu

• No :·Select·when·a·subwooofer·is·not·connected. Specifications GSurroundH :·Set·the·presence·and·size·of·the·Surround·speakers.
• Large :· Use· of· a· large· speaker· that· can· adequately· play· back· low· frequencies.
• Small :·Use·of·a·small·speaker·that·has·inadequate·playback·capacity· for·low·frequencies.
• None :·Select·when·the·surround·speakers·are·not·connected. See overleaf

Remote control operation buttons :Displaying·the·menu

• Set the difference in the distance betweem the speakers to less than 20 feet (6.0 meters). NOTE When “BD Audio Mode” is set to “HD Audio Output” (vpage 32), the “Distance” setting is disabled during DTS-HD 192kHz audio playback. LFE : Add the low frequency signal of the channel for which the speaker size is set to “small” to the subwoofer signal and output it. LFE+Main : Add the low frequency signal of all channels to the subwoofer signal and output it.

Specifications GSW +10dBH : Increase the subwoofer output level by 10 dB. z

• Off : Do not change the subwoofer output level.
• On : Increase the subwoofer output level by +10 dB. z : “SW +10dB” cannot be set for “HDMI Setup” – “Audio Setup” – “Multi LPCM BM On” – “Channel Level” on the GUI menu. GDefaultH : Reset all channel level settings to factory default.
• Yes : Reset. Remote control operation buttons :Displaying the menu Cancel the menu :Moves the cursor (Up/Down/Left/Right) Troubleshooting Subwoofer Mode Set the type of low frequency signal to be output from the subwoofer. GStartH : Begin outputting the test tone. Front L / Center / Front R / Surround R / Surr. Back R / Surr. Back L / Surround L / Subwoofer Playback HDMI Control Function Information Front L / Front R / Center / Subwoofer / Surround L / Surround R / Surr. Back L / Surr. Back R : Select the speaker you want to set, and set the distance. Set the value that is closest to the measured distance. 0 ~ 60ft or 0 ~ 18m n Channel Level : Set the volume of the test tone to be the same when it is output from each speaker. GModeH : Select a test tone output method.
• Auto : Automatically switch the test tone output speaker.
• Manual : Manually switch the test tone output speaker. n Distance : Set the distance between the listening position and each speaker. Setup

• Select “Large” or “Small” not according to the physical size of the speaker but according to the low frequency reproduction capabilities based on the frequency set at “Crossover Freq.”.
• On the GUI menu, if the “Audio Setup” – “7.1ch Audio Out”– “Multi Channel” – “Speaker Configuration” item setting is changed, other settings are automatically changed as well. GExampleH If you set “Front” to “Small”, “Subwoofer” is set to “Yes” and “Large” cannot be selected for “Center”, “Surround” and “Surr. Back”.
• Audio signal (sampling frequency, number of channels) from the HDMI output terminal may be restricted by the specification of the HDMI audio that can be input by the device at the other side. GExampleH If the HDMI audio specification of the device at the other side is the

5.1 channel, even when DBP-4010UDCI plays back by the 7.1 channel,

the 5.1 channel audio is automatically output. In that case, the analog audio output becomes the 5.1 channel output as well. b When the test tone output stops, press Setting contents Setting items 7.1ch Audio Out NOTE Getting Started Audio Setup :Decision the setting :Return to previous menu

ENGLISH Getting Started Audio Setup Connections Setup Setting items Setting contents Setting items Setting contents Source Direct Disable the speaker and subwoofer settings and output the disc audio as is. Off : Enable the speaker and subwoofer settings. On : 50kHz : Output the disc contents as is. When playing Super Audio CD, output up to 50 kHz audio signals. On : 100kHz : Output the disc contents as is. When playing Super Audio CD, output up to 100 kHz audio signals. BD Re-Encoder Sets the format during output of the BD’s Mix Audio signal from the digital output terminal. Auto : Outputs primary audio (main audio) in the same type of audio format. Dolby Digital/Dolby Digital Plus/Dolby TrueHD are output as Dolby Digital, DTS/DTS-HD are output as DTS and Linear PCM is output as Linear PCM. Dolby Digital：Outputs to the digital audio output terminal (optical/ coaxial) with Dolby Digital. DTS : Outputs to the digital audio output terminal (optical/coaxial) with DTS. NOTE Playback HDMI Control Function Information Set to within the playback frequency band of the • Setting “On: 50 kHz” or “On: 100 kHz” enables full-range playback on amplifier you are to use: all channels recommended for DTS. (Note that this results in a 5 dB “On” at “50 kHz” or “100 increase in subwoofer volume, and a 15 dB increase with Super Audio kHz”. Setting outside the CD). This also allows you to play back the 6-channel source of DVDfrequency band can result Audio recorded on all channels with the full frequency range. In this in damage to your amplifier case, make an analog connection according to disc operating manual.

• When set to “On: 50 kHz” or “On: 100 kHz”, all speaker sizes are set to and even fire. “Large” and “Yes” is set for the subwoofer.
• Even when set to “On: 50 kHz” or “On: 100 kHz”, “Channel Level” and “Distance” settings are available. Compression Compresses the dynamic range of Dolby TrueHD/ Dolby Digital/Dolby Digital Plus audio. At night or other times when you cannot play back at high volume, this compensates by reducing high level sounds and increasing low level sounds. Auto : Automatically compress Dolby TrueHD audio dynamic range. The sound is not compressed when playing signals other than Dolby TrueHD signals. Off : Dynamic Range compression is not applied. Low : Set minimum dynamic range compression. Middle : Set middle dynamic range compression. High : Set maximum dynamic range compression. Troubleshooting BD Effect Sound On : Outputs BD effect sound. Sets for a click sound and Off : Does not output BD effect sound. other outputs during BD popup menu operations. Valid when “BD Audio Mode” is set to “Mix Audio Output” (vpage 32). Digital Out Set the audio signal of digital audio output. For more information on each audio signal, refer to “Audio Signal from the Digital Audio Output (Optical/Coaxial) Terminal” (vpage 17). Bitstream : Outputs a bitstream signal. Converts Dolby TrueHD, Dolby Digital Plus to Dolby Digital, and DTS-HD to DTS for output. PCM : Output the downmixed audio signal to 2ch LPCM. PCM Down Sampling : Convert sampling frequency audio greater than 48 kHz to a 48 kHz 2ch LPCM audio output signal. Downmix Set the method used to convert a multi-channel audio signal to a 2-channel signal. Lt/Rt : Signals are converted to Dolby Surround compatible 2-channel audio signals for output. This setting is valid for DTS-HD, DTS Digital Surround, Dolby Digital Plus and Dolby Digital audio signals. (If the connected AV Amp is Dolby Pro Logic compatible, AV Amp plays back using surround audio.) Stereo : Outputs by converting to the 2ch (stereo) audio.

• When outputting CD, etc. to a digital recording device such as the CD recorder, convert to PCM or PCM down sampling.
• When a disc with recorded Linear PCM or PPCM (Packed PCM) is played back, this outputs Linear PCM irrespective of the setting. NOTE In order to enable the “Lt/Rt” setting when playing back BD, set “BD Audio Mode” to “HD Audio Output” (vpage 32). Specifications

(During jitter-free connection) DVDVideo DVDAudio Super audio

3rd·Edition (“3rd”·displayed·near· terminal) “3rd”

4th·Edition (“4th”·displayed·near· terminal) “4th”

Remote control operation buttons :Displaying·the·menu

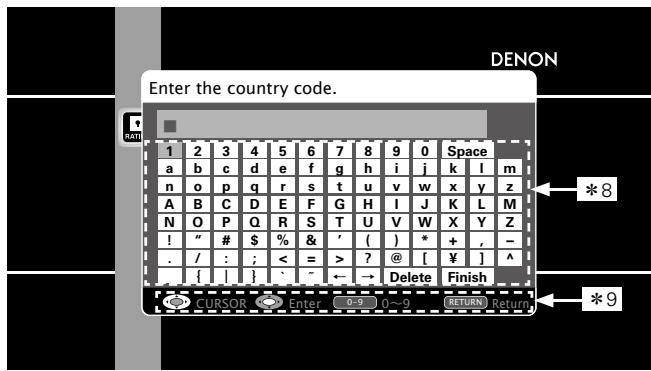

• to·input· the·country·code. Troubleshooting DivX Registration Show Code :·Display·the·DivX®·registration·code Display·the·DivX®·registration· code. Default settings are underlined. Set to connect to the Internet. You can use a disc which offers BD-LIVE function by connecting the unit to the Internet (vpage 36). To obtain update support for your DBP-4010UDCI, you can download the latest firmware from our website. Make a network connect beforehand according to “Connecting to the Network” (vpage 19). Setting items Setting contents DHCP Set·how·to·perform·network· configuration, automatically or·manually. GOnH : Automatically configure the network by the DHCP function. GOffH :·When·connecting·to·a·network,·which·does·not·have·the·DHCP· function, manually configure the following network settings. For the details of the settings, confirm with the provider or network administrator. Use·

• to·enter·a·value·and·then·press· to finalize it. Since· the· factory· default· setting· is· “On”,· you· do· not· need· to· set· items· such· as· the· IP· address· if· the· DHCP· server· of· the· broadband· router·is·set·to·“Enable”.· Configure a proxy server if necessary.·

• IP Address (BD-LIVE, Update) : Manually configure the IP address for BD-LIVE·or·Firmware·Update.
• IP Address (Control) : This is a configuration for future extensions. Usually it is not necessary to configure this.
• Subnet Mask· :· If· the· xDSL· modem· or· terminal· adaptor· is· directly· connected to the DBP-4010UDCI, enter the subnet mask notified by the provider·usually·in·a·document.·Usually,·“255.255.255.0”·is·set.

• to·enter·the·address· and·then·press· to finalize it. Specifications

• Port :· Use· finalize it.

Remote control operation buttons :Displaying·the·menu

:Decision·the·setting

Remote control operation buttons :Displaying·the·menu

• Cancel·the·menu :Moves·the·cursor·
• (Up/Down/Left/Right) :Decision·the·setting :Return·to·previous·menu ENGLISH You can set the audio mode and change playback files. You can set various modes during playback. The setting menu is displayed at the top of the screen.

Displays the currently settable menu. Vertical Stretch BD Audio Mode File filter Off Mix Audio Output All b The display content changes depending on the media being played back. Default settings are underlined. Setting contents Setting items BD Audio Mode HD Audio Output : Can view by outputting high quality signals such as Switch BD audio playback Dolby TrueHD, Dolby Digital Plus, or DTS-HD as its high sound quality mode. bitstream. Cannot listen to interactive or secondary audio. Mix Audio Output : Outputs a mix of primary audio/interactive audio/ secondary audio. NOTE Changing the Playback File Display Vertical Stretch Extends cinemascope size video in the vertical direction. Off : Displays the source video signal without modification. This should normally be set to “Off”. On : Set when viewing cinemascope size video with a combination of projector and anamorphic lens. Extends the image in the vertical direction so that the top and bottom black portions disappear. NOTE This has no effect with the video and S-Video outputs. Default settings are underlined. Setting contents Specifications Setting items Audio Delay Adjust 0 ~ 200msec : Use this to adjust the audio output delay time manually. While viewing video, manually adjust the time to delay audio output. Troubleshooting When “BD Audio Mode” is set to “Mix Audio Output”, DTS-HD 192kHz audio is decoded to 96kHz. Audio/Video Sync HDMI / Component : Audio output is synchronized to the video output Correct displaced video- from the HDMI terminal or component terminals. audio playback timing. S-VIdeo /Video : Audio output is synchronized to the video output from the S-Video or Video terminals. Playback HDMI Control Function Information Setting the Audio Mode Off : Does not display Secondary Video(Picture-In-picture). 1/Xz : Displays the first Secondary Video. 2/Xz : Displays the second Secondary Video. X/Xz : Displays the X th Secondary Video. z：“ X” is the number of Secondary Videos recorded and differs depending on the disc (“Playing Bonus View” vpage 36) Setup , and then press or . 2 Select the setting item using to select a setting and use to change the setting. 3 Use Setting contents Setting items Secondary Video (PIP) Default settings are underlined. Connections

Press Making Other Settings Getting Started Various Settings File filter All : Plays back MP3/WMA/AAC/LPCM/JPEG/DivX® files. Selects the file format you Audio : Plays back MP3/WMA/AAC/LPCM files. want to play back from Picture : Plays back JPEG files. among the files mixed on a Video : Plays back DivX® files. disc. Audio & Picture : Plays back MP3/WMA/AAC/LPCM/JPEG files. This operation is effective only when playback is stopped.

ENGLISH Getting Started Adjusting the Picture Quality (Picture Control) You can adjust the picture quality to your liking. You can store up to a maximum of 5 values in memory. Connections 1 Press . the memory number you want (“Memory 1” ~ 2 Select “Memory 5”) with , and then press The currently set status is displayed. Setup PICT Playback HDMI Control Function Information Memory 5 Standard Memory 1 Memory 1 V.Position DNR Contrast 4 Change the setting with

n When Finishing Picture Adjustment during picture adjustment. Troubleshooting n When Outputting Standard Picture Quality without Using Picture Adjustment Press and to select “Standard” and then press Default DNR Reduce noise in the entire picture. 0 ~ +3

When you select “Gamma Correction”, and then press change the setting with

Brightness Adjust picture brightness. Enhancer z3 Adjust video brightness in detail.

b Refer to the table on the right regarding contents of items which can be set. Press Setting contents Strengthens the contours of the picture. Gamma Correction z1 the item you want to change 3 Select with

Specifications The picture adjustment set values are retained in memory even after the power is turned off. Sharpness (medium range) z1, 3 Adjust picture sharpness for the medium frequency range. Sharpness (high range) z3 Adjust picture sharpness for the higher frequency range. Hue (color tone) z4 Adjust the green and red color balance. White Level Adjust the white level. Black Level z3 Adjust the black level. Chroma Level Adjust the color density. Setup Levelz2 Adjust the black areas of the image. H.Position z3 Adjust the left/right position. V.Position z3 Adjust the top/bottom position.

z1：This is not available for HDMI output. z2：Effective only for the 480i video signal from the video output terminal, S video output terminal, and component video output terminal. z3：This has no effect with the video and S-Video outputs. z4：This has no effect with the video and S-Video outputs when playing PAL video. Setting items In the example of the graph below, the horizontal axis shows the brightness level of the pictured recorded on the disc. The vertical axis shows the brightness of the picture output by the DBP-4010UDCI. PICT Memory 5

• On adjusting the brightness on the output side of bright parts on the disc side, the normally hard to see bright parts become clearly discernible images. PICT Memory 5

• The·“ ”·(prohibited·mark)·may·appear·on·the·top·right·of·the·TV· screen·during·an·operation.·This·means·that·the·operation·being· conducted·is·prohibited.

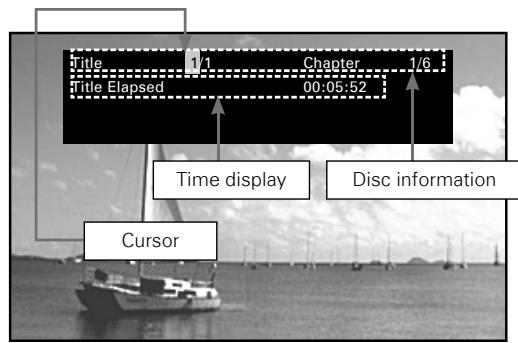

• Track Title being played/total number of titles Chapter being played/total number of chapters Group being played/total number of groups Track being played/total number of tracks n Time Display Setup Playback HDMI Control Function Information

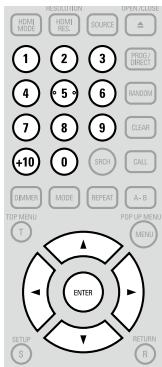

• Track Remain Search Using Information Bar SA-CD to move the cursor to the item that 1 Use you wish to search. 2 Use ~ and to enter a value. 3 Press . DATA DISC Image Single Elapsed 00:25 b If the input number information is not on the disc, the current playback display reappears. Video output signal format/resolution Audio format being output Number of audio channels that the connected device can receive

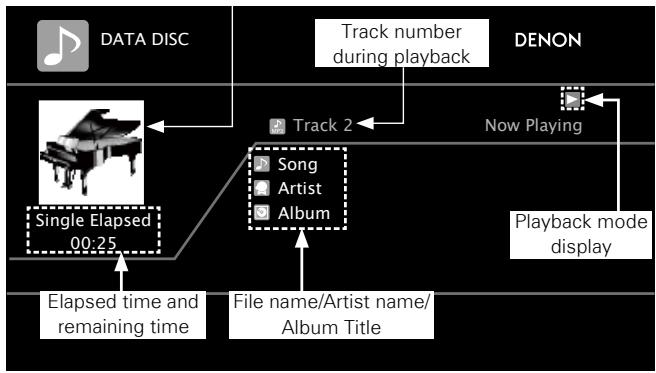

MP3 WMA AAC LPCM Media Track 2 Now Playing Song Artist Search is executed and playback begins. n HDMI Output Signal Display

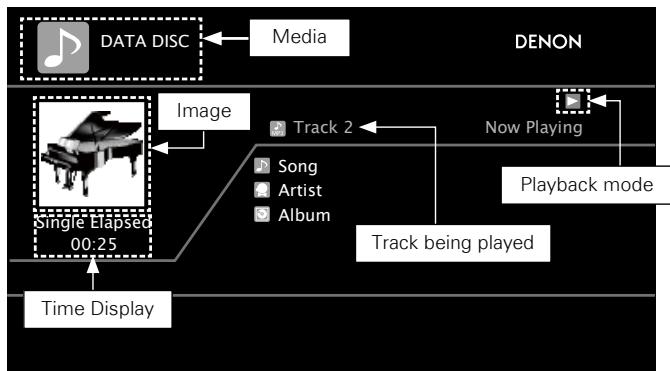

• Max Channel Media Player Display In the orange color cursor area, when you enter the number that you wish to search, that location is searched. There are 4 search modes, “Title search”, “Chapter search”, “Group search” and “Track search”. Playback mode Album Track being played Time Display

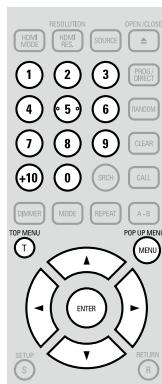

• ······································· Select
• ······················································· Decision

• ······························ Number entry

• · ·········································· Select

• to· display· the· n Enjoying BD-LIVE features

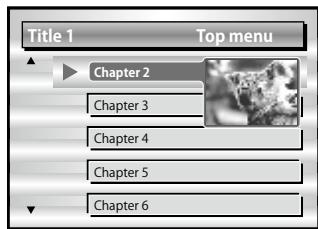

n Playing BD-Video Compatible with Bonus View the playback title or chapter from the top 3 Select menu for playback.

• · ·········································· Select

• ······································· Playback GExampleH·Bonus·view NOTE
• Settings······················· ·“Network·Setup”·(vpage·29)

• ······················································· Playback

n Playing Bonus View Setup

• ······················································· Playback Top menu DVD-V Connections preparation (“Before Playing a Disc” 1 Playback vpage 34). the various settings for playback 2 Make on the disc menu.

• When playing back disc whose selected area or layer does not exist, select the playback area or layer in the order “Multi”, “Stereo”, “CD”.
• The area/layer selected at remains in the memory even when the power is turned off.

stop or during playback, select search mode 1 During with . Search mode is displayed in the top right of the screen. b The search mode changes each time you press Playback begins. Group search mode n When You Look at the Playback Time Display See “Media Player Display” (vpage 35).

Track search mode the playback group and track 2 Select from the top menu, and then play back.

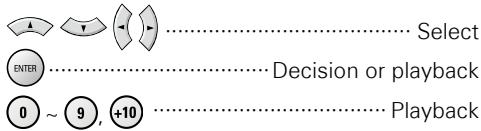

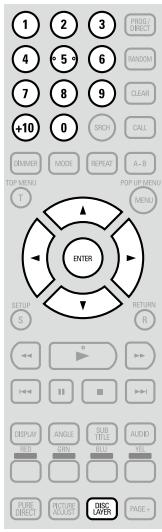

DVD-Audio Playback DVD-A preparation (“Before Playing 1 Playback a Disc” vpage 34). 2 Select the part for playback with . Audio : Plays back the audio part. Video : Plays back the video part. Troubleshooting a top menu is available, select the 3 Ifplayback group and track from the top menu, and then play back.

• ······································· Select
• ···································· Decision or playback Specifications

• ······································ Playback

Plays back the group or track of the pressed number b See “Looking for Specific Sections Using the Search Modes” (vpage 42) for instructions on inputting numbers. The search mode selected with this operation is memorized until the standby or the disc tray is opened. ENGLISH Bonus Group playback DVD-Audio may have a bonus group that can be played back on entry of a password. MP3 Playback will begin from the 1st track of the selected group. b The password may also be entered on the menu screen, so follow the instructions on the screen. n When you password enter the wrong Press to erase the input number and then enter the correct number. WMA DVD AAC SA-CD LPCM

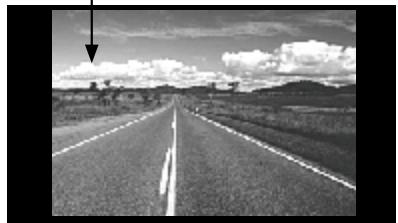

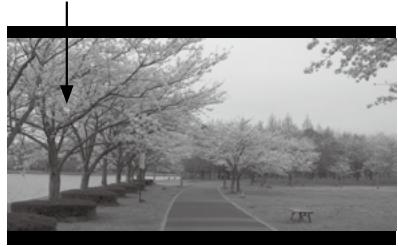

DivX n About the File Display JPEG This enables you to play back high quality audio by stopping the video signal, etc., output, and outputting the analog audio signal only. Press during stop, and then select pure direct mode. Off Using enter a 4-digit password, and then press

DVD-V : This turns off the pure direct function. : This turns off the digital signal output, video signal output and display on the display screen. User Preset 1 : Operates with the registered pure direct setting. User Preset 2 (“Pure Direct Setup” vpage 28)

The limits on the number of folders and files that can be displayed by the DBP-4010UDCI are as follows. (The limited number includes the root folder.)

• Number of folder directory levels···················8 levels
• Number of folders················································· 999
• Number of files··················································· 9999
• Number of text display characters
• File name, Folder name········································· 32
• Artist name, title, etc.··········································· 60 b Text more than one line is scroll displayed. b If characters not supported on the menu screen are included in a file name, title, artist name or album title, those are not displayed correctly.

• You cannot use while the GUI menu is displayed.
• With “On” and the main unit display set to off, indicators other than power are turned off.
• The pure direct setting returns to “Off” when the DBP-4010UDCI is put in standby mode. Troubleshooting Select Still Images With DVD-Audio with still images, you can select images displayed during playback. Press Playback HDMI Control Function Information

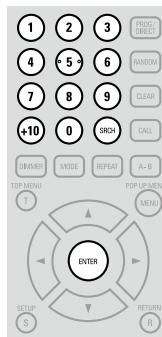

group number with 2 Enter~ the, bonus During stop, select “Group” with File Playback Playing Back High-Quality Audio (Pure Direct Function) Getting Started DVD-Audio Playback during playback. Specifications The next still image is displayed.

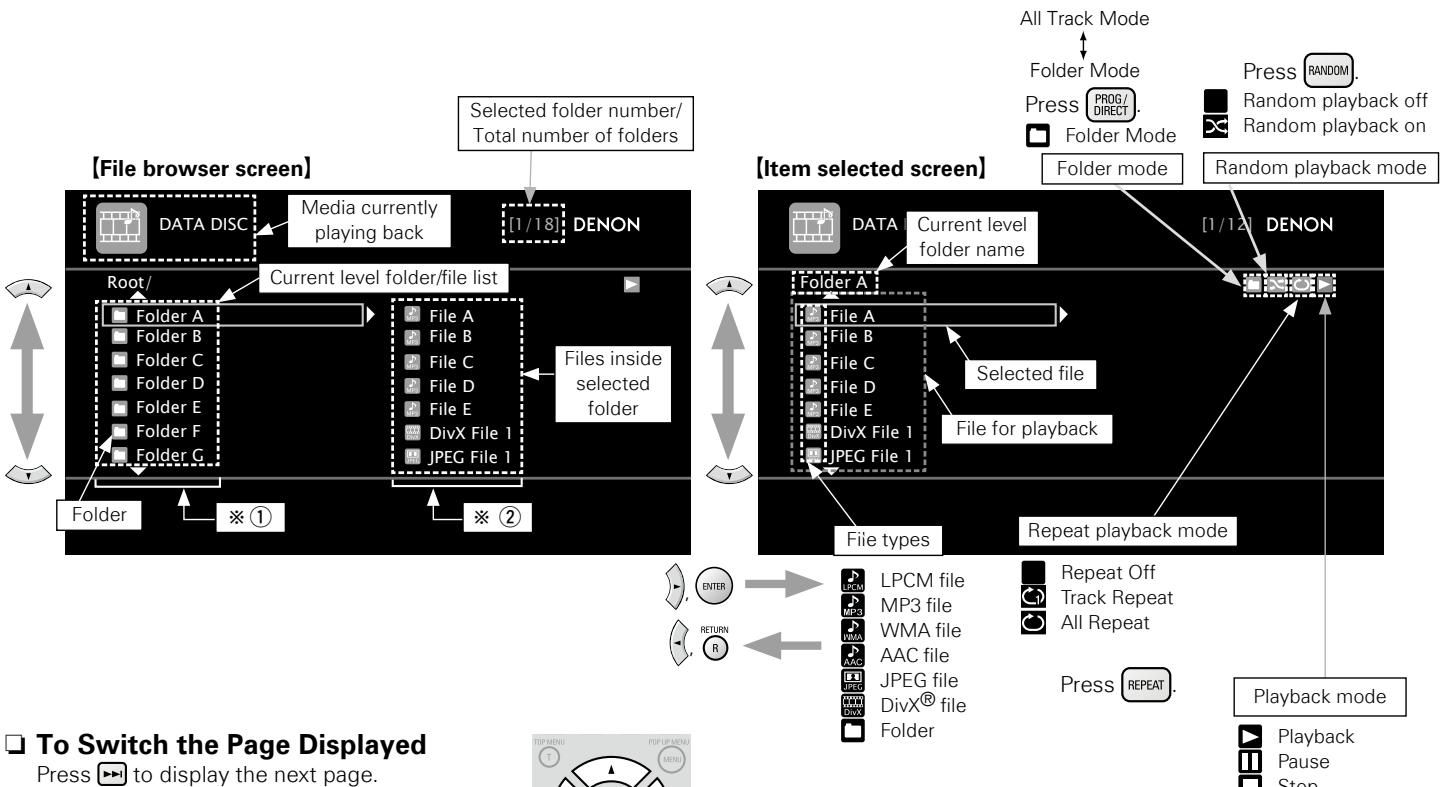

Load media. The file browser screen will appear. b See “Inserting a Disc” and “Inserting an SD Memory Card” (vpage 6) for how to load media b When file browser screen does not appear, press

Select a folder of the data to be played back and press

• ······································· To next level down
• ············································ To the top level 5 Press to select a playback mode. Specifications All Track Mode Folder Mode : Plays back all files in the media. : Plays back files in the selected folder. The folder icon is displayed in the playback mode indicator. 6 Selecting and playing back files.
• ················································· Select

• ······················· Decision or playback Operation during playback differs depending on the file being played back. See “Operation During Playback” (vpage 40).

• ··········································· To next level up [1/12] folder name

• ··· Display screen selection

Random playback mode Folder mode DATA DISC Current level [1/18] Current level folder/file list Root/ Random playback off Random playback on GItem selected screenH Media currently playing back DATA DISC Press

Folder Mode GFile browser screenH : Playing disc Folder Mode Press LPCM file MP3 file WMA file AAC file JPEG file DivX® file Folder Repeat playback mode Repeat Off Track Repeat All Repeat Press

Playback mode Playback Pause Stop Fast reverse Fast forward For playable media and files, see “Playable Media” (vpage 3, 4). ENGLISH About Screen Display During Playback Operation During Playback Audio file and DivX® file operation Display during Playback of Audio Files File name/Artist name/ Album Title n Changing the Still Image being Played Back during stop, and then press Press

• To cancel pause, press n Playing Back Repeatedly (Repeat Playback) Press

Now Playing Song Artist Single Elapsed 00:25 LPCM Setup Press Track 2 AAC n Playback in Any Order (Random Playback) Track number during playback DATA DISC WMA n Changing the Still Image Orientation to select the repeat playback mode. Press DATA DISC

• ·······································180° rotation

• ··············································Rotate 90° left NOTE Track 2

• ··········································· Rotate 90° right Now Playing The display of JPEG image data for cover art, etc., recorded on the file being played is valid when playing MP3 and AAC audio files. Display of DivX® Files and JPEG Files Displays video being played. n Returning to Thumbnail Display Screen Playing Back JPEG File (Still Image) Press

JPEG Troubleshooting Slide show playback of JPEG format still image files stored on CD-R/RW, DVD-R/-RW/+R/+RW disc and SD Memory Card. 1 Press while the file browser screen is displayed. The thumbnail screen will appear. Specifications b Pressing while the thumbnail screen is displayed returns you to the file browser screen. Displays still image being played 1/25 2 Use images. 3 Press Connections MP3 Displays the JPEG image data for cover art, etc., recorded on the file being played.

• Set the image display time on the GUI menu with: “Display Setup” – “Slide Show Time” (vpage 30).
• With a large image file, the display time may be longer than the set time. Getting Started File Playback to select still

Display selected image on full screen.

• Playback·begins·from·the·start·of·the·chapter/ track/file being played.

JPEG , and then search mode. The search mode setting bar is displayed at the top of the screen.

• The search mode changes each time the button is pressed. Chapter – –/21 n Title search Title n Track search – –/15 n Group search DVD

• Entering numbers Entering 3··············································· Entering 26··············· Entering 138·······························

b About Marker Search Plays back from your selected marker number.

z: Depending on number of recorded songs or chapters, you don’t need to use “ENTER” button.

• Search mode does not operate during program or random playback. Use to cue.
• Time search corresponds with title and track playback time. It is not compatible chapter playback time.
• Search mode may not operate depending on the disc. search condition entry 2 Conducting or setting on the search mode setting bar. Group –/5 Search specified location on completion of entry.

• ···························· Number entry

• ········································ Finalizes number
• ·························· Marker number selection n Marker search Finalizes the marker number or plays back 1 2 3 4 5 6 7 8 AC Time – – : – – : – – Specifications Marker

• When the entry mode for chapter/title/track/ group search continues for about 5 seconds with no operation, it is cancelled.
• When the power is set to standby or the disc is removed, the set marker is deleted. –/5 Track Search mode Chapter search Title search Time search Marker search b Track search Group search SA-CD Playback HDMI Control Function Information n Chapter search DVD-A Setup 1 During playback, press WMA DVD

DVD-V Connections MP3 DVD-V Media / file Getting Started Operations Enabled During Playback

• ······························· Marker number cancel

ENGLISH Getting Started Operations Enabled During Playback n To Play Back Memorized Locations Memorizing Locations You Want to Replay (Marker Function)

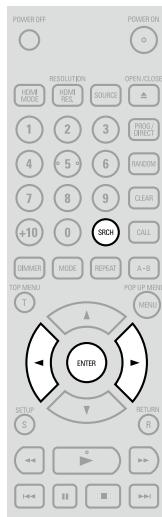

DivX You can attach a marker to a location you want to view or hear again, so that playback begins at that location. Setup playback, 1 During “Marker”. Step-by-Step Playback to select the marker number, then press· , and then select Press n To erase markers Select “AC” and press Playback HDMI Control Function Information 1 2 3 4 5 6 7 8 AC Time – – : – – : – – 2 Use to select the number. Marker b Resume normal playback by pressing b Numbers you have already set will be displayed as “

Press at the location you want to memorize. Troubleshooting The location is registered for the selected marker number. b The elapsed playing time at the set location is displayed. Marker Time

• Subtitles may not appear depending on the locations you have memorized.
• The markers you have set will be erased if you turn the power to standby or eject the disc.
• The marker function does not operate across titles and groups.
• Marker search can only be performed during playback. 1 2 3 4 5 6 7 8 AC Time – – : – – : – –

• The fast forward/fast reverse speed changes each time the button is pressed.
• Speed varies with the disc and file. b Resume normal playback by pressing

• Step-by-step reverse playback is not available with the DBP-4010UDCI.
• If the video is shaky during step-by-step playback, stop playback, press , then on the GUI menu, change “Display Setup” – “Still Mode” – “Field” (vpage 30).

Press DVD-V DVD during pause. The speed changes each time the button is pressed. b The speed of the slow reverse playback is not switched. b Resume normal playback by pressing

• You cannot fast forward/fast reverse across files or tracks during program or random playback.
• Fast forward/fast reverse may be disabled with some DivX® files.
• Audio is not output during fast forward/fast reverse of a BD or DVD.

The search mode setting bar is displayed at the top of the screen. Marker DivX The disc advances frame by frame each time the button is pressed. Select the number you want to erase, and then press

n To erase all markers DVD-V

• Audio is not output during slow forward/slow reverse playback.
• If the video is blurred during slow forward/slow reverse playback, stop playback and press , then on the GUI menu, change “Display Setup” – “Still Mode” – “Field” (vpage 30). ENGLISH Playing Back Repeatedly (Repeat Playback) Playback in Any Order (Random Playback) SA-CD

MP3 WMA AAC LPCM during stop. The “RAND” lights on the display and “Random Mode” is displayed on the screen. to play back. DVD-A MP3

DivX at the desired starting The “A–” indicator will light on the display. b To cancel starting point (A), press

• You cannot skip title/file with A-B repeat.
• If you perform a search operation during A-B repeat playback, A-B repeat playback is cancelled.
• A-B repeat playback may not be enabled depending on the scene.
• A-B repeat playback of MP3/WMA/AAC/JPEG/LPCM files is not available.
• A-B repeat playback is not available during repeat playback.
• A-B repeat playback may not be enabled depending on the DivX® file. Display Specifications DivX Mode JPEG Chapter repeat Track repeat Title repeat Group repeat All repeat

Troubleshooting DVD-A playback, press 1 During point (A). SA-CD , and Settable repeat modes vary depending on the disc or file you are playing back.

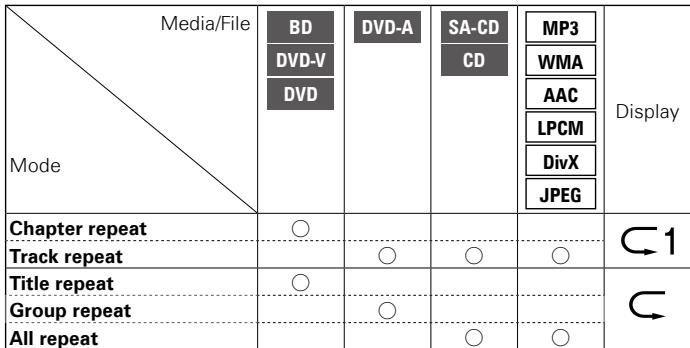

DVD b To resume normal playback, press select “Repeat Off”. About Repeat Mode DVD-V DVD-V The “B” indicator will light on the display, and A-B repeat playback will commence. to select the repeat mode. Album Media/File DVD-A the again at the desired 2 Press ending point (B). Song Artist b To resume normal playback, press select “Repeat Off”.

Playback HDMI Control Function Information during stop. DivX

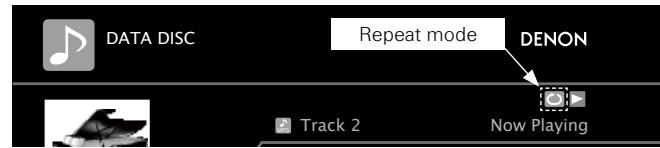

The repeat mode icon is displayed at the top of the screen.

• The repeat mode changes each time the button is pressed. Track 2 Press

during playback. DATA DISC n Resuming Normal Playback SA-CD Setup 2 Press

Repeat Playback Between Specified Points (A-B Repeat) Getting Started Operations Enabled During Playback

• Some repeat modes may not be accessible depending on the disc.
• Depending on the disc, even when set to repeat playback, the disc may not return to the start of title or chapter, and may advance to the next scene.
• Repeat playback is not available during A-B repeat playback.

ENGLISH Getting Started Operations Enabled During Playback n Erasing Programmed Tracks One by One Playing Back in Your Preferred Order (Program Playback) SA-CD Press

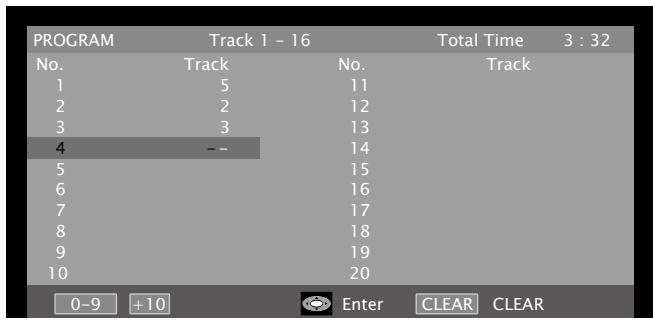

Enter +10 Total Time Track 3 : 32 CLEAR the track numbers you want 2 Enter to program on the program setting screen.

• ············································· Entry Troubleshooting

• ·············································· Decision entry 3 Press

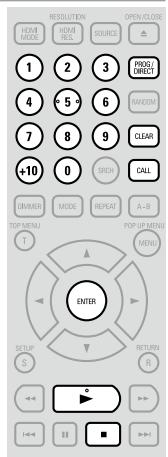

Playback begins in the programmed order. Specifications n Checking the Program Contents Press setting playback. The program setting screen will appear. You can also check the contents of the program, which appears on the unit’s display. Press during stop.

2/5 : Dolby Digital 3/2.1 Japanese Primary Secondary –/1 : Off 4 Press Switching Audio

DivX With discs and files that have multiple audio track recording, you can change the audio during playback. With BD, you can set sub-track audio such as interactive audio and commentary audio, etc., with “Secondary”. playback of an Primary Audio/Secondary 1 During Audio title, press The audio number currently being played is displayed. Audio 1/5 : Dolby Digital 3/2.1 English Primary Secondary –/1 : Off , select “Primary” or 2 Press “Secondary”, and then press Audio Primary

The setup screen disappears. Switching a BD’s Primary Audio/Secondary Audio CLEAR

during stop. The “PROG” indicator lights on the display, and the program setting screen appears. 0-9 n Erasing All Programmed Contents Press You can program up to a maximum of 20 tracks. 3 Select your desired audio language with during stop. 1/5 : Dolby Digital 3/2.1 English Secondary –/1 : Off b If multiple audio items are recorded, “the current audio number/number of recorded audio items” is displayed. b When “BD Audio Mode” is set to “HD Audio Output” (vpage 32), “Secondary” audio is not output.

• Depending on the disc, audio switching may be restricted to operation of the disc menu. In this case, switch the audio on the disc menu.
• Be sure to set “BD Audio Mode” to “Mix Audio Output” (vpage

32) for playing back secondary audio.

• Depending on the BD, even if picture-in-picture playback is set to “Off”, Secondary Audio only may be output. ENGLISH Audio Switching (Media Other than BD)

Press during playback. The audio number currently being played is displayed. DivX : Dolby Digital 3/2.1 English Use to select audio Switching a BD’s Primary Subtitle/Secondary Subtitle and Subtitle Style 1 Press during playback. 2/5 : Dolby Digital 3/2.1 Japanese Subtitle 1/5 : Primary Secondary –/1 : Style

The setup screen disappears. during playback. The subtitle number currently being played is displayed. –/5 2 Use English Off : OFF to select subtitle. Subtitle With , select “Primary”, “Secondary” and “Style”, and then press

: English With a DivX® file, the currently playing subtitle number and number of recorded subtitles are displayed, the language option is not displayed. Subtitle 1/5 : Primary Secondary –/1 : Style 1/5 English Off Troubleshooting

• With DVD-R/-RW with bilingual soundtrack recording, you can switch between “Main” (main audio) and “Sub” (secondary audio) or “Main/Sub” (main audio + secondary audio).
• In CD audio mode, you can switch “Stereo”, “L-ch” (left channel) or “R-ch” (right channel).
• With a DivX® file, “MP3” or “Dolby Digital” audio formats and the number of recorded audio modes are displayed. “– – –“ appears for audio other than these.
• With DTS-CD (5.1 music disc), you cannot switch audio modes.

1 Press Subtitle The subtitle number currently being played is displayed. Audio Selecting DVD-Video and DivX® file Subtitle to select your desired subtitle language 3 Use and subtitle style. Subtitle 4 Press Specifications 1/5 : Primary Secondary –/1 : Style Playback HDMI Control Function Information GExampleH DVD-Video 3 Press

DVD-V During playback of a disc or file with recorded subtitles, you can switch subtitle on/off as well as subtitle language. With BD, you can change the style of displayed subtitles. Audio 1/5

• If a disc does not include subtitles and subtitle style, “Not Available” is displayed.
• Depending on the disc, subtitle switching may be restricted to operation of the disc menu. In this case, switch the subtitles on the disc menu. Connections GExampleH DVD Changing the Subtitles and Subtitle Style Getting Started Operations Enabled During Playback English Off

The setup screen disappears.

ENGLISH Getting Started HDMI Control Function Operations Enabled During Playback Switching the Angle

DVD-V Connections During playback of a BD or DVD-Video recorded with several camera angles, you can change the angle. 1 Press during playback. The angle number currently being played is displayed. Setup Angle 1/3 Playback HDMI Control Function Information

Use to select angle. n Operating the DBP-4010UDCI via the TV’s remote control. (When the TV’s remote control has player operation buttons) 2/3 NOTE Press

The setup screen disappears. NOTE Angle changing may be restricted, depending on the disc. Troubleshooting Changing the Brightness of the Display (Dimmer Control) Press

Specifications The display brightness each time the button is pressed. Normal Dim Dark Off Even when “Off” is selected, the status of operations that are performed appears momentarily on the display if “Display Setup” – “Temporary Display” on the GUI menu is set to “On” (vpage 30).

n TV or AV Amp power is turned on by operating the DBP-4010UDCI, and functions change with DBP4010UDCI input. n Turning off the TV’s power turns the DBP4010UDCI’s power to standby. Angle

When you make an HDMI connection with a TV or AV Amp compatible with DBP-4010UDCI and HDMI control functions, you can perform the following operations by setting the HDMI control function of each device.

• The HDMI control function controls operations of a TV that is compatible with the HDMI control function. Make sure that the TV and HDMI are connected when you perform HDMI control.
• Some functions may not operate depending on the connected TV or AV Amp. Check the owner’s manual of each device for details beforehand.
• When “Other Setup” – “Power Saving” on the GUI menu is set to “Power Saving Standby” or “Normal Standby” (vpage 31), the player’s power cannot be turned on using the HDMI control function.
• When “HDMI Setup” – “HDMI Control” – “Power Off Control” on the GUI menu is set to “Off” (vpage 24), the DBP-4010UDCI is not set to standby even if the connected device is in the standby mode.
• When “DENON LINK Setup” – “DENON LINK Mode” on the GUI menu is set to “4th”, the HDMI control function is enabled for the connected devices. 1 Set HDMI control function to “On”. On the GUI menu, set “HDMI Setup” – “HDMI Control” (vpage 24). the power on for all the equipment connected by 2 Turn HDMI cable. the HDMI control function for all equipment 3 Set connected by HDMI cable. On the GUI menu, set the DBP-4010UDCI with “HDMI Setup” – “HDMI Control” (vpage 24). b Please refer to the owner’s manual as regards setting of connected devices. b Carry out Steps 2 and 3 should any of the equipment be unplugged. ensure that the DBP-4010UDCI’s HDMI video 4 Tooutput is projected on the TV screen, change the input function of the TV and AV Amp. you turn the TV’s power to standby, check that 5 When the power of the DBP-4010UDCI and AV Amp also goes on standby. If the HDMI control function does not operate properly, check the following points.
• Is the TV or AV Amp compatible with the HDMI control function?
• Are the HDMI control function settings of all equipment correct? (Step 3)
• After setting, did you add another HDMI device connection or make any changes in the connections? In this case, perform setting again. ENGLISH About DENON LINK

are is a trademark of the DVD Format / Logo licensing Corporation. HDMI, the HDMI logo and High- Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. Java and all other trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and/or other countries. Manufactured under license from Dolby Laboratories. Dolby, Pro Logic and the double-D symbol ( ) are trademarks of Dolby Laboratories. “AVCHD” and “AVCHD” logo is the trademark of Panasonic Corporation and Sony Corporation. “BONUSVIEW” is the trademark of Blu-ray Disc Association. “BD-LIVE” logo is trademark of Blu-ray Disc Association. SDHC logo is a trademark. Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,392,195; 7,272,567; 7,333,929; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and DTS-HD Master Audio | Essential are trademarks of DTS, Inc.© 1996-2008 DTS, Inc. All Rights Reserved. Specifications This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorised by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorised by Macrovision. Reverse engineering or disassembly is prohibited.

Troubleshooting About Copyright Protection Technology and Playback HDMI Control Function Information “Advanced AL24 Processing” installed in the analog output dramatically improves the information volume on the time axis with independent speed signal detection and processing technology for the PCM signal playback system. In addition to data expansion to 24 bit, it conducts natural interpolation processing with no loss of original data by digital upsampling. The “Advanced AL24” indicator lights on the front panel when Advanced AL24 Processing is in operation. Blu-ray Disc trademarks. Setup About Advanced AL24 Processing This product uses the following technologies: ®, HDCD®, High Definition Compatible Digital® and Microsoft® are either registered trademarks or trademarks of Microsoft Corporation, Inc. in the United States and/or other countries. HDCD system manufactured under license from Microsoft Corporation, Inc. This product is covered by one or more of the following: In the USA: 5,479,168, 5,638,074, 5,640,161, 5,808,574, 5,838,274, 5,854,600, 5,864,311, 5,872,531, and in Australia: 669114. Other patents pending. Connections DENON LINK is a unique digital, balanced transfer type interface developed by DENON. It offers high speed, high quality transfer of digital audio data with low signal loss. It can be used together with DENON AV Amp equipped with a special DENON LINK connector using a single cable to enable playback with high sound quality. It allows digital transfer of the 192 kHz/24 bit 2-channel digital signals of DVD-Audio discs, PCM multi-channel signals, etc. Full-spec digital transfer of the audio contents of Super Audio CD is possible by connecting a player equipped for DENON LINK 3rd Edition. During processing of DENON LINK, the DENON LINK indicator of the display lights. DENON LINK 4th uses the clock of the AV Amp connected by DENON LINK to achieve HDMI signal transfer with little jitter when playing BD. Trademark Information Getting Started Other Information Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

ENGLISH Getting Started Language Code List Language A Abkhazian Connections Setup Playback HDMI Control Function Information Troubleshooting Specifications Afar Afrikaans Albanian Amharic Arabic Armenian Assamese Aymara Azerbaijani B Bashkir Basque Bengali;Bangla Bhutani Bihari Bislama Breton Bulgarian Burmese Byelorussian C Cambodian Catalan Chinese Corsican Croatian Czech D Danish Dutch E English Esperanto Estonian F Faroese Fiji Finnish French Frisian G Galician Georgian German Greek Greenlandic Guarani Gujarati H Hausa Hebrew Hindi Hungarian

PEOPLE’S REPUBLIC OF

SAINT KITTS AND NEVIS

SYRIAN ARAB REPUBLIC

HOLY SEE (VATICAN CITY

ENGLISH Getting Started Explanation of Terms Connections Setup Numerics 4:3 letterbox When a wide (16 : 9) disc is played back by connecting a 4 : 3 TV and the DBP-4010UDCI, this function plays back the image with black area at the top and bottom. 4:3 pan-and-scan When a wide (16 : 9) disc is played back by connecting a 4 : 3 TV and the DBP-4010UDCI, this function cuts left and right of the played back image to the 4 : 3 size according to the disc's control information. Playback HDMI Control Function Information

Anamorphic lens This lens enlarges the 16 : 9 image to 2.35 : 1 image when projecting the image using a projector. Aspect ratio This is the length and width ratio of the TV screen. The conventional TV's screen ratio is 4 : 3 and the wide screen TV's screen ratio is 16 : 9. Troubleshooting Specifications

BD-J (Java) With BD-Videos, there are fun software with more interactive functions (games) using Java applications. BD-LIVE The DBP-4010UDCI can be connected to the Internet to enjoy a number of features, including additional contents such as special videos or subtitles, network games, etc. Bit rate This expresses the read amount per 1 second of video/audio data recorded in a disc. Blu-ray disc This is one-side 1 layer disc having 25GB capacity and can record high vision video movie and games. Bonus View Special images for BD-Videos. It includes comment of the movie director, simultaneously developing sub-story, and images from different angles. Chapter This is a break intended by a producer who organizes the title of BD or DVD-Video. The chapter search function searches the beginning of this break. Deep Color This technology allows expression of more number of colors than the conventional 8 bits and can reproduce colors close to natural ones without color streak. DHCP (Dynamic Host Configuration Protocol) This mechanism automatically perform network configuration such as IP address for network devices including DBP-4010UDCI, PC, and broadband router.

Dolby Digital (5.1ch Surround) This is a stereophonic effect developed by Dolby Laboratories. This is maximum 5.1 channels of independent multi-channel audio system. Dolby Digital Plus This is an extension version of Dolby Digital and is a high sound quality digital audio technology adopted as an optional audio for Bluray disc. Dolby TrueHD This lossless coding technology is adopted as optional audio for Bluray disc and supports 7.1 channels. Downmix This function converts the number of channels of surround audio to less number of channels and plays back. DTS This is an abbreviation of Digital Theater System, which is a digital audio system developed by DTS. When playing back audio by connecting this system with a device such as DTS amplifier, accurate sound field position and realistic sound effect as if you are in a movie theater can be obtained. DTS-HD This audio technology provides higher sound quality and enhanced functionality than the conventional DTS and is adopted as an optional audio for Blu-ray disc. This technology supports multi-channel, high data transfer speed, high sampling frequency, and lossless audio playback. Maximum 7.1 channels are supported in Blu-ray disc. Dynamic range The difference between the maximum undistorted sound level and the minimum sound level that is discernible above the noise emitted by the device. Finalise This is processing that enables playing back of disc of BD/DVD/CD, which was recorded using a recorder, by other players. HDCP When transmitting digital signals between devices, this copyright protection technology encrypts the signals to prevent content from being copied without authorization. HDMI This is an abbreviation of High-Definition Multimedia Interface, which is an AV digital interface that can be connected to a TV or amplifier. Video signal and audio signal can be connected using 1 cable. Interlacing (interlaced scanning) This conventional method used to project images on a TV displays 1 frame of image in half and half, respectively as 2 fields. Interactive audio Audio such as click sound that is generated during operation and is recorded in the title of BD-Videos.

LFE This is an abbreviation of Low Frequency Effect, which is an output channel that emphasizes low frequency effect sound. Surround audio is intensified by outputting 20Hz to 120Hz deep bass. Linear PCM This signal is uncompressed PCM (Pulse Code Modulation) signal. This is the same system as the CD audio but this uses 192kHz, 96kHz, and 48kHz sampling frequencies in BD or DVD and provides higher sound quality than CD. MPEG This is an abbreviation of Moving Picture Experts Group, which is an international standard of the moving picture audio compression method. Images of BD and DVD are recorded using this method. Picture-in-picture This BD-Video function allows you to view making or commentary scenes in the secondary video while viewing the main story in the primary video. Popup menu This menu recorded in BD software. While playing back a BD, this menu can be displayed on the front of the screen and can be operated. Primary audio This audio signal is recorded in the main story in BD-Video. Progressive (sequential scanning) This is a scanning system of video signal that displays 1 frame of video as one image. Compared to the interlace system, this system provides images with less flickering and bleeding. Rating Depending on the age of the viewer, this function restricts playing back of BD-Video or DVD-Video. DBP-4010UDCI can be set to restrict viewing in 0 to 254 level for BD-Video, and 1 to 8 level for DVDVideo. Region code This code indicates country or region where the BD or DVD-Video can be played back. Secondary audio This is audio signals of comment of movie director and other data recorded in the bonus view of BD-Video. Title This is the unit of content that consists of chapters of BD or DVD -Video. Some BD or DVD-Video may include multiple titles. ENGLISH

page Cables Used for Connections··························································12 CD··································································································3, 5 CD-R/-RW·······················································································3, 5 Channel Level············································································23, 25 Chapter························································································5, 51 Component Resolution····································································24 Component Video Output································································18 Country Code···················································································50 page page Group·································································································5

page HDCP·························································································15, 51 HD Layer····························································································5 HDMI····················································································12, 13, 51 HDMI Connection············································································13 HDMI Control Function····································································47 HDMI Setup·····················································································23 Home Theater Playback···································································11

page Information Bar Display···································································34 Interlacing························································································51

page Jitter-free Connection······································································17 JPEG··································································································4

page Marker Function···············································································43 Menu Map·······················································································21 MP3························································································4, 14, 16 Multi linear PCM··············································································14

page Network·····················································································19, 29

page Rating·························································································29, 51 Region Code················································································3, 51 Remote Control Setting···································································31 Remote Control Unit··········································································7 Repeat Mode···················································································44 Resume Function·············································································41

page Screen Saver····················································································30 SD Memory Card···········································································4, 5 Search Mode···················································································42 Secondary Audio··············································································51 Setting HDMI Audio Output····························································14 Setting HDMI Video Output·····························································13 Source Direct···················································································27 Speaker Configuration·······························································23, 25 Subtitle·····························································································46 Super Audio CD·············································································3, 5

page Time Display····················································································35 Title······························································································5, 51 Track··································································································5 TV Aspect···················································································24, 51

page Vertical Stretch·················································································32 Video Setup······················································································24

page WMA··································································································4

Specifications Language Code················································································49 Language Setup···············································································23 Letter Box··················································································24, 51 LFE·····························································································26, 51 Linear PCM(LPCM)······························································14, 16, 51 LPCM···················································································14, 16, 51 Pan Scan····················································································24, 51 Picture-in-Picture········································································36, 51 Playback(BD)····················································································36 Playback(DVD)··················································································36 Playback(Super Audio CD)·······························································37 Playback(CD)····················································································37 Playback(DVD-Audio)·······································································37 Playback(JPEG)················································································39 Power Saving···················································································31 Primary Audio··················································································51 Progressive················································································24, 51 Pure Direct·················································································28, 38 Troubleshooting

Deep Color·················································································23, 51 DENON LINK········································································17, 28, 48 Digital Audio Connection·································································19 Digital Audio Output········································································27 DivX®·······························································································4,5 Dolby Digital·········································································14, 16, 51 Dolby Digital Plus·································································14, 16, 51 Dolby TrueHD······································································14, 16, 51 Downmix····················································································27, 51 DTS······················································································14, 16, 51 DTS-HD················································································14, 16, 51 DVD-Audio·····················································································3, 5

DVD-R/-RW/+R/+RW······································································3, 5

DVD-Video······················································································3, 5 DVI-D Terminal·················································································13 Dynamic Range··········································································27, 51

page Playback HDMI Control Function Information page File··································································································4, 5 File Browser Screen·········································································39 Finalise·························································································4, 51 Firmware Update·············································································31 Folder·································································································5

BD································································································3, 51 BD-Video························································································3, 5 BD-LIVE······················································································36, 51 Bonus View················································································36, 51 Brightness of the Display································································47 page Connections Adjusting the Picture Quality···························································33 Advanced AL24 Processing·····························································48 Analog 7.1ch Connection································································16 Analog Audio Connection································································18 Audio Format·············································································14, 16 Audio Mode·····················································································32 Audio Setup·····················································································25 Auto Power Mode············································································31

Getting Started Index ENGLISH Getting Started Troubleshooting Connections If a problem should arise, first check the following:

1. Are the connections correct?

2. Is the set being operated as described in the owner’s manual?

3. Are the other components operating properly?

If this unit does not operate properly, check the items listed in the table below. Should the problem persist, there may be a malfunction. In this case, disconnect the power immediately and contact your store of purchase. Setup Symptom Cause / Countermeasure Playback HDMI Control Function Information Power does not turn • Check if the power cord is properly connected. on.

• Plug the power supply cord into the power outlet.
• The safety protection device may be activated. Unplug the power cord once, and wait for 5-10 seconds and then plug it in again.
• DBP-4010UDCI enters the standby status by safety function when the fan stops. Check the back of the set if something is disturbing the fan rotation. Unable to play back • Does the SD Memory Card has more than 1GB of available space? BD-LIVE / bonus view. • Has the SD Memory Card been initialized by the DBP-4010UDCI?
• Was the SD Memory Card inserted while the power of the unit is on. (Insert the SD Memory Card while the DBP-4010UDCI is in the standby status.)
• Remove the write protection of an SD Memory Card. Picture appear. Troubleshooting Specifications

does not • Switch the TV's input setting to the external input connected to the player.

• Is the Pure Direct function set to “On”? Set to “Off”. Also, is “Pure Direct Setup” – “Video Out” on the GUI menu set to “Off” at the “User Preset 1” or “User Preset 2” setting? Set it to “On”.
• Is HDMI mode set to “HDMI On”? In this case, video signals are output from the video, S-Video and HDMI terminals, but not from the component terminals.
• Check the connection of the video/S-Video/component video cable.
• Is the GUI menu “HDMI Setup” – “I/P Direct” set to “On”? In this case, no video signals are output from the video and S-Video terminals during playback of certain discs.
• Does the “Video Setup” – “Component Resolution” setting on the GUI menu match the connected device's resolution? Set it so that it matches. Page

Symptom Cause / Countermeasure Video and audio are • Check the connection of the HDMI cable. not output with HDMI • Is the “HDMI” indicator of the display of the DBP-4010UDCI connection. lighting?

• Is the Pure Direct function set to “On”? Set to “Off”. Also, is “Pure Direct Setup” – “Video Out” on the GUI menu set to “Off” at the “User Preset 1” or “User Preset 2” setting? Set it to “On”.
• Is HDMI mode set to “HDMI Off”? In this case, video signals are output from the video and S-Video terminals, but not from the HDMI terminal.
• Check whether the connected display device or other device supports HDCP. This unit will not output a video signal unless the other device supports HDCP. See the owner’s manual of your TV, AV Amp, etc.
• Check that the setting of the HDMI video resolution supports the resolution of the connected device. When set to “Auto”, DBP4010UDCI makes the setting automatically. HD audio output.

not • Set “BD Audio Mode” to “HD Audio Output”. Picture not • The picture may be slightly disturbed directly after fast-forwarding displayed is or reversing. This is not a malfunction. disturbed.

• Connect the DBP-4010UDCI’s video/S-Video/component video Picture of a BD-Video output either directly to the TV or to the TV via the AV Amp. Do or DVD-Video disc is not connect via a VCR (video cassette recorder). Some discs in black and white. include copy prohibit signals, and when such discs are played via a VCR, the copy guard system may cause the picture to be disturbed.
• Is a disc that is not compatible with the player or a disc with a different region number loaded? (This player supports region code “A” for BD-Video discs, “1” or “ALL” for DVD-Video discs.)
• Is the GUI menu “HDMI Setup” – “I/P Direct” set to “On”? In this case, no video signals are output from the video and S-Video terminals during playback of certain discs. Page

ENGLISH Cause / Countermeasure Page

Playback does not • Is there condensation inside the player or on the disc? (Let set for start even when 1 is 1 to 2 hours with the power off.) pressed, or starts but • When the disc is scratched or contaminated with fingerprints, the stops immediately. disc may not be played back correctly. Clean the disc or replace with a non-scratched disc.

• Is the disc loaded upside-down? Load the disc properly, with the side containing the signals to be played facing down.
• Is an unplayable disc loaded? Subtitles are not • Subtitles cannot be displayed for BD-Video, DVD-Video or DivX® displayed. files that do not contain subtitles.
• Is the subtitle setting “Off”? Use a disc menu or to set the displayed subtitle.

No return to start-up • There may be an internal error. Set the power to standby, wait screen when disc is awhile, then turn the power back on. removed.

The set cannot be • Aim the remote control directly at infrared sensor window on the operated with the front of the unit. remote control unit. • Operate within a distance of 7 meters from the remote control sensor.

• Remove the obstacle.
• Replace the batteries with new ones.
• Insert the batteries in the proper direction, checking the q and w marks.
• Make the signal code of the remote control match to the signal code of the unit.

7, 31 Buttons do not work • Operations may not be permitted by the disc. or the unit stops • The safety protection device may be activated. Unplug the power responding. cord once, and wait for 5-10 seconds and then plug it in again.

• Refer to the instructions of the disc.

Playable disc is not • The pickup lens may be dirty. Before requesting servicing, try read. cleaning the laser pickup with a commercially available lens cleaner. (Do not use a cleaner with brush because it may damage the lens.)

not • If a BD-Video or DVD-Video does not record multiple angles, angle cannot be switched. Also, multiple angles may be recorded for specific scenes.

Playback does not • Playback may be prohibited by the viewing restriction setting. start when the title is Check the “Ratings” setting on the GUI menu. selected.

The password for • On the GUI menu, perform the “Other Setup” – “Initialize” rating level has been procedure. forgotten.

• Some function may not be used in some operation status and this is not failure of the unit. Read the description in this Owner’s Manual for details on correct operations.
• The volume may differ from disc to disc. This is due to the differences in how the signals are recorded on the disc, and is not a malfunction.
• During programmed playback, it is not possible to perform random playback or to start playback from the desired track or file.
• Some functions are prohibited on some discs. Specifications

Troubleshooting SD Memory Card • The format of the card does not match to this unit or the card is cannot be read. not compatible.

• Is the playback media mode set to “SD CARD MODE”? Select “SD CARD MODE” at The unit is operated • The unit is operated by the remote control of other DENON by the remote control products. of other DENON • To avoid the unit being operated with the remote control of other products. devices, set “Other Setup” – “Remote Control Setting” – “Receive Legacy Remocon” to “Off” on the GUI menu. Playback HDMI Control Function Information Picture freezes • When the disc is scratched or contaminated with fingerprints, the momentarily during disc may not be played back correctly. Clean the disc or replace playback. with a non-scratched disc.
• There may be a problem with the data recorded on the disc.

Page Setup 11 ~ 20 Cause / Countermeasure Connections No sound is heard or • Check the devices whose audio is connected and the speaker the sound is hard to connections. hear.

• Is the power of devices whose audio is connected turned on? Is the input selection set to the input to which the DBP-4010UDCI is connected?
• Is the audio output properly selected? Symptom Getting Started Symptom

• When in Quick Start Mode : 20 ~ 35 W (Changes according to connection status, etc.) 434 (W) x 137 (H) x 383 (D) mm (17-3/32” x 5-25/64” x 15-5/64”) 10 kg (22 lbs 0.7 oz) n Remote control unit (RC-1140) Remote control type : Batteries : Maximum external dimensions : Weight : Infrared pulse R6/AA Type (two batteries) 58 (W) x 230 (H) x 37 (D) mm (2-9/32” x 9-1/16” x 1-29/64”) 205 g (Approx. 7.2 oz) (included batteries) z For purposes of improvement, specifications and design are subject to change without notice. License This section describes software license used for DBP-4010UDCI. To maintain the correct content, the original (English) is used.

Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. Preamble The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundations software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Library General Public License instead.) You can apply it to your programs, too. When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things. To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it. For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights. We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software. Also, for each author’s protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors’ reputations. Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone’s free use or not licensed at all. The precise terms and conditions for copying, distribution and modification follow. TERMS AND CONDITIONS FOR COPYING,

DISTRIBUTION AND MODIFICATION

0. This License applies to any program or other work

which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The “Program”, below, refers to any such program or work, and a “work based on the Program” means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term “modification”.) Each licensee is addressed as “you”. Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the

Program’s source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program. You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Program

or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change. b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License. c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.) These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it. Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program. In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

3. You may copy and distribute the Program (or a

work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following: a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.) The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable. If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

4. You may not copy, modify, sublicense, or distribute

the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

5. You are not required to accept this License, since you

have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

6. Each time you redistribute the Program (or any work

based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.

7. If, as a consequence of a court judgment or allegation

of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program. If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice. This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License. LICENSE

8. If the distribution and/or use of the Program is restricted

in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

9. The Free Software Foundation may publish revised

and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

10. If you wish to incorporate parts of the Program into

other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally. NO WARRANTY

11. BECAUSE THE PROGRAM IS LICENSED FREE

OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW.

EXCEPT WHEN OTHERWISE

STATED IN WRITING THE COPYRIGHT HOLDERS

AND/OR OTHER PARTIES PROVIDE THE PROGRAM “AS IS” WITHOUT WARRANTY OF ANY KIND,

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms. To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a pointer to where the full notice is found. <one line to give the program’s name and a brief idea of what it does.> Copyright (C) <year> <name of author> This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version. This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details. You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Also add information on how to contact you by electronic and paper mail. If the program is interactive, make it output a short notice like this when it starts in an interactive mode: Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type ‘show w’. This is free software, and you are welcome to redistribute it under certain conditions; type ‘show c’ for details. The hypothetical commands ‘show w’ and ‘show c’ should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than ‘show w’ and ‘show c’; they could even be mouse-clicks or menu items--whatever suits your program. You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the program, if necessary. Here is a sample; alter the names: Yoyodyne, Inc., hereby disclaims all copyright interest in the program ‘Gnomovision’ (which makes passes at compilers) written by James Hacker. <signature of Ty Coon>, 1 April 1989 Ty Coon, President of Vice This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Library General Public License instead of this License.

Version 2.1, February 1999 Copyright (C) 1991, 1999 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. [This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.] Preamble The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This license, the Lesser General Public License, applies to some specially designated software packages-typically libraries--of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below. When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things. To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it. For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object files to the recipients, so that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights. We protect your rights with a twostep method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library. To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author’s reputation will not be affected by problems that might be introduced by others. Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in this license. Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs. When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire combination fits its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code with the library. We call this license the “Lesser” General Public License because it does Less to protect the user’s freedom than the ordinary General Public License. It also provides other free software developers Less of an advantage over competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lesser license provides advantages in certain special circumstances. For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License. In other cases, permission to use a particular library in nonfree programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system. Although the Lesser General Public License is Less protective of the users’ freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the Library. The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between a “work based on the library” and a “work that uses the library”. The former contains code derived from the library, whereas the latter must be combined with the library in order to run. TERMS AND CONDITIONS FOR COPYING,

DISTRIBUTION AND MODIFICATION

0. This License Agreement applies to any software library

or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called “this License”). Each licensee is addressed as “you”. A “library” means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables. The “Library”, below, refers to any such software library or work which has been distributed under these terms. A “work based on the Library” means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modifications and/ or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term “modification”.) “Source code” for a work means the preferred form of the work for making modifications to it. For a library, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the library. Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the Library does and what the program that uses the Library does.

1. You may copy and distribute verbatim copies of the

Library’s complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with the Library. You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Library or

any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a) The modified work must itself be a software library. b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any change. c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License. d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful. (For example, a function in a library to compute square roots has a purpose that is entirely welldefined independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.) These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it. Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Library. In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

3. You may opt to apply the terms of the ordinary GNU

General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices. Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy. This option is useful when you wish to copy part of the code of the Library into a program that is not a library.

4. You may copy and distribute the Library (or a portion

or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange. If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code.

5. A program that contains no derivative of any portion

of the Library, but is designed to work with the Library by being compiled or linked with it, is called a “work that uses the Library”. Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License. However, linking a “work that uses the Library” with the Library creates an executable that is a derivative of the Library (because it contains portions of the Library), rather than a “work that uses the library”. The executable is therefore covered by this License.

Section 6 states terms for distribution of such

executables. When a “work that uses the Library” uses material from a header file that is part of the Library, the object code for the work may be a derivative work of the Library even though the source code is not. Whether this is true is especially significant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is not precisely defined by law. If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under Section 6.) Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself.

6. As an exception to the Sections above, you may also

combine or link a “work that uses the Library” with the Library to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modification of the work for the customer’s own use and reverse engineering for debugging such modifications. You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License. Also, you must do one of these things: a) Accompany the work with the complete corresponding machine-readable source code for the Library including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine-readable “work that uses the Library”, as object code and/or source code, so that the user can modify the Library and then relink to produce a modified executable containing the modified Library. (It is understood that the user who changes the contents of definitions files in the Library will not necessarily be able to recompile the application to use the modified definitions.) b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run time a copy of the library already present on the user’s computer system, rather than copying library functions into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the modified version is interface-compatible with the version that the work was made with. c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified in Subsection 6a, above, for a charge no more than the cost of performing this distribution. d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specified materials from the same place. e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy. For an executable, the required form of the “work that uses the Library” must include any data and utility programs needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable. It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute.

7. You may place library facilities that are a work based on

the Library side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things: a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the Sections above. b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to find the accompanying uncombined form of the same work.

8. You may not copy, modify, sublicense, link with, or

distribute the Library except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance. LICENSE

9. You are not required to accept this License, since

you have not signed it. However, nothing else grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it.

10. Each time you redistribute the Library (or any work

based on the Library), the recipient automatically receives a license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License.

11. If, as a consequence of a court judgment or allegation

of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library. If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice. This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

12. If the distribution and/or use of the Library is restricted

in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

13. The Free Software Foundation may publish revised

and/or new versions of the Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version number. If the Library specifies a version number of this License which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published by the Free Software Foundation.

14. If you wish to incorporate parts of the Library into

other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally. NO WARRANTY

15. BECAUSE THE LIBRARY IS LICENSED FREE OF

CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE LAW.

EXCEPT WHEN OTHERWISE STATED IN WRITING

ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Libraries If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License). To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a pointer to where the full notice is found. <one line to give the library’s name and a brief idea of what it does.> Copyright (C) <year> <name of author> This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version. This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details. You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Also add information on how to contact you by electronic and paper mail. You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the library, if necessary. Here is a sample; alter the names: Yoyodyne, Inc., hereby disclaims all copyright interest in the library ‘Frob’ (a library for tweaking knobs) written by James Random Hacker. <signature of Ty Coon>, 1 April 1990 Ty Coon, President of Vice That’s all there is to it!

Exhibit-C Copyright notice: (C) 1995-2004 Jean-loup Gailly and Mark Adler This software is provided ‘as-is’, without any express or implied warranty. In no event will the authors be held liable for any damages arising from the use of this software. Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it and redistribute it freely, subject to the following restrictions:

1. The origin of this software must not be misrepresented;

you must not claim that you wrote the original software. If you use this software in a product, an acknowledgment in the product documentation would be appreciated but is not required.

2. Altered source versions must be plainly marked as

such, and must not be misrepresented as being the original software.

3. This notice may not be removed or altered from any

source distribution. Jean-loup Gailly Mark Adler jloup@gzip.org madler@alumni.caltech.edu If you use the zlib library in a product, we would appreciate *not* receiving lengthy legal documents to sign. The sources are provided for free but without warranty of any kind. The library has been entirely written by Jeanloup Gailly and Mark Adler; it does not include third-party code. If you redistribute modified sources, we would appreciate that you include in the file ChangeLog history information documenting your changes. Please read the FAQ for more information on the distribution of modified source versions.

Exhibit-D Copyright (c) 1998, 1999, 2000 Thai Open Source Software Center Ltd and Clark Cooper Copyright (c) 2001, 2002 Expat maintainers. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the “Software”), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES

README for release 6b of 27-Mar-1998 This distribution contains the sixth public release of the Independent JPEG Group’s free JPEG software. You are welcome to redistribute this software and to use it for any purpose, subject to the conditions under LEGAL ISSUES, below. Serious users of this software (particularly those incorporating it into larger programs) should contact IJG at jpeg-info@uunet.uu.net to be added to our electronic mailing list. Mailing list members are notified of updates and have a chance to participate in technical discussions, etc. This software is the work of Tom Lane, Philip Gladstone, Jim Boucher, Lee Crocker, Julian Minguillon, Luis Ortiz, George Phillips, Davide Rossi, Guido Vollbeding, Ge’ Weijers, and other members of the Independent JPEG Group. IJG is not affiliated with the official ISO JPEG standards committee. DOCUMENTATION ROADMAP This file contains the following sections: OVERVIEW General description of JPEG and the IJG software. LEGAL ISSUES Copyright, lack of warranty, terms of distribution. REFERENCES Where to learn more about JPEG. ARCHIVE LOCATIONS Where to find newer versions of this software. RELATED SOFTWARE Other stuff you should get.

Software *not* to get. TO DO Plans for future IJG releases. Other documentation files in the distribution are: User documentation: install.doc How to configure and install the IJG software. usage.doc Usage instructions for cjpeg, djpeg, jpegtran, rdjpgcom, and wrjpgcom. *.1 Unix-style man pages for programs (same info as usage. doc). wizard.doc Advanced usage instructions for JPEG wizards only. change.log Version-to-version change highlights. Programmer and internal documentation: libjpeg.doc How to use the JPEG library in your own programs. example.c Sample code for calling the JPEG library. structure.doc Overview of the JPEG library’s internal structure. filelist.doc Road map of IJG files. coderules.doc Coding style rules --- please read if you contribute code. Please read at least the files install.doc and usage.doc. Useful information can also be found in the JPEG FAQ (Frequently Asked Questions) article. See ARCHIVE LOCATIONS below to find out where to obtain the FAQ article. If you want to understand how the JPEG code works, we suggest reading one or more of the REFERENCES, then looking at the documentation files (in roughly the order listed) before diving into the code. OVERVIEW This package contains C software to implement JPEG image compression and decompression. JPEG (pronounced “jaypeg”) is a standardized compression method for full-color and gray-scale images. JPEG is intended for compressing “real-world” scenes; line drawings, cartoons and other non-realistic images are not its strong suit. JPEG is lossy, meaning that the output image is not exactly identical to the input image. Hence you must not use JPEG if you have to have identical output bits. However, on typical photographic images, very good compression levels can be obtained with no visible change, and remarkably high compression levels are possible if you can tolerate a lowquality image. For more details, see the references, or just experiment with various compression settings. This software implements JPEG baseline, extendedsequential, and progressive compression processes. Provision is made for supporting all variants of these processes, although some uncommon parameter settings aren’t implemented yet. For legal reasons, we are not distributing code for the arithmetic-coding variants of JPEG; see LEGAL ISSUES. We have made no provision for supporting the hierarchical or lossless processes defined in the standard. We provide a set of library routines for reading and writing JPEG image files, plus two sample applications “cjpeg” and “djpeg”, which use the library to perform conversion between JPEG and some other popular image file formats. The library is intended to be reused in other applications. In order to support file conversion and viewing software, we have included considerable functionality beyond the bare JPEG coding/decoding capability; for example, the color quantization modules are not strictly part of JPEG decoding, but they are essential for output to colormapped file formats or colormapped displays. These extra functions can be compiled out of the library if not required for a particular application. We have also included “jpegtran”, a utility for lossless transcoding between different JPEG processes, and “rdjpgcom” and “wrjpgcom”, two simple applications for inserting and extracting textual comments in JFIF files. The emphasis in designing this software has been on achieving portability and flexibility, while also making it fast enough to be useful. In particular, the software is not intended to be read as a tutorial on JPEG. (See the REFERENCES section for introductory material.) Rather, it is intended to be reliable, portable, industrial-strength code. We do not claim to have achieved that goal in every aspect of the software, but we strive for it. We welcome the use of this software as a component of commercial products. No royalty is required, but we do ask for an acknowledgement in product documentation, as described under LEGAL ISSUES. LEGAL ISSUES In plain English:

1. We don’t promise that this software works. (But if you

find any bugs, please let us know!)

2. You can use this software for whatever you want. You

don’t have to pay us.

3. You may not pretend that you wrote this software.

If you use it in a program, you must acknowledge somewhere in your documentation that you’ve used the IJG code. In legalese: The authors make NO WARRANTY or representation, either express or implied, with respect to this software, its quality, accuracy, merchantability, or fitness for a particular purpose. This software is provided “AS IS”, and you, its user, assume the entire risk as to its quality and accuracy. This software is copyright (C) 1991-1998, Thomas G. Lane. All Rights Reserved except as specified below. Permission is hereby granted to use, copy, modify, and distribute this software (or portions thereof) for any purpose, without fee, subject to these conditions: (1) If any part of the source code for this software is distributed, then this README file must be included, with this copyright and no-warranty notice unaltered; and any additions, deletions, or changes to the original files must be clearly indicated in accompanying documentation. (2) If only executable code is distributed, then the accompanying documentation must state that “this software is based in part on the work of the Independent JPEG Group”. (3) Permission for use of this software is granted only if the user accepts full responsibility for any undesirable consequences; the authors accept NO LIABILITY for damages of any kind. These conditions apply to any software derived from or based on the IJG code, not just to the unmodified library. If you use our work, you ought to acknowledge us. Permission is NOT granted for the use of any IJG author’s name or company name in advertising or publicity relating to this software or products derived from it. This software may be referred to only as “the Independent JPEG Group’s software”. We specifically permit and encourage the use of this software as the basis of commercial products, provided that all warranty or liability claims are assumed by the product vendor. ansi2knr.c is included in this distribution by permission of L. Peter Deutsch, sole proprietor of its copyright holder, Aladdin Enterprises of Menlo Park, CA. ansi2knr.c is NOT covered by the above copyright and conditions, but instead by the usual distribution terms of the Free Software Foundation; principally, that you must include source code if you redistribute it. (See the file ansi2knr.c for full details.) However, since ansi2knr.c is not needed as part of any program generated from the IJG code, this does not limit you more than the foregoing paragraphs do. The Unix configuration script “configure” was produced with GNU Autoconf. It is copyright by the Free Software Foundation but is freely distributable. The same holds for its supporting scripts (config. guess, config.sub, ltconfig, ltmain.sh). Another support script, install-sh, is copyright by M.I.T. but is also freely distributable. It appears that the arithmetic coding option of the JPEG spec is covered by patents owned by IBM, AT&T, and Mitsubishi. Hence arithmetic coding cannot legally be used without obtaining one or more licenses. For this reason, support for arithmetic coding has been removed from the free JPEG software. (Since arithmetic coding provides only a marginal gain over the unpatented Huffman mode, it is unlikely that very many implementations will support it.) So far as we are aware, there are no patent restrictions on the remaining code. The IJG distribution formerly included code to read and write GIF files. To avoid entanglement with the Unisys LZW patent, GIF reading support has been removed altogether, and the GIF writer has been simplified to produce “uncompressed GIFs”. This technique does not use the LZW algorithm; the resulting GIF files are larger than usual, but are readable by all standard GIF decoders. We are required to state that “The Graphics Interchange Format(c) is the Copyright property of CompuServe Incorporated. GIF(sm) is a Service Mark property of CompuServe Incorporated.” REFERENCES We highly recommend reading one or more of these references before trying to understand the innards of the JPEG software. The best short technical introduction to the JPEG compression algorithm is Wallace, Gregory K. “The JPEG Still Picture Compression Standard”, Communications of the ACM, April 1991 (vol. 34 no. 4), pp. 30-44. (Adjacent articles in that issue discuss MPEG motion picture compression, applications of JPEG, and related topics.) If you don’t have the CACM issue handy, a PostScript file containing a revised version of Wallace’s article is available at ftp://ftp.uu.net/graphics/jpeg/ wallace.ps.gz. The file (actually a preprint for an article that appeared in IEEE Trans. Consumer Electronics) omits the sample images that appeared in CACM, but it includes corrections and some added material. Note: the Wallace article is copyright ACM and IEEE, and it may not be used for commercial purposes. A somewhat less technical, more leisurely introduction to JPEG can be found in “The Data Compression Book” by Mark Nelson and Jean-loup Gailly, published by M&T Books (New York), 2nd ed. 1996, ISBN 1-55851-434-1. This book provides good explanations and example C code for a multitude of compression methods including JPEG. It is an excellent source if you are comfortable reading C code but don’t know much about data compression in general. The book’s JPEG sample code is far from industrial-strength, but when you are ready to look at a full implementation, you’ve got one here... The best full description of JPEG is the textbook “JPEG Still Image Data Compression Standard” by William B. Pennebaker and Joan L. Mitchell, published by Van Nostrand Reinhold, 1993, ISBN 0-442-01272-1. Price US$59.95, 638 pp. The book includes the complete text of the ISO JPEG standards (DIS 10918-1 and draft DIS 10918-2). This is by far the most complete exposition of JPEG in existence, and we highly recommend it. The JPEG standard itself is not available electronically; you must order a paper copy through ISO or ITU. (Unless you feel a need to own a certified official copy, we recommend buying the Pennebaker and Mitchell book instead; it’s much cheaper and includes a great deal of useful explanatory material.) In the USA, copies of the standard may be ordered from ANSI Sales at (212) 642-4900, or from Global Engineering Documents at (800) 854-7179. (ANSI doesn’t take credit card orders, but Global does.) It’s not cheap: as of 1992, ANSI was charging $95 for Part 1 and $47 for Part 2, plus 7% shipping/handling. The standard is divided into two parts, Part 1 being the actual specification, while Part 2 covers compliance testing methods. Part 1 is titled “Digital Compression and Coding of Continuous-tone Still Images,

Part 1: Requirements and guidelines” and has document

numbers ISO/IEC IS 10918-1, ITU-T T.81. Part 2 is titled “Digital Compression and Coding of Continuous-tone Still Images, Part 2: Compliance testing” and has document numbers ISO/IEC IS 10918-2, ITU-T T.83. Some extensions to the original JPEG standard are defined in JPEG Part 3, a newer ISO standard numbered ISO/IEC IS 10918-3 and ITU-T T.84. IJG currently does not support any Part 3 extensions. The JPEG standard does not specify all details of an interchangeable file format. For the omitted details we follow the “JFIF” conventions, revision 1.02. A copy of the JFIF spec is available from: Literature Department C-Cube Microsystems, Inc. 1778 McCarthy Blvd. Milpitas, CA 95035 phone (408) 944-6300, fax (408) 944-6314 LICENSE

A PostScript version of this document is available by FTP at ftp://ftp.uu.net/graphics/jpeg/jfif.ps.gz. There is also a plain text version at ftp://ftp.uu.net/graphics/jpeg/jfif.txt. gz, but it is missing the figures. The TIFF 6.0 file format specification can be obtained by FTP from ftp://ftp.sgi.com/graphics/tiff/TIFF6.ps.gz. The JPEG incorporation scheme found in the TIFF 6.0 spec of 3-June-92 has a number of serious problems. IJG does not recommend use of the TIFF 6.0 design (TIFF Compression tag 6). Instead, we recommend the JPEG design proposed by TIFF Technical Note #2 (Compression tag 7). Copies of this Note can be obtained from ftp.sgi.com or from ftp:// ftp.uu.net/graphics/jpeg/. It is expected that the next revision of the TIFF spec will replace the 6.0 JPEG design with the Note’s design. Although IJG’s own code does not support TIFF/JPEG, the free libtiff library uses our library to implement TIFF/ JPEG per the Note. libtiff is available from ftp://ftp.sgi. com/graphics/tiff/. ARCHIVE LOCATIONS The “official” archive site for this software is ftp.uu.net (Internet address 192.48.96.9). The most recent released version can always be found there in directory graphics/ jpeg. This particular version will be archived as ftp://ftp. uu.net/graphics/jpeg/jpegsrc.v6b.tar.gz. If you don’t have direct Internet access, UUNET’s archives are also available via UUCP; contact help@uunet.uu.net for information on retrieving files that way. Numerous Internet sites maintain copies of the UUNET files. However, only ftp.uu.net is guaranteed to have the latest official version. You can also obtain this software in DOS-compatible “zip” archive format from the SimTel archives (ftp://ftp.simtel. net/pub/simtelnet/msdos/graphics/), or on CompuServe in the Graphics Support forum (GO CIS:GRAPHSUP), library 12 “JPEG Tools”. Again, these versions may sometimes lag behind the ftp.uu.net release. The JPEG FAQ (Frequently Asked Questions) article is a useful source of general information about JPEG. It is updated constantly and therefore is not included in this distribution. The FAQ is posted every two weeks to Usenet newsgroups comp.graphics.misc, news.answers, and other groups. It is available on the World Wide Web at http://www.faqs. org/faqs/jpeg-faq/ and other news.answers archive sites, including the official news.answers archive at rtfm.mit. edu: ftp://rtfm.mit.edu/pub/usenet/news.answers/jpegfaq/. If you don’t have Web or FTP access, send e-mail to mailserver@rtfm.mit.edu with body send usenet/news.answers/jpeg-faq/part1 send usenet/news.answers/jpeg-faq/part2 RELATED SOFTWARE Numerous viewing and image manipulation programs now support JPEG. (Quite a few of them use this library to do so.) The JPEG FAQ described above lists some of the more popular free and shareware viewers, and tells where to obtain them on Internet.

LICENSE If you are on a Unix machine, we highly recommend Jef Poskanzer’s free PBMPLUS software, which provides many useful operations on PPM-format image files. In particular, it can convert PPM images to and from a wide range of other formats, thus making cjpeg/djpeg considerably more useful. The latest version is distributed by the NetPBM group, and is available from numerous sites, notably ftp://wuarchive.wustl.edu/graphics/graphics/ packages/NetPBM/. Unfortunately PBMPLUS/NETPBM is not nearly as portable as the IJG software is; you are likely to have difficulty making it work on any non-Unix machine. A different free JPEG implementation, written by the PVRG group at Stanford, is available from ftp://havefun.stanford.edu/pub/jpeg/. This program is designed for research and experimentation rather than production use; it is slower, harder to use, and less portable than the IJG code, but it is easier to read and modify. Also, the PVRG code supports lossless JPEG, which we do not. (On the other hand, it doesn’t do progressive JPEG.)

Some JPEG programs produce files that are not compatible with our library. The root of the problem is that the ISO JPEG committee failed to specify a concrete file format. Some vendors “filled in the blanks” on their own, creating proprietary formats that no one else could read. (For example, none of the early commercial JPEG implementations for the Macintosh were able to exchange compressed files.) The file format we have adopted is called JFIF (see REFERENCES). This format has been agreed to by a number of major commercial JPEG vendors, and it has become the de facto standard. JFIF is a minimal or “low end” representation. We recommend the use of TIFF/JPEG (TIFF revision 6.0 as modified by TIFF Technical Note #2) for “high end” applications that need to record a lot of additional data about an image. TIFF/JPEG is fairly new and not yet widely supported, unfortunately. The upcoming JPEG Part 3 standard defines a file format called SPIFF. SPIFF is interoperable with JFIF, in the sense that most JFIF decoders should be able to read the most common variant of SPIFF. SPIFF has some technical advantages over JFIF, but its major claim to fame is simply that it is an official standard rather than an informal one. At this point it is unclear whether SPIFF will supersede JFIF or whether JFIF will remain the de-facto standard. IJG intends to support SPIFF once the standard is frozen, but we have not decided whether it should become our default output format or not. (In any case, our decoder will remain capable of reading JFIF indefinitely.) Various proprietary file formats incorporating JPEG compression also exist. We have little or no sympathy for the existence of these formats. Indeed, one of the original reasons for developing this free software was to help force convergence on common, open format standards for JPEG files. Don’t use a proprietary file format! TO DO The major thrust for v7 will probably be improvement of visual quality. The current method for scaling the quantization tables is known not to be very good at low Q values. We also intend to investigate block boundary smoothing, “poor man’s variable quantization”, and other means of improving quality-vs-file-size performance without sacrificing compatibility. In future versions, we are considering supporting some of the upcoming JPEG Part 3 extensions --- principally, variable quantization and the SPIFF file format. As always, speeding things up is of great interest. Please send bug reports, offers of help, etc. to jpeg-info@ uunet.uu.net.

Exhibit-F COPYRIGHT NOTICE, DISCLAIMER, and LICENSE: If you modify libpng you may insert additional notices immediately following this sentence. libpng version 1.2.6, August 15, 2004, is Copyright (c) 2004 Glenn Randers-Pehrson, and is distributed according to the same disclaimer and license as libpng-1.2.5 with the following individual added to the list of Contributing Authors Cosmin Truta libpng versions 1.0.7, July 1, 2000, through 1.2.5 - October 3, 2002, are Copyright (c) 2000-2002 Glenn RandersPehrson, and are distributed according to the same disclaimer and license as libpng-1.0.6 with the following individuals added to the list of Contributing Authors Simon-Pierre Cadieux Eric S. Raymond Gilles Vollant and with the following additions to the disclaimer: There is no warranty against interference with your enjoyment of the library or against infringement. There is no warranty that our efforts or the library will fulfill any of your particular purposes or needs. This library is provided with all faults, and the entire risk of satisfactory quality, performance, accuracy, and effort is with the user. libpng versions 0.97, January 1998, through 1.0.6, March 20, 2000, are Copyright (c) 1998, 1999 Glenn RandersPehrson, and are distributed according to the same disclaimer and license as libpng-0.96, with the following individuals added to the list of Contributing Authors: Tom Lane Glenn Randers-Pehrson Willem van Schaik libpng versions 0.89, June 1996, through 0.96, May 1997, are Copyright (c) 1996, 1997 Andreas Dilger Distributed according to the same disclaimer and license as libpng0.88, with the following individuals added to the list of Contributing Authors: John Bowler Kevin Bracey Sam Bushell Magnus Holmgren Greg Roelofs Tom Tanner libpng versions 0.5, May 1995, through 0.88, January 1996, are Copyright (c) 1995, 1996 Guy Eric Schalnat, Group 42, Inc. For the purposes of this copyright and license,“Contributing Authors” is defined as the following set of individuals: Andreas Dilger Dave Martindale Guy Eric Schalnat Paul Schmidt Tim Wegner The PNG Reference Library is supplied “AS IS”. The Contributing Authors and Group 42, Inc. disclaim all warranties, expressed or implied, including, without limitation, the warranties of merchantability and of fitness for any purpose. The Contributing Authors and Group 42, Inc. assume no liability for direct, indirect, incidental, special, exemplary, or consequential damages, which may result from the use of the PNG Reference Library, even if advised of the possibility of such damage. Permission is hereby granted to use, copy, modify, and distribute this source code, or portions hereof, for any purpose, without fee, subject to the following restrictions:

1. The origin of this source code must not be

2. Altered versions must be plainly marked as such and

must not be misrepresented as being the original source.

3. This Copyright notice may not be removed or altered

from any source or altered source distribution. The Contributing Authors and Group 42, Inc. specifically permit, without fee, and encourage the use of this source code as a component to supporting the PNG file format in commercial products. If you use this source code in a product, acknowledgment is not required but would be appreciated. A “png_get_copyright” function is available, for convenient use in “about” boxes and the like: printf(“%s”,png_get_ copyright(NULL)); Also, the PNG logo (in PNG format, of course) is supplied in the files “pngbar.png” and “pngbar. jpg (88x31) and “pngnow.png” (98x31). Libpng is OSI Certified Open Source Software. OSI Certified Open Source is a certification mark of the Open Source Initiative. Glenn Randers-Pehrson glennrp@users.sourceforge.net August 15, 2004

Exhibit-G Copyright (c) 2001,2003 Keith Packard Permission to use, copy, modify, distribute, and sell this software and its documentation for any purpose is hereby granted without fee, provided that the above copyright notice appear in all copies and that both that copyright notice and this permission notice appear in supporting documentation, and that the name of Keith Packard not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission. Keith Packard makes no representations about the suitability of this software for any purpose. It is provided “as is” without express or implied warranty.

KEITH PACKARD DISCLAIMS ALL WARRANTIES WITH

REGARD TO THIS SOFTWARE, INCLUDING ALL IMPLIED

Exhibit-H The FreeType Project LICENSE 2002-Apr-11 Copyright 1996-2002 by David Turner, Robert Wilhelm, and Werner Lemberg Introduction The FreeType Project is distributed in several archive packages; some of them may contain, in addition to the FreeType font engine, various tools and contributions which rely on, or relate to, the FreeType Project. This license applies to all files found in such packages, and which do not fall under their own explicit license. The license affects thus the FreeType font engine, the test programs, documentation and makefiles, at the very least. This license was inspired by the BSD, Artistic, and IJG (Independent JPEG Group) licenses, which all encourage inclusion and use of free software in commercial and freeware products alike. As a consequence, its main points are that:

• We don’t promise that this software works. However, we will be interested in any kind of bug reports. (‘as is’ distribution)
• You can use this software for whatever you want, in parts or full form, without having to pay us. (‘royaltyfree’usage)
• You may not pretend that you wrote this software. If you use it, or only parts of it, in a program, you must acknowledge somewhere in your documentation that you have used the FreeType code. (‘credits’) We specifically permit and encourage the inclusion of this software, with or without modifications, in commercial products. We disclaim all warranties covering The FreeType Project and assume no liability related to The FreeType Project. Finally, many people asked us for a preferred form for a credit/disclaimer to use in compliance with this license. We thus encourage you to use the following text: Portions of this software are copyright © 1996-2002 The FreeType Project (www.freetype.org). All rights reserved. Legal Terms

Throughout this license, the terms ‘package’, ‘FreeType Project’, and ‘FreeType archive’ refer to the set of files originally distributed by the authors (David Turner, Robert Wilhelm, and Werner Lemberg) as the ‘FreeType Project’, be they named as alpha, beta or final release. ‘You’ refers to the licensee, or person using the project, where ‘using’ is a generic term including compiling the project’s source code as well as linking it to form a ‘program’ or ‘executable’. This program is referred to as ‘a program using the FreeType engine’. This license applies to all files distributed in the original FreeType Project, including all source code, binaries and documentation, unless otherwise stated inthe file in its original, unmodified form a distributed in the original archive. If you are unsure whether or not a particular file is covered by this license, you must contact us to verify this. The FreeType Project is copyright (C) 1996-2000 by David Turner, Robert Wilhelm, and Werner Lemberg. All rights reserved except as specified below.

THE FREETYPE PROJECT IS PROVIDED ‘AS IS’

WITHOUT WARRANTY OF ANY KIND, EITHER

EXPRESS OR IMPLIED, INCLUDING, BUT NOT

LIMITED TO, WARRANTIES OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL ANY OF THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY DAMAGES CAUSED BY THE USE OR THE INABILITY TO USE, OF THE FREETYPE PROJECT.

This license grants a worldwide, royalty-free, perpetual and irrevocable right and license to use, execute, perform, compile, display, copy, create derivative works of, distribute and sublicense the FreeType Project (in both source and object code forms) and derivative works thereof for any purpose; and to authorize others to exercise some or all of the rights granted herein, subject to the following conditions:

• Redistribution of source code must retain this license file (‘FTL.TXT’) unaltered; any additions, deletions or changes to the original files must be clearly indicated in accompanying documentation. The copyright notices of the unaltered, original files must be preserved in all copies of source files.
• Redistribution in binary form must provide a disclaimer that states that the software is based in part of the work of the FreeType Team, in the distribution documentation. We also encourage you to put an URL to the FreeType web page in your documentation, though this isn’t mandatory. These conditions apply to any software derived from or based on the FreeType Project, not just the unmodified files. If you use our work, you must acknowledge us. However, no fee need be paid to us.

Neither the FreeType authors and contributors nor you shall use the name of the other for commercial, advertising, or promotional purposes without specific prior written permission. We suggest, but do not require, that you use one or more of the following phrases to refer to this software in your documentation or advertising materials: ‘FreeType Project’, ‘FreeType Engine’, ‘FreeType library’, or ‘FreeType Distribution’. As you have not signed this license, you are not required to accept it. However, as the FreeType Project is copyrighted material, only this license, or another one contracted with the authors, grants you the right to use, distribute, and modify it. Therefore, by using, distributing, or modifying the FreeType Project, you indicate that you understand and accept all the terms of this license.

There are two mailing lists related to FreeType:

• freetype@freetype.org Discusses general use and applications of FreeType, as well as future and wanted additions to the library and distribution. If you are looking for support, start in this list if you haven’t found anything to help you in the documentation.
• devel@freetype.org Discusses bugs, as well as engine internals, design issues, specific licenses, porting, etc.

Exhibit-I z This document is freely plagiarised from the ‘Artistic Licence’, distributed as part of the Perl v4.0 kit by Larry Wall, which is available from most major archive sites This documents purpose is to state the conditions under which these Packages (See definition below) viz: “Crack”, the Unix Password Cracker, and “CrackLib”, the Unix Password Checking library, which are held in copyright by Alec David Edward Muffett, may be copied, such that the copyright holder maintains some semblance of artistic control over the development of the packages, while giving the users of the package the right to use and distribute the Package in a more-or-less customary fashion, plus the right to make reasonable modifications. So there. Definitions: A “Package” refers to the collection of files distributed by the Copyright Holder, and derivatives of that collection of files created through textual modification, or segments thereof. “Standard Version” refers to such a Package if it has not been modified, or has been modified in accordance with the wishes of the Copyright Holder. “Copyright Holder” is whoever is named in the copyright or copyrights for the package. “You” is you, if you’re thinking about copying or distributing this Package. “Reasonable copying fee” is whatever you can justify on the basis of media cost, duplication charges, time of people involved, and so on. (You will not be required to justify it to the Copyright Holder, but only to the computing community at large as a market that must bear the fee.) “Freely Available” means that no fee is charged for the item itself, though there may be fees involved in handling the item. It also means that recipients of the item may redistribute it under the same conditions they received it.

1. You may make and give away verbatim copies of the

source form of the Standard Version of this Package without restriction, provided that you duplicate all of the original copyright notices and associated disclaimers.

2. You may apply bug fixes, portability fixes and other

modifications derived from the Public Domain or from the Copyright Holder. A Package modified in such a way shall still be considered the Standard Version.

3. You may otherwise modify your copy of this Package

in any way, provided that you insert a prominent notice in each changed file stating how and when AND WHY you changed that file, and provided that you do at least ONE of the following: a) place your modifications in the Public Domain or otherwise make them Freely Available, such as by posting said modifications to Usenet or an equivalent medium, or placing the modifications on a major archive site such as uunet.uu.net, or by allowing the Copyright Holder to include your modifications in the Standard Version of the Package.

b) use the modified Package only within your corporation or organization. c) rename any non-standard executables so the names do not conflict with standard executables, which must also be provided, and provide separate documentation for each non-standard executable that clearly documents how it differs from the Standard Version. d) make other distribution arrangements with the Copyright Holder. You may distribute the programs of this Package in object code or executable form, provided that you do at least ONE of the following: a) distribute a Standard Version of the executables and library files, together with instructions (in the manual page or equivalent) on where to get the Standard Version. b) accompany the distribution with the machinereadable source of the Package with your modifications. c) accompany any non-standard executables with their corresponding Standard Version executables, giving the non-standard executables non-standard names, and clearly documenting the differences in manual pages (or equivalent), together with instructions on where to get the Standard Version. d) make other distribution arrangements with the Copyright Holder. You may charge a reasonable copying fee for any distribution of this Package. You may charge any fee you choose for support of this Package. YOU MAY NOT CHARGE A FEE FOR THIS PACKAGE ITSELF. However, you may distribute this Package in aggregate with other (possibly commercial) programs as part of a larger (possibly commercial) software distribution provided that YOU DO NOT ADVERTISE this package as a product of your own. The name of the Copyright Holder may not be used to endorse or promote products derived from this software without specific prior written permission. THIS PACKAGE IS PROVIDED “AS IS” AND WITHOUT ANY EXPRESS IMPLIED WARRANTIES,

INCLUDING, WITHOUT LIMITATION, THE IMPLIED

WARRANTIES OF MERCHANTIBILITY AND FITNESS

FOR A PARTICULAR PURPOSE. Exhibit-J Unless otherwise “explicitly” stated, the following text describes the licensed conditions under which the contents of this libcap release may be used and distributed: Redistribution and use in source and binary forms of libcap, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain any existing

copyright notice, and this entire permission notice in its entirety, including the disclaimer of warranties.

2. Redistributions in binary form must reproduce all prior

and current copyright notices, this list of conditions, and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. The name of any author may not be used to endorse or

promote products derived from this software without their specific prior written permission. LICENSE

ALTERNATIVELY, this product may be distributed under the terms of the GNU General Public License, in which case the provisions of the GNU GPL are required INSTEAD OF the above restrictions. (This clause is necessary due to a potential conflict between the GNU GPL and the restrictions contained in a BSD-style copyright.) THIS SOFTWARE IS PROVIDED “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR(S) BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT

Exhibit-L Copyright 1995 by Wietse Venema. All rights reserved. Some individual files may be covered by other copyrights. This material was originally written and compiled by Wietse Venema at Eindhoven University of Technology, The Netherlands, in 1990, 1991, 1992, 1993, 1994 and Redistribution and use in source and binary forms are permitted provided that this entire copyright notice is duplicated in all such copies. This software is provided “as is” and without any expressed or implied warranties, including, without limitation, the implied warranties of merchantibility and fitness for any particular purpose. Copyright (c) 1989 The Regents of the University of California. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the

above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the

above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. All advertising materials mentioning features or

use of this software must display the following acknowledgement: This product includes software developed by the University of California, Berkeley and its contributors.

4. Neither the name of the University nor the names of

its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT

Exhibit-M Copyright (c) 1998 Red Hat Software Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the “Software”), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES

IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. Except as contained in this notice, the name of the X Consortium shall not be used in advertising or otherwise to promote the sale, use or other dealings in this Software without prior written authorization from the X Consortium.

Exhibit-N Copyright (c) 2004-2005 by Internet Systems Consortium, Inc. (“ISC”) Copyright (c) 1995-2003 by Internet Software Consortium Permission to use, copy, modify, and distribute this software for any purpose with or without fee is hereby granted, provided that the above copyright notice and this permission notice appear in all copies. THE SOFTWARE IS PROVIDED “AS IS” AND ISC DISCLAIMS ALL WARRANTIES WITH REGARD TO THIS

SOFTWARE INCLUDING ALL IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL ISC BE LIABLE FOR ANY SPECIAL,

Exhibit-O OpenBSD: telnet.c,v 1.6 1998/07/27 15:29:29 millert Exp NetBSD: telnet.c,v 1.7 1996/02/28 21:04:15 thorpej Exp Copyright (c) 1988, 1990, 1993 The Regents of the University of California. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the

above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the

above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. All advertising materials mentioning features or

use of this software must display the following acknowledgement: This product includes software developed by the University of California, Berkeley and its contributors.

4. Neither the name of the University nor the names of

its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE

IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,

(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,

Exhibit-P ORIGINAL LICENSE: This software is (c) Copyright 1992 by Panagiotis Tsirigotis The author (Panagiotis Tsirigotis) grants permission to use, copy, and distribute this software and its documentation for any purpose and without fee, provided that the above copyright notice extant in files in this distribution is not removed from files included in any redistribution and that this copyright notice is also included in any redistribution. Modifications to this software may be distributed, either by distributing the modified software or by distributing patches to the original software, under the following additional terms:

1. The version number will be modified as follows:

a. The first 3 components of the version number (i.e <number>.<number>.<number>) will remain unchanged. b. A new component will be appended to the version number to indicate the modification level. The form of this component is up to the author of the modifications.

2. The author of the modifications will include his/her

name by appending it along with the new version number to this file and will be responsible for any wrong behavior of the modified software. The author makes no representations about the suitability of this software for any purpose. It is provided “as is” without any express or implied warranty. Modifications: Version: 2.1.8.7-current Copyright 1998-2001 by Rob Braun Sensor Addition Version: 2.1.8.9pre14a Copyright 2001 by Steve Grubb This is an exerpt from an email I recieved from the original author, allowing xinetd as maintained by me, to use the higher version numbers: I appreciate your maintaining the version string guidelines as specified in the copyright. But I did not mean them to last as long as they did. So, if you want, you may use any 2.N.* (N >= 3) version string for future xinetd versions that you release. Note that I am excluding the 2.2.* line; using that would only create confusion. Naming the next release 2.3.0 would put to rest the confusion about 2.2.1 and 2.1.8.*.

Exhibit-Q Except where otherwise noted in the source code (e.g. the files hash.c, list.c and the trio files, which are covered by a similar licence but with different Copyright notices) all the files are: Copyright (C) 1998-2003 Daniel Veillard. All Rights Reserved. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the “Software”), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES

IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. Except as contained in this notice, the name of Daniel Veillard shall not be used in advertising or otherwise to promote the sale, use or other dealings in this Software without prior written authorization from him.

Exhibit-R LICENSE ISSUES The OpenSSL toolkit stays under a dual license, i.e. both the conditions of the OpenSSL License and the original SSLeay license apply to the toolkit. See below for the actual license texts. Actually both licenses are BSD-style Open Source licenses. In case of any license issues related to OpenSSL please contact openssl-core@openssl.org. OpenSSL License Copyright (c) 1998-2004 The OpenSSL Project. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the

above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the

above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. All advertising materials mentioning features or

use of this software must display the following acknowledgment: “This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)”

4. The names “OpenSSL Toolkit” and “OpenSSL Project”

must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact openssl-core@openssl.org.

5. Products derived from this software may not be called

“OpenSSL” nor may “OpenSSL” appear in their names without prior written permission of the OpenSSL Project.

6. Redistributions of any form whatsoever must retain

the following acknowledgment: “This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)” THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT “AS IS” AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO,

THE IMPLIED WARRANTIES OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT,

CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT

STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE

OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. This product includes cryptographic software written by Eric Young (eay@cryptsoft.com). This product includes software written by Tim Hudson (tjh@cryptsoft.com). Original SSLeay License Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com) All rights reserved. This package is an SSL implementation written by Eric Young (eay@cryptsoft.com). The implementation was written so as to conform with Netscapes SSL. This library is free for commercial and non-commercial use as long as the following conditions are aheared to. The following conditions apply to all code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code; not just the SSL code. The SSL documentation included with this distribution is covered by the same copyright terms except that the holder is Tim Hudson (tjh@cryptsoft.com). Copyright remains Eric Youngs, and as such any Copyright notices in the code are not to be removed. If this package is used in a product, Eric Young should be given attribution as the author of the parts of the library used. This can be in the form of a textual message at program startup or in documentation (online or textual) provided with the package. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the

copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the

above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. All advertising materials mentioning features or

use of this software must display the following acknowledgement: “This product includes cryptographic software written by Eric Young (eay@cryptsoft.com)” The word ‘cryptographic’ can be left out if the rouines from the library being used are not cryptographic related :-).

4. If you include any Windows specific code (or a

derivative thereof) from the apps directory (application code) you must include an acknowledgement: “This product includes software written by Tim Hudson (tjh@cryptsoft.com)” THIS SOFTWARE IS PROVIDED BY ERIC YOUNG “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,

(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,

OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. The licence and distribution terms for any publically available version or derivative of this code cannot be changed. i.e. this code cannot simply be copied and put under another distribution licence [including the GNU Public Licence.]

Exhibit-S Copyright (c) 1998-2001,2002 Free Software Foundation, Inc. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the “Software”), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, distribute with modifications, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES

OF MERCHANTABILITY, FITNESS FOR A PARTICULAR

PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE ABOVE COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. Except as contained in this notice, the name(s) of the above copyright holders shall not be used in advertising or otherwise to promote the sale, use or other dealings in this Software without prior written authorization.

Exhibit-T Copyright (c) 1990 The Regents of the University of California. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the

above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the

above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. All advertising materials mentioning features or

use of this software must display the following acknowledgement: This product includes software developed by the University of California, Berkeley and its contributors.

4. Neither the name of the University nor the names of

its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE

IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,

(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,

OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Copyright (C) 1985-2005 by the Massachusetts Institute of Technology. All rights reserved. Export of this software from the United States of America may require a specific license from the United States Government. It is the responsibility of any person or organization contemplating export to obtain such a license before exporting. WITHIN THAT CONSTRAINT, permission to use, copy, modify, and distribute this software and its documentation for any purpose and without fee is hereby granted, provided that the above copyright notice appear in all copies and that both that copyright notice and this permission notice appear in supporting documentation, and that the name of M.I.T. not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission. Furthermore if you modify this software you must label your software as modified software and not distribute it in such a fashion that it might be confused with the original MIT software. M.I.T. makes no representations about the suitability of this software for any purpose. It is provided “as is” without express or implied warranty. THIS SOFTWARE IS PROVIDED “AS IS” AND WITHOUT ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING,

WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF

MERCHANTIBILITY AND FITNESS FOR A PARTICULAR

Individual source code files are copyright MIT, Cygnus Support, OpenVision, Oracle, Sun Soft, FundsXpress, and others. Project Athena, Athena, Athena MUSE, Discuss, Hesiod, Kerberos, Moira, and Zephyr are trademarks of the Massachusetts Institute of Technology (MIT). No commercial use of these trademarks may be made without prior written permission of MIT. “Commercial use” means use of a name in a product or other for-profit manner. It does NOT prevent a commercial firm from referring to the MIT trademarks in order to convey information (although in doing so, recognition of their trademark status should be given). The following copyright and permission notice applies to the OpenVision Kerberos Administration system located in kadmin/create, kadmin/dbutil, kadmin/passwd, kadmin/ server, lib/kadm5, and portions of lib/rpc: Copyright, OpenVision Technologies, Inc., 1996, All Rights Reserved

WARNING: Retrieving the OpenVision Kerberos

Administration system source code, as described below, indicates your acceptance of the following terms. If you do not agree to the following terms, do not retrieve the OpenVision Kerberos administration system. You may freely use and distribute the Source Code and Object Code compiled from it, with or without modification, but this Source Code is provided to you “AS IS” EXCLUSIVE OF ANY WARRANTY, INCLUDING,

WITHOUT LIMITATION, ANY WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR

INDIRECT, OR CONSEQUENTIAL DAMAGES ARISING

OUT OF THIS AGREEMENT, INCLUDING, WITHOUT

LIMITATION, THOSE RESULTING FROM THE USE OF THE SOURCE CODE, OR THE FAILURE OF THE SOURCE CODE TO PERFORM, OR FOR ANY OTHER REASON. OpenVision retains all copyrights in the donated Source Code. OpenVision also retains copyright to derivative works of the Source Code, whether created by OpenVision or by a third party. The OpenVision copyright notice must be preserved if derivative works are made based on the donated Source Code. OpenVision Technologies, Inc. has donated this Kerberos Administration system to MIT for inclusion in the standard Kerberos 5 distribution. This donation underscores our commitment to continuing Kerberos technology development and our gratitude for the valuable work which has been performed by MIT and the Kerberos community. Portions contributed by Matt Crawford <crawdad@fnal. gov> were work performed at Fermi National Accelerator Laboratory, which is operated by Universities Research Association, Inc., under contract DE-AC02-76CHO3000 with the U.S. Department of Energy. The implementation of the Yarrow pseudo-random number generator in src/lib/crypto/yarrow has the following copyright: Copyright 2000 by Zero-Knowledge Systems, Inc.

LICENSE Permission to use, copy, modify, distribute, and sell this software and its documentation for any purpose is hereby granted without fee, provided that the above copyright notice appear in all copies and that both that copyright notice and this permission notice appear in supporting documentation, and that the name of Zero-Knowledge Systems, Inc. not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission. Zero-Knowledge Systems, Inc. makes no representations about the suitability of this software for any purpose. It is provided “as is” without express or implied warranty.

OF CONTRACT, NEGLIGENCE OR OTHER TORTUOUS

ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE. The implementation of the AES encryption algorithm in src/lib/crypto/aes has the following copyright: Copyright (c) 2001, Dr Brian Gladman <brg@gladman. uk.net>, Worcester, UK. All rights reserved. LICENSE TERMS The free distribution and use of this software in both source and binary form is allowed (with or without changes) provided that:

1. distributions of this source code include the above

copyright notice, this list of conditions and the following disclaimer;

2. distributions in binary form include the above

copyright notice, this list of conditions and the following disclaimer in the documentation and/or other associated materials;

3. the copyright holder’s name is not used to endorse

products built using this software without specific written permission. DISCLAIMER This software is provided “as is” with no explcit or implied warranties in respect of any properties, including, but not limited to, correctness and fitness for purpose. The implementation of the RPCSEC_GSS authentication flavor in src/lib/rpc has the following copyright: Copyright (c) 2000 The Regents of the University of Michigan. All rights reserved. Copyright (c) 2000 Dug Song <dugsong@UMICH.EDU>. All rights reserved, all wrongs reversed. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the

above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the

above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. Neither the name of the University nor the names of

its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT

OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Acknowledgments Appreciation Time!!!! There are far too many people to try to thank them all; many people have contributed to the development of Kerberos V5. This is only a partial listing.... Thanks to Kevin Coffman and the CITI group at the University of Michigan for providing patches for implementing RPCSEC_GSS authentication in the RPC library. Thanks to Derrick Schommer for reporting multiple memory leaks. Thanks to Quanah Gibson-Mount of Stanford University for helping exercise the thread support code. Thanks to Michael Tautschnig for reporting the heap buffer overflow inthe password history mechanism. [MITKRB5SA-2004-004] Thanks to Wyllys Ingersoll for finding a buffer-size problem in theRPCSEC_GSS implementation. Thanks to the members of the Kerberos V5 development team at MIT, both past and present: Danilo Almeida, Jeffrey Altman, Jay Berkenbilt, Richard Basch, Mitch Berger, John Carr, Don Davis, Alexandra Ellwood, Nancy Gilman, Matt Hancher, Sam Hartman, Paul Hill, Marc Horowitz, Eva Jacobus, Miroslav Jurisic, Barry Jaspan, Geoffrey King, John Kohl, Peter Litwack, Scott McGuire, Kevin Mitchell, Cliff Neuman, Paul Park, Ezra Peisach, Chris Provenzano, Ken Raeburn, Jon Rochlis, Jeff Schiller, Jen Selby, Brad Thompson, Harry Tsai, Ted Ts’o, Marshall Vale, Tom Yu. Very special thanks go to Marshall Vale, our departing team leader. Over the past few years, Marshall has been extremely valuable to us as mentor, advisor, manager, and friend. Marshall’s devotion as a champion of Kerberos has helped our team immensely through many trials and hardships. We will miss him tremendously, and we wish him the best in his future endeavors.

Exhibit-U Copyright (c) 1989 The Regents of the University of California. All rights reserved. This code is derived from software contributed to Berkeley by Mike Muuss. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the

above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the

above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. All advertising materials mentioning features or

use of this software must display the following acknowledgement: This product includes software developed by the University of California, Berkeley and its contributors.

4. Neither the name of the University nor the names of

its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE

IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,

(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,

OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. License Information for the Software Used in the Unit About GPL (GNU-General Public License), LGPL (GNU Lesser General Public License) License This product uses GPL/LGPL software and software made by other companies. After you purchase this product, you may procure, modify or distribute the source code of the GPL/ LGPL software that is used in the product. DENON provides the source code based on the GPL and LPGL licenses at the actual cost upon your request to our customer service center. However, note that we make no guarantees concerning the source code. Please also understand that we do not offer support for the contents of the source code. www.denon.com D&M Holdings Inc. Printed in China 5411 10363 208D
