Product type	Steam iron with degreasing gun
Brand	POLTI
Model	VAPORELLA STIRO SMACCHIA
Power supply	230 V, 50 Hz
Boiler power	1500 W
Iron power	750 W
Boiler capacity	3 litres
Boiler type	Pressure boiler with patented safety cap
Included accessories	Anti-drip filling bottle, molded cable support rod, laundry basket
Main functions	Continuous steam ironing, variable steam jet, degreasing gun for stains
Safety	Patented safety cap, pressure indicator, water shortage indicator, thermal limiter
Maintenance	Use tap water; if water is hard, use special POLTI TP 2000 descaling agent
Wheels	Multidirectional for mobility
Cable winder	Yes
Iron rest	Fixed integrated
Warranty	1 year against manufacturing defects

Frequently Asked Questions - VAPORELLA STIRO SMACCHIA POLTI

How do I fill the boiler of the VAPORELLA STIRO SMACCHIA?

Unplug the appliance, unscrew the safety cap (A), fill with 3 litres of tap water using the anti-drip bottle (V) without exceeding the MAX level. Screw the cap back on tightly.

How do I turn on the appliance and use it?

Plug the appliance into a grounded outlet (230 V). Press the boiler switch (E) and the iron switch (F). Wait until the pressure indicator (G) turns off (about 10 minutes). The appliance is then ready.

How do I use the degreasing gun to remove stains?

Press the button (U) on the gun. For a surface stain, direct the jet onto an absorbent cloth. For a deep stain, turn the fabric over onto a sponge and spray from the wrong side. Refer to the stain classification table in the manual.

What should I do if the water shortage indicator (H) lights up?

Turn off the boiler (E), operate the iron or gun steam until the flow is exhausted. Unplug, unscrew the safety cap, wait 3-4 minutes, then refill.

Can I use distilled water or chemical products?

No. Use only tap water. If it is very hard, add special POLTI TP 2000 descaling agent. Never use distilled water or detergents.

How do I adjust the steam amount?

Turn the regulation knob (B) for the iron or (C) for the gun: counterclockwise to increase flow, clockwise to decrease. Adjust to the fabric type.

How do I activate continuous steam on the iron?

Slide the button (S) forward. Steam comes out continuously even when released. To stop, push the button back.

What should I do if steam does not come out?

Check that the pressure indicator (G) is off, the boiler contains water (indicator H off), and the regulation knobs (B) and (C) are open (turned counterclockwise).

How do I clean and maintain the appliance?

Use tap water; if it is hard, treat with TP 2000. Never disassemble the appliance. For descaling, contact an authorized POLTI service center.

What should I do in case of breakdown or malfunction?

Do not attempt to repair yourself. Contact the nearest authorized POLTI after-sales service. Use only genuine POLTI parts, especially the safety cap.

USER MANUAL VAPORELLA STIRO SMACCHIA POLTI

W P B A C D I L U E F G H T J N K M O O

S R Q

White plastic container with a black tip and labeled 'V' pointing to its side (no other text or symbols)

Interior view of a white cabinet with metal cage and stacked sacks, labeled 'Z' on the door (no text or symbols on main subject)

vaporella

PROFESSIONAL STIRO SMACCHIA

POLti®

GENERATORE

Mechanical component with a bolt and threaded shaft, shown in view with an arrow indicating motion (no text or symbols)

Diagram showing a rope tied with a string and a magnified view of the rope (no text or symbols)

PREPARAZIONE

White plastic water dispenser with a handle and black buttons, mounted on a base (no visible text or symbols)

Fig. 4 Vaporella PROFESSIONAL STIRO

INDICATORE DI PRESSIONE

Hand holding a steam iron emitting smoke, with no visible text or symbols

Close-up of a black industrial machine handle with a textured grip, showing no visible text or symbols.

MANOPOLA REGOLAZIONE VAPORE (B) e (C)

Close-up of a black industrial knob with a curved arrow and plus/minus symbols (no text or numbers visible)

UTILIZZO DELLA PISTOLA SMACCHIATRICE

Medical procedure image showing hands performing a procedure on a patient's abdomen with a tool (no visible text or symbols)

Close-up of hands using a tool to apply or manage a substance on a surface, labeled 'Fig. 10' (no other text or symbols visible)

Exterior view of a standard office or massage station with adjustable armrest and metal frame (no visible text or symbols)

Mechanical component with a circular base and threaded shaft, showing a directional arrow (no text or symbols)

Diagram showing a rope tied with a string and a magnified view of the rope (no text or symbols)

PREPARACIÓN

White plastic water dispenser with a handle and control knob, mounted on a surface (no visible text or symbols)

Fig. 4 Vaporella PROFESSIONAL STIRO

Person using a portable air conditioner with smoke emission (no text or symbols visible)

Close-up of a black mechanical device with a textured handle and control panel, labeled Fig. 7 (no readable text or symbols)

Close-up of a black industrial knob with a curved arrow and plus/minus symbols (no text or labels)

Medical procedure image showing hands performing a procedure on a patient's abdomen with a tool (no visible text or symbols)

Close-up of hands using a tool to apply or prepare material on a surface, no visible text or symbols

Exterior view of a standard office-style flatbed medical examination table with adjustable arms and legs (no text or symbols visible)

Mechanical component with a bolt and threaded shaft, labeled Fig. 1 (no text or symbols on the component itself)

Diagram showing a mechanical assembly with spring-like components and a close-up of a rope tied with hooks (no text or symbols)

PREPARATION

White plastic water dispenser with a black handle and control knob, mounted on a surface (no text or symbols visible)

Fig. 4 Vaporella PROFESSIONAL STIRO

INDICATEUR DE PRESSION

Fig. 5 POLT POWER: POWER 100 V 400 V 100 V 100 V OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: OFF: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off: Off:Off 230V-50Hz-750W cod. PFEU 0013 CE

Person using a steam iron to smoke or exhaust (no text or symbols visible)

Close-up of a black industrial machine handle with a textured grip, showing no visible text or symbols.

\_\_ MANETTE DE REGULATION DE LA VAPEUR (B) et (C ) \_\_

Black industrial knob with curved arrow and plus/minus symbols, labeled Fig. 8 (no text or numbers on the knob itself)

UTILISATION DU PISTOLET DEGRAISSANT

Medical procedure image showing hands performing a procedure on a patient's abdomen with a tool (no visible text or symbols)

Close-up of hands using a tool to apply or prepare material on a surface, no visible text or symbols

.COMMENT OBTENIR UN REPASSAGE PARFAIT.

Exterior view of a standard office or massage station with a flat-screen bed, metal frame, and adjustable armrest (no text or symbols visible)

Close-up of a mechanical component with a threaded shaft and a circular housing, labeled 'Bild 1' (no text or symbols on the main subject)

Black-and-white photo showing a mechanical assembly with spring and rope components, alongside a close-up of a rope tied with hooks (no text or symbols visible)

White plastic water dispenser with a black handle and black buttons, mounted on a surface (no visible text or symbols)

Bild 4 Vaporella PROFESSIONAL STIRO

DRUCKANZEIGER

Person using a portable air conditioner with smoke emission (no text or symbols visible)

Close-up of a black mechanical device with a textured handle and control panel, labeled 'Bild 7' (no readable text or symbols beyond label)

Close-up of a black industrial knob with a curved arrow and plus/minus symbols (no text or labels)

EINSATZ DER FLECKENTFERNER-PISTOLE

Medical procedure image showing hands performing a procedure on a patient's abdomen with a tool (no visible text or symbols)

Close-up of hands using a tool to examine a patient's abdomen, no visible text or symbols

Exterior view of a medical examination table with adjustable arms and a control panel (no text or symbols visible)

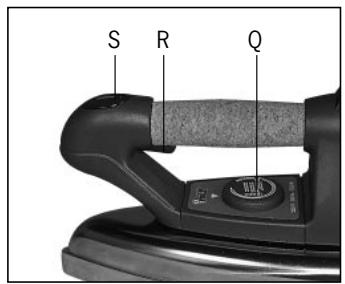

P) Single iron tube (steam tube + cord)

Q) Iron temperature adjustment wheel

R) Steam button
S) Continuous jet of steam control button

STAIN REMOVER GUN

T) Stain remover gun handle

U) Steam button

ACCESSORIES

V) Filling bottle
W) Flex holder

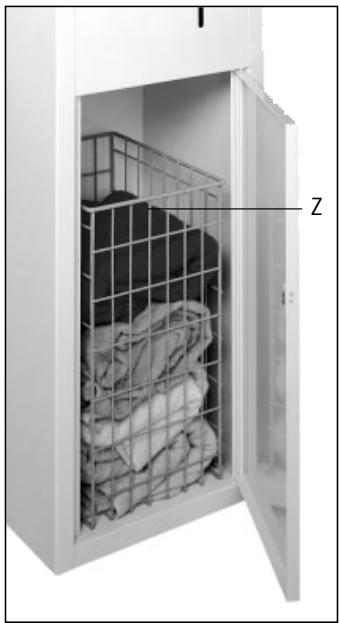

Z) Washing basket

TECHNICAL DATA

Power supply 230V 50 Hz

Boiler wattage 1500W

Iron wattage 750W

Useful boiler capacity 3 l.

Polti S.p.A. reserves the right to make necessary technical and constructional alterations, without prior notice.

CE This appliance conforms to EC Directive 89/336 amended by 93/68 (EMC) and to Directive 73/23 amended by 93/68 (low voltage).

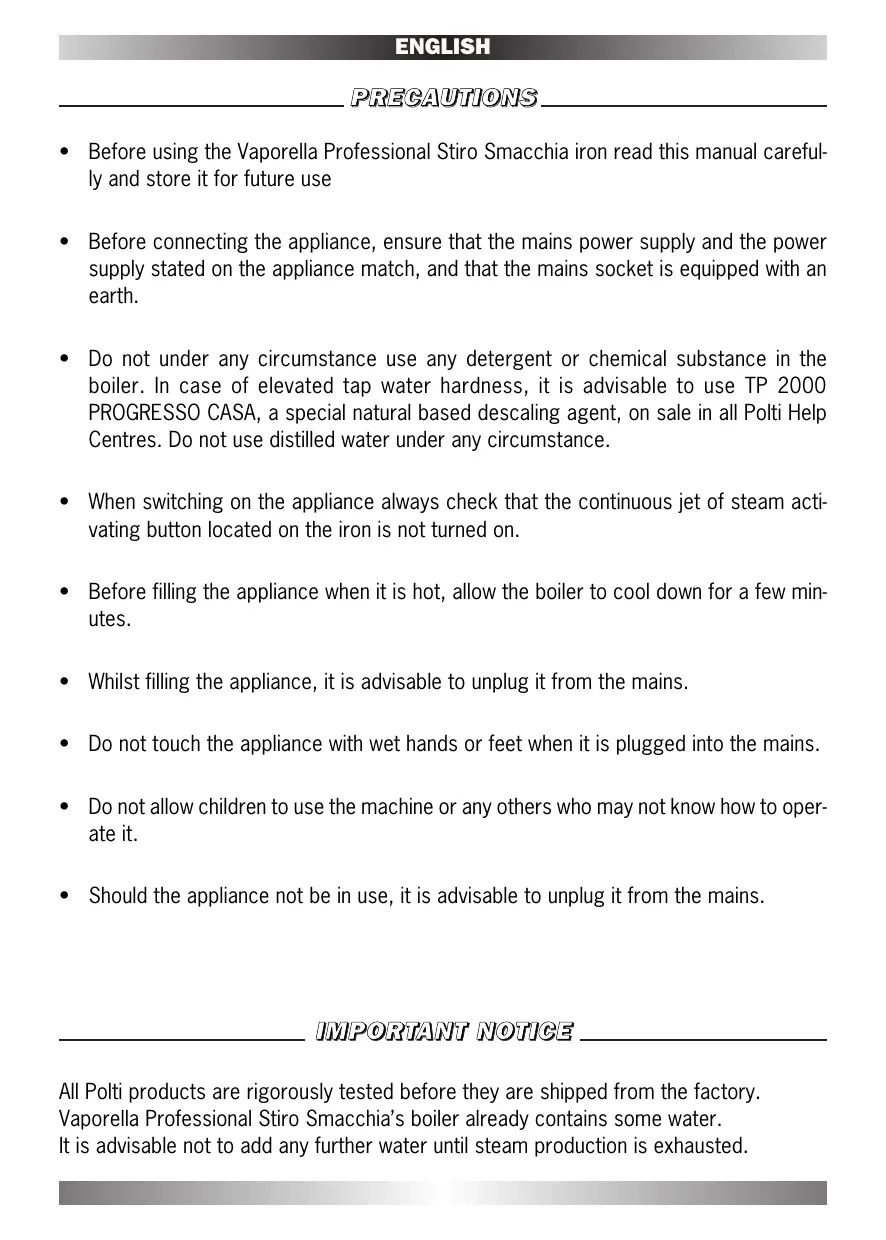

PRECAUTIONS

• Before using the Vaporella Professional Stiro Smacchia iron read this manual carefully and store it for future use
• Before connecting the appliance, ensure that the mains power supply and the power supply stated on the appliance match, and that the mains socket is equipped with an earth.
• Do not under any circumstance use any detergent or chemical substance in the boiler. In case of elevated tap water hardness, it is advisable to use TP 2000 PROGRESSO CASA, a special natural based descaling agent, on sale in all Polti Help Centres. Do not use distilled water under any circumstance.
• When switching on the appliance always check that the continuous jet of steam activating button located on the iron is not turned on.
• Before filling the appliance when it is hot, allow the boiler to cool down for a few minutes.
• Whilst filling the appliance, it is advisable to unplug it from the mains.
• Do not touch the appliance with wet hands or feet when it is plugged into the mains.
• Do not allow children to use the machine or any others who may not know how to operate it.
• Should the appliance not be in use, it is advisable to unplug it from the mains.

IMPORTANT NOTICE

All Polti products are rigorously tested before they are shipped from the factory. Vaporella Professional Stiro Smacchia's boiler already contains some water. It is advisable not to add any further water until steam production is exhausted.

INSTALLATION

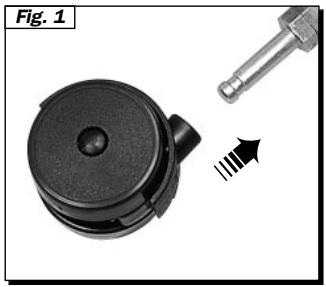

- Before using the Vaporella Professional Stiro Smacchia mount the rotating wheels as shown in figure 1.

Mechanical component with a circular base and threaded shaft, showing a directional arrow (no text or symbols)

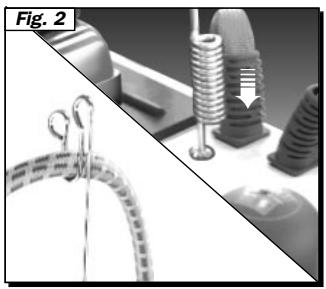

- Place the flex holder (W) in the appropriate slot and position the single iron tube (P) in the appropriate support (fig. 2).

Diagram showing a rope tied with a string and a magnified view of the rope (no text or symbols)

PREPARATION

1. Unscrew the safety cap (A) and fill the boiler with 3 litres of normal tap water using the special filling bottle (V) (fig. 3). Ensure the water level does not exceed the MAX. indicator on the appropriate water level window (J).

2. Thoroughly screw the cap on with caution.

3. Plug power cord (M) into a suitable socket (230V) equipped with an earth.

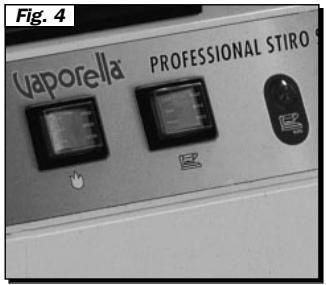

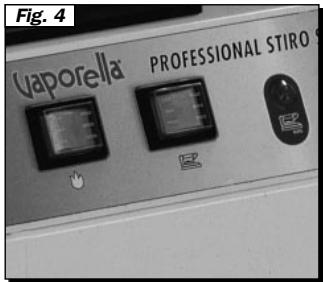

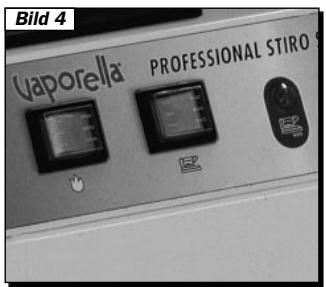

4. Press the boiler switch (E) and the iron switch (F) which will light up with the pressure control light (G) (fig. 4).

5. Wait until the pressure control light (G) switches off (approximately 10 minutes). Vaporella Stiro Smacchia is now ready for use.

White plastic water dispenser with a handle and control knob, mounted on a surface (no visible text or symbols)

Fig. 4 Vaporella PROFESSIONAL STIRO

PRESSURE INDICATOR

Vaporella Professional Stiro Smacchia is equipped with a comfortable and accurate indicator (I) for instant vision of the operating pressure.

USE OF THE IRON

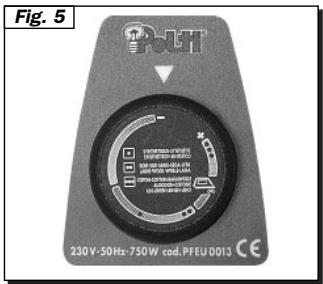

1a. Adjust the iron temperature to the "COTTON - LINEN" position by turning the appropriate wheel (Q).

It is possible to steam iron all types of fabrics at this temperature.

For dry ironing, turn the control wheel to the temperature required by the fabric and marked on the control wheel itself (fig. 5).

Fig. 5 POLT POWERED POWER 100 V 400 V 100 V 100 V 100 V 400 V 100 V 100 V 100 V 400 V 100 V 100 V 230V-50Hz-750W cod. PFEU 0013 CE

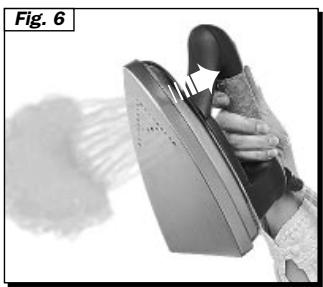

2a. Press the steam button (R) to obtain steam from the holes in the soleplate. By releasing the button, the jet stops (fig. 6).

NOTE: During the initial functioning of the iron, water drops mixed with steam may exit from the soleplate due to the non perfect thermal stabilisation.

It is therefore advisable not to direct the first jet on the fabric to be ironed.

Person using a steam iron to smoke or exhaust (no text or symbols visible)

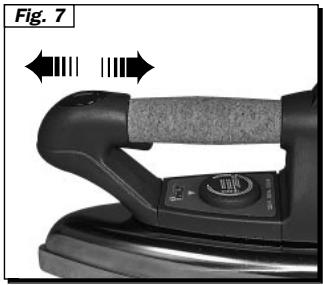

3a. To obtain a continuous jet of steam, push the button (S) forward. Steam will continue to exit even when releasing the button.

To stop steam production, push the same button (S) (fig. 7) backwards.

Close-up of a black mechanical device with a textured handle and control panel, labeled Fig. 7 (no readable text or symbols)

STEAM ADJUSTMENT CONTROL WHEEL (B) and (C)

• By adjusting the iron steam knob (B) it is possible to alter the quantity of steam as a function of the type of fabric to iron (more or less delicate).
• By turning the control knob in an anti-clockwise direction the jet of steam increases. To reduce it, turn the control knob in a clockwise direction (fig. 8).
• The same operating principle is also applicable to the stain remover gun steam adjustment knob (C). The quantity of steam jet must be adjusted as a function of the fabric from which to remove the stain.

Fig. 8

Close-up of a black industrial knob with a curved arrow and plus/minus symbols (no text or labels)

USING THE STAIN REMOVER GUN

Before using the stain remover gun, it is advisable to carefully read these instructions which allow a correct classification of stains and supply accurate advice on the most appropriate way of operating.

CLASSIFYING STAINS

Stains are produced from substances of various origins and according to the base of the predominant substance they can be classified as having the following origin:

• ANIMAL (protein base):
soup and meat sauce, milk and cream, blood, sweat, egg, urine, vomit.
• VEGETABLE (tannin base):
beer, coffee, chocolate, Coca-Cola, fruit, wine, tea.
• VARIOUS (specific stains):
paint, lip-stick, biro, tar, rust, perfume.

IDENTIFYING THE STAIN

Identifying the stain means understanding its origin and age. This allows you to avoid useless attempts which often, as well as not producing an optimal result, can also be damaging.

To better identify the origins of the staining substance you can help yourself by using your senses. The shape, touch, colour and location are very important in fact.

More or less clearly defined borders	blood-egg-paint-oil paint-glue-tar-ink-crome mercury-lip-stick-rust-milk cream-meat sauce-vomit.
Faded borders	iodine dye-perfume-wine-beer-colourings-sweat-urine
Hard to the touch	paint-oil paintings-albumin-glue-starch
Red colour	blood (to dark red)-lip-stick-biro-nail varnish-tomato sauce-wine-paint-crome mercury-colourings
Blue colour	fountain pen ink-biro-colourings
Green colour	grass-biro-paint
From grey to black colour	tar-graphite-biro-hair dye-mineral oils (lubricants)
From yellow to brown colour	milk-cream-perfume-deodorant-iodine dye-coffee-white wine-beer-urine
Localised near the arm pits, neck and wrists	perfume-deodorant-tanning creams-sweat
Localised near the shoulders and back	light colour fading-hair lacquers

Stains can be:

• RECENT (maximum 24 hours) - OLD
• GREASY (if the substance contains oil, butter or fat) - THIN
• SUPERFICIAL - DEEP

In order to act properly on stains, it is important to be able to distinguish them. All RECENT stains can be removed with the stain remover gun without having to wash the item. As they get older, stains attach themselves to the fabric's fibres and in some cases, steam cannot remove them. In such cases it is necessary to wash the item.

If the recently stained fabrics are treated immediately with mineral water, the stain does not attach itself to the fibres and subsequent steam cleaning with the stain remover gun will prove quicker and more effective.

Various stain removing products are commercially available, yet water is the most effective, ecological and cheapest especially in the form of steam form.

HOW TO USE THE GUN

To obtain steam from the stain remover gun, press button (U). The powerful jet of steam produced can be used effectively as follows, as a function of the type and size of stain.

- If operating on a SUPERFICIAL STAIN, you must direct the jet of steam to skim the fabric in proximity of the stain in order to project the dirt with the pressure against a cloth used to collect it (fig. 9).

Medical procedure image showing hands performing a procedure on a patient's abdomen with a medical tool (no visible text or symbols)

- If operating on a DEEP STAIN, you must turn the item inside out and act on the fabric from the inside. After resting it on a sponge, direct the jet of steam onto the stain so that the desolved dirt may exit from the opposite side of the fabric and be absorbed by the sponge (fig. 10).

Close-up of hands using a tool to interact with a textured surface, possibly in a medical or laboratory setting (no visible text or symbols)

• When dealing with coloured items, it is advisable to test the colour resistance on a part of non visible material.
• Use moderately with silk items and acetate based fibres.
• Simple methods are often the most effective: a shot of steam is sufficient to eliminate even the most resistant stains.
• To avoid rings forming around the stain, it is advisable to initially direct the jet of steam onto the borders of the stain gradually moving towards the centre of the stain thereafter.
• Ensure that the stain has been completely removed from the fabric before ironing it, as the iron's heat fixes the stain permanently.
• To obtain an even better result, it is advisable to perform the cleaning operations on an ironing table equipped with a suction board.
• DO NOT use the steam on blood stains as blood coagulates with heat thus fixing the stain permanently.
• Should the stain persist, do not dry the item before acting a second time. Should the stain persist even after the second attempt, it is advisable to contact a qualified dry cleaning centre.
• A summary table accurately classifying the types of stains in relation to the appropriate cleaning method advisable has been compiled.

CLASSIFICATION	NATURE	METHOD
PROTEIN BASED STAINS	Eggs and Milk, Cream, Chocolate, Jam, Sweat and Urine, Vomit	Remove with a sponge, dampen with soap and water, treat with steam
TANNIN BASED STAINS	Coffee, Tea, Wine Fruit, Coca Cola, grass, Paint	dampen with a few drops of vinegar and treat with steam
SYNTHETIC STAINS	Paint, Lip-stick, Tar, Vinyl glue, Perfume	Remove with a wet sponge and treat with steam

SAFETY CAP / WATER SHORTAGE

This appliance is equipped with a patented safety cap, which prevents accidental opening of the boiler as long as even a minimum amount of pressure is present inside.

To unscrew the cap, it is necessary to follow certain procedures which ensure the VAPORELLA end user is in total safety. Water shortage is signalled by control light (H) and by an acoustic signal contained inside the appliance. When the water in the boiler is finished, proceed as follows:

1b. Switch the appliance off by acting on the boiler switch (E)
2b. Press the steam button (R) on the iron and the steam button (U) on the stain remover gun, until steam is exhausted.
3b. Unplug the power cord (M) from the mains.
4b. Unscrew the safety cap (A) in an anti-clockwise direction.
5b. Wait 3-4 minutes to allow the boiler to cool down.
6b. Fill the boiler again proceeding as per point 1, paragraph "PREPARATION". When filling the boiler whilst warm, it is advisable to proceed with small amounts of water in order to avoid instant evaporation.

IMPORTANT

• Do not leave the iron unattended whilst in use.
• Only iron on heat resistant boards, which allow steam to transpire.
• Ensure that the safety cap (A) is screwed on properly to avoid leakage of steam.
• The pressure control light (G) switches on and off during use. This indicates that the electrical resistance has switched on to maintain constant pressure inside the boiler. It is therefore possible to continue ironing as this occurrence is normal.
• Should steam fail to exit from the iron or from the stain remover gun, check that control lights (G) and (H) are switched off, that water is present inside the boiler and that the steam adjustment knobs (B) and (C) are open.

WARNING

• In the event of repairs or replacement of the special safety cap, exclusively use original POLTI parts.
• The appliance is equipped with a thermal safety limiting device which should only be replaced by an authorised technician.
• Should replacement of the power cord be necessary, it is advisable to contact an Authorised Help Centre due to the special tool required for this operation.
• In the event of failure or malfunctioning, do not under any circumstance attempt to dismantle the appliance but contact the nearest authorised Help Centre.

GUARANTEE

Vaporella Professional Stiro Smacchia is guaranteed 1 year from the date of purchase against manufacturing defects or material faults. The guarantee is not valid when failure is caused by inappropriate use of the appliance.

In the event of failure or malfunctioning, immediately contact the nearest authorised help centre. Any mishandling of the appliance by unauthorised personnel will automatically invalidate the Guarantee.

- Polti S.p.A. declines any responsibility in the event of accidents arising from using Vaporella Professional Stiro Smacchia iron in ways not conforming to the present instructions.

ATTENTION

The appliance is manufactured according to the current norms for recycling.

It is advisable not to dispose of the protective transport packing materials domestically, but to deliver them to the appropriate collection centres.

HOW TO ACHIEVE PERFECT IRONING

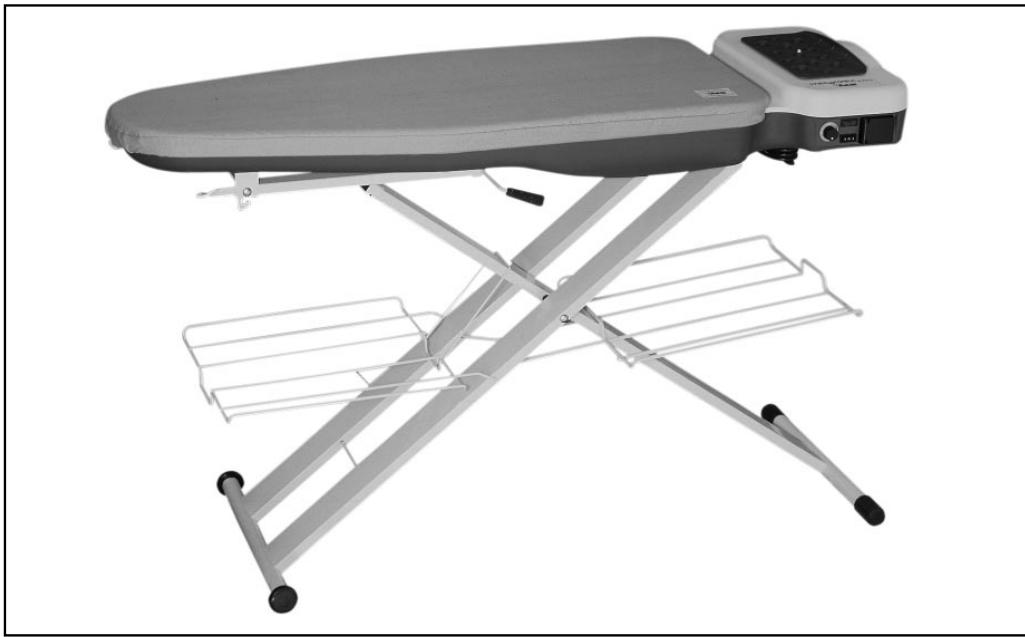

To achieve perfect ironing using conventional irons, you have to iron the fabric several times with the hot iron to dry all residual moisture. The Stira e Aspira PRO, the revolutionary New-Concept professional ironing board by Polti, is heated and incorporates a vacuum-press for effortless professional results.

Exterior view of a standard office or massage station with a flat-screen bed, metal frame, and adjustable armrest (no text or symbols visible)

Perfect ironing is dependent on these two characteristics: the suction which locks the garment on the board, so preventing the formation of annoying wrinkles which are so difficult to eliminate on conventional ironing boards, and the heated board which dries the fabrics and makes ironing easier, faster and less laborious.

The Stira e Aspira PRO offers high comfort during ironing:

• a solid, strong, height adjustable metal structure
• a large working surface
• a space-saving boiler holder under the board
• minimum dimensions when folded.

ASK YOUR LOCAL DEALER FOR A DEMONSTRATION OF STIRA E ASPIRA PRO - HE'LL BE GLAD TO INTRODUCE YOU TO PERFECT IRONING.

vaporella

PROFESSIONAL STIRO SMACCHIA

POLti®

GENERATOR

Mechanical component with a circular base and threaded shaft, showing a directional arrow (no text or symbols)

Diagram showing a rope tied with a string and a magnified view of the rope (no text or symbols present)

VOORBEREIDING

White plastic water dispenser with a handle and control knob, mounted on a surface (no visible text or symbols)

Fig. 4 Vaporella PROFESSIONAL STIRO

MANOMETER

Person using a portable air conditioner with smoke emission (no text or symbols visible)

Close-up of a black mechanical device with a textured handle and control panel, labeled Fig. 7 (no readable text or symbols)

KNOP VOOR DE REGELING VAN DE STOOMAFGIFTE (B) OF (C)

Black industrial knob with curved arrow and plus/minus symbols (no text or numbers)

GEBRUIK VAN HET ONTVLEKPISTOOL

Medical procedure image showing hands performing a procedure on a patient's abdomen with a medical tool (no visible text or symbols)

Close-up of hands performing a medical procedure on a patient's abdomen, with a tool and bandage visible (no text or symbols)

Modern office chair with a flat worktable and metal frame, no visible text or symbols
