USER MANUAL NI-GWE080 PANASONIC

Line drawing of a vertical cylindrical device with attached cables and a base, no text or symbols present

Panasonic

Operating Instructions

Huang dan su dung Garment Steamer

Household Use Only

Bàn ủi hơi nước

Model No. / Sô model NI-GWE080

English 3-15

Tiếng Việt 16-29

i8200Q-6P86A

Panasonic®

English

Operating Instructions

Garment Steamer Household Use Only

Model No. NI-GWE080

Contents

Safety precautions	04-07
Paris identification	08
How to assemble	09
How to fill water	10
Using the garment steamer	10-12
After use	12-13
Cleaning	13
Scales cleaning	13
Trouble-shooting guide	14
Specifications	15

Thank you for purchasing this Panasonic product.

Before operating this unit, please read these instructions completely and save them for future use.

03

Safety precautions

To reduce the risk of injury, loss of life, electric shock, fire, malfunction, and damage to equipment or properly, always observe the following safety precautions.

Explanation of symbols

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denolation is disregarded and improper use is performed.

Denotes a potential hazard that could result in serious injury or death.

Denotes a hazard that could result in minor injury or damage your belongings.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed. This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

WARNING

To reduce the risk of personal injury, electric shock or fire, please observe the following:

Never use the product if the power cord or power plug is damaged or if the power plug fits loosely in a household outlet.

Do not leave the product unattended while it is connected to the outlet.

Do not connect or disconnect the power plug to a household outlet with a wet hand.

Do not damage, modify, or forcibly bend, pull, or twist the power cord. Also, do not place anything heavy on or pinch the power cord.

Do not allow the power cord to touch hot surfaces of the steamer head.

Do not use with the power cord bundled.

Do not use the main body with wet hands.

Do not use in proximity of flammable materials (such as benzine or the Iike).

Never modify, disassemble, or repair. - Doing so may cause ignition or injury due to abnormal operation. Contact an authorized service agent for repair.

Do not wrap the power cord around the product when storing.

- Doing so may cause breakage to the wire of the cord, and may cause electric shock or fire due to a short circuit.

Do not immerse the main body in water or other liquids.

- Doing so may cause electric shock or fire due to a short circuit.

The steamer is not to be used if it has been dropped, and there are visible signs of damage or if it is leaking.

- Refer servicing to authorized service personnel.

WARNING

To reduce the risk of personal injury, electric shock or fire, please observe the following:

The plug must be removed from the socket outlet before the water tank is filled with water.

Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the product. Fully insert the power plug.

! Regularly clean the power plug to prevent dust from accumulating.

- Disconnect the power plug and wipe with a dry cloth.

Independently use a household outlet, and do not use extension cord.

- Failure to do so may cause electric shock or fire.

This product must use the electrical outlet with earth connection.

- Failure to do so may cause fire or electric shock

Immediately stop using and remove the power plug if there is an abnormality or malfunction. - Using it in such conditions may cause fire, electric shock, or injury. • The main body stops occasionally, or the power cord or the power plug is abnormally hot, or discoloration. • The main body is deformed or smells of burning. - Immediately request inspection or repair at an authorized service agent.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or Instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. - Failure to do so may cause an accident or injury.

If the power cord is damaged, it must be replaced by the manufacturer, its service center, or similarly qualified persons in order to avoid a hazard. - Failure to do so may cause an accident or injury.

The steamer head must be firmly rested on the steamer holder, and the power base must be placed on a flat and stable floor. - Failure to do so may cause the soleplate may be scratched, or even injury or scald if the Steamer head falls over.

CAUTION

To reduce the risk of personal injury, electric shock or fire, please observe the following:

Do not insert pins or needles into the nozzle or use it on clothes with sewing needles or the like inserted.

Do not put the nozzle too close to you or others since steam may unexpectedly erupt from it. Do not use the appliance with the exception of fabric.

CAUTION

Do not store the product until it has fully cooled down.

Do not store the power cord coiled with sharp angles.

- This may damage the cord.

Do not use the product when the steamer head down. - Otherwise there will be hot water droplets out, so may cause scalds.

Don't touch the hot surface (such as nozzle, steamer holder, hose and the hot surface around it). - Doing so may cause scalds.

Do not touch the steam during use. - Doing so may cause scalds.

Do not place the power base sidelong. - Doing so may cause water leakage, and then damage floors and carpets.

Do not place the steamer head directly on the power base and floor. - Doing so may cause damage the product, floors and carpets.

Do not turn the steamer head upside-down or incline it.

Doing so may cause the product to fall. injury or bums

Only use normal temperature tap water in the product.

Do not add perfume, vinegar, starch, descaling agents, ironing aids or other chemicals in the water tank.

- Doing so may it will cause scalds or getting dirty due to the damage product.

Do not use any ironing accessories available on the market.

Doing so may cause burns or damage to cloth due to incorrect operation.

Do not use the product near walls or furniture that cannot withstand high temperature or humidity.

Doing so may damage the wall or furniture.

Do not move the product by pulling the hose. - Doing so may cause the hose damage, electric shock and fire.

When moving the product, do not come to bring the product through the hanger.

Otherwise it may cause the product to fall, injury.

CAUTION

Do not use the product with the hose is compressed and clogged.

- Otherwise the hot water comes out from the base and damage the floors and carpets.

Do not use the product with hose or power cord entangled.

- Doing so may cause the hose damage, electric shock and fire.

Do not use the product when the hose is not properly installed in the base, do not pull out the hose during use.

- Doing so may cause burns.

To reduce the risk of personal injury, electric shock or fire, please observe the following:

Unplug the power plug to disconnect from a household outlet by grasping the power plug.

Failure to do so may cause fire, electric shock or injury.

Care should be taken when using the appliance due to the emission of steam.

- It may cause scald.

Drain water from the water tank after use.

Failure to do so may cause the water to leak out from the soleplate when the iron is used next time.

Always unplug the power plug during not in use or cleaning.

- Failure to do so may cause fire, electric shock.

Use the product only for its Intended purpose, for ironing fabrics. To protect against burns or injury

to persons, do not steam fabrics while being on the body.

- Failure to do so may cause injury.

When using with following fabric, test on an inconspicuous area, or place a cloth over the

fabric to prevent the fabric from marking.

- Expensive or specially processed fabrics (velvet, acrylic, nylon, cashmere, etc.)

- Fabrics that are labeled as "low heat" or "medium heat", or dark colored fabrics.

When the steamer head is placed on the steamer holder, set the telescopic pole to the maximum.

- Otherwise steamer head due to fall, cause damage the product or injury.

When removing the water tank, make sure the power button is off, and do not touch the remain

water on the base. - Doing so may cau

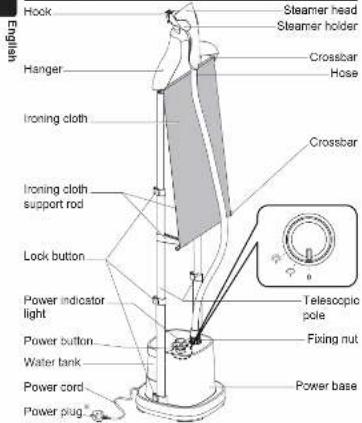

Parts identification Steamer head

* Plug type may vary comply with respective country or region requirement.

Water tank

Hose hole

How to assemble

Be sure to assemble the product on a flat and stable floor.

1. Release the lock button on the power base, and insert the telescopic pole into the telescopic pole hole on the power base in the correct direction of installation (see the figure for the direction of the ironing cloth support rod). Then, press the telescopic pole down to the bottom and push the lock button to lock.

Be aware of the direction of the power base during installation.

1. Loosen the lock button on the telescopic pole, pull upwards the telescopic pole to the maximum height, and push the lock button to lock.

1. As shown in the figure, attach the hanger to the telescopic pole (at the small end). To do so, align the telescopic pole hole at the bottom end of the hanger with the lower end of the telescopic pole. And press the hanger down until a "click" is heard. Check that the spring lock at the end of telescopic pole on the wall of telescopic pole is direction of the hanger and the installation.

2. Stretch the ironing cloth on the hanger and snap the crossbar at the lower end into the front end of the ironing cloth support rod. Then, straighten the ironing cloth as shown in the figure and adjust the ironing cloth support rod to the appropriate height.

3. Install the hose at the hose hole of power base and then turn the fixing nut clockwise to tighten until a "click" sound is heard.

4. Place the steamer head into the steamer holder on the hanger.

How to fill water

The plug must be removed from the socket outlet before the water tank is filled with water.

1. Remove the water tank by gently lifting its tail upward from the middle of the power base. Invert the water tank upside down, and hold it bottom up.

2. ① Open the cap on the bottom of the water tank. ② Pul the water tank under a faucet and fill it with proper amount of water.

1. Altach firmly the water tank back to the power base.

Notes:

a) The capacity of the water tank is about 2 L when water reaches the lower part of the water inlet. Please fill the water tank with a proper amount of water as needed.
b) Please fill the water tank with tap water. In case you live in an area with hard water, scales build-up quickly may occur so we recommend using distilled water or purified water.
c) When filling water, accumulating water may occur in the groove around the water inlet and the water tank which is not a malfunction. Please clean any water in the groove before installing the water tank back.

Using the garment steamer

1. Hang the garment on the nanger. Insert the power plug into the household outlet.

2. Set the power button to *φ* or *φ* position to light the power indicator up.

Level Brightness Start steaming
		Approx. 80 seconds
		Approx. 50 seconds

1. set the steam selector according to the required "S" / "T" steam.

Please hold the steamer head by the shaded area.

Shaded area represents the hand-held area.

1. Steaming the clothes. We recommend to put the steam head into the steamer holder when you sort out or change your clothes.

2. Set the power button to "0" when you have finished using, unplug the power plug.

Notes: a) When the hose slacken, the steam will be clogs partially with noise from hose.
b) If the amount of water in the water tank less than
*AMIN* line, please add water.
Do not remove the water tank.
during use.
d) To close steam, turn off the power button.
e) There may be water dripping from nozzle on the
clothes. this is not a malfunction
f) Turn off the power button, unplug the power plug
when you take out the water tank from the power base.
g) The power indicator light will be repeatedly lit and
extinguished when the water in the water tank
decreases, it is normal.

• Fabric and ironing recommendations

Fabric	Power button	Steam selector	Recommendations
ACRYLIC, ACETATE NYLON, SILK POLYESTER, RAYON CHIFFON			To iron normal wrinkles from thin clothing
			To iron stubborn wrinkles from thin clothing
WOOL COTTON, LINEN			To iron normal wrinkles from thick clothing
			To iron stubborn wrinkles from thick clothing

Note:

Do not use the appliance with leather fabric.
Test on an inconspicuous area when using with expensive
products, special materials, fibers weak against heat.
(Valvet, wool, cashmere, acrylic, silk, etc.)

MORE USEFUL

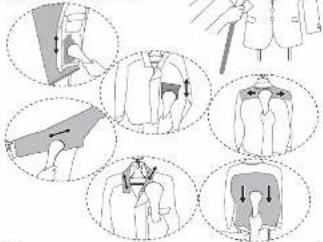

To get better results, pull the garment
tight with one hand while
Ironing with the other hand. Ironing cloth can also be used to support clothing to iron.

Notes:

a) The maximum loading capacity of the hanger is 3 kg while that of the hook is 2 kg.
b) Do not pull the clothing strongly during use, so as not to
follower product
c) Do not touch the steam, doing so may cause scalds. d) When ironing with ironing cloth, do not place your hands under the ironing cloth.
e) During the ironing process, water droplets will be generated on the hanger part. It is normal for too much water droplets to wet the clothes.

[EMPTY]

After use

1. Set the steam selector to " * position. Set the power button to ' 0 ' position.
2. Place the steamer head into the steamer holder on the hanger properly
3. Turn off the power button, unplug the power plug.
4. After 1 hour, take out the water tank from the power base, open the cap, shake the water tank to clean its inner wall with the remaining water and then drain the water tank.
5. Check that the lock button on the telescopic pole is locked securely, lift the whole product by holding both telescopic poles with your hands, and move the product to a safe place for storage.

1. Store the product when the hose is straight.

Note:

With the telescopic pole being retracted, the hose will become bent, and then will interfere with movement of product. Therefore, before retracting the telescopic pole, please place and store the product in a safe place as shown in the figure.

Cleaning

Cleaning and Maintenance of the steamer head and power base and the hose.

①Unplug the power plug, wait until the steamer head, hanger and power base have fully sealed down.

② Wipe the surface of the nozzle and the power base with a soft cloth. For stubborn stains, use a soft cloth dipped with neutral detergent to clean.
③ Pull upwards to remove the hose while rotating the fixing nut, and clean the hose and the interface between it and the power base.

Scales cleaning

To maintain optimal steam performance, it is important to remove scales and impurities inside the appliance regularly. It is recommended to perform the easy rinse calc-clean process at least once a month.

① Tum off the power button, and wait for about one hour until the steamer head, hanger and power base have fully cooled down.
② Remove the telescopic pole, hose, and water tank from the power base.
③ Pour the water in power base out from the hose hole (as shown in the figure).
④ Place the power base on a horizontal place, install the water tank containing water on the power base, leave them for about 10 seconds, and then
remove the water tank. Hose hole (5) Pour the water in power base out from the hose hole (as shown in the figure).

Trouble-shooting guide

Problem	Causes	Solution
The product produces no steam or irregular steam.	The power plug has not been plugged in or the Power button has not been pressed down.	Insert the power plug and be sure to set the power button to "o" or "o" position.
	Condensate water that produced from steam remains in the hose.	Lift up the steamer head vertically and straighten the hose, to make condensate water backflow.
	MIN	Fill the water tank with water. The water tank is set
	The water tank and hose is not be installed correctly to the power base.	Allach the water tank and hose to the power base correctly.
	The product is not fully heated.	When the power button is set to "o", it takes about 80 seconds to heat up. When the power button is set to "o", it takes about 50 seconds to heat up.
Water leaks out from the power base	The cap is loose.	Close the cap correctly.
	The hose is bend.	Straighten the hose.
The telescopic pole slips down unexpectedly	The clothing on the hook or hanger is too heavy.	Lighten the weight loaded to the fixing hook (less than 2 kg) or hanger (less than 3 kg).
	The lock button on the telescopic pole is not locked.	Lock the lock button securely.
The product produces a water noise.	The hose forms a U-shape.	Do not bend the hose.
Water droplets drip from the steamer head.	The hose or steamer head have been using horizontally for a long time (so water may accumulate).	Use the hose or steamer head vertically once (so that the accumulated water flows back to the water tank).
If you can not solve your problem according to the above solutions.		Have your product repaired by the specified service agent.

Specifications

Model	NI-GWE080
Rated voltage	220-240 V 50-60 Hz
Power	1 800-2 140 W
Weight Approx.	3.9 kg
lan * line.	Four steaming			Large area steaming, Normal steaming mode
Steam selector				Concentrated steaming, Normal steaming mode
				Large area steaming, Intensive steaming mode
				Concentrated steaming, Intensive steaming mode
Dimensions (assembly)	(WxDxH) Approx. 31 x 31 x 168 cm [Measured from the power base]
	(WxDxH) Approx. 43 x 31 x 168 cm [Measured from the hanger]
Cord length	Approx. 1.2 m
Corded steam hose length	Approx. 1.2 m
Water tank capacity	Approx. 2 L
Thermostat system	Temperature fuse

This product is intended for household use only.

Panasonic

Hướng dẫn sử dụng

Bàn ủi hơi nước

LUU Y

Thank you only to chair bank at

Vế sinh căn
