USER MANUAL NI-GSD051 PANASONIC

Line drawing of a simple stand with a vertical pole and base, no text or symbols present

Panasonic

تطيات التخلي

Line drawing of a vintage floor-mounted stand with adjustable arm and base (no text or symbols)

Panasonic

Operating Instructions

Steam Iron

Household Use Only

Arahan Penggunaan

Model No. | NI-GSD071

Model | NI-GSD051

English 02-15

Melayu 16-28

Thank you for buying a Panasonic Iron.

Before operating this unit, please read these instructions completely

and save them for future use.

Terima kasin kerana membell produk Panasonic ini.

Operating Instructions

Steam Iron

Household Use Only

Model No. NI-GSD071

NI-GSD051

Contents

SAFETY PRECAUTION----04-07

PARTS IDENTIFICATION----08

HOW TO ASSEMBLE 05 HOW TO FILL WATER 09

HOW TO THE ELEW WATER 65 USING THE STEAM IRON 10-11

HOW TO CARE FOR AND STORE YOUR

PRODUCT 12

HOW TO USE THE CLEANER----13 HOW TO CLEAN THE FILTER----12

TROUBLE-SHOOTING GUIDE----14-15

SPECIFICATION----15

Thank you for purchasing this Panasonic product.

Before operating this unit, please read these instructions completely and save them for future use.

SAFETY PRECAUTIONS

To reduce the risk of injury, loss of life, electric shock, fire, malfunction, and damage to equipment or property, always observe the following safety precautions.

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

WARNING

Denotes a potential hazard that could result in serious injury or death.

CAUTION

Denotes a hazard that could result in minor injury or damage your belongings.

The following symbols are used to classify and describe the type of instructions to be observed.

∅

This symbol is used to alert users to a specific

0

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

WARNING

Never use the product if the Power cord or Power plug is damaged or if the Power plug fits loosely in a household outlet.

- Doing so may cause electric shock, or fire due to a short circuit.

Do not connect or disconnect the Power plug to a household outlet with a wet hand. - Doing so may cause electric shock or injury.

Do not damage, modify, or forcibly bend, pull, or twist the Power cord. Also, do not place anything heavy on or pinch the Power code.

- Doing so may cause electric shock or fire due to a short circuit.

Do not wrap the Power cord around the product when storing.

- Doing so may cause breakage to the wire of the cord, and may cause electric shock or fire due to a short circuit.

Do not use with the Power cord bundled.

- Doing so may cause fire of electric shock.

Never modify, disassemble, or repair the appliance by yourself.

- Doing so may cause ignition or injury due to abnormal operation. Contact an authorized service agent for repair.

Do not immerse the main body in water or other liquids.

- Doing so may cause electric shock or fire due to a short circuit.

Do not use the main body with a wet hand.

- Doing so may cause electric shock or fire due to a short circuit.

Do not use in proximity of flammable materials (such as benzine).

- Doing so may cause an explosion or fire.

WARNING

Regularly clean the Power plug to prevent dust from accumulating.

- Failure to do so may cause fire due to insulation failure caused by humidity. Disconnect the plug and wipe with a dry cloth.

The iron must not be left unattended while it is connected to the supply mains.

- Doing so may cause fire.

Immediately stop using and remove the Power plug If there is an abnormality or malfunction.

- Using it in such conditions may cause fire, electric shock, or injury.

- The main body stops occasionally, or the Power cord or the Power plug is abnormally hot, or discoloration.

- The main body is deformed or smells of burning. - Immediately request inspection or repair at an authorized service agent.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- Failure to do so may cause an accident or injury.

Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the product. Fully insert the Power plug.

- Failure to do so may cause fire, electric shock.

The Iron head must be firmly rested on the Iron holder, and the Power base must be placed on a flat and stable floor. When this product is used as a horizontal steam iron, the Iron must be used on a stable surface.

- Failure to do so may cause the Soleplate may be scratched, or even injury or scald if the Iron head falls over.

Independently use a household outlet, and do not use extension cord.

- Failure to do so may cause electric shock or fire.

If the Power cord is damaged, it must be replaced by the manufacturer, its service center, or similarly qualified persons in order to avoid a hazard.

- Failure to do so may cause an accident or injury. This product must use the electrical outlet with earth connection.

- Failure to do so may cause fire or electric shock.

The iron is not to be used if it or the Water tank and other parts has been dropped, If there are visible signs of damage or If It is leaking.

- Do not repair by yourself; it should be repaired by the designated service center.

m = 311

- Failure to do so may cause suffocation of infants

from happening

The plug must be removed from the socket outlet

before the water reservoir is filled with water.

- Failure to do so may cause fire, electric shock or

injury

CAUTION

Do not store the cord in a twisted state.

- Doing so may cause breakage to the wire of the

cord, and may cause electric shock or fire due to a

short circuit.

Don't touch the hot surface (such as Soleplate,

Iron holder and the hot surface around it)

- Doing so may cause scalds.

Do not touch the steam during use.

- Doing so may cause scalds.

Do not place the Power base sidelong.

Doing so may cause water leakage, and then

damage floors and carpets.

Do not place the Iron head directly on the Power

base and floor

Doing so may cause damage

the product, floors and carpets.

Do not turn the Iron head upside-down or incline

t, put the Iron head back correctly as instructed.

Doing so may cause the product to fall, injury or

buma

Do not use the product with Corded hose or

Power cord entangled

Doing so may cause the Corded steam hose damage, electric shock and fire.

CAUTION

Do not insert pins into the Soleplate.

- Doing so may cause fire, electric shock, or burn.

Do not add perfume, vinegar, starch, descaling

agents, ironing aids or other chemicals in the Water

tank.

- They can stain fabrics; instead, use room temperature

Do not put the Soleplate too close to you or others

since steam may unexpectedly erupt from it.

- Doing so may cause scald.

Do not move the product by pulling the Corded hose.

- Doing so may cause the Corded steam hose damage,

electric shock and fire.

When moving the product, do not come to bring the

product through the hanger

- Otherwise it may cause the product to fall, injury.

Do not set the Steam selector to the steam position

until the Thermostat indicator light

pressing the Power button down.

- Otherwise hot water will come out from the

soleplate, so may cause injury.

Do not use the appliance with the exception of fabric

(e.g. leather).

- Doing so may cause damage it

When attach the clothes to the Fixing hook, do

not allow the fabric touch the Soleplate.

- Otherwise, the hot Soleplate may burn and damage the fabric. So may cause damage it.

Do not move the Power base until it have fully cooled

down.

Do not operate the Cleaner repeatedly in quick

succession.

- If repeating operation over an interval of less than

2 seconds, burns due to hot water leaks may result.

Unplug the Power plug to disconnect from a

household outlet by grasping the Power plug.

- Failure to do so may cause fire, electric shock or

Injury.

Use the product only for its intended purpose, for

Ironing fabrics. To protect against burns or in

to persons, do not iron or steam fabrics while being on the body.

- Failure to do so may cause injury

Care should be taken when using the appliance

due to the emission of steam

- It may cause scald.

Test on an Inconspicuous area when using with

high-end or specially processed items.

- Failure to do so may cause damage fabric

Always unplug the Power plug during filling,

emptying, cleaning and not in use.

- Failure to do so may cause fire, electric shock or

Injury.

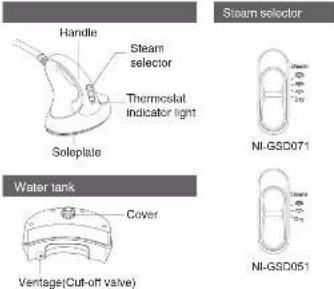

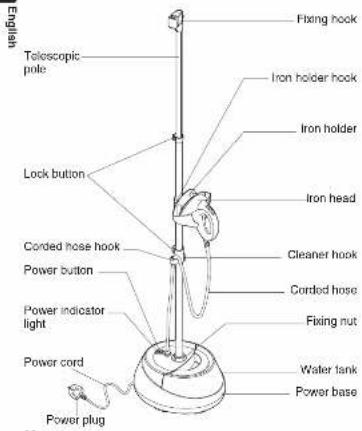

PARTS IDENTIFICATION Iron head

08

Accessories

Insulated glove (NI-GSD071 only) (Use for pulling the garment tight with one hand while ironing with the other hand.)

(For the first use or use after a long period, and every two weeks of normal use, please use the Cleaner.)

HOW TO ASSEMBLE HOW TO FILL WATER

Be sure to assemble the product on a flat and stable floor.

Take the Product out of the package.

1. ① Insert the larger end of the Telescopic
   pole into the Power base correctly.
   21 Turn the Fixing nut clockwise to tighten.
   Telescopic pole, pull the Telescopic pole upward to a proper height, and then lock the Lock button.

1. ① Attach the Fixing hook onto the

Telescopic pole. (2) Align the small hole of the Fixing hook with the small pad on the Telescopic pole, and then push with force the Fixing hook into the Telescopic pole.

1. Install the iron holder at the small hole of Telescopic pole, and then fixed it with the iron holder hook.

2. Place the iron head into the iron holder on the Telescopic pole.

1. Place the assembled product on a level and stable place.

2. Remove the Water tank from Power base.

Invert the Water tank.

1. ① Open the Cover on the bottom of the Water tank.

(2) Put the water tank under a faucet and fill it with proper amount of water. Do not overfill the may mark surface.

③ Close the Cover correctly.

Max mark surface

1. Attach the Water tank back to the Power base until they are interlocked.

Note:

a) The Water tank capacity is approx. 1.6 L, and it is
available for about 100 minutes of high steam usage.
Fill it with proper amount of water according to your need.
by When filling water, avoid accumulating water in the groove around the water inlet. Before installing the Water tank.
back, clean any water in the groove.
c) To prevent water leakage, do not remove Cut-off valve in
the Vantage
d) When fill hard water and continue to use, hot water may
be come out.
e) Please fill the water tank with tap water. If water of high hardness is used, the life of the product may be shortened.

For the first use, please use the Cleaner.(Refer to page 13)

1. Set the Steam selector to the *D r y *position, put the iron head into the Iron holder. Plug the Power plug into the household outlet.

2. Press the Power button to light the Power indicator up. At the same time, the Thermostat indicator light also lights up and the Soleplate begins to heat up.

1. Wait about 1 minute until the Thermostat indicator light goes off when the product is ready to use. After that, set the Steam selector according to the required steam amount.

1. To close steam, set the Steam selector to the 'Dry' position. NI-GSD051NI-GSD071

Note:

a) When the Soleplate has finished heating up, the

Thermostat indicator light will go off automatically. b) During ironing, the Thermostat indicator light lights on

and off alternately to indicate that the Soleplate is

heating up or has heated up

c) Close the steam before placing the iron head into the

Iron holder.

b) For the first use, you may need to wait for nearly 3 minutes before steam comes out since no water is

5 minutes before steam stored in the main body

e) Before each use, please spray the steam on the items

such as towel for a short lime to prevent scale spray on

cibu

1 Care should be taken when the Water tank runs out due to the emission of hot water, vapor inact clean water in

to the emission of hot water, please inject clean water in a timely manner.

ni: When the

g, When the Steam selector set to position and the amount of steam is not enough, please set the Steam

selector to "×" or "≡" position.

→ FABRIC AND IRONING RECOMMENDATIONS

Fabric	Steam selector
ACRYLIC, ACETATE	Level "###";For thin or delicate fabrics requiring a small amount of steam.
NYLON, SILK
POLYESTER, RAYON
WOOL	Level "###" or "###";For fabrics requiring a lot of steam.(i.e. thick materials, items with stubborn wrinkles).
COTTON, LINEN

Note:

When ironing not high-temperature resistant fabrics(e.g. acrylic fibers, cellulose fiber, nylon, silk, polyester, rayon)

a) Do not set the Steam selector to the "Dry" position.

b) Use a press cloth on top of fabrics, or keep the soleplate

away from the garment

-Otherwise the fabrics may be ruined, damaged or burned.

-- HOW TO USE AS A VERTICAL STEAM IRON

1. Hang the garment on a hanger, and then attach the hanger to the Fixing hook.

2. Wait until the Thermostat indicator light goes off, and set the Steam selector according to the required steam amount.

3. To get better results, pull the garment tight with one hand while ironing with the other hand.

Note:

a) It may take some time to jet out steam when you use the product for the first time.

It may take a shorter time to jet out steam if you set the Steam selector to the High steam level. After steam erupts, set the Steam selector to an appropriate level as required.

b) After steam has been coming out for a period of time, the jet of steam tends to slow down. This is normal. We recommend to turn off the steam when you sort out or change your clothes.

c) When attach the clothes to the Fixing hook, do not allow the fabric touch the soleplate.

d) Insulated glove can be worn on the hand taking the cloth in order to smooth wrinkles when ironing. (NI-GSD071 only)

E) Do not put over a kg on the fixing block

→ HOW TO USE AS A HORIZONTAL STEAM IRON

1. Keep the garment flat on the ironing board.

2. Wait until the Thermostat indicate light goes off, and set the Steam selector according to the required steam amount.

3. Select a proper ironing method according to the fabric type. (Refer to the section "FABRIC AND IRONING RECOMMENDATIONS".)

Note:

The Soleplate can get pretty hot in use. Be careful do not stay in the same position of clothes for too long time while ironing them on an ironing board.

HOW TO CARE FOR AND STORE YOUR PRODUCT

2 • AFTER EACH USE

Please clean and maintain the product as the following.

1. Drainage, Cleaning and Maintenance of the Water tank

1) Turn off the Power button, unplug the Power plug.

2 Take out the Water tank from

the Power base, open the Cover, shake the Water tank to close its

shake the water tank to clean its inner wall with the remaining water.

and then drain the Water tank.

2. Handling method of the remained

water in the Power base.

① After emptied the water tank.

Insert the Power plug

and press down the

Power button.

: Place the iron head into

the Iron holder, set the

Steam selector to the

High steam position.

: The remained water in

the Power base will be

transported to the hot

Soleplate and become

steam elected from the

Soleplate.

Wait until the steam has come

out completely from the

Soleplate, and then set the

Steam selector to the

("Dry") position.

12

NI-GSD051NI-GSD071
(1)
(1)
C
|
1
M.
N. GEDDING, 2021
NI-GSOLISTM-GE507

Turn off the Power button, unplug the Power plug

(No text)

Note:

Care should be taken about the risk of hot water emissions,

1. Cleaning and Maintenance of the Iron head and Power

base.

① Unplug the Power plug, wait until the Iron head.

Iron holder and Power base have fully cooled down.

(2) Wipe the surface of the Soleplate and the Power base

with a soft cloth. For stubborn stains, use a soft cloth dipped with neutral detergent to clean.

clipped with neutral detergent to clean

Note

Never use such cleaning products as the thinner, cleanser

and volatile solvent to wash the iron head or the Power base;

otherwise damages may be caused.

(No text)

1. Storage

① Place the iron head into

the iron holder

② Set the Steam selector

to the "Dry" position.

30 Turn off the Power button

unplus the Power plug.

④ Store the product in a safe

place.

1. 本次股东大会的召集和召开程序

NI-GSD051NI-GSD071

HOW TO USE THE CLEANER

For the first use or use after a long period, and every two weeks of normal use, please use the Cleaner.

① Remove the Water tank.

② Fill it with water to the position as illustrated.

③ Use the Cleaner to fully cover the position filled with water as illustrated.

4 Plug the Power plug into the household outlet. Press the Power button to light the Power indicator up. Wall about 1 minute until the Thermostat Indicator light goes off. Take the iron head from the iron holder, and set the Steam selector to the High steam position. Open the palm of your hand, place on top of the Cleaner as illustrated, then press down the Cleaner till steam comes out.

⑤ Hang the Cleaner on the

Cleaner Hook of Telescopic

pole to prevent losing.

广力云

m - 1 0 ;

(1)

Note:

a) After completing the above procedures, steam or hot

water may suddenly come out from the surface of

Soleplate. Keep the soleplate away from you or

others; Otherwise it may cause scald.

b) Do not operate the Cleaner repeatedly in quick

succession. If repeating operation over an interval of

less than 2 seconds, burns due to hot water leaks

ma

How To Clean The Filter

When the product has been used for a long period of time, the Filter in the Power base may be clogged by dirt, thus reducing steam or preventing steam from coming out. If the Filter is clogged, use a cotton swab or fine cotton cloth to clean the Filter.

Note: When cleaning the Filter, please do not push hard the

Filter.

TROUBLE-SHOOTING

No heating No light up	The Power plug has not been plugged in or the Power button has not been pressed down.	Insert the Power plug and be sure to press the Power button.
	The product circuit falls or the fuse is broken down.	Have your product repaired by the specified service agent.
No steam	The Steam selector is not turned on.	Set the Steam selector to the proper level of steam.
	The Water pipe is bent and thus the water cannot smoothly run through it.	Fill the Water tank with water.The Water tank is em
	The Water tank is not be installed correctly to the Power base.	Ensure the Water pipe is not bent.
Water leaks out from the Power base	The Water tank is broken.	Attach the Water tank to the Power base correctly.
	The Water pipe is loose or damaged.	Have the Water tank replaced by the specified service agent.
	The cover is loose or damaged.	Have your product repaired by the specified service agent.
The Telescopic pole slips down unexpectedly	The Lock button is damaged.	Close the cover correctly or have your product repaired by the specified service agent.
	The garment on the Fixing hook is too heavy.	Have the Telescopic pole replaced by the specified service agent.
Scale appears on the Soleplate	Tap water may be polluted by the rusted iron water pipe, so the steam ejected from the soleplate may have rust which like scale.	Lighten the weight loaded to the Fixing hook (less than 3 kg).
	Prolonged use of hard water may cause scale on the soleplate.	Inject clean water, and after the Iron is powered on and switched to the steam function. Press and rub the soleplate hard with wet cloth placed on flat surface until the scale is cleaned.

TROUBLE-SHOOTING

Problem Causes Solution
The Power base makes a noise	The Water Tank is empty, causing the racing of the water pump, thus making a noise.	Fill water again (according to HOW TO FILL WATER).
	The Water tank is not be installed correctly to the Power base.	Attach the Water tank to the Power base correctly.

SPECIFICATION

Model NI-GSD071 N-I-GSD051
Rated voltage	230-240 V 50-60 Hz(Malaysia/Oman/UAE/Kuwait)
	220 V ~ 50-60 Hz (Saudi Arabia)
Power	1 380-1 500 W(Malaysia/Oman/UAE/Kuwait)
	1 500 W (Saudi Arabia)
Weight Approx. 2.7 kg
Steam selector 3-Level steam 2-Level steam
Dimensions(assembly)	(WxDxH) Approx. 34 x 29.3 x 165 cm
Plug / Cord length	Single-phase three core plug /Approx. 1.5 m
Corded steamhose length	Approx. 1.4 m
Iron surface Approx.	74 cm
Water tank capacity	Approx. 1.6 L
Max time ofcontinuous steam	Approx. 100 - 178 min.(Vary with the steam levels)
Light indicator	Thermostat indicator light
Thermostat system	Temperature fuse

This product is intended for household use only.

Panasonic

Arahan Penggunaan

Seterika Wap

on booklet dimension

• Household is the largest in the country, and it is a great opportunity to be a large deal.
