USER MANUAL NI-GSE050 PANASONIC

Technical line drawing of a vertical cylindrical device with attached wires and a base labeled 'NI-GSE050' (no other text or symbols)

تعلمات التخغيل

Line drawing of a vertical scientific apparatus labeled 'NI-GSE050' with no visible text or symbols on the device itself.

Panasonic

Operating Instructions

Huong dān Sù dụng

Garment Steamer

Operating Instructions

Garment Steamer

Household Use Only

Model No. NI-GSE050,NI-GSE040

CONTENTS

SAFTY PRECAUTIONS 04-07

PARTS IDENTIFICATION----08

HOW TO ASSEMBLE 09

HOW TO FILL WATER 09

USING THE GARMENT STEAMER----10-11

AFTER USE 11

CLEANING 12

SCALES CLEANING 12

SPECIFICATION 12 TROUBLE SHOOTING GUIDE 12

Thank you for buying a Panasonic product.

Before operating this unit, please read these

instructions completely and save them for future use.

SAFETY PRECAUTIONS

To reduce the risk of injury, loss of life, electric shock, fire, malfunction, and damage to equipment or property, always observe the following safety precautions.

Explanation of symbols

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

Denotes a potential hazard that could result in serious injury or death.

Denotes a hazard that could result in minor injury or damage your belongings.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

WARNING

Never use the product if the Power cord or Power plug is damaged or if the Power plug fits loosely in a household outlet. - Doing so may cause electric shock, or fire due to a short circuit.

Do not connect or disconnect the Power plug to a household outlet with a wet hand. - Doing so may cause electric shock or injury.

Do not damage, modify, or forcibly bend, pull, or twist the Power cord. Also, do not place anything heavy on or pinch the Power code. - Doing so may cause electric shock or fire due to a short circuit.

Do not wrap the Power cord around the product when storing. - Doing so may cause breakage to the wire of the cord, and may cause electric shock or fire due to a short circuit.

Do not use with the Power cord bundled - Doing so may cause fire or electric shock.

Never modify, disassemble, or repair the appliance by yourself. - Doing so may cause ignition or injury due to abnormal operation. Contact an authorized service agent for repair.

Do not immerse the main body in water or other liquids. - Doing so may cause electric shock or fire due to a short circuit.

Do not use the main body with a wet hand. - Doing so may cause electric shock or fire due to a short circuit.

Do not use in proximity of flammable materials (such as benzine). - Doing so may cause an explosion or fire.

WARNING

! Regularly clean the Power plug to prevent dust from accumulating. - Failure to do so may cause fire due to insulation failure caused by humidity. Disconnect the plug and wipe with a dry cloth.

The steamer must not be left unattended while it is connected to the supply mains. - Doing so may cause fire.

Immediately stop using and remove the Power plug if there is an abnormality or malfunction. - Using it in such conditions may cause fire, electric shock, or injury.

- The main body stops occasionally, or the Power cord or the Power plug is abnormally hot, or discoloration. - The main body is deformed or smells of burning. - Immediately request inspection or repair at an authorized service agent.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. - Failure to do so may cause an accident or injury.

Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the product. Fully insert the Power plug. - Failure to do so may cause fire, electric shock.

The Steamer head must be firmly rested on the Steamer holder, and the Power base must be placed on a flat and stable floor. - Failure to do so may cause the Soleplate may be scratched, or even injury or scald if the Steamer head falls over.

Independently use a household outlet, and do not use extension cord.

- Failure to do so may cause electric shock or fire.

If the Power cord is damaged, it must be replaced by the manufacturer, its service center, or similarly qualified persons in order to avoid a hazard. - Failure to do so may cause an accident or injury.

This product must use the electrical outlet with earth connection. - Failure to do so may cause fire or electric shock.

The steamer is not to be used if it or the Water tank and other parts has been dropped, If there are visible signs of damage or if it is leaking. - Do not repair by yourself; it should be repaired by the designated service center.

Properly dispose the package bag of the appliance, keep the package bag away from infants.

- Failure to do so may cause suffocation of infants from happening.

The plug must be removed from the socket outlet before the water reservoir is filled with water. - Failure to do so may cause fire, electric shock or injury.

CAUTION

Do not store the cord in a twisted state. - Doing so may cause breakage to the wire of the cord, and may cause electric shock or fire due to a short circuit.

Do not use the product when the Steamer head down. - Otherwise there will be hot water droplets out, so may cause scalds.

Don't touch the hot surface (such as Nozzle, Steamer holder, Hose and the hot surface around it). - Doing so may cause scalds.

Do not touch the steam during use. - Doing so may cause scalds.

Do not place the Power base sidelong. - Doing so may cause water leakage, and then damage floors and carpets.

Do not place the Stamer head directly on the Power base and floor.

Do not turn the Steamer head upside-down or incline it. - Doing so may cause the product to fall, injury or burns.

CAUTION

Do not use the product with Hose or Power cord entangled. - Doing so may cause the Hose damage, electric shock and fire.

Do not insert pins into the Nozzle. - Doing so may cause fire, electric shock, or burn

Do not add perfume, vinegar, starch, descaling agents, ironing aids or other chemicals in the Water tank. - They can stain fabrics: instead, use room temperature water for it.

Do not put the Nozzle too close to you or others since steam may unexpectedly erupt from it. - Doing so may cause scald.

Do not move the product by pulling the Hose. - Doing so may cause the Hose damage, electric shock and fire.

When moving the product, do not come to bring the product through the hanger.

- Otherwise it may cause the product to fall, injury. Do not use the appliance with the exception of fabric (e.g. leather).

- Doing so may cause damage it. Do not move the Power base until it have fully cooled down. - Doing so may cause scald.

Do not use the product with the pipe is compressed and clogged. - Otherwise the hot water comes out from the base and damage the floors and carpets.

Do not use the product when the Hose is not properly installed in the base, do not pull out the Hose during use. - Doing so may cause bums.

Unplug the Power plug to disconnect from a household outlet by grasping the Power plug. - Failure to do so may cause fire, electric shock or injury.

Use the product only for its intended purpose, for ironing fabrics. To protect against burns or injury to persons, do not steam fabrics while being on the body. Failure to do so may cause injury.

Care should be taken when using the appliance due to the emission of steam.

Test on an Inconspicuous area when using with expensive or specially processed items. - Failure to do so may cause damage fabric.

Always unplug the Power plug during filling, emptying, cleaning and not in use. - Failure to do so may cause fire, electric shock or injury.

When the Steamer head is placed on the Steamer holder, set the telescopic pole to the maximum. - Otherwise Steamer head due to fall, cause damage the product or injury.

When removing the Water tank, make sure the Power button is off, and do not touch the remain water on the base. - Doing so may cause burns.

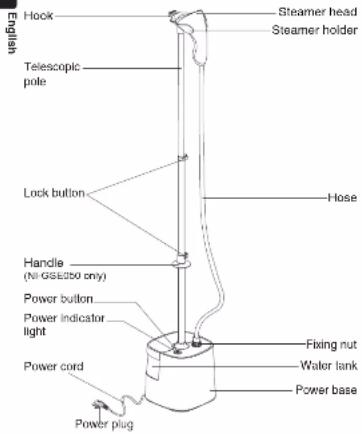

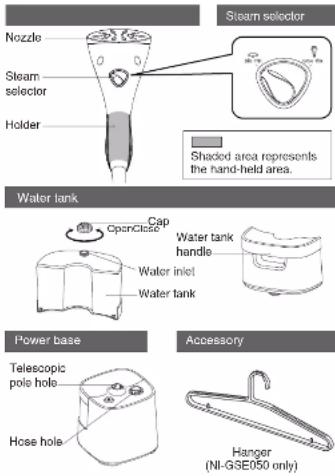

PARTS IDENTIFICATION Steamer head

HOW TO ASSEMBLE HOW TO FILL WATER

Be sure to assemble the product on a flat and stable floor.

1. Insert the Telescopic pole into the Telescopic pole insertion on the Power base correctly, until a 'click' spring lock sound is heard.
2. ① Align the hole of the Hook on the Telescopic pole, and then push with force the Hook into the Telescopic pole, make sure the spring lock into the small hole on the Hook.
   ② Release the Lock button on the Telescopic pole, pull the Telescopic pole upward to maximum height, and then lock the Lock button.

1. Install the Hose at the Hose hole of Power base and then turn the Fixing nut clockwise to tighten until a *click sound is heard.
2. Place the Steamer head into the Steamer holder on the Telescopic pole.

spring lock

The plug must be removed from the socket outlet before the Water tank is filled with water.

1. Remove the Water tank from Power base.
2. ① Open the Cap on the bottom of the Water tank. ② Put the Water tank under a faucet and fill it with proper amount of water.

1. Attach firmly the Water tank back to the Power base.


Note:

a) The Water tank capacity is approx. 2 L, which is below the water inlet. Fill it with proper amount of water according to your need.
b) Please fill the Water tank with tap water. In case you live in an area with hard water, scales build-up quickly may occur so we recommend using distilled water or pured water.
c) When filling water, accumulating water may occur in the groove around the water inlet and the Water tank which is not a malfunction. Please clean any water in the groove before installing the Water tank back.

USING THE GARMENT STEAMER

1. Hang the garment on a hanger, and then attach the hanger to the Hook.

Insert the Power plug into the household outlet.

1. Press the Power button to light the Power indicator up.

. Wait about 1 minute when the product is ready to use.

And set the Steam selector according to the required

slearn.

2.1.1

When gripping the Steamer head, hold the handle.

Shaded area represents the hand-held area.

1. Steaming the clothes. We recommend to put the Steam head into the Steamer holder when you sort out or change your clothes.
2. Turn off the power when you have finished using, unplug the Power plug.

Note:

a) When the Hose slacken, the steam will be clogs partially with noise from hose.
b) If the amount of water in the Water tank less than
'MIN' line. please add water
c) Do not remove the Water tank and Hose from the base
during use.
d) To close steam, turn off the Power button e) There may be water dropping from Man
e) There may be water dripping from Nozzle on the clothes. This is not a malfunction.
L) Turn off lno Power button, up/ulp lno Power plus
When you take out the Water tank from the Power base.

→ FABRIC AND IRONING RECOMMENDATIONS

Fabric	Steam selector
ACRYLIC, ACETATE NYLON, SILK POLYESTER, RAYON CHIFFON	Level * 20%For thin or delicate fabrics.
WOOL COTTON LINEN	Level * 7%For thick materials, items with stubborn wrinkles fabrics.

Note:

Do not use the appliance with leather fabric.
Test on an inconspicuous area when using with expensive
products, special materials, fibers weak against heat.
(Velvel, wool, cashmere, acrylic, silk, etc.)

→ MORE USEFUL

To get better results, pull the garment

tight with one hand while

ironing with the other hand.

Note:

a) Do not put over 2 kg on the Hook.
b) Do not pull the clothing strongly during use, so as not to
rollover product.
c) Do not touch the steam, doing so may cause scalds.

AFTER USE

1. Drainage, Cleaning and Maintenance of the Water tank

① Turn off the Power button, unpli
② After Thour, take out the Water tank from the Power base, open
the Cap, shake the Water tank
to clean its inner wall with the
remaining water and then drain
the water tank.

. Storage

① Place the Steamer head into the
Steamer holder.
② Set the Steam selector
to the "s" position
③ Hold the Telescopic pole to move
the product and store the
In a safe place.
④ Store the product when the

Hose is straight.

CLEANING

Cleaning and Maintenance of the Steamer head and Power base and the Hose.
① Unplug the Power plug, wait until the Steamer head.
- Shiping the Power plug, Wall until the Steamer head, Steamer holder and Power base have fully cooled down.
② Wine the surface of the Nozzle
2. Tape the surface of the Nozzle and the Drver been with a soft
and the Power base with a sol cloth.
For stubborn stains, use a split both dinned with neutral deterrent to clean
dipped with neutral detergent to clean
② Remove the Hose, clean up stains at
the Hose interface and with the base
and the pole.

SCALES CLEANING

To maintain optimal steam performance, it is important to

remove scales and impurities inside the appliance regularly.

It is recommended to perform the easy rinse calc-clean process

at least once a month,

① Unplug the Power plug, wait until the Steamer head.

Steamer holder and Power base have fully cooled down.

② Remove the Talmocarpin pole, Horse, and Water tank from

(2) Remove the telescopic pole, hose, and water tank from

the POWER base.

③ Pour the water in Power base out from the Hose hole (as

shown in the figure.

④ Place the Power base on a horizontal

place, install the Dallas tank containing

place, install the water tank containing

water on the Power base, leave them for

about 10 seconds, and then

remove the Water tank. Hose hole

5 Pour the water in Power base

out from the Union Hole Ice chow

out from the Hose hole (as shown

in the figure).

SPECIFICATION

Model NI-GSE050 NI-GSE040
Rated voltage	Vietnam	220 V 50-60 Hz
	UAE/Kuwait /Oman/Saudi	220-240 V 60-60 Hz
Power	Vietnam	1 800 W
	UAE/Kuwait /Oman/Saudi	1500-1800 W
Weight Approx. 3.2 kg
Steam selector 2-Level steam
Dimensions (assembly) (WxDxH) Approx. 24 x 24 x 166 cm
Plug / Cord length		Single-phase three core plug / Approx. 1.5 m
Corded steam hose length		Approx. 1.2 m
Water tank capacity Approx. 2 L
Thermoslat system Temperature fuse

This product is intended for household use only.

TROUBLE-SHOOTING GUIDE

Problem Causes		Solution
The product produces no steam or irregular steam.	The Power plug has not been plugged in or the Power button has not been pressed down.	Insert the Power plug and be sure to press the Power button.
	Condensate water that produced from steam remains in the Hose.	Lift up the Steamer head vertically and straighten the Hose, to make condensate water backflow.
	The Water tank is empty or less than "MIN" line.	Fill the Water tank with water.
	The Water tank and Hose is not be installed correctly to the Power base.	Attach the Water tank and Hose to the Power base correctly.
Water leaks out from the Power base	The Cap is loose.	Close the Cap correctly .
	The Hose is bend. Straighten the Hose.
The Telescopic pole slips down unexpectedly	The garment on the Hook is too heavy.	Lighten the weight loaded to the Fixing hook (less than 2 kg).
The product produces a water noise.	The hose forms a U-shape.	Do not bend the hose.

If you can not solve your problem according to the above solutions.
Have your product repaired by the specified service agent.

Panasonic

NÔI DUNG

BIỆN PHÁP AN TOÀN 16-19

NHAN BIẾT CÁC BỘ PHẠN——20

CACH LÁP RÁP 21

CACH DÓ NƯỚC 21

CẢCH SỰ DỤNG BẢN ỨI HOỊ NƯỚC----22-23

SAU KHI SÜ DUNG----23

VE SINH 24

VE SINH CÂN 24

THÔNG SỐ KỸ THUẬT----24

HUONG DAN XU LY SU CO-25

Website: http://www.panasonic.com

© Panasonic corporation 2017

Printed in China

Luy
