Product Type	Cordless Stick Vacuum Cleaner
Model	R18DC
Brand	HiKOKI
Power Source	18V Li-ion battery (sold separately)
Battery Compatibility	HiKOKI BSL18 series
Charging Time	Approx. 30 minutes (with BSL18 charger)
Runtime	Up to 20 minutes (with 1.5Ah battery)
Dust Capacity	0.5 liters
Filtration System	Washable HEPA filter
Suction Power	10 kPa
Dimensions (L x W x H)	400 x 200 x 200 mm (without accessories)
Weight	2.5 kg (including battery)
Accessories Included	Crevice tool, brush nozzle, extension wand
Noise Level	78 dB(A)
Housing Material	ABS plastic
Maintenance	Empty dust bin after each use; clean filter monthly
Safety Features	Low battery indicator, auto shut-off on overheat
Repairability	Spare parts available (filter, battery, charger)
Warranty	2 years (for professional use)

Frequently Asked Questions - R18DC HiKOKI

What battery does the HiKOKI R18DC use?

The R18DC uses HiKOKI's 18V Li-ion batteries from the BSL18 series. A battery is not included with the vacuum.

How long does the battery last?

With a standard 1.5Ah battery, runtime is up to 20 minutes. Larger capacity batteries extend runtime.

Can I wash the filter?

Yes, the HEPA filter is washable. Rinse it with water and let it dry completely before reinserting.

How do I empty the dust bin?

Press the release button on the dust bin and pull it out. Empty contents over a trash bin. Push the bin back until it clicks.

Is the R18DC suitable for carpets?

Yes, it works on low-pile carpets and hard floors. For deep carpets, use the included brush nozzle.

What accessories are included?

The package includes a crevice tool, brush nozzle, and extension wand. Additional accessories can be purchased separately.

How do I charge the battery?

Use a HiKOKI BSL18 series charger (sold separately). Insert the battery into the charger; the indicator will show charging status.

My vacuum stopped working. What could be wrong?

Check if the battery is charged. If the filter is clogged, clean it. Also ensure the dust bin is properly attached. If problems persist, contact HiKOKI support.

Can I use the vacuum without the filter?

No, operating without a filter can damage the motor and release dust. Always use the filter.

Where can I buy replacement parts?

Replacement filters, batteries, and chargers are available at HiKOKI dealers or online through authorized retailers.

USER MANUAL R18DC HiKOKI

Keep for future reference

使用说明书

Handling instructions

目次

充电式吸尘器通用安全警告.... 2

充电式吸尘器的使用注意事项.... 4

其他安全警告.... 5

锂离子电池使用注意事项.... 5

锂离子电池运输.... 7

USB设备连接器使用注意事项....7

符号 8

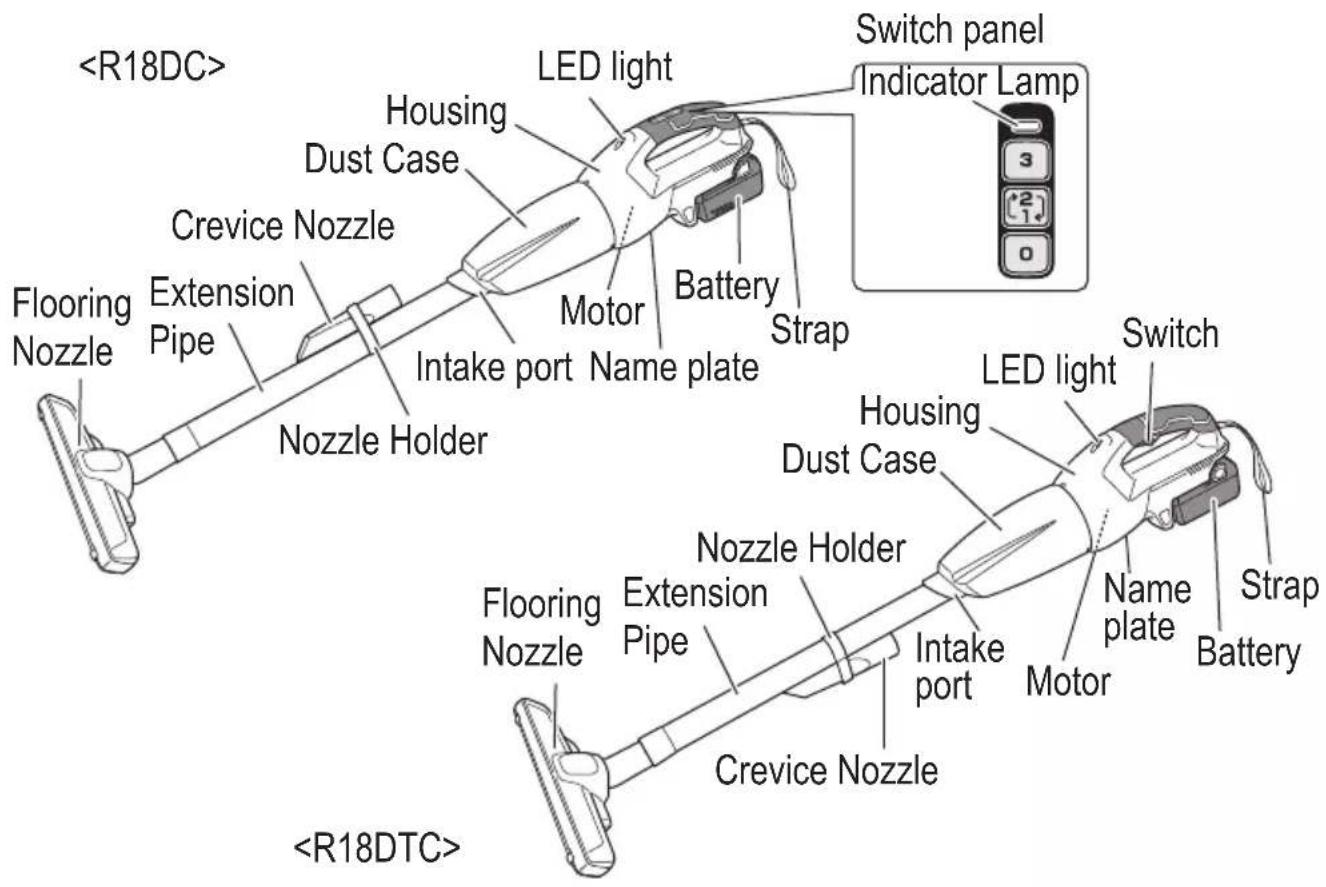

零件名称 8

规格....9

标准附件....10

用途....10

电池的拆卸 / 安装法.... 11

充电....11

作业之前....14

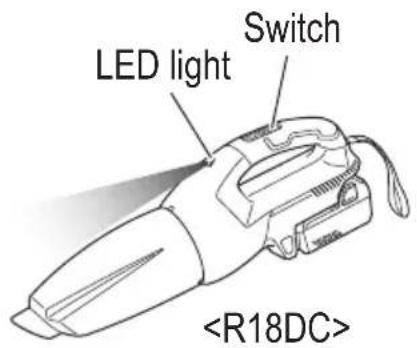

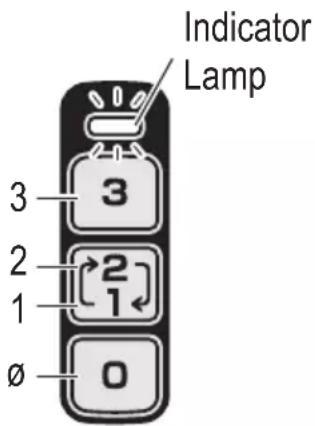

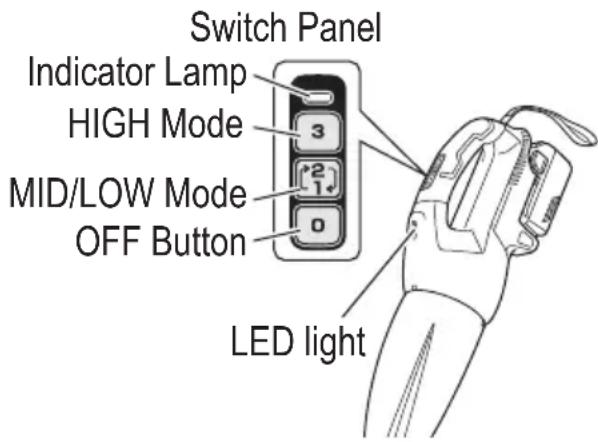

开关面板 (R18DC) 17

使用方法....19

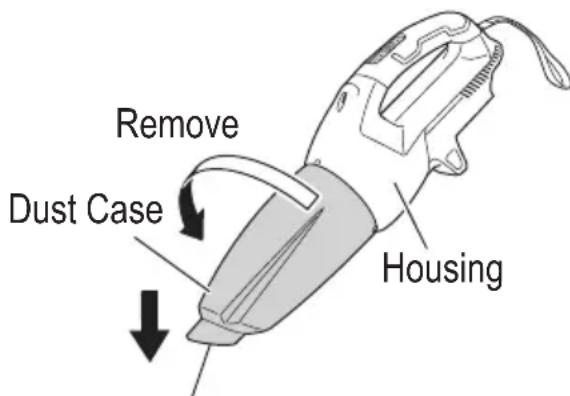

清空集尘盒....22

USB设备的充电方法(UC18YSL3)....24

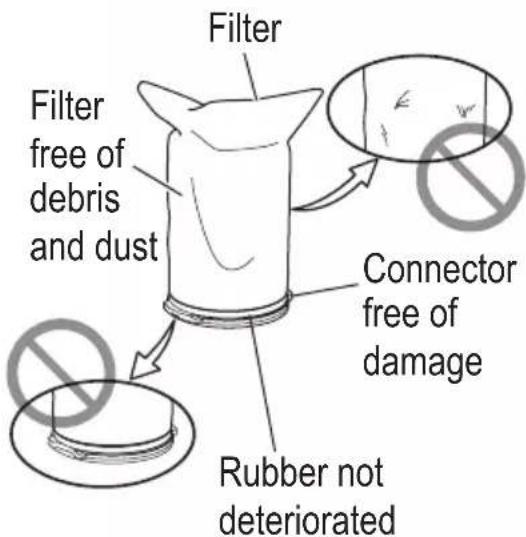

维护和检查....26

故障排除....29

选择附件.... 31

充电式吸尘器通用安全警告

警告！

阅读所有警告和所有说明。

Diagram of a mobile device connected to an electrical outlet, showing wiring and internal components (no text or symbols)

a

Diagram of a mobile device connected to a wall-mounted cable, showing connections without any text or symbols.

b
图22

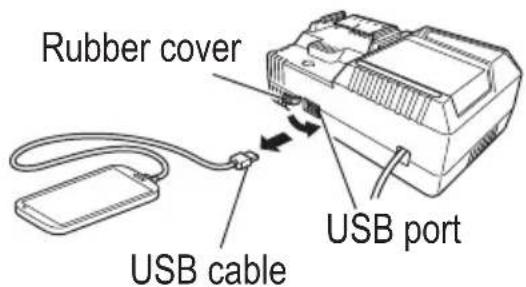

2. 连接USB线缆。(图23)

Simple line drawing of a cylindrical object with a curved top and a diagonal line extending from it, placed on a square base (no text or symbols)

过滤器
a

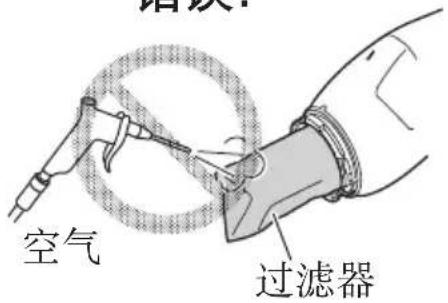

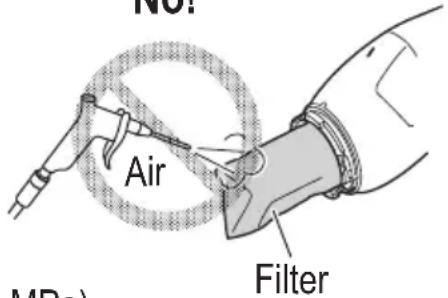

空气枪

空气压力：一般压力（约0.6MPa）

b

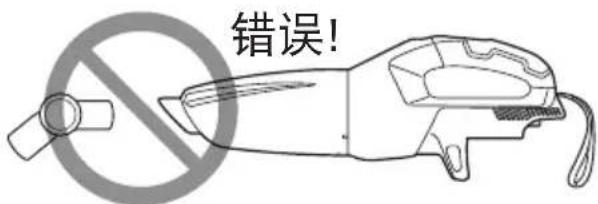

错误!

C
图25

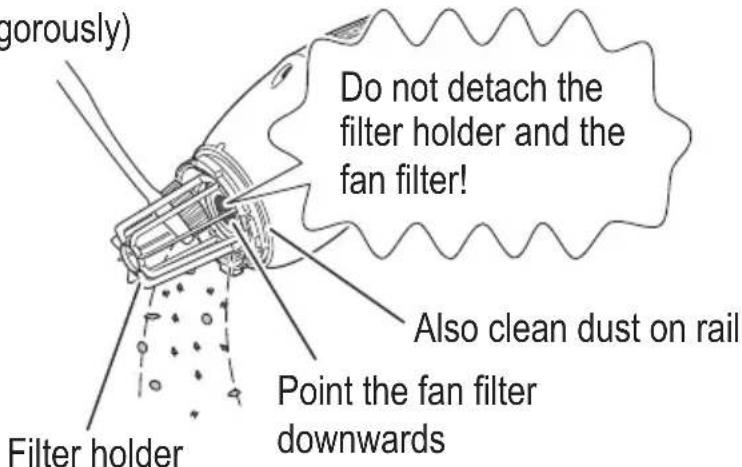

2. 清洁风扇过滤器（图26）

Line drawing of a battery pack with control panel and display (no text or symbols)

BSL36..18.. BSL18.. UC18YSL3

Line drawing of a mechanical housing or enclosure component (no text or symbols)

Line drawing of a mechanical device with internal components (no text or symbols)

Line drawing of a mechanical component with internal slots and housing (no text or symbols)

(14.4V-18V)

充电器

产品编号: 329897

电池盖

Simple line drawing of a rectangular object with textured surface and curved edge (no text or symbols)

产品编号: 375371

刷头挂架

Simple line drawing of a corner clip with textured base and label 'O O O' (no other text or symbols)

产品编号: 375372

圆刷头

Line drawing of a mechanical component with two ports and a central circular feature (no text or symbols)

产品编号: 375374

角接头

产品编号: 375373

软管

Simple line drawing of a cylindrical object with a flanged end (no text or symbols)

产品编号: 375375

延长管（短）

Simple line drawing of a cylindrical object with a pointed tip and base (no text or symbols)

产品编号: 376509

过滤

* 不可将角接头直接安装到主要组件上。

可与延长管或其他附件配套使用。

CONTENTS

SAFETY WARNINGS FOR CORDLESS CLEANER....32
PRECAUTIONS FOR CORDLESS CLEANER....34
ADDITIONAL SAFETY WARNINGS....35
CAUTION ON LITHIUM-ION BATTERY....36
REGARDING LITHIUM-ION BATTERY TRANSPORTATION... ....38

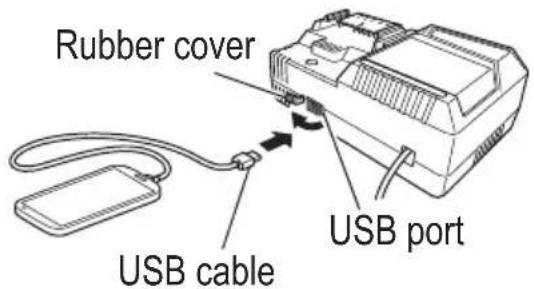

USB DEVICE CONNECTION PRECAUTIONS....38
SYMBOLS.... 39

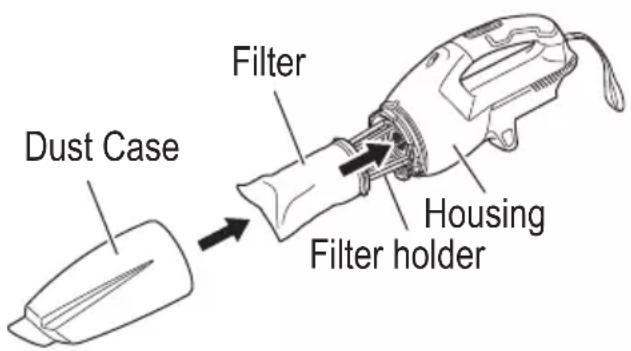

NAME OF PARTS....39
SPECIFICATIONS....40
STANDARD ACCESSORIES....41
APPLICATIONS......41
BATTERY REMOVAL / INSTALLATION....41
CHARGING....42
PRIOR TO OPERATION....45
THE SWITCH PANEL (R18DC)......48

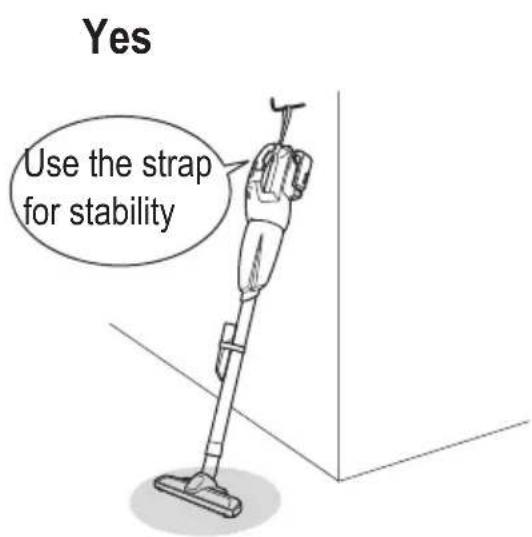

HOW TO USE....49

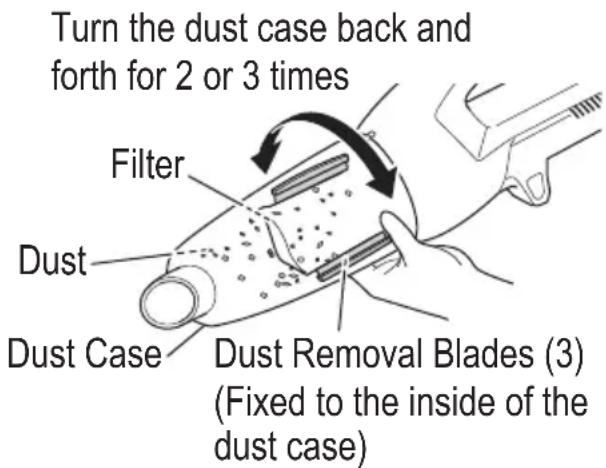

EMPTYING THE DUST CASE....53
HOW TO RECHARGE USB DEVICE (UC18YSL3)....54
MAINTENANCE AND INSPECTION.... 56
TROUBLESHOOTING....59
SELECTING ACCESSORIES....61

SAFETY WARNINGS FOR CORDLESS CLEANER

WARNING

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

1) Work area safety

a) Keep work area well lit.
Dark areas invite accidents.
b) Do not operate appliances in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
Appliances create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating an appliance.
Distractions can cause you to lose control.

2) Electrical safety

a) Charger plugs must match the outlet. Never modify the plug in any way.

Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Do not expose appliances to rain or wet conditions.

Water entering an appliance will increase the risk of electric shock.

c) Do not abuse the cord of charger. Never use the cord for carrying, pulling or unplugging the charger.

Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating an appliance.

Do not use an appliance while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating appliances may result in serious personal injury.

b) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the appliance in unexpected situations.

4) Cleaner use and care

a) Do not force the appliance. Use the correct appliance for your application.

The correct appliance will do the job better and safer at the rate for which it was designed.

b) Do not use the appliance if the switch does not turn it on and off.

Any appliance that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliances.

Such preventive safety measures reduce the risk of starting the appliance accidentally.

d) Store idle appliances out of the reach of children and do not allow persons unfamiliar with the appliance or these instructions to operate the appliance.

Appliances are dangerous in the hands of untrained users.

e) Maintain appliances. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the appliance's operation.

If damaged, have the appliance repaired before use.

Many accidents are caused by poorly maintained appliances.

f) Use the appliance and accessories etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the appliance for operations different from those intended could result in a hazardous situation.

5) Battery pack use and care

Power can only be supplied to this appliance using the included lithium battery or one that is designated by our company.

a) Recharge only with the charger specified by the manufacturer.

English

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use appliances only with specifically designated battery packs.

Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.

Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation or burns.

6) Service

a) Have your appliance serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the appliance is maintained.

CAUTION

Keep children and infirm persons away.

When not in use, appliances should be stored out of reach of children and infirm persons.

PRECAUTIONS FOR CORDLESS CLEANER

1. Prevent the appliance from sucking in the following: Fire or injury may result.

○ Liquids (e.g., water, oil) or damp debris.

○ Generated spark during metal grinding or cutting.

○ High temperature things, such as lighted cigarette.

○ Inflammable substances (gasoline, thinner, benzene, kerosene, paint, etc.), explosive substances (nitroglycerine, etc.), combustible substances (aluminum, zinc, magnesium, titanium, red phosphorus, yellow phosphorus, celluloid, etc.)

○ Sharp things, such as nails, razors or glass.

Solidification materials, such as cement powder and toner, and conductive fine dusts, such as metal powder and carbon powder.

1. Set the filter correctly before use. Do not use the appliance without the filter or with it set in a wrong position, or do not use a torn filter. May cause failures, such as motor burnout.

2. This appliance is only used indoors. Never use it outdoors. Do not use in the rain. Keep away from water or oil.

Malfunction may result as this appliance is not waterproof.

1. Do not use the appliance with its suction opening or exhaust opening obstructed.

The temperature of the motor may rise abnormally, causing troubles such as deformation of parts or motor burnout.

1. Do not operate the appliance when the suction opening is blocked.

The motor may overheat, causing deformation of parts or malfunction of the motor.

1. When you drop or bump the appliance accidentally, check for breakage, crack, or deformation in the appliance. Breakage, crack or deformation may cause injuries.

2. When the appliance is out of condition or emits abnormal sound during use, immediately turn off the switch and request repair from your local retailer or authorized servicing agent. If you continue to use the appliance as it is, it may lead to injuries.

ADDITIONAL SAFETY WARNINGS

1. Always charge the battery at a temperature of 0–40°C.

A temperature of less than 0^ C will result in over charging which is dangerous. The battery cannot be charged at a temperature greater than 40^ C.

The most suitable temperature for charging is that of 20–25°C.

1. Do not use the charger continuously.

When one charging is completed, leave the charger for about 15 minutes before the next charging of battery.

1. Do not allow foreign matter to enter the hole for connecting the rechargeable battery.

2. Never disassemble the rechargeable battery and charger.

3. Never short-circuit the rechargeable battery. Short-circuiting the battery will cause a great electric current and overheat. It results in burn or damage to the battery.

4. Do not dispose of the battery in fire.

If the battery burnt, it may explode.

1. Bring the battery to the shop from which it was purchased as soon as the post-charging battery life becomes too short for practical use. Do not dispose of the exhausted battery.

2. Do not insert object into the air ventilation slots of the charger.

Inserting metal objects or inflammables into the charger air ventilation slots will result in electrical shock hazard or damaged charger.

1. When using this unit continuously, the unit may overheat, leading to damage in the motor and switch. Therefore, whenever the housing becomes hot, give the tool a break for a while.

2. Make sure that the battery is installed firmly. If it is at all loose it could come off and cause an accident.

3. Do not use the product if the tool or the battery terminals (battery mount) are deformed.

Installing the battery could cause a short circuit that could result in smoke emission or ignition.

1. Keep the tool's terminals (battery mount) free of swarf and dust.

Prior to use, make sure that swarf and dust have not collected in the area of the terminals.

During use, try to avoid swarf or dust on the tool from falling on the battery.

English

When suspending operation or after use, do not leave the tool in an area where it may be exposed to falling swarf or dust.
Doing so could cause a short circuit that could result in smoke emission or ignition.

1. Always use the tool and battery at temperatures between -5^ and 40^ .

CAUTION ON LITHIUM-ION BATTERY

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output.

In the cases of 1 to 3 described below, when using this product, even if it is switched on, the motor may stop. This is not the trouble but the result of protection function.

1. When the battery power remaining runs out, the motor stops.

In such a case, charge it up immediately.

1. If the tool is overloaded, the motor may stop. In this case, switch the tool off and eliminate causes of overloading. After that, you can use it again.
2. If the battery is overheated under overload work, the battery power may stop.

In this case, stop using the battery and let the battery cool. After that, you can use it again.

Furthermore, please heed the following warning and caution.

WARNING

In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on the battery.

During work make sure that swarf and dust do not fall on the battery.
○ Make sure that any swarf and dust falling on the appliance during work do not collect on the battery.
○ Do not store an unused battery in a location exposed to swarf and dust.
Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).

1. Do not pierce battery with a sharp object such as a nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.
2. Do not use an apparently damaged or deformed battery.
3. Do not use the battery for a purpose other than those specified.
4. If the battery charging fails to complete even when a specified recharging time has elapsed, immediately stop further recharging.
5. Do not put or subject the battery to high temperatures or high pressure such as into a microwave oven, dryer, or high pressure container.
6. Keep away from fire immediately when leakage or foul odor are detected.
7. Do not use in a location where strong static electricity generates.

8. If there is battery leakage, foul odor, heat generated, discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use.

9. Do not immerse the battery or allow any fluids to flow inside. Conductive liquid ingress, such as water, can cause damage resulting in fire or explosion. Store your battery in a cool, dry place, away from combustible and flammable items. Corrosive gas atmospheres must be avoided.

CAUTION

1. If liquid leaking from the battery gets into your eyes, do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately.

If left untreated, the liquid may cause eye-problems.

1. If liquid leaks onto your skin or clothes, wash well with clean water such as tap water immediately.

There is a possibility that this can cause skin irritation.

1. If you find rust, foul odor, overheating, discolor, deformation, and/or other irregularities when using the battery for the first time, do not use and return it to your supplier or vendor.

WARNING

If a conductive foreign matter enters in the terminal of lithium ion battery, the battery may be shorted, causing fire. When storing the lithium ion battery, obey surely the rules of following contents.

Do not place conductive debris, nail and wires such as iron wire and copper wire in the storage case.

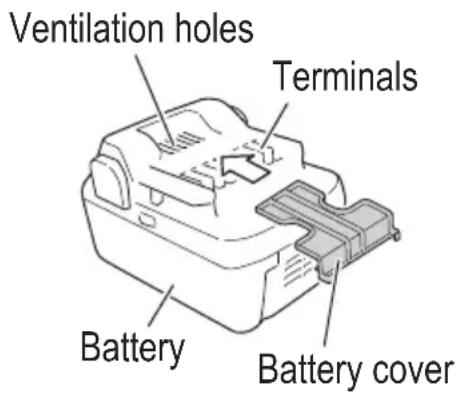

☐ Either install the battery in the appliance or store by securely pressing into the battery cover until the ventilation holes are concealed to prevent short-circuits (See Fig. 1).

Fig. 1

REGARDING LITHIUM-ION BATTERY TRANSPORTATION

When transporting a lithium-ion battery, please observe the following precautions.

WARNING

Notify the transporting company that a package contains a lithium-ion battery, inform the company of its power output and follow the instructions of the transportation company when arranging transport.

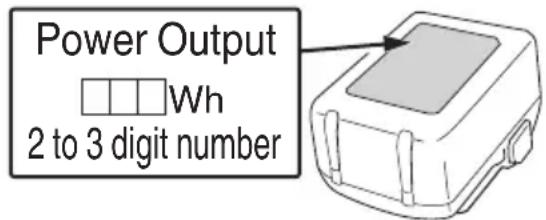

☐ Lithium-ion batteries that exceed a power output of 100 Wh are considered to be in the freight classification of Dangerous Goods and will require special application procedures.
For transportation abroad, you must comply with international law and the rules and regulations of the destination country.

Fig. 2

USB DEVICE CONNECTION PRECAUTIONS

When an unexpected problem occurs, the data in a USB device connected to this product may be corrupted or lost. Always make sure to back up any data contained in the USB device prior to use with this product.

Please be aware that our company accepts absolutely no responsibility for any data stored in a USB device that is corrupted or lost, nor for any damage that may occur to a connected device.

SYMBOLS

WARNING

The following show symbols used for the appliance. Be sure that you understand their meaning before use.

	To reduce the risk of injury, user must read instruction manual.
	Direct current
[0.001]	Rated voltage
	Warning

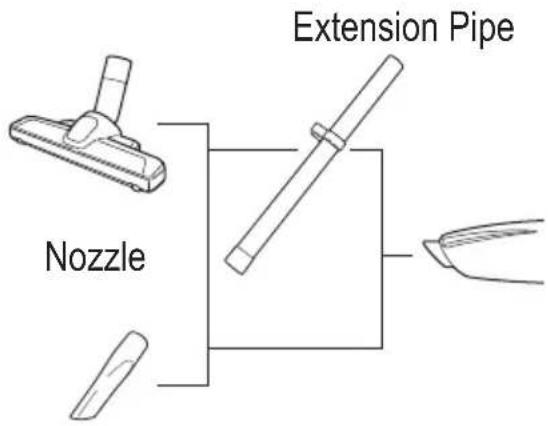

NAME OF PARTS

1. CLEANER

Fig. 3

SPECIFICATIONS

CLEANER

Model R18DC R18DTC
Voltage 18 V
Motor DC motor
Continuous operating time (Battery: using BSL36A18X)	3 (HIGH) Approx. 40 min		Approx. 40 min 2 (MID) Appri
	1 (LOW) Approx. 66 min
Suction Work Rate	3 (HIGH) Approx. 40 W		Approx. 40 W 2 (MID) Appri
	1 (LOW) Approx. 16 W
Dust collecting capacity 560 mL
Battery available for this appliance Multi volt battery, BSL18 series
Weight		1.7 kg(BSL36A18X attached)

BATTERY (sold separately)

Model BSL36A18X
Voltage 36 V / 18 V (Automatic Switching*	1)
Battery capacity	2.5 Ah / 5.0 Ah (Automatic Switching*1)
Available cordless products*2	Multi volt series, 18 V product
Available charger	Sliding charger for lithium ion batteries

*1 The tool itself will automatically switch over.

*2 Please see our general catalogue for details.

CHARGER (sold separately)

Model	UC18YSL3
Charging voltage	14.4–18 V
Weight	0.6 kg

STANDARD ACCESSORIES

In addition to the main unit (1 unit), the package contains the accessories listed in the below.

Table 1

		R18DC(NN)	R18DTC(NN)
Flooring Nozzle 1 1
Crevice Nozzle 1 1
Extension Pipe(With Nozzle Holder)	Holder	1	1

Standard accessories are subject to change without notice.

APPLICATIONS

○ Light-duty vacuuming of dry surfaces

BATTERY REMOVAL / INSTALLATION

1. Battery removal

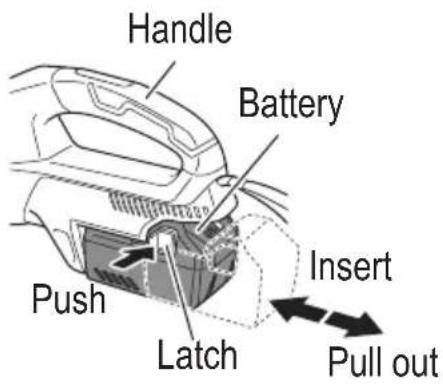

Hold the handle tightly and push the battery latches to remove the battery (see Fig. 4).

Fig. 4

CAUTION

Never short-circuit the battery.

English

2. Battery installation

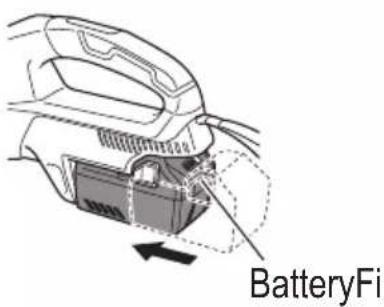

Match the battery with the unit's groove and firmly press the battery in until you hear a click (see Fig. 4).

CHARGING

Before using the appliance, charge the battery as follows.

1. Connect the charger's power cord to the receptacle.

When connecting the plug of the charger to a receptacle, the charge indicator lamp will blink in red (See Table 2).

1. Insert the battery into the charger.

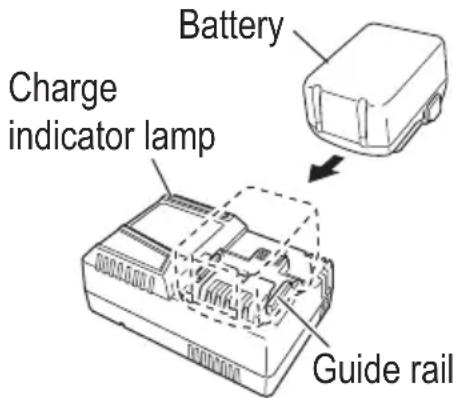

Firmly insert the battery into the charger as shown in Fig. 5.

Fig. 5

3. Charging

When inserting a battery in the charger, charging will commence and the charge indicator lamp will blink in blue.

When the battery becomes fully recharged, the charge indicator lamp will light up in green. (See Table 2)

(1) Charge indicator lamp indication

The indications of the charge indicator lamp will be as shown in Table 2, according to the condition of the charger or the rechargeable battery.

Table 2: Indications of the charge indicator lamp

ON/OFF at 0.5 sec. intervals (RED)	Before charging*1
Lights for 0.5 sec. at intervals of 1 sec. (BLUE)	Charged at less than 50%
Lights for 1 sec. at intervals of 0.5 sec. (BLUE)	Charged at less than 80%
Lights continuously (BLUE)	Charged at more than 80%
Lights continuously (Continuous buzzer sound: about 6 sec.) (GREEN)	Charging complete
ON/OFF at 0.3 sec. intervals (RED)	Overheat standby*2
ON/OFF at 0.1 sec. intervals (Intermittent buzzer sound: about 2 sec.) (PURPLE)	Charging impossible*3

NOTE

*1 If the red lamp continues to blink even after the charger has been attached, check to confirm that the battery has been fully inserted.
*2 Battery overheated. Unable to charge.

Although charging will start once the battery has cooled down even when left in situ, the best practice is to remove the battery and allow it to cool down in a shaded, well-ventilated location before charging.

*3 Malfunction in the battery or the charger

• Fully insert the battery.
• Check to confirm that no foreign matter is stuck to the battery mount or terminals. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.

When the battery charger has been continuously used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, give 5 minutes rest until the next charging.

(2) Regarding the temperatures and charging time of the battery (See Table 3)

Table 3

Model UC18YSL3
Type of battery Li-ion
Charging voltage 14.4–18 V
Temperatures at which the battery can be recharged	0°C–50°C

English

Charging time for battery capacity, approx. (At 20°C)	1.5 Ah 15 min
	2.0 Ah 20 min
	2.5 Ah 25 min
	3.0 Ah	20 min(BSL1430C, BSL1830C: 30 min)
	4.0 Ah	26 min(BSL1840M: 40 min)
	5.0 Ah 32 min
	6.0 Ah 38 min
Charging time for multi volt battery capacity, approx.(At 20°C)	1.5 Ah (×2 unit) 20 min
	2.5 Ah (×2 unit) 32 min
	4.0 Ah (×2 unit) 52 min
Number of battery cells 4–10
Charging voltage for USB 5 V
Charging current for USB 2 A
Weight 0.6 kg

NOTE

☐ The recharging time may vary according to the ambient temperature and power source voltage.
○ If charging takes a long time

• Charging will take longer at extremely low ambient temperatures. Charge the battery in a warm location (such as indoors).
• Do not block the air vent. Otherwise the interior will overheat, reducing the charger's performance.

• If the cooling fan is not operating, contact a HiKOKI Authorized Service Center for repairs.

• Disconnect the charger's power cord from the receptacle.

• Hold the charger firmly and pull out the battery.

NOTE

Be sure to pull out the battery from the charger after use, and then keep it.

Regarding electric discharge in case of new batteries, etc.

As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them the first and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries 2–3 times.

How to make the batteries perform longer.

(1) Recharge the batteries before they become completely exhausted.

When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.

(2) Avoid recharging at high temperatures.

A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while.

PRIOR TO OPERATION

1. Setting up and checking the work environment

Check if the work environment is suitable by following the precautions.

1. Mounting and dismounting the filter

Before using the appliance, check that the filter is securely mounted.

(1) Remove the dust case (Fig. 6)

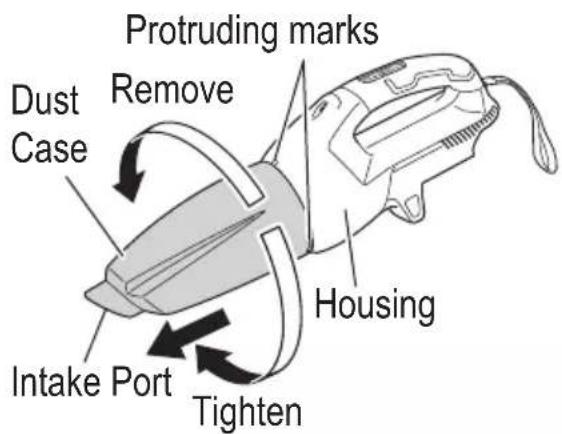

Looking at the dust case from the intake port, turn it counterclockwise for approximately 120 degrees to align the protruding marks on the dust case and the housing, and then pull it off.

Fig. 6

English

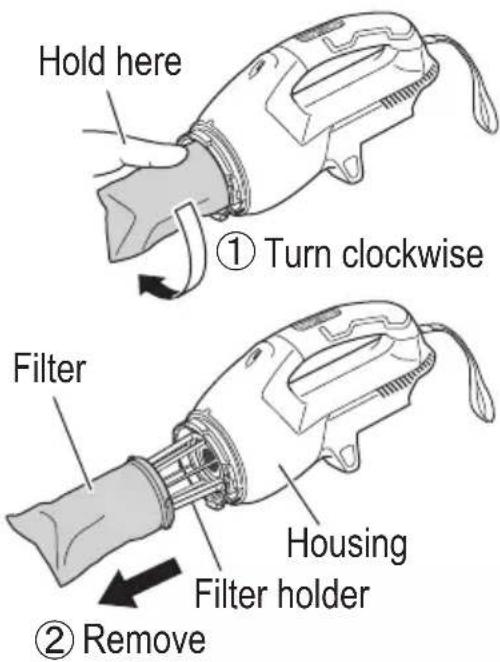

(2) Remove the filter. (Fig. 7)

Turn the filter clockwise to remove it from the housing.

Fig. 7

(3) Check the filter (Fig. 8)

Check the filter for damage and contamination.

Fig. 8

(4) Install the filter (Fig. 9)

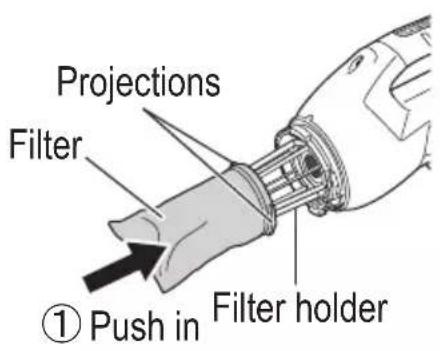

When installing the filter, press the housing on with the projections in a horizontal position. Then, turn the filter until the projections are fixed in the grooves of the housing.

Fig. 9

(5) Install the dust case (Fig. 10)

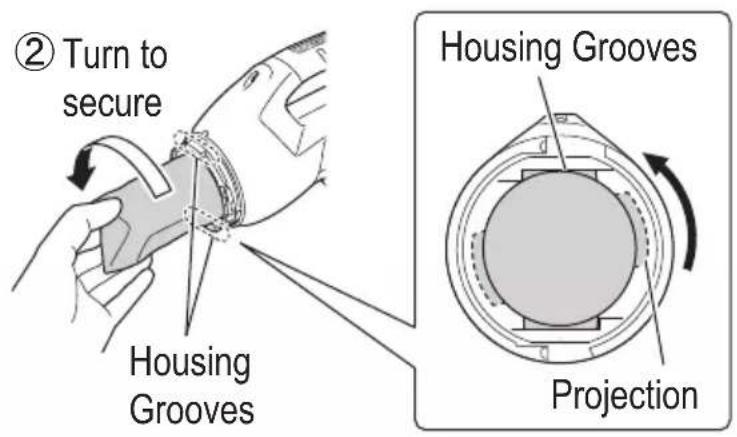

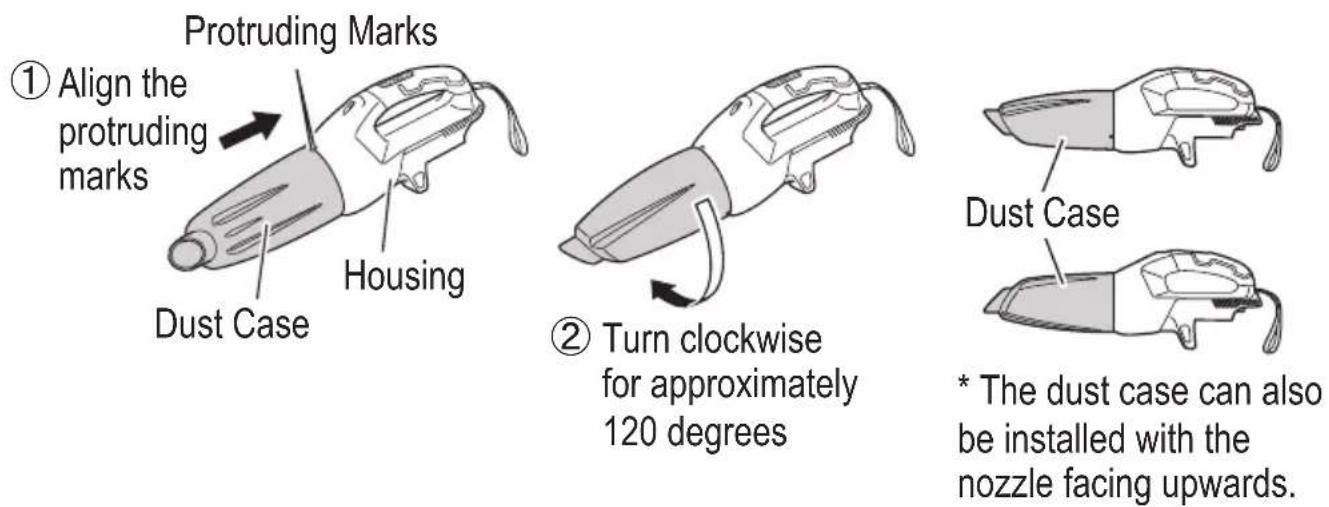

Place the dust case over the housing, making sure that the protruding marks on both are aligned. Then, turn the dust case clockwise for approximately 120 degrees.

Fig. 10

NOTE

If the filter is not properly fitted, dirt or grime can enter the fan unit and cause damage or malfunction.

THE SWITCH PANEL (R18DC)

CAUTION

Do not subject the switch panel to shock or damage.

1. Switch operation (Fig. 11)

The vacuum of the appliance can be switched between three stages of operation, depending on your need.

When the power is off, pressing the 3 button or the 2/1 button will switch the appliance on.

At the same time, the LED light will switch on. To switch between MID mode and LOW mode, press the 2/1 button.

To suppress noise when using the appliance, switch to 1 mode.

To shut off the appliance, press the ∅ button. This will also switch off the LED light.

Fig. 11

Mode	Continuous operating time
	BSL36A18X
3 (HIGH) Approx. 40 min
2 (MID) Approx. 48 min
1 (LOW) Approx. 66 min

* Continuous operating time will vary according to battery condition. Please use the table as a guideline.

2. The Indicator Lamp (Fig. 12)

When the battery supply is low during operation of the appliance, the indicator lamp will light up. When this occurs, please recharge the appliance.

Fig. 12

HOW TO USE

WARNING

To prevent accidents when installing or removing the rechargeable battery, make sure that the appliance is switched off.

CAUTION

○ Make sure that the rechargeable battery is properly installed. If not properly installed, the battery may fall out, causing injury.
○ Make sure the filter is installed when operating the appliance. Failure to do so may result in injury or malfunction.

1. Verify the filter (Fig. 13)

Check to make sure the filter is installed. At the same time, check to make sure the filter is not damaged or dirty. (See “Check the filter” on page 46.)

Fig. 13

English

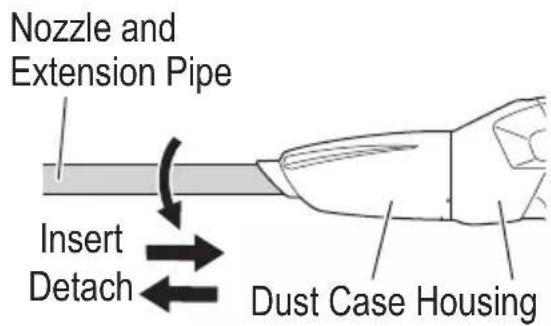

2. Attach the nozzle (Fig. 14)

Depending on the operation, insert the nozzle to the intake port of the appliance. The appliance can be used without a nozzle.

Fig. 14

NOTE

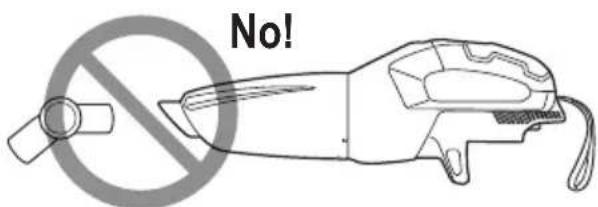

When attaching the nozzle or extension pipe, insert as you twist in the direction indicated by the arrow. (Fig. 15)

Twist in the direction indicated by the arrow when detaching as well.

Twisting in the opposite direction could result in detaching the dust case from the housing.

Fig. 15

3. Install the battery (Fig. 16)

As shown in the diagram below, firmly insert until a click is heard.

Fig. 16

4. Switch on the appliance

Press the button for the mode you wish to operate. (Fig. 17)

(See "THE SWITCH PANEL (R18DC)" on page 48.)

Fig. 17

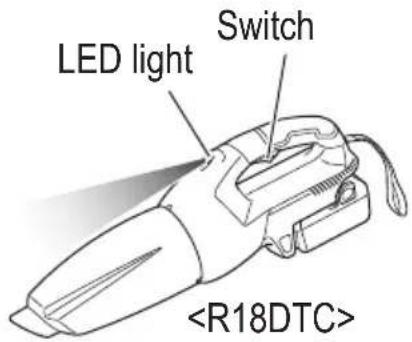

When the switch is pulled, the appliance and the LED light are both activated. Release the switch and the appliance and LED light at both shut off. (Fig. 18)

Fig. 18

CAUTION

Do not expose directly your eye to the light by looking into the LED light. If your eye is continuously exposed to the LED light, your eye will be hurt.
○ Wipe off any dirt or grime attached to the lens of the LED light with a soft cloth, being careful not to scratch the lens.
Scratches on the lens of the LED light can result in decreased brightness.

English

5. Remaining battery indicator

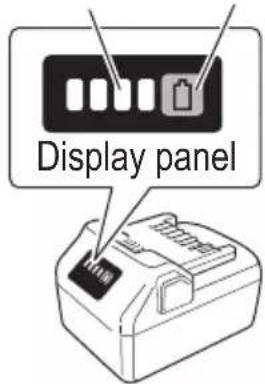

You can check the battery's remaining capacity by pressing the remaining battery indicator switch to light the indicator lamp. (Fig. 19, Table 4)

Remaining battery indicator lamp

Remaining battery indicator switch

Fig. 19

The indicator will shut off approximately 3 seconds after the remaining battery indicator switch is pressed.

It is best to use the remaining battery indicator as a guide since there are slight differences such as ambient temperature and the condition of the battery.

NOTE

Also, the remaining battery indicator may vary from those equipped to a tool or charger.

Table 4

	Lights ;The battery remaining power is over 75%
	Lights ;The battery remaining power is 50%-75%.
	Lights ;The battery remaining power is 25%-50%.
	Lights ;The battery remaining power is less than 25%
	Blinks ;The battery remaining power is nearly empty. Recharge the battery soonest possible.
	Blinks ;Output suspended due to high temperature. Remove the battery from the tool and allow it to fully cool down.

Blinks ;

Output suspended due to failure or malfunction. The problem may be the battery so please contact your dealer.

As the remaining battery indicator shows somewhat differently depending on ambient temperature and battery characteristics, read it as a reference.

NOTE

Do not give a strong shock to the switch panel or break it. It may lead to a trouble.

EMPTYING THE DUST CASE

WARNING

To prevent accidents, make sure the power is switched off and remove the rechargeable battery from the appliance.

CAUTION

Do not subject the dust case to strong impacts as this may cause deformation or damage.
Empty the dust case frequently and keep the appliance, filter, etc. clean. Failure to do so may reduce vacuuming efficiency or cause malfunction of the motor or odor.

1. Turn the dust case and pull it from the housing. (Fig. 20)

NOTE

Point the intake port downward as dust can spill when removing the dust case.

Point the intake port downward

Fig. 20

English

1. Dispose the dust in the dust case.
2. If the suction does not recover after disposing the dust, clean the filter.
3. Attach the filter and dust case to the housing.

Effectively removing dust (Fig. 21)

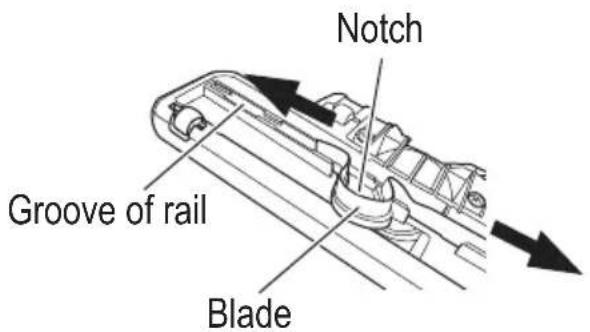

The appliance has a built-in mechanism for scraping off dust attached to the filter when removing the dust case.

To even more effectively scrape off the dust, repeatedly turn the dust case back and forth (2 to 3 times or more).

Holding the unit so that the dust case does not detach from the housing, slightly and repeatedly turn the dust case in the indicated directions.

Fig. 21

HOW TO RECHARGE USB DEVICE (UC18YSL3)

WARNING

Prior to use, check the connecting USB cable for any defect or damage.
Using a defective or damaged USB cable can cause smoke emission or ignition.
When the product is not being used, cover the USB port with the rubber cover.
Buildup of dust etc. in the USB port can cause smoke emission or ignition.

NOTE

• There may be an occasional pause during USB recharging.
  When a USB device is not being charged, remove the USB device from the charger. Failure to do so may not only reduce the battery life of a USB device, but may also result in unexpected accidents.
• It may not be possible to charge some USB devices, depending on the type of device.

1. Select a charging method

Depending on the charge method selected, either the battery is inserted into the charger or the power cord is plugged into an outlet.

○ Charging a USB device from a electrical outlet. (Fig. 22-a)
○ Charging a USB device and battery from an electrical outlet. (Fig. 22-b)

Diagram showing a mobile phone connected to an electronic device via cable (no text or symbols present)

a

Simple line drawing of a device with a plug and cable, no text or symbols present

b
Fig. 22

2. Connect the USB cable. (Fig. 23)

Pull back the rubber cover and firmly plug in a commercially available USB cable (appropriate to the device being charged) into the USB port.

Fig. 23

3. When charging is completed

○ To verify charge status, check the USB device.
○ Unplug the power cord from the electrical outlet. (Fig. 24)
○ Place the rubber cover over the USB port.

Fig. 24

MAINTENANCE AND INSPECTION

WARNING

Be sure to turned off the switch and remove the battery before maintenance and inspection.

1. Cleaning the filter

If the vacuuming efficiency is poor even when the dust case has been emptied, remove the filter and wash it in cold or warm water. (The water should not be hot to the touch.)

After washing, dry out of direct sunlight. (Fig. 25-a)

Alternatively, blow off any debris attached to the filter from the inside toward the outside with an air gun or something similar. (Fig. 25-b)

NOTE

○ Do not wash the filter in a washing machine.
○ Do not wash the filter in hot water or dry it by fire.
○ Do not use an air gun or similar tool to clean the filter, fan filter or the appliance itself.

(Fig. 25-c)

Doing so could push dirt into the appliance and cause malfunction.

Dry off any moisture

a

Air pressure: General pressure (about 0.6 MPa)
b

No!

C
Fig. 25

2. Cleaning the fan filter (Fig. 26)

If there is dust on the fan filter, hold the cleaner with the fan filter pointing downwards to keep dust from entering the motor and lightly clean with a small brush such as a used toothbrush.

Clean with a toothbrush or similar tool (Do not brush vigorously)

Fig. 26

3. Inspecting the flooring nozzle

Inspect the flooring nozzle to confirm that its blade is not dislodged. If the blade is dislodged, press it in until it catches on the projection.

Using with the blade dislodged may cause stains.

When replacing the blade, insert it starting from the notch in the rail, and thread it along the groove. Ensure there is no sagging throughout. (Fig. 27)

Fig. 27

4. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so may result in serious hazard.

5. Maintenance of the motor

The motor unit winding is the very "heart" of the power tool.

Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

English

NOTE

Regularly idle the motor to clean out dirt and dust.

Damage may result if dirt or dust collects in the motor.

1. Inspection of terminals (tool and battery)

Check to make sure that swarf and dust have not collected on the terminals.

On occasion check prior, during and after operation.

CAUTION

Remove any swarf or dust which may have collected on the terminals. Failure to do so may result in malfunction.

1. Cleaning of the outside

When the tool is stained, wipe with a soft dry cloth or a cloth moistened with soapy water.

Do not use chloric solvents, gasoline or paint thinner, as they melt plastics.

1. Storage

Store the cordless cleaner in a place in which the temperature is less than 50^ C, and out of reach of children.

When storing the appliance in a vertical position, hook the strap to a hanger.

NOTE

Do not store in a location where children can easily reach or take out the appliance.
Do not store in a damp location or in an area exposed to rainfall.
Do not store in direct sunlight or in a location where temperatures may suddenly change.
Do not store in a location with volatile materials that could ignite or explode.

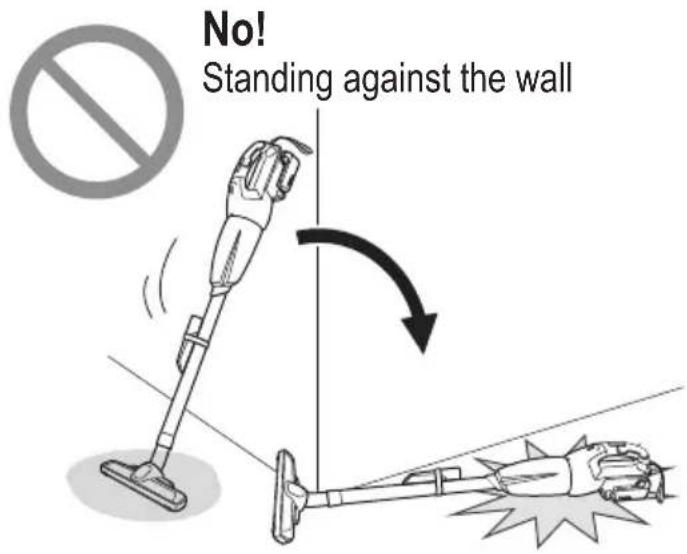

Do not stand the appliance against a wall without using the strap to fix it in place.

(Fig. 28) Failure to do so may result in damage from a fall.

Fig. 28

NOTE

Storing Lithium-ion Batteries

Make sure the lithium-ion batteries have been fully charged before storing them.

Prolonged storage (3 months or more) of batteries with a low charge may result in performance deterioration, significantly reducing battery usage time or rendering the batteries incapable of holding a charge.

However, significantly reduced battery usage time may be recovered by repeatedly charging and using the batteries two to five times.

If the battery usage time is extremely short despite repeated charging and use, consider the batteries dead and purchase new batteries.

CAUTION

In the operation and maintenance of appliances, the safety regulations and standards prescribed in each country must be observed.

Important notice on the batteries for the HiKOKI cordless appliances

Please always use one of our designated genuine batteries. We cannot guarantee the safety and performance of our cordless appliance when used with batteries other than these designated by us, or when the battery is disassembled and modified (such as disassembly and replacement of cells or other internal parts).

TROUBLESHOOTING

Use the inspections in the table below if the cleaner does not operate normally. If this does not remedy the problem, consult your dealer or the HiKOKI Authorized Service Center.

Symptom Possible cause	Remedy
Cleaner doesn’t run No remaining battery power Charge the battery.
Cleaner suddenly stopped Fan clogged with dust, causing overload		Contact place of purchase and arrange for dismantling and cleaning.
The battery is overheated. Let the battery cool down.
Poor suction Dust case is full. Dispose the dust.

English

Symptom Possible cause	Remedy
Poor suction Filter is clogged.	Turn the dust case and scrape	off dust with dust removal blade, or remove the filter and lightly strike it or wash with water.
Exhaust or the main unit is hot	The motor is overheating because the dust case is full, or the filter is clogged.	Dispose the dust. Or else, clean the filter.
Abnormal noise/foul odor Filter	in not properly installed, resulting in foreign matter getting into the motor.	Remove the dust case, point the intake port downward and gently shake to remove foreign matter and dust.Should abnormal noise/foul odor persist, the motor may be damaged. Immediately discontinue use and arrange for repairs.

SELECTING ACCESSORIES

Select accessories that are suited to a specific task. For details contact HiKOKI Authorized Service Center.

Line drawing of a portable electronic device with a display and control panel (no text or symbols)

BSL36..18.. BSL18.. UC18YSL3

Line drawing of a mechanical component with internal slots and housing (no text or symbols)

Isometric line drawing of a mechanical device housing with internal components (no text or symbols)

Line drawing of a mechanical component with internal slots and housing (no text or symbols)

(14.4 V - 18 V) Charger

Part Number: 329897 Battery cover

Simple line drawing of a triangular object with textured surface and curved edge (no text or symbols)

Part Number: 375371 Rack Brush

Simple line drawing of a corner clip with textured base and label 'OQ' on the tip (no other text or symbols)

Part Number: 375372 Round Brush

Line drawing of a mechanical connector or fitting with no text or symbols

Part Number: 375374 Angle Joint

Part Number: 375373 Flexible Hose

Simple line drawing of a cylindrical object with a rectangular end (no text or symbols)

Part Number: 375375 Extension Pipe (Short)

Simple line drawing of a cylindrical object with a pointed tip and a curved line inside, resembling a container or container (no text or symbols)

Part Number: 376509 Filter

Angle joint cannot be directly installed to the main unit. Use it as a set with the extension pipe or other accessory.

Line drawing of a quill pen with inkwell, no text or symbols present

Line drawing of a quill pen with inkwell, no text or symbols present

服务中心

高壹工机商业(上海)有限公司
