| Product Type | Preserving Pot / Canner |
| Brand | Hyundai |
| Model | PC222 |
| Capacity | 25 liters |
| Power Input | 2000 W |
| Temperature Range | 30 °C to 100 °C (adjustable) |
| Timer Range | 1 to 180 minutes |
| Inner Dimensions (H x W) | 30 cm x 36.7 cm |
| Net Weight | 4.8 kg |
| Main Material | High quality stainless steel (inner pot) |
| Control Type | Electronic with digital display, rotary knobs |
| Safety Features | Overheating protection, dry-boil protection, safety fuse with manual reset |
| Drain Valve | Plastic drain cock with release valve |
| Included Accessories | Removable grid (canner rack), lid |
| Cleaning | Wipe exterior with damp cloth; interior clean with citric acid or vinegar solution; do not immerse |
| Standby Power | < 0.50 W |
| Certifications | Complies with EN 60335-2-6 |
Frequently Asked Questions - PC222 HYUNDAI
User questions about PC222 HYUNDAI
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Chauffe-eau instantané et chauffe-eau in PDF format for free! Find your manual PC222 - HYUNDAI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PC222 by HYUNDAI.
USER MANUAL PC222 HYUNDAI
Zavařovací hrnec / Zavárací hrniec Garnek do pasteryzacji / Preserving pot Befőző edény / Einkochautomat
- Taking off the plug.
- Press down the small plastic pole with your finger until the display is on.
Re-Switch-on by hand when short-circuit
- Taking off the plug.
- Press down the small plastic pole with your finger until the display is on.
PRAWODAWSTWO I EKOLOGIA
Re-Switch-on by hand when short-circuit
- Taking off the plug.
- Press down the small plastic pole with your finger until the display is on.
Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
GENERAL SAFETY INSTRUCTIONS
- Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.
- Please check if product label data conforms to voltage of your plug socket.
- This product can be used by children at the age of 8 years and older if they are supervised or if they were instructed regarding use of the appliance in a safe way and if they understand possible risks. Children must not play with the appliance. User cleaning and maintenance must not be performed by children if they are younger than 8 year and unsupervised. Children younger than 8 years must be kept out of reach of the appliance and its power cord.
- The device may be used by persons with reduced physical or mental abilities or lack of experience and knowledge only if they are under supervision or they have been instructed about using the appliance safely and understand the potential dangers. Children must play with the appliance.
- If the power cord of the appliance is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to manufacturer or the nearest authorized service agent for examination, repair or electrical or mechanical adjustment.
- Before replacing accessories or accessible parts, which move during operation, before assembly and disassembly, before cleaning or maintenance, turn off the appliance and disconnect it from the mains by pulling the power cord from the power socket!
- Always unplug the appliance from power supply if you leave it unattended and before assembly, disassembly or cleaning.
- Pay careful attention when handling the appliance to avoid injury, (e.g. burns, scalding).
- Metal housing of the appliance may become hot during operation!
- Do not plug and unplug the electric socket plug with wet hands and do not pull the plug with the power cord!
- The product is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!
- When the appliance is in operation, prevent pets, plants or insects to get in contact with it.
- Do not use the appliance with a timer or any other external part which turns the appliance on automatically – there is a risk of fire.
- Do not immerse the appliance fully or partially to water! Do not wash under running water!
- Use the appliance in the working position only at places with no risk of turning over and in sufficient distance from heat sources (e.g. heater, stove, cooker, oven, grill), flammable objects (e.g. curtains, drapes, etc.) and wet surfaces (e.g. sinks, wash basins, etc.).
- Do not turn the appliance on empty, without water. Do not put more of liquid than marked on the container (MAX marks).
- Do not use in the proximity of explosive materials, nor in places where there is a risk of explosion (e.g. gas stations etc.).
- Use the appliance in areas with sufficient air circulation.
- Do not use the appliance in places or in proximity of objects with extreme temperatures, excessive humidity or dustiness and in proximity of sources of magnetic field (e.g. credit cards). Protect it from direct sunlight.
- The appliance is not designed for continuous operation!
- Do not touch outer surfaces during operation of the kettle, they are hot and there is a risk of getting burned.
- Do not move the appliance when hot; potential tipping over may result in burning injury.
- It is not allowed to modify the surface of the appliance in any way (e.g. using a selfadhesive wallpaper, foils, etc.)!
- Do not leave any objects (e.g. protective gloves, kitchen towels) on the lid when the appliance is in operation as they could cover the steam escape openings.
- Do not allow water, or food containing water, to freeze in the pot. It could damage the pot (crack it).
- Do not place the appliance on unstable, fragile or flammable surfaces (e.g. glass, paper, plastic, wooden-varnished boards and various fabrics/tablecloths).
- Use plastic or wooden kitchen utensils for stirring and scooping the food as metal utensils could damage the surface of the inner pot.
- Use the appliance in the working position only in places where there is no risk of it being knocked over and at a sufficient distance from sources of heat (e.g. heaters, electric/ gas stoves, cookers, etc.) and wet surfaces (kitchen sinks, wash basins, etc.).
- Do not use the appliance in an environment saturated with explosive or flammable steams.
- Be careful when lifting the lid and always remove it in the direction away from yourself.
- Use handles for carrying the appliance!
- The bread maker conforms to fire safety requirements according to EN 60 335-2-6. Pursuant to this standard, this is an appliance that may be operated on a table or similar surface provided that: Safe distance from surfaces of flammable materials at least 500mm in the direction of main heat radiation and 100mm for other directions.
- The appliance is equipped with the heat safety lock which disconnects power supply if water boils away or if an empty device is turned on. If it happens, unplug the appliance from power supply and let it cool down. Do not fill the appliance with cold water in order to cool it down quickly. It could reduce life of the heating element.
- Check the condition of the power cord of the appliance regularly.
- The power cord must not be damaged with sharp or hot objects, open fire and it must not be sunk into water or bent over sharp edges. Never put it on hot surfaces or do not let it hang over the edge of a table or work tables. Hitting, stumbling or pulling the power cord e.g. by children can result in tilting over or drawing the appliance down and serious injury!
- If you need to use the extension cord, it has to be uncorrupted and it has to comply with the valid standards.
- Never use the appliance for any other purpose than for the intended purpose described in these instructions for use!
- Use the appliance only with genuine accessories from the manufacturer.
- The producer is not responsible for damage caused by improper use of the appliance (e.g. burning, scalding, fire) and its guarantee for the appliance does not apply to situations when the safety warnings above are not complied with.

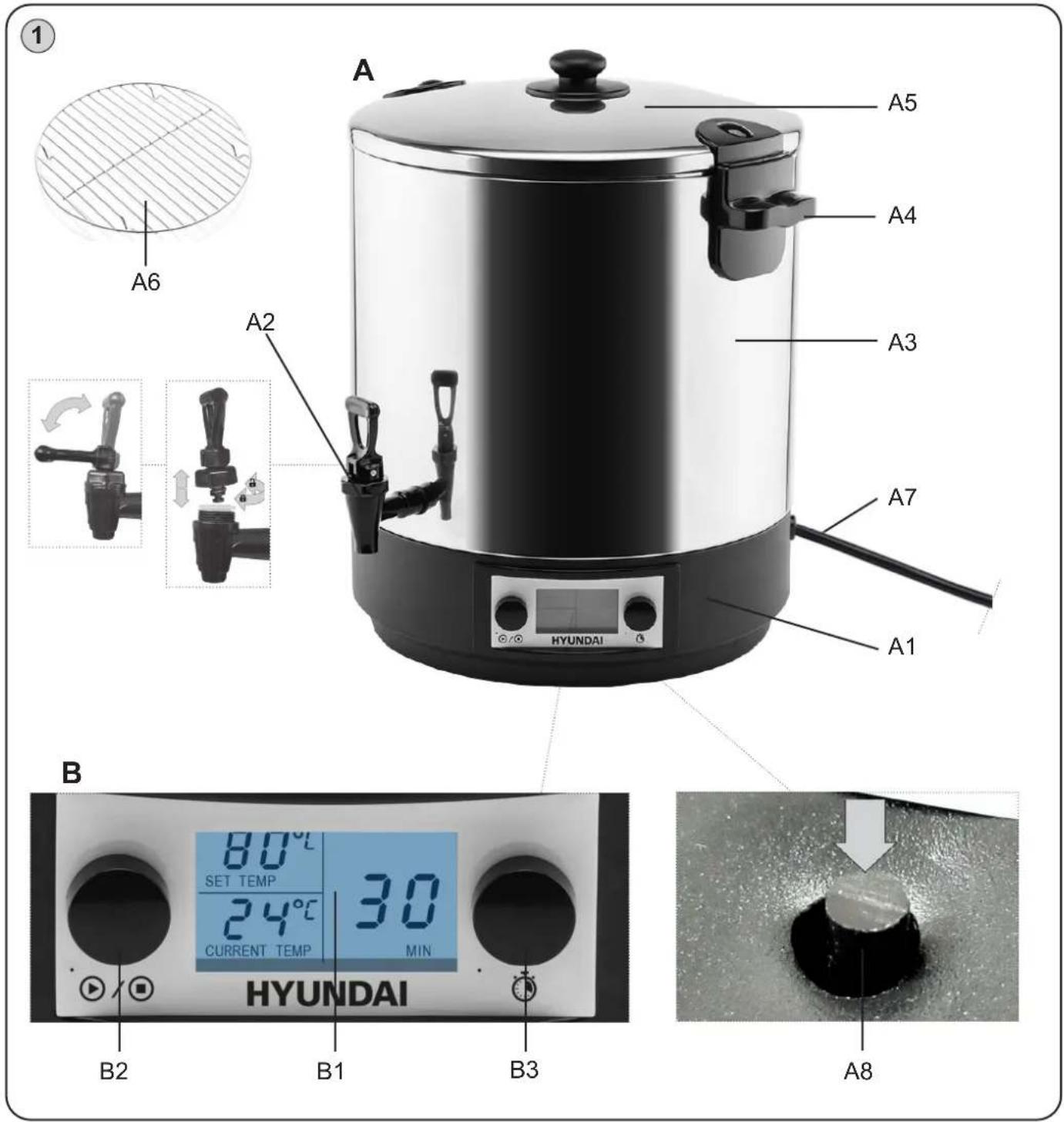

DESCRIPTION OF THE CONTROLS (PIC. 1)
A – Preserving pot
A1 – the main unit of the pot A5 – lid
A2 – release valve A6 – removable grid
A3 – container of the pot A7 – supply cord
A4 – heat-insulated handle A8 – safety fuse ON button
B - control panel
B1 – display
B2 – temperature regulator and simultaneously START/STOP button
B3 – timer regulator
Over-heating protection
The preserving pot is equipped with a safety heat switch which will disconnect the heating body in case of insufficient or no amount of water. If there is insufficient water in the preserving pot, an alarm sounds and a flashing symbol will display of a pan filling with liquid (upper left hand side of timer screen). Immediately add more water to a level sufficient for the process being performed. If water is not added the preserving pot will automatically turn off and must be allowed to cool.
Caution: f the appliance does not work after having been connected to the el. outlet, press button A8. The button is on the bottom of the appliance.
PREPARING FOR USE
Remove all packaging material and remove the appliance with accessories. Remove all adhesive foils, stickers or paper from the appliance. Wash all parts, which will come in touch with food in hot water with soap, rinse them thoroughly with clean water and wipe dry or let dry before first use. Make sure that the power supply cord is not damaged and that it is not led underneath the appliance or over any sharp or hot surfaces. The socket must be readily accessible so that the appliance could be easily disconnected from the mains in case of danger. Pour clean drinking water into the appliance up to about 6 liters. Set the temperature regulator B2 into “100” position and the timer regulator B3 into “30” position. Wait until the water reaches boiling point and let it boil for at least 10 minutes. Let the appliance cool off and pour out the water. Potential short and moderate smoke or smell is not a fault and a reason for taking the appliance back.
Place the appliance on a solid flat and dry surface (e.g. kitchen table), out of reach of children. If you are going to use the appliance for preserving in jars, insert the removable grid A6 and fill the container with sufficient volume of water, depending on the character and amount of the prepared food. Plug the fork of the power supply A7 in the el. plug. The preserving pot is now ready for use.
INSTRUCTIONS FOR USE
Display
After correct assembling and connecting the appliance to the mains, display will light (the shows the basic settings "80 30" (i.e. temperature / time) and then the pot is switched automatically to the stand-by regime after 10 sec. The left hand side of the panel shows the set temperature (upper) and current temperature (lower) in degrees Celsius. The right hand panel shows the time set in minutes.
Temperature setting
The appliance is equipped with an in-built thermostat, which enables you to set the temperature from approx. 100 °F to 212 °F (boiling point) with ± 8 % accuracy. When reaching the set temperature, it is automatically maintained (depending on the setting of the timer).
Setting the timer
The timer enables you to set time in the range of 1 – 180 minutes. To increase the time desired, turn the regulator clockwise. To decrease it, counter-clockwise. When the set time runs out, the appliance turns off.
The process of preserving in a few steps
1) Insert the removable grid A6 on the bottom of the container A3.
2) put in the mason jars (see Tips).
3) fill the container A3 with the necessary volume of water.
4) put on the lid A5
5) plug the fork of the supply cord A7 into the el. outlet.
6) set the desired temperature of heating by turning the regulator B2 scaled between 30 °C and 100 °C.
7) set the desired time with the right hand regulator B3 scaled between 1 and 180 minutes.
8) press the left handregulator B2 to turn on the heater - a succession of 6 vertical bars will show above the timer display to indicate that the heater is on.
9) when the set temperature has been reached (set temperature = current temperature) an alarm sounds and the timer starts (indicated by an hourglass timer symbol). This is the start of the pasteurisation/cooking time.
10) when the set time has elapsed the alarm sounds repeatedly.
11) When finishing or discontinuing the heating process, turn off the appliance by push the regulator B2.
12) Disconnect the appliance from the mains by pulling the power cord plug A7 from the power socket.
Note:
- The heating up time is not included in the preserving time. The preserving time starts when the selected temperature has been reached; the timer will start to run from this point (the time to reach the set temperature is individual and depends on the volume of water, ambient temperature etc.).
- Do not drain the liquid with solid particles, eg. soups, goulas. Solid parts clog tap. The appliance is equipped with a release valve for easier release of liquids from the container A3. If you are, however, preparing food with higher density (e.g. goulash).
- The liquid must be added into the appliance before turning it on. Make sure water does not boil out of the container during long-lasting heating!
- Do not overfill the container of the preserving pot, leave at least 4cm of free space from the top end of the container.
- The outer part of the appliance warms up during the heating. Pay close attention and do not touch the hot spots.
- Use the container with a lid!
- Hot water may remain on the inner part of the lid! Be careful to prevent injuries (scalds or burns).
TIPS
The process of preservation is a traditional and proven method of keeping food. The Hyundai preserving pot also offers other uses, such as cooking, heating, preparing hot drinks (incl. mulled wine or punch), blanching of vegetables, etc. Follow your experience and general rules for cooking/preserving. You may find a few of them below.
- It is very important that the food prepared is clean Fruit and vegetable should be of good quality, ripe and thoroughly cleaned. Rinse and dry the food well.
- Green beans and peas lasts longer if you blanch it first.
- Jars, bottles and their lids need to be rinsed in hot water, adding a little soap.
Wash with clean water and let dry.
– Leave the closings in clean water until you use them.
- Do not use worn and damaged sealing, lids, jars or bottles.
- Fill the containers up to 2 cm from the top. When preserving soft food (puree etc.), leave room 3-4 cm from the top.
- When making smoked goods, fill the jars only up to 34 of their volume.
- Close and seal the jars with screw-on lids, spring fasteners or clips.
- Close the jars (bottles etc.) right after conservation.
- Always put the jars on the removable grid – this will ensure good circulation of the boiling water around the jars, resulting in faster heating.

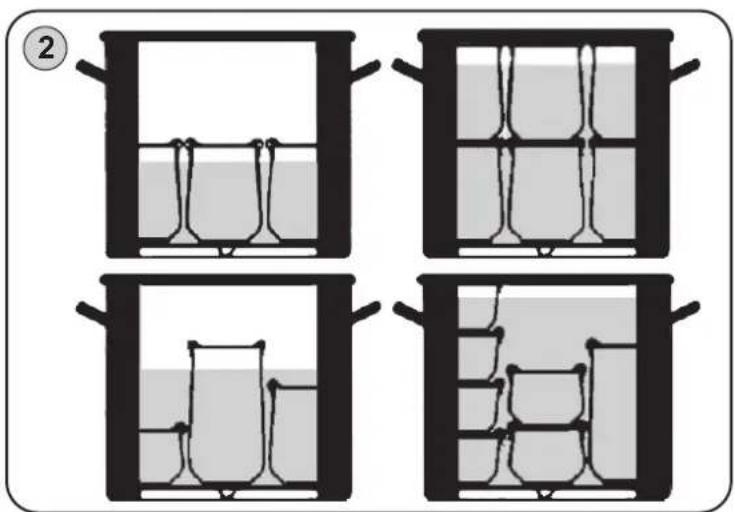

- You can use jars (containers) of various sizes and dimensions in this pot.
- The jars must be immersed in water from 2/3 to 3/4. Immerse the biggest jar in 3/4 (see pic. 2).
The jars which are fully immersed are sealed, that is why no water gets to them.
- Heating of the full volume of the pot may take up to 1.5 hours, it is therefore more efficient and faster to preserve “in steam”. Pour approx. 5-10 cm of water into the pot, this volume will heat up faster and the steam created will preserve with up to 60 % energy savings.
- The temperature of water poured into the container should be approximately the same as the temperature inside of the jars.
- Look up the temperature and time for preservation in your recipes, possibly other books about preservation.
- Preserving starts only when the set temperature is reached.
- Take out the jars when the time needed for preservation is up.
- Store the preserved food in a cool, dark place.
- It is good to write the date of preservation and their contents on the jars.
PRESERVATION TABLE
| Fruit temperature (°C) | Time (min) Vegetable Temperature (°C) | Time (min) | |||
| currant 85 20 cauliflower 100 | 90 | ||||
| puree 90 30 bean pods 100 | 120 | ||||
| pears | 90 | 30 | thick beans | 100 | 90 |
| strawberries | 75 | 25 | peas | 100 | 120 |
| blueberries | 85 | 25 | pickled vegetable | 90 | 30 |
| raspberries | 80 | 30 | carrot (small) | 100 | 90 |
| cherries 80 30 carrot | 100 90 | ||||
| mirabelle | 90 | 30 | turnip | 100 | 90 |
| peaches | 90 | 30 | pumpkins | 90 | 30 |
| apricots | 90 | 30 | brussels sprouts | 100 | 120 |
| rhubarb | 100 | 30 | asparagus | 100 | 120 |
| gooseberry | 80 | 30 | kale | 100 | 120 |
| plums | 90 | 30 | tomatoes | 90 | 30 |
| Meat | Temperature (°C) | Time (min) |
| roasted meat, pre-rosted | 100 | 75 |
| goulash | 100 | 75 |
| poultry, game, roast | 100 | 75 |
| schnitzel, chops, roast | 100 | 75 |
| smoked meat products | 100 | 120 |
The times in the table are only approximate. The time before reaching the temperature is very individual and depends on multiple factors. The times in the table apply from the point of reaching the set temperature.
CLEANING AND MAINTENANCE
Never immerse the appliance in water! Turn the appliance off by unplugging it from the outlet before any maintenance. Do not use coarse and abrasive cleaning agents (e.g. sharp objects, peelers, chemical solvents, thinning agents, caustic agents for cleaning ovens or other solvents)! Wipe the outer surface with a damp cloth with soap. Rinse the container from the inside and remove some possible sediments of limescale with a solution of citric acid or vinegar (then let boil with clean water). You can take apart the release valve A2 and clean separately. Never dry the plastic die-cast over a heat source (e.g. stove, el./gas cooker).
If the power cord is soiled, wipe it with a wet cloth. It is common for the surface colour to change in time. This change, however, does not have any influence on the surface characteristics in any way and it cannot be subject to a complaint under warranty!
Cleaning of grommet valve
With one hand grip the tap and with the other hold the plastic nut on the inside of the tank. Turn the tap anticlockwise to unscrew. The knurled cap at the top of the tap can then be unscrewed to release the tapmechanism. Clean the grommet. In the reverse sequence insert the grommet into the valve groove. In the reverse sequence assemble the individual parts in the correct order and position (pull the valve tight with appropriate force).
CAUTION: Make sure that the bearing surfaces are clean and functional.
Error messages on the display:
| Display Problem Solution | ||
 | Insufficient water in the preserving pot | Add more water to a level sufficient for the process |
| E1 Ma | Ifunctioning temperature sensor Contact an authorized service centre | |
TECHNICAL SPECIFICATIONS
- Preserve cooker
- Capacity 25 l
- For fruits and vegetables canning and sterilizing
• High quality stainless steel jar - Suitable for 14 most common jars with the capacity 1 l
- Adjustable timer from 1 to 180 min
- Canner rack diameter 29.7 cm
-
Variable temperature setting range from 30 - 100 °C
-
Acoustic signalization after achieving the adjusted temperature
- Plastic drain cock
- Can also be used as a hot drinks machine or for preparing soups and stews
- Heat insulation handles
- Hidden spiral heating - flat bottom
- Safety fuse against overheating and idling
• Inside dimensions (H x W): 30 x 36.7 cm - Input 2000 W
- Weight: 4.8 kg
- Input in off mode is < 0.50 W .
LEGISLATIVE & ECOLOGY
The manufacturer reserves the right to change the technical specifications and accessories for the respective models. Replacement of parts that require intervention in the electric part of the appliance must be carried out by a specialized service! Failure to comply with the instructions of the manufacturer will lead to expiration of the right to guarantee repair!
WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don't use it or before a revision. There aren't any parts in this appliance which are reparable by consumer. Always appeal to a qualified authorized service. The product is under a dangerous tention.
Old electrical appliances, used batteries and accumulators disposal
This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste.
When the product/ battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the product you can prevent possible negative impact on
environment and human health, which might otherwise occur as a consequence of improper manipulation with the product or battery/ accumulator.
Recycling of materials contributes to protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/ accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority.
WARNINGS AND SYMBOLS USED ON THE APPLIANCE, PACKAGING OR IN THE INSTRUCTIONS MANUAL:
CAUTION DO NOT TOUCH THE BODY WHEN BOILING.
Re-Switch-on by hand when short-circuit
- Taking off the plug.
- Press down the small plastic pole with your finger until the display is on.
HOUSEHOLD USE ONLY; DO NOT IMMERSE IN WATER OR OTHER LIQUIDS;
TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.
The symbol indicates a WARNING
BURNS CAN OCCUR FROM TOUCHING HOT METAL PARTS, HOT WATER OR STEAM. EXERCISE CARE WHEN HANDLING!
Re-Switch-on by hand when short-circuit
Re-Switch-on by hand when short-circuit
- Taking off the plug.
- Press down the small plastic pole with your finger until the display is on. (viz odstavec Ochrana proti přehřátí)
Licensed by HYUNDAI Corporation Holdings, Korea
