Product Type	Cordless Impact Driver
Brand	Cocraft
Model	PRO Edition IB18-L
No-Load Speed	0–2200 rpm
Impact Rate	0–3000 bpm
Max Torque	140 Nm
Chuck Size	1/4" (6.35 mm) hex
Weight (without battery)	1.0 kg
Battery Voltage	18 V (sold separately)
Charging Time	Approx. 40 min
LED Work Light	Yes, auto-off after 15 s
Variable Speed Trigger	Yes, stepless
Forward/Reverse Rotation	Yes, with trigger lock in middle
Overload Protection	Yes, automatic reset
Overheating Protection	Yes, automatic reset after cooling
Deep Discharge Protection	Yes, automatic shutdown
Battery Indicator	3 LEDs (full: 3, 90%: 2, 25%: 1, empty: 0)
Belt Clip	Yes, included
Noise Level (LpA)	82.1 dB(A), K=3 dB(A)
Noise Level (LwA)	93.1 dB(A), K=3 dB(A)
Vibration Emission	12.1 m/s², K=1.5 m/s²
Safety Features	Insulated gripping surfaces, trigger lock, safety warnings
Maintenance	Keep ventilation clean; wipe with damp cloth; store dry
Intended Use	Driving screws and bolts
Certifications	CE, machinery directive 2006/42/EC, EMC 2014/30/EU

Frequently Asked Questions - PRO Edition IB18-L Cocraft

How do I change the screwdriver bit?

First, set the forward/reverse selector to the middle position to lock the trigger. Pull the collet locking sleeve forward, insert the bit, then release the sleeve. Ensure the bit is held securely.

What should I do if the battery does not charge?

Check that the charger is properly connected to a live wall socket. Ensure the battery is correctly seated in the charger. If the red LED flashes, the battery may be defective. If the green LED flashes, the battery is too hot or cold; let it reach room temperature (5–40 °C).

Why won’t the impact driver start?

The battery may be discharged – recharge it. The overload or overheating protection may have been triggered – release the trigger and wait a few seconds. If the problem persists, the power trigger may be faulty; contact customer services.

What is the maximum torque of this impact driver?

The maximum torque is 140 Nm, suitable for heavy-duty fastening applications.

How do I clean and maintain the impact driver?

Keep the motor ventilation openings free of debris. Clean the exterior with a damp cloth using mild cleaning agents only. Never use solvents or corrosive chemicals. Store in a dry, dust-free place out of children’s reach.

Can I use any 18V battery with this tool?

No, only use the specifically designated battery packs for this model. Using other batteries may cause injury or fire. The battery is sold separately.

How long does it take to fully charge the battery?

The charging time is approximately 40 minutes. Charge only with the specified charger and at ambient temperatures between 5 °C and 40 °C.

What does the LED work light do?

The LED work light illuminates the work area when the trigger is pressed. It automatically turns off about 15 seconds after releasing the trigger.

How do I interpret the battery status indicator?

Press the button on the battery. Three LEDs = full charge (100%). Two LEDs = approx. 90%. One LED = approx. 25%. No LEDs = battery is empty and needs charging.

Is hearing protection required when using this tool?

Yes, hearing protection must be worn when the sound level exceeds 80 dB(A). The tool’s noise emission is 82.1 dB(A), so hearing protection is recommended.

USER MANUAL PRO Edition IB18-L Cocraft

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

General Power Tool Safety Warnings – Personal Safety

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Additional safety instructions for use of the impact driver

Only hold the power tool by its insulated gripping surfaces when performing an operation where the fastener could come into contact with live electrical wiring.

Fasteners which contact live wires may energise any metallic components on the housing of the power tool and could give the operator an electric shock.

Specific safety instructions for battery packs

a) Do not dismantle, open or shred cells or the battery pack.

b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When the battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

c) Do not expose the battery pack to heat or fire. Avoid storage in direct sunlight.

d) Do not subject the battery pack to mechanical shock.

e) In the event of the battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell or battery pack has been swallowed.
g) Keep the battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
i) The battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
j) Do not maintain the battery pack on charge when not in use.
k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
I) The battery pack performs best when it is operated at normal room temperature (20 °C ± 5 °C).
m) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other.
n) Recharge only with the specified charger. Do not use any charger other than that specifically provided for use with the equipment.
A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
o) Do not use any battery pack which is not designed for use with the equipment.
p) Keep the battery pack out of the reach of children.
q) Retain the original product literature for future reference.
r) Remove the battery from the equipment when not in use.
s) Dispose of properly.

General safety instructions for batteries and chargers

• Never attempt to dismantle a battery.
• Never store a battery in direct sunlight or at temperatures above 40 °C.
• Only charge the battery when the ambient temperature is between +5 and 40 °C.
• Never expose the battery or charger to water.

Vibration

• The measurement of the vibration emission level declared in this instruction manual has been carried out in accordance with a standardised test method described in EN 60745 and can be used for comparing one power tool with another.
• The measurement method may also be used for a preliminary assessment of vibration exposure.
• The declared vibration emission level applies when the power tool is used in accordance with this instruction manual. If however, the power tool is used for other purposes and with other accessories or has not been properly maintained, the vibration emission level could increase significantly over the total working period.
• For an exact assessment of the vibration exposure, the times when the tool is switched off or running idle should also be taken into account. This significantly reduces the vibration exposure over the total working period. Decide upon safety measures to protect the operator from the effects of vibration during all types of use.

Product safety symbols

Read the entire instruction manual.

Always use safety glasses, ear defenders and a face mask.

For indoor use only.

max 40 °C

Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.

Do not expose the impact driver to water, rain or wet conditions.

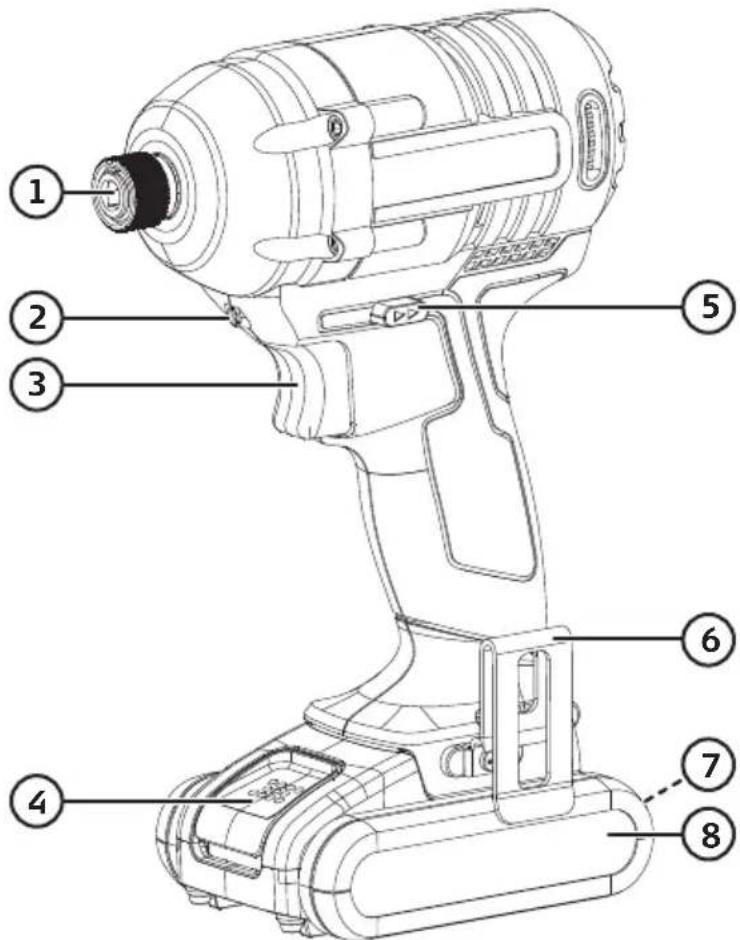

Product description

1. 14 " hex chuck
2. LED work light
3. Power trigger (variable speed control)
4. Battery release button
5. Forward/reverse rotation selector and power trigger lock
6. Belt clip
7. Battery status indicator
8. 18 V battery (sold separately)

Power trigger

• Choose the direction of rotation (forward or reverse) using the selector (5). The selector also has a middle setting which locks the power trigger. If the selector is set to this middle position, the impact driver will not start. The impact driver is started and stopped by squeezing and releasing the power trigger (3).
• The impact driver is equipped with stepless variable speed control. The more the power trigger is squeezed, the higher the chuck rotation speed.

Work light

The LED work light (2) comes on when the power trigger is depressed and goes off about 15 seconds after the power trigger is released.

Chuck

The chuck accepts screwdriver bits with a 14 " (6.35 mm) hexagonal shank.

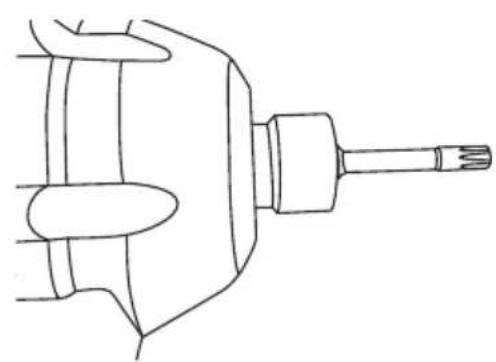

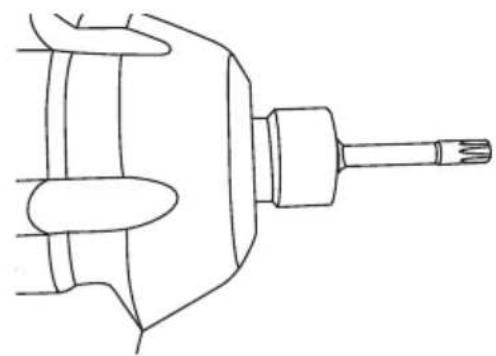

1. Before inserting/removing a screwdriver bit, set the forward/reverse selector (5) to the middle position to lock the power trigger. This will prevent the impact driver from starting accidentally.

Illustration of a hand holding a screwdriver with an arrow indicating the process (no text or symbols present)

Line drawing of a mechanical component with a shaft and housing (no text or symbols)

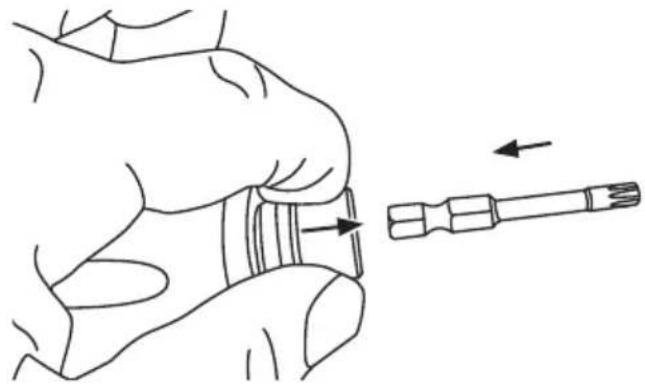

1. Pull the collet locking sleeve forward and insert the desired screwdriver bit into the chuck.

2. Release the collet locking sleeve and check that the screwdriver bit is held securely in the chuck.

3. To remove the bit, pull the collet locking sleeve forward again and extract the bit.

Battery and charger

Note: Both the battery and charger are sold separately.

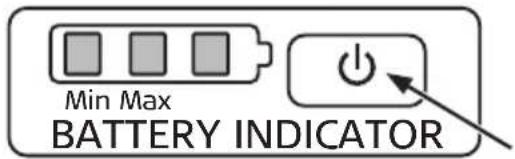

The charge indicator on the battery

Note: The LEDs on the battery only provide an approximate indication of the charge status. The percentages below should only be used as a rough guide.

- Press the button to the right of the battery indicator to display the current battery status.

- At full, 100 % charge, all three LEDs shine. At 90 % charge, one LED goes out and two LEDs shine. At 25 % charge, another LED goes out and only one LED shines. If none of the LEDs shines, the battery is completely discharged and needs charging.

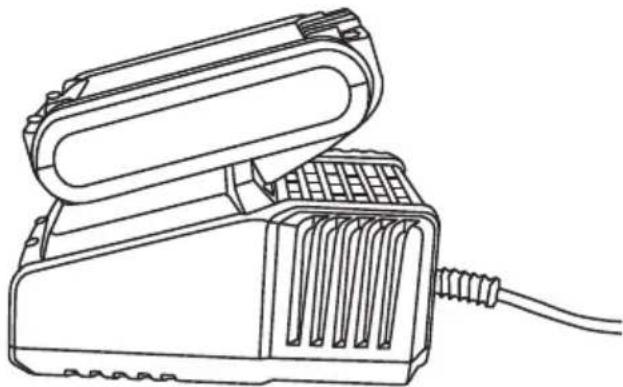

Charging

Charging temperature: 5–40 °C.

1. Connect the charger to a wall socket. The green LED will come on.

2. Slide the battery into the charger. The green LED will go out and the red LED will come on whilst the battery is being charged.

3. When the battery has been fully charged, the green LED will come on.

4. Remove the battery from the charger and disconnect the charger from the mains once the battery is fully charged.

Line drawing of a handheld electric shaver with cooling fins and a cable (no text or symbols)

• The charging time is approximately 40 min.
• The battery may become hot whilst it is being charged. This is completely normal.
- The battery and charger function best at normal room temperature. Do not charge the battery in direct sunlight or in temperatures below 5 °C. The temperature range for charging is 5–40 °C.
- When the battery becomes discharged, the electronics of the battery will turn the impact driver off automatically.
- For long-term storage (months) the battery should first be fully charged.

Charging error indications

• The red LED flashes: defective battery, change the battery.
• The green LED flashes: battery too hot or cold to charge. Let battery reach normal room temperature before charging.

Attaching/detaching the battery

1. Before attaching the battery, set the forward/reverse selector (5) to the middle position to lock the power trigger. This is to prevent the impact driver from starting accidentally when the battery is installed.
2. Slide the battery onto the bottom of the tool until it clicks into place.
3. To remove the battery, press down the battery release button (4) and slide the battery off the tool.

Overload protection and other safety features

The impact driver/battery has a number of safety features that prevent damage to the impact driver and battery during use.

- During short high-load situations the overload protection may turn off the impact driver/battery. This protection resets automatically. Release the trigger, wait a few seconds, ensure that there is no load and restart the impact driver. The impact driver should now function normally again.

• During high-load for extended periods the overheating protection may switch the impact driver/battery off. The protection resets itself but the impact driver cannot be restarted until it has returned to normal operating temperature. Let the impact driver cool before resuming work. Do not expose the impact driver to direct sunlight for prolonged periods. Doing so could cause the overheating protection to trigger.
• The battery has a deep discharge undervoltage protection which operates when the battery becomes discharged. The deep discharge protection turns the impact driver off automatically. The battery then needs to be recharged.

Care and maintenance

• Keep the motor ventilation openings free from contaminants.
• Clean the exterior of the impact driver by wiping it with a damp cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.
• If the impact driver is not to be used for a long time, the battery should be fully charged before the tool is stored away.
• Store the impact driver in a dry, dust-free environment out of children's reach whenever it is not to be used for a long time.

Troubleshooting guide

The impact driver won’t start.	· The battery is discharged. Recharge the battery.· The overload or overheating protection has been triggered. Let the impact driver rest and cool for a few seconds before resuming work.· Faulty power trigger. Contact our customer services.
The impact driver stops or is sluggish.	· The battery is discharged. Recharge the battery.· The overload or overheating protection has been triggered. Let the impact driver rest and cool for a few seconds before resuming work.· If the problem remains, make sure that the driver is not overloaded. Reduce the load.· Is the task suitable for the impact driver?
The battery does not charge.	· Is the charger properly connected to the wall socket?· Is the wall socket live?· Is the battery correctly connected to the charger?· Is the battery defective or too hot/cold? Refer to the Charging-Charging error indications section above.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin with crossed-out lines and a solid black rectangle below (no text or labels)

Specifications

No-load speed 0–2200 rpm

Impact rate 0–3000 bpm

Max torque 140 Nm

Chuck 14 " (6.35 mm) hex

Noise emission data LpA = 82.1 dB(A), uncertainty KpA = 3 dB(A)

LwA = 93.1 dB(A), uncertainty KwA = 3 dB(A)

Hearing protection must

be worn when the sound

level exceeds 80 dB(A)

Vibration value a h = 12.1 m/s^2 , K = 1.5 m/s^2

Weight 1.0 kg (without battery)

Slagskruvdragare

Art.nr 41-1241 Modell CID180HB.2

Strömbrytare

Illustration of a hand holding a screwdriver with an arrow indicating the process (no text or symbols present)

Line drawing of a mechanical component with a shaft and housing (no text or symbols)

Line drawing of a portable electric shaver with a cord and cable (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, accompanied by a solid black rectangle below (no text or symbols present)

Specifikationer

Varvtal 0–2200 v/min

Slagtal 0–3000 bpm

Strømbryter

Illustration of a hand holding a screwdriver with an arrow indicating the process (no text or symbols present)

1. Skyv sperrehylsen framover og sett i ønsket bits/bitsholder.

Line drawing of a mechanical component with a shaft and housing (no text or symbols)

Line drawing of a handheld electric shaver with internal fins and a cable (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid rectangle below (no text or labels)

Spesifikasjoner

Turtall 0–2200 o/min.

Slagtall 0–3000 bpm

Maks tiltrekkingsmoment 140 Nm

Chuck 14 " (6,35 mm) heks

Virtakytkin

Illustration of a hand holding a screwdriver with an arrow indicating the process (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a handheld electric shaver with a cable inserted (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Tekniset tiedot

Ein-/Ausschalter

Illustration of a hand holding a screwdriver with an arrow indicating the process (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Symbol of a trash bin crossed with no visible text or labels

Technische Daten

Declaration of Conformity

Declares that this product complies with the requirements of the following directives and standards

Machinery Directive 2006/42/EC

EN 60745-1: 2006

EN 60745-2-2: 2003/

A1: 2008

EMC Directive 2014/30/EU

EN 55014-1: 2006/

A1: 2009/A2: 2011

EN 55014-2: 2015

Henrik Alfredsson

Manager Technique & Quality

Insjön, Sweden, 2016-12-20

Sverige

Postal 10 - 13 Market Place

Kingston Upon Thames

Surrey

KT1 1JZ

Deutschland

Kundenservice Hotline: [phone]

E-Mail: [e-mail]

Homepage

www.clasohlson.de
