EFI 8060-90 B - Range hood GRAM - Free user manual and instructions

Product Type	Range Hood
Brand	Gram
Model	EFI 8060-90 B
Width	90 cm
Control Type	Touch controls with gesture control
Fan Speeds	Low, Medium, Turbo (Turbo lasts 5 minutes)
Lighting	LED with adjustable brightness and color temperature (3000K-7000K)
Off-Timer	Yes, 15 minutes
Filter Type	Aluminum grease filter (washable) and optional charcoal filter for recirculation
Grease Filter Cleaning	Every month, dishwasher safe
Charcoal Filter Replacement	Every 2 months
Installation Type	Wall-mounted chimney
Duct Diameter	120 mm or 150 mm
Minimum Installation Height	650 mm above electric hob, 450 mm above gas hob (or as per gas cooker instructions)
Power Supply	220-240 V, 50 Hz
Weight	Approx. 18 kg
Dimensions (HxWxD)	Approx. 800 x 900 x 500 mm
Safety Features	Child safety, automatic shut-off, no open flame
Energy Class	Not specified

Frequently Asked Questions - EFI 8060-90 B GRAM

How do I install the Gram EFI 8060-90 B range hood?

Installation should be done by a qualified installer. Ensure the wall is strong enough to support the hood. Maintain a minimum distance of 650 mm above an electric hob or 450 mm above a gas hob. Connect the duct (120 mm or 150 mm diameter) for extraction mode, or install a charcoal filter for recirculation mode. See the installation diagrams in the manual.

How do I use the gesture control feature?

Gesture control is active by default. Move your open hand 5-10 cm from the control panel. Swipe left to right to turn on/increase fan speed, right to left to decrease/off. Hover over sensor 2 to toggle lighting. Each gesture should take about 1 second.

How do I clean the aluminum grease filter?

Clean the aluminum grease filter at least once a month. You can wash it in a dishwasher or by hand with mild detergent. After several washes, the color may change; this is normal.

How often should I replace the charcoal filter?

Replace the charcoal filter every 2 months, or more frequently if the hood is used intensively. Charcoal filters cannot be washed or regenerated.

How do I adjust the lighting color?

In standby mode, touch and hold the light sensor and the fan decrease sensor simultaneously for 2 seconds. The display will show 'L'. Use the fan speed + and - sensors to select a color from 3000K (warm) to 7000K (cool). Wait 3 seconds to save.

What should I do if the hood is not working?

First, check the power supply and ensure the plug is connected. If the power cord is damaged, have it replaced by a qualified technician. For other issues, refer to the troubleshooting section or contact customer support.

Can I use the hood without a duct?

Yes, in recirculation mode. You need to install a charcoal filter (not included). The air is filtered and returned to the kitchen.

What is the Off-Timer and how do I use it?

The Off-Timer automatically turns off the hood after 15 minutes. To activate, touch and hold the Off-Timer sensor for 3 seconds. This is useful to filter fumes after cooking.

Is the hood safe for use over a gas stove?

Yes, but maintain a minimum distance of at least 650 mm or as specified by the gas cooker manufacturer. Do not leave open flames unattended and ensure the flame does not extend beyond the pot.

How do I adjust the lighting brightness?

When the lighting is on, touch and hold the light sensor for a few seconds. The brightness will cycle through levels. Release to set the desired brightness.

USER MANUAL EFI 8060-90 B GRAM

Before using the appliance, please carefully read this manual!

BRUGSANVISNING - K∅KKENEMFANG

4

Line drawing of a front panel with buttons and a central button (no text or symbols)

Simple line drawing of a rectangular box with a downward-pointing arrow inside, no text or symbols present.

Technical line drawing of a mechanical assembly or enclosure with internal components (no text or symbols)

Simple line drawing of a rectangular box with a downward-pointing arrow inside, no text or symbols present.

5

6

THANK YOU FOR PURCHASING AN GRAM APPLIANCE

DEAR CUSTOMER!

You are now a user of a kitchen extractor hood. This hood has been designed and manufactured specially with a view to satisfying your expectations and it will certainly constitute a fitting element of a modern kitchen. The modern structural solutions and the newest technologies used in production of this hood guarantee its high effectiveness and good appearance.

Please read these instructions carefully before installing the hood. They will help you avoid mistakes during installation and operation of the hood.

We wish you a lot of satisfaction from choosing our kitchen extractor hood.

Symbols appearing in these instructions have the following meaning:

Important information concerning proper operation of the appliance and your personal safety.

Risks resulting from improper operation of the appliance. Activities that must be performed by a qualified technician.

Tips on how to use the appliance.

Information on how to protect the environment.

This indicates actions than must not be performed by the user.

TABLE OF CONTENTS
GUIDELINES CONCERNING THE SAFETY OF USE 7

INSTALLATION		9
OPERATION	AND MAINTENANCE		10
ENVIRONMENTAL	PROTECTION	13

The appliance is intended for household use only.

The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

●The manufacturer will accept no responsibility for any damage due to installation or operation not conforming to these instructionsi

● Cooker hood is designed to remove cooking odours. Do not use cooker hood for other purposes.

- Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The duct length (typically 120 or 150mm in diameter) should not exceed 4-5 m. The air exhaust duct is also required for telescopic and under furniture cooker hoods operating in air recirculation mode.

● Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane. (chimney cooker hoods only).

●The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds.

- Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

- For details of the installation distance above an electric hob please refer to product technical sheet If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1a/b/c).

- Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not ex-

tend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat.

●Any food cooked in fat shall be constantly monitored, since overheated fat can ignite very easily.
- Pull the plug of the power cord from a wall socket before any filter cleaning or repair operation.
●The textile grease filter should be replaced, and the aluminium filter should be cleaned at least every one month in connection with the existing fire danger (saturated fat is very flammable).
- If any other non-electric devices are used in the same room as the hood (e.g. liquid fuel ovens, flow-through or volumetric water heaters), it is necessary to provide appropriate ventilation (air supply). Safe operation is possible when during simultaneous operation of the hood and combustion devices dependent on air supply the negative pressure of not more than 0.004 milibar is

maintained at the location of these devices inside the room (this point does not apply when the hood is used as an odour absorber).

●Do not lean on hood
●The hood should be frequently cleaned inside and on the outside surfaces (at least once a month). See “Cleaning section” in this manual.

• If the power wire gets broken, it should be replaced with a new one in a specialist repair shop.
• If the power wire gets broken, it should be replaced with a new one in a specialist repair shop.
  ●Make sure the appliance can be easily disconnected from the mains, either by pulling the plug out of the mains socket, or by switching the two-pole switch off.
  ●This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ●Children should be su-

pervised to ensure that they do not play with the appliance.

• Check if the voltage indicated on the rating plate corresponds to the local power supply parameters.
  ●Before installing unwind and straighten the power cord.
  ●Warning! The packaging materials (polyethylene bags, small pieces of foamed poly-

styrene etc.) should be kept away from children while unpacking.

NOTE: Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. It is recommended to make sure the hood operates correctly before installation.

INSTALLATION

Installation

Step-by-step appliance installation is shown on Fig. 3...

Setting the air extractor mode of operation of the hood

In the extractor mode air is discharged to the outside by a special conduit. In that setting any carbon filters shall be removed. The hood should be connected to the opening discharging air to the outside by means of a rigid or flexible conduit of 120 mm diameter, which should be purchased in a shop selling installation materials.

A qualified installer should be commissioned to make the connection.

Setting the odour absorber mode of operation of the hood

In this option filtered air returns to the room through openings in the front of the hood. In this setting it is necessary to install the carbon filter. It is recommended to install the air guide (availability depending on model).

Cooker hood controls

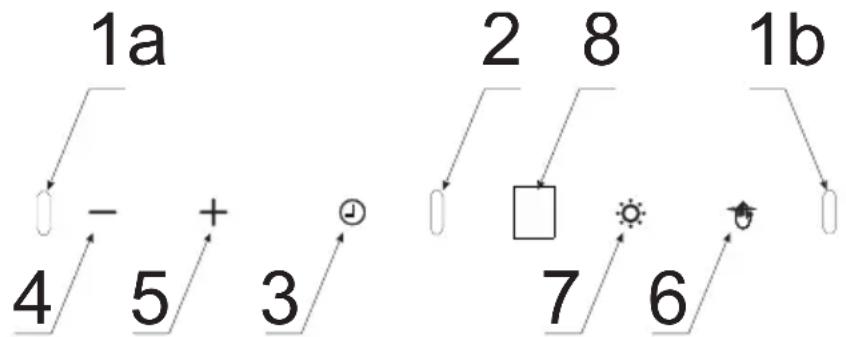

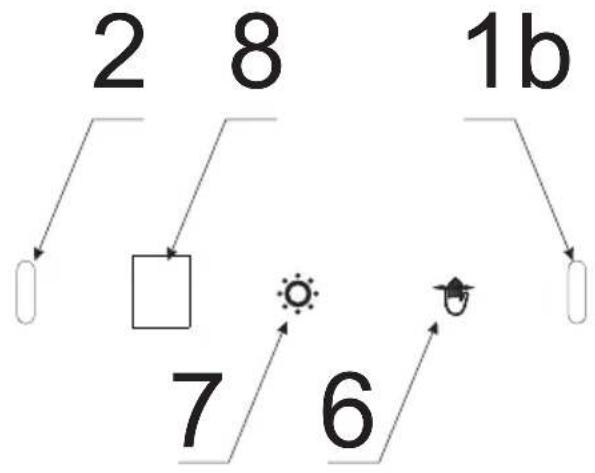

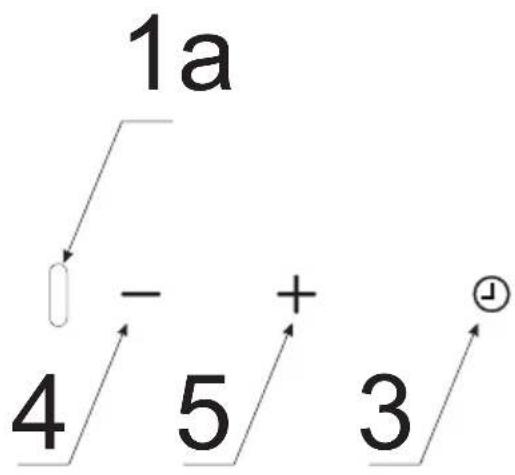

Control Panel is shown in Figure 4, for reference it is also shown below:
The appliance is fitted with gesture control sensors (1a, 1b, 2) and a display (8).

The control panel features touch controls: Control functions are described below:

3- Off-Timer sensor
4- Reduce fan speed sensor
5- Increase fan speed sensor
6- Gesture control on/off sensor
7- Light control sensor

After connecting the appliance to the power supply, all indicators will light up for a brief moment and the display will also show 8. Then all indicators and the display will go out, only the gesture control sensor is illuminated on the control panel. The hood will enter standby mode, which is indicated by a dot on the display.

When activated, touch +to start the fan.

Available fan speeds:

• Low speed (1). Use this speed when cooking a little food with hardly any fumes.
• Medium speeds (2 - 3). Use this speed when cooking multiple dishes at the same time with moderate amount of fumes.
• Turbo ( )— use this speed when frying or grilling with large amount of fumes.

Use the + and sensors to increase or reduce fan speed.

Note! Turbo mode is only active for 5 minutes, then fan speed is reduced automatically to one level down.

To turn off the fan, touch — repeatedly until fan speed is reduced to zero ☐

Touch ⚙to turn on / off the lighting.

Adjust lighting brightness

When you connect the appliance to the power supply, it is in the initial state. You can then adjust the lighting brightness. To do this touch and the lighting will turn on. Then touch and hold the same sensor for a few seconds and lighting brightness will change. Hold the sensor for a few seconds more and the lighting brightness will change again. The lighting has several levels of brightness.

Adjust lighting colour

When in standby, touch and hold—and 2 seconds. The blinking “L” (lighting) will appear on the display. Now use the + and - to set the desired colour of light. To accept the desired colour, simply wait 3 seconds. The colour range is from 3000^ K (warm) to 7000^ K (cool).

Off-Timer

Use Off-Timer to turn off the hood after a specified time. Use Off-Timer to filter the fumes out of the air after cooking. Touch and hold ⏻ for 3 seconds to activate the Off-Timer at any time. The appliance will automatically turn off after approximately 15 minutes.

Gesture control

When you plug in your appliance, gesture control is active and indicator is on. Touch to turn off the gesture control. Touch again to reactivate gesture control.

You can use gestures to control the fan speed and lighting. When gesture control is active, you can also control the appliance using the touch sensors.

Gesture control works correctly when you move your open hand about 5–10 cm from the surface of the control panel.

Note: To adjust the fan speed you need to move your hand across the sensors as shown on Figure 4, items 1a and 1b. The area over which to move your hand is marked on the figures presented below in this manual.

If activating a certain function (such as turbo speed) requires multiple hand gestures, reposition your hand for another gesture away from the control panel to avoid triggering the motion sensors). Hand movements must not be too fast. Preferably, a single gesture should take about 1 second.

To activate the appliance, move your hand across the sensors from left to right. The display will show ☐

Illustration of two hands with a red curved arrow indicating rotation or motion (no text or symbols)

Illustration of two hands with a red curved arrow indicating rotation or movement (no text or symbols)

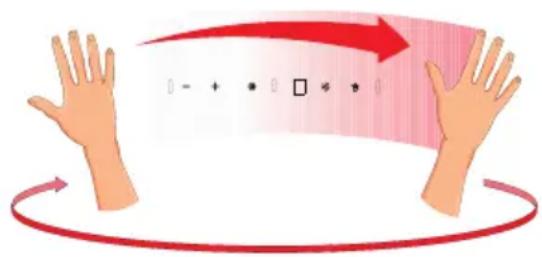

To turn on the fan or increase fan speed, move your hand from left to right several times in standby mode. The display will show the current fan speed after each hand gesture.

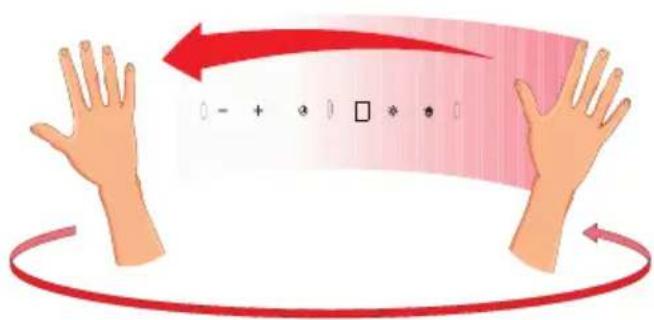

To turn off the fan or reduce fan speed, move your hand from right to left several times in standby mode until the display shows ☐ Move your hand one more time and the appliance will turn off (gesture control will still be active)

To turn the lighting on or off, hover your hand about 10 cm above sensor 2.

Maintenance

Regular maintenance and cleaning of the device will ensure faultless operation, and help extend the life of the unit. Attention should be paid to replacing grease and carbon filters according to instructions.

Aluminium grease filter

Cleaning

For normal hood operation, aluminium grease filter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap.

To replace:

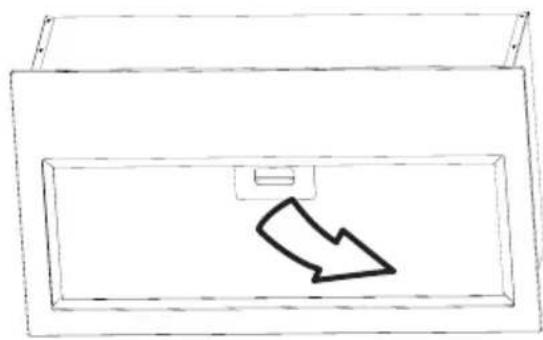

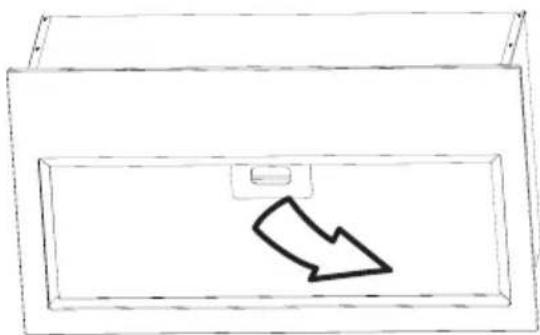

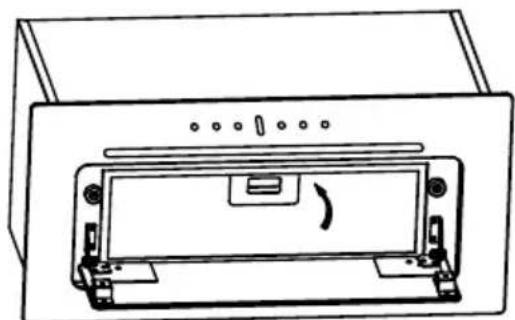

Dismantling of aluminium grease filter is shown on Figure 5.

Acrylic filter is used in some models. This filter should be replaced at least once every two months or more frequently if the appliance is used intensively.

Charcoal filter (only the recirculation version)

Operation - Carbon filters can be used only when the hood is not connected to any ventilation duct. Filters with active carbon can absorb odours until they are saturated. They cannot be washed or regenerated and should be replaced at least every 2 months or more frequently in case of very intensive use.

Replace:

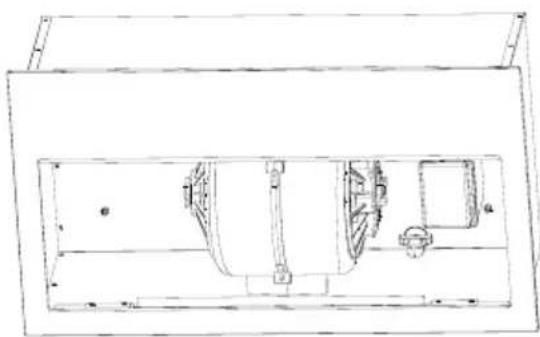

Dismantling of charcoal filter is shown on Figure 6.

Cleaning

Normal hood cleaning:

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.

It is recommend to use a damp cloth and a neutral detergent.

Aluminium filters may be washed in the dishwasher. The colour of aluminium filters may change after several washings. This is normal and it is not necessary to renew the filters.

RECYCLING OF THE PACKAGING

Simple line drawing of a three chasing recycling symbol (no text or labels)

Our packaging is made of environmentally friendly materials, which can be reused:

● The external packaging is made of cardboard/foil
● The FCKW free shape of foamed polystyrene (PS)
● Polyethylene (PE) foils and bags

ELIMINATION / DISPOSAL OF THE EU-IPMENT

If the appliance is no longer in use, cut the connecting cable off the used equipment before scrapping. We also recommend that the appliance is locked or render it useless so that the appliance presents no danger to children while being stored for disposal. This appliance is marked with a symbol of the crossed out waste container in conformance with the European Directive 2002/96/EC. Such

marking informs that the equipment may not be kept together with other waste coming from the household after the period of its use. The user is obliged to dispose of the appliance at the waste collection point authorised by the local authority. The local waste collection points, shops and communal units form an appropriate system enabling the disposal of the equipment.

Handling the used electrical and electronic equipment and any hazardous substances contained therein in a correct manner is vital to avoid damage the local natural environment. Therefore care and responsibility should always be taken in the disposal of these products

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility (EMC) Directive 2014/30/EC
• ErP Directive 2009/125/EC
• Directive RoHS 2011/65/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.
