Product Type	Range hood
Brand	Thermex
Model	Mini Preston II
Power Supply	230 V ±10% ~ 50 Hz
Motor Type	0-10 V DC motor, compatible with external motor

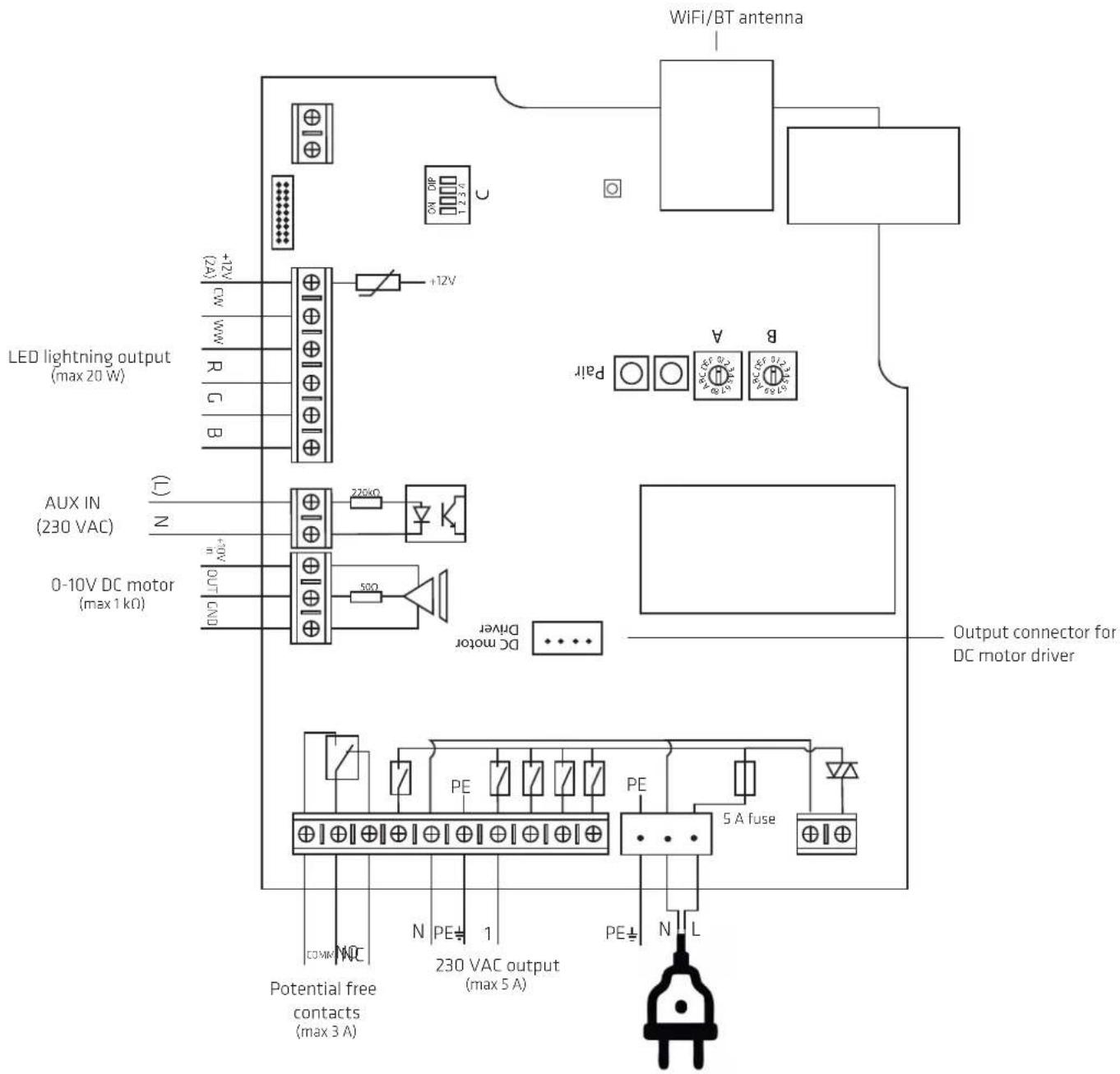

LED Lighting Output	Max 20 W
Auxiliary Input	230 VAC AUX IN
Control Interface	Potential-free contacts (max 3 A), 230 VAC output (max 5 A)
Exhaust Outlet	Reversible (top or rear)
Venting Options	Open air exhaust or recirculation
Minimum Distance from Gas Stove	65 cm (EN 60335-2-31)
Recommended Distance from Cooker	50-70 cm
Grease Filter Cleaning	Every 1-3 weeks depending on oil type; dishwasher safe
Recirculation Filter Replacement	Every 2-4 times per year
Installation	Wall-mounted with bracket; requires skilled electrician
Warranty	Valid with proof of purchase; contact service department

Frequently Asked Questions - Mini Preston II Thermex

What is the recommended distance between the cooker and the range hood?

Thermex recommends 50-70 cm for all cabinet, island, and wall-mounted range hoods. Always check the cooker manual for its minimum distance; if greater, follow that.

Can the exhaust outlet be reversed?

Yes, the exhaust outlet is reversible. Follow the steps in the 'Reversible Exhaust Outlet' section of the manual to change from upward to rear-facing.

How often should I clean the grease filters?

Clean frequency depends on fat used: frying margarine every 3 weeks, liquid margarine every 2 weeks, oil once per week, deep fat frying 2-3 times per week. Filters can be washed in warm soapy water or dishwasher.

Can the range hood be used with an external motor?

Yes, for models with external motor, ensure the motor is compatible. Do not use common zero for installation. Warranty may be void if using non-Thermex motor.

Why is the hood not working after installation?

First, disconnect power for 5 minutes and reconnect. If still not working, disconnect for one hour. If problem persists, check troubleshooting chart and contact service with error description, model, and serial number.

How do I change the recirculation filters?

Recirculation filters cannot be washed; they must be replaced when needed. Thermex recommends replacing them 2-4 times per year. Follow the filter replacement instructions in the manual.

What should I do if the hood makes excessive noise?

Ensure the duct is fully extended and not kinked. Use sound-insulated duct and muffler if needed. Check that the motor and fan are properly installed and balanced.

Is it necessary to earth the range hood?

Yes, if the plug has an earth connection, the hood MUST be earthed. Follow national electrical regulations and have a skilled electrician perform the connection.

Can I use a flexible hose for the duct?

Yes, but ensure it is fully extended to minimize air resistance. Thermex recommends using a muffler with flexible hose to reduce noise. Use original dimension duct for best performance.

What information do I need for warranty service?

Have ready: error description, model name, type and serial number (from chassis plate), and proof of purchase (sales receipt). Contact Thermex service department.

USER MANUAL Mini Preston II Thermex

Three symbolic icons: a person reading, a book with gears and a box, and a rectangular block with double-headed arrows indicating measurement or dimension (no text or symbols present)

THERMEX SCANDINAVIA A/S

www.thermex.dk

THERMEX SCANDINAVIA AS

www.thermex.no

THERMEX SCANDINAVIA AB

www.thermex.se

THERMEX SCANDINAVIA S.L.U.

www.thermex.es

THERMEX SCANDINAVIA A/S

www.thermex.fi

Simple line drawing of an open box with a curved arrow pointing upward (no text or symbols)

Simple line drawing of an open book with gears and a block, no text or symbols present.

× 1

Simple line drawing of a block on a platform with two wavy lines below (no text or symbols)

×1×1

x 4

x 4

Circular diagram with icons including power sources, fan, and sun symbols (no text or labels)

x 1

Isometric line drawing of a rectangular electronic component with a circular end and ventilation slots (no text or symbols)

x 1

x 2

INDHOLD

Dansk	6
Norsk	16
Svenska	26
Suomi	36
Español	46
English	56

6 THERMEX Mini Preston II M 540232141222122020

INDHOLD

Generel adversel 7

Montering 8

Elinstallation 12

Eldiagram 13

Simple line drawing of a room with a wall, a circular object, and a shaded floor (no text or symbols)

Diagram of a laptop with an open screen and a blue arrow indicating motion (no text or symbols)

Diagram of a laptop with a screen and a blue arrow pointing to its side panel, no text or symbols present.

Diagram showing a cylindrical object being placed on a base with an inset magnified view of its cross-section (no text or symbols)

Technical diagram of a mechanical assembly with layered components and a scale bar (no text or symbols)

Diagram of a mechanical or architectural component with a blue upward arrow and shaded cross-section (no text or symbols)

Technical line drawing of a mechanical assembly with a 3D panel and an inset showing a cross-sectional view of a component (no text or symbols present)

Pure technical diagram showing a mechanical assembly with no text, numbers, or symbols

Diagram of a mechanical or architectural component with a blue upward arrow and shaded triangular section (no text or symbols)

Technical diagram showing a 3D mechanical assembly with a magnified inset of a cube detail (no text or symbols)

Diagram of a screwdriver placed on a circular component with a wire, showing measurement points (no text or symbols)

Technical line drawing of a cabinet with fan and ventilation unit, plus an inset close-up of the internal components (no text or symbols)

Diagram of a mechanical device with internal components and a magnified inset showing a textured component (no text or symbols)

Technical line drawing of a 3D box with ventilation slots and a side-view inset showing airflow direction (no text or symbols)

Diagram showing a screwdriver inserted into a cylindrical component with a wire, no text or symbols present

ELDIAGRAM

RENG∅RING OG VEDLIGEHOLD

SERVICE

Simple line drawing of a room with a wall, a hanging circular object, and a small diagram showing two circles with dashed outlines (no text or symbols)

Diagram of a laptop with an open screen and a blue arrow indicating motion (no text or symbols)

Diagram of a laptop with an open screen and a blue arrow pointing to the screen area (no text or symbols)

Diagram showing a cylindrical object being inserted into a base, with an inset magnified view of the component (no text or symbols)

Technical diagram of a mechanical assembly with grid background and labeled components (no readable text or symbols)

Skru braketten fast til veggen.

4

Diagram of a mechanical or architectural component with a blue upward arrow and shaded base, no text or symbols present.

5

Technical diagram of a 3D mechanical assembly with a magnified inset showing a cube and pin (no text or symbols)

Sett kanalen på viften. Skyv kanalens overdel oppover, og fest den i braketten med de to selvborende skruene.

Pure technical diagram showing a mechanical assembly with no text, numbers, or symbols

Skru braketten og dekkplaten fast til veggen.

Diagram of a mechanical or architectural component with a blue upward arrow and shaded cross-section (no text or symbols)

5

Technical illustration of a 3D mechanical part with an inset showing a cross-section view (no text or symbols)

Sett kanalen på viften.

Diagram of a screwdriver with a magnified view showing a circular component and cable, no text or symbols present.

Løsne strekkavlasteren fra ledningen.

4

Technical line drawing of a front-mounted air conditioner unit with side and top views, showing internal components (no text or symbols)

Technical diagram of a mechanical assembly with internal components and a magnified inset showing a textured component (no text or symbols)

6

Snu motorens støpsel.

7

Technical line drawing of a cabinet with ventilation grilles and a side-view inset showing internal fan structure (no text or symbols)

ELDIAGRAM

VEDLIKEHOLD OG RENGJ∅RING

SERVICE

Diagram of a laptop with an open screen and a blue arrow indicating a component, no text or symbols present

Diagram showing a cylindrical object being placed on a base with an inset magnified view of its internal structure (no text or symbols)

Architectural diagram showing a crane lifting a beam, with no visible text or symbols

Diagram of a 3D box with an upward arrow and shaded panel, no text or symbols present

Technical diagram showing a 3D mechanical assembly with a magnified inset of a cube containing two bolts (no text or symbols present)

Pure technical diagram showing a mechanical assembly with no text, numbers, or symbols

Diagram of a mechanical or architectural component with a blue upward arrow and shaded cross-section (no text or symbols)

Technical illustration of a 3D mechanical assembly with a magnified inset showing a cube and a component labeled 'x2' (no text or symbols present)

Technical line drawing of a microwave oven with fan and vent, plus an inset showing internal components (no text or symbols)

Technical diagram of a mechanical device with internal components and a close-up inset showing a textured component (no text or symbols)

Technical line drawing of a 3D printer or enclosure with a side-view inset showing its front view (no text or symbols present)

ELDIAGRAM

UNDERHÅLL OCH RENGÖRING

BYTE AV RECIRKULATIONSFILTER

SERVICE

Simple line drawing of a room with a wall, a circular object, and a shaded floor (no text or symbols)

Diagram of a laptop with an open screen and a blue arrow indicating motion (no text or symbols)

Diagram of a laptop with an open screen and a blue arrow pointing to the screen area (no text or symbols)

Diagram showing a cylindrical object being inserted into a base, with an inset magnified view of the component (no text or symbols)

Architectural diagram showing a crane lifting a beam down a structure (no text or symbols)

Diagram of a 3D box with an upward arrow and shaded panel, no text or symbols present

Technical diagram of a 3D mechanical assembly with an inset showing a cross-sectional view of a rectangular component (no text or symbols present)

Pure technical diagram showing a mechanical assembly with no text, numbers, or symbols

Diagram of a mechanical or architectural component with a blue upward arrow and shaded cross-section (no text or symbols)

Technical diagram showing a 3D mechanical assembly with a magnified inset of a cube detail (no text or symbols)

Technical diagram showing a circular component mounted on a base plate with a screwdriver icon above (no text or symbols)

Diagram showing a screwdriver inserted into a circular component on a base plate, with a wire and cable being inserted (no text or symbols present)

Technical line drawing of a cabinet with fan and vent, plus an inset close-up of the internal components (no text or symbols)

Technical diagram of a mechanical device with internal components and a magnified inset showing internal structure (no text or symbols)

Technical line drawing of a 3D box with side panels and a side-view inset showing a circular fan (no text or symbols)

KYTKENTAKAAVIO

HUOLTO JA PUHDISTUS

Simple line drawing of a room with a wall, patterned walls, and a circular inset showing a circular object (no text or symbols)

Diagram of a laptop with an open screen and a blue arrow indicating motion (no text or symbols)

Diagram of a laptop with an open screen and a blue arrow pointing to the screen (no text or symbols present)

Diagram showing a cylindrical object being inserted into a base, with an inset magnified view of the component (no text or symbols)

Architectural diagram showing a crane lifting a beam, with no visible text or symbols

Diagram of a 3D box with an upward arrow and shaded panel, no text or symbols present

Montar la chimenea encima de la campana.

5

Technical diagram showing a 3D mechanical assembly with a magnified inset of a cube containing two bolts (no text or symbols present)

Pure technical diagram showing a mechanical assembly with a blue arrow indicating direction (no text or symbols)

Diagram of a mechanical or architectural component with a blue upward arrow and shaded internal structure (no text or symbols)

Technical illustration of a 3D mechanical assembly with a magnified inset showing a cube and a component labeled 'x2' (no text or symbols present)

SALIDA GIRABLE

Technical line drawing of a cabinet with fan and vent, plus an inset close-up of the interior (no text or symbols)

Technical diagram of a mechanical device with internal components and a close-up inset showing a textured section (no text or symbols)

Technical line drawing of a 3D printer or enclosure with a side view showing its front panel (no text or symbols present)

MANTENIMIENTO Y LIMPIEZA

SERVICIO

Electrical Installation 62

Board Diagram 63

Maintenance and cleaning 64

Service 65

WARNINGS

• The range hood is designed and manufactured according to DS/EN 60335-1.
• This range hood is only for use in private house holdings, if used for other purposes the warranty will be repealed.
• Installation must be performed by a skilled electrician in accordance with the specifications given by Thermex Scandinavia A/S (Thermex) and legislation in force.
• Thermex disclaims all responsibility in regards to damages caused by wrong installation, mounting or use.

BEFORE MOUNTING/COMMISSIONING

• Inspect the range hood for transport damages, flaws and defects immediately after the receipt.
• Transport damages must be filed to the haulage contractor and Thermex immediately after the receipt.
• Flaws and defects must be filed to Thermex within 8 days the receipt, and not later than mounting/commissioning.

MOUNTING

• The range hood is intended for working at 230 Volt ±10%\~50 HZ in referring to EN 50160.
• Connect the hood with the attached plug. NOTE: The hood MUST have earth if the plug has an earth connection.
• For models with external motor applies that NOT to use common zero by installing the hood and engine, as this will affect the control.
• It MUST be ensured that the motor can be used with the selected range hood when using an external motor from another supplier. Otherwise the warranty no longer apply.
• Do not plug in the range hood until the mounting is complete.

• The air must not be discharged from the hood into a pipe used for extraction from devices using gas or other fuels. Such devices must have a separate vent.
  • The national legislation on air emissions must be observed.

• Always use the original dimension of the vent. By reducing the dimension of the vent, the performance will be reduced and the sound level will be increased.

• The vent to the open air, must be as short as possible in order to get the greatest possible capacity of the range hood.
• The number of bends on the vent ought to be minimised, to gain the greatest possible capacity of the range hood.
• Thermex recommends to always use sound and condensation insulated vent hose at the carrying through in unheated spaces.
• Thermex recommends that there is used for a muffler to minimize the noise level when using flexible hose.
• Using the flexible hose must always ensure that this is fully extended to minimize air resistance and thereby achieve maximum absorbency.
• Different materials takes different rawlplugs and screws. Use rawlplugs and screws intended for the material the range hood is to be mounted in.
• If the instructions for the installation of screws and fittings are not followed, it may result in electrical shock.
• The minimum distance to gas stoves from the burner's edge to the underside of the hood MUST be minimum 65 cm in accordance with EN 60335-2-31.
• Thermex recommends that the space between the lower edge of the range hood and cooker is between 50 cm and 70 cm, valid for all cabinet range hoods, islands and wall mounted range hoods.
  • Always control the stated minimum distance between cooker and range hood in the manual for the cooker. If the manual for the cooker states a greater distance than what Thermex recommends the manual for the cooker MUST be followed.
• Thermex recommends that the space between cooker and range hood does not exceed 3 meters for range hoods integrated in the ceiling

INSTALLATION

The range hood is available either with an internal motor or for installation with an external motor. The range hood can either vent exhaust out into the open air or re-circulate the air.

The hood also has a reversible exhaust outlet. If you wish to install the hood with the exhaust outlet facing towards the rear, the exhaust outlet must be reversed before installing the hood. Follow the instructions in the section "REVERSIBLE EXHAUST OUTLET" on page 50.

Follow the instructions in this guide that match the model that you have purchased and the way in which you wish to install the exhaust outlet.

INSTALLING THE HOOD

The hood is installed on the wall using the following steps:

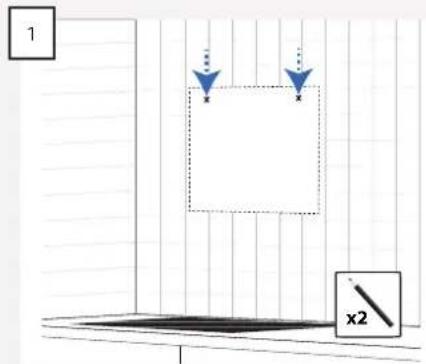

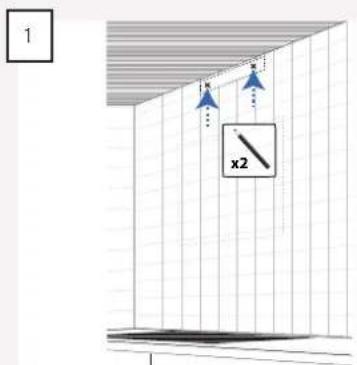

Measure out and mark the two "keyholes" on the wall.
NOTE: For a rear-facing exhaust outlet, the holes must be marked out in relation to the exhaust outlet's position on the wall.

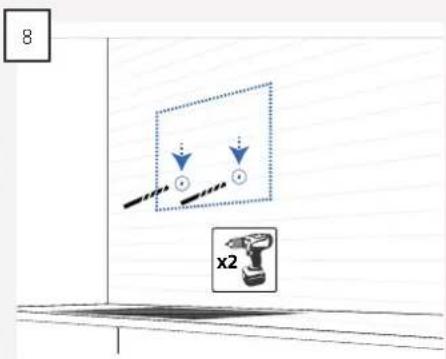

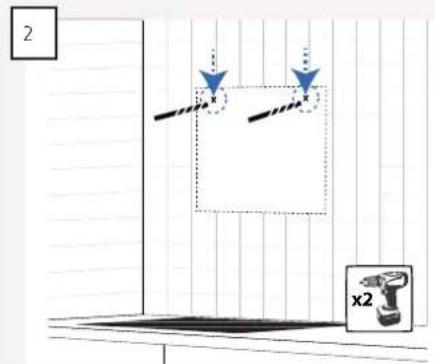

Drill the holes into the wall using a suitable drill for the type of wall.

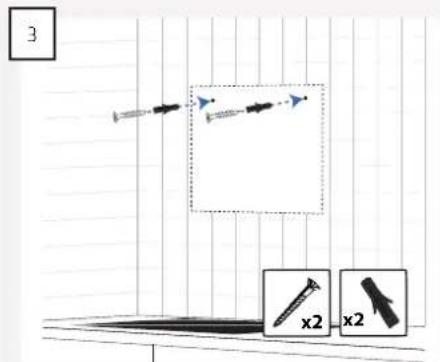

Ensure that the rawlplugs and screws are suitable for the wall material in question and insert them into the pre-drilled holes.

Simple line drawing of a room with a wall, a door, and a circular object (no text or symbols)

NOTE: The screws must not be screwed in further than the hood can be installed.

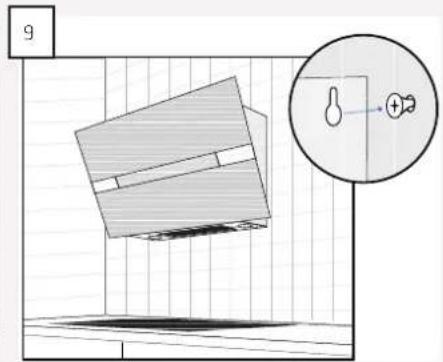

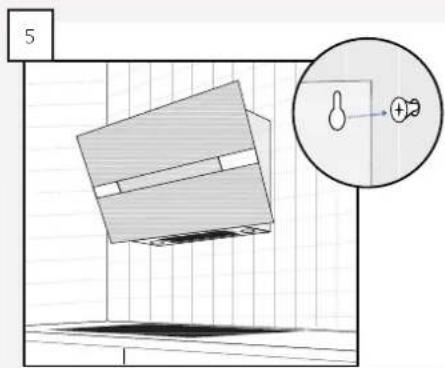

Hang the hood on the screws.

Diagram of a laptop with an open screen and a blue arrow indicating motion (no text or symbols)

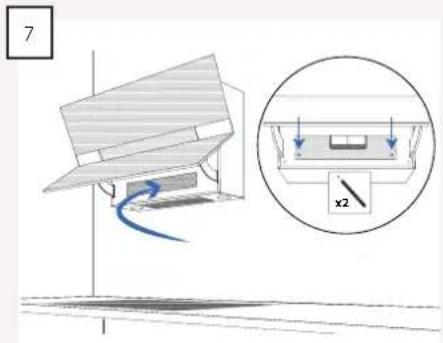

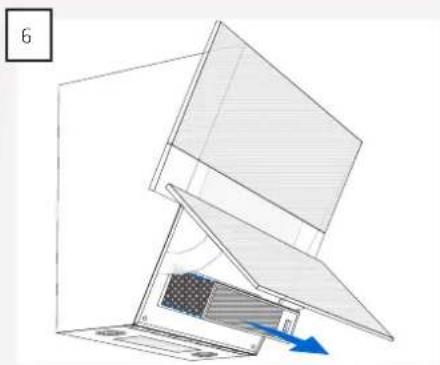

Open the glass door and remove the filter.

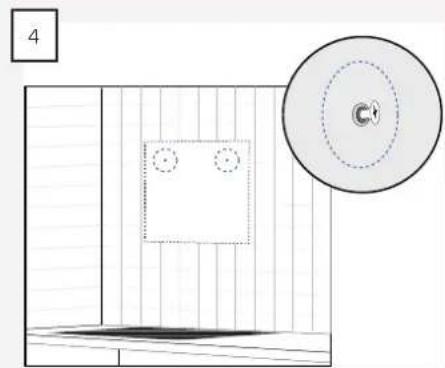

Mark the position of the two lock-holes on the wall and then remove the hood from the wall once again.

Pre-drill the holes and insert the rawlplugs.

Re-hang the hood.
NOTE: For a rear-facing exhaust outlet, the exhaust outlet should be installed on the hood in this step.

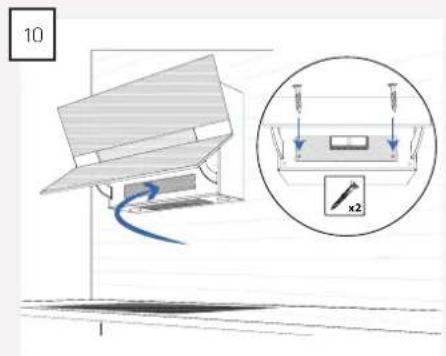

Screw the screws into the two lock-holes.

Diagram of a laptop with an open screen and a blue arrow pointing to the screen area (no text or symbols)

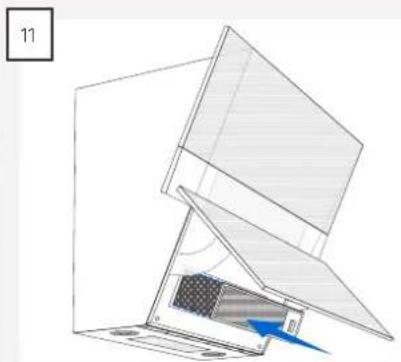

Reinstal the filter in the hood and close the glass door.

Diagram showing a cylindrical object being inserted into a base, with an inset magnified view of the component (no text or symbols)

Install the exhaust outlet on the hood.
NOTE: This only applies when venting into open air and with the exhaust outlet facing upwards.

INSTALLING THE DUCT FOR OPEN-AIR VENTING

If the hood is going to be installed with exhaust venting into the open air, the duct is installed as follows:

Measure the placement of the bracket and mark the position of the holes on the wall. NOTE: The bracket must be positioned so that it matches the holes in the duct.

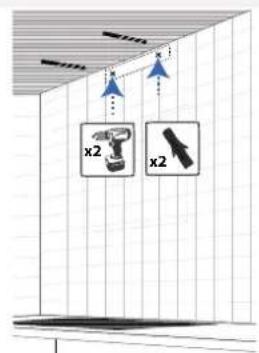

Pre-drill the holes and insert the rawlplugs.

Architectural diagram of a ceiling-mounted cabinet or lift system with grid background (no text or symbols)

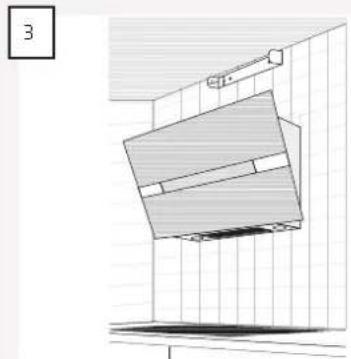

Screw the bracket onto the wall.

4

Diagram of a 3D box with an upward arrow and a shaded panel, no text or symbols present

Place the duct on the hood.

5

Technical diagram of a 3D mechanical assembly with an inset showing a cross-sectional view of a rectangular component (no text or symbols present)

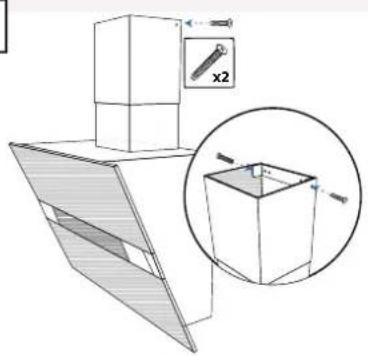

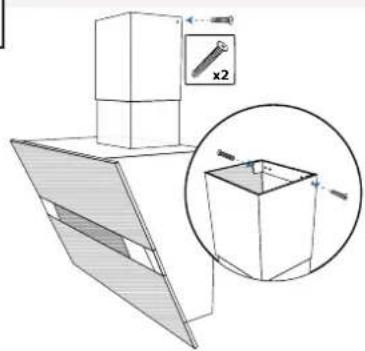

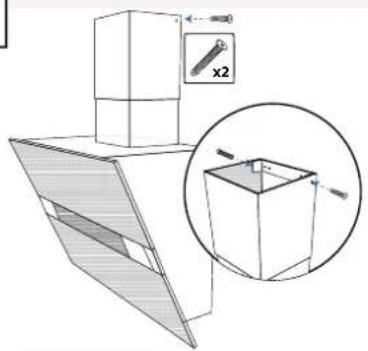

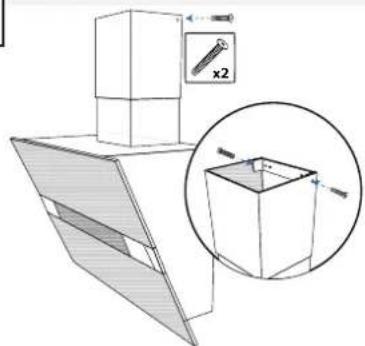

Push the topmost section of the duct upwards and attach it to the bracket with the two self-tapping screws.

NOTE: If the hood is installed with a rear-facing exhaust outlet, installation of the duct here is optional.

INSTALLING THE DUCT WHEN THE HOOD IS TO BE USED FOR RECIRCULATION

If the hood is going to be used for recirculation, the cover panel must be installed up to the ceiling to cover the duct.

The duct is therefore installed as follows:

1

Measure the placement of the bracket and mark the position of the holes on the wall. NOTE: The bracket must be positioned so that it matches the holes in the duct.

2

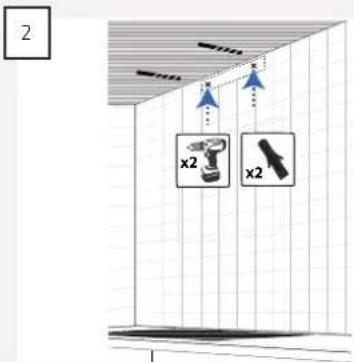

Pre-drill the holes and insert the rawlplugs.

3

Pure technical diagram showing a mechanical assembly with no text, numbers, or symbols

Screw the bracket and cover panel onto the wall.

4

Diagram of a mechanical or architectural component with an upward arrow and shaded cross-section (no text or symbols)

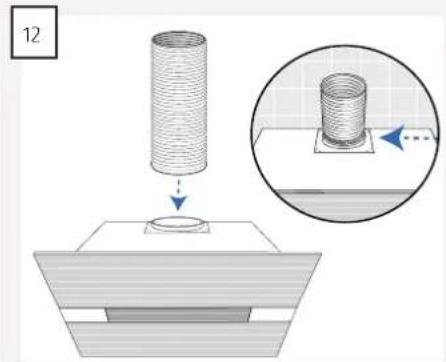

Place the duct on the hood. Push the topmost section of the duct upwards

5

Technical line drawing of a 3D mechanical assembly with an inset showing a cross-sectional view of a cube (no text or symbols present)

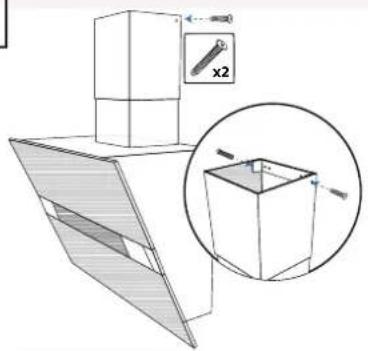

and attach it to the bracket with the two self-tapping screws.

REVERSIBLE EXHAUST OUTLET

The exhaust outlet on the range hood can be reversed so that the exhaust outlet faces towards the rear. If a rear-facing exhaust is selected, installation of the duct on the hood is optional.

The exhaust outlet is turned around using the following steps:

1

Screw the bracket of the planel on the hood.
2

Unscrew the screws holding the panel onto the hood.
NOTE: Make sure not to unscrew the screws holding the motor to the panel.
3

Diagram of a screwdriver with a wire and cable inserted into a circular component on a base plate (no text or symbols)

Remove the strain relief on the electrical cable.

4

Technical line drawing of a front-loading air conditioner unit with side and top views (no text or symbols)

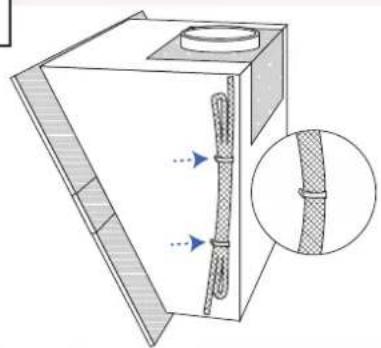

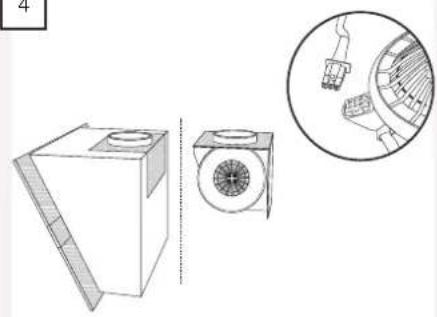

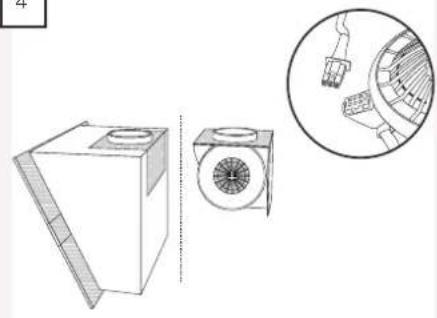

Lift out the motor and remove its plug. Cut the two cable ties holding the motor wire to the hood.
5

Technical diagram of a mechanical housing with internal components and a close-up inset showing internal structure (no text or symbols)

6

Reverse the plug on the motor.

7

Technical line drawing of a cabinet with ventilation grilles and a side-view inset showing fan structure (no text or symbols)

Place the motor on the hood with the exhaust outlet facing backwards.
8

Screw the panel with the motor onto the hood.
9

Place the strain relief back on the cable.

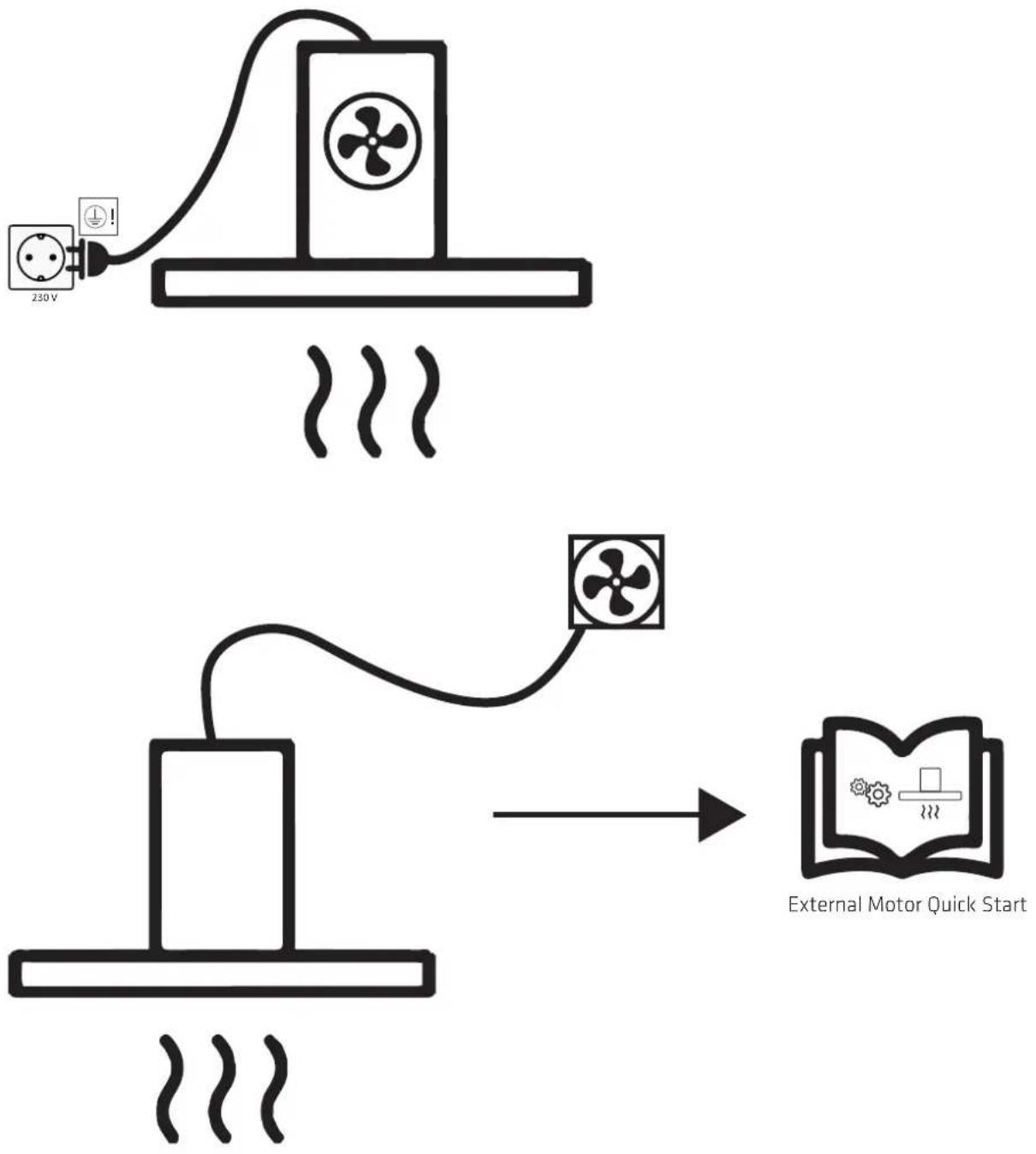

ELECTICAL INSTALLATION

BOARD DIAGRAM

MAINTENANCE AND CLEANING

• Always disconnect power before cleaning.
- The hood must be cleaned regularly to ensure optimal operation and long service life.
- Grease and dust debris are collected in the filter and may risk igniting with insufficient cleaning.
- The hood should be cleaned inside and out frequently to avoid grease stains on walls or other surfaces.

DAILY CLEANING

• For cupboard-integrated, free-hanging and wall-mounted hoods, Thermex recommends that the grease filter be wiped with a damp cloth after each cooking session. It requires very little effort every day to keep your cooker hood clean and effective.
  • Steel surfaces are cleaned with a damp cloth with detergent and treated with 3M Polish.
  • Lacquered surfaces should be cleaned with a damp cloth with detergent/washing-up liquid. Never use abrasives.

CLEANING THE GREASE FILTERS

Grease filters should be cleaned as needed. Thermex recommends as a minimum that the filter is cleaned at the following intervals, depending on the fat used for frying:

• Frying margarine - filter cleaned every 3 weeks
• Liquid margarine - filter cleaned every 2 weeks
• Oil - filter cleaned once per week
- Deep fat frying - filter cleaned 2-3 times per week

The grease filters are cleaned in the following way:

• Remove the grease filter behind the glass plate and the filter in the base by pulling on the filter-locking mechanism to loosen the filter from the hood.
• Place the filters in warm soapy water and clean if necessary with a soft brush.
• Rinse with warm water.
• Leave the filters to dry on a dishcloth or similar.
• Repeat the process if necessary.
• Re-attach the filters..

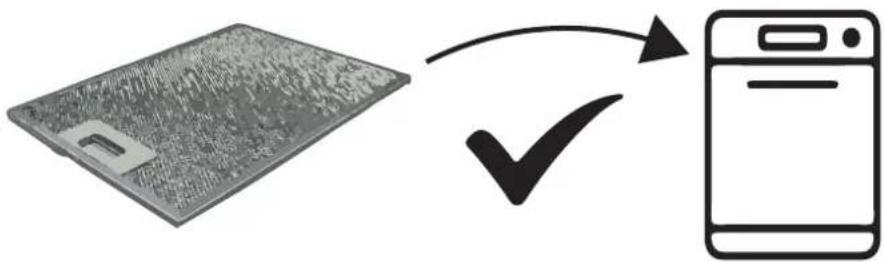

The filters can also be washed in the dishwasher, although please note that machine washing can result in discolouration of the filters. Discolouration of the filters does not affect performance.

REPLACING THE RECIRCULATION FILTERS

If recirculation filters are used, these cannot be washed, but must be replaced when needed. Thermex recommends that the recirculation filters are replaced at least 2-4 times per year.

SERVICE

Before reporting service on your Thermex range hood, it is important that you read the installation and/or user instructions carefully. It ensures that Thermex can provide you the best possible assistance.

Service department at Thermex can be contacted in preparation to:

• Technical support for installation and installation of your range hood.
• Clarification of functionalities in your hood.
  • Service Request during the warranty on your hood.

Before a service request during the warranty always try to disconnect the power to the hood for about 5 min. Then plug the power back on to see if the problem is corrected.

If the problem is not corrected, disconnect the power supply to the hood for one hour. If the hood is still not functioning properly, and the troubleshooting charts are reviewed, contact the service department.

NOTE: For inquiries within the warranty, you will be asked for proof of your purchase in the form of a sales receipt. Therefore, always store your sales receipt

Before the request for service within the warranty, it is important to have all the necessary information ready:

• Error Description
• Model
  • The type and serial number of the hood (on the chassis plate)
  • Information of purchase

MILJ∅HENSYN

EMBALLAGE

SKROTNING AF PRODUKTET

The packaging must be disposed of in accordance with local regulations on waste management.

SCRAPPING OF THE PRODUCT

The symbol _1 on the product or accompanying documentation indicates that this product may not be disposed of as household waste but must be delivered to the nearest collection center for the recycling of electrical and electronic equipment.

THERMEX sCAnDInAVIA A/s
