Type	Indoor electric grill
Model	OptiGrill Elite
Brand	OBH Nordica
Dimensions (approx.)	40 x 35 x 15 cm
Weight (approx.)	5 kg
Power rating	2000 W
Voltage	220-240 V, 50/60 Hz
Cooking programs	12 automatic programs + manual mode
Special functions	Frozen food function, Searing function
Cooking levels indicator	Yes, with color change and arrow progress
Preheating indicator	Yes, with beep
Timer	Yes, adjustable in manual mode
Auto shut-off	Yes, safety system after idle time
Plates	Non-stick, removable, dishwasher safe
Drip tray	Removable, dishwasher safe
Control panel	Touch buttons with display
Body material	Plastic
Power cord length (approx.)	1.2 m
Guarantee	2 years limited (Sweden, Norway, Denmark, Finland)
Safety features	Overheat protection, auto shut-off, safety stop if food too thick
Accessories	Drip tray, cooking plates (2), user manual
Cleaning	Plates and drip tray dishwasher safe; body wipe with damp cloth
Repairability	Authorised service centre; user-replaceable plates

Frequently Asked Questions - OptiGrill Elite OBH NORDICA

How do I change the language on the OptiGrill Elite?

Switch on the grill, press ON, then immediately press the Frozen button while the screen displays 'Hello'. This opens the language selection menu.

Can I cook frozen food directly?

Yes, activate the Frozen food function before preheating by pressing the frozen food button. This function works only in automatic mode.

How does the Searing function work?

The Searing function can be activated before preheating in automatic mode to achieve a more intense sear on the food. Press the searing button (icon with flames).

What should I do if the grill shows an error code (Err 1 to Err 13)?

For Err 1-8, unplug the grill, wait a few minutes, then plug it in again. If the problem persists, contact customer service. For Err 9-13, unplug and contact customer service immediately.

How do I clean the cooking plates?

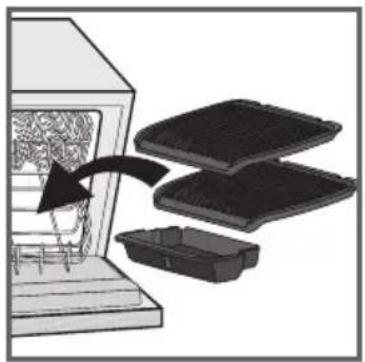

Remove the plates after cooling. They are dishwasher safe. Alternatively, wash with hot water and mild detergent using a non-abrasive sponge. Never use metal scouring pads.

What is the maximum thickness of food for automatic cooking?

Food should not exceed 4 cm thickness. Thicker food may cause the safety system to stop the appliance or require manual mode.

Can I cook chicken breast from frozen?

For the UK, do not cook chicken breast from frozen; thaw completely first. In other regions, the frozen food function can be used, but ensure proper cooking.

How do I cook a second batch of the same food?

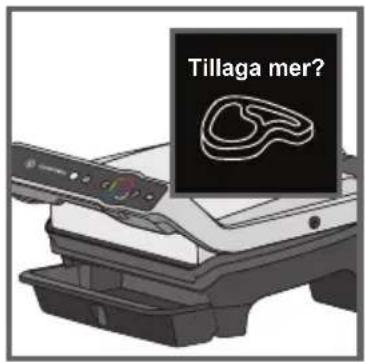

After the first batch, the screen shows 'Any refill?'. Press OK to start preheating again. Insert the same type of food and follow the cooking steps.

Why does the grill shut off during preheating?

This may happen if the grill is left open too long, or if idle after preheating. Unplug, wait, and restart. Ensure the lid is closed during preheating.

What is the manual mode for?

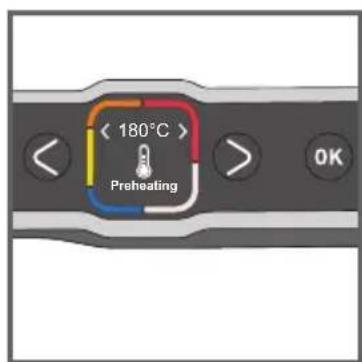

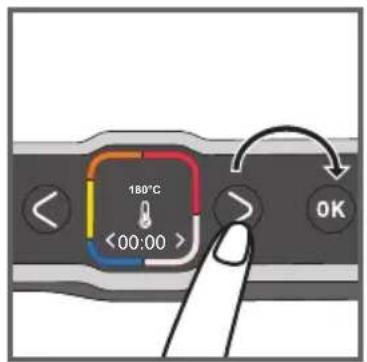

Manual mode allows you to set your own temperature (110-250°C) and cooking time. It is useful for foods not covered by automatic programs.

USER MANUAL OptiGrill Elite OBH NORDICA

DESIGNING GOOD LIFE

OptiGrill Elite

INTELLIGENT GRILL

Perfect grilling results from rare to well-done

Bruksanvisning - svenska......sida 3 - 24

E Droppbricka
F Sladd

1

2

3

4

3-4 Montera den löstagbara droppbrickan framtill på apparaten.

5

6

7

8

1415

2223

24

25-26

2728

3132

3334

35

36

3738

3940

4546

4748

5152

51-53

1

2

3

4

5

6

7

8

1415

2223

24

25-26

2728

2930

3132

3334

35

3738

3940

39 Apparatet starter forvarmning.

4546

4748

5152

51-53

57

Visiting address: Deltapark 37, 3. sal

Phone: [phone]

Direct: [phone]

www.obhnordica.dk

SIKKERHETSFORSKRIFTER VIKTIGE VERNETILTAK

To ekstra stekealternativer med automatisk innstilling

1

2

3

4

5

6

7

8

13-15 Funksjonen for fryst mat må aktiveres før du starter forvarming, hvis maten som skal stekes, er fryst eller dypfryst.

1415

5 Bruningsfunksjon med automatisk på

1617

21 Velg egnet stekeinnstilling etter typen mat som skal stekes.

Merknad om kjøtt:

2223

24

23 Vent 4-7 minutter.

2526

2728

2930

3132

25-26

3334

35

36

33-34

3738

3940

4546

4748

5152

51-53

5859

6061

6263

64

STEKERÅD FOR OPTIGRILL ELITE

BEGRENSET GARANTI for OBH Nordica

Garantien

1

2

3

4

5

6

7

8

1415

2223

24

2728

3132

25-26

3334

3738

3940

4546

4748

5152

51-53

5859

6061

6263

64

SAFETY INSTRUCTIONS IMPORTANT SAFEGUARDS

Use, maintenance and product installation guidelines: for your own safety, please read through all paragraphs of the instruction manual including the associated pictograms.

- This appliance is intended for indoor, domestic household use only. It is not intended to be used in the following applications, and the guarantee will not apply for:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- Before first use remove all packaging materials, stickers and accessories from the inside and the outside of the appliance.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by an adult responsible for their safety. Children should be supervised to ensure that they do not play with the appliance, and do not use as a toy.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.
  • Never leave the appliance unattended when in use.
• Accessible surface temperatures can be high
  when the appliance is operating. Never touch the hot surfaces of the appliance.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.

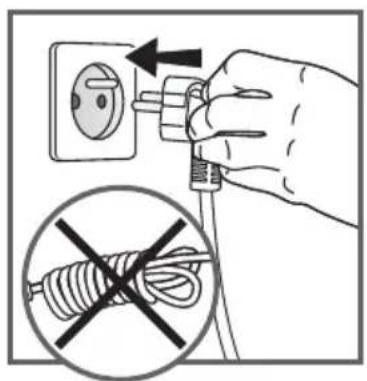

• Fully unwind the power cord before plugging in the appliance.
• If the power supply cord is damaged, it must be replaced by the manufacturer or its after sales service in order to avoid any danger.
• Do not use an extension lead. If you accept liability for doing so, only use an extension lead which is in good condition, has a plug with an earth connection and is suited to the power rating of the appliance. Take all necessary precautions to prevent anyone tripping over an extension cord.
  • Always plug the appliance into an earthed socket.
  • Make sure that the electric power supply is compatible with the power rating and voltage indicated on the bottom of the appliance.

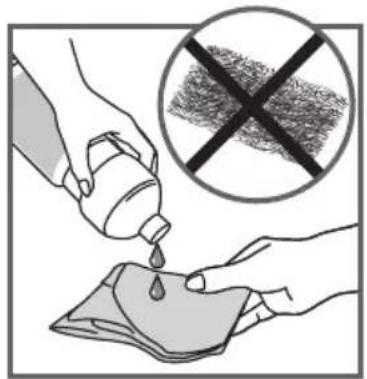

• Use a sponge, hot water and washing up liquid to clean the cooking plates.

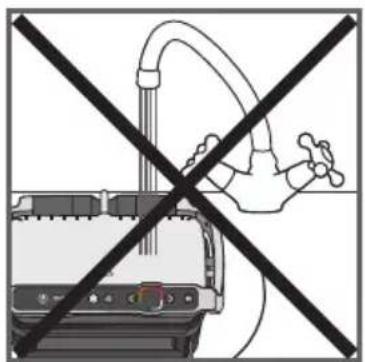

• Never immerse the appliance, its power cord or plug in water or any other liquid.

WARNING: Do not heat or pre-heat without the 2 cooking plates inside the grill.

Do

• Read the instructions carefully, common to different models depending on the accessories your appliance with supplied with. Keep the instructions within reach.

• If an accident occurs, rinse the burn immediately with cold water and call a doctor if necessary.

• Before first use, wash the plates (see paragraph 5), pour a little cooking oil onto the plates and wipe with a soft cloth or paper kitchen towel.

• Position the power cord carefully, whether an extension is used or not, so that guests can move freely around the table without tripping over it.
• Cooking fumes may be dangerous for animals which have a particularly sensitive respiratory system, such as birds. We advise bird owners to keep them away from the cooking area.
  • Always keep the appliance out of the reach of children.
• Check that both faces of the plate are clean before use.
• To prevent damage to the plates, only use them on the appliance for which they were designed (e.g., do not place in an oven, on the gas ring or electric hot-plate, etc.).
• Ensure that the plates are stable, well positioned and correctly clipped to the appliance. Only use the plates provided with the appliance or bought from an Approved Service Centre.
• Always use a wooden or plastic spatula to avoid damaging the cooking plates.
• Only use parts or accessories provided with the appliance or bought from an Approved Service Centre. Do not use them for other appliances or intention.

Do not

• Do not use the appliance outside.
• Never leave the appliance unattended when plugged in or in use.
• To prevent the appliance from overheating, do not place it in a corner or below a wall cupboard.
• Never place the appliance directly on a fragile surface (glass table, tablecloth, varnished furniture, etc.) or on a soft surface such as a tea-towel.

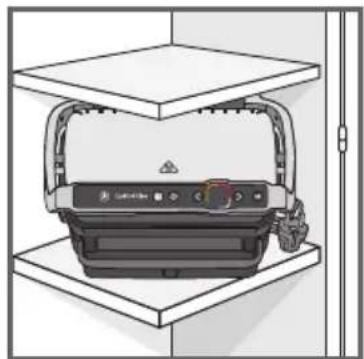

• Never place the appliance under a cupboard attached to a wall or a shelf or next to inflammable materials such as blinds, curtains or wall hangings.
• Never place the appliance on or near hot or slippery surfaces; the power cord must never be close to or in contact with hot parts of the appliance, close to a source of heat or resting on sharp edges.
• Do not place cooking utensils on the cooking surfaces of the appliance.
• Never cut food directly on the plates,

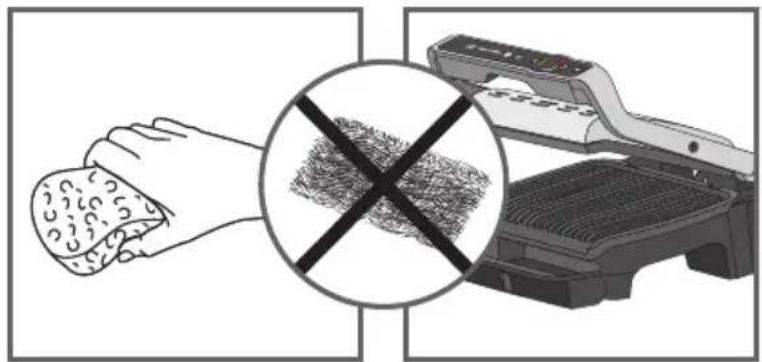

• Do not use metal scouring pads, abrasive wire wool or harsh scouring powder as this may damage the nonstick coating.
• Do not move the appliance when in use.
• Do not carry the appliance by the handle or metallic wires.
• Never run the appliance empty.
• Do not use aluminium foil or other objects between the plate and the food being cooked.
• Do not remove the grease collection tray while cooking. If the grease collection tray becomes full when cooking: let the appliance cool down before emptying.

• Do not place the hot plate on a fragile surface or under water.

• To preserve the non-stick properties of the coating, avoid excessive pre-heating with the appliance empty.

• The plates should never be handled when hot.
• Do not cook food in aluminium foil.
• To avoid spoiling your appliance, do not use flambé recipes in connection with it at any time.
• Do not place a sheet of aluminum or any other object between the plates and the heating element.
• Never heat or cook whilst the grill is open.
• Never heat up the appliance without the cooking plates.

Tips/information

• Thank you for buying this appliance, which is intended for domestic use only.
• For your safety, this appliance complies with the applicable standards and regulations - Low voltage directive - Electromagnetic compatibility - The environment - Materials in contact with food.
• On first use, there may be a slight odour and a little smoke during the first few minutes.
• Our company has an ongoing policy of research and development and may modify these products without prior notice.
• Do not consume foodstuff that comes into contact with the parts marked with logo ✗.
• If the food is too thick, the safety system will stop the appliance from working.
• The instrument panel is fragile: clean, wipe and dry with a dry, soft cloth only. Do not clean it with a wet sponge as this may damage its functions.

Environment

Environment protection first!

① Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

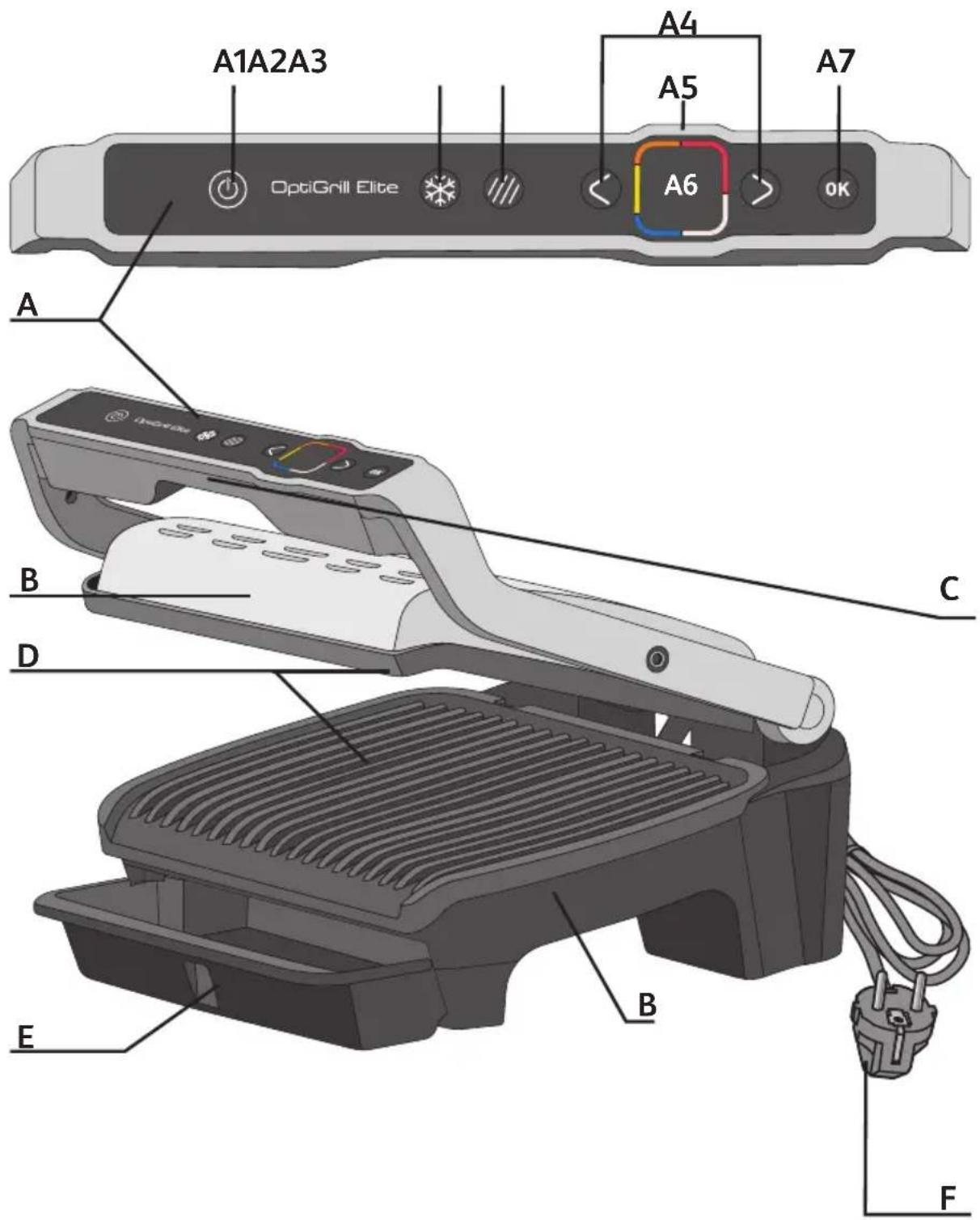

Description

A Control panel
A1 On/Off button
A2 Frozen food function
A3 Searing function

A4 Adjustment and navigation buttons
A5 Preheating indicator and cooking level
A6 Display screen
A7 OK button

B Appliance body
C Handle
D Cooking plates
E E Drip tray
F Power cord

12 automatic cooking programs

Two additional cooking options in automatic mode

Frozen food function

Searing function

Note: The Frozen food function and Searing function can be used independently or both at the same time.

Manual mode

1 Before first use

1

2

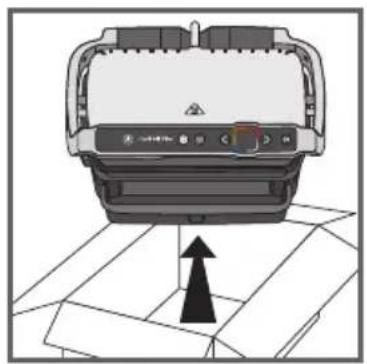

1 Remove all packaging, stickers and various accessories from both the inside and outside of the appliance.
2 Prior to first use, thoroughly clean the cooking plates using some hot water and some washing-up liquid, carefully rinse and dry.

3

4

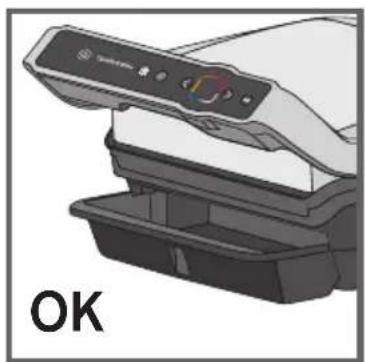

3-4 Install the removable drip tray at the front of the machine.

5

6

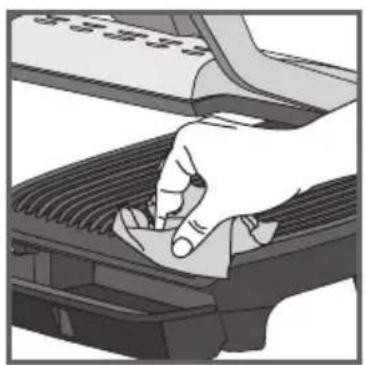

5If you wish, for best results and to improve the effectiveness of the non-stick surface, you can wipe the cooking plates with a paper towel dipped in a little cooking oil.

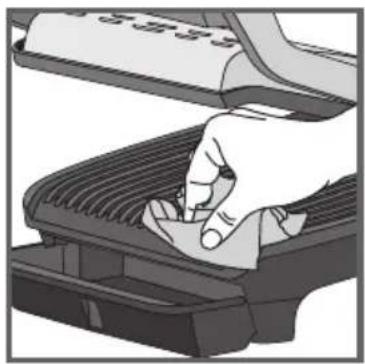

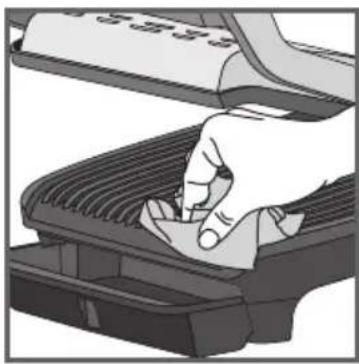

6 Remove any excess oil with a clean paper towel.

7

8

7 Make sure the top and bottom plates are correctly positioned in the appliance. Do not start preheating without the plates. Connect the appliance to the mains supply. (the cable must be completely unwound).
8 Press the On/Off button.

Caution: Ensure that there is no food between the plates.

2 Using for the first time

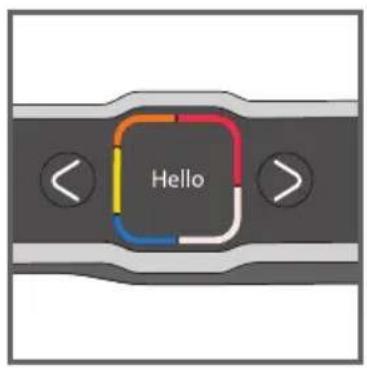

9 Select your language using the arrows then press ok.

9

3 On/Off button

1011

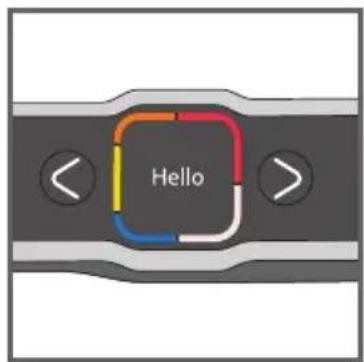

10 Switch on fig. 10.

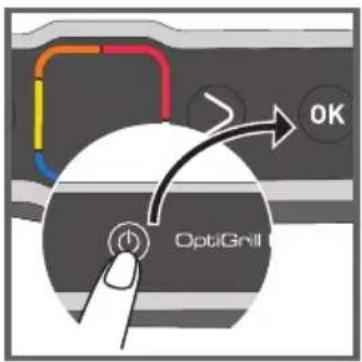

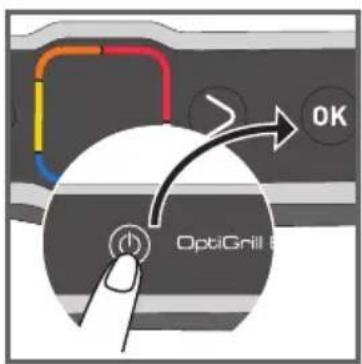

11 To switch off the grill press once on the On/Off button and once on the OK button to switch off the appliance.

4 Frozen food function in automatic mode only

1213

1415

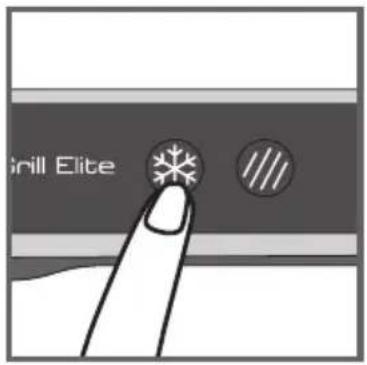

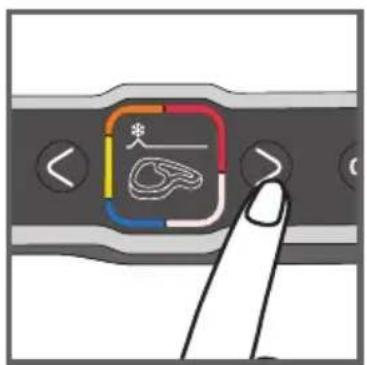

13-15 Frozen food function must be activated before starting preheating, if the food to be cooked is frozen/deep frozen.

If you forget to activate the option, turn off the appliance and repeat the steps.

This function is only available in automatic mode, not in manual mode.

5 Searing function in automatic only

1617

1819

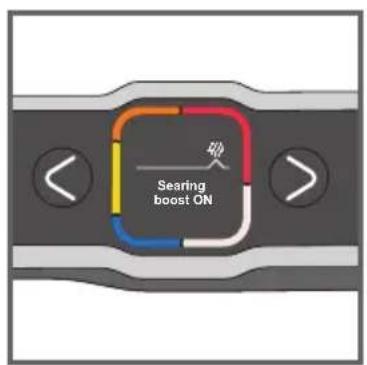

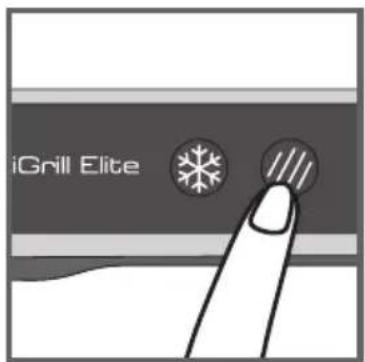

17-19 Searing function must be activated before starting preheating, if you want significant searing on the food to be cooked.

If you forget to activate the option, turn off the appliance and repeat the steps.

This function is only available in automatic mode, not in manual mode.

6 Cooking in automatic mode

2021

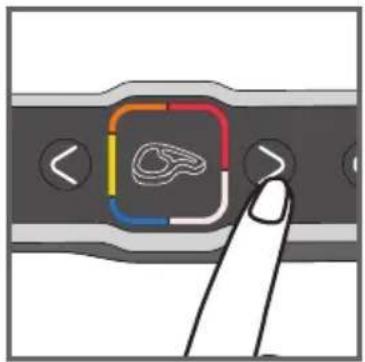

21 Select the appropriate cooking mode according to the type of food to be cooked.

Note about meat: the cooking results of the pre-defined programs may vary depending on the origin, the cut and the quality of the food to be cooked; the programs having been developed and tested with food of good quality.

Similarly, the thickness of the meat must be taken into account during cooking; you must not cook foods over 4 cm thick.

If you are unsure of which cooking mode to use, please refer to the Cooking Guide, page 110.

2223

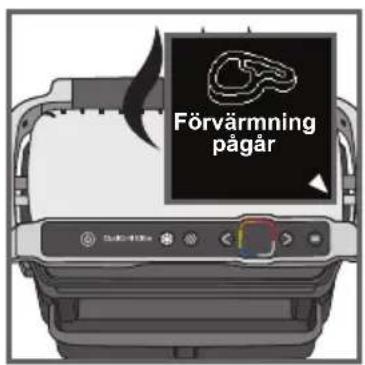

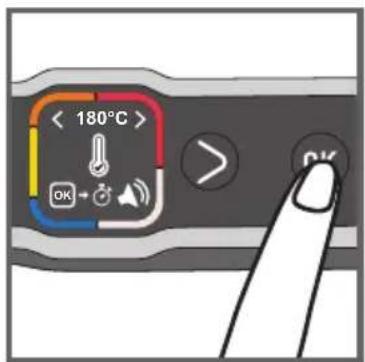

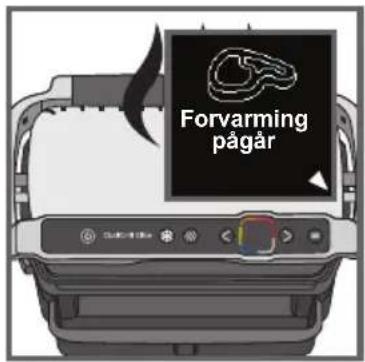

22PresstheOK button : the appliance starts to preheat.

Note: if you select the wrong program, switch off the grill and go back to step 8.

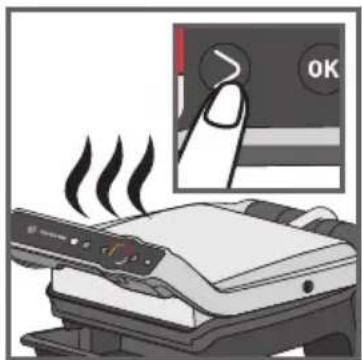

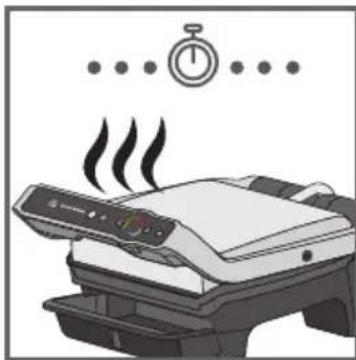

23 Wait 4 to 7 minutes.

24

24 A beep sounds to signal that preheating is finished.

Caution: if the appliance remains closed for too long after preheating is finished, the safety system will turn off the appliance.

2526

25-26

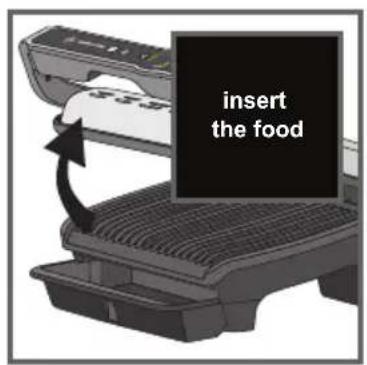

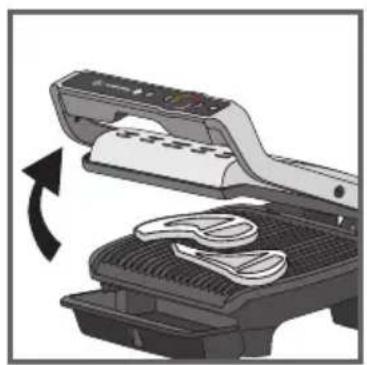

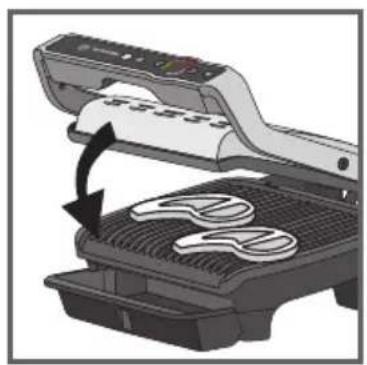

Once preheating has finished, you can insert your ingredients. Fully lift the grill lid and place the food on the grill.

Caution: if the appliance remains open for too long, the safety system will turn off the appliance.

2728

27-29

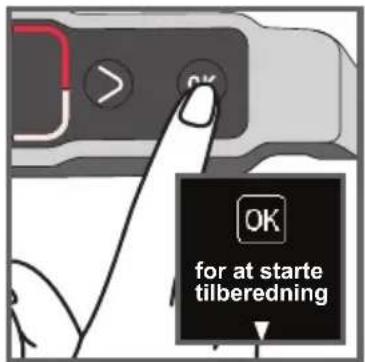

The appliance automatically calculates the cooking cycle (time and temperature) according to the quantity and thickness of the food.

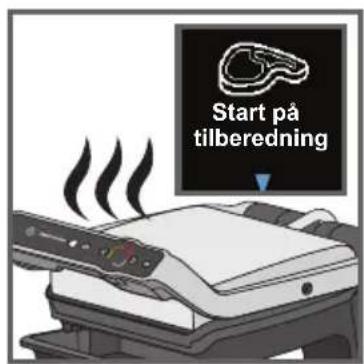

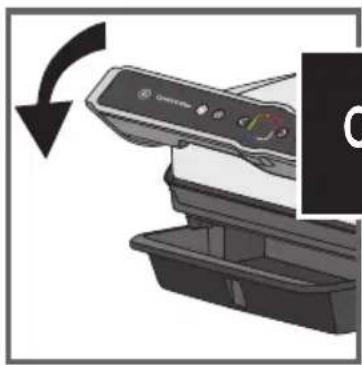

Close the appliance so that the cooking cycle can start.

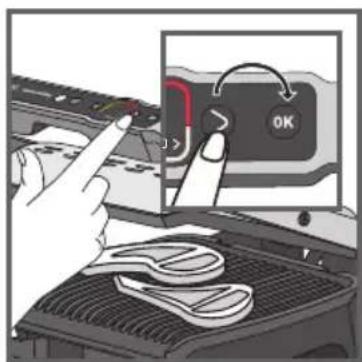

Note for very thin foods, such as bacon: The "OK" button is on. Then press "OK" again to make sure that the appliance recognises the food and that the cooking cycle starts.

2930

The arrow moves along the cooking level indicator and when it reaches a cooking level, the level is displayed and a beep sounds.

Note: the cooking levels are pre-programmed for each automatic mode.

During cooking, a beep will alert the user each time a cooking level is reached (e.g. rare/yellow).

Depending on the degree of cooking, the indicator changes colour and the cooking progress arrow moves on the screen.

Note, especially for meat, that it is normal for the cooking results to vary according to the type, quality and origin of the food.

3132

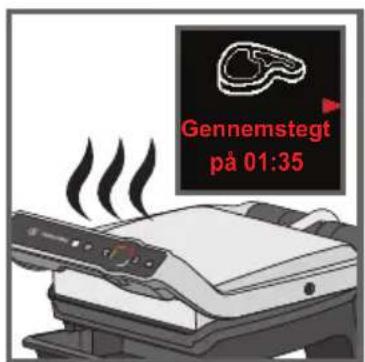

31-32 At any time, you can find out the time remaining to reach the different levels of cooking. Press the right arrow if you want to see in how long before the next cooking level is reached. Note that this does not select the cooking levels. The grill continues to cook to the last cooking level and a beep sounds at each level.

3334

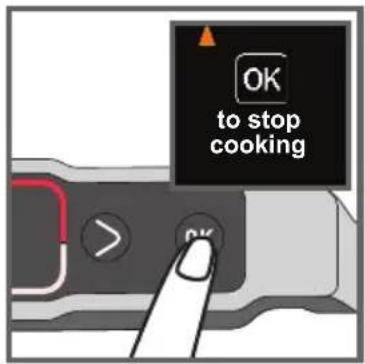

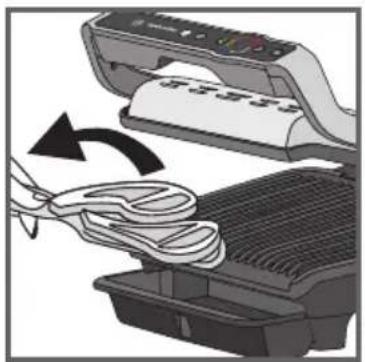

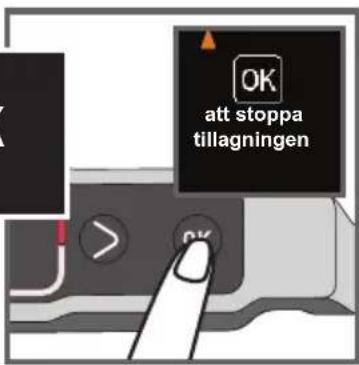

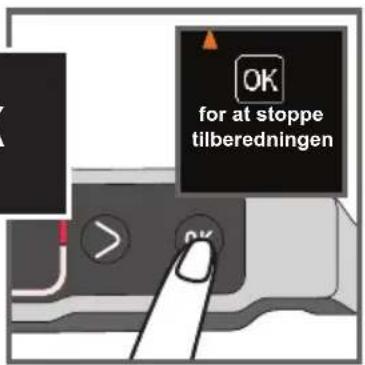

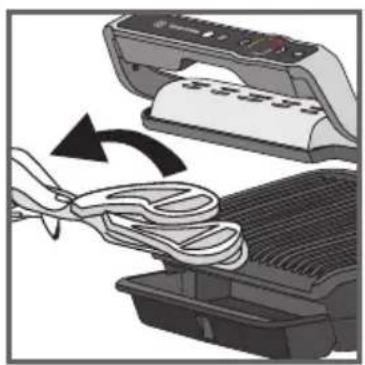

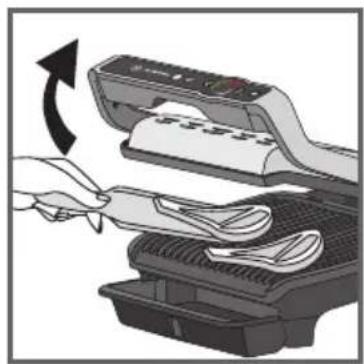

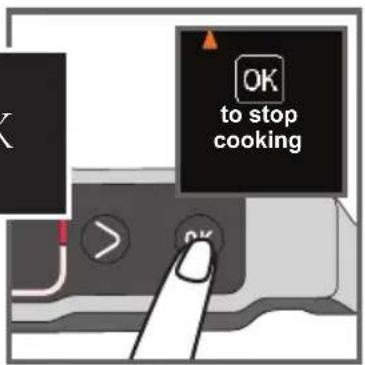

33-34 When the cooking level of your choice is reached and the beep sounds, open the appliance and remove your food.

35

36
35-36 Close the lid. The screen asks for your confirmation to stop cooking. Confirm with OK if all foods have been removed, otherwise allow it to continue cooking.
If you wish to cook more food, refer to section 7, page 103.
Note: the safety system will turn off the power automatically if no program is selected after a certain time.

7 How to cook a second batch

Second batch of the same type of food

3738

37-38 At the end of the first cook, an "any refill" screen appears. If you want to grill the same type of food, press OK.

3940

39 The appliance starts preheating. 40 Wait until preheating has finished.

4142

41 Put the food on the grill. 42 Then follow steps 26 to 36.

Second cooking with a different type of food

Once cooking your first ingredient has finished:

1. Ensure that the appliance is closed and that there is no food inside.
2. Select the appropriate cooking program or mode.
3. Press the OK button to start preheating. During preheating, the preheating indicator is displayed on the screen.
4. Once preheating has finished, a beep sounds and the preheating information is shown on the screen.
5. The appliance is ready to use once preheating has finished. Lift the grill lid and place the food inside the grill. Then follow steps 26-36.

Important:

- Preheating is essential to cooking.

Reminder: before starting preheating, ensure that the appliance is closed and that there is no food inside.

- Wait until preheating is finished before opening the grill and putting food inside.

Note: if the new preheating cycle is started immediately after the end of the previous cycle, the preheating time will be shorter.

8 Cooking in manual mode

4344

4546

4748

43 Select manual mode and press OK to confirm.

44 Select the desired temperature using the adjustment buttons. Please refer to manual cooking guide page 110.

Press OK to confirm the selected temperature.

45 Wait until preheating has finished.

46 Once preheating has finished, press OK to start the timer.

Note: the cooking time can also be set from the start of preheating.

47 Press the adjustment buttons to select the desired cooking time.

48 Insert your food and press OK to start cooking.

4950

49-50 A beep sounds to indicate when the cooking time has finished. Remove your food.

Press OK to stop cooking and remove your food.

9 Comments

5152

51-53

Depending on your personal preferences, open the grill and remove foods that have reached the desired cooking level, then close the grill to continue cooking other foods. The program will continue the cooking cycle until the last cooking level of the selected mode.

5354

54 Note: the safety system will turn off the power automatically after a certain time.

10 End of use

5556

57

55 Press the On/Off button and confirm by pressing the OK button.

56 Unplug the appliance.

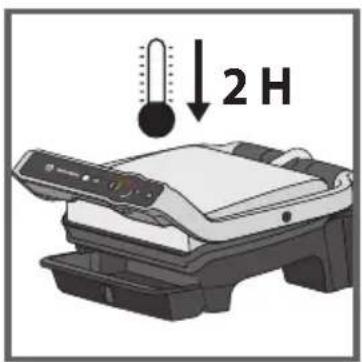

57 Let it cool for at least 2 hours.

To prevent accidental burns, allow the grill to cool completely before cleaning.

5859

6061

6263

64

58 To unlock the plates, press the release tabs on the left hand side of the appliance. Before cleaning, unlock and remove the plates to prevent damage to the cooking plates.

59 Thedrip tray and cooking plates are dishwasher safe. The appliance and its power cord must never be put in the dishwasher. If you wash the plates in a dishwasher, always wipe the plates over with a little cooking oil on next use in order to condition the coating and ensure the best performance from the non-stick. The heating elements, should never be cleaned after the plates have been removed. If they are very dirty, wait until the appliance has cooled down completely and clean them with a dry cloth.

60-61

If you do not wish to put the plates in the dishwasher, use some hot water and some washing-up liquid to wash them, then rinse thoroughly to remove all residue. Dry them gently with a paper towel.

Do not use metal scouring pads, steel wool or abrasive cleaners to clean any part of the grill or cooking plates, use only nylon or non-metallic cleaning pads suitable for non-stick surfaces.

Emptythedrip tray and wash it in warm, slightly soapy water, then wipe it thoroughly with a paper towel.

62 To clean the grill lid, wipe with a sponge moistened with warm water and dry with a soft, dry cloth. To clean the control panel, use only a soft, dry cloth.

63 The appliance must not be submerged in water or in any other liquid.

64 Always ensure that the appliance is clean, cold and dry prior to storage. All repairs must be done by an authorised service centre.

Troubleshooting Guide

OPTIGRILL ELITE TROUBLESHOOTING GUIDE
Problem Cause	Solution
A change of language		Switch on the grill, press ON, then immediately on the Frozen button (while the screen displays "Hello")
	The preheating time was not completely finished. The grill was opened and the food placed on the plate before the end of preheating.	It is possible to cook the food, but you have to check the cooking progress because the grill is in manual mode.The temperature can be adjusted.OrOpen the grill, remove the food, close the grill properly and wait until the end of preheating.
My appliance does not switch off	Missing a second press or too long a time between the 2 presses.	Press the On/Off button twice.OrPress the On/Off button once then press OK
Err 1 to Err 8 The unit	it has been stored or used in a room that is too cold.Appliance overheating.	Unplug the appliance and wait a few minutes.Plug the grill in again and switch it on.If the problem persists, contact customer services.
Err 9 to Err 13 Appliance failure. Unplug the appliance and contact customer services.
The appliance shuts down itself during the preheating or cooking cycle.	The appliance remained open for too long during cooking.The unit has been idle for too long after preheating or preheating has finished.End of cooking confirmation request	Unplug the appliance and wait a few minutes. Then plug in your appliance again and turn it on.2 solutions:Press OK if all of the food has been removedOrDo not press OK and leave the food to cook a little longer
	Food not detected because it is too thin, for example bacon	Press OK to start cooking
	Food too thick, over 4 cm 2	solutions:Press OK to continue cooking in manual modeOrRemove the food and cut thinner to reduce the thickness, to allow cooking in automatic mode
I cannot set a time in manual mode	The screen is stuck on temperature setting	Press OK once to go to the time setting and then adjust it using the arrows. Press OK to confirm.

Cooking levels for each automatic program

12 AUTOMATIC PROGRAMS
AUTOMATIC PROGRAMS		COOKING LEVEL INDICATOR
MENUS
	Beef	Very rare (Blue)	Rare Medium	Well done
	Chicken breast*	--- Well done
	Sausage --- Well done
	Bacon** --- Medium Crispy
	Beef Burger*** --- Well done
	Panini -		Lightly cooked	Toasted Crispy
	Fish - Medium			Medium to well-done	Well done
	Seafood - Medium			Medium to well-done	Well done
	Potato --- Soft
	Pepper --- Crunchy Soft
	Aubergine --- Grilled
	Tomato	-- Crunchy Soft

* For the UK only: do not cook chicken breast from frozen. Always thaw completely first.
** As bacon is a thin food, after closing the lid, press the "OK" button to make sure the appliance recognise the food and the cooking cycle starts.
*** For the UK only: For food safety reasons the Food Standards Agency do not advise serving rare or medium burgers. Only serve well done burgers.

COOKING ADVICE FOR OTHER FOODS
PRODUCTS	COOKING PROGRAM	COOKING TIP
Pork tenderloin (boneless), pork belly		Well done*
Bratwurst (pre-cooked pork)		220°C / 8 min 30 sec
Rindswurst (pre-cooked beef)		220°C / 8 min 30 sec
Nürnberger Wurst (pre-cooked pork)		220°C / 4 min 30 sec

MANUAL MODE
FRUIT OR VEGETABLES
From 180°C to 195°C	From 220°C to 235°C	From 225°C to 270°C
-- Courgette (slices)
-- Asparagus (whole)
-- Mushroom
- Onion -
Florets --
Baby carrot --
- Fennel -
Sweet potato (slices)	-	-
- Apple (slices)	-
- Banana -
- Peach -

OPTIGRILL ELITE PREPARATION ADVICE
For more significant searing, it is best to return the grilled food to the grill before serving it to your guests.
PRODUCTS PREPARATION ADVICE
POTATO	Cut lengthwaysCoat or brush the potato slices with oil for the best cooking results.
PEPPER • Cut in half lengthway and remove seeds
AUBERGINE	Cut lengthwaysCoar or brush the aubergine slices with oil for the best cooking results.
TOMATO	Use round tomatoesUse tomatoes that are not too ripeCut in half widthwaysFor optimal cooking, place the rounded side of the halved tomato on the bottom plate of the grill.
PORK	* Use the searing function if the thickness is more than 20 mm.

OBH Nordica LIMITED GUARANTEE

The Guarantee

OBH Nordica guarantees this product against any manufacturing defect in materials or workmanship during 2 years within Sweden, Norway, Denmark and Finland, starting from the initial date of purchase or delivery date.

This manufacturer's commercial guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At OBH Nordicas choice, a replacement product may be provided instead of repairing a defective product. OBH Nordicas sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

OBH Nordica shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The defective product may be returned to the store of purchase.

This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow OBH Nordica instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling

by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• mechanical damages, overloading
• damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification
• ingress of water, dust or insects into the product
• scaling (any de-scaling must be carried out according to the instructions for use)
• damage as a result of lightning or power surges
• damage to any glass or porcelain ware in the product
• accidents including fire, flood, etc
• professional or commercial use

Consumer Statutory Rights

OBH Nordica's commercial guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from Country to Country. The consumer may assert any such rights at his sole discretion.

TEFAL - OBH Nordica Group AB

Löfströms Allé 5
