MTIM3 - Drill BLACK & DECKER - Free user manual and instructions

Product type	Corded electric drill
Brand	Black & Decker
Model	MTIM3
Power supply	230 V, 50 Hz
Rated power	500 W
No-load speed	0 - 3000 rpm
Chuck type	Keyless, 10 mm
Drilling capacity wood	20 mm
Drilling capacity metal	10 mm
Dimensions (L x W x H)	250 x 200 x 70 mm
Weight	1.5 kg
Sound level	85 dB(A)
Vibration level	< 2.5 m/s²
Cable length	2 m
Functions	Variable speed, reversible rotation direction, spindle lock
Safety	Double insulation, safety switch
Maintenance and cleaning	Clean with a dry cloth, check carbon brushes
Spare parts and repairability	Available on Black & Decker website
Warranty	2 years
Use	Domestic

Frequently Asked Questions - MTIM3 BLACK & DECKER

How to change the drill chuck?

For changing the chuck, use an Allen key to loosen the internal screw, then turn the chuck counterclockwise. To install, do the reverse. Make sure the device is unplugged.

What is the power of the MTIM3 drill?

The Black & Decker MTIM3 drill has a rated power of 500 watts, suitable for drilling in wood and metal.

How to adjust the drilling speed?

The speed is adjustable via the variable speed trigger. Light pressure gives slow speed, more pressure increases speed. The variator allows speed control up to 3000 rpm.

Can I drill concrete with this drill?

This drill is designed for wood and metal. For concrete, it is not ideal as it does not have hammer action. It is better to use a hammer drill for concrete.

How to reverse the rotation direction?

Use the rotation direction switch located above the trigger. Push it left for clockwise rotation (drilling) and right for counterclockwise rotation (unscrewing).

What to do if the drill does not start?

First check the power supply and cable. If the cable is damaged, have it replaced by a professional. If the problem persists, the carbon brushes may be worn: contact Black & Decker after-sales service.

Which drill bits can I use?

Use drill bits with a cylindrical shank of maximum diameter 10 mm. For wood, wood bits; for metal, HSS bits.

How to clean the drill?

Unplug the device. Clean the housing with a dry or slightly damp cloth. Do not use solvents. For ventilation openings, use a soft brush.

Where to find spare parts?

Spare parts are available on the official Black & Decker website or from authorized dealers. You can also contact customer service to order specific parts.

Is the drill under warranty?

Yes, the Black & Decker MTIM3 drill benefits from a 2-year warranty against manufacturing defects. Keep the proof of purchase.

USER MANUAL MTIM3 BLACK & DECKER

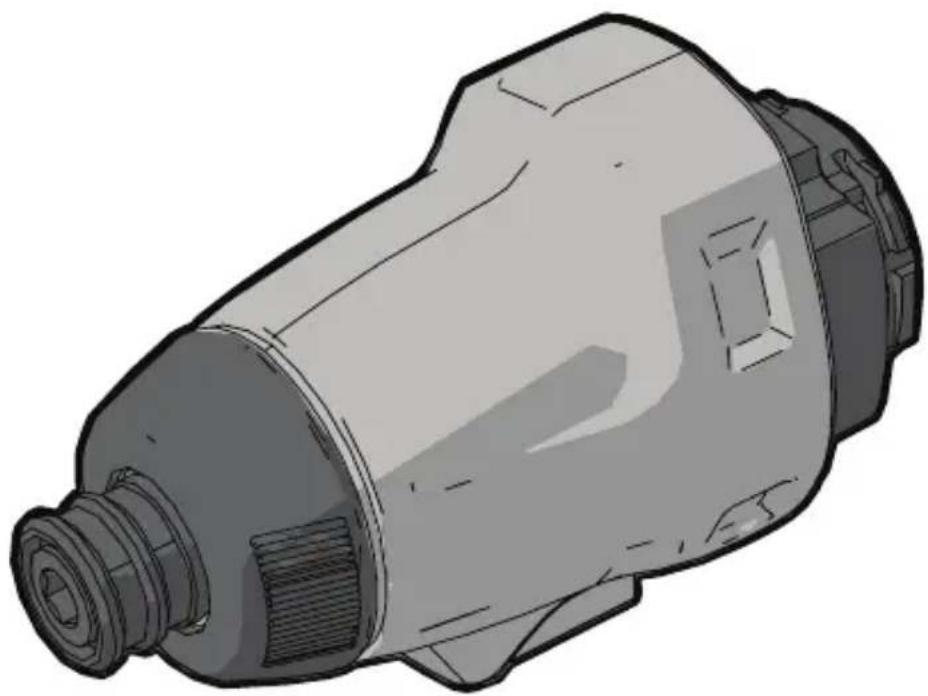

Illustration of a mechanical component with no visible text or symbols

ENGLISH

(Original instructions)

Intended use

Your BLACK+DECKER multi-purpose tool has been designed for a wide range of DIY applications. Using the impact wrench head (MTIM3), this tool is intended for screwdriving and nut setting applications.

This tool is intended for consumer use only.

Safety instructions

General power tool safety warnings

Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.

Warning! Read all safety warnings and all instructions provide with your power tool (MT143, MT350, MT108 or MT18) before using this accessory. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

Warning! Additional safety warnings for impact wrenches

◆ Wear ear protectors with impact drills.
Exposure to noise can cause hearing loss.
◆ Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
- Hold power tool by insulated gripping surfaces when performing an operation where the fastener may contact hidden wiring.
Fasteners contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.
- Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.

• This tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• The intended use is described in this instruction manual. The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury and/or damage to property.

Warning! mpact wrenches are not torque wrenches. Do not use this tool for tightening fasteners to specified torques. An independent, calibrated torque measurement device such as a torque wrench should be used when under tightened or over tightened fasteners can lead to the failure of the joint.

(Original instructions)

ENGLISH

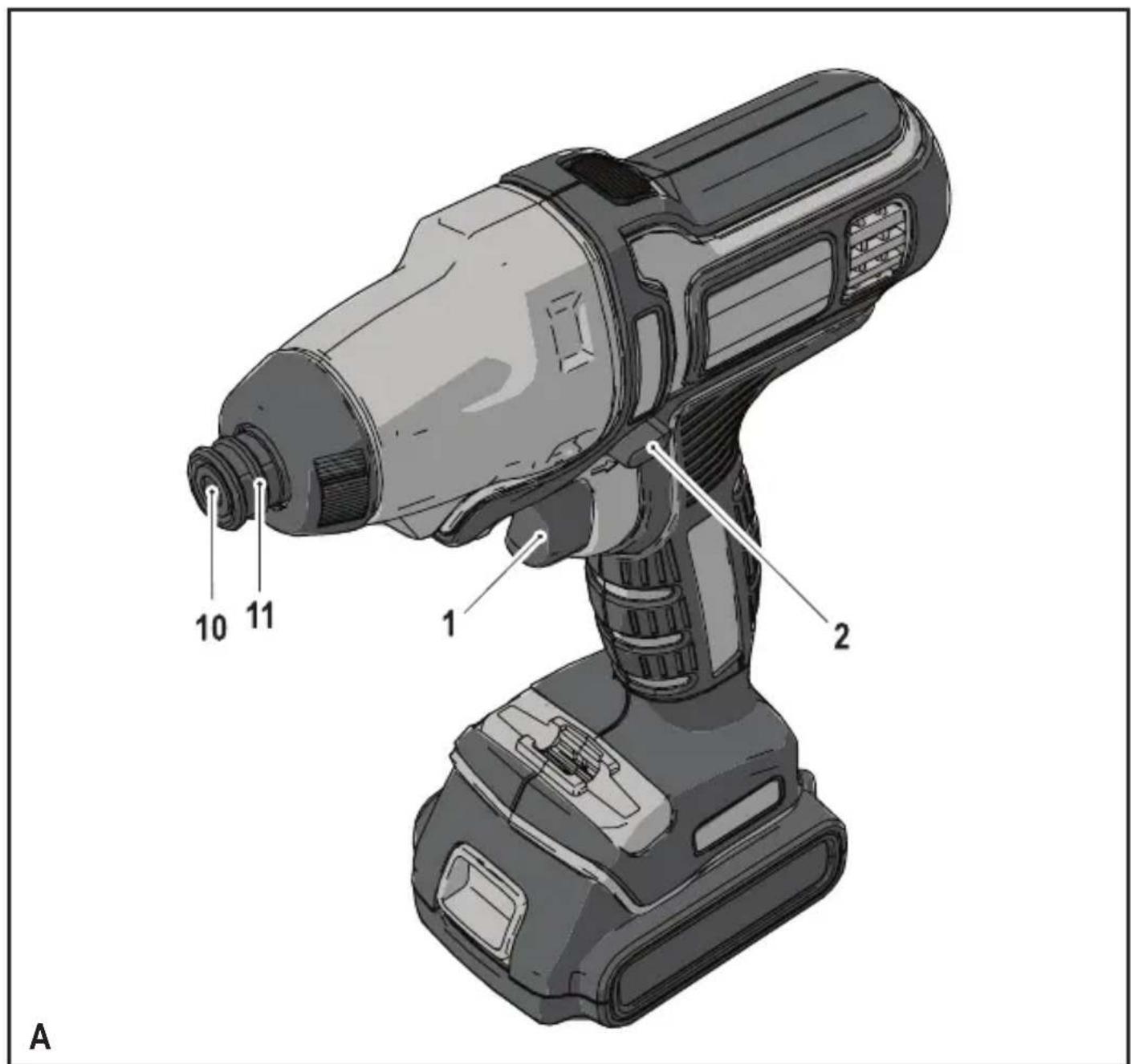

Features (fig. A)

Tool shown is MT143. Other tools are available for use with this tool head.

This tool includes some or all of the following features.

1. Chuck

2. Chuck collar

Assembly

Warning! Before assembly, remove the battery from the tool.

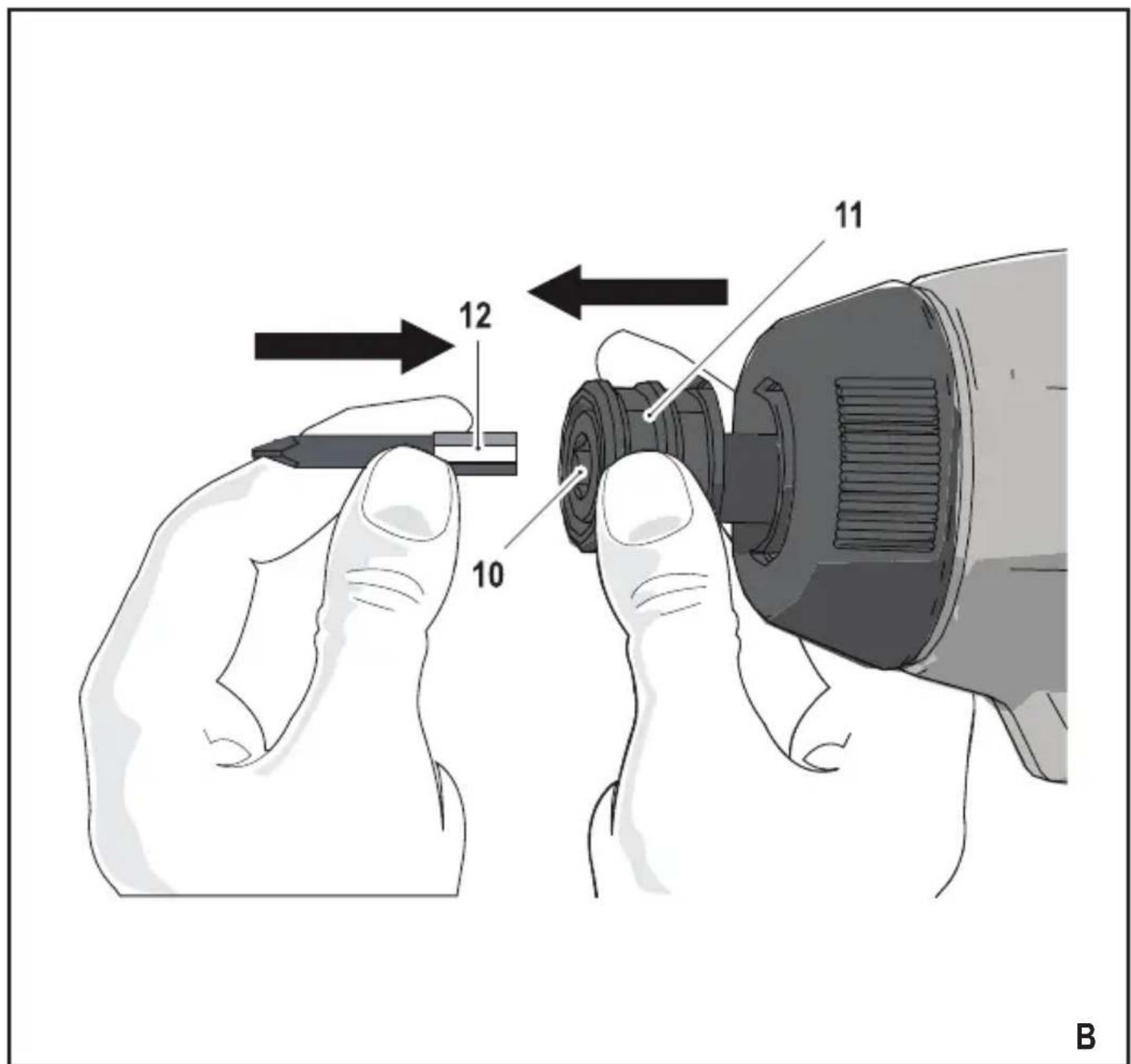

Fitting and removing a screwdriver bit or socket (fig. B)

This tool is fitted with a quick release chuck to allow for an easy exchange of bits.

Warning! Make certain the tool is locked to prevent switch actuation before installing or removing accessories.

◆ Lock the tool by setting the forward/reverse slider (2) to the centre position.
◆ Pull and hold the chuck collar (11) away from the front of the tool.
◆ Insert the bit shaft (12) into the chuck (10).
◆ Release the collar. The accessory is locked in place.

Note! To remove the bit/socket repeat the above steps.

ENGLISH

(Original instructions)

Use

Warning! Let the tool work at its own pace. Do not overload.

Screwdriving / nut setting

Note: Ensure the forward reverse slider (2) is not in the locked position.

• Select the appropriate bit / socket for the screw or nut to be driven.
• Select forward or reverse rotation as described above.
  ◆ Hold the tool in line with the fastener.
• After tightening, check torque with a torque wrench.

Hints for optimum use

Screwdriving

◆ Always use the correct type and size of screw-driver bit.
- If screws are difficult to tighten, try applying a small amount of washing liquid or soap as a lubricant.
◆ Always hold the tool and screwdriver bit in a straight line with the screw.

Accessories

The performance of your tool depends on the accessory used. BLACK+DECKER and Piranha accessories are engineered to high quality standards and designed to enhance the performance of your tool. By using these accessories you will get the very best from your tool.

Technical data

Sander		MTIM3(14.4v)(H1)	MTIM3(Max)(H1)
No-load speed min	-1	0-2800 0-3000
Beats min	-1	0-3100 0-3500
Max. torque(PTI Rating)	Nm 170	205
Chuck capacity	mm 6 (Hex) 6 (Hex)
Weight	kg 1.3	1.3

Level of sound pressure according to EN 60745:

Sound pressure (LpA) 96.2 dB(A), uncertainty (K) 3 dB(A)

Sound power (LWA) 107.2 dB(A), uncertainty (K) 3 dB(A)

Vibration total values (triax vector sum) according to EN 60745:

Screwdriving with impact ( a_h,IS ) 13.9 m/s ^2 , uncertainty (K) 1.5 m/s ^2

Guarantee

Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

◆ The product has been used for trade, professional or hire purposes;
◆ The product has been subjected to misuse or neglect;
◆ The product has sustained damage through foreign objects, substances or accidents;

(Original instructions)

◆ Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com

Please visit our website www.blackanddecker.co.uk to register your new BLACK+DECKER product and to be kept up to date on new products and special offers. Further information on the BLACK+DECKER brand and our range of products is available at www.blackanddecker.co.uk

EC declaration of conformity

MACHINERY DIRECTIVE

MTIM3

Black & Decker declares that these products described under “technical data” are in compliance

with:

2006/42/EC, EN60745-1, EN60745-2-2

These products also comply with Directive 2014/30/EU and 2011/65/EU. For more information, please contact Black & Decker at the following address or refer to the back of the manual. The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of Black & Decker.

R. Laverick

Engineering Manager

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

United Kingdom

15/09/2014
