WI14W442 - Washing machine SIEMENS - Free user manual and instructions

Product type	Front-loading washing machine
Brand	Siemens
Model	WI14W442
Washing capacity	8 kg
Maximum spin speed	1400 rpm
Energy class	A+++
Annual water consumption	10 500 L
Annual energy consumption	210 kWh
Noise level (washing/spinning)	75 / 78 dB(A)
Dimensions (H x W x D)	85 x 60 x 65 cm
Net weight	75 kg
Electrical supply	230 V / 50 Hz, 10 A
Washing programs	Cotton, Synthetic, Delicate, Wool, Quick 15 min, Eco 40-60, etc.
Special functions	Delayed start, Extra water, Extra rinse, Child lock
Display	LED screen with remaining time indicator
Safety	Overflow protection, Foam detection system, Child safety
Maintenance	Filter cleaning, Detergent drawer cleaning, Drain hose
Spare parts	Belt, Drain pump, Heating element, Motor brushes, Filter
Repairability	Repairability index (if available): 8.2/10
Included accessories	User manual, Quick guide, Water inlet seal, Drain elbow
Warranty	2 years manufacturer

Frequently Asked Questions - WI14W442 SIEMENS

How to install the Siemens WI14W442 washing machine?

Remove the transport bolts, connect the inlet and drain hoses, connect the electrical supply. Refer to the Installation chapter in the manual for more details.

What to do if the washing machine does not start?

Check that the door is properly closed, the electrical supply is active, and the child lock is not activated. Consult the troubleshooting guide.

How to clean the washing machine filter?

Open the lower flap, unscrew the filter cap, remove debris, replace the cap. Do this regularly to prevent blockages.

What washing programs are available?

Programs: Cotton, Synthetic, Delicate, Wool, Quick 15 min, Eco 40-60, etc. Each program optimizes temperature and spin speed.

How to use the delayed start function?

Select the program, press Delayed start, set the desired time using the +/- buttons, then press Start.

What does error code E17 mean?

Error code E17 indicates a drainage problem. Clean the filter and check that the drain hose is not kinked or blocked.

How to activate the child lock?

Hold the Child lock button (padlock symbol) for 3 seconds. An audible signal confirms activation.

What is the maximum laundry capacity?

The maximum capacity is 8 kg for Cotton programs. Do not overload for effective washing.

How to resolve an imbalance during spinning?

Interrupt the cycle, distribute the laundry evenly in the drum, then restart. The imbalance detection system adjusts the speed.

Where to find spare parts?

Contact Siemens after-sales service or visit their website. Common parts such as filters, belts, and pumps are available.

USER MANUAL WI14W442 SIEMENS

Ремонт

1. Свалете винтовете. 3. 1. Освободете крепежните елементи (1, 2).

2.

ВНИМАНИЕ!

Ремонт

2.

ВНИМАТЕЛНО

Ремонт

Popravak

1. Uklonite vijke. 3. 1. Otpustite zahvatne elemente (1, 2).

1. Uklonite ploču.

3.1.2 Postavljanje ploče

▶ Postavite obratnim redoslijedom.

Popravak

3.2.2 Postavljanje ladice za deterdžent

▶ Postavite obratnim redoslijedom.

Popravak

1. Uklonite ručicu ladice za deterdžent.

3.3.2 Postavljanje ručice ladice za deterdžent

▶ Postavite obratnim redoslijedom.

Popravak

3.4 Zamjena vrata

OPREZ

1. Uklonite vrata prema gore.

1. Uklonite zglob vrata.

3.6.2 Postavljanje zgloba vrata

▶ Postavite obratnim redoslijedom.

Popravak

3.7 Zamjena brtve vrata

Oštri rubovi kućišta!

Porezotine

▶ Nosite zaštitne rukavice.

Opasnost od padanja dijelova zbog otpuštenih vijaka!

2.

POZOR!

Opasnost od oštećene površine!

1. Uklonite brtvu vrata.

1. Uklonite bravu vrata.

Popravak

3.8.2 Postavljanje brave vrata

Sl. 1: Poklopac donje grupe

Zahtjev:

Popravak

1. 1. Odvijte vijak (1).

2. Pritisnite zadržnu točku i uklonite prema dolje (2).

1. Gurnite poklopac donje grupe i uklonite prema naprijed.

1. Izvucite crijevo iz poklopca.

2.

OPREZ

Popravak

1. Uklonite prednju ploču.

Oprava

2.

POZOR!

Oprava

2.

POZOR

Oprava

Reparation

1. Fjern betjeningspanelet.

3.1.2 Montering af betjeningspanel

1. Fjern døren opad.

1. Fjern dørhængslet.

2.

BEMAERK!

Fare for beskadiget overflade!

1. Fjern frontpanelet.

2. Afbryd alle slangeforbindelser.

1. Fjern dørpakningen.

1. Fjern dørlåsen.

Reparation

▶ Sørg for at sikre apparater mod at glide.

Fig. 1: Gruppeafdækning forneden

Preindstilling:

Reparation

2.

Reparation

1. Fjern frontpanelet.

3.11.2 Montering af frontpanel

Reparatie

3.2.2 Wasmiddellade monteren

3.5.2 Deurcomponenten monteren

2.

LET OP!

Reparatie

2.

VOORZICHTIG

Repair hints - Washing machine

i Concerning this document.... 103

1.1 Important information.... 103

1.1.1 Purpose.... 103

1.2 Explanation of symbols 103

1.2.1 Danger levels.... 103

1.2.2 Hazard symbols 103

1.2.3 Structure of the warnings.... 104

1.2.4 General symbols.... 104

Tools and aids.... 105

Repair 106

3.1 Replacing fascia panel.... 106

3.1.1 Removing fascia panel 106

3.1.2 Installing fascia panel 107

3.2 Replacing detergent drawer 108

3.2.1 Removing detergent drawer.... 108

3.2.2 Installing detergent drawer.... 108

3.3 Replacing detergent drawer handle 109

3.3.1 Removing detergent drawer handle.... 109

3.3.2 Installing detergent drawer handle.... 109

3.9.1 Removing drum light.... 117

3.9.2 Installing drum light.... 117

3.10 Replacing bottom cover.... 118

3.10.1 Removing bottom cover 118

3.10.2 Installing the cover.... 119

3.11 Replacing front panel 120

3.11.1 Removing front panel.... 120

3.11.2 Installing front panel.... 121

i Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 03/2021).

They contain information how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
	Danger	Non-observance of the warning message will result in death or serious injuries.
	Warning	Non-observance of the warning message could result in death or serious injuries.
	Caution	Non-observance of the warning message could result in minor injuries.
Notice		Non-observance of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.
The following hazard symbols are used in this document:

Hazard symbol Meaning
		General warning message
		Danger from electrical voltage
		Risk of explosion
		Danger of cuts
		Danger of crushing

i Concerning this document

Hazard symbol Meaning
		Danger from hot surfaces
		Danger from strong magnetic field
		Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Type and source of danger!

Possible consequences of ignoring the danger / warning.

▶ Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
	Identification of a special tip (text and/or graphic)
	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
StartIdentification of a key or button
[00123456] Identification of a material number
StatusIdentification of displayed text / window(in the appliance's display)

Table 3: General symbols

Tools and aids

Designation Details Images
Auxiliary tool[15000155]	Tool for loosening out of plastic parts
Screwdriver Torx T20 with bore hole [00340764]	100 mm, for screws with safety pin
Torque spanner [15000441]	Torque spanner 20 - 100 Nm
Slot screwdriver [00340854]	Blade 3.5 mm x 0.6 mm x 100 mm, Protective Insulation 1000 V AC
Slot screwdriver [00340855]	Blade 5.5 mm x 1.0 mm x 125 mm, Protective Insulation 1000 V AC
Needle-nose pliers, angled pattern [00341269]	Length 200 mm
Side-cutting pliers [00342182]	Length: 200 mm

Designation Details Images
Combination wrench[00340811]	Wrench size 10°mm, M6
Combination wrench[00340814]	Wrench size 13°mm, M8
Combination wrench[00340817]	Wrench size 17 mm, M10
Combination wrench[15000459]	Wrench size 16°mm, M10

Repair

3.1 Replacing fascia panel

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Appliances is freely accessible.
Detergent drawer has been removed.→ Page 108

3.1.1 Removing fascia panel

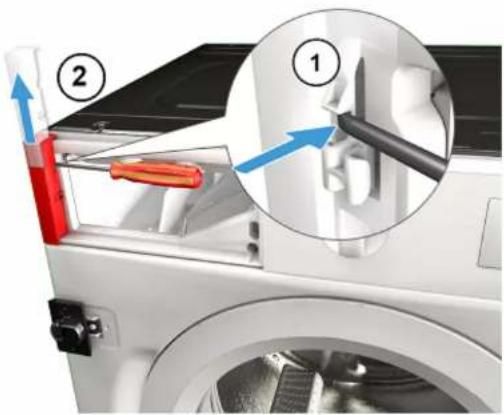

1. 1. Release catch element (1).
2. Remove cover (2).

Repair

1. Remove screws. 3. 1. Release catch elements (1, 2).

1. Pull fascia panel to the front (3).

1. Remove fascia panel.

3.1.2 Installing fascia panel

▶ Install in reverse order.

Repair

3.2 Replacing detergent drawer

Prerequisite:

√ Appliance is disconnected from power supply
√ Appliance is disconnected from water supply.

3.2.1 Removing detergent drawer

1. Pull out detergent drawer.
   2.1. Press down on insert (1).

2. Remove detergent drawer (2).

3.2.2 Installing detergent drawer

▶ Install in reverse order.

Repair

3.3 Replacing detergent drawer handle

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Detergent drawer has been removed.→ Page 108

3.3.1 Removing detergent drawer handle

1. Release catch elements.

1. Remove detergent drawer handle.

3.3.2 Installing detergent drawer handle

▶ Install in reverse order.

Repair

3.4 Replacing door

Caution

Open hinge area!

Finger crushing / entrapment

▶ Do not reach into the hinge area.

▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Door is opened.
√ Furniture panel has been removed.

3.4.1 Removing door

1.

Notice

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bottom.

▶ Secure component from falling down.

Caution

Risk of falling parts due to released screws!

Injury because of falling parts

- Secure component from falling down.

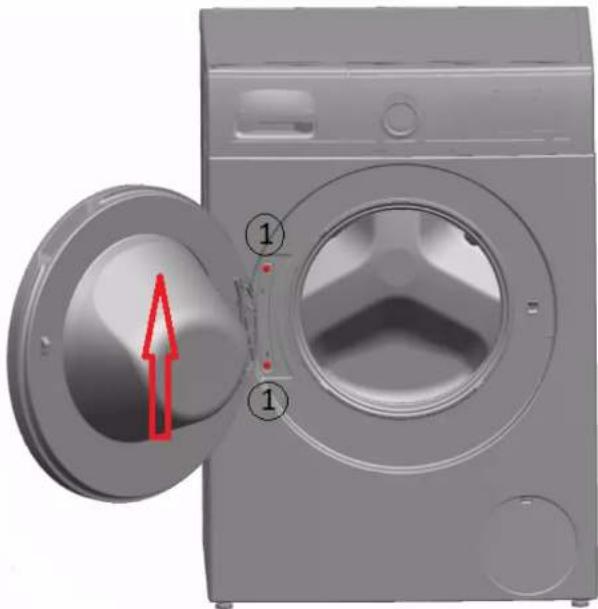

Remove screws (1).

1. Remove door upwards.

▶ Install in reverse order.

Repair

3.5 Replacing door components

Open hinge areal

Finger crushing / entrapment

▶ Do not reach into the hinge area.

▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Furniture panel has been removed.
√ Door has been removed.→ Page 110

3.5.1 Removing door components

▶ Disassemble door from outside to inside.

3.5.2 Installing door components

▶ Install in reverse order.

Repair

Finger crushing / entrapment

▶ Do not reach into the hinge area.

▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.

1. Release two screws.
2. Remove door.
3. Disassemble door from outside to inside.

1. Remove door hinge.

▶ Install in reverse order.

Repair

3.7 Replacing door seal

Sharp housing edges!

Cut injuries

▶ Wear protective gloves.

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bot- tom.

- Secure component from falling down.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Appliances is freely accessible.
√ Detergent drawer has been removed.→ Page 108
√ Fascia panel has been removed.
√ Door has been removed.→ Page 110
√ Bottom cover has been removed.→ Page 118

1. Loosen the retainer on the drum light.

1.

Notice

Risk of damaged surface!

Surface of appliance can be scratched by using wrong tools.

▶ Only use plastic tools to replace the tension ring.

Remove tension ring from gasket with a plastic tool.

1. Release door seal from front panel.
2. Release cable connector from door lock.

Repair

1. Loosen the screws in the indicated order.

1. Remove front panel.

2. Disconnect all hose connections.

1. Remove door seal.

▶ Install in reverse order.

Repair

3.8 Replacing door lock

As a manufacturer, we are obliged to provide consumers with the spare part door lock including repair instructions in accordance with Regulation (EU) 2019/2023. However, we would like to point out that after replacing a door lock, an electrotechnical safety test by a qualified electrician is required before the device is put into operation. This person must be verifiably qualified according to the country-specific laws, regulations and standards.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.

√ Appliances is freely accessible.
√ Furniture panel has been removed.
√ Fascia panel has been removed.
√ Door has been removed.→ Page 110
√ Tension ring has been removed.
√ Front panel has been removed.
√ Door seal has been removed.

1. Disconnect door lock plug.
2. Release door lock.

1. Remove door lock.

Repair

▶ Install in reverse order.

Repair

3.9 Replacing drum light

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Appliances is freely accessible.
√ Detergent drawer has been removed.→ Page 108
√ Fascia panel has been removed.

3.9.1 Removing drum light

1. Pull drum light holder out of appliance.
2. Disconnect electrical connections.
3. Remove drum light from drum light holder.

3.9.2 Installing drum light

▶ Install in reverse order.

Repair

3.10 Replacing bottom cover

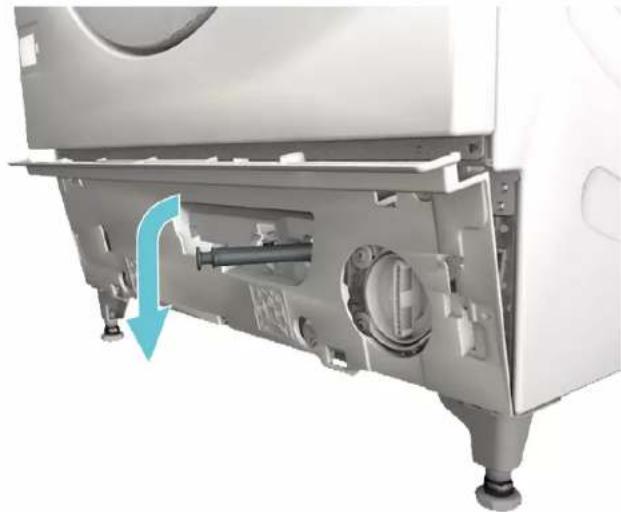

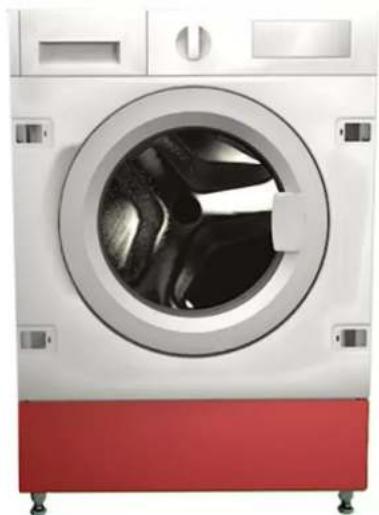

Fig. 1: Bottom group cover

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Furniture panel has been removed.

3.10.1 Removing bottom cover

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
1. Remove bottom cover.

1. Detach hose from the holder.


Repair

1. 1. Unscrew the screw (1).

2. Press retaining point and remove downwards (2).

1. Pull bottom group cover and remove forwards.

1. Pull hose out of the cover.

3.10.2 Installing the cover

▶ Install in reverse order.

Repair

3.11 Replacing front panel

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Appliances is freely accessible.
√ Detergent drawer has been removed.→ Page 108
√ Furniture panel has been removed.
√ Door has been removed.→ Page 110
√ Door seal has been removed.

3.11.1 Removing front panel

1. Loosen the retainer on the drum light.

2.

Caution

Risk of falling parts due to released screws! Injury because of falling parts.

- Secure component from falling down.

Notice

Risk of falling parts due to released screws! Damage to other parts of the appliance or at customers home e.g. bottom.

▶ Secure component from falling down.

Loosen the screws in the indicated order.

Repair

1. Remove front panel.

3.11.2 Installing front panel

▶ Install in reverse order.

Remonditeave - Pesumasin

i Selle dokumendiga seoses 123

1.1 Tähtis teave 123

1.1.1 Eesmärk 123

1.2 Sümbolite selgitus 123

1.2.1 Ohutasemed.... 123

Remont

3.2.2 Pesuaine sahtli paigaldamine

▶ Paigaldage vastupidises järjekorras.

Remont

3.5.2 Ukse osade paigaldamine

▶ Paigaldage vastupidises järjekorras.

Remont

2.

TÄHELEPANU!

1. Eemaldage ukselukk.

Remont

Joonis 1: Pōhja multikate

Nõue:

Remont

2.

ETTEVAATUST!

Remont

1. Eemaldage esipaneel.

3.11.2 Esipaneeli paigaldamine

▶ Paigaldage vastupidises järjekorras.

Korjaus

1. Poista ruuvit. 3. 1. Vapauta lukitusosat (1, 2).

3.2.2 Pesuainelokeron asentaminen

1.

HUOMIO!

1. Poista luukun tiiviste.

Korjaus

2.

HUOMAA

Korjaus

1. Poista etupaneeli.

3.11.2 Etupaneelin asentaminen

Réparation

2.

ATTENTION!

Risque de dommage superficiel !

1. Retirer le joint de porte.

1. Retirer la fermeture de porte.

Réparation

Réparation

1.

PRUDENCE

Réparation

Instandsetzen

2.

ACHTUNG

Instandsetzen

2.

VORSICHT

Instandsetzen

Επισκευή

2.

ΠΡΟΣΟΧΗ!

Επισκευή

2.

⚠️ ΠΡΟΣΟΧΗ

Επισκευή

Javítás

2.

FIGYELEM!

Javítás

1.

VIGYÁZAT

Javítás

Riparazione

2.

Riparazione

2.

Riparazione

Remonts

1. Nonemiet durtinu enği.

2.

UZMANIBU!

1. Nonemiet priekšejo paneli.

2. Atvienojiet visus cauruju savienojumus.

Remonts

2.

ESIET PIESARDZİGI

Remonts

Remontas

1. Nuimkite antjuostę.

2.

DÉMESIO!

Pav. 1: Apatinés grupés dangtis

Reikalavimas.

Remontas

2.

PERSPÉJIMAS

Pavojus, kad atpalaidavus varžtus dalys nukris!

Remontas

Reparasjon

1. Fjern skruene. 3. 1. Løsne läselementene (1, 2).

1. Trekk instrumentpanelet mot forsiden (3).

1. Demonter instrumentpanelet.

Fare for â knuse/sette fast fingre

2.

OBS!

Fare for skader på overflaten!

1. Demonter frontpanelet.

2. Koble fra alle slangekoblingene.

1. Demonter dørlåsen.

Reparasjon

Bilde 1: Nedre gruppedeksel

Forutsetning:

Reparasjon

1.

FORSIKTIG

Reparasjon

1. Demonter frontpanelet.

Naprawy

2.

UWAGA!

Naprawy

2.

WAŻNE

Naprawy

Reparação

1. Remova os parafusos. 3. 1. Solte os elementos de encaixe (1, 2).

1. Puxe o painel dos comandos para a frente (3).

1. Remova o painel dos comandos.

3.1.2 Instalar o painel dos comandos

3.2.2 Instalar a gaveta para detergente

2.

ATENÇÃO!

Fig. 1: Tampa do conjunto inferior

Pré-requisito:

Reparação

2.

CUIDADO

Reparação

1. Remova o painel frontal.

3.11.2 Instalar o painel frontal

Repararea

3.5.2 Montarea componentelor uşii

2.

ATENTIE!

Repararea

2.

ATENTIONARE

Oprava

1. Odoberte panel oblożenia.

3.1.2 Montáž panelu obloženia

1. Odoberte dvere smerom nahor.

3.4.2 Montáž dverí

1. Odoberte záves dverí.

2.

POZOR!

Riziko poškodenia povrchu!

1. Odoberte poistku dvierok.

Oprava

1. Vytiahnite držiak osvetlenia bubna spotrebiča.
2. Odpojte elektrické pripojenia.
3. Odoberte osvetlenie bubna z držiaka osvetlenia bubna.

Oprava

1. 1. Odskrutkujte skrutku (1).

2. Zatlačte na zachytávací bod a odoberte ho smerom nadol (2).

1. Vytiahnite hadicu z krytu.

3.10.2 Montáž krytu

Popravilo

1. Odstranite vijake. 3. 1. Sprostite držalne elemente (1, 2).

1. Odstranite ročaj predalčka za detergent.

1. Odstranite vrata v smeri navzgor.

2.

POZOR!

1. Odstranite tesnilo vrat.

1. Odstranite varovalo vrat.

Popravilo

1. Izvlecite držalo luči bobna iz aparata.
2. Odklopite električne priključke.
3. Odstranite luč bobna z držala luči bobna.

Popravilo

2.

PREVIDNO

Popravilo

Reparación

3.2.2 Montar el compartimento para detergente

▶ Montar en orden inverso.

Reparación

3.3 Sustituir el tirador del compartimento para detergente

Requisito:

2.

ATENCION

Reparación

1.

PRECAUCIÓN

Reparación

Reparation

1. Dra kontrollpanelen mot fronten (3).

1. Ta bort kontrollpanelen.

3.1.2 Montera kontrollpanel

3.5.2 Montera luckans komponenter

1.

OBS!

1. Ta bort frontpanelen.

2. Lossa alla slangkopplingar.

1. Ta bort luckans lás.

Reparation

Reparation

1. Dra ut slangen ur höljet.

3.10.2 Montera höljet

2.

Reparation

1. Ta bort frontpanelen.

3.11.2 Montera frontpanel

Onarim

1.

DIKKAT!

Onarim

1.

⚠️ DİKKAT

Onarim

1. Ön paneli sökünüz.
