IAN 273376 - Tent CRIVIT - Free user manual and instructions

Product Type	Pop-up beach tent
Brand	Crivit
Model	IAN 273376
Assembled dimensions	200 cm (L) × 120 cm (W) × 90 cm (H)
Weight	Approx. 1000 g
Compactness (folded)	Approx. 61 cm diameter × 2 cm thickness
Delivery contents	1 tent, 1 storage bag, 10 tent pegs, 2 guy ropes, 1 instruction manual
Intended use	Shelter from wind and sun, not suitable for prolonged rain
Material	Tent fabric (not precisely specified)
Frame	Pop-up (spring) automatic
Number of tent pegs included	10 metal tent pegs (approx. 18 cm × 4 mm)
Guy ropes	2 guy ropes approx. 200 cm
Temperature and exposure	Avoid fire and heating appliances near the fabric
Ventilation	Ensure ventilation openings are left open
Care and cleaning	Brush, rinse with clear water, use tent cleaner, do not machine wash
Repair	Holes and tears repairable with matching material
Warranty	3 years from date of purchase
Manufacturer / Service	Simex Outdoor International GmbH, Schiefbahner Straße 12, 41748 Viersen, Germany, +49 2162/10200-0, [e-mail]

Frequently Asked Questions - IAN 273376 CRIVIT

How to set up the pop-up tent?

Take the tent out of its bag, make sure the frame is taut, then throw it into the air. Avoid placing the entrance facing the wind. Secure the tent pegs by driving them obliquely into the ground.

Can I use this tent in the rain?

No, this tent is designed to provide shelter from wind and sun. In the long term, the material is not waterproof and should not be used in the rain.

How to dismantle the tent?

Follow the figures in the manual: gather the arches, place the tent vertically, fold the top arch downwards, and slide the rings together. Store it in its bag.

What to do if the tent is dirty?

Brush off dirt, rinse with clear water. For stubborn stains, use a tent cleaner. Never machine wash and do not use chemical cleaning.

How to repair a hole in the tent?

Holes and tears can be repaired with matching material (tent fabric). Use suitable glue or a tent adhesive patch.

Is the tent under warranty?

Yes, the tent comes with a 3-year warranty from the date of purchase. Keep your receipt. The warranty covers material and manufacturing defects, but not normal wear and tear or damage due to misuse.

Can I use a heating device in the tent?

Caution: Use of combustion devices requires additional ventilation. Do not place hot devices near the fabric and follow safety instructions.

How to store the tent to prevent mold?

Make sure the tent is completely dry and clean before storing. Keep it in a cool, dry, well-ventilated place, protected from frost. Never store it damp.

Can I use this tent on hard ground (concrete, rock)?

It is best to choose a flat, clean area. On hard ground, use weights or sandbags to secure the tent, as the tent pegs cannot be driven in.

What accessories are included?

The delivery includes: 1 pop-up tent, 1 storage/carry bag, 10 tent pegs, 2 guy ropes, and 1 instruction manual.

USER MANUAL IAN 273376 CRIVIT

POP-UP BEACH SHELTER

GB IE

POP-UP BEACH SHELTER

Operation and Safety Notes

FR BE

TENTE DE PLAGE POP-UP

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DK

GB / IE Operation and Safety Notes Page 5

Three grayscale images of a tent with open and closed sections, showing different shapes and sizes (no text or symbols)

Three black-and-white photos showing a person handling a large canopy cover, another holding a small canopy cover, and a third holding a matching canopy cover (no text or symbols visible)

Pop-Up Beach Shelter

1. Introduction

Congratulations! You have purchased a high-quality product. The instructions for use are to be considered as part of this product. They contain important instructions for use. Please read all the information carefully before use. Keep these instructions in a safe place. When passing the product on to others, be sure to also include all documentation.

1.1 Intendeduse

This product is intended for use as protection against the wind and sun. The material of the beach tent is not permanently waterproof. Therefore, it should not be used in rain. The product is not intended for commercial use.

1.2 Scope of delivery

1 Pop-Up Beach Shelter
1 Carry and storage bag

10Tentpegs

2 Guy ropes
1 Set of instructions for use

1.3 Parts description

Guy rope (approx. 200 cm)

Tent pegs (approx. 18 cm x 4 mm)

1.4 Technical Data

Measurements

(assembled): approx. 200 cm (L) x 120 cm (W) x 90 cm (H)

Weight: approx. 1000 g

Packed size: approx. 61 cm diameter x 2 cm

2. Safety notes

KEEP THESE INSTRUCTIONS IN A SAFE PLACE. WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE INCLUDE ALL THE DOCUMENTS. DO NOT REMOVE ANY SEWN-IN LABELS.

2.1 Precautions for fire and ventilation

CAUTION:

■ Additional ventilation is required when using gas or other burners.
Do not place a hot appliance near to the walls, ceiling or curtains.
■ Always observe the safety notices for this product.
■ Never let children play with hot objects nearby.
- Keep the exits clear.
■ Ensure you know the fire precautions of the site.
■ Ensure that the ventilation openings are always open, in order to prevent suffocation.

3. Assembly / Before use

Assembly is not necessary because the article is pre-assembled, with the exception of the guy ropes.

4. Use

Warning:

Please ensure that the poles are under tension and that the beach tent always springs into its natural shape. Ensure that the tensioning force does not cause you injury.

4.1 Selecting a set-up location

☐ Preferentially choose a flat clean set-up area.
☐ Remove stones and similar objects, to prevent damage to the floor.
Take the beach tent out of the bag. Ensure that the poles are under tension and that the tent

springs into its natural shape. Ensure that the tensioning force does not cause you injury.

Figure 3: Push the rings into each other and pack the beach tent into the carry and storage bag.

4.2 Assembling the beach tent

☐ Throw the beach tent away from you into the air. The entrance should not face into the wind if possible.
When securing, in order to achieve better steadiness, ensure that the tent pegs are inserted into the ground at an angle but without tension. The material and the anchor points should only be under light tension.

5. Packing

☐ Pack the cleaned accessories into the storage bag supplied.
☐ Lie the beach tent in the carry and storage bag and carefully close the zipper.
Keep the article in a cool, dry and well-ventilated place away from frost. Avoid packaging and storage in a damp condition, (formation of mould, mildew).

4.3 Special problems/Particular environmental conditions

UV rays – all the tent materials suffer material fatigue under strong sunlight and bleach to a certain extent. During bad weather conditions (storm), it is recommended that the beach tent is dismantled.

6. Maintenance / Cleaning and repair

Brush off dirt. Use clean water if necessary. For stubborn stains, only use commercially available tent care products. Please never wash in a washing machine or dry-clean! Holes or tears can also be glued using the same material. The poles do not require specific maintenance, other than being stored dry and clean in the storage bag. The poles of this product cannot be repaired.

4.4 Dismantling the beach tent

Please watch the tent dismantling information video, by using the QR-code with a suitable appliance.

Attention: Please ensure that the poles are under tension and that the beach tent always springs into its natural shape. Ensure that the tensioning force does not cause you injury.

For dismantling, please follow the descriptions given with Figures 1–3.

To prevent the formation of mould or mildew stains, always dismantle the beach tent in a clean and dry condition.

Figure 1: Hold all the left and right arches together.

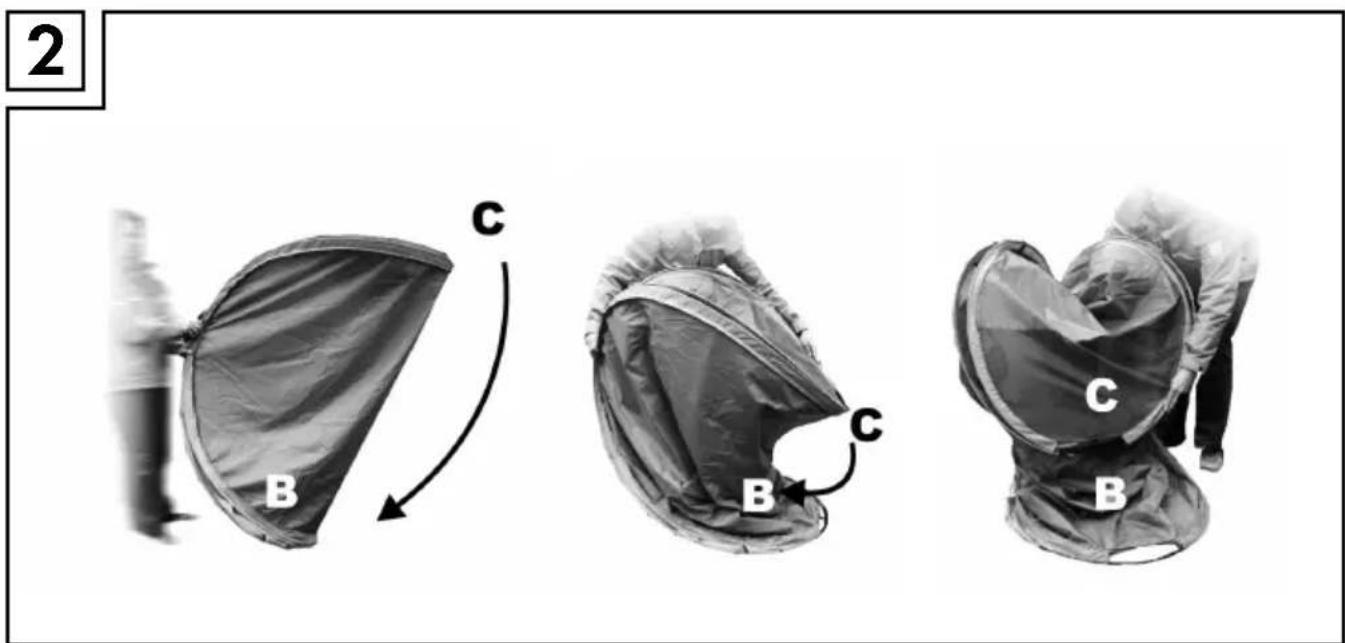

Figure 2: Stand the beach tent upright. Push the upper arch (C) downwards with the left hand and fold it in towards the centre (B) using your left hand.

7. Environmental instructions and disposal information

Contact your local authorities for information on how to dispose of the product at the end of product life.

8. Warranty

This device is covered by a 3 year warranty from the date of purchase. The product has been manufactured with care and thoroughly inspected before delivery. Please keep your receipt as proof of purchase. In the event of a warranty claim, please contact our service department by telephone. This will ensure you will be able to return your produce postage-free.

The warranty covers only claims for material and manufacturing defects, not transport damage, wearing items or damage to fragile components, e.g. buttons or batteries.

This product is intended for private, non-commercial use only.

Any incorrect or improper use of the device, use of force and changes not performed by our authorized service branch will void the warranty. This warranty does not limit your legal rights.

The warranty period will not be extended by repairs made under warranty. This also applies to replaced and repaired parts. Any damage and defects present at the time of purchase must be reported immediately after unpacking the device, but no later than two days after the date of purchase. Repairs made after expiration of warranty are subject to a fee.

9. Manufacturer / Service

Simex Outdoor International GmbH

Schiefbahner Straße 12

41748 Viersen

Germany

Tel.: [phone]

E-Mail: [e-mail]

IAN 273376
