IAN 273728 - Tent CRIVIT - Free user manual and instructions

Product Type	Pop-up Tent
Brand	Crivit
Model	IAN 273728
Dimensions (Set up)	approx. 148 x 107 x 240 cm (W x H x D)
Weight	approx. 1900 g
Packed Size	approx. Ø 76 cm
Hydrostatic Head Roof	2000 mm
Hydrostatic Head Side Walls/Floor	1500 mm
Category	Category A camping tent (Lightweight)
Performance Level	1 (infrequent use for short periods)
Intended Use	Outdoor sleeping and living space for occasional summer weekend camping in mainly fine weather
Scope of Delivery	1 x Bag, 1 x Pop-up tent, 9 x Tent pegs, 5 x Guy-ropes, 1 x Assembly instructions
Materials	Polyester (water-resistant)
Fire Precautions	Do not light fires inside; keep away from heat sources; follow sewn-in label instructions
Assembly	Pop-up mechanism; secure with pegs and guy-ropes
Disassembly	Specific folding procedure (see manual)
Care	Brush off dirt, clean with water; use seam sealer; no chemical cleaners
Storage	Store dry, out of direct sunlight; remove from bag if not used for long periods
Warranty	3 years from purchase date
Service Hotline GB	0871 5000 720 ($0.10/min)
Service Hotline IE	1890 930 034 (€0.08/min peak, €0.06/min off peak)

Frequently Asked Questions - IAN 273728 CRIVIT

How do I set up the tent?

Remove the tent from the bag, remove the rubber band, and throw the article into the air. It will pop up. Fix the four guy-ropes and eyelets using the tent pegs, and close the hook-and-loop fasteners around the crossing poles.

Is the tent waterproof?

The polyester material is water-resistant. The hydrostatic head is 2000mm for the roof and 1500mm for the side walls/floor. It may not be completely watertight on first use, but after initial rain the threads swell and become waterproof. Use seam spray for small leaks.

Why is there condensation inside the tent?

Condensation occurs due to temperature fluctuations. It is normal and not a sign of leakage. Good ventilation reduces condensation.

Can I use the tent in strong wind or snow?

No, the tent is designed for occasional summer camping in fine weather. Do not use in snow or storms. Dismantle before heavy snow or strong winds. Use storm pegs if needed.

How do I fold the tent back into its bag?

Remove pegs and guy-ropes. Grip the bottom pole, then upper poles one at a time, and finally the bottom pole. Hold the middle of the poles tight, then press the upper poles down and inward. Stack the poles neatly and wrap the rubber band around. Place in bag.

What should I do if there is a tear or broken pole?

For small tears, use a repair kit from a specialist shop. Replace broken tent poles immediately. Oil stiff zippers. Seam sealer can be used for seams.

How do I clean the tent?

Brush off dry dirt; if needed, treat with clean water only. Do not use chemical cleaning products. Periodically seal seams with commercial seam sealer.

What are the fire safety precautions?

Do not light fires inside the tent. Keep the tent away from heat sources. Do not block the exit. Familiarize yourself with local fire regulations. The tent has a sewn-in label with fire precautions.

How do I claim the warranty?

The tent has a 3-year warranty from the date of purchase. Retain your receipt. For complaints, contact the service hotline (GB: 0871 5000 720, IE: 1890 930 034) or email [e-mail] / [e-mail].

Can I use insect spray inside the tent?

No, do not use insect spray in or on the tent as it may damage the material.

USER MANUAL IAN 273728 CRIVIT

Illustration of a tent with silhouettes of people jumping inside, placed on a flat surface (no text or symbols)

www.tidl-service.com

Black-and-white photo of a portable tent with a lid, no visible text or symbols

POP-UP TENT

GL E

POP-UP TENT

Assembly instructions

DE AT CH

WURFZELT

Aufbauanleitung

(2)

Before reading, told out the illustration page and get to know all of the functions of your unit.

DH M DH

GS/IE Instructions and Safety Notice Page 06

Illustration showing two stages of fabric folding or stretching, labeled C and D (no text or symbols present)

Illustration of a person performing a circular motion exercise with directional arrows (no text or symbols)

Illustration of a person kneeling on a large circular object with an arrow indicating direction (no text or symbols)

GB IE

Scope of Delivery 6

Technical data 6

Intended use 6

Safety instructions 6-7

Precautionary measures against fire 7

Assembly 7-8

Disassembly 8

Maintenance 8

Care 8

Storage 8

Notes for disposal 8

3 years warranty 8-9

DE AT CH

Lieferumfang 10

Technische Daten 10

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it. Carefully read the following assembly instructions. Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

Scope of Delivery (figure A)

1 x Bag (1)
1 x Pop-up tent (2)
9 x Tent pegs (3)
5 x Guy-ropes (4)
1 x Assembly instructions

Technical data

Tent roof: hydrostatic head: 2000mm; side walls/floor: hydrostatic head: 1500mm

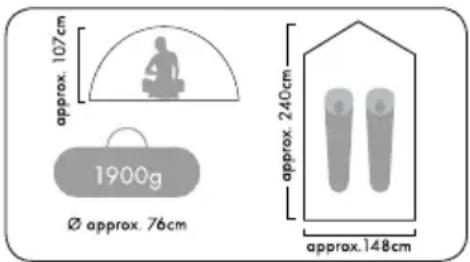

Dimensions set up:

approx. 148 x 107 x 240cm (W x H x D)

Category: Category A camping tent (Lightweight)

Performance level: 1 - tent designed for infrequent use for short periods.

For occasional summer weekend camping in mainly fine weather.

Intended use

This product serves as an outdoor sleeping and living space. The product is not designed for use in snow or storms.

Safety instructions

PLEASE READ THE ASSEMBLY INSTRUCTIONS BEFORE USE!

PLEASE KEEP THE ASSEMBLY

INSTRUCTIONS IN A SAFE PLACE!

CAUTION! RISK OF INJURY!

Please ensure that all parts are undamaged and are assembled correctly. There is a risk of injury if it is not assembled correctly. Damaged parts can impair safety and function.

CAUTION! Never leave children unsupervised! The product is not a climbing frame or a toy! Please ensure that nobody, particularly children, climbs or leans on the product.

The product could become unstable and tip over. Injuries and/or damage could result.

CAUTION! RISK OF INJURY!

Never assemble or dismantle the product in strong wind.

• Choose the most stable, level surface possible as a location.
• Sandy surfaces reduce stability. Ensure that you use a surface that offers a strong hold for the tent pegs.
• Never hit the tent pegs into the ground with force! Lengthen the guy-ropes with the help of a loop and place the tent pegs at a different location.
• Carry out regular checks on the integrity of the connection points and check the guy-ropes and that the tent pegs are secure.
• An incorrect assembly sequence could cause damage to the tent. Any liability is excluded.

CAUTION! RISK OF POISONING

AND RISK OF DAMAGE TO PROPERTY!

Do not light fires inside the product and keep it away from heat sources.

- Precautionary measures against fire can be found on a sewn-in label inside the tent.

We recommend that you do not remove this label.

• Please also familiarise yourself with the fire safety regulations on site (e.g. at the camp-site).
• Keep the exit free! Do not block the exit with objects.

Precautionary measures against fire

The following common sense rules must be followed in order to camp safely:

• Do not place any switched on electronic appliances near the walls, roof, or curtains.
• Always follow the safety instructions for these appliances.
• Never allow children to play close to the appliances while they are switched on.
• Leave the passageways free. Do no block the exits with objects.
• Inform yourself about fire safety facilities and provisions on the site.

Pay attention to the weather and its effects

- When choosing a location for the article, always consider local circumstances and how these could change. Is the location in a place that will flood if it rains? Please take any rising river levels or tides into account.

- Protect the product from strong wind and storms. Place the product in a place that is protected from the wind if possible.

- Exchange the normal tent pegs for special storm tent pegs in advance of strong winds. Get information on useful additional products at your specialist retailer.

- Dismantle the tent before heavy snow or storms.

- Remove snow from the product. Otherwise the product can collapse under the weight.

- Do not erect the tent too tightly as it will be unable to adapt to changing weather conditions and could be damaged.

- Zippers are wearing parts and are not included in the guarantee.

- The polyester material of the tent is made of water-resistant material.

• It is possible that the tent is not completely watertight for the first rain. However the water will cause the threads in the tent to contract and the tent will then become waterproof after a short time.
• In moisture and rain the tent fabric will expand at different rates and make it necessary to re-tighten the guy-ropes. When the material tightens again during drying the guy-ropes need to be loosened again in good time.
• Do not use insect spray in or on the tent.
• Small leaks on seams can be resolved with seam spray and waterproofing spray can be used for the awning.

Assembly

NOTE!

Perform a test assembly before the camping trip. In doing so, ensure that all the accessories are present.

Selecting a location for placing the tent

Choose a place that is as flat and clean as possible. Avoid dips in the ground. Remove stones, branches and other sharp objects in order to prevent damage to the tent floor. Use natural shade, such as hedges, rocks, etc. Use the appropriate pegs for sandy ground in order to prevent accidental loosening of the tension.

NOTE!

Insert the pegs into the ground at a slight angle to achieve good strength but without causing tension in the tent surface. The tent material and tension points should only be slightly taut, so that it can compensate for pressure from the wind. Ensure that there is not too much pressure on the tent. Check the tent tension according to weather condition.

NOTE!

Water condensation occurs basically in every tent, however particularly during strong fluctuations in temperature. After a night in the tent, there will be drops of condensation on the inner wall. Condensation is not evidence of leakiness. Good ventilation reduces condensation in the tent.

Caution: The frame is under tension when folded and will always return to the tent form. Make sure that this tensioning force does not cause you any injuries.

1. Remove the article from the bag.
   Caution: Hold the article tightly when removing the rubber band.
2. Remove the rubber band and throw the article into the air.
3. Fix the four guy-ropes and the four eyelets below the article using the tent pegs and close the hook-and-loop fasteners around the crossing tent poles (figure B).

Disassembly

NOTE!

Disassemble the tent, if possible, when clean and dry to prevent the formation of mould and mildew. After disassembling in rain, immediately dry the tent. Clean all the parts thoroughly before packing them away.

1. Remove the tent pegs and the guy-ropes.

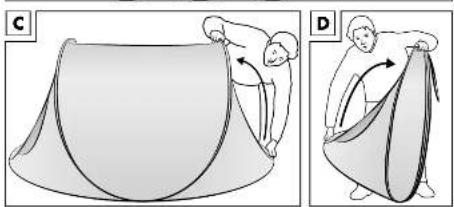

2. Grip the back tent pole at the bottom (figure C).
3. Now take the upper tent poles one at a time and finally the bottom tent pole with the opening (figure D).
4. Hold the middle of the tent poles tightly in one hand.

Important: Hold the tent poles tightly and do not let them go. The tent poles are under tension and could injure you.

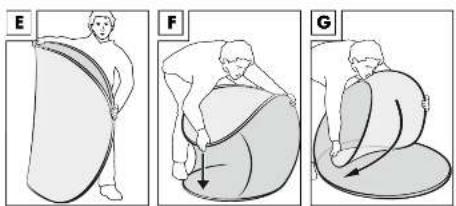

1. Stand the article upright in front of you and keep holding the tent poles in the middle (figure E).

2. Use your free hand to grip the upper tent poles in the middle and press them from above all the way down onto the tent poles at the bottom (figure F).

3. Pull the tent poles inwards towards yourself (figure G).

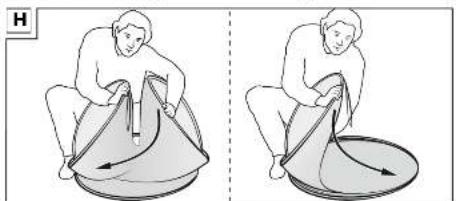

4. Put the tent poles that you are still holding over one another. Make sure that the tent poles with the rubber band are on top (figure H).

5. Place them all tidily above one another and pull the rubber band around the article. Put the article, the tent peg sack with the tent pegs, and the guy-ropes in the bag, and close the bag (figure 1).

Maintenance

In the case of small tears and holes, use a repair kit from a specialist shop. Immediately replace broken tent poles. Oil the zips a little if they become stiff.

Care

Brush dirt off the dry tent surface; if necessary treat with clean water. Do not use a chemical cleaning product. Seal the tent seams from time to time. For this, use a commercial seam sealer.

Five abstract geometric symbols arranged horizontally: three circles, two triangles, one square, and one cross (no text or labels)

Storage

Store the product in a dry place to prevent the mould and weather marks. If it is not used for a longer period, take the product out of the packsack and store it in a dry place out from direct sunlight.

Notes for disposal

Please dispose of the packaging and product separated according to materials and in an environmentally-friendly manner! Dispose of the product through an approved waste disposal firm or by using your local municipal administration. Observe the current applicable legislation.

3 years warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt. The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 273728

GB Service Great Britain Tel.: [phone] (£ 0.10/Min.) E-Mail: [e-mail]

IE Service Ireland Tel.: [phone] (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: [e-mail]

You can also find spare parts for your product at: www.delta-sport.com, category Service - Lidl Spare Parts Service
