IAN 96427 - Tent CRIVIT - Free user manual and instructions

Brand	Crivit
Model	IAN 96427 (also Z31982A/Z31982B/Z31982C)
Product Type	Pop-up Tent
Category	Camping Tent
Dimensions (L x W x H)	Approx. 240 x 148 x 107 cm
Material	Polyester (water-repellent)
Performance Level	1 (infrequent and short term use)
Standard	ISO 5912 Category A
Included Accessories	Tent, guy lines, tent pegs, carrying bag
Assembly Method	Pop-up: release rubber band and throw into air
Folding Method	Specific hand-gathering and looping technique (see manual)
Cleaning	Hand wash with soft sponge and clean water; do not machine wash
Drying	Allow to dry thoroughly before packing to prevent mold
Zipper Maintenance	Use silicone spray if sticking
Water Resistance	Initially not fully watertight; threads contract after first rainfall
Fire Safety	Keep away from heat sources; do not light fires inside; label sewn inside
Wind Safety	Do not assemble in strong wind; use storm pegs if necessary
Usage	For travel and camping, not for commercial use
Warranty	3 years from date of purchase

Frequently Asked Questions - IAN 96427 CRIVIT

How do I set up the Crivit pop-up tent?

Remove the rubber band and throw the tent away from you into the air. It will pop up into shape. Ensure you are on a flat, firm surface.CAUTION: Poles are under tension; avoid injury.

How do I fold the tent back into its bag?

Gather all loops together with one hand, starting from the rear to let air escape. Press the top loop downward and fold all loops into each other. Secure with the elastic strap. See the manual's QR code for a video demonstration.

What are the dimensions of this tent?

Approximately 240 x 148 x 107 cm (L x W x H).

Can I wash the tent in a washing machine?

No, never machine wash. Use a soft sponge with clean water only. Machine washing can damage water repellency.

Is the tent waterproof?

The polyester material is water-repellent. It may not be completely watertight during first rainfall, but threads contract to become watertight after exposure to moisture.

How do I clean the tent?

Use a soft sponge and clean water. Avoid petrol, solvent, or harsh chemicals. Dry thoroughly before packing to prevent mold.

What should I do if the zipper sticks?

Spray the zipper with silicone spray. Zippers are wearing parts and not covered under warranty.

What is the warranty period?

3 years from date of purchase. Keep the original sales receipt as proof. The warranty covers material and manufacturing faults but not normal wear or damage from misuse.

Can I use this tent in strong wind?

Avoid assembling in strong wind. If wind is forecast, use storm pegs (available separately). Ensure tent is not too taut to adapt to changing conditions.

Is the tent safe for children?

Do not leave children unattended. The tent is not a toy or climbing frame. Climbing can cause tipping and injury.

USER MANUAL IAN 96427 CRIVIT

Model No.: Z31982A/Z31982B/Z31982C

Version: 01/2014

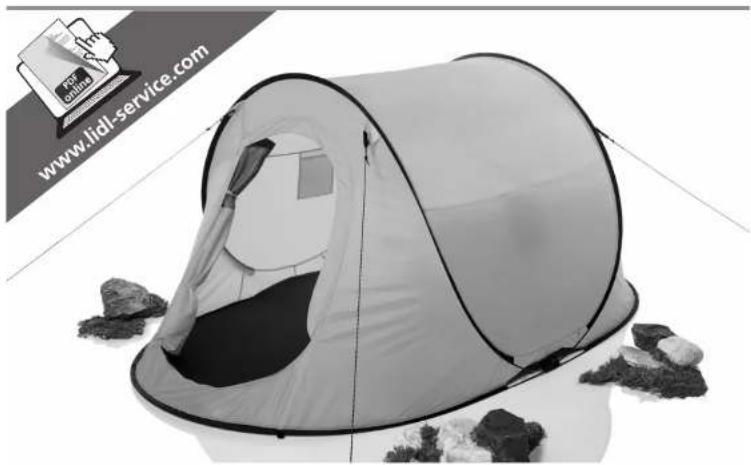

Black-and-white photo of a portable camping tent with open interior and gravel base (no text or symbols visible)

POP-UP TENT

GB IE CY

POP-UP TENT

Assembly and safety advice

DK

POP-UP-TELT

GB/IE/CY Assembly and safety advice Page 3

This product is suitable for use as accommodation when travelling and camping. The product is not intended for commercial use.

Cat. A camping tent in accordance with ISO 5912.

Performance level 1: for infrequent and short term use.

● Description of parts

1 Tent

2 Guy line

3 Tent peg

4 Carrying bag

- Technical data

Dimensions:

approx. 240 x 148 x 107 cm (L x W x H)

Safety advice

PLEASE READ THE ASSEMBLY INSTRUCTIONS BEFORE USING THE PRODUCT! PLEASE KEEP THE ASSEMBLY INSTRUCTIONS IN A SAFE PLACE!

CAUTION! RISK OF INJURY! Ensure that all parts are undamaged and have been assembled appropriately. Risk of injury exists if assembled incorrectly. Damaged parts can affect safety and function.

CAUTION! Do not leave children unattended. The product is not a climbing frame or toy. Make sure that nobody climbs or leans on the product, particularly children. The product could become imbalanced and tip up. This may result in injury and / or damage.

⚠️ CAUTION! RISK OF INJURY! Never under any circumstances assemble the product in a strong wind.

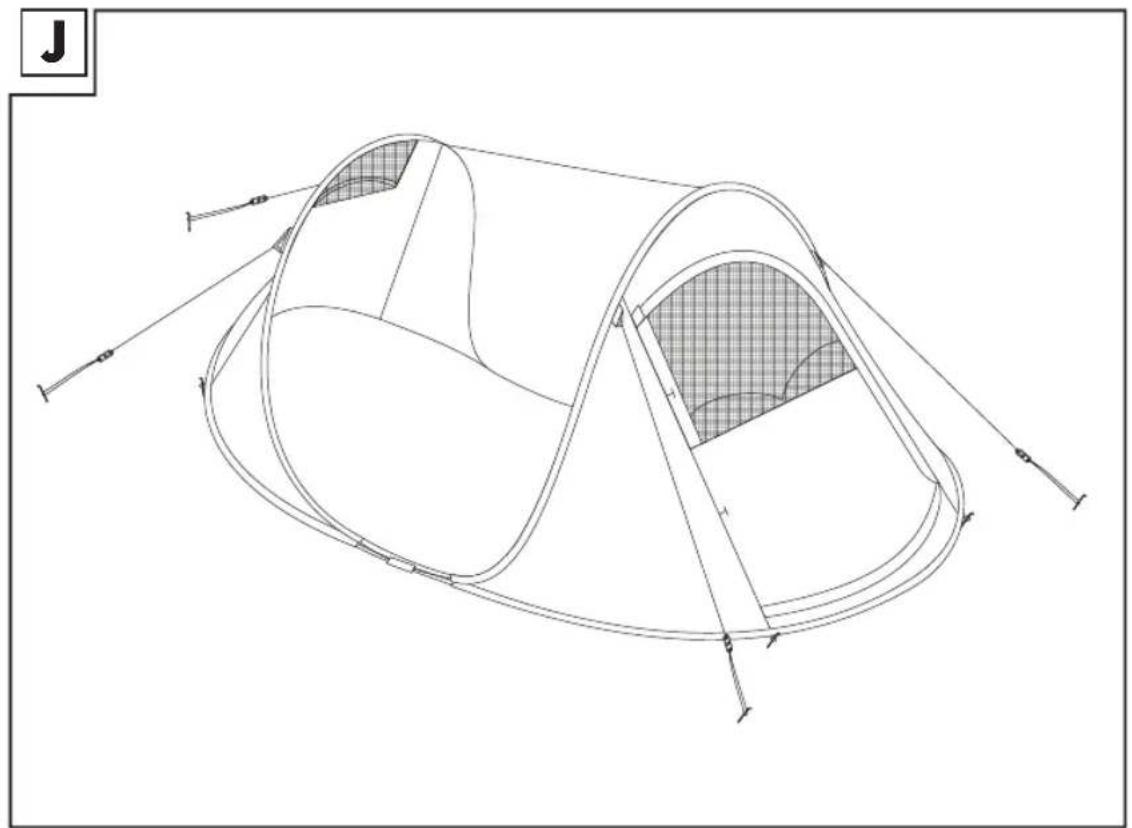

■ Select a piece of land that is as flat and firm as possible to erect your tent.

Sandy surfaces reduce the stability of the tent. Please ensure that the surface provides a firm hold for the tent pegs.

Never knock the tent pegs into the ground with force! If necessary, the guy lines should only be extended with the help of a loop and the tent peg positioned in a different location.

The intactness of all connection points and the guy lines should be checked regularly, as should the firmness of the tent pegs in the ground.

If the tent is erected in the wrong order, this may cause damage to the tent. All liability is excluded in such cases.

⚠️ CAUTION! DANGER OF POISONING AND DAMAGE TO PROPERTY! Do not

light any fires within the product and keep it away from sources of heat.

■ Precautionary measures with respect to fires are stated on a label sewn into the inside of the tent. You are advised not to remove this label.

You should also familiarise yourself with the local fire protection regulations (e.g. camping site, tent pitch).

- Keep the exit free! Do not block the exit with objects.

● Fire precautions

Camp safely. Follow these common sense rules:

- Do not place hot appliances near the walls, roof or curtains.

■ Always observe the safety instructions for these appliances.

■ Never allow children to play near hot appliances.

- Keep exits clear. Do not block the exit with objects.

■ Make sure you know the fire precaution arrangements on the site.

Take note of the effects of the weather and climate

When selecting the location to put up your tent, you should always consider the local situation and how this might change. Will the terrain turn into a lake if it rains? Please take into account any rising rivers and incoming tides.

■ Protect the product against strong wind and storms. Place the product in a location that is protected from the wind if possible.

If a strong wind is forecast, replace the normal tent pegs with special storm pegs. You can find information about meaningful supplementary products at specialist shops.

The tent should be taken down before heavy snowfall or stormy weather.

■ Remove any snow directly from the product. Otherwise the product may collapse under the weight.

■ Ensure that the tent is not too taut when it is erected, otherwise it may not be able to adapt to changing weather conditions and might be damaged.

■ Zips are wearing parts and do not fall under the guarantee conditions.

■ The polyester material of the tent consists of water-repellent material.

It is possible that during the first rainfall the tent will not be completely watertight. However, the threads of the tent will contract when exposed to water so that after a short time the tent will become watertight.

When exposed to moisture and rain, tent fabrics expand to varying degrees and make it necessary to adapt the length of the guy lines. If the material becomes taut again while drying, the guy lines have to be loosened again in good time.

Do not use any insect spray in or on the tent.

■ Small leaks on the seams can be repaired with a seam spray and impregnation spray can be used for the tent skin.

Assembly

Please ensure that the product is only assembled/disassembled by a competent person.

Erecting the tent

ATTENTION: Please note that the poles are under tension and snap into the natural shape of the tent. Taking care that the release of tension does not cause any injury.

■ Remove the rubber band and throw the product away from you into the air.

- Folding the tent

Please see a video using our QR code that demonstrates how to fold away and packing the tent.

- Grab all the loops together in one of your hands. Start at the rear end in order to allow the air escape completely through the front entrance (see fig. A-B).

- Keep the four loops gathered in one hand and put the tent into an upwards position (see fig. C).

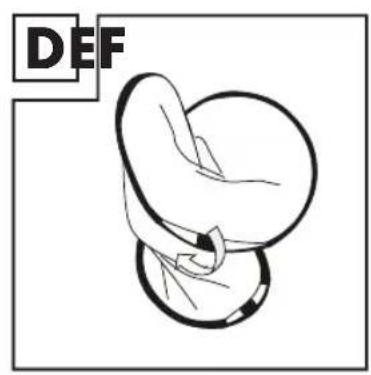

Press the tip of the upper loop towards the ground and move it towards the middle. Keep pressing downwards the new loops with one hand while the other hand keeps holding the other four loops together (see fig. D-E).

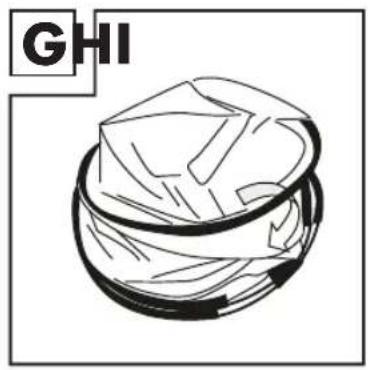

- Loose the grip of the hand that holds the 4 loops and fold all loops into each other (see fig. F-G).

- Align the loops and secure the folded tent with the elastic strap (see fig. H-I). You can now store the tent in its bag.

- Cleaning and care

CAUTION! Never wash the tent in a washing machine. Otherwise the product may lose some of its ability to keep out water.

CAUTION! Never use petrol, solvent or other cleaning agents. Otherwise there is a danger of damage to the product.

Condensation can form in all synthetic tents; you should therefore air the tent as frequently as possible in order to counteract this.

For cleaning the tent and removing any stains you should only use a cleaning agent that is specifically intended for cleaning polyester tents.

■ Remove any dirt from the tent with a soft sponge and clean water.

Please allow all parts to dry thoroughly before you repack the tent ^1 . This will prevent the formation of mould, bad odours and discolouration.

If the zipper sticks when being opened or closed, spray it with silicone spray.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

Warranty

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within three years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

POP-UP-TELT

Simple line drawing of a hat with curved lines indicating side or top views (no text or symbols)

Simple line drawing of a fruit with leaves and a curved shape, no text or symbols present

Simple line drawing of a curved object with a circular arrow, no text or symbols present

Simple line drawing of a stylized open book with closed pages, no text or symbols present

Abstract geometric line drawing with intersecting lines inside a circular frame (no text or symbols)

Simple line drawing of a cross-shaped object with diagonal lines, no text or symbols present

Line drawing of a tent-like structure with shaded interior and supporting poles (no text or symbols)
