Brand	Klarstein
Model	Sous-Vide
Product type	Sous-vide cooker (stick)
Power supply	220-240 V ~ 50-60 Hz
Temperature range	0 to 90 °C
Temperature accuracy	± 0,1 °C
Container capacity	6 to 15 litres
Timer	Adjustable in hours and minutes
Automatic shut-off	Yes, at end of timer
Material of lower part	Stainless steel
Electrical protection	Grounded plug
Cleaning	Lower part and pump cover dishwasher safe
Circulation pump	Integrated
Display	Screen with indicator lights
Controls	Buttons (+), (-), Power, settings
Fixing clamp	Yes, for pot rim
Water level alarm	Yes
Conformity	CE (EMC, LVD, RoHS)
Weight	Approx. 1,5 kg
Color	White and stainless steel

Frequently Asked Questions - Sous-Vide Klarstein

How to set the temperature and timer on the Klarstein Sous-Vide?

Plug in the device, press Power to access settings. Use the (+) and (-) buttons to set the temperature (0-90 °C). Press the settings button to set the hours then minutes. Confirm with Power. To change during operation, hold the settings button for 3 seconds.

What to do if the device does not start?

Check that the plug is properly connected to a grounded outlet and that the fuses are in working order. If the screen does not light up, try another outlet. If the problem persists, contact a professional.

What does the error code EE1 mean?

The code EE1 indicates a water level problem: not enough water or level below the MIN mark, or a short circuit. Add water up to the MAX mark. If the alarm persists, check the sensor.

How to clean the circulation pump?

Unscrew the cover at the bottom of the lower part and remove it. Clean the heating element, pump and sensor with soapy water using a soft brush, then rinse. The cover and lower part are dishwasher safe. Never immerse the upper part in water.

Can the lower part be washed in the dishwasher?

Yes, the stainless steel lower part and the pump cover are dishwasher safe. The upper part must never be immersed.

Why does the device make squeaking noises?

A squeaking sound may indicate that the lower part is loose. Retighten it by turning to the left until it clicks. If the noise persists, the mixer shaft may be misaligned: unscrew the cover and carefully center the rotor.

How to install the clamp on the pot?

Place the clamp on the rim of the container (6-15 L). Make sure it holds firmly. The stick must be immersed between the MIN and MAX marks. Use kitchen gloves during operation.

How much water should be put in the pot?

The water should be between the MIN and MAX marks on the stick. Do not exceed the upper mark. If the water level alarm triggers, add water.

Does the device shut off automatically?

Yes, when the timer reaches zero, the END icon appears and the device shuts off automatically. You can also manually turn it off by holding Power for 3 seconds.

Can distilled water be used with the Klarstein Sous-Vide?

No, do not use distilled water. Use tap water or filtered water. Distilled water may damage the device.

USER MANUAL Sous-Vide Klarstein

Pure mechanical diagram showing a lever and pivot point without any text or symbols

Line drawing of a hand holding a device with a battery and plug, showing internal components (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Technical Data 10

Declaration of Conformity 10

Safety Instructions 11

Product Description 12

Use and Operation 12

Care and Cleaning 14

Troubleshooting 15

Hints on Disposal 16

TECHNICAL DATA

Item number 10032081, 1032082
Power supply 220-240 V ~ 50-60 Hz
Temperature range 0-90 °C
Temperature stability	± 0,1 °C

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

SAFETY INSTRUCTIONS

• Counter tops such as marble and corian cannot withstand the heat generated by the circulator. Place cooking container different surface to prevent damage.
• Do not use extension cords. Never operate with a damaged cord or plug. Use properly grounded electrical outlets only.
• Do not immerse system past the top etch mark of stainless steel skirt. Only the stainless steel skirt and the pump housing are dishwasher safe. Unplug from outlet when not in use and before the cleaning process.

CAUTION

Risk of burns! The cooking container, the stainless steel portion of circulator and food pouches all get hot when used. Use oven mitts or tongs when handling.

• This system is an indoor appliance and is not a toy.
- Do not disassemble. Observe all warning labels. Do not remove warning labels.
- Do not use this appliance for anything other than intended use. (Like laboratory work or heating a hot tub)
- Firmly lock the product by clamping it on the side of your container. Place the container on an even surface to prevent spills and tipping over. Do not place unit on a stove, or in an oven.
- Do not use deionized water (DI water).
- Before plugging into a socket, check whether your voltage corresponds to the rating label of the appliance.
- Don't let children use and play with this appliance. Keep the appliance and its cord out of reach of children.
- Never use a damaged appliance. If it has been damaged, please get it to approved service center, checked or repaired.
- The supplier cord used on the appliance could not be replaced, if the supply cord is damaged the appliacne should be disposed of
- Don't let excess cord hang over the edge of the table or worktop or touch hot surface.
- Switch off the appliance and disconnected from supply before changing accessories or approaching parts which move in use.
- When the appliances work under an abnormal mains disturbance it may lose performance and maybe it is needed to be unplugged to recover the normal operation
- This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- The appliance is not designed for commercial use. It is intended for use in domestic households and in similar working and residential environments, such as staff kitchen areas, farm houses, hotels, motels and bed and breakfast type environments.

- The appliance is not intended to be operated by means of any external timer or a separate remote control system.

- Details of suitable container to be used: Unplug the immersion heater before removing it from liquid. After unplugging, the heating elements will remain hot and should not be touched or placed on combustible surface.

- If the appliance falls down into water tank by careless operation, unplugging it first, then removing it out of the tank, wipping up the water on the appliance surface, placing it in airy place. It would be ok for use after complete dry up.

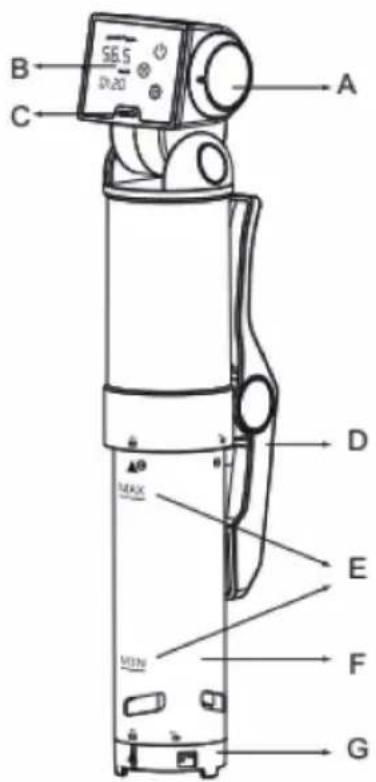

PRODUCT DESCRIPTION

A (+) and (-) adjustment buttons

B Working illuminator

C ON/OFF buttons

D Clamp

E Max and Min water level

F Stainless steel skirt

G Water pump cap

USE AND OPERATION

Setup clamp and pot

Sous Vide circulator requires a 6-15L container or pot. and make sure the container or pot capacity meets the requirement. Firmly lock the product by clamping it on the side of your container.

Pure mechanical diagram showing a curved tool or bracket with no text, numbers, or symbols

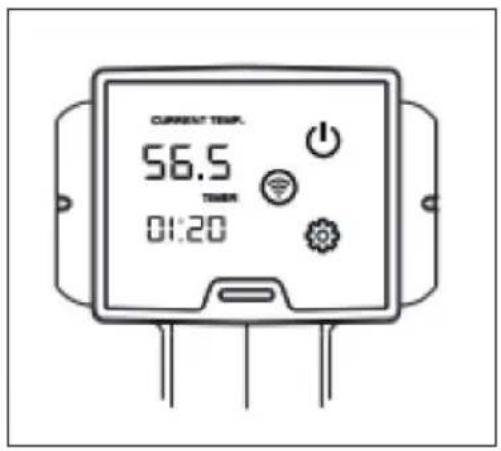

Display and operation panel

Setup temperature and timer

1 Plug it into the outlet. The icon and working lamp will be on and it will enter the standby mode. Press the ribon to enter the setting mode. You will hear a sound of beep for every pressing.
2 Temperature setting. press the (+) or (−) adjust button to set the temperature.
3 Time setting. Press the icon to set the time. You can find the timer blinks.
4 First press the (+) or (−) adjust button to set hour, then press again to set the minute. The timer will countdown when it meets the setting temperature.

Press the POWER icon again to confirm the setting and the unit will work.

4 If you want to change the setting, press and hold the uicon for 3 seconds, and then repeat the setting as above.

The unit will stop automatically when it runs out of time and an "END" icon will show on the screen.

5 Press and hold the ⏻icon for 3 seconds to stop.

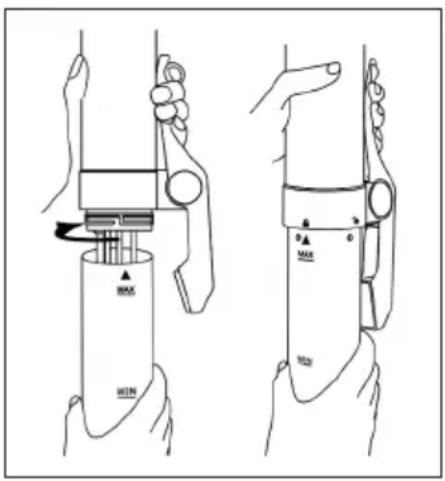

Install and Uninstall the skirt

Hold and press the clamp, align the unlocking symbol and the arrow, rotate the skirt in clockwise direction until you can see the arrow and locking symbol are in the same horizontal position. Note: Be cautious with the stainless steel propeller when it crosses over the hole of the stainless steel skirt.

Hold and press the clamp, rotate the skirt in anticlockwise direction to take off the skirt.

Note: Be cautious with the stainless steel propeller in case it hits the stainless steel skirt.

CARE AND CLEANING

Note: Always turn off and unplug the unit.

• Internal service work must be performed by certified personnel only.
  • Make sure system is at room temperature.
• Check for signs of damage including pulled cord or physical damage to system or heaters. Refer all servicing to qualified personnel.

Maintenance skirt and pump

Turn the pump cap out of the lock position then pull off.

The skirt and pump cap can be placed into the dishwasher.

For cleaning the heating coil, pump shaft, and sensors, use dish soap, a soft tooth brush and rinse under water.

Line drawing of a hand holding a device with a battery partially inserted (no text or symbols)

Note: Do not rinse the top part of the circulator including the main body in water.

TROUBLESHOOTING

Under normal operation the system will hum due to the motor, impeller and cooling fan in operation.

Grinding noise

The stainless steel skirt is loose. Push the stainless skirt up into the guide groove and turn to the right until you hear a click. With the skirt secure, the noise will go away. There also might be the chance the stirring shaft was inadvertently bent. If this is the case, unscrew the bottom pump disk and gently push the impeller until it is centered.

Slurping noise

Your pump has formed a water vortex like when you are emptying out a bathroom sink or tub. Add more water or gently disturb water with a spoon. There is no sure way to eliminate a vortex from forming due to the pump rotation but usually will go away on its own.

Gurgling and Woosh noise

The pump is sucking air - add more water. You should also see small bubbles in your tank.

Food damage

The pump's water jet is cracking eggs or damaging fish fillets: Turn the pump outlet to face the container wall; this will greatly temper the flow of the pump output. It is also good practice to bag eggs to prevent them from being "blown" around in certain containers.

System will not turn on

Check power plug and breakers.

Low water level alarm

Add more water – the water level can be dropped during operation by the pump due to water turbulence.

Low water level alarm turns on after a few seconds of operation

Add more water – The pump generates "waves" – sometimes these waves will cause the water level at the sensors to fluctuate up and down. The waves sometimes drop the water level right under the sensor and will cause a low water alarm. This is normal and you just need to add more water.

Temperature read does not match thermometer

Sous Vide circulators are calibrated to a scientific platinum primary standard which is far more accurate than store thermometers.

Lights in house are slightly flickering when system is on

This is normal as the circulator is modulating power.

Error code EE1 will be appeared in below situation with alarm sound:

• No water in tank
  • Water below minimum level
  • Appliance in situation of short cuicuit

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
