Product Type	Range Hood
Brand	AEG
Model	DBE5961HG
Control Type	Touch Sensor
Number of Speeds	4 speeds + Boost + Breeze
Maximum Motor Speed Duration	6 minutes, then returns to previous setting
Breeze Function Duration	60 minutes, then turns off
Hob to Hood Function	Yes, via infrared communication with compatible hob
Filter Alarm	Yes, visual indicator (red flashes) for grease and charcoal filters
Grease Filter Type	Metal, washable
Grease Filter Cleaning Frequency	At least once a month
Charcoal Filter Type	Non-washable, replaceable
Charcoal Filter Replacement Frequency	At least every 4 months or when alarm flashes
Lighting	LED lamp (replaceable only by a technician)
Power Supply	220-240 V, 50 Hz (standard)
Safety Information	Provided in separate installation manual
Spare Parts Availability	Original spare parts available at www.aeg.com/shop
Energy Class	Not specified in manual
Maximum Airflow	Not specified in manual

Frequently Asked Questions - DBE5961HG AEG

How do I clean the grease filter?

Remove the grease filter by pulling the handle and tilting it down. Clean it using a sponge with non-abrasive detergents or in a dishwasher at a low temperature and short cycle. Reinstall by reversing the steps. Repeat for all filters.

How do I replace the charcoal filter?

First remove the grease filters. Then press the tab on the charcoal filter and tilt it down. Install a new filter by reversing the steps. Replace at least every 4 months.

What is the Hob to Hood function?

It automatically connects the hood with a compatible hob via infrared signals. The fan speed adjusts based on the temperature of the hottest cookware. You can also control the fan manually from the hob.

How do I activate the maximum motor speed?

Press the button for maximum motor speed. It operates for 6 minutes, then returns to the previous speed setting. Additional touches have no effect during operation.

How do I reset the filter alarm?

Touch the filter alarm button for 3 seconds to reset after cleaning or replacing the filters.

Can I use the hood without a charcoal filter?

Yes, but the charcoal filter is needed for recirculation mode to absorb odors. If you do not use it, the filter alarm should be deactivated (see manual).

How do I replace the LED lamp?

The LED lamp can only be replaced by a qualified technician. Contact an Authorised Service Centre for assistance.

What is the Breeze function?

It runs the hood at the lowest speed for 60 minutes to gently ventilate the kitchen, then automatically turns off. Ideal for delicate cooking.

How do I activate or deactivate the charcoal filter notification?

With the control panel on and icons off, touch the filter button for 3 seconds. If activated, the icon flashes red five times; if deactivated, it flashes red three times.

Can I wash the charcoal filter?

No, the charcoal filter is non-washable and must be replaced when saturated. The frequency depends on cooking habits and grease filter cleaning regularity.

USER MANUAL DBE5961HG AEG

Simple line drawing of a stainless steel kitchen chimney with three dots on the base (no text or symbols)

PËRMBAJTJA

1. INFORMACIONI I SIGURISË DHE INSTALIMI....2
2. PËRSHKRIM I PRODUKTIT....3
3. PËRDORIMI I PËRDITSHËM.... 3
4. KUJDESI DHE PASTRIMI.... 4

PËR REZULTATE TË SHKËLQYERA

www.aeg.com/webselfservice

2. PËRSHKRIM I PRODUKTIT

3.2 Funksioni "Hob to Hood"

Diagram of a solar panel with a curved arrow indicating rotation or movement, no text or symbols present

Isometric line drawing of a grid-patterned rectangular object with a labeled feature '1' and no readable text or symbols.

www.aeg.com/webselfservice

Diagram of a solar panel with a curved arrow indicating rotation or movement, no text or symbols present

Isometric line drawing of a grid-patterned rectangular object with a labeled dimension '1' (no text or symbols beyond the label)

www.aeg.com/webselfservice

Registriranje vašeg proizvoda za bolji servis:

www.registeraeg.com

Kupujte dodatnu opremu, potrošni materijal i originalne rezervne dijele za svoj uređaj:

www.aeg.com/shop

BRIGA O KUPCIMA I SERVIS

3. SVAKODNEVNA UPORABA

3.1 Uporaba nape

Diagram of a solar panel with a curved arrow indicating rotation or movement, no text or symbols present

1. Očistite filtre pomoću spužve s deterdžentima koji nisu abrazivni ili u stroju za pranje posuđa.

Isometric line drawing of a grid-patterned rectangular object with a labeled feature '1' (no text or symbols beyond the label)

5. BRIGA ZA OKOLIŠ

Reciklirajte materijale sa simbolom Ambalažu za recikliranje odložite u prikladne spremnike. Pomozite u zaštiti okoliša i ljudskog zdravlja, kao i u recikliranju otpada od električnih i elektroničkih uređaja. Uređaje označene

1. Da biste instalirati novi filtar, izvršite iste korake obrnutim redoslijedom. U svakom slučaju, potrebno je zamijeniti filtre najmanje svaka četiri mjeseca.

4.3 Alarm filtra

www.aeg.com/webselfservice

Diagram of a solar panel with a curved arrow indicating rotation or movement, no text or symbols present

Isometric line drawing of a grid-patterned rectangular object with a labeled arrow indicating '1' (no text or symbols beyond the label)

www.aeg.com/webselfservice

Registrere dit produkt for bedre service:

www.registeraeg.com

Diagram of a solar panel with a curved arrow indicating rotation or movement, no text or symbols present

Isometric line drawing of a grid-patterned rectangular object with a labeled arrow pointing to a feature (no text or symbols present)

5. MILJ∅HENSYN

www.aeg.com/webselfservice

Diagram of a solar panel with a curved arrow indicating rotation or movement, no text or symbols present

1. SAFETY INFORMATION AND INSTALLATION....28
2. PRODUCT DESCRIPTION....29
3. DAILY USE....29
4. CARE AND CLEANING....30

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler - features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.aeg.com/webselfservice

Register your product for better service:

www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

⚠ Warning / Caution-Safety information

i General information and tips

Environmental information

Subject to change without notice.

1. SAFETY INFORMATION AND INSTALLATION

WARNING!

Refer to the separate Installation Instructions booklet for Safety

Information and Installation. Read carefully the Safety chapters before any use or maintenance of the appliance.

2. PRODUCT DESCRIPTION

2.1 Control panel overview

1 On / Off
2 First motor speed
3 Second motor speed
4 Third motor speed
5 Maximum motor speed

6 Breeze function
7 Filter reminder
8 Hob to Hood function
9 Lamp

3. DAILY USE

3.1 Using the hood

Check the recommended speed according to the table below.

	While heating up food, cooking with covered pots.
	While cooking with covered pots on multiple cooking zones or burners, gentle frying.
[CWS3]	While boiling, frying big quantities of food without a lid, cooking on multiple cooking zones or burners.
	While boiling, frying big quantities of food without a lid, big humidity. The hood operates on maximum speed. After 8 minutes the appliance returns to previous setting.
[AKSZ]	While delicate cooking, to vent the kitchen. The hood operates on the lowest speed. After 60 minutes the appliance turns off.

It is recommended to leave the hood operating for approximately 15 minutes after cooking.

The control Panel is a sensor field. Touch the symbols to activate the functions.

To operate the hood:

1. Turn on the appliance by pressing the Ⓐ symbol. You can now activate the functions.
2. To activate the function touch the symbol.
3. If needed, touch the light symbol to illuminate the cooking surface.

To turn off the appliance press the symbol again.

3.2 Hob to Hood function

It is an automatic function which connects the hob with a hood. Both the hob and the hood have an infrared signal communicator. Speed of the fan is defined automatically on basis of mode setting and temperature of the hottest cookware on the hob. You can also operate the fan using the hob manually. The function can be activated from panel of the hob.

For more information how to use the function refer to the hob user manual.

3.3 Activating Maximum Motor Speed

When you press the button 📋 the Maximum Motor Speed starts to operate for 6 minutes. After that time, the appliance returns to its previous speed settings.

When the function is turned on, additional touch on the button ✏ does not have any effects.

3.4 Activating and deactivating the filter notification

Filter alarm reminds to change or clean the charcoal filter and clean the grease

4. CARE AND CLEANING

4.1 Cleaning the grease filter

Each filter must be cleaned at least once a month. Filters are mounted with the use of clips and pins on the opposite side.

To clean the filter:

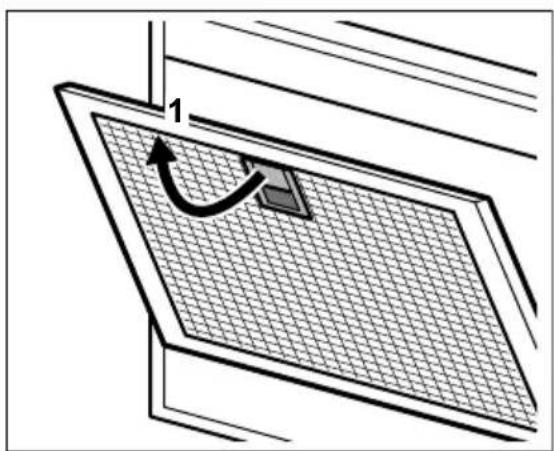

1. Pull the handle on the filter underneath the hood (1) and slightly tilt the front of the filter down.

filter. The filter indicator is turned on (red) for 30 seconds if the grease filter must be cleaned. The filter indicator flashes (red) for 30 seconds if the charcoal filter must be replaced or cleaned.

Refer to filter alarm in care and cleaning chapter.

1. Switch on the control panel.
2. Make sure that the icons are turned off.
3. To activate or deactivate the charcoal filter notification touch 🎨 for 3 seconds.

If the charcoal filter notification is activated, the filter icon ● flashes (red) five times.

If the charcoal filter notification is deactivated, the filter icon ⚙ flashes (red) three times.

Diagram of a solar panel with a curved arrow indicating rotation or movement, no text or symbols present

1. Clean the filters using a sponge with non abrasive detergents or in a dishwasher.

The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.

1. To mount the filters back follow the first two steps in reverse order. Repeat the steps for all filters if applicable.

4.2 Replacing the charcoal filter

WARNING!

The charcoal filter is non-washable!

The time of saturation of the charcoal filter varies depending on the type of cooking and the regularity of cleaning the grease filter.

To replace the filter:

1. Remove the grease filters from the appliance. Refer to "Cleaning the grease filter" in this chapter.

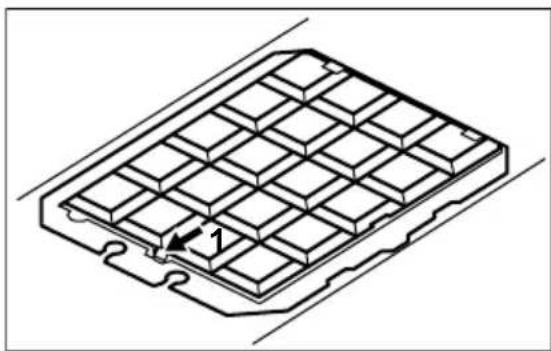

2. press the tab (1) and slightly tilt the front of the filter.

Isometric line drawing of a grid-patterned rectangular object with a labeled feature '1' (no text or symbols beyond the label)

1. To install a new filter, perform the same steps in reverse order. In any case, it is necessary to replace the filters at least every four months.

4.3 Filter alarm

Refer to activating and deactivating the filter alarm in daily use chapter.

Refer to cleaning the grease filter in this chapter.

Refer to cleaning the charcoal filter or replacing the charcoal filter (depends on filter type).

To reset the alarm:

Touch the Ⓗ for 3 seconds.

4.4 Replacing the lamp

This appliance is supplied with a LED lamp. This part can be replaced by a technician only. In case of any malfunction refer to "Service" in the "Safety Instructions" chapter.

5. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol 🌿 Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol 📄 with the household waste. Return the product to your local recycling facility or contact your municipal office.
