Product type	CPL network adapter (Powerline)
Brand	TP-Link
Model	TL-PA6030KIT
Dimensions (L x W x H)	Approximately 95 x 56 x 45 mm
Unit weight	Approximately 200 g
Power supply	100-240 V AC, 50/60 Hz, via electrical outlet
Maximum data rate	Up to 600 Mbps over power line
Ethernet port	1 RJ45 port 10/100/1000 Mbps
Pass-through socket	Yes (female socket to power other devices)
Pair button	Yes, to secure the CPL network
Indicator LEDs	Power, CPL, Ethernet
CPL standard	HomePlug AV2
Encryption	128-bit AES
Management software	tpPLC utility (Windows)
Operating temperature	0 °C to 40 °C
Operating humidity	10% to 90% RH, non-condensing
Kit contents	2 adapters, 2 RJ45 Ethernet cables, quick installation guide
Warranty	3 years limited
Maintenance and cleaning	Disconnect and clean with a dry, soft cloth
Safety instructions	Do not expose to water or fire; do not plug into a power strip; use only on a wall socket

Frequently Asked Questions - TL-PA6030KIT TP-LINK

How to reset my TP-Link TL-PA6030KIT CPL adapter?

Press and hold the Pair button on the plugged adapter until the power LED briefly turns off (about 10 seconds). You can also use the tpPLC utility to perform a software reset.

What to do if I cannot access the internet via my CPL network?

First check that all adapters are on the same electrical circuit. Ensure that the CPL LED on each adapter is on (if off, re-pair them). Check the Ethernet connections and that your computer gets a correct IP address. Also test the direct connection to the router.

How to secure my CPL network with the Pair button?

Press the Pair button on one adapter for 1 second, then within 2 minutes, press the Pair button on the other adapter for 1 second. The CPL LEDs will blink and then stay on to confirm pairing. To add more adapters, repeat the procedure with an already paired adapter.

Can I plug the CPL adapter into a power strip?

No, it is not recommended to plug the CPL adapter into a power strip. Plug it directly into a wall outlet to avoid interference and ensure performance. If the adapter has a pass-through socket, you can plug a power strip into that.

How to add a new CPL adapter to an existing network?

Plug the new adapter into an outlet near one of the already paired adapters. Press the Pair button on the existing adapter for 1 second, then within 2 minutes, press the Pair button on the new adapter for 1 second. The CPL LED will turn on to confirm.

Why is the CPL LED on my adapter off?

The CPL LED off indicates that the adapters are not paired or are on different electrical circuits. Check that they are plugged into the same circuit. If they are not paired, perform the Pair procedure.

Are CPL adapters compatible with other brands?

TP-Link adapters use the HomePlug AV2 standard and are compatible with CPL adapters from other brands that comply with this standard. However, for advanced features like encryption, it is recommended to use adapters from the same brand.

How to update the firmware of my CPL adapter?

Download the latest firmware version from the TP-Link website (model TL-PA6030KIT). Use the tpPLC utility on Windows to install the update. Make sure not to cut power during the update.

What is the maximum range of the CPL network?

The range depends on the quality and length of the electrical wiring. Under ideal conditions, the CPL signal can travel up to 300 meters on the same electrical installation. Obstacles like circuit breakers or noisy appliances can reduce the range.

How to clean and maintain my CPL adapter?

Unplug the adapter before cleaning. Use a dry, soft cloth to wipe the surface. Do not use chemicals or liquids. Avoid exposure to moisture and excessive dust.

USER MANUAL TL-PA6030KIT TP-LINK

TP-Link Technologies Co., Ltd. South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science

& Technology Park, Shennan Rd, Nanshan, Shenzhen, China

TP-Link UK Limited Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

TP-Link Hellas Ltd. Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd. Copyright © 2018 TP-Link Technologies Co., Ltd. All rights reserved.

MADE IN CHINA

7106507904 REV2.1.1

tp-link

Quick Installation Guide

Powerline Adapter

CONTENTS

01 / Deutsch
05 / English
09 / Español
13 / Ελληνικά
17 / Français
21 / Italiano
25 / Português
29 / Suomi
33 / Nederlands
37 / Svenska
41 / Norsk
45 / Dansk

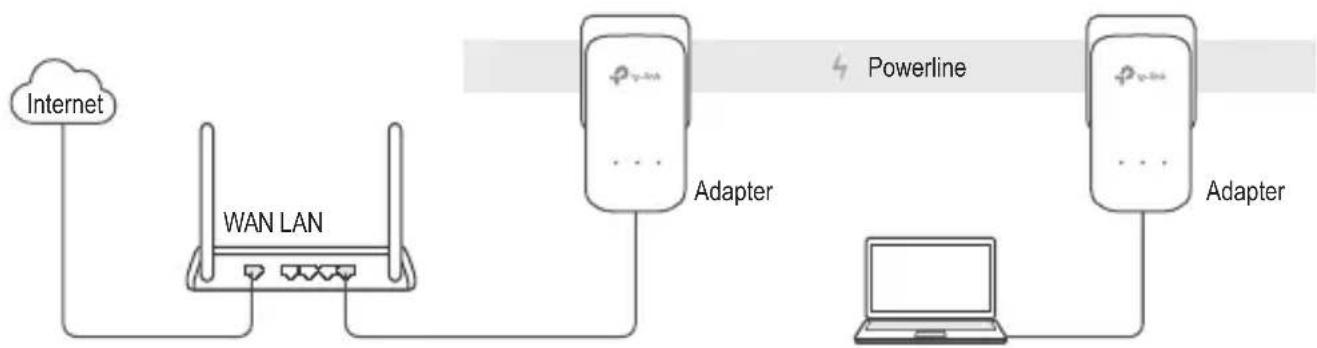

Plug and Play

1. Connect one adapter to a LAN port of your router using an Ethernet cable.
2. Plug the other adapter into the wall outlets on the same electrical circuit.
3. Wait until the Powerline LED 📁 on any adapter turns on.
4. Connect your computer to the adapter using an Ethernet cable.
5. Enjoy!

More: To add additional Powerline adapters and extenders with the default settings, simply plug them into the wall outlets on the same electrical circuit.

English

Attention

• Plug the powerline devices directly into the wall outlets but not the power strips.
• For passthrough powerline devices, plug the power strips into the integrated electrical sockets of the powerline devices.

Secure the Powerline Network with the Pair Button

Tips: We recommend that you plug in the powerline devices near each other when pairing.

Set up a secure network:

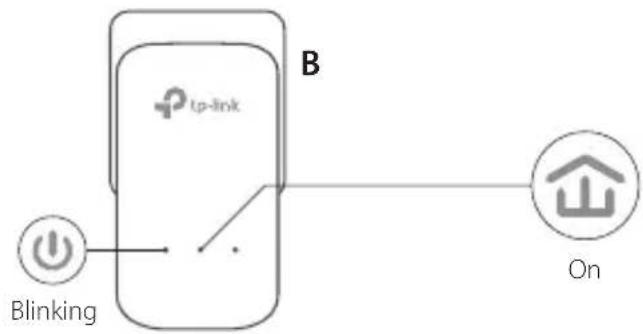

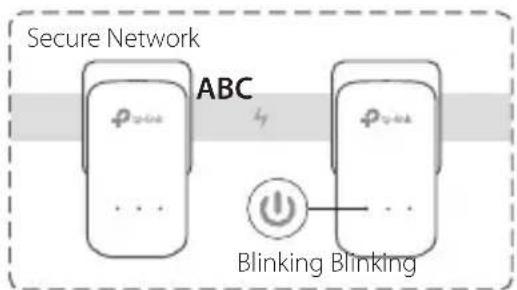

1 Press the Pair button for 1 second on one adapter.

2 Within 2 minutes, press the Pair button for 1 second on another adapter.

3 Done.

If you have more than 2 powerline devices, repeat the steps below on each additional devices to be configured:

1 Press the Pair button for 1 second on any powerline device in the secure network.

2 Within 2 minutes, press the Pair button for 1 second on the additional powerline device.

3 Done.

FAQ (Frequently Asked Questions)

Q1. How do I reset my powerline adapter?

A1. With the powerline adapter plugged into to the electrical outlet, press and hold the Pair button until the Power LED ⏻ goes off momentarily and comes back on.

A2. Use the tpPLC Utility to reset the powerline adapter.

English

Q2. How to troubleshoot if there is no internet connection in my powerline network?

A1. Make sure all powerline devices are on the same electrical circuit.

A2. Make sure all Powerline LEDs are on. If not, pair your adapters and extenders again.

A3. Make sure all hardware connections are correctly and securely connected.

A4. Check if you have an internet connection by connecting the computer directly to the modem or router.

A5. Make sure your computer's IP address is in the same segment as your router's.

Q3. What can I do if a successfully-paired powerline device does not reconnect after it has been moved to a new location?

A1. Try another socket and make sure it is on the same electrical circuit.

A2. Try to pair it again, and make sure the Powerline LED is on.

A3. Check for possible interference, such as a washer, air conditioner or other household appliances that may be too close to one of the powerline devices. Plug the appliance into the integrated electrical socket (if the powerline device has one) to remove some electrical noise.

More advanced configurations, such as firmware upgrade and QoS configuration, can be accessed through the tpPLC Utility. You can install the tpPLC Utility from the TP-Link official website.

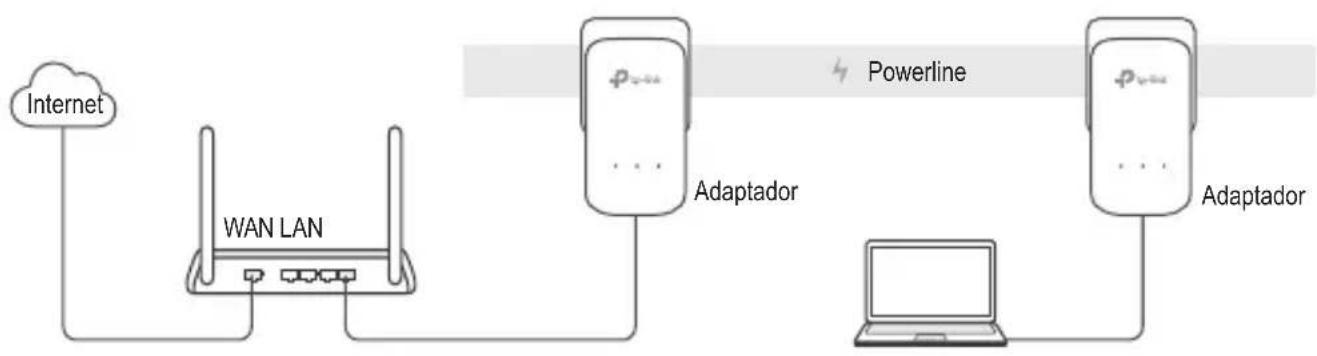

Plug and Play

FAQ (Perguntas Frequentes)

TP-Link hereby declares that this device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.

Español

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.
• Plug the powerline devices directly into the wall outlets but not the power strips.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.

Español
