Product type	Range hood
Brand	Hotpoint
Model	HHVP 6.6F LM K
Height (min - max)	71 - 104.5 cm
Width	79.5 - 104.5 cm (depending on version)
Depth	59.8 cm
Exhaust duct diameter	15 cm
Power supply	220-240 V ~ 50 Hz
Motor power	Not specified (estimated ~200 W)
Lighting	LED, replacement by authorized service
Controls	Touch controls, 3 suction speeds + timed intensive
Timer	Programmable delayed shutdown (5 min)
Grease filter	Metal, dishwasher safe
Charcoal filter	Optional (recirculation), replace every 4 months
Minimum cooking distance	45 cm (electric) / 65 cm (gas)
Safety function	Automatic shutdown in case of overheating
Installation	External extraction or recirculation (kit not included)
Estimated weight	Approximately 15 kg
Repairability index	Not specified (estimated 7/10)

Frequently Asked Questions - HHVP 6.6F LM K HOTPOINT

How to clean the grease filter?

The metal grease filter must be cleaned once a month by hand or in the dishwasher (quick cycle, low temperature). Use non-aggressive detergents. To remove it, pull the spring release handle.

When should the charcoal filter be replaced?

The charcoal filter (if installed) must be replaced every 4 months at most. It cannot be cleaned or regenerated. The saturation signal appears on the control panel.

How to switch to recirculation mode (filter version)?

To use the hood in filter version, you must install an accessory kit including a charcoal filter. Follow the instructions in the manual. If the charcoal filter is already provided, it may be pre-installed.

What to do if the hood stops working?

First check that the power supply is connected and that a speed is selected. If the problem persists, unplug the hood for 5 seconds then plug it back in. Contact customer service if necessary.

How to set the automatic shut-off timer?

Press the programmed shutdown button (T5) to activate a delayed shutdown of the suction speed after approximately 5 minutes. The indicator flashes during the countdown.

What is the minimum distance between the hood and the hob?

The minimum distance is 45 cm for electric cookers and 65 cm for gas or mixed cookers. Follow the cooker manufacturer's instructions if they specify a greater distance.

How to replace an LED lamp?

LED lamps can only be replaced by an authorized service center. Contact after-sales service to obtain spare parts and perform the repair.

What does the flashing indicator light on the panel mean?

A flashing indicator indicates either grease filter saturation (maintenance required) or charcoal filter saturation (if enabled). After cleaning or replacement, reset the signal by pressing and holding button 3.

Can I use the hood without the lamps installed?

No, never use the hood without the lamps properly mounted, as this presents a risk of electric shock. The lamps must be in place to ensure safety.

How to reduce hood noise?

Use the hood at minimum speed during cooking and let it run for a few minutes after. Ensure that the exhaust duct has the recommended diameter (15 cm) and that bends are limited to minimize noise.

USER MANUAL HHVP 6.6F LM K HOTPOINT

EN Instructions for use

Two schematic diagrams of a building interior layout with ventilation and airflow indicators (no text or symbols)

14

Technical line drawing of a rectangular enclosure with ventilation grilles and two arrows indicating direction (no text or symbols)

Illustration of a hand using a tool to cut a mechanical component with an open lock icon (no text or symbols)

Diagram of a device with internal components and airflow indicators, showing no text or symbols

16

RU

ОБЩИЕ ПРАВИЛА ТЕХНИКИ БЕЗОПАСНОСТИ

Hand holding a mechanical component with a black arrow indicating direction (no text or symbols)

Diagram showing three layered solar panel structures with internal grid patterns and a dotted connection to a rectangular panel (no text or symbols)

Diagram of a mechanical fan assembly with two blades and internal blades, showing airflow direction (no text or labels)

Замена ламп

Silhouette of a person pushing a shopping cart (no text or symbols)

ЖАЛПЫ КАУІПСІЗДІК

Hand holding a small electronic device with a black arrow pointing to its component (no text or symbols visible)

Diagram showing three stages of solar panel installation with grid lines and arrows indicating assembly (no text or symbols)

Diagram of a mechanical fan assembly with two blades and internal blades, showing airflow direction (no text or labels)

Лампаларды ауыстыру

Silhouette of a person pushing a shopping cart (no text or symbols)

FR

SÉCURITÉ GÉNÉRALE

Hand holding a mechanical component with a black arrow indicating direction (no text or symbols)

Diagram showing three stages of solar panel installation with grid lines and arrows indicating assembly (no text or symbols)

Technical illustration of a fan assembly with two blades and internal blades, showing airflow direction (no text or symbols)

Silhouette of a person pushing a shopping cart (no text or symbols)

HU

ÁLTALÁNOS BIZTONSÁGI ELŐÍRÁSOK

Hand holding a mechanical component with a black arrow indicating direction (no text or symbols)

Diagram showing three stages of solar panel installation with arrows indicating assembly or process (no text or symbols present)

Köralakú szénfilter

Diagram of a mechanical fan assembly with two blades and a central fan, showing airflow direction (no text or labels)

Izzók cseréje

Silhouette of a person pushing a shopping cart (no text or symbols)

PL

OGÓLNE BEZPIECZEŃSTWO

Hand holding a mechanical component with a black arrow indicating direction (no text or symbols)

Diagram showing three stages of solar panel installation with arrows indicating assembly or process (no text or symbols present)

Technical illustration of a fan assembly with blades and fan blades, showing internal structure and airflow direction (no text or symbols)

Wymiana żarówek

Silhouette of a person pushing a shopping cart (no text or symbols)

HR

UPOZORENJA

- Prije bilo koje operacije čišćenja ili održavanja, odvojite napu od električnog napajanja uklanjanjem utičnice ili odspajanjem glavnog prekidača u kući.

Hand holding a mechanical component with a black arrow indicating direction (no text or symbols)

Diagram showing three stages of solar panel installation with grid lines and arrows indicating assembly (no text or symbols)

Technical diagram of a fan assembly with two blades and a central fan blade, showing airflow direction (no text or labels)

Zamjena žarulja

Silhouette of a person pushing a shopping cart (no text or symbols)

RO

SIGURANTĂ GENERALĂ

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram showing three layered solar panel structures with internal components and directional arrows indicating assembly or process (no text or symbols present)

Diagram of a fan assembly with blades and fan blades, showing internal structure and airflow direction (no text or labels)

Silhouette of a person pushing a shopping cart (no text or symbols)

CS

VŠEOBECNÁ BEZPEČNOSTNÍ OPATŘENÍ

Hand holding a small electronic device with a black arrow pointing to its component (no text or symbols visible)

Diagram showing three stages of solar panel installation with grid lines and arrows indicating assembly (no text or symbols)

Technical diagram of a mechanical fan assembly with two blades and internal blades, showing airflow direction (no text or labels)

Výměna svítidel

Silhouette of a person pushing a shopping cart (no text or symbols)

VŠEOBECNÁ BEZPEČNOST

Hand holding a mechanical component with a black arrow indicating direction (no text or symbols)

Diagram showing three stages of solar panel installation: top-down, front-down, and back-up with arrows indicating assembly or process (no text or symbols present)

Okružno uhoľný filter

Diagram of a fan assembly with two blades and internal blades, showing airflow direction (no text or labels)

Výmena žiaroviek

Odsávač pary je vybavený systémom osvetlenia založenom na technoloógii LED.

Silhouette of a person pushing a shopping cart (no text or symbols)

BG

ОБЩА БЕЗОПАСНОСТ

Illustration of a hand using a tool to cut or adjust a mechanical component (no text or symbols visible)

Diagram illustrating solar panel installation process with layered structure and directional arrows (no text or symbols)

Diagram of a mechanical fan assembly with two blades and internal blades, showing airflow direction (no text or labels)

Подмяна на лампите

Silhouette of a person pushing a shopping cart (no text or symbols)

UK

Hand holding a mechanical component with a black arrow indicating direction (no text or symbols)

Diagram showing three stages of solar panel installation with grid lines and arrows indicating assembly (no text or symbols)

Diagram of a mechanical fan assembly with two blades and internal blades, showing airflow direction (no text or labels)

Заміна лампочок

Silhouette of a person pushing a shopping cart (no text or symbols)

EL

ΓΕΝΙΚΗ ΑΣΦΑΛΕΙΑ

Hand holding a small electronic device with a black arrow pointing to its component (no text or symbols visible)

Diagram showing three layered solar panel structures with internal components and directional arrows indicating assembly or process (no text or symbols)

Diagram of a fan assembly with two blades and internal blades, showing airflow direction (no text or labels)

Silhouette of a person pushing a shopping cart (no text or symbols)

SL

SPLOŠNA VARNOST

Illustration of a hand using a tool to cut or adjust a mechanical component (no text or symbols visible)

Diagram showing three stages of solar panel installation with arrows indicating assembly or process (no text or symbols present)

Technical diagram of a fan assembly with blades and fan blades, showing internal structure and airflow direction (no text or labels)

Zamenjava žarnic

Silhouette of a person pushing a shopping cart (no text or symbols)

Komponente niso priložene izdelku

IT

SICUREZZA GENERALE

Hand holding a small electronic device with a black arrow pointing to its component (no text or symbols visible)

Diagram showing three stages of solar panel installation with arrows indicating assembly or process (no text or symbols present)

Diagram of a fan assembly with two blades and internal blades, showing airflow direction (no text or labels)

Silhouette of a person pushing a shopping cart (no text or symbols)

EN

GENERAL SAFETY

• Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.
  • Always wear work gloves for all installation and maintenance operations.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not be allowed to tamper with the controls or play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.
• The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).
• This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.
• Do not flambé under the range hood.
• Do not remove filters during cooking.
• For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.
  The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.
  Any frying must be done with care in order to make sure that the oil does not overheat and ignite.
  CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.
• Do not connect the appliance to the mains until the installation is fully complete.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.
• The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.

⚠ WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

- Never use the hood without effectively mounted grids.

- The hood must NEVER be used as a support surface unless specifically indicated.

- Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

- Use the correct length for the screws which are identified in the Installation Guide.

• In case of doubt, consult an authorized service assistance center or similar qualified person.

⚠ WARNING! Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

Very young children(0-3years) should be kept away from the appliance. Young children (3-8 years) should be kept away from the appliance unless continuously supervised.

CAUTION:The appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system.
This appliance is not for professional use. Do not use the appliance outdoors.
The appliance must be handled and installed by two or more persons-risk of injury.
⚠️ Installation, including water supply (if any), electrical connections and repairs must be carried out by a qualified technician.

Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children – risk of suffocation.

Do not use the appliance when you are wet or barefoot.

Never use steam cleaning equipment – risk of electric shock.

The packaging material is 100% recyclable and is marked with the recycle symbol.

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

• It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
• Read the instructions carefully: there is important information about installation, use and safety.
• Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
• Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

- The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 45cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

ELECTRICAL CONNECTION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

⚠ WARNING! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

If the cable is not fitted with a plug, connect the wires according to the following table:

Mains voltage and frequency

Refer to the rating indicated on the plate inside of the hood

Wire connection

N : blue

L : brown

Replacing the power cable

The hood is provided with a special power cable; if the cable is damaged, request a new one from Technical Service.

AIR VENT

(for the suction versions)

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.
! Use a duct with as few elbows as possible (maximum elbow angle: 90°).
! Avoid drastic changes in the duct cross-section.
! The company declines any responsibility whenever these regulations are not respected.

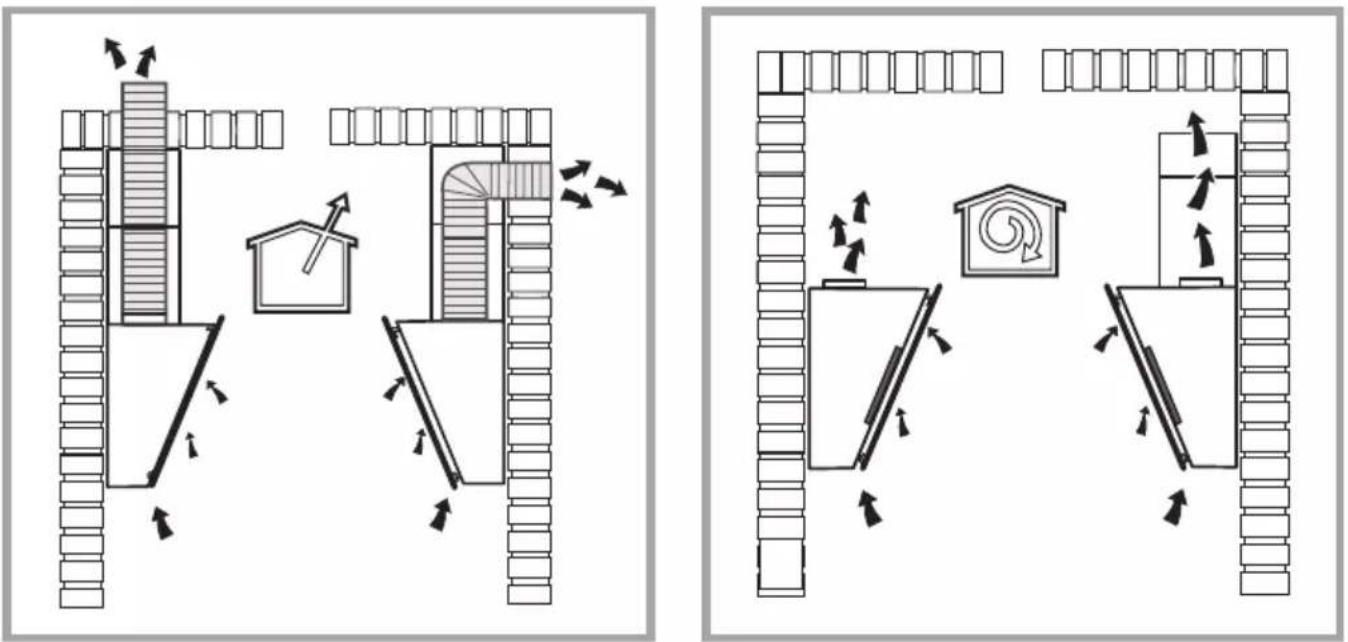

FILTERING OR DUCTING ?

! Your cooker hood is ready to be used in suction version.

To use the hood in filtering version the special ACCESSORY KIT must be installed.

Check on the first pages of this manual if the ACCESSORY KIT is furnished or must be bought separately.

Note: If furnished, in certain cases, the additional activated carbon filtering system may be installed on the hood.

Information about the conversion of the hood from suction version to filtering version is present in this manual.

Ducting version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

CAUTION!

The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

CAUTION!

If the hood is supplied with active charcoal filter, then it must be removed.

Filter version

The aspirated air will be degreased and deodorised before being fed back into the room.

In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.

CONTROLS

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

T1

T2

T3

T4

T5

To select the functions of the hood, simply touch the commands:

T1. Button to increase suction speed (power):
T2. Button to decrease suction speed (power).
T3. Button ON/OFF hood
T4. Button ON/OFF lighting
T5. Button ON/OFF programmed switching off: it programs switching off of the active suction speed (power) after approximately 3 minutes.

1. OFF / Extraction speed (power) decrease button

2. ON / Extraction speed (power) increase button

Note: The intensive extraction speed (power) is timed and lasts for 5 minutes (indicator c flashes); the hood then reverts to extraction speed (power) 2.

1. ON/OFF Timer button: delays the deactivation of the selected extraction speed (power) by 5 minutes.

Note: the button is also used for the "Filter saturation signal reset" function

1. Light ON/OFF button

2. Display, shows:

a. Extraction speed (power): the indicator rotates according to the selected extraction speed (power).

Safety operation: the indicator flashes.

b. Grease filter saturation: comes on when filter maintenance is required.

c. Timer

d. Active carbon filter saturation: comes on when filter maintenance is required.

Note: this function is normally disabled and should only be activated if the hood is used as a filter version (with carbon filter fitted).

To do so, proceed as follows:

- switch off the hood

- press and hold buttons 1 and 3 at the same time, until the indicator stops flashing (indicator disabled) and is lit steadily (indicator enabled).

- release the buttons.

To deactivate it, repeat the procedure: the indicator will no longer be lit steadily (indicator enabled) and will flash instead (indicator disabled).

e. Lighting

Safety operation

The hood has a sensor which, in the event of a sudden increase in temperature, activates the appliance until the temperature drops significantly.

Filter saturation signal reset

After carrying out filter maintenance, press and hold button 3 until indicator.

T1. ON/OFF light switch
T2. Speed 1/OFF switch
T3. 2-speed selection
T4. 3-speed selection

MAINTENANCE

Cleaning

Clean using ONLY a cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

Perimeter aspiration panel

Clean the perimeter aspiration panel with the same frequency as the anti-grease filter, using a cloth and not too concentrated liquid detergent. Do not use abrasive substances.

Maintenance of the anti-grease filters

Traps cooking grease particles.

The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolor slightly, but this does not affect its filtering capacity. To remove the grease filter, pull the spring release handle.

Illustration of a hand using a tool to cut or adjust a mechanical component (no text or symbols visible)

Maintenance of the charcoal filter

It absorbs unpleasant odors caused by cooking. Synthetic mat filter (supplied with the product)

The charcoal filter can be washed once every two months (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using hot water and a suitable detergent, or in a dishwasher at 65^ C (if the dishwasher is used, select the full cycle function and leave dishes out).

Eliminate excess water without damaging the filter, then put it in the oven for 10 minutes at 100^ C to dry completely. Replace the mattress every 3 years and when the cloth is damaged.

The synthetic mat filter can be replaced with the round carbon filter.

Diagram showing three stages of a solar panel installation with arrows indicating assembly or process (no text or symbols present)

Circular charcoal filter

Apply one on each side as cover to both the shield grids of the motor impeller, then turn clockwise.

For the disassembly, turn counter-clockwise.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four months.

The charcoal filter may NOT be washed or regenerated.

Technical diagram of a fan assembly with blades and fan blades, showing internal structure and airflow direction (no text or labels)

Replacing lamps

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times longer than the traditional lamps and allow to save 90% electrical energy.

To replace lights, contact authorised spare part center.

DISPOSAL

• This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE).
- By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

• The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.
• For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
• Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.
- EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

MALFUNCTIONS

If something appears not to be working properly, do the following simple checks before calling Technical Service:

• If the hood is not working:

Check that:

- The power has not been disconnected.

- A speed has been selected.

• If the hood performs inefficiently:

Check that:

• The motor speed selected is sufficient for the amount of smoke and vapours released.
• The kitchen is sufficiently ventilated to allow air intake.
• The charcoal filter is not worn (hood in filtering version).

• If the hood has turned off during normal functioning:

Check that:

- The power has not been disconnected.

- the omnipolar disconnection device has not tripped.

If the hood fails to operate correctly, briefly disconnect it from the mains power supply for almost 5 sec. Then connect it in again and try once more before contacting the Technical Assistance Service.

TECHNICAL DATA

Height (cm)		Width (cm)	Depth (cm)	∅ of the exhaust tube (cm)
	71-104,5	59,8	32,6	15
	79,5-104,5
	71-104,5	79,8	32,6	15
	79,5-104,5

Silhouette of a person pushing a shopping cart (no text or symbols)

Components not provided with the product

You can download the Safety Instructions, User Manual, Product Fiche and Energy data by:

• Visiting our website docs.hotpoint.eu
• Using QR Code
  • Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

TR

GENEL GÜVENLİK

Illustration of a hand using a tool to cut or adjust a mechanical component (no text or symbols visible)

Diagram showing three stages of a solar panel installation with arrows indicating assembly or process (no text or symbols present)

Sirküler karbonlu filtre

Diagram of a fan assembly with two blades and internal blades, showing directional arrows indicating motion (no text or labels)

Silhouette of a person pushing a shopping cart (no text or symbols)

ALLMÄN SÄKERHET

Yttre utsugningspanel

Illustration of a hand using a tool to cut or adjust a mechanical component (no text or symbols visible)

Diagram showing three stages of solar panel installation with arrows indicating assembly and rotation (no text or symbols)

Runda Kolfilter

Diagram of a mechanical fan assembly with two blades and internal blades, showing airflow direction (no text or labels)

Utbyte av lampor

Silhouette of a person pushing a shopping cart (no text or symbols)

NO

ADVARSEL

1. Lys PA/AV-knapp

2. Display, viser:

a. Sugehastighet (sugeeffekt): Indikatoren dreier til valgt sugehastighet (sugeeffekt).

Sikkerhetsfunksjon: Indikatoren blinker.

T1. Lysbryter ON/OFF.

T2. Bryter OFF/hastighet 1

T3. Hastighetsvelger 2

T4. Hastighetsvelger 3

VEDLIKEHOLD

Rengjøring

Panelet for oppsuging langs kanten

Illustration of a hand using a tool to cut or adjust a mechanical component (no text or symbols visible)

Diagram showing three stages of solar panel installation with arrows indicating assembly or process (no text or symbols present)

Technical diagram of a fan assembly with blades and fan blades, showing internal structure and airflow direction (no text or labels)

Silhouette of a person pushing a shopping cart (no text or symbols)

Du kan laste ned Sikkerhetsinstruksene, Brukerhåndboken, Produktkortet og Energidata ved:

DA

GENEREL SIKKERHED

Illustration of a hand holding a small electronic device with a black arrow pointing to its component (no text or symbols present)

Diagram showing three stages of solar panel installation with arrows indicating assembly or process (no text or symbols present)

Rundt kulfilter

Technical diagram of a fan assembly with blades and fan blades, showing internal structure and airflow direction (no text or labels)

Silhouette of a person pushing a shopping cart (no text or symbols)

FI

YLEINEN TURVALLISUUS

Illustration of a hand using a tool to cut or adjust a mechanical component (no text or symbols visible)

Diagram showing three stages of a solar panel installation with arrows indicating assembly or process (no text or symbols present)

Technical diagram of a fan assembly with blades and internal blades, showing airflow direction (no text or labels)

Lamppujen vaihto

Silhouette of a person pushing a shopping cart (no text or symbols)

PT

SEGURANÇA GERAL

Hand holding a small electronic device with a black arrow pointing downward (no text or symbols visible)

Diagram showing three stages of solar panel installation: top-down, front-down, and back-up with arrows indicating assembly or process (no text or symbols present)

Technical diagram of a fan assembly with two blades and internal blades, showing airflow direction (no text or labels)

Silhouette of a person pushing a shopping cart (no text or symbols)

ES

SEGURIDAD GENERAL

Hand holding a small electronic device with a black arrow pointing to its component (no text or symbols visible)

Diagram showing three stages of a solar panel installation with arrows indicating assembly or process flow (no text or symbols present)

Filtro de carbòn circular

Technical diagram of a fan assembly with two blades and internal blades, showing directional arrows indicating motion (no text or labels)

Silhouette of a person pushing a shopping cart (no text or symbols)

SICUREZZA GENERALE

Illustration of a hand using a tool to cut or adjust a mechanical component (no text or symbols visible)

Diagram showing three stages of solar panel installation with grid lines and arrows indicating assembly (no text or symbols)

Technical diagram of a fan assembly with two blades and internal blades, showing airflow direction (no text or labels)

Silhouette of a person pushing a shopping cart (no text or symbols)

Silhouette of a person pushing a shopping cart (no text or symbols)

Diagram showing three layered solar panel structures with internal components and directional arrows indicating assembly or process (no text or symbols)

Technical illustration of a mechanical fan assembly with two blades and internal blades, showing motion arrows (no text or symbols)

استبideal المصابيح

Hand holding a mechanical component with a black arrow indicating direction (no text or symbols)

صيانة مرشح الكربون
