FGW 84 B1 - Barbecue FLORABEST - Free user manual and instructions

Product type	Charcoal barbecue on trolley
Brand	Florabest
Model	FGW 84 B1
Dimensions (L × H × D)	approx. 84 × 86 × 45 cm
Cooking grid dimensions	approx. 48 × 27 cm
Weight	approx. 6.8 kg
Fuel	Charcoal (do not use briquettes)
Charcoal container capacity	max. 1 kg
Cooking surface	Cooking grid and rotisserie
Main functions	Grilling, roasting (rotisserie)
Windshield	3 removable parts
Wheels	2 wheels for mobility
Carrying handle	Yes, with holder
Integrated bottle opener	Yes, on the leg
Usage	Outdoor, open air, private use only
Maintenance and cleaning	Clean after complete cooling with water and mild detergent
Safety instructions	Do not use indoors; flat, heat-resistant surface; keep away from children
Warranty	3 years (TARGA GmbH)
Customer service	Phone: 01 - 70700853 (FR), Email: [e-mail]
Delivery contents	Barbecue unassembled, rotisserie, windshield, grid, assembly tools, instruction manual

Frequently Asked Questions - FGW 84 B1 FLORABEST

What type of fuel should be used with the Florabest FGW 84 B1 barbecue?

Use only charcoal. Never use charcoal briquettes, gasoline, or denatured alcohol.

Can I use this barbecue indoors?

No, this barbecue is designed for outdoor use only. Using it in an enclosed space (house, tent, caravan) poses a risk of carbon monoxide poisoning.

How to light the barbecue safely?

Use firelighters compliant with EN 1860-3. Place 2-3 firelighters on the charcoal, light them, then add the remaining charcoal. Never use hair dryers or denatured alcohol.

What to do if grease catches fire?

Never pour water on the flames. Use a fire blanket or a suitable fire extinguisher to smother the fire.

How to clean the barbecue after use?

Wait for the barbecue to be completely cool. Use a cloth, warm water, and a mild detergent. Avoid abrasive products. For the grid, pre-soaking may facilitate cleaning.

Is the barbecue delivered assembled?

No, the barbecue is delivered unassembled. The manual details assembly in 8 steps. Assembly tools are included.

What is the capacity of the charcoal container?

The maximum capacity is about 1 kg of charcoal.

Can I use the barbecue in rainy weather?

It is not recommended to use the barbecue in the rain. Use it only on a flat, solid, heat-resistant surface, sheltered from wind if possible.

How to store the barbecue in winter?

Clean it thoroughly and store it in a dry, clean place, protected from the weather. Ensure the embers are completely extinguished and cooled.

What to do in case of defect or breakdown?

Contact customer service at the numbers indicated in the manual. The legal warranty of 3 years covers material and manufacturing defects. Keep the receipt.

USER MANUAL FGW 84 B1 FLORABEST

Black outdoor grill with wheels and a flat top, no visible text or symbols on the main subject.

Operating instructions and safety instructions

FR BE

21	22	23	24	25	26
M5X10	M4 X10	M5	M8	∅5.4	M4x10
49x	2x	49x	2x	49x	2x

English....2

Français....16

Nederlands....33

Deutsch 47

Contents

1. Intended use.... 3
2. Copyright 3
3. Package contents 4
4. Assembly material.... 4
5. Technical data .... 5
6. Safety instructions .... 5
7. Assembly......6
   7.1. Required tools....6
   7.2. Assembly preparation....6
8. Initial use.... 12
9. Cleaning/care.... 13
10. Storing the device when not in use 13
11. Environmental and waste disposal information.... 13
12. Notes on guarantee and service.... 14

Congratulations!

By purchasing the Florabest FGW 84 B1 trolley barbecue, hereinafter referred to as barbecue, you have opted for a high-quality product.

Familiarise yourself with the product and the components supplied before assembling the barbecue and read these operating instructions carefully. Observe the safety instructions and only use the barbecue in the manner described in these operating instructions and for the indicated fields of application.

Keep these operating instructions in a safe place. Hand over all documents in the event that you pass on the barbecue to a third party.

1. Intended use

This barbecue is only designed to barbecue food such as meat, fish and vegetables. This barbecue is for outdoor use only. Never use the barbecue indoors. It is not intended for business or commercial use. Use the barbecue solely for private purposes; any other use is deemed improper.

The manufacturer shall not be liable for any damage or faults arising as a result of changes or modifications made to the barbecue without the approval of the manufacturer.

Please observe the national regulations and/or laws in the respective country of use.

2. Copyright

All contents of these operating instructions are subject to copyright law and are provided to the user solely as a source of information. Any form of copying or reproduction of data and information without the express written permission of the author is prohibited. This also concerns commercial use of the content and data. The text and illustrations correspond to the technical standards at the time of printing. Subject to alterations.

3. Package contents

Unpack the barbecue and all of the accessories. Remove all packaging materials and check all of the components for completeness and signs of damage. If any parts are missing or damaged, please contact the manufacturer.

• Barbecue (not assembled)
• Assembly material
  • These operating instructions

These operating instructions also have a cover that can be unfolded. The inside of the cover provides a schematic of the barbecue and a number legend. The numbers identify the following parts/functions:

1 Barbecue rotisserie (including brackets)
2 Wind guard (left)
3 Wind guard (middle)
4 Wind guard (right)
5 Cooking grate
6 Charcoal basket
7 Handle
8 Handle bracket (2)
9 Bottle opener
10 Leg (2)
11 Cross-support (2)
12 Shelf slat (long, 5)
13 Wheel (2)
14 Axle
15 Wheel leg (2)
16 Hooks (3)
17 Reinforcing bar (2)
18 Slat holder (front, back)
19 Shelf slat (short, 3)
20 Handle (for the cooking grate, 2)

4. Assembly material

21	22	23	24	25	26
M5X10	M4X10	M5	M8	∅5.4	M4x10
49x	2x	49x	2x	49x	2x

4 - English

5. Technical data

Model Florabest FGW 84 B1
Dimensions when assembled (W x H x D) Approx. 84 x 86 x 45 cm
Dimensions of cooking grate (W x D) Approx. 48 x 27 cm
Fuel Charcoal (not charcoal briquettes)
Charcoal basket capacity max. 1 kg
Weight Approx. 6.8 kg

The specifications and design are subject to change without notice.

6. Safety instructions

Before using the barbecue for the first time, read the following instructions carefully and observe all warnings. Keep these operating instructions in a safe place for future reference. If you give the device away or sell it, please ensure that you also pass on this manual. It is part of the product.

Explanation of symbols used

DANGER! This icon, together with the word 'Danger', indicates an impending dangerous situation that, if not prevented, can lead to serious injuries or even death.

WARNING! This icon indicates important information for the safe operation of the barbecue and user safety.

DANGER! This icon indicates impending danger of scalding/burning.

Do not use the barbecue in a confined and / or habitable space e.g. houses, tents, caravans, motor homes, boats. Danger of carbon monoxide poisoning fatality.

DANGER! Never use the barbecue indoors. Otherwise you could be in danger of carbon monoxide poisoning, which can lead to death in a very short time.

DANGER! Always place the barbecue on an even, heat-resistant, solid surface and not in the vicinity of flammable materials, liquids or gases. Ensure a sufficient distance from walls and other objects and never leave the barbecue unattended when in use and after use for as long as it is still warm. There is a risk of fire!

DANGER! Only light the barbecue with firelighters that conform to the requirements of the European EN 1860-3 standard. Never use petrol or methylated spirits. There is danger of deflagration or uncontrollable heat generation that can lead to serious burn injuries or fire. There is a risk of injury and fire!

DANGER! Do not use a hairdryer or similar device. There is a risk of flying sparks, and the barbecue could become damaged.

DANGER! Never use water to extinguish if there is grease on the barbecue. This can cause an explosive deflagration. Instead, use a fire blanket to suffocate the fire.

DANGER! Only use the barbecue with charcoal. Do not use any other kind of fuel. There is a risk of fire!

DANGER! When barbecuing, wear protective gloves in accordance with the PPE Ordinance (Category II regarding thermal risks, DIN-EN 407). Use a suitable instrument when barbecuing, such as barbecue tongs, to turn the food in order to prevent burns. There is the risk of burn injuries.

DANGER! Allow the barbecue to cool completely before cleaning. There is the risk of burn injuries.

WARNING! Keep children and pets away from the barbecue.

WARNING! The barbecue is very hot and must not be moved when in use!

WARNING! When you have finished barbecuing, allow the remaining charcoal to burn out. Do not extinguish with water.

7. Assembly

7.1. Required tools

• Phillips screwdriver
• Open-ended spanner: SW 8 mm and SW 13 mm

7.2. Assembly preparation

• Proceed with care when assembling the barbecue.
• Plan a sufficient amount of time.
• Ensure you have a sufficiently large workspace.
• Remove all of the individual components from the packaging and place them somewhere easily accessible.
• Remove all of the assembly materials from the packaging and place them somewhere easily accessible.
• Ensure you have the required tools at hand.

WARNING! When assembling the barbecue, make sure that the heads of the screws always point outwards. This allows you to prevent injuries caused by protruding screws.

Below are instructions on how to assemble the barbecue in eight steps, including diagrams. Set aside the required individual components and assembly materials.

Step 1

➢ Hand-screw the two slat holders (18) to the wheel legs (15). Use the bottom hole of the slat holder (18) and the middle hole of the wheel leg (15) to do this, see diagram. You will need a screw (21), a washer (25) and a nut (23) in each case.
➢ Fasten the reinforcing bars (17) to the wheel legs (15). You will need a screw (21), a washer (25) and a nut (23) for each one.
Now fasten the reinforcing bars (17) to the slat holders (18). You will need a screw (21), a washer (25) and a nut (23) for each one.
Screw the wheel legs (15) and mounted slat holder (18) to the left side of the charcoal basket (6). To do this, use the top hole of the wheel legs (15).

Please note: The three holes for assembling the wind guard in the charcoal basket (6) must be facing the back. For each wheel leg (15) you will need two screws (21), two washers (25) and two nuts (23).

Now tighten all the screws.

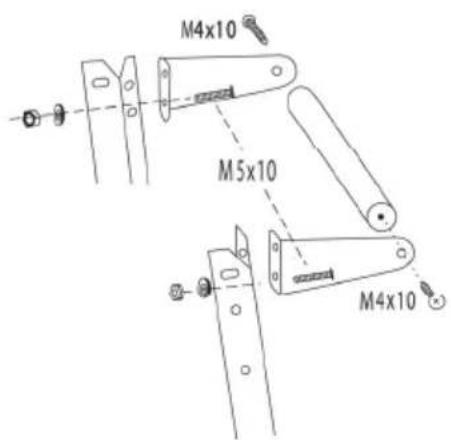

Step 2

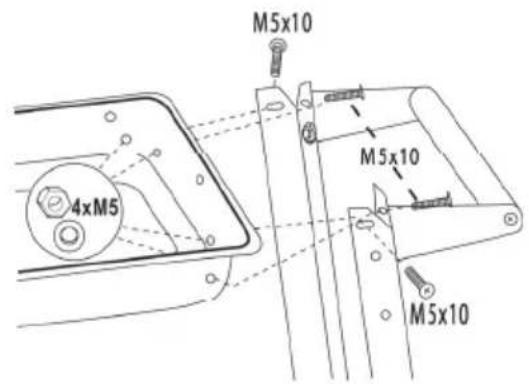

➢ Hand-screw the handle bracket (8) to the legs (10). Use the bottom hole of the handle bracket (8) for this. You will need a screw (21), a washer (25) and a nut (23) in each case.
➢ Fasten the legs (10) and mounted handle bracket (8) to the right side of the charcoal basket (6). To do this, use the top hole of the legs (10). You will need two screws (21), two washers (25) and two nuts (23) for each leg (10).
Screw the handle (7) between the handle brackets (8). You will need two screws (22).
Now tighten all the screws.

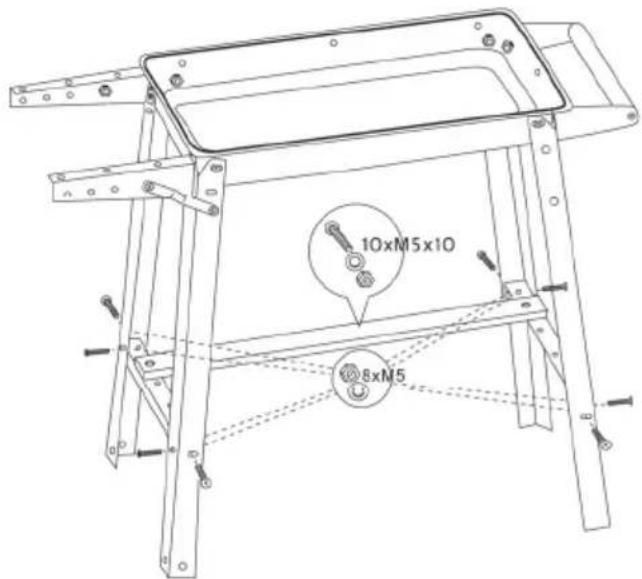

Step 3

Screw the two cross-supports (11) between the legs (10) and the wheel legs (15). The five holes on the cross-supports (11) should be facing upwards. You will need four screws (21), four washers (25) and four nuts (23) for each cross-support (11).
➢ Hand-screw the five shelf slats (12) to the cross-supports (11). You will need ten screws (21), ten washers (25) and ten nuts (23).
Now tighten all the screws.

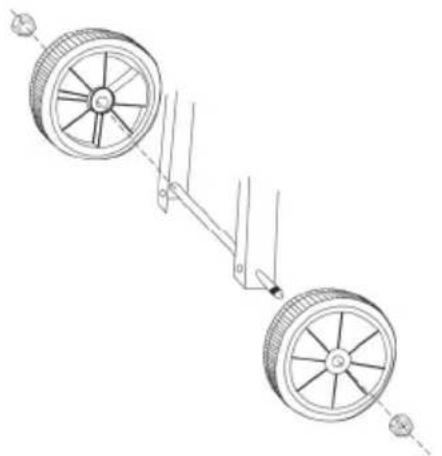

Step 4

Place the axle (14) through the bottom hole of the wheel leg (15). Now place the wheels (13) onto the ends of the axle (14). Screw the self-locking nuts (24) onto the ends of the axle (14) until flush with the axle.

Technical line drawing of a two-dot steering wheel assembly with guide rails (no text or symbols)

Step 5

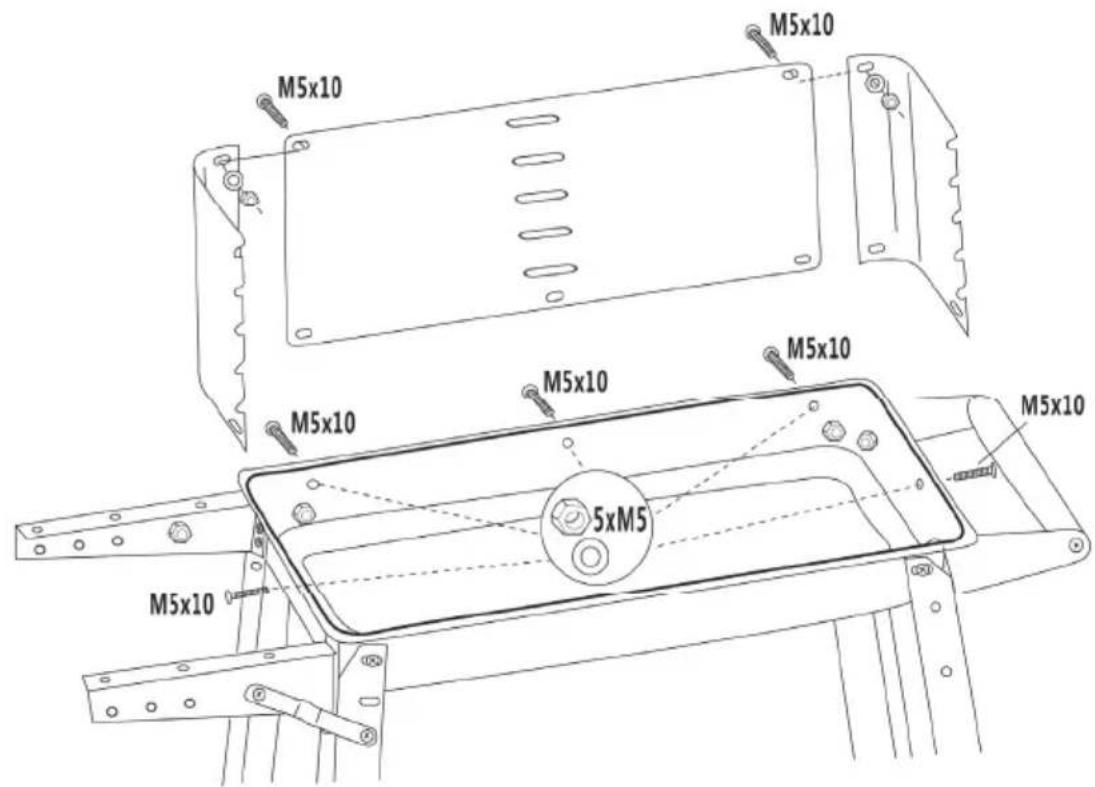

Hand-screw the three parts of the wind guard (2, 3, 4) together using the top holes. When screwing the parts together, ensure that the holes in the wind guard (2, 3, 4) are facing downwards (as shown in the illustration). You will need two screws (21), two washers (25) and two nuts (23).

Screw the wind guard (2, 3, 4) to the charcoal basket (6) from the inside. Always ensure that the heads of the screws face outwards. You will need five screws (21), five washers (25) and five nuts (23).

Now tighten all the screws.

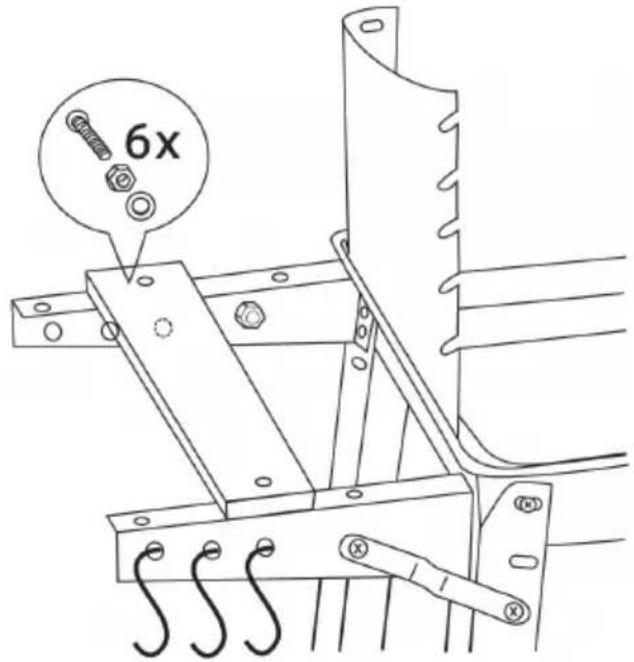

Step 6

➢ Hand-screw the three shelf slats (19) to the slat holders (18). You will need six screws (21), six washers (25) and six nuts (23).
Now tighten all the screws.
Insert the three hooks (16) into the holes on the front slat holder (18).

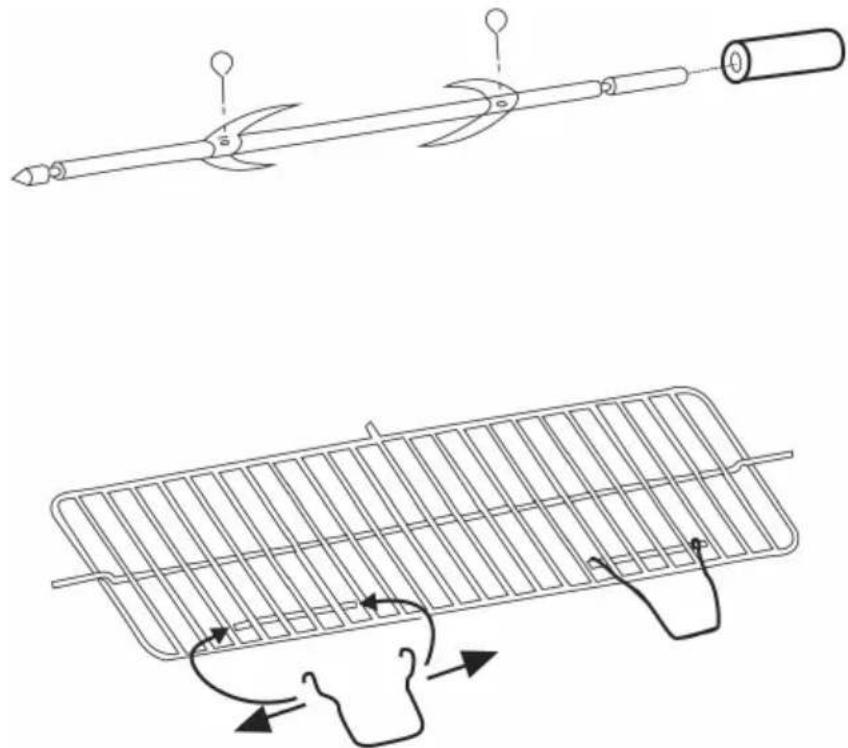

Step 7

➢ Fasten the brackets (with the forks facing each other) to the barbecue rotisserie (1) using the eye bolts (26). Insert the handles (20) into the cooking grate (5).

Technical line drawings of two mechanical components: a tool and a grid-patterned tray with curved arrows indicating motion (no text or symbols)

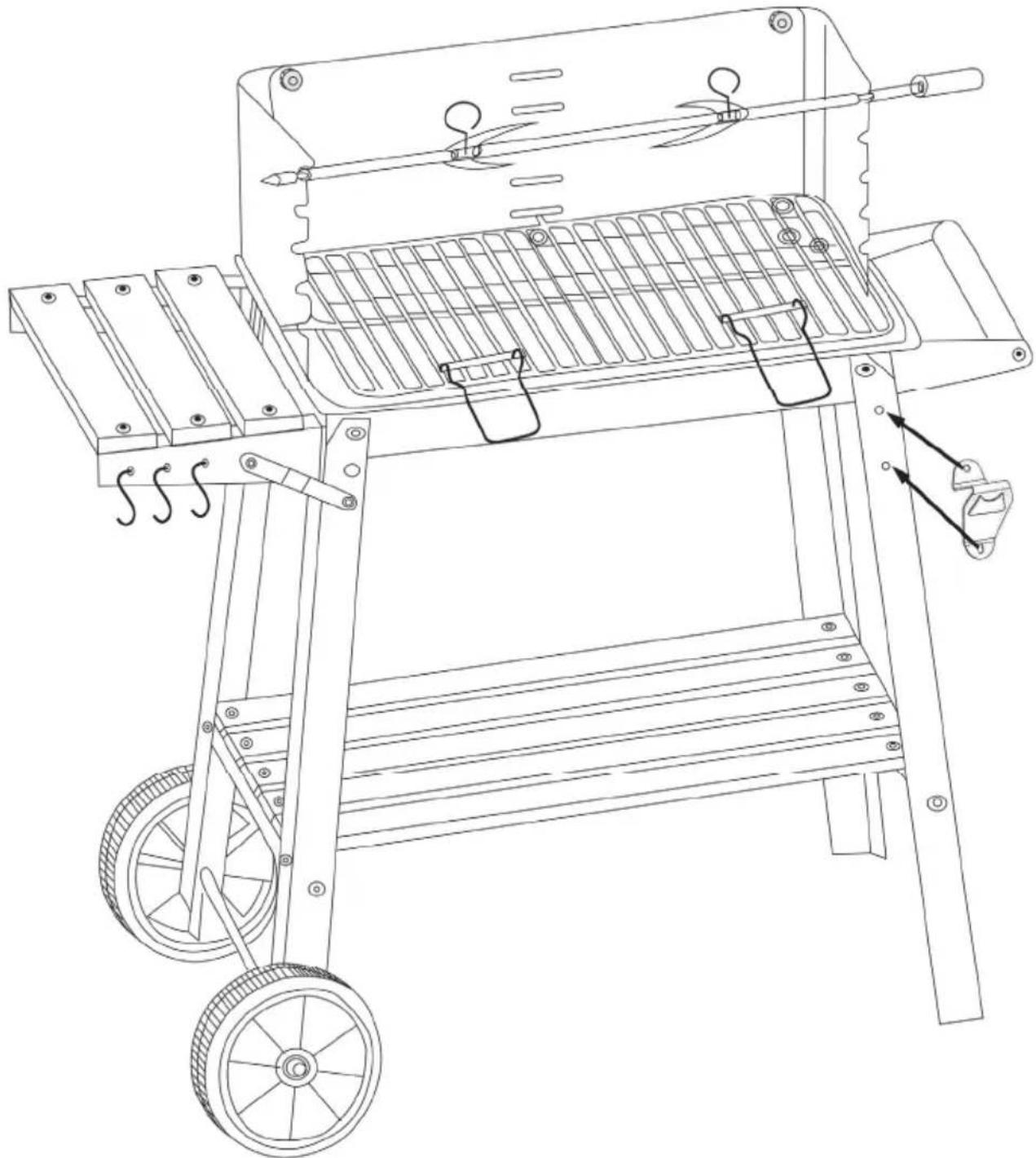

Step 8

▶ Check all screw connections and retighten as necessary!
Now insert the cooking grate (1) and barbecue rotisserie (5) into the recesses on the wind guard (2, 3, 4).
Screw the bottle opener (9) provided to the front, right leg (10, arrows). You will need two screws (21), two washers (25) and two nuts (23).

Line drawing of a portable stove with wheels and handlebars (no text or symbols)

The barbecue is now ready for use.

8. Initial use

Before using the barbecue for the first time, heat it for at least 30 minutes in order to burn any possible production residues. Odours may develop during this time, but this is completely normal.

DANGER! Only light the barbecue with firelighters that conform to the requirements of the European EN 1860-3 standard. Never use petrol or methylated spirits. There is danger of deflagration or uncontrollable heat generation that can lead to serious burn injuries or fire. There is a risk of injury and fire!

DANGER! Do not use a hairdryer or similar device. There is a risk of flying sparks, and the barbecue could become damaged.

DANGER! Always place the barbecue on an even, heat-resistant, solid surface and not in the vicinity of flammable materials, liquids or gases. Ensure a sufficient distance from walls and other objects and never leave the barbecue unattended when in use and after use for as long as it is still warm. There is a risk of fire!

➢ Fill the charcoal basket (6) with enough charcoal to cover the base.
➢ Place two or three solid firelighters on the charcoal and light them with a lighter or match.
Once the firelighters are burning properly, carefully fill the charcoal basket (6) with charcoal. Make sure not to suffocate the firelighters.
The embers are in an ideal state when the charcoal forms a white layer of ash and the firelighters are completely burned.
➢ Distribute the charcoal evenly in the charcoal basket (6) using a suitable metal instrument.
Now insert the cooking grate (5) and barbecue rotisserie (1) into the recesses on the wind guard (2, 3, 4).
➢ Wait a short time until the cooking grate (5) is heated up and then begin barbecuing.
Remove the barbecued food once the desired cooking point/browning is achieved.

Enjoy!

9. Cleaning/care

Wait until the barbecue has cooled down completely before cleaning. Otherwise, there is a risk of burn injuries.

The barbecue does not contain any components that require regular maintenance. Use a dishcloth, water and any commercially available washing up-liquid for routine cleaning. Do not use any aggressive or scouring cleaning agents in order to prevent damage.

Use a household sponge and washing up-liquid to clean the cooking grate (5). If the cooking grate (5) is heavily encrusted, it is helpful to soak it in water to soften the encrustations before cleaning. After cleaning, rinse the cooking grate (5) with clean water to remove any detergent residue.

10. Storing the device when not in use

If you do not intend to use the barbecue, clean it as described in section 9 'Maintenance/cleaning' and keep it in a clean, dry place.

11. Environmental and waste disposal information

Dispose of the fuel in the containers made of incombustible materials provided once the fuel has completely cooled down or burned out.

By properly disposing of the old device, you can avoid environmental damage and health hazards. Further information regarding proper disposal of the old device can be obtained from your local authority or the shop where you purchased the device.

Make sure the packaging is disposed of in an environmentally friendly manner. Cardboard packaging can be put out for waste-paper collection or taken to public collection points for recycling. The plastic packaging used for your device is collected by your local waste management company and disposed of in an environmentally-friendly manner.

12. Notes on guarantee and service

Warranty of TARGA GmbH

Dear Customer,

This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below.

Warranty conditions

The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate.

Warranty period and legal warranty rights

The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge.

Scope of warranty

The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced.

Submitting warranty claims

To ensure speedy handling of your complaint, please note the following:

• Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline.
• Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase.
• If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.

Service

Phone: 020 - 70 49 04 03

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: 02 - 20 09 025

E-Mail: [e-mail]

IAN: 296041

Manufacturer

Please note that the following address is not a service address. First contact the service point stated above.

TARGA

GmbH

Coesterweg 45

DE-59494 Soest

GERMANY

Table des matières

Technical line drawing of two wheels connected by a shaft, showing alignment and mounting points (no text or symbols)

Étape 5

Technical line drawings of two mechanical components: a tool and a grid-patterned tray with curved arrows indicating motion (no text or symbols)

Étape 8

Line drawing of a portable stove with wheels and handlebars (no text or symbols)

Cher client, chère cliente,

Cher client, chère cliente,

Technical line drawing of a two-dot steering wheel assembly with guide rails (no text or symbols)

Stap 5

Technical line drawings of two mechanical components: a rod with curved blades and a grid-patterned tray with arrows indicating motion (no text or symbols)

Stap 8

Line drawing of a portable outdoor grill with wheels and handle (no text or symbols)

Technical line drawing of a two-dot steering wheel assembly with guide rails (no text or symbols)

Schritt 5

Technical line drawings of two mechanical components: a rod with curved blades and a grid-patterned tray with arrows indicating motion (no text or symbols)

Schritt 8

Line drawing of a portable outdoor grill with wheels and handle (no text or symbols)
