Bullet - Surveillance Camera IMOU - Free user manual and instructions
Find the device manual for free Bullet IMOU in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product type | Surveillance camera |
| Brand | Imou |
| Model | Bullet |
| Dimensions (approx.) | 150 × 60 × 60 mm |
| Weight (approx.) | 300 g |
| Power supply | USB power adapter (included) |
| Connectivity | Wi-Fi 2.4 GHz |
| Night vision | Yes (with built-in lamp) |
| Audio | Built-in microphone |
| Motion detection | Yes |
| Resolution | HD (1080p or higher, depending on variant) |
| Viewing angle | Approximately 90° (standard lens) |
| Light indicator | Yes (multicolored LED) |
| Reset | Reset button (press and hold for 10 s) |
| Package contents | Camera, power adapter, screw kit, installation pattern, waterproof connector, quick start guide |
| Maintenance and cleaning | Clean the lens with a soft, dry cloth; avoid abrasive products |
| Security | Hardware reset, data encryption (WPA2) |
| Spare parts and repairability | Power adapter available; no consumer spare parts; contact customer service |
| General information | Manual available in multiple languages; technical support: service.global@imoulife.com |
Frequently Asked Questions - Bullet IMOU
How to reset the Imou Bullet camera?
Press and hold the reset button (located on the camera) for about 10 seconds. The indicator light will show the restart. Refer to the Camera Introduction section of the manual for more details.
What to do if the app shows 'Network configuration failed'?
Make sure your router operates on the 2.4 GHz band (the camera does not support 5 GHz). Reset the camera and plug it back in, then try configuring again.
How to know if the camera is properly connected to the network?
Observe the indicator light: a solid green light indicates normal operation. A green flashing light means it is waiting for a connection. See the indicator light table in the manual.
Why is there no image in the app?
Check that the indicator light is solid green. Make sure the camera is properly powered with the supplied adapter. If the Wi-Fi signal is weak, move the camera closer to the router or remove obstacles.
The image is blurry, what to do?
Clean the lens with a soft, clean cloth. Check for dirt or cobwebs. If the problem persists, adjust the focus (if available) or reposition the camera.
How to enable audio on the camera?
In the Imou app, make sure the audio function is enabled in the camera settings. Also ensure that the volume on your smartphone or tablet is not muted.
What to do if the QR code cannot be read during installation?
Clean the lens of your smartphone's camera. Make sure the QR code is well lit and clear. Do not hold the phone too close to the camera; the ideal distance is about 20 cm.
The camera does not turn on, what to do?
Check that the power adapter is properly connected and the outlet works. Try a different USB cable if possible. If the indicator light does not turn on at all, contact technical support.
Can I use the camera without a subscription?
Yes, the Imou app is free and allows live viewing and alerts. Some advanced features (cloud storage) may require a subscription, but basic use is free.
How to contact Imou customer service?
Send an email to service.global@imoulife.com. Technical support usually responds within 24 hours. Also visit imoulife.com/support/help for the FAQ.
User questions about Bullet IMOU
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Surveillance Camera in PDF format for free! Find your manual Bullet - IMOU and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Bullet by IMOU.
USER MANUAL Bullet IMOU
Welcome
Thank you for choosing IMOU.
We are devoted to providing you easy smart home products.
If you have problems using the product, please contact
our service team before returning your product.
Our service mail: service.global@imoulife.com
Frequently asked questions can be found at imoulife.com/support/help
EN
Positioning Map ×1 Waterproof Connector ×1
Screw Package ×1
Quick Start Guide x1
Camera introduction
Note: Press and hold the Reset button for 10 s to reset the camera.
The pattern of the LED indicator is included in the following table.
| LED Status | Device Status |
| Off | Powered off/LED turned offRebooting after resetBootingDevice malfunction |
| Red light on | |
| Green light flashing | Waiting for networkOperating properly |
| Green light on | |
| Red light flashing | Network connection failed |
| Green and red light flashing alternately | Firmware updating |
1
Download on the App Store
GET IT ON
Google play
Windows
i
Tips
To ensure the best possible wireless performance, please make sure there are no obstacles and electromagnetic interference between the camera and router.
2
EN

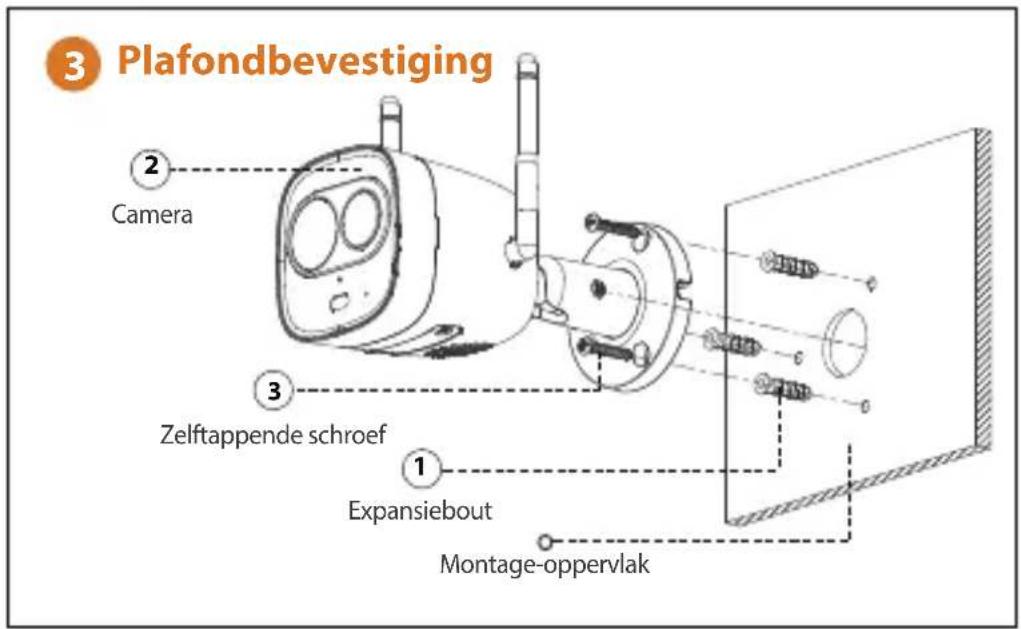

Troubleshooting
EN
| Problem | Solution |
| Cannot set up camera | · Ensure your mobile device and the camera are within range of your Wi-Fi router.· Ensure the LED indicator on the camera is flashing green before beginning setup. |
| The APP says "Failed to configure device network" | · Reset your Camera and connect it again.· Some cameras only support 2.4GHz, while some routers have dual band, 2.4G/SG. Make sure you are connecting 2.4GHz only. |
| The app says "Failed to bind" | The camera is already connected to Wi-Fi, but the router is:· Not connected to Internet· Poor network status· The Wi-Fi signal is not stable due to obstacles or electronic interference |
| No picture / signal | · Ensure the LED indicator on the camera is flashing steady green. See 'LED Status' section for details if otherwise:· Ensure the camera is properly connected to power using the included USB power adapter.· Try repositioning the camera, router, or both to improve signal strength. |
| Picture is not clear | · Check the camera lens for dirt, dust, spider webs. Clean the lens with a soft, clean cloth.· Remove the vinyl cover on the camera lens. |
| No audio | · Ensure audio function on camera is turned on.· Ensure audio is turned up on viewing device. |
| Phone is not reading QR code | · Clean the camera lens of your Smartphone· Ensure that there is enough light on the QR code· Don't hold the QR code too close to the camera |
Kurzanleitung
Bullet
DE
Packungsinhalt
Download on the App Store
GET IT ON
Google play
Windows
i
Tips
Line drawing of a mechanical device with three protruding ports and a flanged base (no text or symbols)Cámara × 1
Download on the App Store
GET IT ON
Google play
Windows
i
Tips
FR
Imou Life
Download on the App Store
GET IT ON
Google play
Windows
i
Tips
Benvenuti
Download on the App Store
GET IT ON
Google play
Windows
i
Tips
NL
Welkom
Introductie camera
NL
Imou Life
Download on the App Store
GET IT ON
Google play
Windows
i
Tips
Probleemoplossing
PT
Bem-vindo
PT
Imou Life
Download on the App Store
GET IT ON Google play
Windows
i
Tips

