KIN86AFF0 - Freezer BOSCH - Free user manual and instructions

Product type	Freezer
Brand	Bosch
Model	KIN86AFF0
Storage volume	250 L
Climate class	SN-ST
Energy efficiency class	F
Annual energy consumption	250 kWh
Noise level	40 dB
Dimensions (H x L x P)	177,2 x 59,2 x 54,8 cm
Net weight	70 kg
Power supply	220-240 V, 50 Hz
Power	120 W
Lighting	LED
Controls	Electronic
Defrosting	Manual
Survival time in case of power failure	15 h
Super freezing function	Yes
Repairability	Spare parts available, repair manual included
Included accessories	Bins, shelves, door gasket
Material	Painted steel, plastic

Frequently Asked Questions - KIN86AFF0 BOSCH

How to set the temperature of the freezer KIN86AFF0?

Use the electronic controls on the front panel. The recommended temperature is -18 °C. Consult the user manual for precise adjustment.

How to defrost the freezer?

Unplug the appliance, remove frozen food, and leave the door open. Use a plastic scraper to remove ice. Never use sharp objects.

How to replace the door gasket?

Remove the old gasket by pulling it out of the groove. Install the new gasket by pushing it gradually into the groove. You can warm it slightly to make installation easier. See repair manual p. 199.

How to replace the LED lighting?

Unplug the appliance for 60 seconds beforehand. Remove the LED cover, then the module. Disconnect the electrical connection. Reassemble in reverse order. This operation requires a qualified technician. See manual p. 216.

What is the freezing capacity?

The freezing capacity is about 20 kg per 24 hours (typical value for a freezer of this size). Consult the manual for the exact value.

How to install the appliance?

Place the freezer in a dry and well-ventilated area. Use the adjustable feet to level it. Plug it into a grounded wall outlet. Let it stand for 24 hours before first use.

What to do in case of a prolonged power outage?

Do not open the door. Food stays frozen for about 15 hours. Then consume them quickly. You can also use cold accumulators.

How to clean the interior of the freezer?

Unplug the appliance. Remove bins and shelves. Clean with a soft cloth and warm water with dish soap. Dry thoroughly. Do not use abrasive products.

Where to find spare parts?

Spare parts are available via Bosch customer service or on the website notice-facile.com. Always use original parts with the reference indicated in the repair manual.

How to optimize energy efficiency?

Place the appliance away from heat sources. Do not leave the door open for too long. Defrost regularly. Set the temperature to -18 °C. Clean the door gaskets to ensure a tight seal.

USER MANUAL KIN86AFF0 BOSCH

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Ремонт

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Ремонт

Ремонт

1. 1. Свалете четирите винта (1).
2. Свалете долните панти (2)

Пантите са свалени.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Рафтът е свален.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Diagram showing a door handle with two black arrows indicating downward motion (no text or symbols)

Diagram of a file drawer with a black arrow indicating direction, no text or symbols present

Abstract graphic with a rectangular panel and two arrows pointing inward, no text or symbols present.

Ремонт

Diagram showing a tool interacting with a rectangular device, no text or symbols present

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a refrigerator with an eye icon above, showing shelves and doors (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Popravak

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Brtva vrata je postavljena.

Popravak

Nastavak Torx TX20 6.3 mm (1/4") [00340865]

Teški, veliki uređaji!

Popravak

1. 1. Otpustite četiri vijka (1).

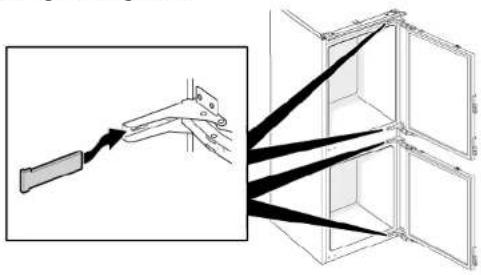

2. Gurnite gornja vrata prema van i uklonite ih (2).

1. 1. Uklonite četiri vijka (1).

2. Uklonite zglobove (2).

Zglobovi gornjih vrata su uklonjeni.

1. 1. Otpustite četiri vijka (1).

2. Gumite donja vrata prema van i uklonite ih (2).

1. 1. Uklonite četiri vijka (1).

2. Uklonite zglobove (2).

Zglobovi donjih vrata su uklonjeni.

Popravak

4.2.2 Postavljanje ravnog zgloba

▶ Postavite obratnim redoslijedom.

Popravak

Nastavak Torx TX20 6.3 mm (1/4") [00340865]

Teški, veliki uređaji!

Popravak

1. 1. Uklonite četiri vijka (1).

2. Uklonite donje zglobove (2).

Zglobovi su uklonjeni.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

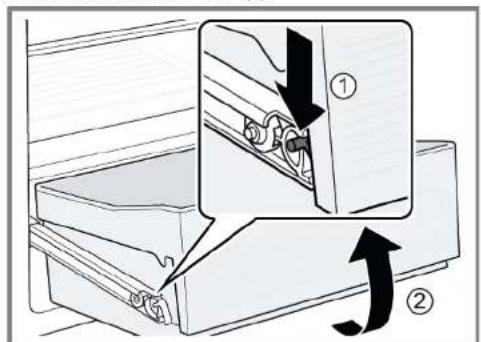

1. Spustite izvlačnu policu i zaokrenite je bočno.

2. Izvlačna je polica uklonjena.

4.6.2 Postavljanje izvlačne police

▶ Postavite obratnim redoslijedom.

Popravak

4.7 Zamjena police odjeljka zamrzivača

Zahtjev:

Vrata su otvorena.

4.7.1 Uklanjanje police odjeljka zamrzivača

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Polica odjeljka zamrzivača je uklonjena.

4.7.2 Postavljanje police odjeljka zamrzivača

▶ Postavite obratnim redoslijedom.

Popravak

4.8 Zamjena spremnika za zamrznute namirnice

Zahtjev:

Vrata su otvorena.

4.8.1 Uklanjanje spremnika za zamrznute namirnice

1. Potpuno izvucite spremnik za zamrznute namimice (1).
2. Uklonite spremnik za zamrznute namimice (2).

Spremnik za zamrznute namirnice je uklonjen.

4.8.2 Postavljanje spremnika za zamrznute namirnice

→ Spremnik je uklonjen.

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

1. Uklonite spremnik za voće i povrće.→44

2. 1. Pritisnite polugu ispod obje strane pregrade (1).

3. Povucite pregradu prema naprijed (2).

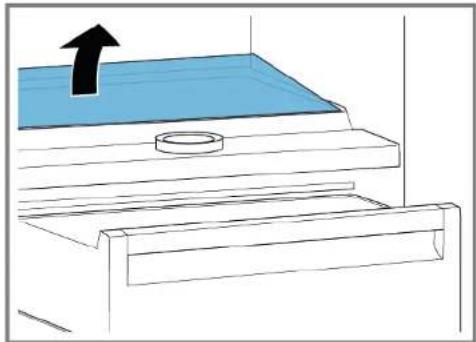

1. Podignite pregradu i zaokrenite je bočno prema van.

→ Pregrada je uklonjena.

Spremnik za održavanje svježine je uklonjen.

Abstract graphic with a rectangular panel and arrows, no visible text or symbols

Popravak

Diagram of a screwdriver interacting with a rectangular device, showing internal components and wiring (no text or symbols)

3D rendering of a monitor mounted on a wall with a red panel, against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Oprava

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Oprava

Oprava

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating downward motion, no text or symbols present.

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Abstract graphic with two arrows pointing to a rectangular object, no text or symbols present

Oprava

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Reparation

1. Tryk hele pakningen trinvist i rillen.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Reparation

Reparation

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Hylden er fjernet.

Diagram showing a mechanical or structural component with an arrow indicating downward motion, no text or symbols present.

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Abstract graphic with a rectangular block and two arrows pointing outward, no text or symbols present.

Reparation

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

1. Afbryd LED-spotlampens elektriske tilslutning.

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame, with an arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparatie

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Reparatie

Reparatie

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Abstract graphic with a document icon and two arrows pointing to it, set against a dark background (no text or symbols)

Reparatie

Diagram of a screwdriver interacting with a rectangular device, showing internal components and wiring (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Repair hints - Fridge-freezer

i Concerning this document.... 123

1.1 Important information.... 123

1.1.1 Purpose.... 123

1.2 Explanation of symbols 123

1.2.1 Danger levels.... 123

1.2.2 Hazard symbols 123

1.2.3 Structure of the warnings.... 124

1.2.4 General symbols.... 124

Safety....

2.1 General Safety instructions 125

2.1.1 All domestic appliances 125

Tools and aids....12

Repair

4.7 Replacing freezer compartment shelf.... 138

4.7.1 Removing freezer compartment shelf 138

4.7.2 Installing freezer compartment shelf.... 138

4.8 Replacing frozen food container.... 139

4.8.1 Removing frozen food container 139

4.8.2 Installing frozen food container 139

4.9 Replacing fruit and vegetable container 140

4.9.1 Removing fruit and vegetable container 140

4.9.2 Installing fruit and vegetable container 140

4.10 Replacing partition and cover of fruit and vegetable container.... 141

4.10.1 Removing partition and cover of fruit and vegetable container ..... 141

4.10.2 Installing partition and cover of fruit and vegetable container.... 141

4.11 Replacing cool-fresh container.... 142

4.11.1 Removing cool-fresh container 142

4.11.2 Installing cool-fresh container.... 142

4.12 Replacing extendable container 143

4.12.1 Removing extendable container 143

4.12.2 Installing extendable container 143

4.13 Replacing LED spot light 144

4.13.1 Removing LED spot light.... 144

4.13.2 Installing LED spot light 145

i Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 03/2021).

They contain information how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
Danger	Non-observance of the warning message will result in death or serious injuries.
Warning	Non-observance of the warning message could result in death or serious injuries.
Caution	Non-observance of the warning message could result in minor injuries.
Notice	Non-observance of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.
The following hazard symbols are used in this document:

	Hazard symbol Meaning
		General warning message
		Danger from electrical voltage
		Risk of explosion
		Danger of cuts
		Danger of crushing

i Concerning this document

Hazard symbol Meaning
		Danger from hot surfaces
		Danger from strong magnetic field
		Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Type and source of danger!

Possible consequences of ignoring the danger / warning.

▶ Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
	Identification of a special tip (text and/or graphic)
	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
[Start] Identification of a key or button
[00123456] Identification of a material number
Status Identification of displayed text / window(in the appliance's display)

Table 3: General symbols

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

• Errors by repairs involving electrical components can lead to electrical shock!
  ■ Disconnect the appliance from the mains for at least 60 seconds before starting work.
  ■ After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

■ Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

■ Wear protective shoes.
■ Secure heavy components from falling down.
■ Do not stick body parts into moving components.

Risk to the appliance's safety / function!

■ Only use original spare parts.

Risk of damage to electrostatically sensitive components (ESDs)!

- Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Protection cloth[00342013]	60 cm x 50 cm
Torx Bit TX20[00340865]	6,3 mm (1/4")
Special tool[00342180]

Repair

1. Release door gasket from the groove on right and left corner.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Pull out door gasket from groove.

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Door gasket is removed.

	Thickness of new door gasket may deviate slightly from thickness of old door gasket. This will not affect closing behavior and long-term function.
	If your appliance has adjustable hinges or hinge attachments, you can optimize the closing behavior subsequently.
	Small side holes in door gasket are functional (required for ventilation). These are not production faults.

Repair

1. Check groove for gasket for damage.

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

1. (if) If groove for gasket is it is damaged.

2. Contact customer service.

3. i Slight deformation of door gasket is normal and does not affect its function. It is recommended to straighten door gasket before inserting it into appliance.

Heat door gasket with a hair dryer or hot water and manually reshape it.

1. Push corners of gasket at the top and bottom to the groove.

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Repair

1. Press whole gasket step by step into the groove.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Door gasket is installed.

Repair

4.2 Replacing flat hinge

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Prerequisite:

√ Appliance is disconnected from power supply.
√ Furniture door are removed. See Installation Instruction.
√ Door is open.

1. Remove four hinge covers.


Repair

2.1. Loosen four screws (1).

1. Slide out and remove upper door (2).

1. 1. Remove four screws (1).

2. Remove hinges (2).

Upper door hinges are removed.

1. 1. Loosen four screws (1).

2. Slide out and remove lower door (2).

1. 1. Remove four screws (1).

2. Remove hinges (2).

→ Lower door hinges are removed.

Repair

4.2.2 Installing flat hinge

▶ Install in reverse order.

Repair

4.3 Replacing sliding hinge

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Prerequisite:

√ Appliance is disconnected from power supply.
√ Furniture door and appliance door are separated. See Installation Instruction.

4.3.1 Removing sliding hinge

1. 1. Unscrew two screws (1).

2. Remove upper door upper hinge (2).

3. Remove upper door (3).
4. Unscrew two screws (4).
5. Remove lower door upper hinge (5).
6. Remove lower door (6).

Repair

1. 1. Remove four screws (1).

2. Remove lower hinges (2).

Hinges are removed.

4.3.2 Installing sliding hinge

▶ Install in reverse order.

Repair

4.4 Replacing door rack

Prerequisite:

√ Door is open.

▶ Lift door rack upwards.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Door rack is removed.

▶ Install in reverse order.

Repair

4.5 Replacing shelf

Prerequisite:

Door is open.

4.5.1 Removing shelf

▶ Pull out shelf.

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Shelf is removed.

4.5.2 Installing shelf

▶ Install in reverse order.

Repair

4.6 Replacing extendable shelf

Prerequisite:

√ Door is open.

4.6.1 Removing extendable shelf

1. Pull out extendable shelf until the locking catch is released.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

1. Lower extendable shelf and swing it out to the side.

2. ➕ Extendable shelf is removed.

4.6.2 Installing extendable shelf

▶ Install in reverse order.

Repair

4.7 Replacing freezer compartment shelf

Prerequisite:

√ Door is open.

4.7.1 Removing freezer compartment shelf

▶ Pull out freezer compartment shelf.

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Freezer compartment shelf is removed.

4.7.2 Installing freezer compartment shelf

▶ Install in reverse order.

Repair

4.8 Replacing frozen food container

Prerequisite:

Door is open.

4.8.1 Removing frozen food container

1. Pull out frozen food container all the way (1).
2. Remove frozen food container (2).

Frozen food container is removed.

4.8.2 Installing frozen food container

▶ Install in reverse order.

Repair

4.9 Replacing fruit and vegetable container

Prerequisite:

Door is open.

4.9.1 Removing fruit and vegetable container

▶ 1. Pull container out all the way (1).

1. Remove container (2).

Container is removed.

4.9.2 Installing fruit and vegetable container

▶ Install in reverse order.

Repair

4.10 Replacing partition and cover of fruit and vegetable container

Prerequisite:

Door is open.

4.10.1 Removing partition and cover of fruit and vegetable container

1. Remove glass plate from partition.

Diagram of a mechanical assembly with a blue top component and a black upward arrow indicating motion (no text or symbols)

1. Remove fruit and vegetable container.→ Page 140

2. 1. Press lever on the underside on both partition sides (1).
3. Pull the partition forwards (2).

1. Lift the partition and swivel it out to the side.

Partition is removed.

1. 1. Lift the cover of fruit and vegetable container.

2. Pull cover of fruit and vegetable container forwards and swivel it out to the side.

Cover of fruit and vegetable container is removed.

4.10.2 Installing partition and cover of fruit and vegetable container

▶ Install in reverse order.

Repair

4.11 Replacing cool-fresh container

Prerequisite:

√ Door is open.

4.11.1 Removing cool-fresh container

▶ 1. Tilt cool-fresh container forwards (1). 2. Remove cool-fresh container (2).

Cool-fresh container is removed.

4.11.2 Installing cool-fresh container

▶ Install in reverse order.

Repair

4.12 Replacing extendable container

Prerequisite:

√ Door is open.

4.12.1 Removing extendable container

▶ 1. Tilt extendable container forwards (1).
2. Remove extendable container (2)

Extendable container is removed.

4.12.2 Installing extendable container

▶ Install in reverse order.

Repair

4.13 Replacing LED spot light

Required tools:

Special tool [00342180]
Slotted screwdriver Blade 2.4 mm x 0.4 mm x 60 mm, in the kit [00341820]

Your appliance features a maintenance-free LED light. These lights may be repaired by customer service or authorised technicians only!

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair - Electric parts should be repaired by a qualified electricians. - After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of electric shock due to live parts!

Death by electrocution - Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Sharp edges!

Cut injuries ▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Door is open.
√ Fridge compartment shelves are removed.

4.13.1 Removing LED spot light

1. Release LED spot light cover.

1. Pull LED spot light cover inwards and simultaneously push forwards.

Abstract graphic with two arrows pointing to a rectangular object, no text or symbols present

Repair

1. Detach LED spot light module.

Diagram of a screwdriver inserted into a rectangular component with a red edge, against a dark background (no text or symbols)

1. Disconnect LED spot light electrical connection.

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

LED spot light is removed.

4.13.2 Installing LED spot light

▶ Install in reverse order.

Remonditeave - Kombikülmik

i Selle dokumendiga seoses 147

1.1 Tähtis teave 147

1.1.1 Eesmärk 147

1.2 Sümbolite selgitus 147

1.2.1 Ohutasemed.... 147

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a door frame with shelves and an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Remont

1. Vajutage terve tihend jupphaaval soonde.

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

1. Eemaldage neli hinge katet.


Remont

Remont

1. 1. Eemaldage neli kruvi (1).

2. Eemaldage alumised hinged (2).

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating downward motion, no text or symbols present.

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Abstract graphic with a rectangular object and two arrows pointing outward, set against a dark background with faint white patterns (no text or symbols)

Remont

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Diagram of hands connecting a cable to a rectangular panel with shelves, showing structural details (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Korjaus

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Korjaus

Korjaus

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Hylly on poistettu.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and a black upward arrow indicating motion (no text or symbols)

Cool-fresh-lokero on poistettu.

4.11.2 Cool-fresh-lokeron asennus

Abstract graphic with a rectangular panel and two arrows pointing outward, no text or symbols present.

Korjaus

1. Irrota LED-kohdevalomoduuli.

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Diagram of hands connecting a cable to a door panel with shelves, showing structural components (no text or symbols)

1. Retirer le joint de porte de la rainure.

Illustration of hands holding a cable inside a rectangular frame, with an arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right sides (no text or symbols)

Réparation

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Réparation

Réparation

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and a black upward arrow indicating motion (no text or symbols)

Abstract graphic with a document icon and arrows, no readable text or symbols

Réparation

Diagram of a tool interacting with a rectangular device, showing motion lines and no text or symbols

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Diagram of hands connecting a cable to a door panel with shelves, showing structural components (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Instandsetzen

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Instandsetzen

Instandsetzen

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Abstract graphic with a document icon and arrows, no readable text or symbols

Instandsetzen

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a storage unit panel (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Επισκευή

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Επισκευή

Επισκευή

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

To páfi pórtas éxei aφαιρεθεί.

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

To páφι αφαιρέθηκε.

Diagram showing a mechanical assembly with an arrow indicating direction and a blue component, no text or symbols present.

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

To theckopiko surtári afaipéthke.

Abstract graphic with a document icon and arrows, no readable text or symbols

Επισκευή

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Javítás

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Javítás

Javítás

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Abstract graphic with a document icon and arrows, no readable text or symbols

Javítás

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Riparazione

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Riparazione

Riparazione

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and a black upward arrow indicating motion (no text or symbols)

Abstract graphic with a rectangular panel and two arrows pointing outward, no text or symbols present.

Riparazione

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame, with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Remonts

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Remonts

Remonts

Viras ir nonemtas.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Plaukts ir iznemts.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Tvertne ir iznemta.

4.9.2 Auglu un dârzenu tvertnes uzstâdîsana

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

1. Starpliku paceliet un sagaziet uz sāniem, lai iznemtu.

Abstract graphic with a rectangular block and two arrows pointing outward, no text or symbols present.

Remonts

1. Atvienojiet LED starmeša moduli.

Diagram showing a tool interacting with a rectangular device, no text or symbols present

1. Atvienojiet LED starmeša elektrisko savienojumu.

3D rendering of a rectangular device mounted on a wall with a red panel and cable, against a gray background (no text or symbols visible)

LED starmetis ir nonemts.

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

Illustration of hands connecting a cable to a wall-mounted panel with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Remontas

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Remontas

Remontas

Vyriai nuimti.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Lentyna išimta.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Talpykla išimta.

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Abstract graphic with a document icon and arrows, no readable text or symbols

Remontas

Diagram showing a tool interacting with a rectangular device, no text or symbols present

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparasjon

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Reparasjon

De nedre dørhengslene er demontert.

Reparasjon

Reparasjon

1. 1. Fjern fire skruer (1).

2. Demonter nedre hengsler (2).

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Hyllen i fryseren er demontert.

4.7.2 Montering av hylle i fryser

→ Beholderen for frysevarer er demontert.

Beholderen er demontert.

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Cool-Fresh-beholderen er demontert.

Abstract graphic with a document icon and two arrows pointing right, set against a dark background (no text or symbols)

Reparasjon

1. Løsne LED -spotlightmodulen.

Diagram of a handheld device with a screen and cable, showing internal components (no text or symbols)

3D rendering of a monitor mounted on a wall with a red panel, against a gray background (no text or symbols visible)

LED-spotlight er demontert.

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Naprawy

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Naprawy

Naprawy

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Półka jest wyjęta.

4.5.2 Montaż półki

Diagram showing a mechanical assembly with an arrow indicating direction and a blue component inside (no text or symbols)

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and a black upward arrow indicating motion (no text or symbols)

Abstract graphic with a rectangular panel and two arrows pointing outward, no text or symbols present.

Naprawy

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparação

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Reparação

1. 1. Remova quatro parafusos (1).

2. Remova as dobradiças (2).

1. 1. Remova quatro parafusos (1).

2. Remova as dobradiças (2).

Reparação

1. 1. Remova quatro parafusos (1).

2. Remova as dobradiças inferiores (2).

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and a black upward arrow indicating motion (no text or symbols)

Abstract 3D graphic with two arrows pointing to a rectangular block, no text or symbols present

Reparação

Diagram of a screwdriver inserted into a rectangular component with a red edge, against a dark background (no text or symbols)

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Repararea

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Cap torx TX20 6.3 mm (1/4") [00340865]

Repararea

Balamalele uşii de sus sunt demontate.

Balamalele uşii de jos sunt demontate.

Repararea

4.2.2 Montarea balamalei plate

Cap torx TX20 6.3 mm (1/4") [00340865]

Repararea

Balamalele sunt demontate.

4.3.2 Montarea balamalei glisante

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating downward motion, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Abstract graphic with two arrows pointing to a rectangular object, no text or symbols present

Repararea

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Vytiahnite tesnenie z drážky.

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Oprava

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Tesnenie dvierok je namontované.

Oprava

Oprava

Oprava

Závesy sú odobraté.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Polička v dvierkach je odobratá.

4.4.2 Montáž poličky do dvierok

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Polica mraziaceho priestoru je odobratá.

4.7.2 Montáž police mraziaceho priestoru

Nádoba je odobratá.

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

1. Odoberte nádobu na ovocie a zeleninu.→476

2. 1. Stlačte páčku na spodnej strane oboch strán priehradky (1).
3. Potiahnite priehradku dopredu (2).

1. Zdvihnite priehradku a vyklopte ju nabok.

Priehradka je odobratá.

Nádoba cool-fresh je odobratá.

Abstract graphic with a rectangular panel and two arrows pointing outward, no text or symbols present.

Oprava

Diagram showing a tool interacting with a rectangular device, no text or symbols present

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Tesnilo vrat izvlecite iz utora.

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Popravilo

1. Celotno tesnilo korak po koraku potisnite v utor.

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Poškodbe hrbta in mišic

Popravilo

Poškodbe hrbta in mišic

Popravilo

1. 1. Odstranite štiri vijake (1).

2. Odstranite spodnja tečaja (2).

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Polica je odstranjena.

4.5.2 Namestitev police

- Namestite v obratnem vrstnem redu.

Popravilo

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

1. Odstranite predal za sadje in zelenjavo.→500

2. 1. Pritisnite pritrdila na spodnji strani steklene plošče (1).
3. Pregrado potegnite k sebi (2).

1. Pregrado dvignite in jo z obračanjem na stran odstranite. → Pregrada je odstranjena.

2. 1. Dvignite polico nad predalom za sadje in zelenjavo.
3. Polico nad predalom za sadje in zelenjavo potegnite k sebi in jo z obračanjem na stran odstranite. → Polica nad predalom za sadje in zelenjavo je odstranjena.

4.10.2 Namestitev pregrade in police nad predalom za sadje in zelenjavo

▶ Namestite v obratnem vrstnem redu.

Popravilo

1. Pokrovček točkovne lučke LED povlecite navznoter in ga hkrati potisnite naprej.

Abstract graphic with a document icon and arrows, no readable text or symbols

Popravilo

Diagram showing a tool interacting with a rectangular device, no text or symbols present

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparación

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Reparación

Reparación

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Abstract graphic with a document icon and arrows, no readable text or symbols

Reparación

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparation

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Reparation

Reparation

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Dörrhyllan har tagits bort.

4.4.2 Montera dörrhylla

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Frysdelens hylla har tagits bort.

4.7.2 Montera frysdelens hylla

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Cool fresh-facket har tagits bort.

4.11.2 Montera cool fresh-fack

Abstract graphic with two arrows pointing to a rectangular block, no text or symbols present

Reparation

1. Ta loss LED-spotlightmodulen.

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

1. Lossa LED-spotlightens elanslutning.

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

LED-spotlighten har tagits bort.

4.13.2 Montera LED-spotlight

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Onarim

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Onarim

Onarim

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating downward motion, no text or symbols present.

Diagram of a mechanical assembly with a blue panel and directional arrow (no text or symbols)

Kap çıkartılmıştır.

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Special tool [00342180]

Düz tornavida Biçak 2,4 mm x 0,4 mm x 60 mm,

Abstract graphic with two arrows pointing to a rectangular object, no text or symbols present

Onarim

Diagram of a screwdriver inserted into a rectangular component with a red edge, against a dark background (no text or symbols)

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols
