USER MANUAL BHB6902X BRANDT

Black-and-white photo of a bowl with leafy green garnish, surrounded by other bowls (no text or symbols visible)

GUIDE D'UTILISATION FR

Exterior view of a modern kitchen air conditioner unit (no signage or text visible)

Chère Cliente, Cher Client,

Attention Cet appare

Diagram showing a brick wall with curved arrows and a cylindrical component mounted on a base (no text or symbols)

Image. 5

Technical line drawing of a mechanical assembly mounted on a brick wall (no text or symbols)

Image. 6

FR 2 / INSTALLATION DE VOTRE APPAREIL

Technical diagram showing a mechanical assembly with brick wall and heating element, no text or symbols present

Image. 7

Technical diagram showing internal components of a device with labeled parts and directional arrows indicating flow or movement.

Image. 8

Technical line drawing of a brick wall and a vertical structure with mounting base (no text or symbols)

Image. 10

• MONTAGE DE LA CHEMINEE

Simple line drawing of a mechanical component with downward arrows indicating force or movement (no text or symbols)

Image. 13

Diagram of a brick wall with a vertical structure and directional arrows, no text or symbols present

Image. 14

FR 2 / INSTALLATION DE VOTRE APPAREIL

• Recyclage

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Image. 15

Image. 16 e. (6).

Conseil Pour une

Attention Le non-res

Technical line drawing of a kitchen ventilation grille with numbered components (no text or symbols)

• CHANGEMENT DU FILTRE CHARBON

Technical line drawing of a kitchen fan with internal components and a downward arrow indicating motion (no text or symbols)

FR 4 / ENTRETIEN ET NETTOYAGE DE VOTRE APPAREIL

1- RELATIONS CONSOMMATEURS FRANCE

Technical diagram showing a door with a magnified inset of a component, likely for assembly or inspection purposes.

OU

Diagram showing a brick wall section with a pipe and a cylindrical component mounted on a base (no text or symbols)

Imag. 5

Technical line drawing of a mechanical assembly mounted on a brick wall (no text or symbols)

Imag. 6

Architectural line drawing of a brick wall and a vertical support structure (no text or symbols)

Imag. 10

Simple line drawing of a mechanical component with downward arrows indicating force or movement (no text or symbols)

Imag. 12

Diagram of a brick wall structure with a vertical support structure and directional arrows indicating movement (no text or symbols)

Imag.13
Imag. 14

Technical line drawing of a mechanical assembly with no visible text or symbols

Imag. 15

Imag. 16 40000

Consejo

Technical line drawing of a kitchen ventilation grille with numbered components (no text or symbols)

Technical line drawing of a kitchen fan with internal components and a handle (no text or symbols)

Atención

• Safety recommendations ____ 48
  • Environmental protection ____ 53
  • Description of your appliance ____ 54

2 / INSTALLING YOUR APPLIANCE

• Using the evacuation mode ____ 55
• Using the recycling mode ____ 55
- Electrical connections 56
- Assembling the hood ____ 57
- Assembling the ventilation shaft - Outdoor evacuation ____ 59 - Recycling ____ 60

3 / USING YOUR APPLIANCE

• Description of control panel ____ 61

4 / CARING FOR AND CLEANING YOUR APPLIANCE

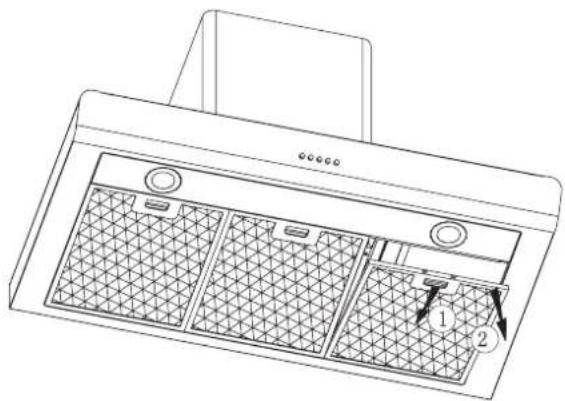

• Cleaning the filter cartridges 62
• Changing the carbon filter 62
• Cleaning the outer surfaces 63

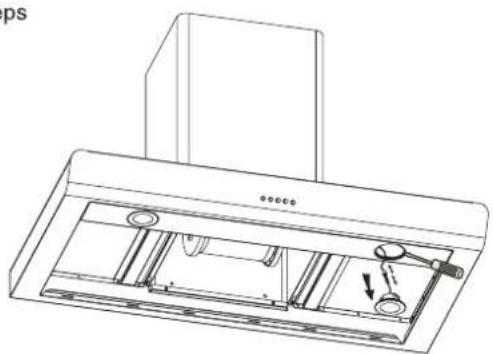

• Changing the light bulb 63
• Maintaining your appliance 64

5 / TROUBLESHOOTING 65

6 / AFTER-SALES SERVICE 66

As part of our commitment to constantly improving our products, we reserve the right to make changes to them based on technical advances to their technical and functional features and appearance.

Warning: Before ins

Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation.

EN 1 / NOTICES TO THE USER

Attention

Keep this user guide with your appliance. If the appliance is ever sold or transferred to another person, ensure that the new owner receives the user guide. Please become familiar with these recommendations before installing and using your oven. They were written for your safety and the safety of others.

Safety and important precautions

These instructions are also available on the Brandt web site.

Please take heed of this advice when installing and using your appliance. These instructions are intended to protect your safety and the safety of others. Keep this manual with your appliance. If you sell or give the appliance to anyone else, make sure that you also give them this manual.

- In order to constantly improve our products, we reserve the right to to make changes to their technical, functional or aesthetic characteristics in line with technological progress.

- Make a note of the references of your appliance on the "Consumer Service" page so that you can readily find them in future.

Important precautions

- This appliance is designed for use by consumers in the home. Do not use it for commercial or industrial purposes or for any other purpose for which it is not intended.

- Unpack the appliance as soon as you receive it. Check its general appearance. Make a note of any reservations on the delivery slip and keep a copy.

- This appliance can be used by children aged under 8 and by persons with diminished physical, sensory or mental capacities, or persons without any experience or knowledge, provided that they are properly attended to or are given the instructions on how to use the appliance in complete safety and that any potential risks are anticipated. Children must not play with this appliance. The appliance must not be cleaned and maintained by unattended children.

- Caution: The accessible parts of this appliance may become hot when used with cooking equipment.

EN 1 / NOTICES TO THE USER

Electrical risks

- All the power supply circuits must be disconnected before touching the connection terminals. If the power cord is damaged, it must be replaced by the manufacturer, its after-sales service or a similarly qualified person in order to avoid any danger.

- The appliance can be disconnected by using an accessible power outlet or by incorporating a switch in the fixed lines, in accordance with the installation rules.

- Do not change or attempt to change the characteristics of this appliance. Doing so can be dangerous.

- The appliance must only be repaired by an approved specialist.

- Always disconnect the hood before cleaning or maintaining it.

- Never use steam or high-pressure tools to clean your appliance (for the purposes of electrical safety).

- The appliance can be disconnected by using an accessible power outlet or by incorporating a switch in the fixed lines, in accordance with the installation rules.

1 /NOTICES TO THE USER

EN

• Do not change or attempt to change the characteristics of this appliance. Doing so can be dangerous.
• The appliance must only be repaired by an approved specialist.
• Always disconnect the the hood before cleaning or maintaining it.
• Never use steam or high-pressure tools to clean your appliance (for the purposes of electrical safety).

Risk of asphyxiation

- The regulations applying to the evacuation of air must be obeyed. The air must not be sent into a duct used to evacuate fumes from appliances that use gas or other fuels (this does not apply to appliances that only emit air into the room).

- The room must be suitably ventilated when the range hood is used at the same time as appliances that use gas or other fuels (this does not apply to appliances that only emit air into the room).

EN 1 / NOTICES TO THE USER

Risk of fire

- It is forbidden to flambé food or to turn on gas rings that are not covered by a cooking recipient beneath the hood, as the flames may sucked in and damage the appliance.

- Keep a constant eye on fryers used beneath the hood. When heated to very high temperatures, oil and fat can catch fire.

- Clean the appliance and replace the filters at the recommended frequency. Accumulated deposits of grease can cause a fire.

- It is forbidden to use the hood above a fuel fire (wood, coal, etc.).

- If the hood is installed above a gas-fired appliance, leave at least 70 cm between the top of the range and the underside of the hood. If the instructions of the range installed under the hood specify a distance greater than 70 cm, then this distance must be respected.

Warning In the case

In the case of a kitchen heated by a device connected to a chimney (a stove, for example) the "recycling" version of the hood should be installed. Do not use the hood without metal filters.

Suitable ventilation should be provided in the room when the hood is used at the same time as appliances operated by gas or another combustible fuel.

1 / NOTICES TO THE USER

EN

• ENVIRONMENTAL PROTECTION

• This appliance's packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose.
• Your appliance also contains a great amount of recyclable material. It is marked with this label to indicate the used appliances that should not be mixed with other waste. This way, the appli

ance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment. Contact your town hall or your retailer for the used appliance collection points closest to your home.

- We thank you doing your part to protect the environment.

Warning

Installation should only be performed by installers and qualified technicians.

Warning

Remove the protective film from the cartridge filter before use.

EN 1 / NOTICES TO THE USER

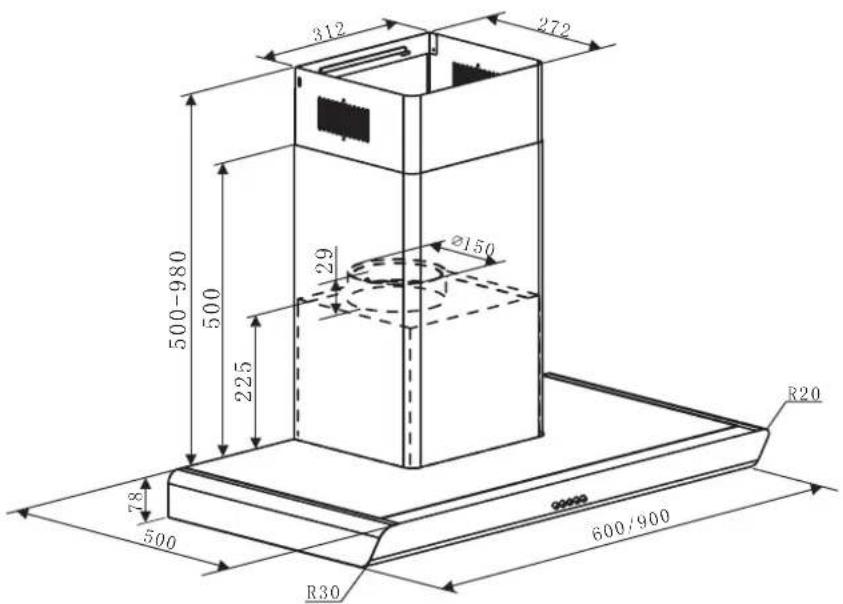

• DESCRIPTION OF YOUR APPLIANCE

312 272 500-980 500 225 29 Ø150 R20 78 500 600/900 R30

2 / INSTALLING YOUR APPLIANCE

EN

• The appliance must be unplugged during installation or when any repairs or maintenance work is being performed.
• Ensure that the network voltage corresponds to the voltage noted on the identification plate located inside the hood.
• If the electrical installation at your residence requires any changes in order to hook up your Appliance, call upon a professional electrician.
• If the hood is being used in evacuation mode, do not connect the appliance to a combustion gas exhaust duct (boiler, chimney, etc.) or to a CMV (controlled mechanical ventilation) system.
• Under no circumstances should the exhaust duct empty into the attic.
• Install the hood at a safe distance of at least 70 cm from an electric, gas or combined cooking hob.

• USING THE EVACUATION MODE

If you possess an outlet to the exterior

(pic. 1)

Your hood can be connected to this outlet using a flue (minimum diameter ∅ mm that is enamelled, in aluminium, flexible or made of inflammable material). If your flue is less than 125 mm in diameter, you must use the recycling mode.

φ 125 φ 150 pic. 1

• USING THE RECYCLING MODE

If you do not possess an outlet to the exterior

(pic. 2)

All of our appliances can be used in recycling mode.

In this case, you should add an active carbon filter which will keep in odours.

(See Chapter 4: Changing the carbon filter.)

Ø 125 Ø 150 pic. 2

Advice on how to save energy

To make optimal use of your appliance, keep the length of the duct and the number of bends in the duct to a strict minimum.

EN 2 / INSTALLING YOUR APPLIANCE

• ELECTRICAL CONNECTIONS

During installation and maintenance operations, the appliance must be unplugged from the electrical grid; fuses must be cut off or removed.

The electrical connections are made before the appliance is installed in its housing.

Ensure that:

• the electrical installation has sufficient voltage,
• the electrical wires are in good condition,
• the diameter of the wires complies with the installation requirements.

Warning This app

This appliance is delivered with a H 05 VVF power cord that has three-0.75 mm² conductors (neutral, phase and ground). It must be connected to the main power supply (which should be a 220-240 V single phase current) via a CEI 60083 standardised socket that should remain accessible after installation, in keeping with installation guidelines.

We cannot be held responsible for any accident resulting from an inexistent, defective or incorrect ground lead. The fuse for your installation must be 10 or 16A. If the power cable is damaged, call the after-sales service department in order to avoid danger.

Warning If the elec

If the electrical installation at your residence requires any changes in order to hook up your appliance, call upon a professional electrician.

Warning If the boo

If the hood displays any malfunctions, unplug the appliance or remove the fuse corresponding to the electrical socket where your appliance is plugged in.

• ASSEMBLING THE HOOD

Warning The hood

The hood must be installed in compliance with all applicable regulations concerning the ventilation of premises. In France these regulations are described in DTU 61.1 from the CSTB. In particular, the evacuated air should never be conveyed to a duct used to evacuate smoke from appliances that use gas or other combustible fuels. Unused ducts may only be used after approval from a competent specialist.

The minimum distance between the cooking surface and the lowest part of the hood must be 70 cm at least. If the instructions for the hob installed under the hood specify a distance of more than 70 cm, this requirement must be respected.

Fixing to the wall:

• Draw a vertical line on the wall centered on the cook top.
• In a suitable position, drill 3 holes and insert the 3 wall plugs for the hook. Drill 2 holes and insert the 2 wall plugs for the inside chimney bracket (Pic 3)
• Screw the hook to the wall with 3 screws. Screw the inside chimney bracket to the wall with 2 screws. Ensure they are perfectly leveled. (Pic 3)
• Insert the extension tube. (Pic4)
• Hang the motor unit in the hook (Pic 5) and fix the motor unit with 2 safety screws (Pic 6)

inside chimney bracket

hood

Pic 3

tube

Pic 4

Diagram showing brick wall and cylindrical object with curved arrows indicating direction (no text or symbols)

Pic 5

Technical line drawing of a mechanical assembly mounted on a brick wall (no text or symbols)

Pic 6

EN 2 / INSTALLING YOUR APPLIANCE

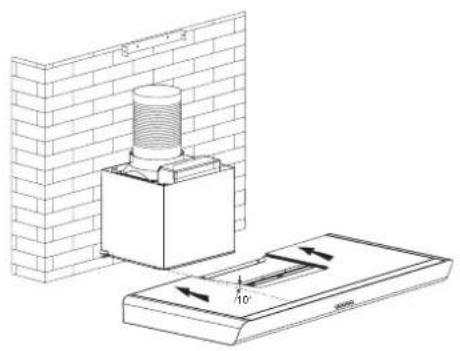

-Lift the hood body and slide it into the motor unit (Pic 7) then fasten it with 5 screws.(Pic 8)

Technical diagram showing a mechanical assembly with brick wall and base plate, no text or symbols present

Pic 7

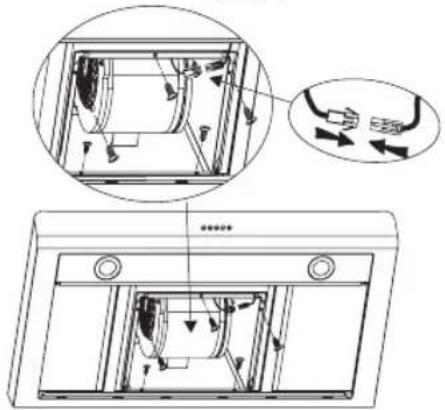

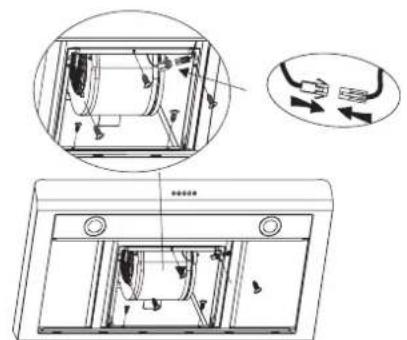

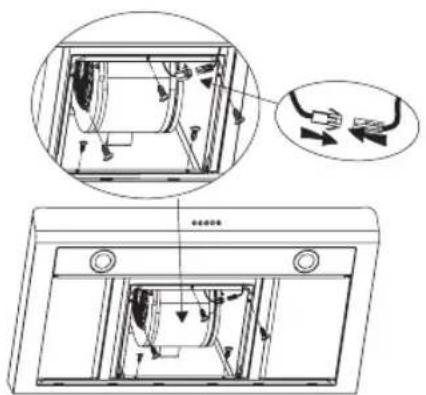

-Remove the Aluminum filters and connect the cable (Pic 8)

Technical diagram showing a device interior with labeled components and a close-up view of internal wiring or wiring connections.

Pic 8

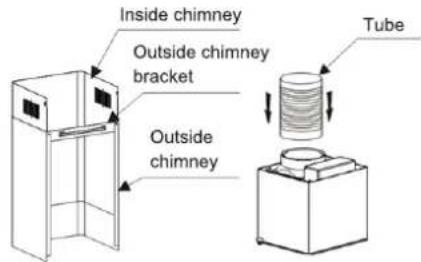

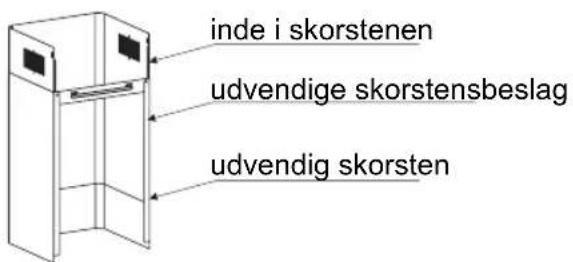

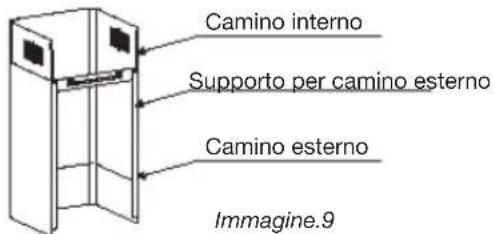

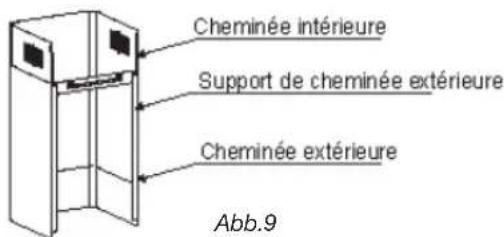

-Fix the outside chimney bracket into the outside chimney, ensuring the inside chimney can move up and down freely. (Pic 9)

inside chimney outside chimney bracket outside chimney

Pic 9

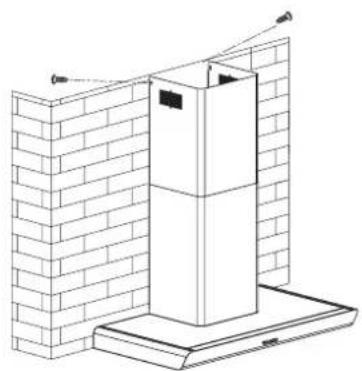

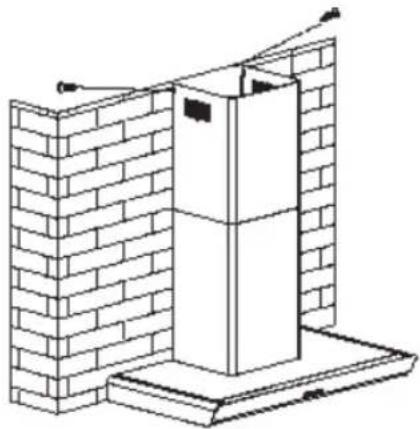

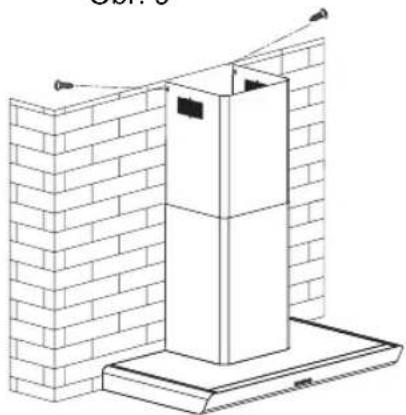

- Then put the chimneys onto the hood and fix the inside chimney with the bracket by 2 screws.(Pic 10)

Technical line drawing of a brick wall structure with a vertical support structure (no text or symbols)

Pic 10

• ASSEMBLING THE VENTILATION SHAFT

• Outdoor evacuation

• Calculate the final height for fixing the duct support U-bracket (Pic 3).
• Mark the two holes accordingly
• Drill 8 mm diameter holes and secure the duct support bracket, ensuring that it is fixed on the same axis as the hood (Pic 3).
• Fix the flat bracket behind the lower duct (Pic 11).
  -Fix the two ducts to the hood (Pic 12).
• Connect the sleeve to the air outlet to the outside. (Pic 13).
• Make the electrical connection to the hood using the mains supply cable.

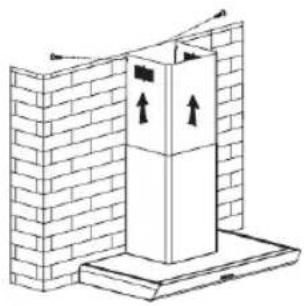

• Lift the upper duct up to the ceiling and fix it to the bracket using the screws. (Pic 14).

Inside chimney Outside chimney bracket Outside chimney Tube

Pic. 11
Pic. 12

Simple line drawing of a mechanical component with downward arrows indicating force or movement (no text or symbols)

Pic. 13

Diagram of a brick wall with a vertical structure and upward arrows indicating direction (no text or symbols)

Pic. 14

EN 2 / INSTALLING YOUR APPLIANCE

- Recycling

-Calculate the final height for fixing the duct support U-bracket (Pic 3).

-Mark the two holes.

-Drill 8 mm diameter holes and secure the duct support bracket, ensuring that it is fixed in the same axis as the hood (Pic 3).

-Fix the flat bracket behind the lower duct (Pic 11).

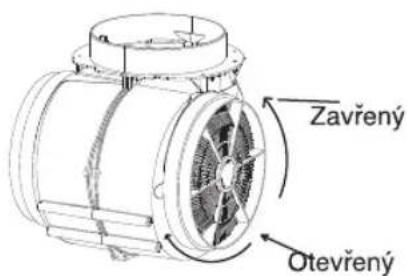

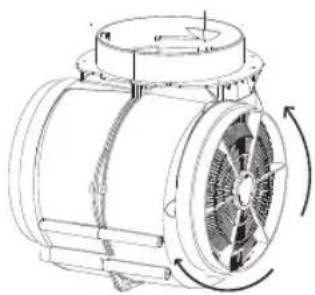

-Fit the sleeve adapter on the deflector (Pic 15).

-Connect the extendable sleeve to the deflector.

-Fit the two parts of the duct on to the hood (Pic 12).

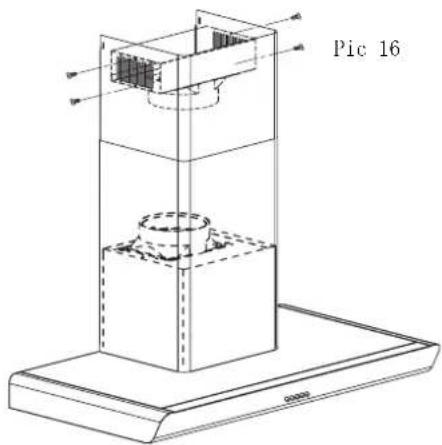

-Fit the deflector (Pic 15) into the upper duct by the ventilation inlets (Pic 16).

-Make the electrical connection to the hood using the mains supply cable.

-Lift the upper duct up to the ceiling and fix it to the bracket using the two screws. (Pic 14).

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Pic 15

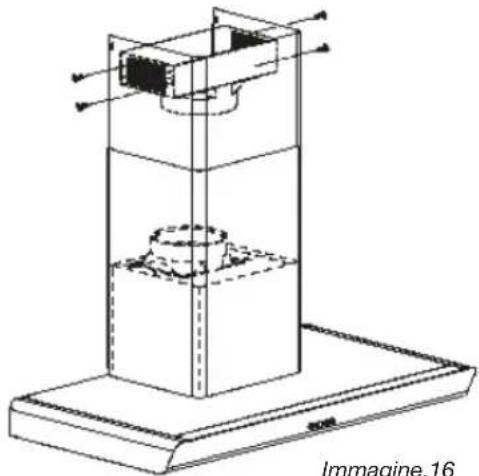

Pic 16

Tip

For optimal use of your appliance, we recommend that you connect the hood to a 150 mm-diameter flue (not delivered with the appliance). Minimise the number of angles and bends and the lengths of the flue. In the event that the hood will be operated using outdoor evacuation, you should ensure a sufficient inflow of fresh air to avoid a pressure deficiency in the room.

Warning

Do not use tools to remove the safety film of hood

• DESCRIPTION OF CONTROL PANEL

Push button

1.Push stop button, and the motor will stop
2. Push the Low button, and the motor runs at low speed.
3. Push the Mid button, and the motor runs at mid speed.
4. Push the High button, and the motor runs at high speed.
5.Push the light button and the two lights will come on. Push it again and the light will turn off.

0 1 2 3 ⚪

Stop

Low

Mid

High

Light

Advice on how to save energy

Adjust the speed to the cooking method and the number of pans in use. It is preferable to use the rings at the back of the range.

EN 4 / CARING FOR AND CLEANING YOUR APPLIANCE

Warning

Always unplug the hood before cleaning it or performing other maintenance acts. Regular maintenance of your appliance is a guarantee of proper functioning, good performance and durability.

Warning

Failure to respect the guidelines for cleaning the appliance and filters may cause fires. Please carefully adhere to the maintenance recommendations.

- CLEANING THE FILTER CAR- TRIDGES

They must be cleaned after approximately 30 hours of use or at least once a month. These filters can be cleaned in a vertical position in your dishwasher.

Use a brush, hot water and mild detergent. Rinse and dry them thoroughly before returning them to the hood.

• Dismantling the filter cartridge

– Turn the built-in filter cartridge handle.

- Tilt the filter cartridge downward.

Technical line drawing of a kitchen air conditioner unit with two gridded outlets and ventilation slots (no text or symbols)

- CHANGING THE CARBON FILTER (optional)

Replace it after approximately 120 hours of use.

- Remove the filter cartridges

- Turn the carbon filter to remove it

- Do the operation in the reverse order to put a new filter back

- Put the filter cartridges back.

Open Close

4 / CARING FOR AND CLEANING YOUR APPLIANCE

EN

• CLEANING THE OUTER SURFACES

To clean the outside of your hood, use soapy water, but never use abrasive creams, corrosive detergents, scrubbing sponges or brushes. Wipe down with a soft, damp cloth.

• CHANGING THE LIGHT BULB

Warning

The power supply must be turned off before changing the light bulb, either by removing the plug or by using the circuit breaker switch.

Model with LED

• Remove the lighting port
• Change the LED
• Replace the bulb by repeating these steps in reverse order.

LED light (round)

ILCOS D code: DBR-2/65-H-64

• Max wattage: 2×2W
• Voltage range: AC 220-240V
• Dimension (mm):

Technical line drawing of a kitchen fan or rack with a handle and internal components (no text or symbols)

64 20.5

EN 4 / CARING FOR AND CLEANING YOUR APPLIANCE

Warning Before ca

Before carrying out any work, the power supply to the hood must be turned off, either by unplugging it or by using the circuit breaker switch.

• MAINTAINING YOUR APPLIANCE

MAINTENANCE	WHAT TO DO	PRODUCTS/ACCESSORIES TO USE
Top surface and accessories	Never use metal scouring pads, abrasive products or excessively stiff brushes.	To clean the body and the lighting port, you should use only commercial household cleaning products diluted in water and then rinse using clean water, drying with a soft cloth.
Filter cartridge	This filter traps fatty vapours and dust. This component plays an important role in ensuring the effectiveness of your hood. In the event of tough stains, use a non-abrasive cream, then rinse with clean water.	Use a commercial household cleaning product then rinse abundantly and dry. These filters can be cleaned in a vertical position in your dishwasher. (Do not allow them to touch dirty dishes or silverware.)
Activated carbon filter	This filter traps odours and must be changed at least once a year depending on your level of use. You should order these filters from your dealer (quoting the reference shown on the identification plate located inside the hood) and note the date the filter was changed.

5 / TROUBLESHOOTING

EN

SYMPTOMS	SOLUTIONS
The hood is not working...	Ensure that:• The power is not cut off.• A speed has been selected.
The hood is not operating effectively...	Ensure that:• The selected motor speed is sufficient for the quantity of smoke and vapours to be cleared.• The kitchen is sufficiently ventilated to allow for fresh air intake.• The carbon filter is not worn (hood operating in recycling mode).
The hood stopped working	Ensure that:• The power is not cut off.• The single-pole cut-off device was not activated.

EN 6 / AFTER-SALES SERVICE

Any maintenance on your equipment should be undertaken by :

- either your dealer,

- or another qualified mechanic who is an authorized agent for the brand appliances.

When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufacturer's nameplate attached to your equipment.

This device complies with the delegated regulations (EU) 65/2014 and 66/2014 of the European Commission on the eco design requirements and energy labeling of household hoods.

symbol Value Unit

Brand	Brandt
Model number	BHB6602X
Annual energy consumption	AEC	56.8	kWh/annum
Energy efficiency index	EEi	62.2	-
Fluid dynamic efficiency index	FDE	24.8	-
Lighting efficiency index	LE	50.8	-
Grease filtering efficiency	GFE	82.7	-
Time increase factor	f	1.1	-
Maximum volumetric airflow of the cooker hood	Q_max	620.7	m^3/h
Volumetric airflow at best efficiency point	Q_BEP	329.0	m^3/h
Static pressure at the best efficiency point	P_BEP	364	P
Power consumption at the best efficiency point	W_BEP	134.2	W
Nominal power consumption of lighting system	W_L	4.0	W
Average illumination of the lighting system	E_middle	203	Lux/W
Power consumption in off mode	P_o	0.00	W
Power consumption in standby mode	P_s	--	W
Volumetric airflow at the highest speed setting in normal use -		593.4	m^3/h
Volumetric airflow at the lowest speed setting in normal use -		352.2	m^3/h
Volumetric airflow in intensive or boost mode -		--	m^3/h
Sound power emissions at the highest speed setting in normal use -		68	dB(LwA)
Sound power emissions at the lowest speed setting in normal use -		58	dB(LwA)
Sound power emissions in intensive / boost mode -		--	dB(LwA)

EN 7 / Ecodesign information / Technical product fiche

symbol Value Unit

Brand	Brandt
Model number	BHB6902X
Annual energy consumption	AEC	57.5	kWh/annum
Energy efficiency index	EEi	62.3	-
Fluid dynamic efficiency index	FDE	23.7	-
Lighting efficiency index	LE	40.3	-
Grease filtering efficiency	GFE	81.5	-
Time increase factor	f	1.1	-
Maximum volumetric airflow of the cooker hood	Q_max	633.7	m^3/h
Volumetric airflow at best efficiency point	Q_BEP	336.6	m^3/h
Static pressure at the best efficiency point	P_BEP	344	P
Power consumption at the best efficiency point	W_BEP	136.0	W
Nominal power consumption of lighting system	W_L	4.0	W
Average illumination of the lighting system	E_middle	161	Lux/W
Power consumption in off mode	P_o	0.00	W
Power consumption in standby mode	P_s	--	W
Volumetric airflow at the highest speed setting in normal use -		606.0	m^3/h
Volumetric airflow at the lowest speed setting in normal use -		358.8	m^3/h
Volumetric airflow in intensive or boost mode -		--	m^3/h
Sound power emissions at the highest speed setting in normal use -		70	dB(LWA)
Sound power emissions at the lowest speed setting in normal use -		59	dB(LWA)
Sound power emissions in intensive / boost mode -		--	dB(LWA)

OBSAH

CZ

1 / PRO UŽIVATELE

2 / INSTALACE PŘÍSTROJE

2 / INSTALACE PŘÍSTROJE

CZ

CZ 2 / INSTALACE PŘÍSTROJE

• ELEKTRICKÉ ZAPOJENÍ

2 / INSTALACE PŘÍSTROJE

CZ

• MONTÁŽ EXTRAKČNÍHO ZVONU

Pozor

Technical diagram showing brick wall and electrical component with labeled dimensions and connection points

Obr. 5

Technical line drawing of a mechanical assembly mounted on a brick wall (no text or symbols)

Obr. 6

CZ 2 / INSTALACE PŘÍSTROJE

Technical diagram showing a brick wall with a cylindrical component and a mechanical assembly with directional arrows (no text or symbols)

Obr. 7

Technical diagram showing internal components of a device with labeled parts and directional arrows indicating flow or movement.

Obr. 8

inside chimney outside chimney bracket outside chimney

Obr. 9

Architectural line drawing of a brick wall and a vertical support structure (no text or symbols)

Obr. 10

2 / INSTALACE PŘÍSTROJE

CZ

• MONTÁŽ KOMÍNA

• Vypouštění ven

inside chimney outside chimney bracket outside chimney trubka

Obr. 11

ey trubka

Obr. 12

Technical line drawing of a mechanical component with downward arrows indicating force or movement (no text or symbols)

Obr. 13

Diagram of a brick wall with a vertical structure and directional arrows, no text or symbols present

Obr. 14

CZ 2 / INSTALACE PŘÍSTROJE

- Recyklování

Technical line drawing of a mechanical assembly with no visible text or symbols

Obr. 15

Technical line drawing of a mechanical assembly with layered components and a base plate (no text or symbols)

Obr. 16

Rada

Line drawing of a kitchen air conditioner unit with grating and vent slots (no text or symbols)

Technical line drawing of a kitchen air conditioner unit with internal components and a handle (no text or symbols)

CZ 4 / ÚDRŽBA A ČIŠTĚNÍ PŘÍSTROJE

Pozor

2 / INSTALLATION AF APPARATET

Ø 125 Ø 150 ill. 1

• BRUG MED RECIRKULERINGSVERSIONEN

installationskravene.

Advarsel

2 / INSTALLATION AF APPARATET

DK

• SAMLING AF EMHÆTTEN

Advarsel

Technical diagram showing brick wall connection with labeled arcs and a cylindrical component mounted on a base.

Figur. 5

Technical line drawing of a mechanical assembly mounted on a brick wall (no text or symbols)

Figur. 6

DK 2 / INSTALLATION AF APPARATET

Technical diagram showing a mechanical assembly with brick wall and housing, no text or symbols present

Figur. 7

Technical diagram showing internal components of a device with labeled parts and directional arrows indicating flow or movement.

Figur. 8

Architectural line drawing of a brick wall and a vertical support structure (no text or symbols)

Figur. 10

2 / INSTALLATION AF APPARATET

DK

• SAMLING AF VENTILATIONSSKAKTEN

Technical line drawing of a mechanical component with downward arrows indicating force or movement (no text or symbols)

Figur. 13

Diagram of a brick wall with a vertical structure and directional arrows, no text or symbols present

Figur. 14

DK 2 / INSTALLATION AF APPARATET

- Recirkulering

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Figur. 15

Technical line drawing of a mechanical assembly with a cylindrical component and a base plate (no text or symbols)

Figur. 16

Råd

Technical line drawing of a kitchen air conditioner unit with mesh grating and ventilation slots (no text or symbols)

Technical line drawing of a kitchen fan or oven with internal components and a handle (no text or symbols)

4 / PLEJE OG RENG∅RING AF APPARATET DK

Advarsel

Diagram of a brick wall connected to a cylindrical object with a curved line, next to a base (no text or symbols)

Abb.5

Diagram of a brick wall with a cylindrical object inserted into a container (no text or symbols)

Abb.6

2 / INSTALLATION DES GERÄTESDE

Technical line drawing of a brick wall and a mechanical assembly with no visible text or symbols

Abb.7

Technical line drawing of a mechanical component with no visible text or symbols

Isometric line drawing of a brick wall and adjacent structure with no text or symbols

Abb.10

2 / INSTALLATION DES GERÄTES DE

0 1 2 3 ◎ ◎ ◎ ◎ ◎

Stop

Low

Mid

High

Light

Technical line drawing of a kitchen air conditioner unit with mesh grating and ventilation slots (no text or symbols)

Technical line drawing of a mechanical fan or motor with rotational arrows indicating motion (no text or symbols)

Technical line drawing of a kitchen fan with internal components and a handle (no text or symbols)

Diagram of a brick wall and a cylindrical object connected by wires, no text or symbols present

Immagine.5

Diagram of a brick wall with a cylindrical object inserted into a container (no text or symbols)

Immagine.6

2 / INSTALLAZIONE DELL'APPARECCHIOIT

Technical line drawing of a brick wall-mounted device with a cylindrical component and a base plate, showing internal components without any text or symbols.

Immagine.7

Technical line drawing of a mechanical assembly or enclosure with internal components and mounting holes (no text or symbols)

Immagine.8

Isometric line drawing of a brick wall and adjacent structure with no text or symbols

Immagine.10

2 / INSTALLAZIONE DELL'APPARECCHIO IT

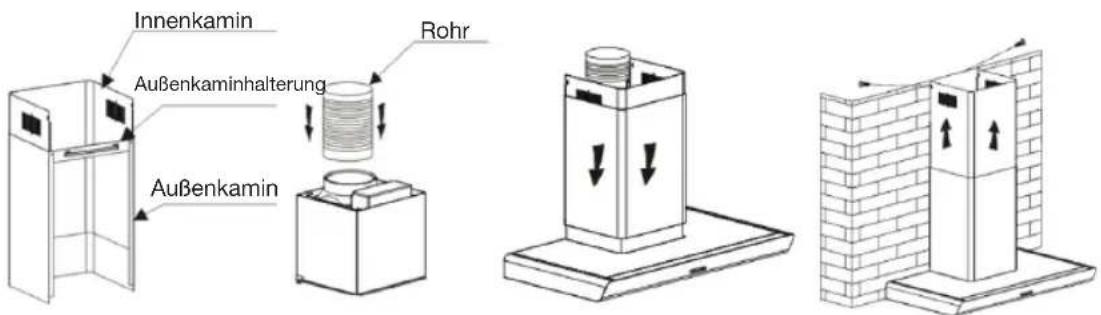

Camino interno Supporto per camino esterno Tubo Camino esterno

Technical line drawing of a mechanical assembly with no visible text or symbols

Immagine.15

Technical line drawing of a mechanical assembly with a cylindrical component and base plate (no text or symbols)

Immagine.16

Consiglio

Technical line drawing of a kitchen air conditioner unit with ventilation grilles and numbered components (no text or symbols)

Technical line drawing of a mechanical fan or impeller assembly with rotational motion arrows (no text or symbols)

4 / MANUTENZIONE E PULIZIA DEL DISPOSITIVOIT

• PULIZIA DELLA SUPERFICIE ESTERNA

Technical line drawing of a kitchen fan with handle and internal components (no text or symbols)

4 / MANUTENZIONE E PULIZIA DEL DISPOSITIVO IT

Attenzione
