Type	Canister vacuum cleaner
Manufacturer	Gorenje
Model	VCEA22GPRBK
Dimensions (LxWxH)	Approx. 410 x 290 x 260 mm
Weight	Approx. 5.5 kg
Power consumption	650 W (motor), 1200 W (total)
Dust container capacity	2.0 L (bagless)
Suction power	Adjustable, up to 320 air watts
Noise level	~78 dB(A)
Power cord length	6 m
Filtration system	HEPA H13 filter
Main brush type	Electric brush (for carpets)
Accessories included	Crevice nozzle, upholstery brush, combination tool
Vacuum cleaner type	Bagged? Bagless? Bagless (cyclonic)
Variable power	Electronic suction control
Maintenance	Washable HEPA filter, empty dust container regularly
Safety features	Overheat protection, motor brake
Repairability	Spare parts available for purchase (filters, brushes, hose)
Warranty	2 years

Frequently Asked Questions - VCEA22GPRBK GORENJE

How do I empty the dust container on the Gorenje VCEA22GPRBK?

Press the release button on the dust container and pull it out. Hold it over a trash bin, open the bottom lid by pressing the indicated button, and empty. Then rinse the container with water and let it dry completely before reinserting.

How often should I clean or replace the HEPA filter?

The HEPA filter should be cleaned every 3-6 months by tapping it gently or rinsing with water (if washable). Replace it once a year or if it appears damaged. Check the manual for the exact filter type.

What should I do if the suction power decreases?

First, check if the dust container is full or the filter is clogged. Empty the container and clean the filter. Also inspect the hose and brush for blockages. If the problem persists, the motor may need service.

Can the Gorenje VCEA22GPRBK be used on hardwood floors?

Yes, it is suitable for hardwood floors. It comes with a combination nozzle that can be adjusted or you can use the included brush tool. Ensure the brush is clean to avoid scratching.

How do I replace the electric brush (power nozzle)?

Unplug the vacuum. Press the release button on the brush head and disconnect the connector. Attach the new brush by aligning it and pushing until it clicks. Ensure the electrical contacts are clean.

Is the power cord retractable?

Yes, the vacuum has an automatic cord rewind. To rewind, hold the plug and press the cord rewind button on the back of the unit.

What is the noise level of this vacuum?

The Gorenje VCEA22GPRBK operates at approximately 78 dB(A), which is moderate for a household vacuum. Use ear protection if sensitive to noise.

Does this model have a motor protection filter?

Yes, it includes a motor protection filter that should be cleaned or replaced according to the manual to extend the life of the motor.

Where can I buy spare parts for the Gorenje VCEA22GPRBK?

Spare parts such as filters, brushes, hoses, and nozzles can be purchased from authorized Gorenje service centers or online retailers. Check the user manual for part numbers.

How do I use the variable suction power feature?

There is an electronic slider on the handle or body of the vacuum. Slide it to adjust the suction power from low (for delicate fabrics) to high (for carpets). Set it according to the surface.

USER MANUAL VCEA22GPRBK GORENJE

Black and red vacuum cleaner with black handle and red base, no visible text or symbols

VCEA22GPRBK

Navodila za uporabo	SI
Upute za uporabu	BIH HR
Uputstvo za upotrebu	BIH SRB MNE
Упатства за употреба	MK
Instruction manual	EN
Instrucțiuni de utilizare	RO
Návod k obsluze	CZ
Návod na obsluhu	SK
Instrukcja obsługi	PL
Használati útmutató	HU
Инструкции за употреба	BG
Інструкція з експлуатації	UK
Руководство по эксплуатации	RUS
Gebrauchsanweisung	DE
Instructionsmanual	DK
Käyttöuhjeet	FI
Bruksanvisning	NO
Bruksanvisning	SV

SI Navodila za uporabo .... 3

DK Instructionsmanual....61

FI Käyttöuhjeet 65

NO Bruksanvisning 69

SV Bruksanvisning 73

DIAGRAM

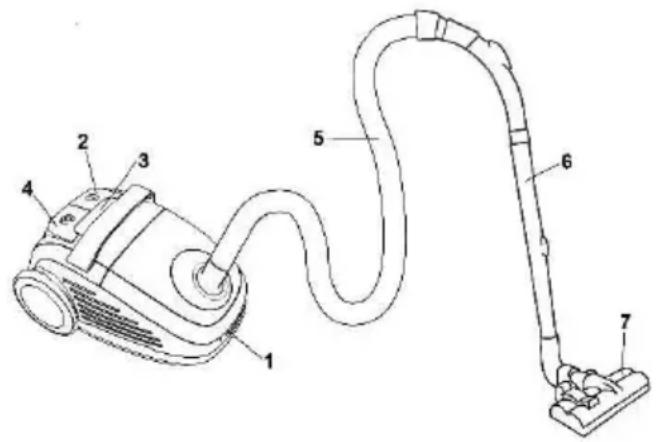

Opis sesalnika

1. Zapiralo pokrova
2. Stikalo za vklop/izklop
3. Stikalo za nastavitev sesalne moči
4. Stikalo za navijanje priključne vrvice
5. Upogljiva cev
6. Teleskopska cev
7. Talna krtača

POMEMBNA OPOZORILA

Technical line drawing of a vacuum cleaner's internal components, showing open casing and internal compartments (no text or labels)

1. Vrečko zamenjajte z novo, kadar je polna.
2. S pritiskom zaprite pokrov dokler se ne zaklene.

Technical illustration of a car's internal components, showing airflow or ventilation system (no text or symbols)

Opis usisavača

Technical line drawing of a vacuum cleaner's internal components, showing open casing and internal wiring (no text or labels)

Diagram of a car interior showing airflow or ventilation system with no visible text or symbols

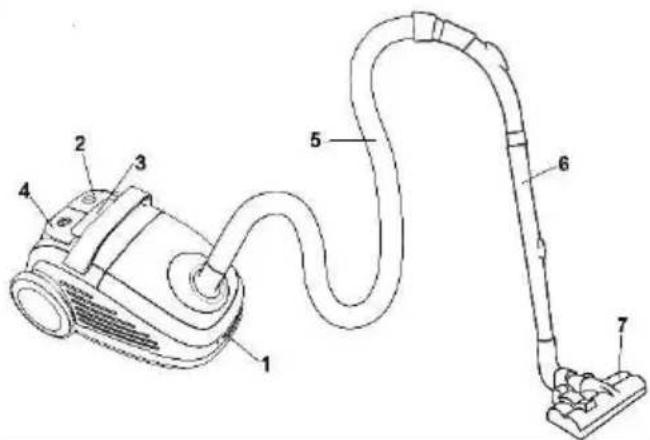

Opis usisivača

1. Zatvarač poklopca
2. Prekidač za uključivanje/isključivanje
3. Dugme za podešavanje snage usisavanja
4. Prekidač za namotavanje priključnog kabla
5. Elastična cev
6. Teleskopska cev
7. Podna četka

Važna upozorenja

Technical line drawing of a vacuum cleaner's internal components, showing open lid and internal casing (no text or symbols)

1. Kad se kesica napuni prašinom, zamenite je novom.
2. Pritiskom zatvorite poklopac da se čujno zabravi.

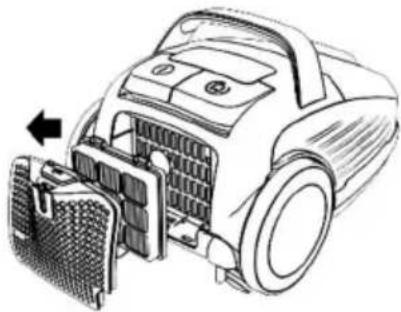

2. Zamena filtera

1. Otvorite zatvarač filtra.
2. Otvarajući zatvarač filtra, pomoću dva prsta povucite plastični nosač.
3. Odstranite istrošeni filtar i zamijenite ga čistim filtrom.
4. Zatvorite zatvarač filtra.

Technical line drawing of a vacuum cleaner with internal components and airflow direction arrow (no text or symbols)

Čišćenje i nega aparata

Technical line drawing of a vacuum cleaner's internal components, showing open casing and internal engine housing (no text or labels)

Technical line drawing of a car interior showing internal components and airflow direction (no text or symbols)

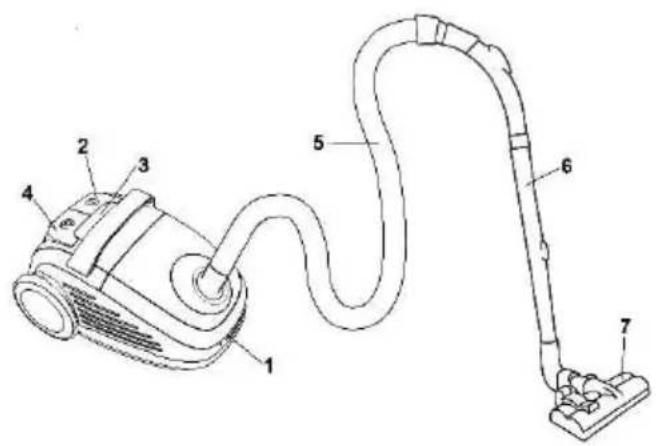

Description

1. Snap-on lock for opening cover
2. On/Off button
3. Power control button
4. Cord rewind button
5. Hose
6. Extension tube
7. Floor brush

Important safeguards

Wheniusingithisuappliancekibasici precautionsishouldualwaysiben followed:и

• Tl3hjs3 r3hш tЧ3 снбк3ty CnstruAtCons Ангзкулly ньш us3 tЧ3 нрpllСъпA3 only Сп ньAAorшъпA3 ўCtЧ tЧ3s3 CnstruAtCons.
• но пот 13ът3 тЧЗ нърр!СњпАЗ ипътт3нш3ш ширСпО us3.
• льutCon: tss3mKl3 tЧЗ нррлСньпАЗ Анрзкully КЗкор3 usCnO Ct.
• но not l3ħt3 tЧ3 нррлСъпАЗ ипъtt3nw3ш ўЧ3n Ct Cs pluООЗш Сп. Tull tЧ3 pluO нъкт3r us3 or ўЧ3n p3rkormCnO тньCnt3пъпАЗ ўork.
- k4Cs нррлСъпА3 Cs not Cnt3нш3ш қөг us3 Ky p3rsons (CnAluшCnO АЧСіwr3n) ăCtЧ r3шуАЗш pЧysСАңл, s3nsory or · m3ntыл АньрнЬКСІтС3s, or ІнЬАк оқ 3хр3rС3пАЗ ньш knoăl3шОЗ, unl3ss tЧЗу Чьт3 КЗ3п ОСт3н sup3rtCsCon · or CnstruAtCon AonA3rnCnO ұс3 оқ tЧЗ нррлСъпА3 Ky нь p3rson r3sponsСКІз қөг tЧЗCr сънк3ty. ЛЧСіwr3n sЧoulш КЗ sup3rtCs3ш to 3nsur3 tЧьт tЧЗу шо not ріњу ăCtЧ tЧЗ нррлСъпАЗ.

CAUTION: Never use the vacuum cleaner without the filters.

Vacuum cleaner use only for home and in the inner rooms!

Do not use a vacuum cleaner in very dirty places, it will immediately obstruct HEPA filter!

143 Connection to the mains supply

Check, please, whether the voltage stated on the data plate comply with the data of your house remains supply.

Supply cord

If the supply cord is damaged, it must be replaced with the suitable cord, or a set for coiling the cable, which you can get in the nearest Gorenje's service outlet.

If the mains cord is damaged, you must have it replaced by Gorenje, a service centre authorised by Gorenje or similarly qualified persons in order to avoid a hazard.

Data on compliance with European standards

Test for this type of appliance confirmed that it complies with the following European directives:

• 2014/35/EU
• 2014/30/EU
• 2009/125/ES
• 2011/65/EU

666/2013/EU

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

Elimination of the appliances and environment

If one day you decide to change your appliance, or you just do not need it any more, think about the environmental protection.

Vacuum cleaner assembling

Always remove the plug from the power supply before fitting or removing accessories. Before

putting the appliance into service, please check if all filters are inserted correctly.

ASSEMBLY OF THE SUCTION HOSE

- Insert the flexible suction hose into the connection opening at the top of the housing until you can feel it lock.

HOSE REMOVING

- To remove flexible hose from the vacuum cleaner, press the buttons situated on the flexible hose base, then pull to remove it from the attachment point.

ROLLING THE CABLE OUT AND UP

- Pull out the cable to such a length that easy working is ensured. Now connect the appliance to the main supply. Press the switch to activate the automatic rewinder and hold on the mains plug for safety reason.

FITTING TUBE AND ACCESSORIES

• Extend the tube to the desired length by pressing on button.
• Insert a flexible hose into a tube.
• Fit a nozzle to tube:
• Floor brush is intended for cleaning bare floor and floor coverings.
• 3 pcs. set of nozzles are appropriate for cleaning corners and other small, inaccessible places.
• Carpet brush is appropriate for cleaning carpets, carpetings and other similar surfaces.
• Parquet brush is appropriate for cleaning sensitive floors and flat surfaces such as parquet, laminate, tile, etc. Bristles for efficient cleaning are at the bottom and over the entire length so you cannot damage your floor.

Instruction for use

• Before using the appliance, unwind a sufficient length of cord and insert the plug into the power supply.
• Press the On/Off button to switch the unit on. To stop it press the On/Off button again.
• You can adjust the air flow using the air flow regulator on the flexible hose:
• decrease power for cleaning curtains, books, furniture, etc.

- increase power for cleaning bare floor. To rewind the cord, press the rewind button and guide the cord with hand to ensure that it does not whip causing damage.

Maintenance

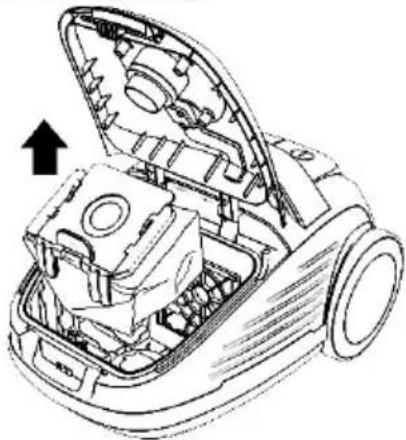

1. Changing of the dust bag

• Always operate the cleaner with dust bag installed.
- If you forget to attach the dust bag or attach it in the wrong manner, the dust cover may not close completely.

1. After removing the flexible tube, open the front cover.
2. Rotate the support of the bag to the correct position.
3. Remove the dust bag.

Line drawing of a vacuum cleaner's internal structure showing open casing, gears, and housing (no text or symbols)

1. Replace the bag when it is full of dirt and put in a new one.

2. Close the cover by passing down unitil it is locked.

2. Cleaning filter

1. Open the cover for HEPA filter.
2. When open the cover for HEPA filter, use your two fingers pulling ouch for HEPA, then pulling HEPA up.
3. Take the HEPA out and change a clean one.
4. Close the cover for HEPA filter.

Technical line drawing of a car interior showing airbags and dashboard components (no text or symbols)

Care and cleaning

Switch off the appliance and pull out the plug from the power supply. Clean the outside of the appliance with a soft cloth with mild detergent. Harsh or abrasive detergent will damage the outside surface. Never immerse the appliance or cord into water and other liquids.

CAUTION:

When the dust bin full indicator reaches the middle of the window, clean the dust bin. Never use the appliance without filters. Do not use a washing machine to rinse filters. Do not use a hair drier to dry them.

Storage

Parking system serves for parking suction tube/floor nozzle during short-term interruptions. For this purpose, please insert the holder of the floor nozzle into parking rail of the device.

Environment

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Guarantee & service

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

For personal use only!

GORENJE WISHES YOU A LOT OF PLEASURE WHEN USING YOUR APPLIANCE

DIAGRAM

Descriere

Technical line drawing of a vacuum cleaner internal structure (no text or symbols)

Technical line drawing of a car interior showing airflow or exhaust components (no text or symbols)

Technical line drawing of a vacuum cleaner's internal components, showing open lid and internal casing (no text or symbols)

Technical line drawing of a car interior showing airbags, dashboard, and exhaust pipe (no text or symbols)

Údržba a čištění

Technical line drawing of a vacuum cleaner's internal components, showing open casing and internal wiring (no text or labels)

Diagram of a car interior showing airflow or exhaust flow through a chamber with a net (no text or symbols)

Údržba a čistenie

Opis

Technical line drawing of a car's internal components, showing open lid and internal parts (no text or symbols)

Technical line drawing of a car interior showing airflow or exhaust system (no text or symbols)

Ismertetés

Technical line drawing of a vacuum cleaner's internal components, showing open casing and internal gears (no text or labels)

Technical line drawing of a car interior showing airflow and ventilation system (no text or symbols)

Technical line drawing of a vacuum cleaner internal component (no text or symbols)

Diagram of a car interior showing airflow and ventilation system (no text or labels)

Почистване

Technical line drawing of a vacuum cleaner's internal structure showing open casing, gears, and housing (no text or labels)

Technical line drawing of a car interior showing airflow or exhaust components (no text or symbols)

Чищення та догляд

Technical line drawing of a vacuum cleaner's internal structure, showing open casing and internal components (no text or labels)

Technical illustration of a car interior showing internal components and a directional arrow (no text or symbols)

Уход и чистка

Technical line drawing of an open vacuum cleaner's internal components, showing housing and casing assembly (no text or labels)

Technical line drawing of a car interior showing airflow or exhaust components (no text or symbols)

Beskrivelse

Technical line drawing of a vacuum cleaner's internal components, showing open lid and internal gears (no text or labels)

Technical line drawing of a car interior showing airflow and ventilation components (no text or symbols)

Kuvaus

Technical line drawing of a vacuum cleaner's internal components, showing open casing and internal gears (no text or labels)

Technical line drawing of a car interior showing internal components and airflow direction (no text or symbols)

Hoito ja puhdistus

Beskrivelse

Technical line drawing of a vacuum cleaner's internal components, showing open lid and internal casing (no text or symbols)

Technical line drawing of a car interior showing airflow or ventilation system (no text or symbols)

Stell og rengjøring

GORENJE ∅NSKER DEG LYKKE TIL MED DET NYE APPARATET

DIAGRAM

Beskrivning

RULLA UT OCH IN SLADDEN

Technical line drawing of a vacuum cleaner's internal components, showing open lid and internal casing (no text or symbols)

Technical line drawing of a vacuum cleaner with internal components and airflow direction arrow (no text or symbols)
