Product type	Brushcutter
Brand	Hitachi
Model	CG 27EAS (SL)
Engine type	Two-stroke, air-cooled
Displacement	27 cc
Fuel	Mixture of unleaded gasoline 89 octane and two-stroke oil (ratio 25:1 to 50:1)

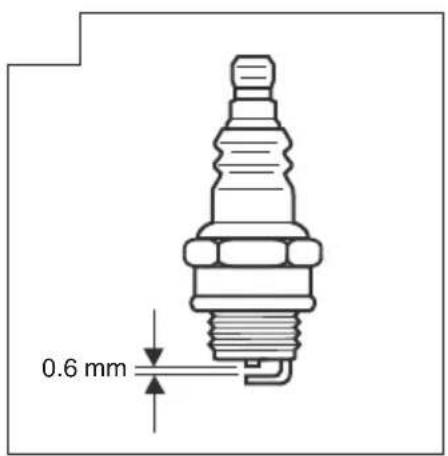

Spark plug	Electrode gap: 0.6 mm
Idle speed	2800 – 3200 min⁻¹

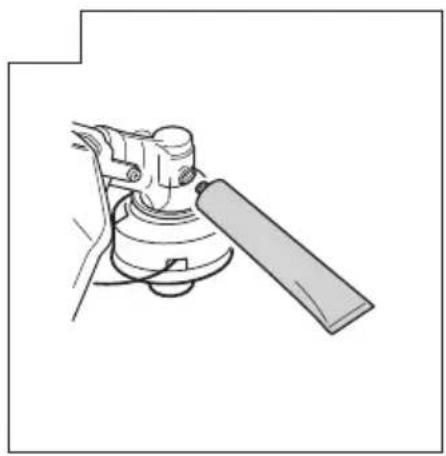

Gearbox lubrication	Lithium grease (check and fill to 3/4 every 50 hours)
Flexible shaft lubrication	Lithium grease every 20 hours (curved shaft model)
Cutting tool type	Semi-automatic nylon line head or metal blade (3 or 4 teeth)
Nylon line diameter	2.4 mm or 3.0 mm

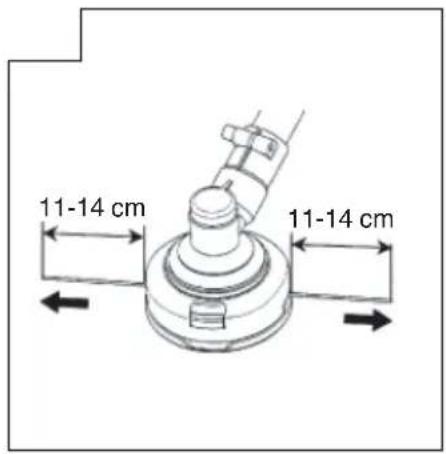

Recommended line length	11 to 14 cm on each side
Blade mounting bore	25.4 mm
Starter type	Automatic rewind starter
Cutting	Grass, weeds, brush
Safety zone	15 m distance from people and animals
Recommended protective equipment	Helmet, face shield or goggles, hearing protection, gloves, long clothing, non-slip shoes
Regular maintenance	Air filter cleaning (daily), fuel filter, spark plug, check fasteners
Long-term storage	Empty the tank, run the engine until it stops, clean, oil the cylinder

Frequently Asked Questions - CG 27EAS (SL) HITACHI

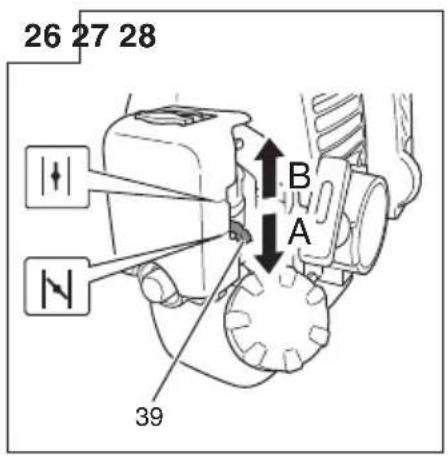

How to start the engine cold?

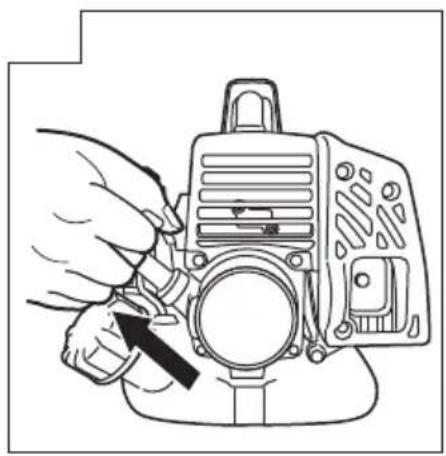

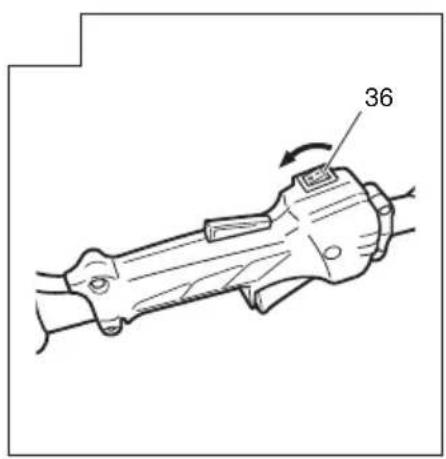

Set the switch to Run (ON). Press the primer bulb several times. Set the choke to Closed. Pull the starter cord sharply. At first signs of ignition, move the choke to Open and pull again. Let it warm up for 2 to 3 minutes.

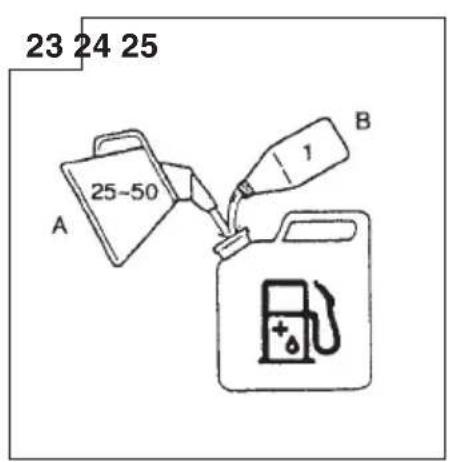

What type of fuel to use?

Use unleaded gasoline (89 octane) mixed with two-stroke engine oil (JASO FC or ISO EGC grade). The mixing ratio is 25:1 to 50:1 depending on the oil used. Never use multigrade or used oil.

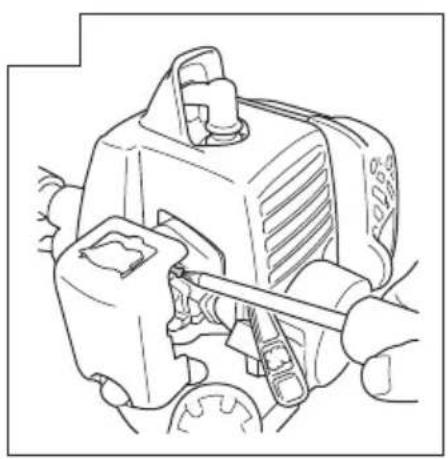

How to adjust idle?

With engine running, turn the idle screw T (clockwise) until the cutting tool starts to rotate, then slowly turn counterclockwise until it stops. Normal idle speed is 2800-3200 min⁻¹. The cutting tool must not rotate at idle.

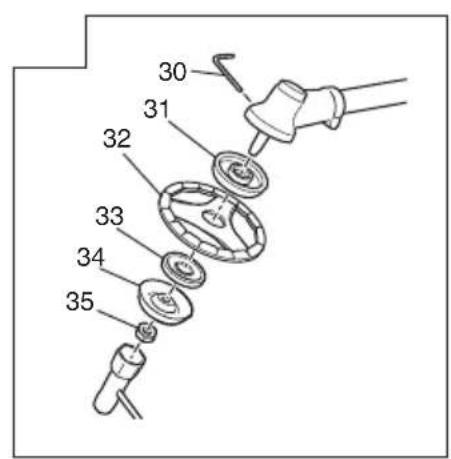

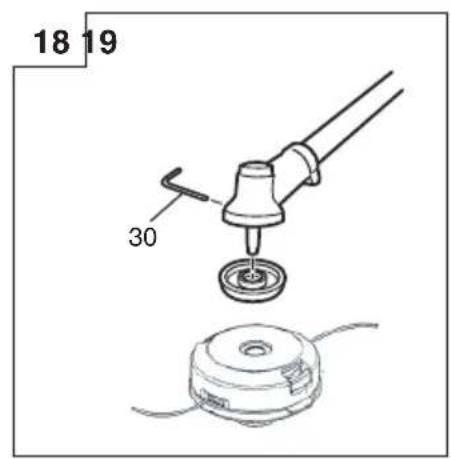

How to install a cutting blade?

Lock the shaft with an Allen key in the hole provided. Assemble in order: cutter support (A), blade, support (B), mounting nut. The nut has a left-hand thread (loosen clockwise, tighten counterclockwise). Tighten firmly with the socket wrench. Check for imbalance.

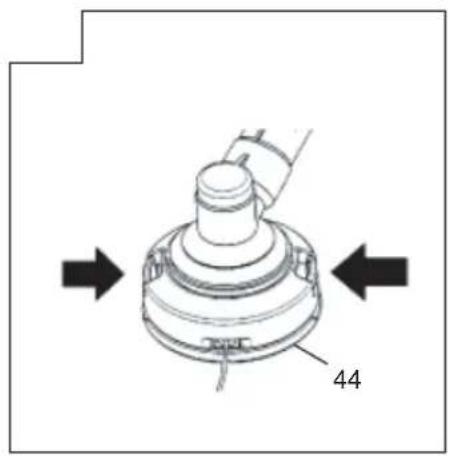

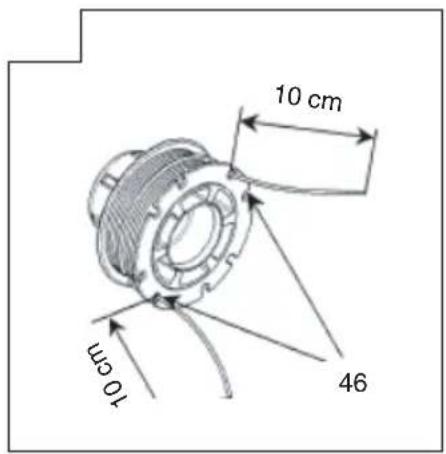

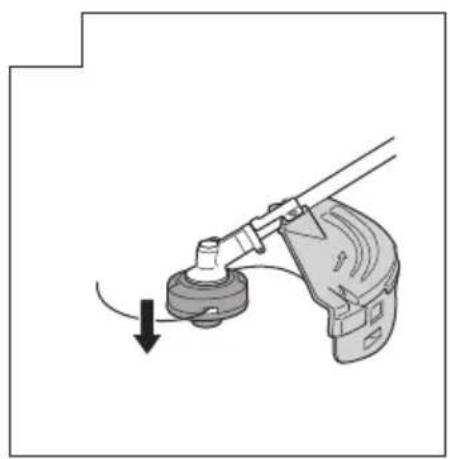

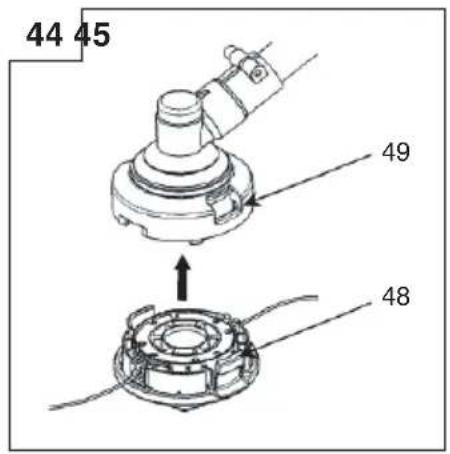

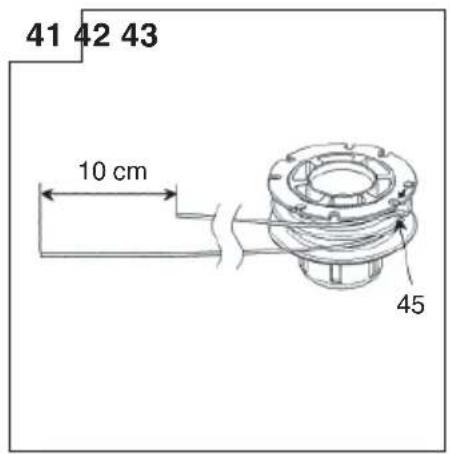

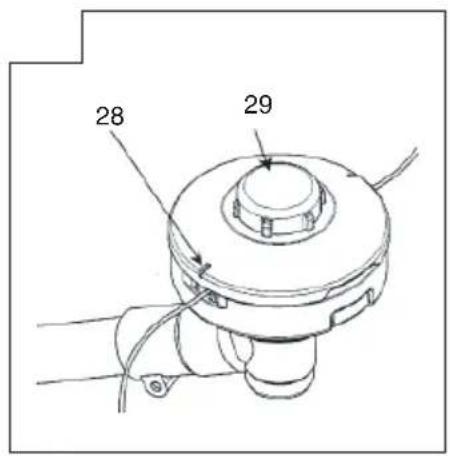

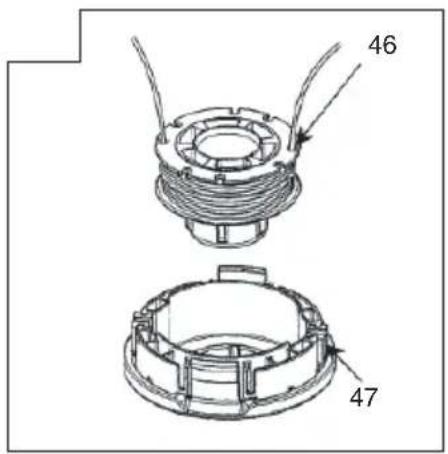

How to replace the nylon line on the semi-automatic head?

Push the locking tabs to remove the housing. Extract the spool and discard remaining line. Bend a new line into a U shape, hook it into the separator groove, wind each half in the same direction. Pass the ends through the stop holes (leave 10 cm). Replace the spool in the housing aligning the holes with the line guide. Snap the cover on. Cut to 11-14 cm on each side.

What are the essential safety instructions?

Always wear full protective equipment (helmet, face shield, hearing protection, gloves, long clothing, shoes). Maintain a 15 m distance from anyone. Do not use metal blades if the symbol prohibits it. Be aware of blade kickback. Never start indoors. Turn off the engine before any maintenance.

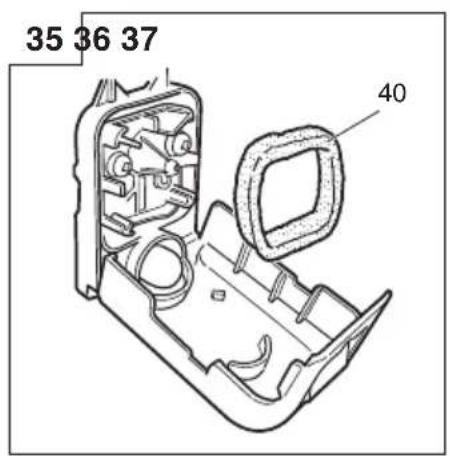

How to clean the air filter?

Open the air filter cover and remove the filter. Wash it in warm soapy water, rinse and dry completely. If the filter is very dirty or damaged, replace it. Daily cleaning is recommended, more often in dusty environments.

What to do if the blade does not rotate while the engine is running?

Stop the engine immediately. Check if grass is wound around the gearbox or the blade. Remove it carefully. If the problem persists, inspect the drive shaft or consult an authorized service center.

How to store the brushcutter for a long period?

Empty the fuel tank. Run the engine until it stops. Clean the device. Pour a few drops of two-stroke oil into the cylinder through the spark plug hole and pull the starter. Store in a dry place, away from moisture.

Which cutting accessories are compatible?

Use genuine Hitachi or recommended accessories: nylon line heads (models CH-100, CH-300, BF-4, BF-5) and metal blades (B3, B4) with 25.4 mm bore. Refer to the accessory selection table in the manual. Never use incompatible accessories.

USER MANUAL CG 27EAS (SL) HITACHI

Line drawing of a mechanical clamp or measuring tool with a lever and base mount (no text or symbols)

CG22EAS (SLP)

en Handling instructions
de Bedienungsanleitung
fr Mode d'emploi
it Istruzioni per l'uso
nl Gebruiksaanwijzing
es Instrucciones de manejo
pt Instruções de uso
sv Bruksanvisning
da Brugsanvisning
no Bruksanvisning
fi Käyttöohjeet
el Οδηγίες χειρισμού
pl Instrukcja obsługi

hu Kezelési utasítás
cs Návod k obsluze
tr Kullanım talimatları
ro Instructiuni de utilizare
⑤ Navodila za rokovanje
sk Pokyny na manipuláciu
bg Инструкция за експлоатация
sr Uputstvo za rukovanje
hr Upute za rukovanje
uk Інструкції щодо поводження з пристроєм
ru Инструкция по эксплуатации

1

2

3

Illustration of a worker in protective gear using a tool to clean or dig up grass, with a warning symbol and tree stump nearby (no text or labels)

Diagram of a vehicle with directional arrows and aircraft illustrations, no text or symbols present

Diagram of a spacecraft with orbital paths and warning symbol (no text labels)

4

5

6

7

8

9

Technical line drawing of a mechanical assembly with no visible text or symbols

1

Illustration of two cylindrical electronic components with leads, shown in line style without any text or symbols.

0

12 13 14

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a mechanical tool with a rotating base and adjustment knob, showing motion direction (no text or symbols)

Line drawing of a hand operating a mechanical device with a black arrow pointing to the handle (no text or symbols present)

Line drawing of a person wearing a helmet and safety harness (no text or symbols)

Illustration of a person wearing a helmet and safety harness, holding a device with arrows indicating motion or force (no text or symbols present)

Line drawing of a mechanical assembly with hands operating a tool (no text or symbols)

Technical line drawing of a mechanical device with labeled component 41 (no text or symbols beyond label)

Line drawing of a mechanical device with a lever and handle (no text or symbols)

MEANINGS OF SYMBOLS

NOTE: Some units do not carry them.

	SymbolsWARNINGThe following show symbols used for the machine. Be sure that you understand their meaning before use.
	Grass Trimmer / Brush Cutter Priming pump
	It is important that you read, fully understand and observe the following safety precautions and warnings. Careless or improper use of the unit may cause serious or fatal injury.		Guaranteed sound power level
	Read, understand and follow all warnings and instructions in this manual and on the unit.		Blade thrust may occur when the spinning blade contacts a solid object in the critical area. A dangerous reaction may occur causing the entire unit and operator to be thrust violently. This reaction is called blade thrust. As a result, the operator may lose control of the unit which may cause serious or fatal injury. Blade thrust is more likely to occur in areas where it is difficult to see the material to be cut.
	Always wear eye, head and ear protectors when using this unit.
	Do not use metal/rigid blades when this sign is shown on the unit.		Hot Surface - Contact with hot surface can cause serious burns.

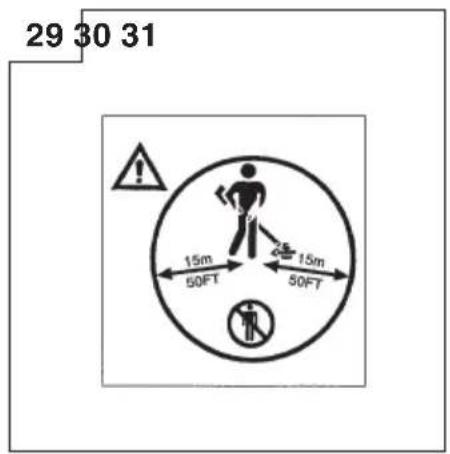

	Keep all children, bystandards and helpers 15 m away from the unit. If anyone approaches you, stop the engine and cutting attachment immediately.		The hedge trimmer attachment cannot be used on models with this label.
	Be careful of thrown objects.		Indicate handle location. Arrows which show limits for handle positioning.
	Shows maximum shaft speed. Do not use the cutting attachment whose max rpm is below the shaft rpm.		Displacement
	Gloves should be worn when necessary, e.g., when assembling cutting equipment.	[Sweal]	Spark plug
[###]	Use anti-slip and sturdy footwear.	Idle	Idling speed
[Sweal]	Choke - Run position (Open) Speed of output shaft	[Sweal]
[###]	Choke - Start position (Closed)	[SAT5]	Max. engine output
[###]	On/Start Fuel tank capacity	###
[Sweal]	Off /Stop Dry weight	[Sweal]
	Emergency stop Cutting attachment
[###]	Fuel and oil mixture	[Sweal]	Sound pressure level LpA by ISO 22868 Equivalent*
[Sweal]	Idle speed adjustment	[SWEI]	Measured sound power level LwA by 2000/14/EC Racing
L_WA, Ra(G) 2000/14/EC	Guaranteed sound power level LwA by 2000/14/ECRacing	a_hv, eq(R)	Vibration level by ISO 22867Rear or Right handle / Equivalent*
a_hv, eq(F)	Vibration level by ISO 22867Front or Left handle / Equivalent*	K	Uncertainty
Before using your machineRead the manual carefully.Check that the cutting equipment is correctly assembled and adjusted.Start the unit and check the carburetor adjustment. See “MAINTENANCE”.

NOTE: Equivalent noise level / vibration level are calculated as the time-weighted energy total for noise / vibration levels under various working conditions with the following time distribution:
* 1/2 Idle, 1/2 racing.

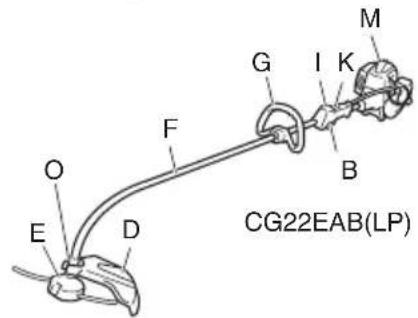

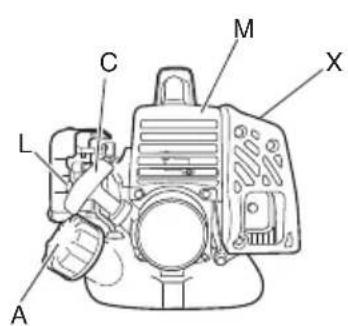

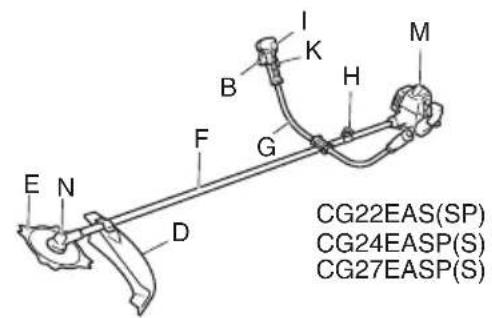

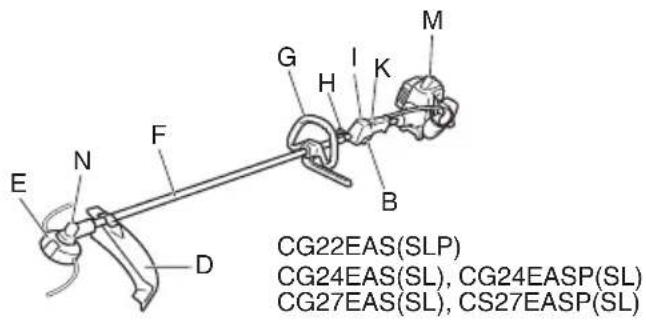

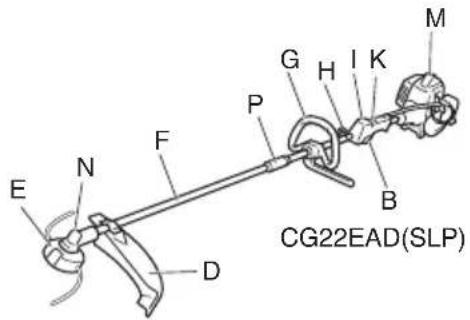

WHAT IS WHAT? (Fig. 1)

Since this manual covers several models, there may be some difference between pictures and your unit. Use the instructions that apply to your unit.

A: Fuel cap
B: Throttle trigger
C: Starter handle
D: Cutting attachment guard
E: Cutting attachment
F: Drive shaft tube
G: Handle
H: Hanger

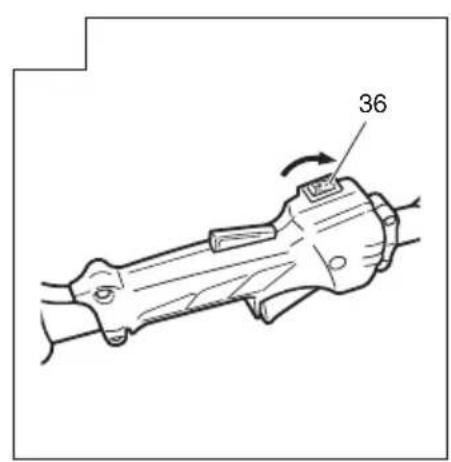

I: Ignition switch
J: Harness (if so equipped)
K: Throttle trigger lockout
L: Choke lever
M: Engine
N: Gear case
O: Cutter case
P: Joint case

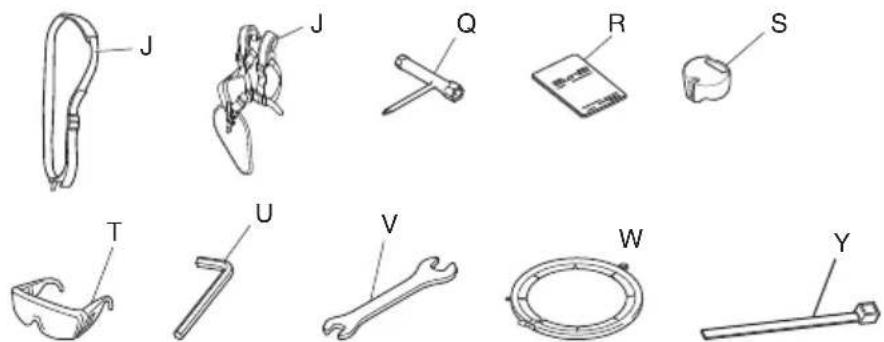

Q: Combi box spanner
R: Handling instructions
S: Swivel cap
T: Goggles
U: Hex bar wrench
V: Spanner (if so equipped)
W: Blade cover (if so equipped)
X: Muffl er cover
Y: Cord clump (if so equipped)

WARNINGS AND SAFETY INSTRUCTIONS

Pay special attention to statements preceded by the following words:

WARNING

Indicates a strong possibility of severe personal injury or loss of life, if instructions are not followed.

CAUTION

Indicates a possibility of personal injury or equipment damage, if instructions are not followed.

NOTE

Helpful information for correct function and use.

Operator safety

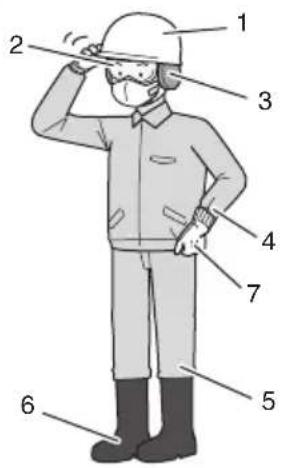

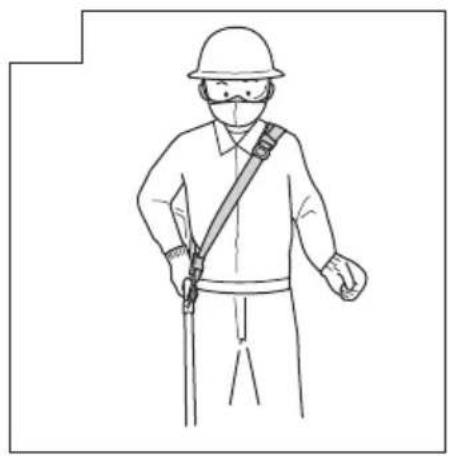

○ Wear head protection (1). (Fig. 2)
○ Always wear a safety face shield or goggles (2). (Fig. 2)
- Wear approved hearing protection (3). (Fig. 2) Long-term exposure to noise can result in permanent hearing impairment. Pay attention to your surroundings. Be aware of any bystanders who may be signaling a problem. Remove safety equipment immediately upon shutting off engine.

○ Always wear heavy, long-sleeved shirts (4) and long pants (5) and non-slip boots (6) and gloves (7). (Fig. 2) Do not wear loose clothing, jewelry, short pants, sandals or go barefoot. Secure hair so it is above shoulder length.
○ Do not operate this tool when you are tired, ill or under the influence of alcohol, drugs or medication.
Do not operate the tool at night or under bad weather conditions when visibility is poor. And do not operate the tool when it is raining or right after it has been raining. Working on slippery ground could lead to an accident if you lose your balance.
Never let a child or inexperienced person operate the machine.
○ Do not start the engine if there are any flammables such as dry leaves, waste paper or fuel in the vicinity.
- Never start or run the engine inside a closed room or building. Breathing exhaust fumes can kill.
- Keep handles free of oil and fuel.
- Keep hands away from cutting equipment.
○ Do not grab or hold the unit by the cutting equipment.
○ Gloves should be worn when installing or removing the cutting attachment. Failure to do so may result in injury.
When the unit is shut off, make sure the cutting attachment has stopped before the unit is set down.
When operation is prolonged, take a break periodically so that you may avoid possible Hand-Arm Vibration Syndrome (HAVS) which is caused by vibration.

WARNING

○ Always operate the tool with proper protective equipment and clothing. Failure to do so may result in accidents such as burns or injuries. (Fig. 2)
○ Do not touch the spark plug area or high voltage during operation. Doing so may result in electric shock.
○ Do not allow children near the tool during operation.
Do not touch the engine, muffler cover or exhaust vent during or shortly after operation. Doing so may result in burn or injury.
○ Antivibration systems do not guarantee that you will not sustain Hand-Arm Vibration Syndrome or carpal tunnel syndrome. Therefore, continual and regular users should monitor closely the condition of their hands and fingers. If any of the above symptoms appear, seek medical advice immediately.
If you are using any medical electric/electronic devices such as a pacemaker, consult your physician as well as the device manufacturer prior to operating any power equipment.

Unit/machine safety

○ Inspect the entire unit/machine before each use. Replace damaged parts. Check for fuel leaks and make sure all fasteners are in place and securely tightened.
○ Replace parts that are cracked, chipped or damaged in any way before using the unit/machine. Faulty parts may increase the risk of accidents and may lead to an injury.

○ Make sure the cutting attachment guard and harness are properly attached. Do not operate if cutting attachment guard and harness is not properly attached.
- Keep others away when making carburetor adjustments.
○ Use only accessories as recommended for this unit/machine by the manufacturer.
Before operation, make sure that there are no tools such as the adjustment key or spanner still attached to the unit.

WARNING

Never modify the unit/machine in any way. Do not use your unit/machine for any job except that for which it is intended.

○ Non-authorized modifications and/or accessories may result in serious personal injury or the death of the operator or others.

Fuel safety

○ Mix and pour fuel outdoors and where there are no sparks or flames.
○ Use a container approved for fuel.
○ Move at least 3 m away from fueling site before starting engine.
- Stop engine before removing fuel cap. Do not remove the fuel cap during operation.
○ Empty the fuel tank before storing the unit/machine. It is recommended that the fuel be emptied after each use. If fuel is left in the tank, store so fuel will not leak.

WARNING

• Fuel is easy to ignite or get explosion or inhale fumes, so that pay special attention when handling or filling fuel.
• Do not smoke or allow smoking near fuel or the unit/machine or while using the unit/machine.
  ○ Wipe up all fuel spills before starting engine.
  ○ Store unit/machine and fuel in area where fuel vapors cannot reach sparks or open flames from water heaters, electric motors or switches, furnaces. etc.
  When using the unit in dry areas, make sure that fire extinguishing equipment is readily available.
  ○ If you shut off the engine for refueling, make sure the unit has cooled down before adding fuel.

Cutting safety

○ Do not cut any material other than grass and brush.
○ Inspect the area to be cut before each use.
Remove objects which can be thrown or become entangled.
Do not operate in areas where there are tree roots or rocks.
☐ For respiratory protection, wear an aerosol protection mask when cutting the grass after insecticide is scattered.
Keep others including children, animals, bystanders and helpers outside the 15 m hazard zone. Stop the engine immediately if you are approached.
Please exercise caution as engine startup may be delayed after pulling the starter handle.
○ Always keep the engine on the right side of your body.
○ Hold the unit/machine firmly with both hands.
- Keep firm footing and balance. Do not over-reach.
Losing your balance during work may lead to an injury.
- Keep all parts of your body away from the muffler and cutting attachment when the engine is running.
- Keep cutting attachment below knee level.
- Please exercise caution when operating in areas where electrical cables or gas pipes are present.
Do not operate the cutting attachment for anything but clearing grass or bushes. Avoid operations where the cutting attachment may touch water such as puddles or dig into dirt. Failure to do so may result in injury or damage to the unit.
○ Avoid prolonged use at low speed range in which vibration is high. Doing so may result in engine damage.

When relocating to a new work area, or inspecting, adjusting or exchanging the unit's cutting attachments, accessories, etc., be sure to shut off the machine and ensure that all cutting attachments are stopped.
○ Never place the machine on the ground when running.
- Never touch the cutting attachment when it is rotating.
○ Always ensure that the engine is shut off and any cutting attachments have completely stopped before clearing debris or removing grass from the cutting attachment.
○ Always carry a first-aid kit when operating any power equipment.
Turn off the engine and make sure the cutting attachment has come to a full stop before removing the unit from your body or before leaving the unit unattended.
☐ If you accidentally bump or drop the unit, inspect it immediately to make sure there are no damage, cracks or deformations.
☐ If the tool is operating poorly and produces strange noise or vibrations, turn off the engine immediately and ask your dealer to have it inspected and repaired.
Continued use under these conditions could lead to injury or tool damage.
○ Use in accordance with local laws and regulations.

WARNING

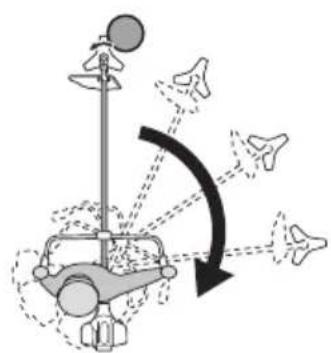

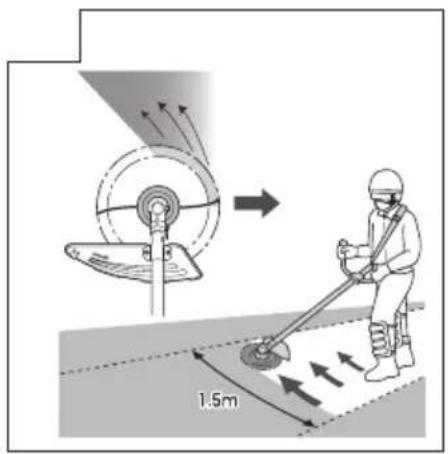

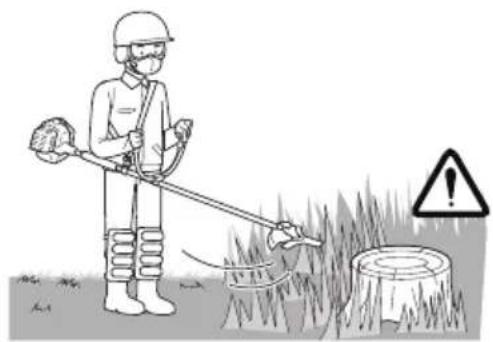

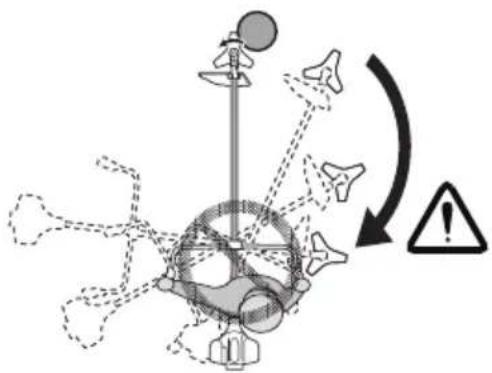

KICKBACK DANGER (Fig. 3)

When using metal cutting attachments such as blades, contact with obstacles such as trees or other hard surfaces with the front or right portion of the spinning attachment may force the unit to catch on an obstacle, resulting in a kickback reaction towards the right side of the operator.

Kickback may occur when the cutting attachment comes into contact with tree stumps or rocks hidden behind weeds. Always make sure there are no obstacles hidden by weeds before starting work.

To minimize the danger of kickbacks when they do occur, always position the unit to the right side of the body during operation. With the operator properly positioned as the cutting attachment rotates, this will reduce the danger of the unit's direct contact with the body.

Maintenance safety

• Maintain the unit/machine according to recommended procedures.
  ○ Disconnect the spark plug before performing maintenance except for carburetor adjustments.
• Keep others away when making carburetor adjustments.
  ○ Use only genuine HITACHI replacement parts as recommended by the manufacturer.

CAUTION

Do not disassemble the recoil starter. There is a possibility of personal injury with recoil spring.

WARNING

Improper maintenance could result in serious engine damage or in serious personal injury.

Transport and storage

○ Carry the unit/machine by hand with the engine stopped and the muffler away from your body.
○ Allow the engine to cool, empty the fuel tank, and secure the unit/machine before storing or transporting. Failure to do so may result in fire or accidents.
○ Empty the fuel tank before storing the unit/machine. It is recommended that the fuel be emptied after each use. If fuel is left in the tank, store so fuel will not leak.
○ Store unit/machine out of the reach of children.
○ Clean and maintain the unit carefully and store it in a dry place.
○ Make sure engine switch is off when transporting or storing.
When transporting and storing, either remove the cutting attachment or place the blade cover over the blade.

English

• You have to secure the machine during transport to prevent loss of fuel, damage or injury.
  ○ If a warning label cannot be read, peels off or becomes indistinct, replace it with a new one. To purchase new labels, contact Hitachi Authorized Service Centers.
  If situations occur which are not covered in this manual, take care and use common sense. Contact Hitachi Authorized Service Centers if you need assistance.

SPECIFICATIONS

The SPECIFICATIONS of this machine are listed in the table on page 286, 287.

NOTE

All data subject to change without notice.

ASSEMBLY PROCEDURES

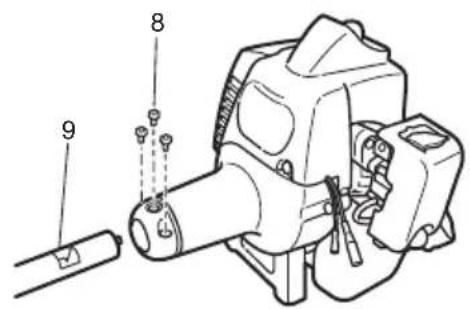

Drive shaft to engine (Fig. 4)

Loosen tube locking bolt (8) about ten turns so that the bolt point will not obstruct drive shaft tube to be inserted. When inserting drive shaft tube, hold the tube locking bolt outward preventing inside fi tting from obstructing as well.

Insert the drive shaft into the clutch case of the engine properly until the marked position (9) on the drive shaft tube meets the clutch case.

Some models may come with the drive shaft already installed.

NOTE

When it is hard to insert drive shaft up to the marked position on the drive shaft tube, turn drive shaft by the cutter mounting end clockwise or counter-clockwise. Tighten tube locking bolt lining up the hole in the shaft tube. Then tighten clamp bolt securely.

Installation of attachment (CG22EAD only)

1. Join the attachment in place of it.
2. Make sure the lock pin (10) fits in the location hole (11) of tube and that the tube will not come off. (Fig. 5)
3. Tighten the knob nut (12) securely. (Fig. 5)

CAUTION

When you pull and release the lock pin (10), always make sure it returns to its original position.
○ Always check the label to see if an attachment can be used with a unit.

Installation of handle

(1) Loop handle type (Fig. 6)

Attach the handle to the drive shaft tube with the angle towards the engine.

Adjust the location to the most comfortable position before operation.

Make sure to securely attach the handle with the 2 bolts.

NOTE

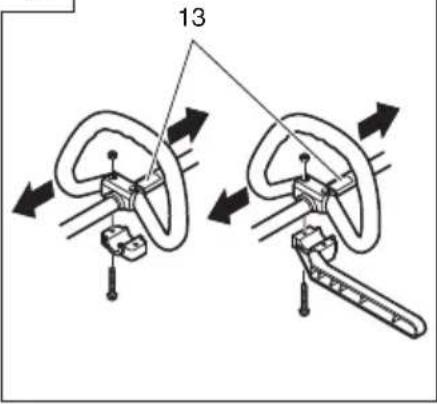

If your unit has handle location label (13) on drive shaft tube, follow the illustration.

WARNING

Do not use metal or plastic blade cutting attachments with loop handle type.

(2) Bike handle type (Fig. 7)

Remove the handle bracket (14) from the assembly.

Place the handles and attach the handle bracket with four bolts lightly. Adjust to appropriate position. Then attach it firmly with the bolts.

Attach the protection tube to the drive shaft tube or handle using cord clamps (15) to make sure there is no slack. (Fig. 8)

Installation of throttle wire / stop cord

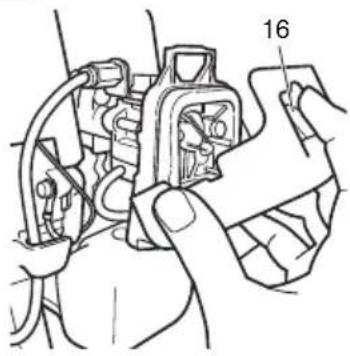

Press the upper tab (16) and open the air cleaner cover. (Fig. 9)

Connect stop cords. (Fig. 10)

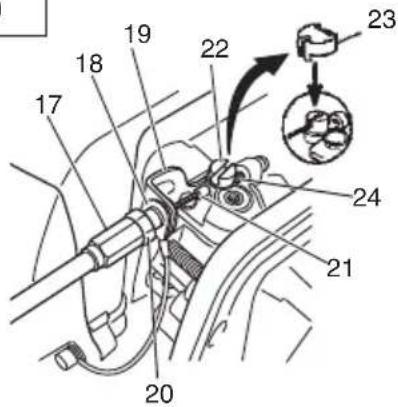

If the throttle outer end (17) is threaded on your unit, screw it and the earth terminal (18) (if so equipped) into the cable adjuster stay (19) all the way, and then tighten this cable end using the adjuster nut (20) against the cable adjuster stay (19).

Connect throttle wire end (21) to swivel (22) of carburetor and install swivel cap (23) (if so equipped) where is included in tool bag, onto swivel (22). (Fig. 11)

Some models may come with the parts installed.

CAUTION

Open and close the throttle and verify that the swivel (22) abuts against screw (24) when the throttle is closed.

Installation of harness

(If so equipped)

WARNING

If the product includes a harness, always make sure to use it.

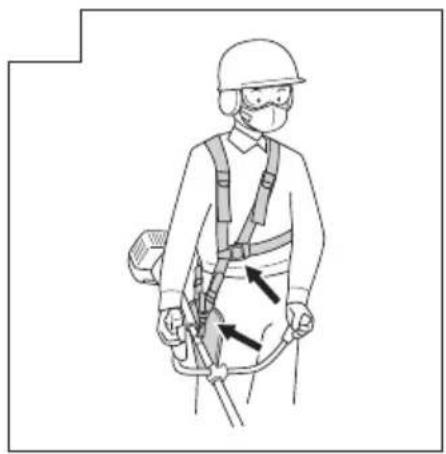

Attach the harness hook (25) to the hanger (26) on the drive shaft tube. (Fig. 12)

Adjust the length of the harness for easy operation of the tool.

NOTE

You may need to adjust the position of the hangar (26) to balance the unit. To do so, loosen bolt (27) and adjust the position of hangar (26). After adjusting as necessary, make sure to securely tighten the bolt (27). (Fig. 12)

Installation of cutting attachment guard

WARNING

If an incorrect or faulty guard is fitted, this may cause serious personal injury.

CAUTION

Some cutting attachment guards are equipped with sharp line limiters. Be careful with handling it.

NOTE

When using a trimmer head with two piece type cutting attachment guard, attach the guard extension to the cutting attachment guard. (Fig. 13)
☐ The guard bracket may come already mounted to the gear case on some models.

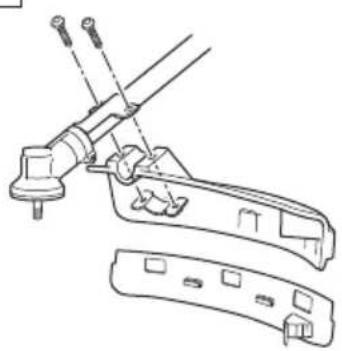

Align the cutting attachment guard with the guard bracket and secure it to the drive shaft tube, using the bolt and cover bracket. (Fig. 14)

WARNING

Remove the guard extension when using metal or plastic blades. Failure to do so may result in injury or damage to the cutting attachment guard.

NOTE

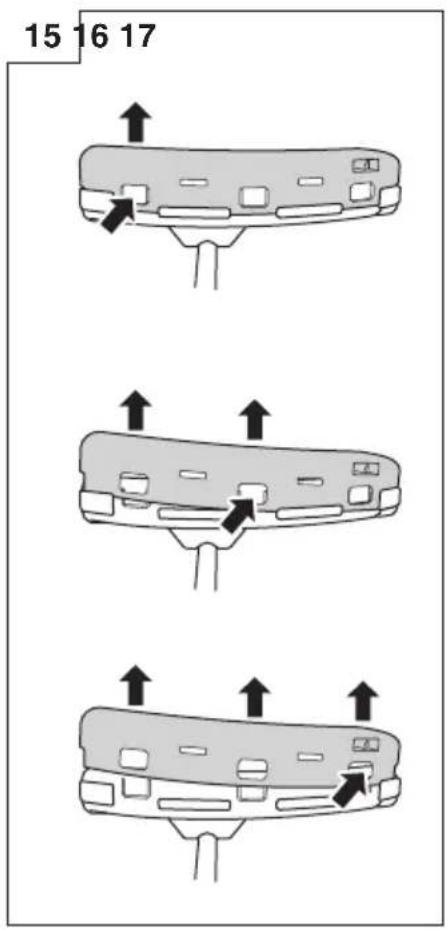

To remove the guard extension, refer to the drawings. Wear gloves as the extension has a sharp line limiter, then push the three square tabs on the guard one by one in order. (Fig. 15)

(Curved shaft model)

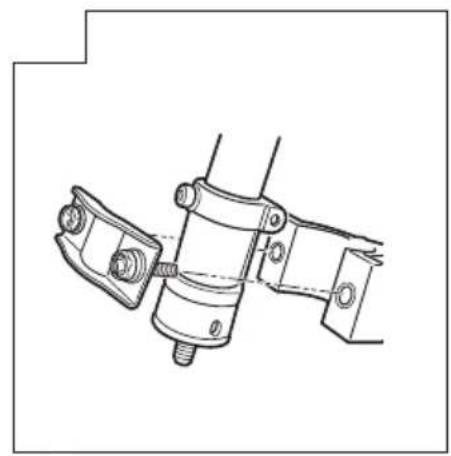

Insert the cutter case between the guard bracket and cutting attachment guard, and secure it with the bolt. (Fig. 16)

Installation of cutting attachment

WARNING

○ Install the cutting attachment properly and securely as instructed in the handling instructions. If not attached properly or securely, it may come off and cause serious and/or fatal injury.

○ Do not install or remove cutting attachments while the engine is running.
○ Always use genuine Hitachi cutting attachments and metal fittings.

Installation of semi-auto cutting head

1. Function

Automatically feeds more nylon cutting line when it is tapped at low rpm (not greater than 4500 min ^-1 ).

Specifications

Code No.	Typ of attaching screw	Direction of rotation	Size of attaching screw
6696454	Female screw	Counter-clockwise	M10xP1.25-LH
6696597	Female screw C	lockwise M8xP1	.25-LH

Applicable nylon cord

Cord diameter: Φ3.0 mm Length: 2 m

Cord diameter: 2.4 mm Length: 4 m

2. Precautions

○ The case must be securely attached to the cover.
○ Check the cover, case and other components for cracks or other damage.
○ Check the case and button for wear.

If the wear limit mark (28) on the case is no longer visible or there is a hole in the bottom (29) of the button, change the new parts immediately. (Fig. 17)

• The cutting head must be securely mounted to the unit's gear case/cutter case.
  ☐ If the cutting head does not feed cutting line properly, check that the nylon line and all components are properly installed. Contact Hitachi Authorized Service Centers if you need assistance.

WARNING

For Hitachi heads, use only fl exible, non-metallic line recommended by the manufacturer. Never use wire or wire ropes. They can break off and become a dangerous projectile.

3. Installation (Fig. 18)

Insert the allen wrench (30) into the hole of the gear case/cutter case in order to lock the drive shaft tube.

Install cutting head on gear case/cutter case of grass trimmers/brush cutters. The mounting nut is left-hand-threaded. Turn clockwise to loosen/counter-clockwise to tighten.

NOTE

☐ For curved drive shaft tube models, the mounting nut is right-hand-threaded. Turn counter-clockwise to loosen/clockwise to tighten.
○ Since the cutter holder cap is not used here, keep it for when a metal blade is used, if so equipped.

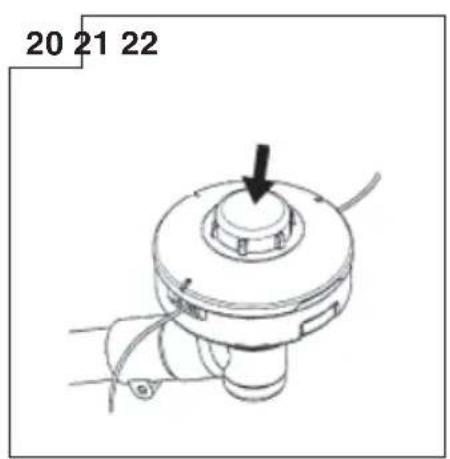

4. Adjusting line length

Set the engine speed as low as possible and tap the head on the ground. The nylon line will be drawn out about 3 cm with each tap. (Fig. 19)

Also, you can extend the nylon line by hand but the engine must be completely stopped. (Fig. 20)

Adjust the nylon line to the proper length of 11–14 cm before each operation.

Installation of cutting blade (Fig. 21)

(If so equipped)

Insert the alien wrench (30) into the hole of the gear case in order to lock the shaft.

Assemble in the following order: Cutter holder (A) (31), blade (32), cutter holder (B) (33), nut cover (34).

Tighten the fixing nut with the box wrench. Please note that the cutter fixing nut (35) has left-handed threads (clockwise to loosen/ counter-clockwise to tighten).

NOTE

○ When installing cutter holder (B) (33), be sure to set concave side upward.
When installing or removing a blade, make sure to wear gloves and place the blade cover over the blade.

CAUTION

Check a nut cover (34) for wear or cracks before operation. If any damage or wear is found, replace it, as it is an article of consumption.

WARNING

When installing a cutting blade, make sure that there are no cracks or any damage in it and that the cutting edges are facing the correct direction.
○ Remove any surface grit from blade installation fittings (cutter holder (A) (31), cutter holder (B) (33), nut cover (34), nut (35)). Failure to do so may result in the loosening of nuts.

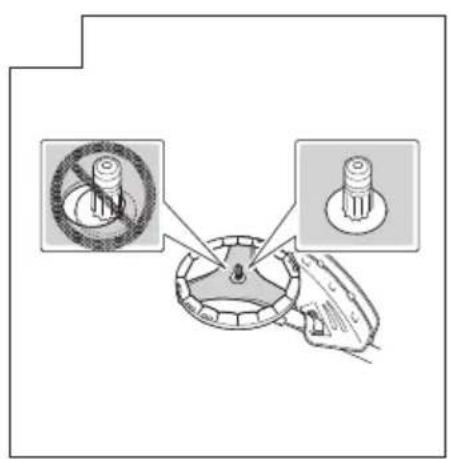

☐ The protrusion of the cutter holder (A) (31) may become misaligned with the blade (32) while tightening nut (35). Before operation, make sure the blade has been properly installed. (Fig. 22)
○ Rotate the blade by hand and make sure there is no rocking or abnormal noise. Rocking may cause abnormal vibrations or result in the loosening of nuts.

OPERATING PROCEDURES

Fuel (Fig. 23)

WARNING

☐ The trimmer is equipped with a two-stroke engine. Always run the engine on fuel, which is mixed with oil.

Provide good ventilation, when fueling or handling fuel.

- Fuel is highly flammable and it is possible to get seriously injured when inhaling or spilling on your body.

Always pay attention when handling fuel. Always have good ventilation when handling fuel inside building.

Fuel

○ Always use branded 89 octane unleaded gasoline.
○ Use genuine two-cycle oil or use a mix between 25:1 to 50:1, please consult about the mixture ratio to Hitachi Authorized Service Centers.
☐ If genuine oil is not available, use an anti-oxidant added quality oil expressly labeled for air-cooled 2-cycle engine use (JASO FC GRADE OIL or ISO EGC GRADE). Do not use BIA or TCW (2-stroke water-cooling type) mixed oil.
○ Never use multi-grade oil (10 W/30) or waste oil.
- Never mix fuel and oil in machine's fuel tank. Always mix fuel and oil in a separate clean container.
Always start by filling half the amount of gasoline, which is to be used.
Then add the whole amount of oil. Mix (shake) the fuel mixture. Add the remaining amount of gasoline.
Mix (shake) the fuel-mix thoroughly before filling the fuel tank.

Mixing amount of two-cycle oil and gasoline

Gasoline (Liter)	Two-cycle oil (ml)
	Ratio 50:1	Ratio 25:1
0.5	10 ——	20
1	20 ——	40
2	40 ——	80
4	80 ——	160

English

Fueling

WARNING

○ Always shut off the engine and let it cool for a few minutes before refueling.

Do not smoke or bring flames or sparks near the fueling site.

• Slowly open the fuel tank, when filling up with fuel, so that possible over-pressure disappears.
  ○ Tighten the fuel tank cap carefully, after fueling.
  ○ Always move the unit at least 3 m from the fueling area before starting.
  ○ Always wash any spilled fuel from clothing immediately with soap.
  ○ Be sure to check any fuel leakage after refueling.
  Before fueling, in order to remove static electricity from the main body, the fuel container and the operator, please touch the ground that is slightly damp.

Before fueling, clean the tank cap area carefully, to ensure that no dirt falls into the tank. Make sure that the fuel is well mixed by shaking the container, before fueling.

Starting

CAUTION

Before starting, make sure the cutting attachment does not touch anything.

(1) Starting the cold engine

1. Set ignition switch (36) to ON position. (Fig. 24)

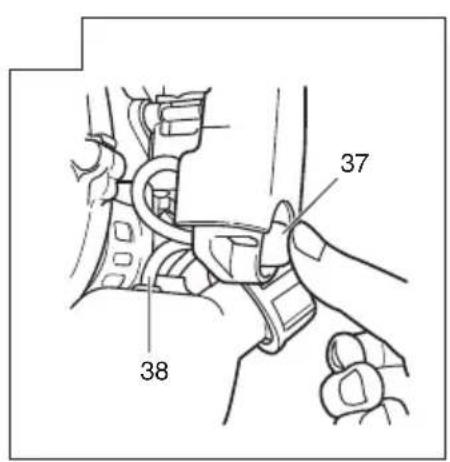

2. Push priming bulb (37) several times so that fuel flows through return pipe (38). (Fig. 25)
3. Set choke lever (39) to START position (closed) (A). (Fig. 26)
4. Pull recoil starter briskly, taking care to keep the handle in your grasp and not allowing it to snap back. (Fig. 27)
5. When you hear the engine want to start, return choke lever to RUN position (open) (B). (Fig. 26)
6. Pull recoil starter briskly again. (Fig. 27)

NOTE

If engine does not start, repeat procedures from 2 to 5.

1. Then allow the engine about 2–3 minutes to warm up before subjecting it to any load.
2. Check that the cutting attachment does not rotate when the engine is idling.
   (2) Starting the warm engine

Use only 1, 6 and 8 of the starting procedure for a cold engine.

If the engine does not start, use the same starting procedure as for a cold engine.

Cutting

WARNING

○ Always use the harness (if so equipped) and wear the proper attire and protective equipment when operating the unit. (Fig. 28)
Keep others including children, animals, bystanders and helpers outside the 15 m hazard zone. Stop the engine immediately if you are approached. (Fig. 29)
When grass or vines wrap around attachment, stop engine and attachment and remove them. Continuing operation with grass or vines wrapped around the attachment may result in damages such as early abrasion of the clutch.

CAUTION

Use and points of caution will vary depending on the type of cutting attachment. For safe use, make sure to follow the instructions and guidelines provided with each type.

NOTE

○ Press the quick release button or pull emergency release flap (If so equipped) in the event of emergency. (Fig. 30)
○ Use in accordance with local laws and regulations.

(1) Using a semi-auto cutting head
○ Set the engine at high speed when using this attachment.
○ Cut grass from left to right. The cut grass will be discharged away from the body, minimizing transfer to your clothes. (Fig. 31)
○ Cut grass from right to left as the cutting attachment of the curved drive shaft tube model rotates clockwise.
With nylon cord, use about 2 cm of the end of the cord to cut grass. Using the full length of the cord will reduce rotation speed and make cutting difficult.

NOTE

Automatically feeds more nylon cutting line when it is tapped at low rpm (not greater than 4500 min ^-1 ).

WARNING

☐ This product is equipped with a line limiter that will automatically cut any excess cord. When operating the unit, do not remove the guard or line limiter.

As the resistance is greater for nylon cords as opposed to blades, mishandling could increase engine load and result in damage.

Do not use with the engine set at low speeds. If the engine speed is low, grass may wrap around the attachment, causing the clutch to slip which could result in clutch abrasion.
With nylon cord cutters, always use over 15 cm of cord. If the length of the cord is too short, rotation speed will increase and may cause damage to the nylon cord cutter. As the curved drive shaft tube model in particular is not equipped with a deceleration mechanism, the possibility of increased rotation speed for the cutting attachment is high.

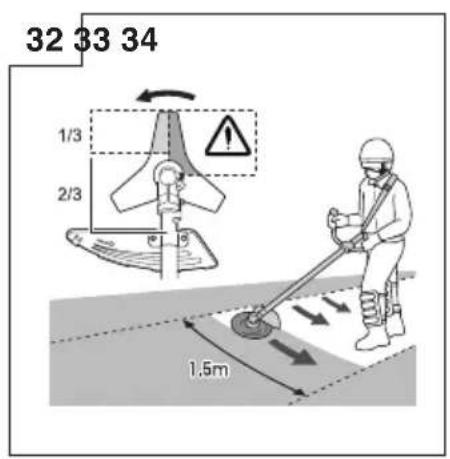

(2) Using a blade

Adjust engine speed according to the resistance of the grass. For soft grass, use low speeds, For tough clumps of grass, use high speeds.
○ Cut grass from right to left, using the left side of the blade to cut. (Fig. 32)
○ Slightly tilting the blade to the left while cutting will pile the cut grass to the left, making collection easy.

NOTE

Excessively increasing rotation speed may cause increased blade wear, vibration and noise. It will also result in increased fuel consumption.

WARNING

• Blade thrust may occur when the spinning blade contacts a solid object in the critical area.
  A dangerous reaction may occur causing the entire unit and operator to be thrust violently. This reaction is called blade thrust. As a result, the operator may lose control of the unit which may cause serious or fatal injury. Blade thrust is more likely to occur in areas where it is difficult to see the material to be cut.
  ☐ If cutting attachment should strike against stones or other debris, stop the engine and make sure that the attachment and related parts are undamaged.

Stopping (Fig. 33)

Decrease engine speed and run at an idle for a few minutes, then turn off ignition switch (36).

WARNING

A cutting attachment can injure while it continues to spin after the engine is stopped or power control is released. When the unit is turned off, make sure the cutting attachment has stopped before the unit is set down.

MAINTENANCE

MAINTENANCE, REPLACEMENT OR REPAIR OF THE EMISSION CONTROL DEVICES AND SYSTEMS MAY BE PERFORMED BY ANY NON-ROAD ENGINE REPAIR ESTABLISHMENT OR INDIVIDUAL.

Carburetor adjustment (Fig. 34)

WARNING

☐ The cutting attachment may be spinning during carburetor adjustments.
Never start the engine without the complete clutch cover and tube assembled! Otherwise the clutch can come loose and cause personal injuries.

In the carburetor, fuel is mixed with air. When the engine is test run at the factory, the carburetor is adjusted. A further adjustment may be required, according to climate and altitude. The carburetor has one adjustment possibility:

T = Idle speed adjustment screw.

Idle speed adjustment (T)

Check that the air filter is clean. When the idle speed is correct, the cutting attachment will not rotate. If adjustment is required, close (clockwise) the T-screw, with the engine running, until the cutting attachment starts to rotate. Open (counter-clockwise) the screw until the cutting attachment stops. You have reached the correct idle speed when the engine runs smoothly in all positions well below the rpm when the cutting attachment starts to rotate.

If the cutting attachment still rotates after idle speed adjustment, contact Hitachi Authorized Service Centers.

NOTE

Standard Idle rpm is 2800 - 3200 min ^-1 .

WARNING

When the engine is idling the cutting attachment must under no circumstances rotate.

Air fi Iter (Fig. 35)

The air filter (40) must be cleaned from dust and dirt in order to avoid:

○ Carburetor malfunctions.

○ Starting problems.

○ Engine power reduction.

○ Unnecessary wear on the engine parts.

○ Abnormal fuel consumption.

Clean the air fi lter daily or more often if working in exceptionally dusty areas.

Open the air filter cover and remove the air filter (40). Rinse it in warm soap suds.

Check that the filter is dry before reassembly.

An air fi Iter that has been used for some time cannot be cleaned completely. Therefore, it must regularly be replaced with a new one. A damaged fi Iter must always be replaced.

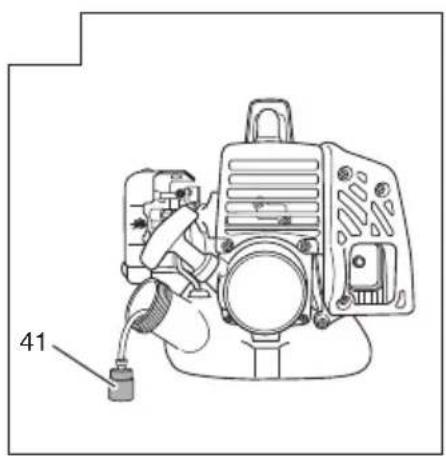

Fuel fi Iter (Fig. 36)

Check the fuel filter occasionally for clogging as insufficient fuel flow could affect engine speed.

Drain all fuel from fuel tank and pull fuel filter (41) from tank. Rinse it in warm water with detergent.

Rinse thoroughly until all traces of detergent are eliminated. Squeeze, away excess water and allow element to air dry.

NOTE

If the fuel filter (41) is hard due to excessive dirt buildup, replace it.

Spark plug (Fig. 37)

The spark plug condition is influenced by:

○ An incorrect carburetor setting.

○ Wrong fuel mixture (too much oil in the gasoline)

○ A dirty air fi Iter.

○ Hard running conditions (such as cold weather).

These factors cause deposits on the spark plug electrodes, which may result in malfunction and starting difficulties. If the engine is low on power, difficult to start or runs poorly at idling speed, always check the spark plug first.

If the spark plug is dirty, clean it and check the electrode gap. Re-adjust if necessary. The correct gap is 0.6 mm. The spark plug should be replaced after about 100 operation hours or earlier if the electrodes are badly eroded.

NOTE

In some areas, local law requires using a resistor spark plug to suppress ignition signals. If this machine was originally equipped with resistor spark plug, use same type of spark plug for replacement.

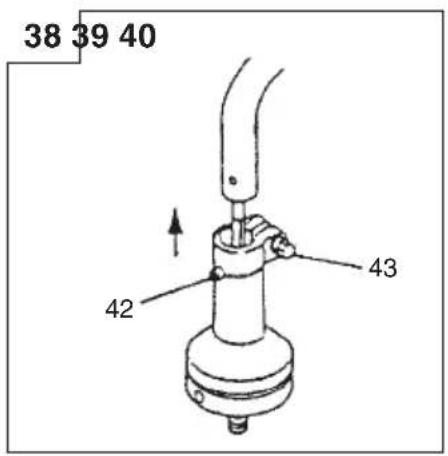

Flexible drive shaft (Fig. 38)

(curved drive shaft tube model)

Flexible drive shaft should be removed and lubricated with good quality lithium grease every 20 hours. To remove the flexible shaft, first remove screw (42), loosen bolt (43) and remove the cutter case then pull the shaft out of the drive shaft tube. Clean the shaft off and apply a generous coat of lithium grease to it and insert if back into the drive shaft tube, turn it unit it drops into place then install the cutter case, install & tighten screw (42) and bolt (43).

Gear case (Fig. 39)

Check gear case or angle gear for grease level about every 50 hours of operation by removing the grease filler plug on the side of gear case.

If no grease can be seen on the flanks of the gears, fill the gear case with quality lithium based multipurpose grease up to 3/4. Do not completely fill the gear case.

CAUTION

○ Make sure to remove any dirt or grit when attaching the plug to its original position.
Before attempting inspection or maintenance of the gear case, make sure the case has cooled.

Semi-auto cutting head

Nylon line replacement

1. Remove the case (44) by firmly pushing inward the locking tabs with your thumbs as shown in Fig. 40.
2. After removing the case, take out the reel and discard the remaining line.
3. Fold the new nylon line unevenly in half as shown in picture.

Hook the U-shaped end of the nylon line into the groove (45) on the center partition of the reel.

Wind both halves of the line on the reel in the same direction, keeping each half of the line on its own side of the partition. (Fig. 41)

1. Push each line into the stopper holes (46), leaving the loose ends approx. 10 cm in length. (Fig. 42)
2. Insert both loose ends of the line through the cord guide (47) when placing the reel in the case. (Fig. 43)

NOTE

When placing a reel in the case, try to line up the stopper holes (46) with the cord guide (47) for easier line release later.

1. Place the cover over the case so that the cap locking tabs (48) on the case meet the long holes (49) on the cover. Then push the case securely until it clicks into place. (Fig. 44)
2. The initial cutting line length should be approx. 11–14 cm and should be equal on both sides. (Fig. 45)

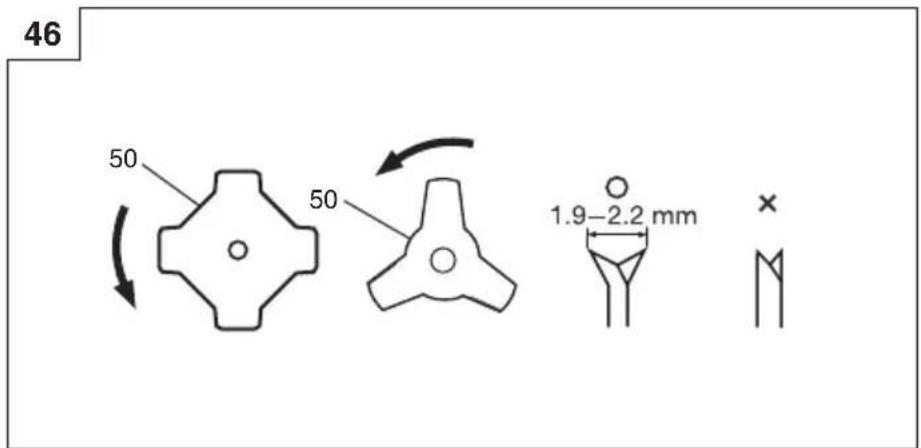

Blade (Fig. 46)

WARNING

Wear protective gloves when handling or performing maintenance on the blade.

○ Use a sharp blade. A dull blade is more likely to snag and thrust.
Replace the fastening nut if it is damaged and hard to tighten.
○ When replacing blade, purchase one recommended by Hitachi, with a 25.4 mm (one inch) ft tting hole.
○ In the case of a 3 or 4 tooth blade (50), it can be used on either side.

English

○ Use the correct blade for the type of work.
○ When replacing blades, use appropriate tools.
When cutting edges become dull, re-sharpen or file as shown in the illustration. Incorrect sharpening may cause excessive vibration.
○ Discard blades that are bent, warped, cracked, broken or damaged in any way.

NOTE

When sharpening blade it is important to maintain an original shape of radius at the base of the tooth to avoid cracking.

For long-term storage

Drain all fuel from the fuel tank. Start and let engine run until it stops. Repair any damage which has resulted from use. Clean the unit with a clean rag, or the use of high pressure air hose. Put a few drops of two-cycle engine oil into the cylinder through the spark plug hole, and spin the engine over several times to distribute oil. Cover the unit and store it in a dry area.

Maintenance schedule

Below you will find some general maintenance instructions. For further information please contact Hitachi Authorized Service Centers.

Daily maintenance

○ Clean the exterior of the unit.
○ Check that the harness is undamaged.
○ Check the cutting attachment guard for damage or cracks. Change the guard in case of impacts or cracks.
☐ Check that the cutting attachment is properly centered, sharp, and without cracks. An off-center cutting attachment induces heavy vibrations that may damage the unit.
○ Check that the cutting attachment nut is sufficiently tightened.
○ Make sure that the blade cover is undamaged and that it can be securely fitted.
○ Check that nuts and screws are sufficiently tightened.
○ Check that the unit is undamaged and free of defects.

Weekly maintenance

○ Check the starter, especially the cord and return spring.
○ Clean the exterior of the spark plug.
○ Remove the spark plug and check the electrode gap. Adjust it to 0.6 mm, or change the spark plug.
○ Check that the angle gear is filled with grease up to 3/4.
○ Clean the air fi Iter.

Monthly maintenance

○ Rinse the fuel tank with gasoline.
○ Clean the exterior of the carburetor and the space around it.
○ Clean the fan and the space around it.

SELECTING ACCESSORIES

The accessories of this machine are listed on page 288.

SELECTING CUTTING ATTACHMENTS

Recommended accessories for each model are presented in the table below.

For purchases, contact Hitachi Authorized Service Centers.

Please check carefully as those accessories not marked with "●" cannot be attached.

List of recommended accessories

Type Name

Specifi cation LOOP HANDLE

MULTI PURPOSE

Diameter

Feed System Adapter or No. of Teeth (Blade)

Blade Thickness (mm) or Trimmer line Diameter (mm)

CG22EAB (LP)

CG22EAS (SLP)

CG24EAS (SL), CG24EASP (SL)

CG27EAS (SL), CG27EASP (SL)

CG22EAS (SP)

CG24EASP (S)

CG27EASP (S)

CG22EAD (SLP)

ALUMINUM HEADS

NYLON HEAD CH-100 (W/NYLON LINE)

4"

Pre-Cut Line

2.2 - 3.0

●

●

●

●

●

●

●

●

NYLON HEAD CH-100

●

●

●

●

●

●

●

●

NYLON HEAD CH-300 (W/CUTTER HOLDER CAP)

5"

Manual line feed

2.2 - 2.7

●

●

NYLON HEAD CH-300

●

●

TAP & GO NYLON HEADS

NYLON HEAD BF-4

4"

R M8 x 1.25 Nut

2.2 - 3.0

●

NYLON HEAD BF-5

5"

L M10 x 1.25 Nut L M8 x 1.25 Nut

2.2 - 3.0

●

●

●

●

●

●

●

BLADES

BLADE B3/10/2.0

10" 3 2.0

●

●

BLADE B3/12/3.0

12" 3 3.0

●

BLADE B4/9/1.6

9" 4 1.6

●

●

●

BLADE B4/10/1.6

10" 4 1.6

●

●

●

TROUBLESHOOTING

Use the inspections in the table below if the tool does not operate normally. If this does not remedy the problem, consult your dealer or the Hitachi Authorized Service Center.

Condition Cause Remedy
Engine does not start	Fuel system	Fuel tank is empty or fuel level is low	Fill the fuel tank with the correct fuel mix (25:1-50:1)
		Fuel tank contains old fuel (offensive odor)	Replace with new fuel
		Too much fuel is absorbed and spark plug is wet	1.Disconnect the spark plug and allow to dry2.Pull the starter handle 5 or 6 times to remove the surplus fuel3.Attach the spark plug4.Set the choke lever to RUN position and pull the starter handle
		Fuel filter is clogged with dirt	Clean the fuel filter
		Fuel pipe is bent or disconnected	Ensure that the fuel flows smoothly
		Carburetor malfunction Contact Hitachi Authorized Service Centers
	Electrical system	Stop switch lead has short-circuited Contact Hitachi Authorized Service Centers
		Spark plug is dirty Replace or clean the spark plug
		Electrode gap is too big Adjust the gap to 0.6mm
		Poor connection between high tension cable and spark plug	Reconnect
		Electrical system malfunction Contact Hitachi Authorized Service Centers
	Other	Muffler exhaust port is clogged with carbon	Contact Hitachi Authorized Service Centers for repair
Engine starts but cuts out straightawayEngine is apt to cut out	Fuel system	Fuel tank is empty or fuel level is low	Fill the fuel tank with the correct fuel mix (25:1-50:1)
		Fuel tank contains old fuel (offensive odor)	Replace with new fuel
		Two-cycle oil has not been added Contact Hitachi Authorized Service Centers
		Choke lever is in START position Set the choke lever to RUN position
		Air has got into fuel system Reconnect the fuel pipe or joint
		Carburetor malfunction Contact Hitachi Authorized Service Centers
	Electrical system	Ignition failure
		Spark plug failure Replace with new spark plug
		Electrical system failure Contact Hitachi Authorized Service Centers
	Other	Engine overheating
		Wrong spark plug model	Replace with designated part See “SPECIFICATIONS”
		Dirty air cleaner Clean
		Carbon clogging (muffler exhaust port)	Clean
		Insuffi cient compression (piston, piston ring, cylinder)	Contact Hitachi Authorized Service Centers
Abnormal vibration		Cutting attachment is not properly installed	See “Installation of cutting attachment”
		Handle, handle bracket or other fastening part is loose	Check and tighten
		Blade is bent or damaged	Replace with new blade
		Grass is wrapped round gear case	Remove grass
Engine is running but blade does not move Movement is poor		Grass is wrapped round gear case	Remove grass and dirt
Engine does not stop Stop switch		failure	Set the choke lever to START position to stop the engineCease use immediately and contact Hitachi Authorized Service Centers
Engine stops when throttle is closed		Idle speed is too low	Contact Hitachi Authorized Service Centers
Blade continues rotating when throttle is closed		Idle speed is too highThrottle wire is too taut	Contact Hitachi Authorized Service Centers

SYMBOLBEDEUTUNGEN

Cordon de nylon applicable

WAARSCHUWINGEN EN VEILIGHEIDSINSTRUCTIES

HVAD ER HVAD? (Fig. 1)

Diametru coardă: Φ3,0 mm Lungime: 2 m

Diametru coardă: Φ2,4 mm Lungime: 4 m

2. Precauții

UPOZORENJA I BEZBEDNOSNA UPUTSTVA

UPOZORENJA I SIGURNOSNE UPUTE

Posebno obratite pažnju na izjave kojima prethode sljedeće riječi:

⚠ UPOZORENJE

Simple line drawing of a circular mechanical component with no text or symbols

Simple line drawing of a circular mechanical component with two curved arms and a central hub, labeled 6696454 below (no text or symbols on the diagram itself)

English Dansk Română
GUARANTEE CERTIFICATE1 Model No.2 Serial No.3 Date of Purchase4 Customer Name and Address5 Dealer Name and Address(Please stamp dealer name and address)		GARANTIBEVIS1 Modelnummer2 Serienummer3 Købsdato4 Kundes navn og adresse5 Forhandlers navn og adresse(Indsæt stempel med forhandlers navn og adresse)		CERTIFICAT DE GARANTIE1 Model nr.2 Nr. de serie3 Data cumpărării4 Numele și adresa clientului5 Numele și adresa distribuitorului(Vă rugăm aplicați štampila cu numele și adresa distribuitorului)
Deutsch Norsk Slovenščina
GARANTIESCHEIN1 Modell-Nr.2 Serien-Nr.3 Kaufdatum4 Name und Anschrift des Kunden5 Name und Anschrift des Händlers(Bitte mit Namen und Anschrift des Handlers abstempeln)		GARANTISERTIFIKAT1 Modellnr.2 Serienr.3 Kjopsdato4 Kundens navn og adresse5 Forhandlerens navn og adresse(Vennligst stemple forhandlerens navn og adresse)		GARANCIJSKO POTRDILO1 Št. modela2 Serijska št.3 Datum nakupa4 Ime in naslov kupca5 Ime in naslov prodajalca(Prosimo vtsnite žig z imenom in naslovom prodajalca)
Français Suomi Slovenčina
CERTIFICAT DE GARANTIE1 No. de modèle2 No de série3 Date d'achat4 Nom et adresse du client5 Nom et adresse du revendeur(Cachet portant le nom et l'adresse du revendeur)		TAKUUTODISTUS1 Malli nro2 Sarja nro3 Ostopáivámáäră4 Asiakkaan nimi ja osoite5 Myyjän nimi ja osoite(Leimaa myyjän nimi ja osoite)		ZÁRUČNÝ LISTA1 Č. modelu2 Sériové č.3 Dátum zakúpenia4 Meno a adresa zákaznika5 Názov a adresa predajcu(Pečiatka s názvom a adresou predajcu)
Italiano Ελληγικά Български
CERTIFICATO DI GARANZIA1 Modello2 N° di serie3 Data di acquisto4 Nome e indirizzo dell'acquirente5 Nome e indirizzo del rivenditore(Si prega di apporre il timbro con questi dati)		ПІЗТОПОІНТИКО ЕГГУНЄНЕ1 Ap. Movtėlou2 Aúξων Ap.3 Нμερομηνία αγοράς4 Όνομα και διεύθυνση πελάτη5 Όνομα και διεύθυνση μεταπωλητή(Παρακαλούμε να χρησιμοποιηθεί σφραγίδα)		ГАРАНЦИОНЕН СЕРТИФИКАТ1 Модел No2 Сериен No3 Дата за закупуване4 Име и адрес на клиента5 Име и адрес на търговеца(Моля, отпечатайте името и адрес на дильра)
Nederlands Polski Srpski
GARANTIEBEWIJS1 Modelnummer2 Serienummer3 Datum van aankoop4 Naam en adres van de gebruiker5 Naam en adres van de handelaar(Stempel a.u.b. naam en adres vande de handelaar)		GWARANCJA1 Model2 Numer seryjny3 Data zakupu4 Nazwa klienta i adres5 Nazwa dealera i adres(Pieczęć punktu sprzedaży)		GARANTNI SERTIFIKAT1 Br. modela.2 Serijski br.3 Datum kupovine4 Ime i adresa kupca5 Ime i adresa prodavca(Molimo da stavite pečat na ime i adresu trgovca)
Español Magyar Hrvatski
CERTIFICADO DE GARANTÍA1 Número de modelo2 Número de serie3 Fecha de adquisición4 Nombre y dirección del cliente5 Nombre y dirección del distribuidor(Se ruega poner el sello del distribuidor con su nombre y dirección)		GARANCIA BIZONYLAT1 Tipusszám2 Sorozatszám3 A vásárlás dátuma4 A Vásárló neve és címe5 A Kereskedő neve és címe(Kérjük ide elhelyezni a Kereskedő nevének és címének pecsétjét)		JAMSTVENI CERTIFIKAT1 Br modela.2 Serijski br.3 Datum kupnje4 Ime i adresa kupca5 Ime i adresa trgovca(Molimo stavite pečat na ime i adresu trgovca)
Português Čeština Український
CERTIFICADO DE GARANTIA1 Número do modelo2 Número do série3 Data de compra4 Nome e morada do cliente5 Nome e morada do distribuidor(Por favor, carimbe o nome e morada do distribuidor)		ZÁRUČNÍ LIST1 Model č.2 Série č.3 Datum nákupu4 Jméno a adresa zákazníka5 Jméno a adresa prodejce(Prosíme o razítko se jménem a adresou prodejce)		ГАРАНТИЙНИЙ СЕРТИФИКАТ1 No моделі2 No серії3 Дата придбання4 Im'я і адреса кліента5 Im'я і адреса дилера(Будь ласна, поставте печатку з іменем і адресою дилера)
Svenska Türkçe		Русский
GARANTICERTIFIKAT1 Modellnr2 Serienr3 Inköpsdatum4 Kundens namn och adress5 Försäljarens namn och adress(Stämpla försäljarens namn och adress)		GARANTI SERTÍFÍKASI1 Model No.2 Seri No.3 Satin Alma Tarihi4 Müşteri Adı ve Adresi5 Bayi Adı ve Adresi(Lütfen bayi adını ve adresini kaşe olarak basin)		ГАРАНТИЙНЫЙ СЕРТИФИКАТ1 Модель No2 Серийный No3 Дата покупки4 Название и адрес заказчика5 Название и адрес дилера(Пожалуйста, внесите название и адрес дилера)

HITACHI

1
2
3
4
5

Hitachi Power Tools Europe GmbH

Siemensring 34, 47877 willich, Germany

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.de

Hitachi Power Tools Netherlands B. V.

Brabanthaven 11, 3433 PJ Nieuwegein, The Netherlands

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.nl

Hitachi Power Tools (U. K.) Ltd.

Precedent Drive, Rooksley, Milton Keynes, MK 13, 8PJ,

United Kingdom

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.co.uk

Hitachi Power Tools France S. A. S.

Kjeller Vest 7, N-2007 Kjeller, Norway

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.no

Hitachi Power Tools Sweden AB

Rotebergsvagen 2B SE-192 78 Sollentuna, Sweden

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.se

Hitachi Power Tools Denmark A/S

Lillebaeltsvej 90, 6715 Esbjerg N, Denmark

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.dk

Hitachi Power Tools Finland Oy

Tupalankatu 9, 15680 Lahti, Finland

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.fi

Hitachi Power Tools Hungary Kft.

1106 Bogancsvirag U.5-7, Budapest, Hungary

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.hu

Hitachi Power Tools Polska Sp.z o.o.

Modricka 205, 664, 48, Moravany, Czech, Republic

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.cz

Hitachi Power Tools Netherlands B.V.

Moscow Branch

Kashirskoye Shosse Dom 65, 4F

115583 Moscow, Russia

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-pt.ru

Hitachi Power Tools Romania S. R. L.

Bld. Biruintei, Nr. 101, Oras Pentelimon, 077145, Judetul

Ilfov, ROMANIA

Tel: [phone]

Fax: [phone]

Line drawing of a quill pen with inkwell (no text or symbols)

Line drawing of a quill pen with inkwell (no text or symbols)

English NederlandsObject of declaration: Hitachi Grass trimmer / Brush Cutter CG 22EAS (SLP) / CG 22EAS (SP) /CG 22EAD (SLP) / CG 22EAB (LP) / CG 24EAS (SL) / CG 24EASP (SL) /CG 24EASP (S) / CG 27EAS (SL) / CG 27EASP (SL) / CG 27EASP (S)EC DECLARATION OF CONFORMITY(Applies to Europe only)We declare under our sole responsibility that this product is in conformitywith directives 2006/42/EC, 2004/108/EC and 2000/14/EC. The followingstandards have been taken into consideration.EN ISO 11806 : 2011Annex V (2000/14/EC): For information relating to noise emissions, see thechapter specifications.The European Standards Manager at Hitachi Koki Europe Ltd. is authorizedto compile the technical fi le.This declaration is applicable to the product affi xed CE marking.		Onderwerp van verklaring: Hitachi Motor Zeis / Motor Bosmaaier CG 22EAS (SLP) / CG 22EAS (SP) /CG 22EAD (SLP) / CG 22EAB (LP) / CG 24EAS (SL) / CG 24EASP (SL) /CG 24EASP (S) / CG 27EAS (SL) / CG 27EASP (SL) / CG 27EASP ( S)EC VERKLARING VAN CONFORMITEIT(Geldt alleen voor Europa)Wij verklaren onder eigen verantwoordelijkheid dat dit product voldoet aan derichtlijnen 2006/42/EC, 2004/108/EC en 2000/14/EC. De volgende standaardsszijn toegepast.EN ISO 11806 : 2011Aanvulling V (2000/14/EC): Voor informatie over de lawaai-emissie wordt uverwezen naar het hoofdstuk met de specifi caties.De manager voor Europese normen van Hitachi Koki Europe Ltd. heeft debevoegdheid tot het samenstellen van het technische bestand.Deze verklaring is van toepassing op produkten voorzien van de CE-markeringen.
Deutsch EspañolGegenstand der Erklärung: Hitachi Rasentrimmer / Motorsense CG 22EAS (SLP) / CG 22EAS (SP) /CG 22EAD (SLP) / CG 22EAB (LP) / CG 24EAS (SL) / CG 24EASP (SL) /CG 24EASP (S) / CG 27EAS (SL) / CG 27EASP (SL) / CG 27EASP (SS)ERKLÄRUNG ZUR KONFORMITÄT MIT EG-REGELN(Gilt nur für Europa)Wir erklären eigenverantwortlich, dass dieses Produkt den Richtlinien 2006/42/EG, 2004/108/EG und 2000/14/EG entspricht. Folgende Standards wurdenberücksichtigt.EN ISO 11806 : 2011Anhang V (2000/14/EG): Informationen zur Geräuschentwicklung finden Sie imKapitel Spezif zierungen.Der Manager für europäische Standards bei der Hitachi Koki Europe Ltd. istzum Verfassen der technischen Datei befugt.Diese Erklärung gilt für Produkte, die die CE-Markierung tragen.
Français PortuguêsObjet de la déclaration: Hitachi Coupe- Herbes / Débroussaïleuse CG 22EAS (SLP) / CG 22EAS (SP) /CG 22EAD (SLP) / CG 22EAB (LP) / CG 24EAS (SL) / CG 24EASP (SL) /CG 24EASP (S) / CG 27EAS (SL) / CG 27EASP (SL) / CG 27EASP ( SS )DECLARATION DE CONFORMITE EC(Concerne l'Europe uniquement)Nous déclarons sur la foi de notre seule responsabilité que ce produit estconforme aux dispositions des directives 2006/42/EC, 2004/108/EC et2000/14/EC. Les normes suivantes ont été prises en considération.EN ISO 11806 : 2011Annexe V (2000/14/EC): Pour les informations relatives aux émissions debruits, reportez-vous au chapitre Caractéristiques.Le responsable des normes européennes d'Hitachi Koki Europe Ltd. estautorisé à compiler les données techniques.Cette déclaration s'applique aux produits désignés CE.		Objeto de declaración: Hitachi Motoguadañas / Desbrozadoras CG 22EAS (SLP) / CG 22EAS (SP) /CG 22EAD (SLP) / CG 22EAB (LP) / CG 24EAS (SL) / CG 24EASP (SL) /CG 24EASP (S) / CG 27EAS (SL) / CG 27EASP (SL) / CG 27EASP (SB)DECLARACIÓN DE CONFORMIDAD DE LA CE(De aplicación sólo en Europa)Declaramos bajo nuestra exclusiva responsabilidad que este producto esconforme a las directivas 2006/42/CE, 2004/108/CE y 2000/14/CE. Se hantenido en consideración las siguientes normas.EN ISO 11806 : 2011Anexo V (2000/14/CE): Para más información sobre la emisión de ruidos,consulte la sección de especific caciones.El Jefe de Normas Europeas de Hitachi Koki Europe Ltd. está autorizado pararecopilar archivos técnicos.Esta declaración se aplica a los productos con marcas de la CE.
Italiano SvenskaOggetto della dichiarazione: Hitachi Bordatore / Decespugliatore CG 22EAS (SLP) / CG 22EAS (SP) /CG 22EAD (SLP) / CG 22EAB (LP) / CG 24EAS (SL) / CG 24EASP (SL) /CG 24EASP (S) / CG 27EAS (SL) / CG 27EASP (SL) / CG 27EASP (SDICHIARAZIONE DI CONFORMITÄ CE(Si applica solo all'Europa)Dichiariamo sotto la nostra esclusiva responsabilità che questo prodotto èconforme alle direttive 2006/42/CE, 2004/108/CE e 2000/14/CE. Sono statipresi in considerazione i seguenti standard.EN ISO 11806 : 2011Allegato V (2000/14/CE): Per informazioni riguardo alle emissioni di rumore,consultare le specifi che del capitolo.Il Responsabile delle Norme Europee di Hitachi Koki Ltd. è autorizzato apoliplare la scheda tecnica.Questa dichiarazione è applicabile ai prodotti cui sono applicati i marchi CE.		Objeto de declaración: Hitachi Foice a motor / Roçadora CG 22EAS (SLP) / CG 22EAS (SP) /CG 22EAD (SLP) / CG 22EAB (LP) / CG 24EAS (SL) / CG 24EASP (SL) /CG 24EASP (S) / CG 27EAS (SL) / CG 27EASP (SL) / CG 27EASP ( SB )DECLARAÇÃO DE CONFORMIDADE CE(Aplica-se apenas à Europa)Declaramos, sob nossa única responsabilidade, que este produtoestá em conformidade com as directivas 2006/42/CE, 2004/108/CE e2000/14/CE. As normas seguintes foram tomadas em consideração.EN ISO 11806 : 2011Anexo V (2000/14/CE): Para obter mais informações relacionadassom emissões de ruido, consulte as especificações do capítulo.O Gestor de Normas Europeias da Hitachi Koki Europe Ltd. estáautorizado a compilar o fi cheiro técnico.Esta declaração se aplica aos produtos designados CE.
Hitachi Koki Europe Ltd.Clonshaugh Business & Technology Park, Dublin 17, IrelandRepresentative offi ce in EuropeHitachi Power Tools Europe GmbHSiemensring 34, 47877 Willich 1, F. R. GermanyHead offi ce in JapanHitachi Koki Co., Ltd.Shinagawa Intercity Tower A, 15-1, Konan 2-chome,Minato-ku, Tokyo, Japan		Objekt för deklaration: Hitachi Grästrimmer / Röjsåg CG 22EAS (SLP) / CG 22EAS (SP) /CG 22EAD (SLP) / CG 22EAB (LP) / CG 24EAS (SL) / CG 24EASP (SL) /CG 24EASP (S) / CG 27EAS (SL) / CG 27EASP (SL) / CG 27EASP (B)EF-DEKLARATION BETRÄFFANDE LIKFORMIGHET(Gäller endast Europa)Vi intygar under ensamt ansvar att denna produkt motsvararbestämmelserna i direktiven 2006/42/EF, 2004/108/EF och 2000/14/EF. Vi har tagit hänsyn till följande standards.EN ISO 11806 : 2011Bilaga V (2000/14/EF): För information rörande buller, sepakitelbeskrivningen.Den europeiska standardansvarige på Hitachi Koki Europe Ltd. ärauktoriserad att utarbeta den tekniska fi len.Denna deklaration gäller för CE-märkningen på produkten.
		29. 8. 2014John de LoughryEuropean Standard Manager29. 8. 2014A. YoshidaVice-President & Director
Dansk PolskiGenstand for erklæring: Hitachi Graestrimmer / Buskrydder CG 22EAS (SLP) / CG 22EAS (SP) /CG 22EAD (SLP) / CG 22EAB (LP) / CG 24EAS (SL) / CG 24EASP (SL) /CG 24EASP (S) / CG 27EAS (SL) / CG 27EASP (SL) / CG 27EASP (S)EF-OVERENSS TEMMELSESERKLÆRING(Gælder kun for Europa)Vierklærer som eneansvarlige, at dette produkt er i overensstemmelse med direktiverne 2006/42/EF, 2004/108/EF og 2000/14/EF. Der er taget hensyn til følgende standarder.EN ISO 11806 : 2011Appendiks V (2000/14/EF): For information vedrørende støjafgivelse henvises til afsnittet Specifi kationer.Chefen for europæiske standarder hos Hitachi Koki Europe Ltd. er autoriseret til at kompilere den tekniske fi l.Denne erklæring qælder produkter, der er mærket med CE.		Przedmiot deklaracji: Hitachi Podkaszarka / Kosa spalinowa CG 22EAS (SLP) / CG 22EAS (SP) /CG 22EAD (SLP) / CG 22EAB (LP) / CG 24EAS (SL) / CG 24EASP (SL) /CG 24EASP (S) / CG 27EAS (SL) / CG 27EASP (SL) / CG 27EASP ( S )DEKLARACJA ZGODNOŚCI Z ECDyłko dla Europa)Deklarujemy z pełną, wyłącznie odpowiedzialnością, że produkt spełnia wymogi dyrektyw 2006/42/EC, 2004/108/EC i 2000/14/EC.Uwzględniono również następujące normy.EN ISO 11806 : 2011Załącznik V (2000/14/EC): Informacje na temat poziomu hałasu znajdują się w części Specyfi kacje.Menedżer Standardów Europejskich w firmie Hitachi Koki Europ Ltd.Jest upoważniony do kompilowania pliku technicznego.To oświadczenie odnosi się do załączonego produktu z oznaczeniami CE.
Norsk MagylerErklæringens objekt: Hitachi Gresstrimmer / Ryddesag CG 22EAS (SLP) / CG 22EAS (SP) /CG 22EAD (SLP) / CG 22EAB (LP) / CG 24EAS (SL) / CG 24EASP (SL) /CG 24EASP (S) / CG 27EAS (SL) / CG 27EASP (SL) / CG 27EASP (s )EF'S ERKLÆRING OM OVERENSSTEMMELSE(Gjelder bare for Europa)Vierklærer at vårt eneansvar for dette produktet er i overensstemmelse med direktivene 2006/42/EF, 2004/108/EF og 2000/14/EF. Det er tatt hensyn til følgende standarder.EN ISO 11806 : 2011Anneks V (2000/14/EF): For informasjon relatert til lydemisjon, se kapittel spesifi kasjonene.Lederen for europeiske standarder ved Hitachi Koki Europe Ltd. har fullmakt til å utarbeide det tekniske dokumentet.Denne erklæringen gjelder produktets påklistrede CE-merking.		Megfelelőségi nyilalkozat: Hitachi Benzinmotoros főkasza / Benzinmotoros bozótvágó CG 22EAS (SLP) /CG 22EAS (SP) / CG 22EAD (SLP) / CG 22EAB (LP) / CG 24EAS (SL) / CG 24EASP (SL) /CG 24EASP (S) / CG 27EAS (SL) / CG 27EASP (SL) / CG 27EASP (S )EK MEGFELELŐŚÉGI NYILATKOZAT(Csak Európára vonatkozik)Felelősségünk tudatában kijelentjük, hogy ez a termék megfelel a2006/42/EK, 2004/108/EK és 2000/14/EK irányelveknek. Az alábbi szabványokat vettük fi gyelembe:EN ISO 11806 : 2011V függelék. (2000/14/EK): A zajkibocsátási adatokat illetően tekintse meg a Můszaki adatok c. fejezetet.Az Hitachi Koki Europe Ltd. Európai Szabványkezelője fel van hatalmazva a můszaki fájl elkészítésére.Jelen nyilatkozat a terméken feltüntetett CE jelzésre vonatkozik.
Suomi ČeštínaIlmoituksen kohde: Hitachi Ruohotrimmeri / Raivaussaha CG 22EAS (SLP) / CG 22EAS (SP) /CG 22EAD (SLP) / CG 22EAB (LP) / CG 24EAS (SL) / CG 24EASP (SL) /CG 24EASP (S) / CG 27EAS (SL) / CG 27EASP (S )EY-ILMOITUS YHDENMUKAISUUDESTA(Koskee vain Eurooppaa)Ilmoitamme yksinomaisella vastuillumme, että tämä tuote on direktiivien 2006/42/EY, 2004/108/EY ja 2000/14/EY vaatimusten mukainen. Seuraavat standardit on huomioitu.EN ISO 11806 : 2011Liite V (2000/14/EY): Katso melupäästöihin liittyviä tietoja kappaleesta ominaisuudet.Hitachi Koki Europe Ltd.:n eurooppalaisten standardien johtaja on valtuutettu laatimaan tekniset asiakirjat.Tämä ilmoitus sovelletaan tuotekohtaiseen CE-merkintään.		Předmět prohlášení: Hitachi Dostřihovačrávy / Křovinořez CG 22EAS (SLP) / CG 22EAS (SP) /CG 22EAD (SLP) / CG 22EAB (LP) / CG 24EAS (SL) / CG 24EASP (SL) /CG 24EASP (S) / CG 27EAS (SL) / CG 27EASP (SL) / CG 27EASP ( s )PROHLÁŠENÍ O SHODĚ S EC(Platí pouze pro Evropu)Prohlašujeme na svou zodpovědnost, že tento produkt je v souladu se směrnicemi rady 2006/42/EC, 2004/108/EC a 2000/14/EC. Následujici normy byly zohledněny.EN ISO 11806 : 2011Příloha V (2000/14/EC): Ohledně informací o hlukových emisích viz specifi kace kapitol.Vedoucí pracovník pro Evropské normy v Hitachi Koki Europe Ltd. je oprávněný ke zpracování technického souboru.Toto prohlášení platí pro výrobek označený značkou CE.
Ελληνικά TürkçeΑντικείμενο δήλωσης: Hitachi Χλοοκοπτικό / Θαμνοκοπτικό CG 22EAS (SLP) / CG 22EAS (SP) /CG 22EAD (SLP) / CG 22EAB (LP) / CG 24EAS (SL) / CG 24EASP (SL) /CG 24EASP (S) / CG 27EAS (SL) / CG 27EASP (SL) / CG 27EASP (5 )ΕΚ ΔΗΛΩΣΗ ΕΝΑΡΜ ΝΙΣΜ Υ(Εφαρυόζεται μόνο για την Ευρώτη)Δηλώνουμε με δική μας ευθύνη ότι το συγκεκριμένο προϊόν έχει κατασκευαστεί σύμφωνα με τις οδηγίες 2006/42/EK, 2004/108/EK και 2000/14/EK. Έχουν ληφθεί υπόψη τα παρακάτω κριτήρια.EN ISO 11806 : 2011Παράρτημα V (2000/14/EK): Για πληροφορίες σχετικά με την εκπομπή θορύβου, βλέτε τις προδιαγραφές του κεφαλαίου.Ο υπεύθυνος για τα ευρωπαϊκά πρότυπα στην Hitachi Koki Europe Ltd. είναι εξουσιοδότημένος να συντάσσει τον τεχνικό φάκελο.Autή η δήλωση ισχύει στο προϊόν με το σημάδι CE.		Beyan konusu: Hitachi Çim kesicisi / Çalı kesicisi CG 22EAS (SLP) / CG 22EAS (SP) /CG 22EAD (SLP) / CG 22EAB (LP) / CG 24EAS (SL) / CG 24EASP (SL) / CG 27EAS (SL) / CG 27EASP (SL) / CG 27EASP (S )AB UYGUNLUK BEYANI(Sadece Avrupa ülkeleri için geçerlidir)Sorumluluğu tamamen kendimize ait olmak üzere, bu ürünün 2006/42/EC, 2004/108/EC ve 2000/14/EC direktiflerine uygun olduğunu beyan ederiz. Aşağıdaki standartlar dikkate alınmıştır.EN ISO 11806 : 2011Ek V (2000/14/EC): Gürültü emisyonları hakkında bilgi için, teknik özellikler bölümüne bakın.Hitachi Koki Europe Ltd. Avrupa Standartlar Müdürü, teknik dosyayı hazırlama yetkisine sahiptir.Bu beyan, üzerinde CE işareti bulunan ürünler için geçerlidir.
Hitachi Koki Europe Ltd.Clonshaugh Business & Technology Park, Dublin 17, Ireland Representative offi ce in EuropeHitachi Power Tools Europe GmbHSiemensring 34, 47877 Willich 1, F. R. GermanyHead offi ce in JapanHitachi Koki Co., Ltd.Shinagawa Intercity Tower A, 15-1, Konan 2-chome,Minato-ku, Tokyo, Japan		29. 8. 2014John de LoughryEuropean Standard Manager29. 8. 2014A. YoshidaVice-President & Director

Română Slipski
Obiectul declaratiei: Hitachi Trimmer gazon / Motocoasa CG 22EAS (SLP) / CG 22EAS (SP) /CG 22EAD (SLP) / CG 22EAB (LP) / CG 24EAS (SL) / CG 24EASP (SL) /CG 24EASP (S) / CG 27EAS (SL) / CG 27EASP (SL) / CG 27EASP (S)DECLARAȚIE DE CONFORMITATE CE(Valabil numai pentru Europa)Declarăm pe propria noastră răspundere că prezentul produs seconformează directivelor CE 42/2006, CE 108/2004 și CE 14/2000.S-a ținut seama de următoarele standarde.EN ISO 11806 : 2011Anexa V (2000/14/CE): Pentru informațiile legate de emisiile dezgomote, vedeți specificațiile capitolului.Managerul pentru standarde euopene al Hitachi Koki Europe Ltd.este autorizat să întocmească fișa tehnică.Prezenta declarație se referă la produsul pe care este aplicat semnul CE.		Predmet deklaracije: Hitachi Trimer za travu / sekač za žbunje CG 22EAS (SLP) / CG 22EAS (SP)/ CG 22EAD (SLP) / CG 22EAB (LP) / CG 24EAS (SL) / CG 24EASP (SL) /CG 24EASP (S) / CG 27EAS (SL) / CG 27EASP (SL) / CG 27EASP (S)EC DEKLARACIJA O SAOBRAZNOSTI(Važi samo u Evropi)Pod punom odgovornošću izjavljujemo da je ovaj proizvod usaglašen sadirektivama 2006/42/EC, 2004/108/EC i 2000/14/EC. Uzeti su u obzir sledecistandardi.EN ISO 11806 : 2011Dodatak V (2000/14/EC): Za informacije o emisiji buke vidite poglavlje ospecifi kacijama.Direktor za evropske standarde u kompaniji Hitachi Koki Europe Ltd.odgovoran je za sastavljanje tehničke dokumentacije.Ova deklaracija se odnosi na proizvode sa CE oznakom.
Slovenščina Hrvatski
Predmet deklaracije: Hitachi Motorna kosa / Motorna kosa CG 22EAS (SLP) / CG 22EAS (SP) /CG 22EAD (SLP) / CG 22EAB (LP) / CG 24EAS (SL) / CG 24EASP (SL) /CG 24EASP (S) / CG 27EAS (SL) / CG 27EASP (S)EC DEKLARACIJA O SKLADNOSTI(Velja le za Evropo)Na svojo izklijučno odgovornost izjavljamo, da je ta izdelek v skladu z Direktivami2006/42/EC, 2004/108/EC in 2000/14/EC. Lahko se upoštevajo naslednji standardi.EN ISO 11806 : 2011Dodatek V (2000/14/EC): Za informacije v zvezi z emisijami hrupaglejte specifi kacije poglavja.Direktor za evropske standarde podjetja Hitachi Koki Europe Ltd. jepooblaščen za sestavljanje tehničnih datotek.Deklaracija je označena na izdelku s pritrjeno CE označbo.		Predmet deklaracije: Hitachi Trimer za travu / Rezač grmlja CG 22EAS (SLP) / CG 22EAS (SP)/ CG 22EAD (SLP) / CG 22EAB (LP) / CG 24EAS (SL) / CG 24EASP (SL) /CG 24EASP (S) / CG 27EAS (SL) / CG 27EASP (SL) / CG 27EASP (S EZ IZJAVA O SUKLADNOSTI(Vrijedi samo za Europa)Pod vlastitom odgovornošću izjavljujemo da ovaj proizvod zadovoljava europskedirektive 2006/42/EZ, 2004/108/EZ i 2000/14/EZ. U obzir su uzeti sljedeći standardi.EN ISO 11806 : 2011Dodatak V (2000/14/EZ): Za informacije o razini emisije buke vidi poglavlje saspecifi kacijama.Menadžer za europske standarde u tvrtki Hitachi Koki Europe Ltd. ovlašten je zasastavljanje tehničke dokumentacije.Ova izjava primjenjiva je za proizvod s istaknutom oznakom CE.
Slovenščina Український
Predmet vyhlásenia: Hitachi Vyžinač / Krovinorez CG 22EAS (SLP) / CG 22EAS (SP) /CG 22EAD (SLP) / CG 22EAB (LP) / CG 24EAS (SL) / CG 24EASP (SL) /CG 24EASP (S) / CG 27EAS (SL) / CG 27EASP (SL) / CG 27EASP (ESVYHLÁSENIE O ZHODE(Vzfahuje sa len na Európu)Na vlastnú zodpovednosť vyhlasujeme, že tento výrobok vyhovuje smerniciam 2006/42/ES, 2004/108/ES a 2000/14/ES. Do úvahy boli zobrané aj nasledovné normy.EN ISO 11806 : 2011Príloha V (2000/14/ES): Informácie o emisiách hluku nájdete v kapitole s technickýmiparametrami.Manazér európskych noriem v spoločnosti Hitachi Koki Europe Ltd. Má oprávneniena zostavovanie technickej dokumentácie.Toto vyhlásenie sa vzfahuje na výrobok s označením CE.		Predmet декларування: Hitachi Motokoca для травиТриммер CG 22EAS (SLP) / CG 22EAS (SP) /CG 22EAD (SLP) / CG 22EAB (LP) / CG 24EAS (SL) / CG 24EASP (SL) / CG 27EAS (SL) / CG 27EASP (SL) / CG 27EASP (S)DEKLARAȚIA PRO BÍDПОВІДНІСТЬ СТАНДАРТАМ ЕС(Тільки для свропейських країн)Ми декларуємо, що цей виріб відповідає директивам 2006/42/EC,2004/108/EC та 2000/14/EC. Також були враховані наступні стандарти.EN ISO 11806 : 2011Додаток V (2000/14/EC): Дані щодо впливу шуму див. у відповідномурозділі специфікацій.Відповідальний за дотримання европейських стандартів у компаніїHitachi Koki Europe Ltd. уповноважений заповновати технічний паспорт.Ця декларація стосується виробу, на який нанесено маркування CE.
Български Русский
Предмет на деклараукта: Hitachi Тример за трева / Резачка за храсти CG 22EAS (SLP) / CG22EAS (SP) / CG 22EAD (SLP) / CG 22EAB (LP) / CG 24EAS (SL) / CG24EASP (SL) / CG 24EASP (S) / CG 27EAS (SL) / CG 27EASP (SL) / CG 27EASP (S)EO ДЕКЛАРАЦИЯ ЗА СЪОТВЕТСТВИЕ(Приложимо само за Европа)Ние декларираме на собствена отговорност, че този продукт е в съответствие с директиви2006/42/EO, 2004/108/EO и 2000/14/EO. Бяха взети предвид следните стандарти.EN ISO 11806 : 2011Приложение V (2000/14/EO): За информация, относно емисите на шум, виктеглавата със спецификации.Мениджърът по европейски стандарти в Hitachi Koki Europe Ltd. е упълномощенза съставянето на техническото досие.Тази декларация е приложима за продукт с прикрепена маркировка CE.		Предмет декларировання:Hitachi Травокосилка«Триммер CG 22EAS (SLP) / CG 22EAS (SP) /CG 22EAD (SLP) / CG 22EAB (LP) / CG 24EAS (SL) / CG 24EASP (SL) / CG 27EAS (SL) / CG 27EASP (SL) / CG 27EASP (S)ДЕКЛАРАЦИЯ СООТВЕТСТВИЯ ЕС(Только для европейских стран)Мы с полной ответственностью заявляем, что данное изделие соответствуетдирективам 2006/42/EC, 2004/108/EC и 2000/14/EC. Следующие стандартытакоже были приняты во внимание.EN ISO 11806 : 2011Приложение V (2000/14/EC): Сведения касательно шумового воздействия см. всоответствующем разделе технических данных.Менеджер отдела европейских стандартов качества компании Hitachi KokiEurope Ltd. имеет право составлять технический паспорт.Данная декларация относится к изделиям, на которых имеется маркировка CE.
Hitachi Koki Europe Ltd.Clonshaugh Business & Technology Park, Dublin 17, IrelandRepresentative offi ce in EuropeHitachi Power Tools Europe GmbHSiemensring 34, 47877 Willich 1, F. R. GermanyHead offi ce in JapanHitachi Koki Co., Ltd.Shinagawa Intercity Tower A, 15-1, Konan 2-chome,Minato-ku, Tokyo, Japan		CE29.8.2014John de LoughryJohn de LoughryEuropean Standard Manager29.8.2014A. YoshidaVice-President & Director
