| Product Type | Demolition Hammer (Concrete Breaker) |
| Brand | Hitachi |
| Model | H 55SA |
| Power Input | 1140 W |
| Voltage (by area) | 110 V, 115 V, 120 V, 127 V, 220 V, 230 V, 240 V ~ |
| Full-Load Impact Rate | 1600 min⁻¹ |
| Weight (without cord, side handle) | 9.5 kg |
| Weight of equipment (for EC declaration) | 10.3 kg |
| Dimensions (approx.) | Not specified in manual; typical length ~500-600 mm |
| Standard Accessories | Case, Bull Point, Side Handle (I type or D type), Dust Cover (2 pcs), Hammer Grease A |
| Optional Accessories | Bull Point (300/380/450 mm), Cutter (50/75 mm wide, 400 mm long), Cold Chisel (300/380/450 mm), Hammer Grease A (500 g) |
| Applications | Breaking concrete, chipping, grooving, bar cutting, driving piles; piping, wiring, sanitary facility, machinery installation, water supply/drainage, interior jobs, harbor works |
| Power Source | Mains-operated (corded) |
| Motor Type | Brushed motor with carbon brushes (auto-stop when worn) |
| Grease Replacement Period | Every 6 months of usage |
| Grease Type | Hitachi Electric Hammer Grease A (low viscosity) |
| Vibration Emission (chiselling) | ah, Cheq = 15.6 m/s², K = 1.5 m/s² |
| Sound Power Level (measured) | 101 dB/1pW |
| Sound Power Level (guaranteed) | 103 dB/1pW |
| Safety Warnings | Wear ear protectors, use auxiliary handle, avoid touching bit during operation, check for buried cables, wear dust mask |
| Maintenance | Inspect tool sharpness, tighten screws, clean motor windings, replace carbon brushes when worn |
| Service | Must be carried out by Hitachi Authorized Service Center |
Frequently Asked Questions - H 55SA HITACHI
User questions about H 55SA HITACHI
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hammer in PDF format for free! Find your manual H 55SA - HITACHI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. H 55SA by HITACHI.
USER MANUAL H 55SA HITACHI
Exposure to noise can cause hearing loss.
SÅDAN UDSKIFTES FEDT
VEDLIKEHOLD OG KONTROLL
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodifi ed plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
Use of dust collection can reduce dust related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off.
Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation.
If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
Use of the power tool for operations different from those intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
PRECAUTION
Keep children and infi rm persons away.
When not in use, tools should be stored out of reach of children and infi rm persons.
DEMOLITION HAMMER SAFETY WARNINGS
1. Wear ear protectors.
Exposure to noise can cause hearing loss.
2. Use auxiliary handles supplied with the tool.
Loss of control can cause personal injury.
-
Do not touch the bit during or immediately after operation. The bit becomes very hot during operation and could cause serious burns.
-
Before starting to break, chip or drill into a wall, floor or ceiling, thoroughly confi rm that such items as electric cables or conduits are not buried inside.
5. Wear a dust mask
Do not inhale the harmful dusts generated in drilling or chiseling operation. The dust can endanger the health of yourself and bystanders.
SPECIFICATIONS
| Voltage (by areas)* | (110 V, 115 V, 120 V, 127 V, 220 V, 230 V, 240 V) ~ |
| Power Input* 1140 W | |
| Full-load Impact Rate 1600 min | -1 |
| Weight (without cord, side handle) 9.5 kg |
* Be sure to check the nameplate on product as it is subject to change by areas.
STANDARD ACCESSORIES
(1) Case ....1
(2) Bull point ....1
(3) Side Handle { I type: Side handle ....1
II type: D type handle ....1
Either type I or type II Side handle is attached.
(4) Dust cover 2
(5) Hammer Grease A 1
Standard accessories are subject to change without notice.
OPTIONAL ACCESSORIES (sold separately)
○ Crushing
(1) Bull Point
Total Length: 300, 380, 450 mm
○ Asphalt Cutting
(1) Cutter
Width: 50, 75 mm
Total length: 400 mm
○ Groove Digging and Edging
(1) Cold Chisel
Total Length: 300, 380, 450 mm
○ Hammer Grease A
500 g (in a can)
Optional accessories are subject to change without notice.
APPLICATIONS
Breaking concrete, chipping off concrete, grooving, bar cutting, and driving piles.
Application examples:
Installation of piping and wiring, sanitary facility installation, machinery installation, water supply and drainage work, interior jobs, harbor facilities and other civil engineering work.
PRIOR TO OPERATION
1. Power source
Ensure that the power source to be utilized conforms to the power requirements specified on the product nameplate.
2. Power switch
Ensure that the power switch is in the OFF position. If the plug is connected to a power receptacle while the power switch is in the ON position, the power tool will start operating immediately, which could cause a serious accident.
3. Extension cord
When the work area is remote from the power source, use an extension cord of sufficient thickness and rated capacity. The extension cord should be kept as short as practicable.
4. Tool Mounting
NOTE
For tools such as a bull point and a cold chisel, use only Hitachi genuine parts.
(1) Clean, then smear the tool shank with the grease provided.
(2) Slide the tool holder in the direction of arrow Ⓐ and rotate it 180°.
Turn the notch of the tool shank downward and insert it fully into the hexagonal hole of the front cover. (Fig.1)
(3) Turn the tool holder and align the front cover mark with the tool holder mark to secure.
NOTE
Remove in the reverse order of installation

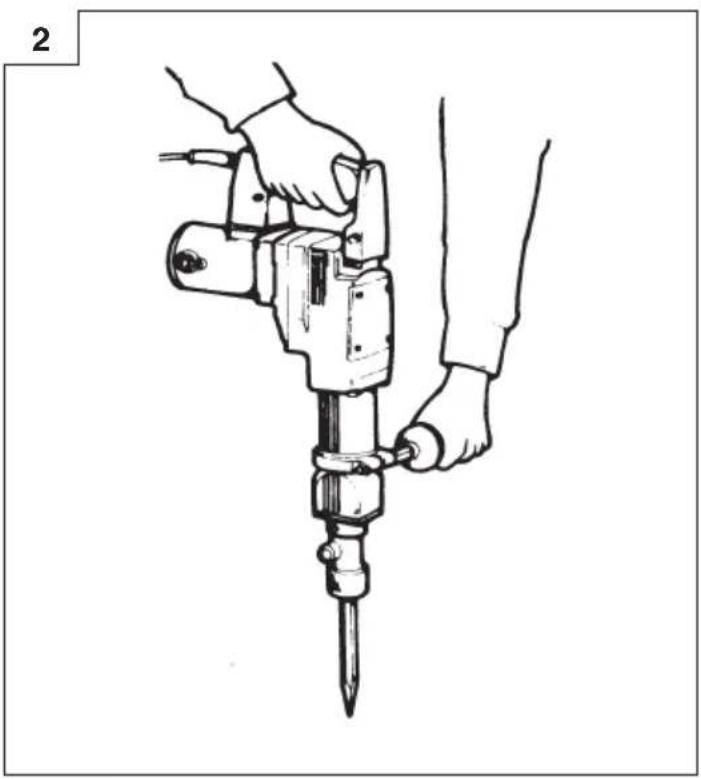

HOW TO USE THE DEMOLITION HAMMER (Fig.2)
- After placing the tip of the tool in the base hole, switch ON.
- By utilizing the weight of the machine and by firmly holding the demolition hammer with both hands, one can eff ectively control the subsequent recoil motion.
Proceed at a moderate work-rate, the use of too much force will impair efficiency.
HOW TO REPLACE GREASE
This machine is of full air-tight construction to protect against dust and to prevent lubricant leakage. Therefore, the machine can be used without lubrication for long periods. Replace the grease as described below.
1. Grease Replacement Period
After purchase, replace grease after every 6 months of usage. Ask for grease replacement at the nearest authorized HITACHI Service Center. Proceed for replacement of grease.
2. Grease Replacement
CAUTION
Before replacing the grease, turn the power off and pull out the power plug.

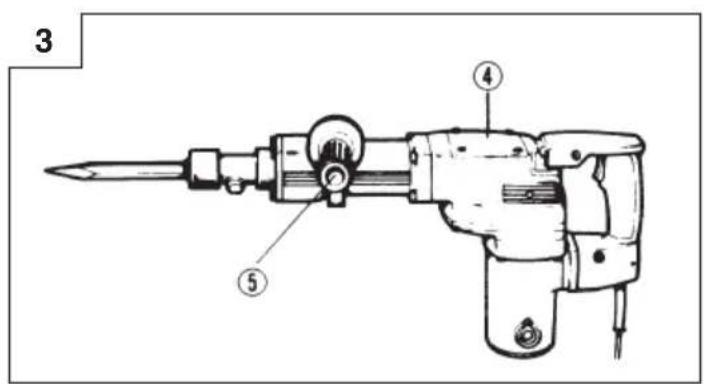

(1) Remove the crank cover and wipe off the grease inside. (Fig. 3)
(2) Supply 30 g of HITACHI Electric Hammer Grease A to the crank case.
(3) After replacing the grease, install the crank case securely.
NOTE
The HITACHI Electric Hammer Grease A is of the low viscosity type. When the grease is consumed, purchase from an authorized HITACHI Service Center.
MAINTENANCE AND INSPECTION
1. Inspecting the tool
Since use of a dull tool will degrade efficiency and cause possible motor malfunction, sharpen or replace the tool as soon as abrasion is noted.
2. Inspecting the mounting screws
Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

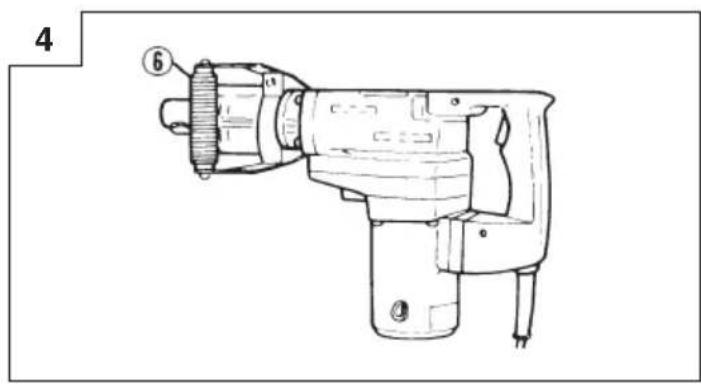

3. Maintenance of the motor
The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

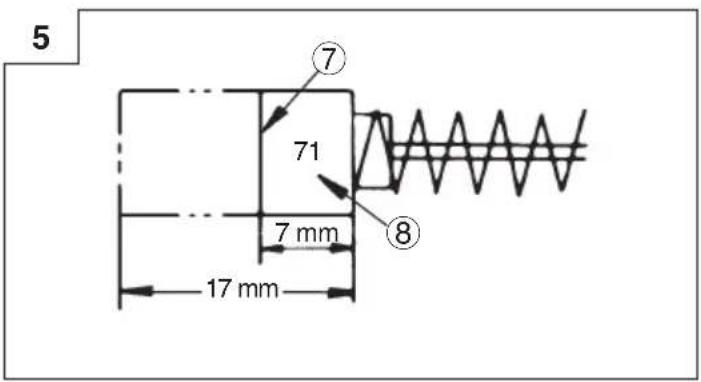

4. Inspecting the carbon brushes (Fig. 5)
The motor employs carbon brushes which are consumable parts. When they become worn to or near the "wear limit", it could result in motor trouble. When an auto-stop carbon brush is equipped, the motor will stop automatically.
At that time, replace both carbon brushes with new ones which have the same carbon brush numbers shown in the figure. In addition, always keep carbon brushes clean and ensure that they slide freely within the brush holders.
○ Replacement procedure
Loosen the set screw and remove the cap cover. Remove the brush cap and carbon brush. After replacing the carbon brush, do not forget to tighten the brush cap securely and to install the cap cover.

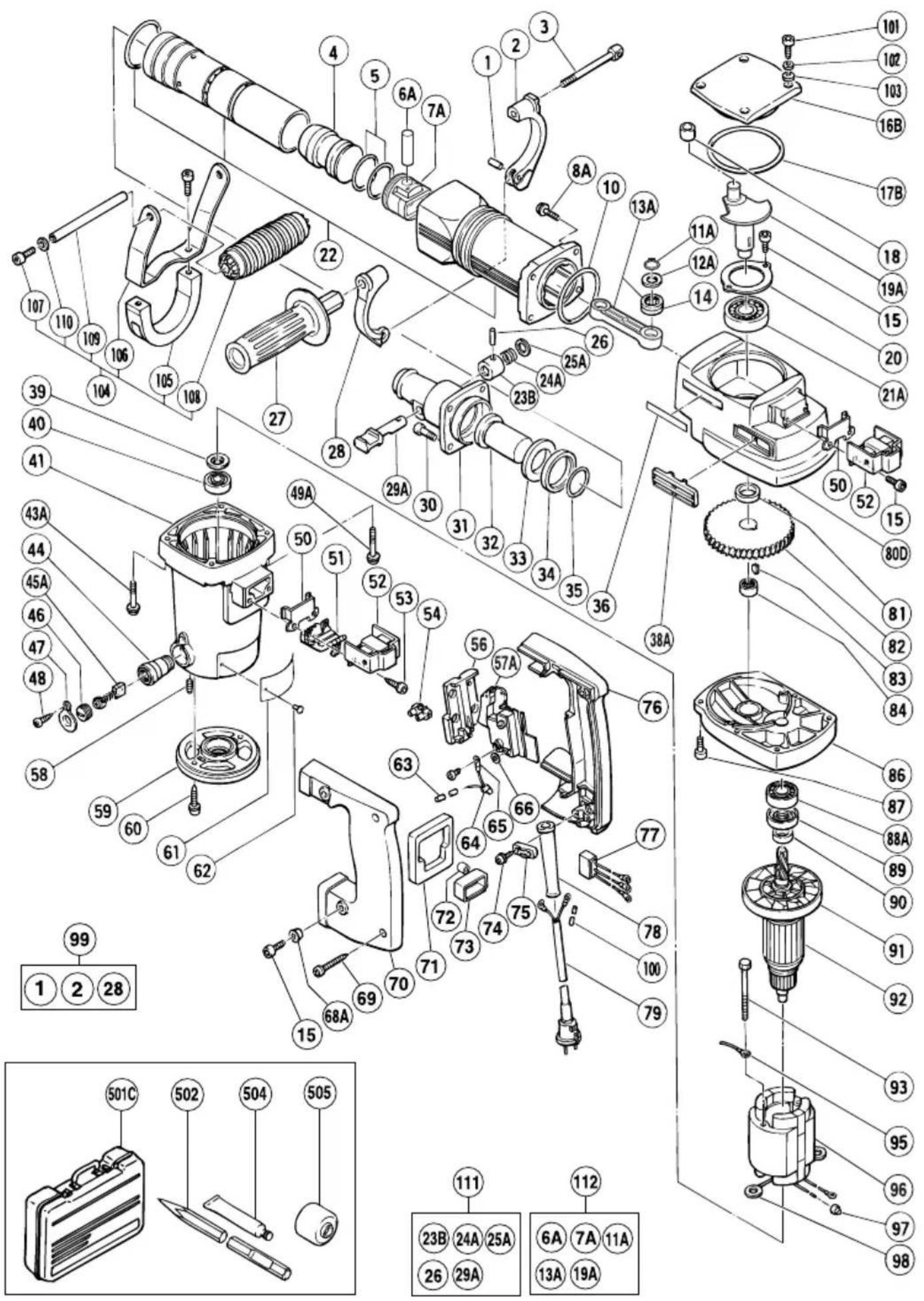

5. Service parts list
A: Item No.
B: Code No.
C: No. Used
D: Remarks
CAUTION
Repair, modification and inspection of Hitachi Power Tools must be carried out by a Hitachi Authorized Service Center.
This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance.
In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.
MODIFICATION
Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements.
Accordingly, some parts (i.e. code numbers and/or design) may be changed without prior notice.
NOTE
Due to HITACHI's continuing program of research and development, the specifications herein are subject to change without prior notice.
Information concerning vibration
Vibration total values (triax vector sum) determined according to EN60745.
Chiselling:
Vibration emission value ah, Cheq = 15.6 m/s2
Uncertainty K = 1.5 m/s2
The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another.
It may also be used in a preliminary assessment of exposure.
WARNING
☐ The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used.
- Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
A B C D
1 949-747 1 D6×25
2 985-475 1
3 985-485 1
4 985-455 1
5 985-454 2 FPM810
6A 301-509 1
7A 317-084 1
8A 990-083 4 M8×35
10 956-996 1 1AS-60
11A 939-543 1
12A 985-453 1
13A 317-082 1 "14"
14 985-470 1 RNA4901V1
15 949-665 8 M5×14
16B 986-957 1
17B 877-316 1 S-80
18 985-467 1
19A 319-502 1
20 985-443 1
21A 620-4DD 1 6204DDUCMPS2S
22 986-941 1
23B 993-241 1
24A 302-096 1
25A 993-243 1
26 943-364 1 D4×20
27 985-477 1
28 985-476 1
29A 302-095 1
30 985-479 4 M8×25
31 986-945 1
32 986-944 1
33 986-943 1
34 986-942 1
35 986-946 1 FPM810
36 957-561 1
38A 991-713 2
39 985-436 1
40 620-0VV 1 6200VVCMPS2S
41 985-435 1 "44, 58"
43A 994-084 2 M6×40
44 983-362 2
45A 999-071 2
46 961-781 2
47 981-959 2
48 958-715 2 D4×10
49A 994-085 2 M6×60
50 980-750 2
51 985-469 1
52 980-727 2
53 985-605 2 D5×25
54 938-307 1
56 990-082 1
57A 1 992-981 1
57A 2 995-398 1 "FRG"
58 982-169 2 M5×12
59 985-437 1
60 985-480 2 D5×20
61 —— 1
62 949-510 2 D2.5×4.8
A B C D
63 1
64 959-141 2
65 983-276Z 1
66 949-423 1
68A 991-711 4
69 956-636 2 D4×25
70 983-273 1
71 980-751 1
72 —— 1
73 985-474 1
74 984-750 2 D4×16
75 1 960-266 1
75 2 981-987Z 1 "SUI"
76 983-272 1
77 994-273 1
78 1 958-049Z 1 D8.2
78 2 940-778 1 D10.7
79 —— 1
80D 986-968 1 "16B, 17B, 38A, 101-103"
81 985-445 1
82 985-446 1
83 932-815 1 3×13
84 985-442 1 BK1512
86 985-440 1
87 949-660 4 M6×20
88A 620-2VV 1 6202VVC MPS2S
89 985-439 1 FPM807
90 985-438 1
91 985-482 1
92 1 985-472U 1 115V "39, 40, 88A, 90, 91"
92 2 985-472E 1 220V-230V "91"
92 3 985-472F 1 240V "91"
93 961-400 2 D5×70
95 1 986-277 1 "FIN"
95 2 971-776 1 "DEN, SWE"
96 1 985-471C 1 110V-115V "98"
96 2 985-471E 1 220V-230V "98"
96 3 985-471F 1 230V-240V "98" "DEN, FIN"
96 5 985-471G 1 220V-230V "98" "SWE"
97 959-140 1
98 937-623 2
99 985-464 1 "1, 2, 28"
100 —— 1
101 990-079 4 M5×16
102 949-454 4 M5
103 949-424 4
104 986-959 1 "105-110"
105 986-960 1
106 986-961 1
107 949-656 4 M8×20
108 944-951 1
109 986-962 1
110 986-963 1
111 310-891 1 "23B, 24A, 25A, 26, 29A"
112 319-842 1 "6A, 7A, 11A, 13A, 19A"
501C 319-7831
502 986-947 1 300MM
504 981-840 1 30G
505 985-4682
Hitachi Power Tools Norway AS
Kjeller Vest 7, N-2007 Kjeller, Norway
Tel: (+47) 6692 6600
Fax: (+47) 6692 6650
URL: http://www.hitachi-powertools.no
Hitachi Power Tools Sweden AB
Rotebergsvagen 2B SE-192 78 Sollentuna, Sweden
Tel: (+46) 8 598 999 00
Fax: (+46) 8 598 999 40
URL: http://www.hitachi-powertools.se
Hitachi Power Tools Denmark A/S
Lillebaeltsvej 90, 6715 Esbjerg N, Denmark
Tel: (+45) 75 14 32 00
Fax: (+45) 75 14 36 66
URL: http://www.hitachi-powertools.dk
Hitachi Power Tools Finland Oy
Tupalankatu 9, 15680 Lahti, Finland
Tel: (+358) 20 7431 530
Fax: (+358) 20 7431 531
URL: http://www.hitachi-powertools.fi
| Vi tillkännagiver med eget ansvar att denna produkt överensstämmermed standard eller standardiserings dokument EN60745, EN55014och EN61000 i enlighet med direktiven 2004/108/EF, 2006/42/EF och2000/14/EF. Denna produkt efterlever även RoHS-direktiv 2011/65/EU.Den europeiska standardansvarige på Hitachi Koki Europe Ltd. ärauktoriserad att utarbeta den tekniska fi len.2000/14/EFTyp av utrustning: Handhållen betongbilningsmaskinTypnamn: H55SAApparatens vikt: 10,3 kgÖverensstämmelse-bedömningsförfarandet: Bilaga VI, stycke 5Europeiskt anmält organ: CE 0032 TÜV NORD CERTAm TÜV 1, 30519 Hannover, TysklandEC-Certifi katnummer: CE 0032 - 333 05 011 6 001Uppmätt ljudeff ektnivå: 101 dB/1 pWGaranterad ljudeff ektnivå: 103 dB/1 pWDen europeiska standardsansvariga på Hitachi Koki Europe Ltd,är auktoriserad att sammanställa den tekniska fi len.Denna deklaration gäller för CE-märkningen på produkten. | Yksinomaisella vastuudella vakuutamme, että tämä tuote vastaatai normitettuja dokumentteja EN60745, EN55014 ja EN61000ohjeiden 2004/108/EY, 2006/42/EY ja 2000/14/EY mukaisesti.Tämä tuote on myös RoHS-direktiivin (2011/65/EU) mukainen.Hitachi Koki Europe Ltd.:n eurooppalaisten standardien johtajaon valtuutettu laatimaan tekniset asiakirjat.2000/14/EYLaitteen tyyppi: Kannettava betonimurskainTyyppinimi: H55SALaitteen paino: 10,3 kgVaatimustenmukaisuuden arviointimenettely: Liite VI, kappale 5Euroogan ilmoitettu laitos: CE 0032 TÜV NORD CERTAm TÜV 1, 30519 Hannover, SaksaEY-sertifi kaatin numero: CE 0032 - 333 05 011 6 001Mitattu äänitehotaso: 101 dB/1pWTaattu äänitehotaso: 103 dB/1pWHitachi Koki Europe Ltd:n eurooppalainen standardijohtaja onvaltuutettu koostamaan teknisen tiedoston.Tämä ilmoitus sovelletaan tuotekohtaiseen CE-merkintään. | ||
| Dansk | EF-OVERENSS TEMMELSESEERKLÆRING | English | EC DECLARATION OF CONFORMITY |
| Vi erklærer os fuldstændige ansvarlige for, at dette produkt modsvarer gældendestandard eller standardiserings dokumenter EN60745, EN55014 og EN61000 ioverens stemmelse med direktiver 2004/108/EF, 2006/42/EF og 2000/14/EF. Detteprodukt er også i overensstemmelse med RoHS direktiv 2011/65/EU.Chefen for europæiske standarder hos Hitachi Koki Europe Ltd. er autoriseret til atkompilere den tekniske fi l.2000/14/EFUdstyrstype: Håndholdt betonknuserTypenavn: H55SAAUdstyrets vægt: 10,3 kgProcedure for vurdering af overensstemmelse: Tillæg VI,paragraf 5Europæisk bemyndiget organ: CE 0032 TÜV NORD CERTAm TÜV 1, 30519 Hannover, TysklandEU-certifi katnummer: CE 0032 - 333 05 011 6 001Målt lydeffektniveau: 101 dB/1pWGaranteret lydeffektniveau: 103 dB/1pWLederen af europæiske standarder hos Hitachi Koki Europe Ltd. erautoriseret til at kompilere den tekniske fi l.Denne erklæring qælder produkter, der er mærket med CE. | We declare under our sole responsibility that this product isin conformity with standards or standardization documentsEN60745, EN55014 and EN61000 in accordance with Directives2004/108/EC, 2006/42/EC and 2000/14/EC. This product alsoconforms to RoHS Directive 2011/65/EU.The European Standards Manager at Hitachi Koki Europe Ltd. isauthorized to compile the technical fi le.2000/14/ECType of equipment: Hand-held concrete breakerType name: H55SAAWeight of equipment: 10.3 kgConformity assessment procedure: Annex VI, Paragraph 5European Notifi ed Body: CE 0032 TÜV NORD CERTAm TÜV 1, 30519 Hannover, GermanyEC-Certificate-Number: CE 0032 - 333 05 011 6 001Measured sound power level: 101 dB/1pWGuaranteed sound power level: 103 dB/1pWThe European Standards Manager at Hitachi Koki Europe Ltd. isauthorized to compile the technical fi le.This declaration is applicable to the product affixed CE marking. | ||
| Norsk | EF'S ERKLÆRING OM OVERENSSTEMMELSE | ||
| Vi erklærer herved at vi påtar oss det fulle ansvar for at dette produktet er ioverensstemmelse med normer eller standardiseringsdokumentene EN60745,EN55014 og EN61000 i samsvar med direktivene 2004/108/EF, 2006/42/EF og2000/14/EF. Dette produktet er også i samsvar med RoHS-direktivet 2011/65/EU.Lederen for europæiske standarder ved Hitachi Koki Europe Ltd. har fullmakt til åutarbeide det tekniske dokumentet.2000/14/EFUstystyrstype: Håndholdt brekkhammerTypenavn: H55SAAUstystyrets vekt: 10,3 kgProsedyre for samsvarsvurdering: Vedlegg VI, paragraf 5Europeisk underrettet organ: CE 0032 TÜV NORD CERTAm TÜV 1, 30519 Hannover, TysklandEU-sertifi kat-nummer: CE 0032 - 333 05 011 6 001Målt lydeffektnivå: 101 dB/1pWGarantert lydeffektnivå: 103 dB/1pWStyreren for europæiske standarder ved Hitachi Koki Europe Ltd. erautorisert til å kompilere den tekniske fi len.Denne erklæringen gjelder produktets påklistrede CE-merking. | |||
| Representative office in EuropeHitachi Power Tools Europe GmbHSiemensring 34, 47877 Willich 1, F. R. GermanyTechnical file at:Hitachi Koki Europe Ltd.Clonshaugh Business & Technology Park, Dublin 17, IrelandHead office in JapanHitachi Koki Co., Ltd.Shinagawa Intercity Tower A, 15-1, Konan 2-chome,Minato-ku, Tokyo, Japan | |||
