USER MANUAL H 70SA HITACHI

Technical line drawing of a mechanical tool or power shaver device (no text or symbols present)

Read through carefully and understand these instructions before use.

2

3

Technical line drawing of a mechanical tool with a pointed tip and handle, mounted on a flat surface (no text or symbols)

4

5

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet.
Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation.

If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.

PRECAUTION

Keep children and infirm persons away.

When not in use, tools should be stored out of reach of children and infirm persons.

DEMOLITION HAMMER SAFETY WARNINGS

1. Wear ear protectors.

Exposure to noise can cause hearing loss.

1. Use auxiliary handle(s), if supplied with the tool.

Loss of control can cause personal injury.

1. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

2. Do not touch the bit during or immediately after operation. The bit becomes very hot during operation and could cause serious burns.

3. Before starting to break, chip or drill into a wall, floor or ceiling, thoroughly confirm that such items as electric cables or conduits are not buried inside.

4. Properly set the bit holder

5. At the start of work, confirm screw tightening.

6. When working at a highly elevated location, pay attention to articles and persons below.

7. Wear protective shoes to protect your feet.

SPECIFICATIONS

Voltage (by areas)* (110 V, 115 V, 120 V, 127 V, 220 V, 230 V, 240 V)	~
Power Input 1240 W*
Full-load Impact Rate 1400 /min.
Weight (without cord) 18 kg

* Be sure to check the nameplate on this Demolition Hammer as it is subject to change by areas.

STANDARD ACCESSORIES

Standard accessories are subject to change without notice.

OPTIONAL ACCESSORIES (sold separately)

○Asphalt Cutting

(1) Cutter

Overall Length: 410 mm

Width: 75 mm

○Groove Digging and Edging

(1) Cold Chisel

Overall Length: 410 mm

○Tamping

(1) Rammer

Outer diameter: 200 mm

○Scooping Work

Line drawing of a mechanical tool with a curved handle and handle (no text or symbols)

(1) Scoop

Overall Length: 380 mm

○Grease

500 g (in a can)

70 g (in a tube)

30 g (in a tube)

Optional accessories are subject to change without notice.

APPLICATIONS

This Demolition Hammer should be applied to demolishing concrete, chiseling off concrete, grooving, bar cutting installation of piping and wiring, sanitary facility installation, machinery installation, water supply and drainage work, interior jobs, harbor facilities and other civil engineering works.

PRIOR TO OPERATION

1. Power source

Ensure that the power source to be utilized conforms to the power requirements specified on the product nameplate of this Demolition Hammer.

1. Power switch

Ensure that the power switch is in the OFF position. If the plug is connected to a receptacle while the power switch is in the ON position, this Demolition Hammer will start operating immediately, which could cause a serious accident.

1. Extension cord

When the work area is remote from the power source, use an extension cord of sufficient thickness and rated capacity. The extension cord should be kept as short as practicable.

1. Mounting an accessory, such as a bull point, a cutter, etc.

CAUTION:

Be sure to switch OFF and disconnect the attachment plug from the receptacle to avoid a serious accident. NOTE:

For accessories such as a bull point and a cutter, use only Hitachi genuine parts.

(1) Clean, then smear the accessory shank portion with grease or machine oil. (Fig. 1)

(2) Rotate the stop lever 180^ in a clockwise direction while pulling it toward you. Next, insert the accessory shank portion into the hexagonal hole on the front cover. (Fig. 1)

(3) Clamp the accessory by turning the stop lever by half a turn in the opposite direction. (Fig. 2)

NOTE:

When removing the accessory, such as a bull point, a cutter, etc., follow the above procedures in reverse.

HOW TO USE THE DEMOLITION HAMMER

1. Pull the trigger switch after applying the tip of the bit to the crushing position.
   In some cases, it is necessary to punch the tip of the bit against the crushing position forcibly in order to begin the striking motion.
   This is not due to malfunction of the power tool. It means that the safe guard mechanism against no-load striking is working.
2. Operate this Demolition Hammer by utilizing its empty weight. The performance will not be better even if it is pressed or thrust forcibly against the work surface. Hold this Demolition Hammer with a force just sufficient to counteract the reaction. (Fig. 3)

GREASE REPLACEMENT

This Demolition Hammer is of full air-tight construction to protect against dust and to prevent lubricant leakage. Therefore, this Demolition Hammer can be used without lubrication for long periods. Replace the grease as described below.

Grease Replacement Period

After purchase, replace grease after every 6 months of usage. Ask for grease replacement at the nearest authorized Service Center.

MAINTENANCE AND INSPECTION

CAUTION:

Be sure to switch OFF and disconnect the attachment plug from the receptacle to avoid a serious accident.

1. Inspecting this Demolition Hammer

Since use of a dull accessory, such as a bull point, a cutter, etc. will degrade efficiency and cause possible motor malfunction, sharpen or replace with a new one as soon as abrasion is noted.

2. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

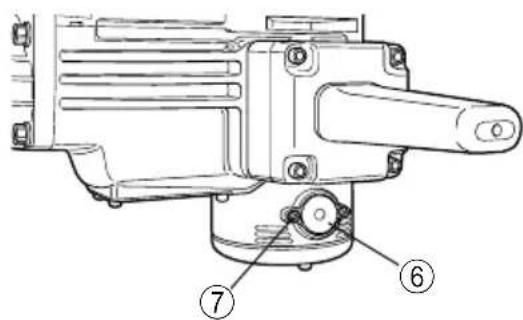

3. Inspecting the retainer (Fig. 1, Fig. 2)

The retainer may become loose due to excessive use. Always, pay attention to its proper functioning to securely hold the accessory shank portion. If any wear and tear is found, bring this Demolition Hammer to an authorized service center for maintenance service.

4. Maintenance of the motor

The motor unit winding is the very "heart" of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

5. Inspecting the carbon brushes (Fig. 4)

The Motor employs carbon brushes which are consumable parts. When they become worn to or near the "wear limit", it results in motor trouble. When an auto-stop carbon brush is equipped, the motor will stop automatically. At that time, replace both carbon brushes with new ones which have the same carbon brush Numbers shown in the Fig. 4. In addition, always keep carbon brushes clean and ensure that they slide freely within the brush holders.

6. Replacing carbon brushes

Loosen the screws (Hexagon socket hd. bolts M4 × 12) of the cap covers, then remove the cap covers (Fig. 5). After removing the brush caps, the carbon brushes can be removed.

After replacing the carbon brushes, tighten the brush caps, then mount the cap covers securely.

7. Service parts list

A: Item No.

B: Code No.

C: No. Used

D: Remarks

CAUTION

Repair, modification and inspection of Hitachi Power Tools must be carried out by an Authorized Service Center.

This Parts List will be helpful if presented with the power tool to the Authorized Service Center when requesting repair or other maintenance.

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

MODIFICATIONS

Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements.

Accordingly, some parts (i.e. code numbers and/or design) may be changed without prior notice.

GUARANTEE

We guarantee Hitachi Power Tools in accordance with statutory/country specific regulation. This guarantee does not cover defects or damage due to misuse, abuse, or normal wear and tear. In case of complaint, please send the Power Tool, undismantled, with the GUARANTEE CERTIFICATE found at the end of this Handling instruction, to a Hitachi Authorized Service Center.

NOTE

Due to HITACHI's continuing program of research and development, the specifications herein are subject to change without prior notice.

IMPORTANT

Correct connection of the plug

The wires of the main lead are coloured in accordance with the following code:

Blue: — Neutral

Brown: — Live

As the colours of the wires in the main lead of this power tool may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire coloured blue must be connected to the terminal marked with the letter N or coloured black. The wire coloured brown must be connected to the terminal marked with the letter L or coloured red. Neither core must be connected to the each terminal.

NOTE

This requirement is provided according to BRITISH STANDARD 2769: 1984.

Therefore, the letter code and colour code may not be applicable to other markets except The United Kingdom.

Information concerning vibration

Vibration total values (triax vector sum) determined according to EN60745.

Chiselling:

Vibration emission value , Cheq = 19.8 m/s²

Uncertainty K = 3.8 m/s^2

The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another.

It may also be used in a preliminary assessment of exposure.

WARNING

○The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used.

○Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

Line drawing of a tool with a curved blade and handle (no text or symbols)

(1) Spaten

Gesamtlänge: 380 mm

○Schmierfett

500 g (Dose)

70 g (in Tube)

30 g (in Tube)

Line drawing of a mechanical tool with a curved handle and central blade (no text or symbols)

(1) Scoop

Line drawing of a tool with a curved handle and handle (no text or symbols)

(1) Paletta

Line drawing of a mechanical tool with a curved handle and central blade (no text or symbols)

(1) Schep
Totale lengte: 380 mm

○Grease

Line drawing of a manual shov with handle and pointed tip (no text or symbols)

(1) Cuchara

Largo total: 380 mm

○Grasa

500 g (en una lata)

70 g (en un tubo)

30 g (en un tubo)

A	B	C	D
1 318-656	1 "2-6"
2 998-423	1
3 998-426	1
4 998-424	1
5 956-975	1
6 998-425	1
7 998-435	1
8 998-420	1
9 998-428	1
10 306-437	6 M8×30
11 998-427	1
12 998-419	1
13 998-433	1
14 998-418	1
15 956-963	1
16 956-962	1
17 956-961	1
18 956-960	1
19 319-359	1
20 956-996	1 1AS-60
21 956-958	1
22 306-163	4 M8×35
23 949-433	4 M8
24 998-414	1
25 998-415	1
26 998-413	1
27 944-928	1
28 998-434	1 "29"
29 944-921	1
30 956-955	1
31 996-364	3 M8×16
32 ————	1
33 319-360	1
34 630-2VV	1 6302VVCMPS2L
35 944-916	1
36 944-915	1
37 998-412	1
38 957-143	1
39 620-5DD	1 6205DDCMPS2L
40 956-949	1
41 990-079	7 M5×16
42 998-430	1
43 956-850	2 4×16
44 318-655	4
45 944-918	2 D5×15.8
46 993-496	8 M6×30
47 305-633	1
48 319-365	2
49 319-364	2
50 310-124	4
51 956-969	1
52 998-416	1
53 987-203	4 M4×12
54 998-417	1
55 991-690	6 M5×12
56 983-162	4 M4×12
57 956-972	2
58 944-960	2
59 940-540	2
60 999-086	2
61 956-984	2
62 986-940	6 M6×45
63 620-1VV	1 6201VVCMPS2L
64 956-948	1
65 600-1VV	1 6001VVCMPS2L

A	B	C	D
66	944-911	1
67	620-3DD	1	6203DDCMPS2L
68	944-907	1
69	1	500-390Z	1
69	2	500-408Z	1 "AUS, NZL"
69	3	500-466Z	1 "GBR (110V)"
69	4	500-450Z	1 "GBR (230V)"
69	5	500-458Z	1 "SAF"
69	6	500-391Z	1 "SUI"
70	992-870	1
72	992-869	1
72	968-643	1
73	305-636	1
74	1	958-049	1 D8.2
74	2	940-778	1 D10.7
75	1	960-266	1
75	2	981-987Z	1 "SUI"
76	982-095	2	D4×20
77	980-063	1
78	959-141	1	50092
79	959-140	1	50091
80 ———— 2 I.D7×T0.5×50
81	960-251	2	D5×65
82	956-764	2
83	1	340-488C	1 110V "84"
83	2	340-488E	1 230V "84"
83	3	340-488F	1 240V "84"
84	945-932	2
85	944-954	1
86	620-1DD	1	6201DDCMPS2L
87	996-370	1
88	1	360-286	1 110V-115V "87"
88	2	360-286E	1 220V-230V "87"
88	3	360-286F	1 240V "87"
89	306-098	1
90	986-277	1
91	319-363	1
92	319-366	2
93	930-153	1
94	58-308Z	1
95	938-307	1
96	994-273	1
97	1	981-974	1
97	2	306-681	1 "GBR"
98	990-082	1
99	992-891	1
100	949-423	1
101	319-367	2
102	305-631	1
103	301-653	2	D4×20
104	319-361	1 "61, 105"
105	938-477	2 M5×8
106	319-362	1
107	306-099	1
501	944-961	1 410MM

Hitachi Power Tools Europe GmbH

Siemensring 34, 47877 willich 1, F. R. Germany

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.de

Hitachi Power Tools Netherlands B. V.

Brabanthaven 11, 3433 PJ Nieuwegein, The Netherlands

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.nl

Hitachi Power Tools (U. K.) Ltd.

Precedent Drive, Rooksley, Milton Keynes, MK 13, 8PJ, United Kingdom

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.co.uk

Hitachi Power Tools France S. A. S.

Prac del' Eglantier 22, rue des Crerisiers Lisses, C. E. 1541,

91015 EVRY CEDEX, France

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.fr

Hitachi Power Tools Belgium N.V. / S.A.

Koningin Astridlaan 51, 1780 Wemmel, Belgium

Tel: [phone]

Fax: [phone]

URL http://www.hitachi-powertools.be

Hitachi Fercad Power Tools Italia S.p.A

Via Retrone 49-36077, Altavilla Vicentina (VI), Italy

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.it

Hitachi Power Tools Iberica, S.A.

C / Migjorn, s/n, Poligono Norte, 08226 Terrassa, Barcelona, Spain

Tel: [phone]

Fax: [phone]

URL: http://www.hitachi-powertools.es

Line drawing of a quill pen with inkwell, no text or symbols present

English	EC DECLARATION OF CONFORMITY	Italiano	DICHIARAZIONE DI CONFORMITÀ CE
We declare under our sole responsibility that this product is in conformity with standards or standardization documents EN60745-1, EN60745-2-6, EN55014-1, EN55014-2, EN61000-3-2 and EN61000-3-3 in accordance with Directives 2004/108/EC, 2006/42/EC and 2000/14/EC. This product also conforms to RoHS Directive 2011/65/EU.The European Standards Manager at Hitachi Koki Europe Ltd. is authorized to compile the technical file.2000/14/ECType of equipment: Hand-held concrete breakerType name: Hitachi Demolition Hammer H70SAWeight of equipment: 18.5 kgConformity assessment procedure: Annex VINotified Body: CE 0044 TÜV NORD CERT Am TÜV 1, 30519 Hannover, GermanyMeasured sound power level: 99 dBGuaranteed sound power level: 102 DBThe technical documentation is kept by the head of our design department.This declaration is applicable to the product affixed CE marking.		Dichiariamo sotto nostra responsabilità che questo prodotto è conforme agli standard o ai documenti sulla standardizzazione EN60745-1, EN60745-2-6, EN55014-1, EN55014-2, EN61000-3-2 e EN61000-3-3 in conformità alle Direttive 2004/108/CE, 2006/42/CE, e 2000/14/CE. Il prodotto è inoltre conforme alla direttiva RoHS 2011/65/EU.Il Responsabile delle Norme Europee di Hitachi Koki Ltd. è autorizzato a compilare la scheda tecnica. 2000/14/CETipo di apparecchiatura: Demolitore per cemento portatileNome di tipo: Hitachi Demolitore H70SAPeso dell'apparecchiatura: 18,5 kgProcedimento di valutazione conformità: Allegato VIEnte notificato: CE 0044 TÜV NORD CERT Am TÜV 1, 30519 Hannover, GermaniaLivello di potenza sonora misurato: 99 dBLivello di potenza sonora garantito: 102 dBLa documentazione tecnica è conservata da parte del nostro responsabile del reparto di progettazione.Questa dichiarazione è applicabile ai prodotti cui sono applicati i marchi CE.
Deutsch	EG-KONFORMITÄTSERKLÄRUNG	Nederlands	EC VERKLARING VAN CONFORMITEIT
Wir erklären mit alleiniger Verantwortung, dass dieses Produkt den Standards oder Standardisierungsdokumenten EN60745-1, EN60745-2-6, EN55014-1, EN55014-2, EN61000-3-2 und EN61000-3-3 in Übereinstimmung mit den Direktiven 2004/108/EG, 2006/42/EG und 2000/14/EG entspricht. Dieses Produkt stimmt auch mit der RoHS-Richtlinie 2011/65/EU überein. Der Manager für europäische Standards bei der Hitachi Koki Europe Ltd. ist zum Verfassen der technischen Datei befugt.2000/14/EGArt der Ausrüstung: Handgehaltener BetonbrecherTyname: Hitachi Hammer H70SAGewicht der Ausrüstung: 18,5 kgÜbereinstimmungsbeurteilungsverfahren: Annex VInformierte Körperschaft: CE 0044 - der in TÜV NORD CERT, Am TÜV 1, 30519 Hannover, DeutschlandGemessener Schalleistungspegel: 99 dBGarantierter Schalleistungspegel: 102 dDBie technische Dokumentation wird vom Leiter unserer Designabteilung aufbewahrt. Diese Erklärung gilt für Produkte, die die CE-Markierung tragen.		Wij verklaren onder eigen verantwoordelijkheid dat dit product conform de richtlijnen of gestandardiseerde documenten EN60745-1, EN60745-2-6, EN55014-1, EN55014-2, EN61000-3-2 en EN61000-3-3 voldoet aan de eisen van bepalingen 2004/108/EC, 2006/42/EC en 2000/14/EC. Dit product voldoet ook aan de RoHS-richtlijn 2011/65/EU.De manager voor Europese normen van Hitachi Koki Europe Ltd. heeft de bevoegdheid tot het samenstellen van het technische bestand.2000/14/ECType gereedschap: HandbetonbreekhamerTypenaam: Hitachi Hakhamer H70SAGewicht gereedschap: 18,5 kgConformiteit vaststellingsprocedure: Annex VIIn kennis gesteld instituut: CE0044 TÜV NORD CERT Am TÜV 1, 30519 Hannover, DuitslandGemeten geluidsdruk: 99 dBGegarandeerde geluidsdruk: 102 dBDe technische documentatie wordt bijgehouden door het hoofd onze ontwerpafdeling.Deze verklaring is van toepassing op produkten voorzien van de CE-markeringen.
Français	DECLARATION DE CONFORMITE CE	Español	DECLARACIÓN DE CONFORMIDAD DE LA CE
Nous déclarons sous notre seule et entière responsabilité que ce produit est conforme aux normes ou documents de normalisation EN60745-1, EN60745-2-6, EN55014-1, EN55014-2, EN61000-3-2 et EN61000-3-3 en accord avec les Directives 2004/108/CE, 2006/42/CE et 2000/14/CE. Ce produit est aussi conforme à la Directive RoHS 2011/65/EU.Le responsable des normes européennes d'Hitachi Koki Europe Ltd. est autorisé à compiler les données techniques.2000/14/CEType de matériel : Outil de démolition à mainNom du type : Hitachi Marteau de démolition H70SAPoids du matériel : 18,5 kgProcédure d'évaluation de conformité : Annexe VIOrganisme notifié : CE 0044 TÜV NORD CERT Am TÜV 1, 30519 Hannover, AllemagneNiveau de puissance sonore mesuré : 99 dBNiveau de puissance sonore garanti :102 dBLa documentation technique est conservée par la direction de notre service de conception.Cette déclaration s'applique aux produits désignés CE.		Declaramos bajo nuestra única responsabilidad que este producto está de acuerdo con las normas o con los documentos de normalización EN60745-1, EN60745-2-6, EN55014-1, EN55014-2, EN61000-3-2 y EN61000-3-3, según indican las Directrices 2004/108/CE, 2006/42/CE y 2000/14/CE. Este producto satisface también los requisitos establecidos por la Directiva 2011/65/EU (RoHS).El Jefe de Normas Europeas de Hitachi Koki Europe Ltd. está autorizado para recopilar archivos técnicos.2000/14/CETipo de dispositivo: martillo manual para romper el hormigónNombre del modelo: Hitachi Martillo H70SAPeso del dispositivo: 18,5 kgProcedimiento de evaluación de conformidad: Anexo VIEntidad notificada: CE 0044 TÜV NORD CERT Am TÜV 1, 30519 Hannover, AlemaniaNivel de potencia acústica medida: 99 dBNivel de potencia acústica garantizada: 102 dBEI director de nuestro departamento de diseñoconserva la documentación.Esta declaración se aplica a los productos con marcas de la CE.

Hitachi Koki Europe Ltd.

Clonshaugh Business & Technology Park, Dublin 17, Ireland

Representative office in Europe

Hitachi Power Tools Europe GmbH

Siemensring 34, 47877 Willich 1, F. R. Germany

Head office in Japan

Hitachi Koki Co., Ltd.

Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo, Japan

1. 1. 2012

Mr. John de Loughry

European Standards and

Compliance Manager

1. 1. 2012

F. Tashimo

Vice-President & Director

Hitachi Koki Co., Ltd.
