Product type	Refrigerator with bottom freezer
Brand	Amana
Model	BX518VE
Power supply	230 V, 50 Hz, 10 A, separate circuit with ground
Compartments	Fresh food compartment and freezer
Frost-free system	Yes, automatic
Controls	Separate for refrigerator and freezer, adjustment from 1 (warm) to 7 (cold)
Crisper drawers	Garden Fresh™ with humidity control (high/low)
Shelves	Spillsaver™ (anti-spill) and Easy Glide™ (sliding)
Lighting	25 W max bulb (fresh food compartment and freezer)
Condenser	Serpentine coil to clean every 3 months
Maintenance and cleaning	Clean with baking soda (60 ml/l of hot water); do not use abrasive cleaners
Safety	Unplug before cleaning; installation by qualified technician; remove doors before disposal
Warranty	1 year parts (f.o.b. Amana), 5 years compressor
Manual	180 pages, free downloadable PDF

Frequently Asked Questions - BX518VE AMANA

What to do if the refrigerator does not work?

Check that the freezer control is set to ON, that the appliance is plugged in, and that the fuse or circuit breaker has not tripped. If the lights are on but the fans do not run, wait 40 minutes (defrost cycle). If the problem persists, contact technical service.

How to reverse the door opening direction?

Follow the detailed instructions in the manual: disassemble the handles and hinges, reverse the door stops, then reassemble the hinges on the other side. Use appropriate tools and protect surfaces with masking tape.

Why are there water droplets inside?

This is normal in high humidity or if doors are frequently opened. Wrap food well and dry wet containers before placing them in the refrigerator.

How to clean the refrigerator?

Unplug the appliance. Clean interior and exterior surfaces with a mixture of 60 ml of baking soda in 1 liter of hot water. Rinse with hot water and dry with a soft cloth. Do not use abrasive cleaners or metal scouring pads.

What to do if there is a persistent odor?

Remove all food and clean all surfaces thoroughly. Place charcoal briquettes on newspaper in the compartments. Close the doors for 24 to 48 hours, then remove everything and place food back in airtight containers.

How to adjust the temperature?

Set the controls to 4 initially. Wait 24 hours. Adjust one notch at a time. The ideal temperature is -17°C to -16°C for the freezer (between frozen packages) and 3°C to 4°C for the refrigerator (in a glass of water).

The refrigerator makes noise, is this normal?

Yes, the following sounds are normal: gurgling of refrigerant, clicking of the control, humming of fans, sizzling of defrost. Refer to the complete list in the 'Normal Operating Sounds' section of the manual.

How to replace the light bulb?

Unplug the refrigerator. Remove the 1/4' hex nuts to take off the light bulb cover. Replace with a 25 watt maximum bulb. Reattach the cover and plug the appliance back in.

Why is the food temperature too low?

Clean the serpentine condenser (behind the lower grille). Adjust the refrigerator or freezer control to a lower number (warmer). Wait several hours for the temperature to stabilize.

How to save energy?

Place the refrigerator away from heat sources, maintain normal room temperature (13-43°C), keep gaskets clean and flexible, do not set too cold, fill the freezer, and clean the condenser every 3 months.

USER MANUAL BX518VE AMANA

International Bottom Freezer Refrigerator Owner's Manual

English Section....2

Dansk 15

Deutsch 30

Français 45

Española 60

Nederlands 75

Norsk 90

Italiana 104

119

Portuguesa....134

Suomi 149

Svenska....164

Keep these instructions for future reference. Be sure this manual stays with refrigerator.

International Bottom Freezer Refrigerator Use and Care Manual Contents

Electrical Requirements 2

Model Identification 2

Proper Disposal of Your Refrigerator 2

Installation Instructions 2

Installation Checklist 5

Controls....6

Fresh Food and Freezer Controls 6

Setting Controls 6

Fresh Food Features....6

Fresh Food Shelves 6

Garden Fresh™ Crisper 6

Storage Rack (some models)....7

Covered Storage Bucket (some models) ......7

Dairy Center (some models) 7

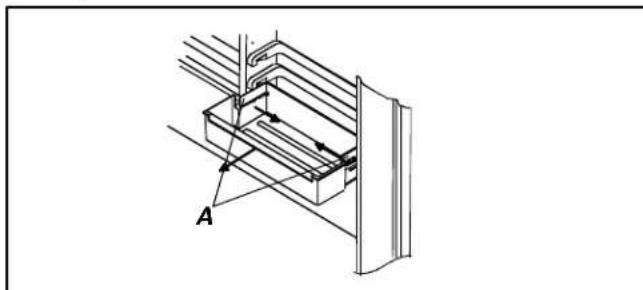

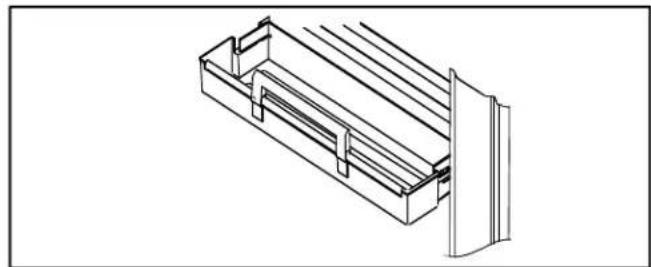

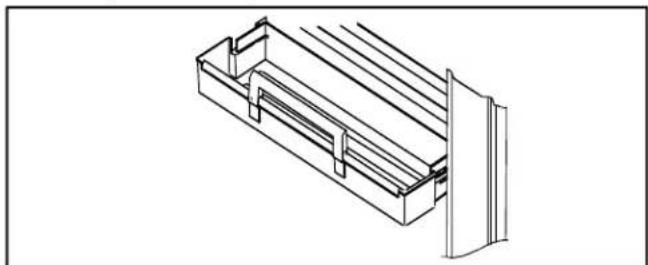

Door Buckets 7

Tall Package Retainer 7

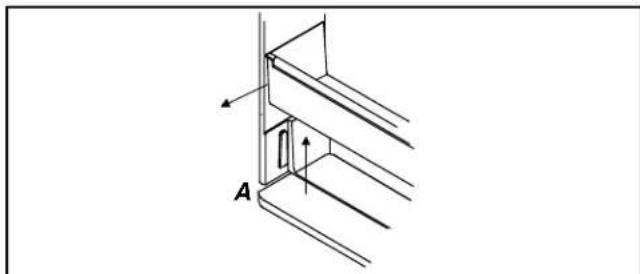

Door Shelves 7

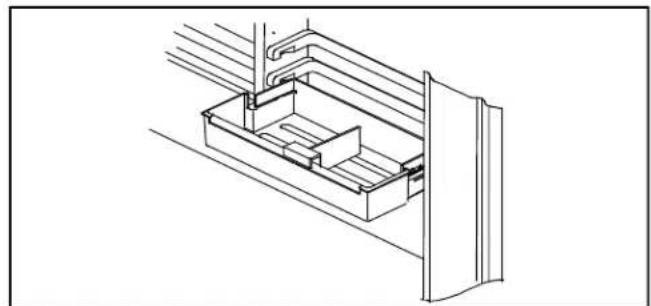

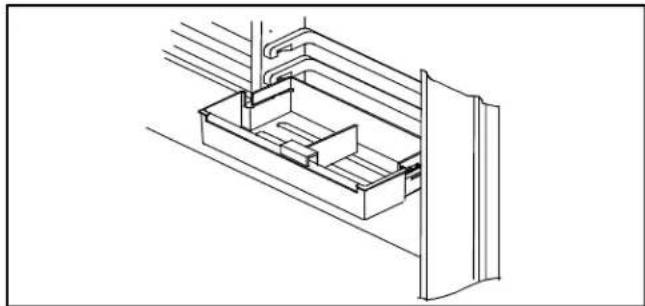

Adjustable Divider 8

Bottle Holder....8

Freezer Features....8

Frost-Free System 8

Ice Service Rack (some models) 8

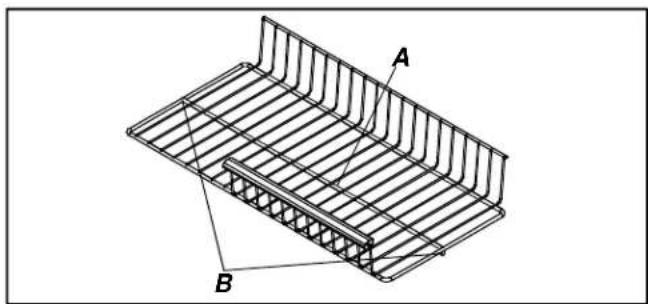

Slideout Shelf (some models) 8

Vertical Shelf Divider (some models) 8

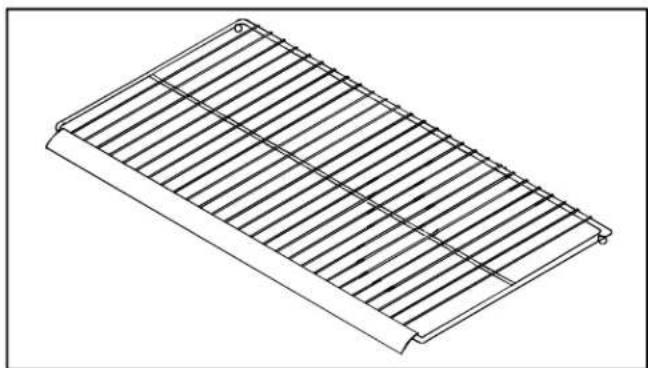

Fixed Wire Shelf (some models) 8

Wire Basket (some models) 9

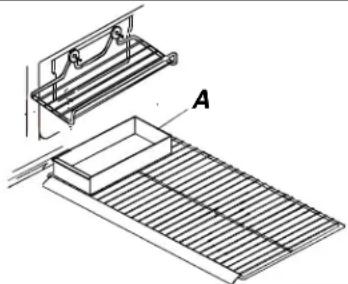

Ice Bin (some models) 9

Care and Cleaning 9

General Cleaning 9

Odor Removal 9

Adhesives 9

Door Gaskets 9

Condenser Coils....9

Glass Shelves 10

Light Bulb Replacement 10

Vacation Tips....10

Energy Tips 10

Normal Operating Sounds ....11

Before Calling For Service 12

Warranty 14

Note:

Translation may sometimes cause variations in meaning. In all cases where meaning varies, the most accurate meaning will be the English version of this document.

Recognize this symbol as a safety precaution.

Electrical Requirements

Refrigerator is designed to operate on a separate 230 volt, 50 Hertz., 10 amp. circuit.

Model Identification

Product information is on the serial plate. Record the following information.

Model Number:

Manufacturing Number:

S/N or Serial Number:

Date of Purchase:

Dealer's name and address:

DANGER

Proper Disposal of Your Refrigerator

IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous--even if they will sit for "just a few days." If you discard an old refrigerator, please follow the instructions below to help prevent accidents.

• Take off the doors.
- Leave the shelves in place so that children may not easily climb inside.

Line drawing of a refrigerator with doors open, showing internal shelves (no text or symbols)

Installation Instructions

Introductions

A qualified engineer must connect refrigerator in accordance with these installation instructions.

Measure door opening and depth and width of refrigerator.

Remove handles or doors as required. Engineer must follow local water and electrical company connection regulations.

Service to, or replacement of, power cord must be performed by a qualified servicer.

Proper installation will ensure that this refrigerator operates most efficiently. Amana Appliances cannot be responsible for improper installation.

Installation Requirements

1. Install on an earthed outlet with a separate 230 volt, 50 hertz, 10A circuit.
2. Protect soft flooring with cardboard or rugs.
3. Install on a floor which supports up to 429 kg.
4. Provide 25 millimeter clearance on top and 5 millimeter on sides of refrigerator.

NOTE: Do not install the refrigerator near an oven, radiator, or other heat source. Do not install refrigerator in a location where the temperature will fall below 13°C.

1. Removing Wooden Base

CAUTION

• To avoid personal injury or property damage, two people must remove wooden base.

• To avoid mechanical failure, do not leave refrigerator on side longer than necessary to remove bolts.

• Tape doors on top right and left corners to prevent doors from opening unexpectedly.

• Slide appliance cart under side of refrigerator opposite hinges.
• Wrap refrigerator with blanket or pad. Thread strap around refrigerator. Put foam shipping pads, located in shipping carton, under strap. Tighten strap securely. Do not overtighten strap.
• Lower appliance cart to floor with appliance cart handles on bottom.
• Remove top two bolts from skid.
• Return refrigerator and appliance cart to an upright position. Remove strap.
• Slide appliance cart under opposite side of refrigerator.
• Repeat steps 3-5.
• Remove wooden base.
• Return refrigerator and appliance cart to an upright position. Move refrigerator in front of final location and remove appliance cart.

2. Remove and reverse doors if necessary.

Some installations may require door reversal to achieve full door swing. To reverse door swing direction perform the following steps:

Tools Required

Wrenches and drivers as applicable

Phillips screwdriver

Blade screwdriver

Masking tape

IMPORTANT: For plug removal requiring use of flat blade screwdriver or putty knife, blade of tool must be covered with masking tape to avoid damage to refrigerator finish. For plugs using a screwdriver or nut driver style head, use appropriate tool to avoid damage to plugs.

1. Remove refrigerator handle.

2. Remove handle screw (C) from top handle trim(A). Pry up edge of handle trim(A) using blade screwdriver with blade covered with masking tape. Remove handle(B) from door by removing 1 remaining mounting screw(C) at each end of handle.

- Remove 1 plug from top hinge side of door and 2 from front hinge side of door(D). Replace 3 plugs in empty mounting holes.opposite side of door using mounting screws(C).

Diagram of a rectangular container with a curved rod and labeled point D, showing directional arrows (no text or symbols beyond labels)

1. Remove freezer door handle.

2. Open freezer door 90^ . Locate two notches on back of freezer handle(A). Insert flat screwdriver driver blade wrapped in masking tape. Pry up back edge of handle cap(B) and remove from handle.

3. Remove handle (A) from door by removing two mounting screws (C).
4. Remove 2 plugs (D) from opposite side of freezer door and replace in empty mounting holes.

1. Remove top hinge cover. Top hinge cover snaps off. Remove 516 " screws(A) to release top hinge(B) and hinge shim(C) using hex nut driver. Remove and retain all shims(C & D).
2. Remove refrigerator door by lifting door off of center hinge pin(F) and hex nut(E). Inspect door to verify all shims(D) are with hinge pin.
3. Remove center hinge pin (F) using hex nut driver. Due to tight fit of pin, firm pressure may need to be applied. Remove and retain all shims(D).
4. Remove freezer door by lifting door off bottom hinge(K).
5. Remove center hinge bracket (G) and shim(H) using Phillips screwdriver.
6. Remove toe grille and bottom hinge cover. Both snap off.
7. Remove bottom hinge pin (J), bottom hinge(K), and hinge shims(L) using hex nut driver. Remove and retain shims(D).

1. Reverse door stops.

2. Locate door stop (B) at bottom edge of refrigerator door(A). Unscrew two Phillips screws to remove door stop. Remove the two Phillips screws on opposite edge of door. Mount door stop on opposite side. Replace remaining screws in empty mounting holes.

3. Repeat the above instructions to reverse door stop on freezer door.

1. Reverse doors by performing the following steps:

- Remove plugs and screws in opposite side of refrigerator cabinet. Insert in holes left from hinge removal.

1. Mount bottom, center, and top hinges with shims on opposite side of cabinet.

2. Replace bottom hinge on opposite side of cabinet. Verify hinge shims are in position before screwing into place. After placing hinge pin into outside hole, replace round shims. Some bottom hinges may have plugs in holes. In case of this, remove plug from outside hole, put pin in hole, and replace plug in empty hole.

3. Replace top hinge and shims, but allow enough clearance to slide hinge side of refrigerator door into place. Tighten down top hinge to securely hold door.

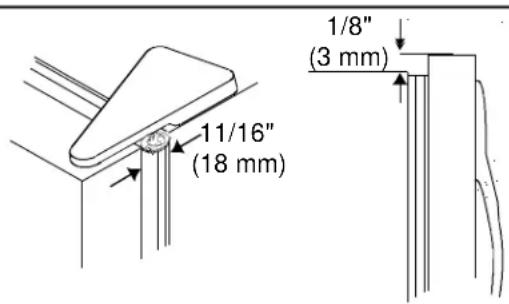

4. Space door ^11/_16 " (18 mm) from cabinet.
5. Handle side of door should be approximately 1/8'' (3 mm) higher than hinge side. Door will become level when it is loaded with food.

1. Mount refrigerator handle on opposite side of door using mounting screws removed in previous step.

- Snap handle trim into place and replace screw.

1. Mount freezer handle to opposite side of door using mounting screws removed in previous step.

- Angle front edge of handle cap downward toward back lip of freezer handle. Verify bottom tab on freezer cap slides under rear lip of freezer handle. Snap rear edge of handle cap in place.

1. Check unit for proper leveling following instructions in starting with step 5.
2. Replace toe grille and bottom hinge cover.

Important: Look for arrow printed on inside of grille to insure proper placement.

- Snap top portion into place first. Press down on lower part of grille until bottom portion snaps into place.

3. Move refrigerator into final location.

CAUTION

Protect flooring with cardboard, rugs or other protective material to avoid property damage.

4. Plug in power cord.

- Power cord must be serviced only by a qualified service personnel. Special tools are required to service equipment. Contact nearest authorized service facility for examination repair or adjustment.

5. Level refrigerator.

a. Turn roller adjustment screw (A) right to raise cabinet, and left to lower cabinet.
b. Adjust stabilizing leg (B) to support refrigerator firmly against floor.

CAUTION

To avoid personal injury or property damage caused by refrigerator tipping, stabilizing leg must be firmly against floor.

This checklist is for personal records only.

Consumer Installer

□

□

□

□

□

□

□

□

□

□

□

□

Doors

Handle side of door is 3 mm higher than hinge side of door. (Door lowers when loaded with food.)

Doors seal completely to refrigerator cabinet.

Leveling

Refrigerator is tilted 6 mm from front to rear.

Stabilizing leg is against floor.

Toe grille is properly attached to refrigerator.

Product Literature

Owner's manual is reviewed including the following information:

• Fresh Food and freezer controls
  • humidity controlled crisper drawer
  • temperature controlled drawer
  • normal operating sounds

Notes

Consumer's Signature

Installer's Signature

DateInstaller's Co

Controls

This refrigerator is designed to operate at normal household temperatures of 13^ to 43^ C.

Fresh Food and Freezer Controls

Fresh Food control is located on upper rear wall of Fresh Food section.

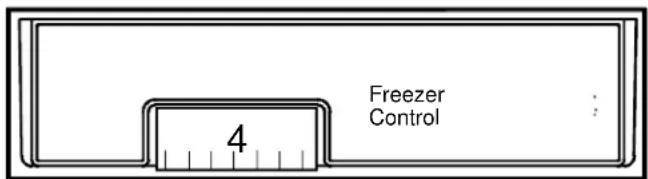

Freezer control is located on right front ceiling of freezer section.

Setting Controls

When freezer control is set to ■neither refrigerator nor freezer sections will cool. Initially, set both controls to 4. Wait 24 hours for refrigerator and freezer sections to stabilize temperatures. After 24 hours, adjust controls, one number at a time, as desired. One is warmest setting and seven is coldest.

Set controls precisely using a household thermometer with a temperature range between -21^ to 10^ C.

Put thermometer snugly between frozen packages in freezer section. Wait 5–8 hours. If freezer temperature is not -17° to -16°C, adjust freezer control one number at a time. Check again after 5–8 hours.

Put thermometer in a glass of water in middle of Fresh Food section. Wait 5–8 hours. If Fresh Food temperature is not 3° to 4°C, adjust Fresh Food control one number at a time. Check again after 5–8 hours.

Fresh Food Features

Fresh Food Shelves

Shelves adjust to meet individual storage needs. Some models feature Spillsaver™ Shelves and Easy Glide™ shelves. Spillsaver™ Shelves hold minor spills for easier cleaning.

CAUTION

Make sure shelf is secure before replacing items on shelf to avoid property damage.

CAUTION

Handle tempered glass shelves carefully to avoid personal injury or property damage. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change.

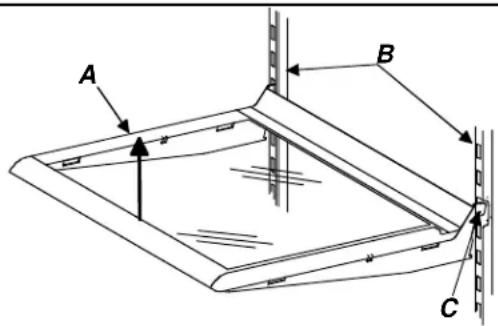

• Remove shelves (A) by lifting up shelf front, releasing hooks (C) from metal track (B), then pulling out.
• Replace shelves by inserting hooks (C) into metal track(B) and lowering front of shelf.

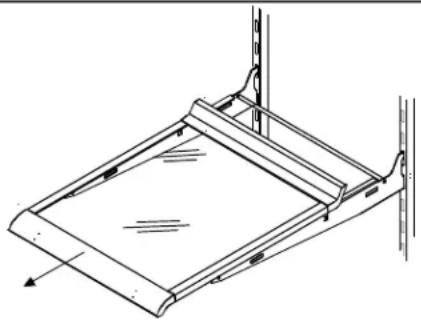

Easy Glide™ shelves pull forward for easy access to items in back.

Technical line drawing of a mechanical frame or bracket assembly (no text or symbols)

Garden Fresh™ Crispers

Garden Fresh ^™ crispers keep produce fresh longer. Wrap produce tightly. Do not wash produce before placing in crispers. Excess moisture could cause produce to spoil prematurely. Do not line crispers with paper towels. Paper towels retain moisture.

Garden Fresh™ crispers control(D) is located below front shelf trim. Control adjusts humidity in crisper drawers. Slide control to high for produce with leaves such as lettuce, spinach or cabbage. Slide control to low for produce with skins such as cauliflower, corn or tomatoes.

To clean or reposition crisper drawers, remove shelf and crisper drawers by completing the following steps:

1. Open left crisper.

- For doors hinged on left, open right crisper.

CAUTION

Handle tempered glass shelves carefully to avoid personal injury or property damage. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change.

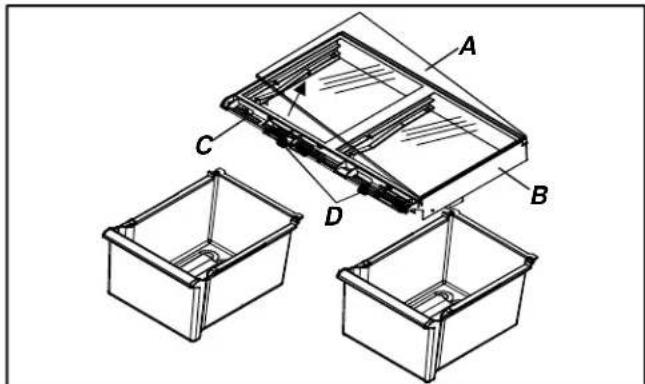

1. Remove glass crisper top (A) by gently pushing up from underneath. Tilt one end up and pull out.
2. Remove left crisper drawer by lifting from front while supporting underneath and pulling out. For refrigerator doors hinged on left, remove right crisper.
3. Remove other crisper drawer per step 3. If door restricts ability to remove drawer, remove drawer along with crisper frame per step 5.
4. Remove crisper frame (B) by raising frame by front plastic molding (C) and lifting free from grooves in the refrigerator cabinet rail assembly. Pull forward and out of unit.
5. Replace crispers and shelf by performing steps 2–5 in reverse order.

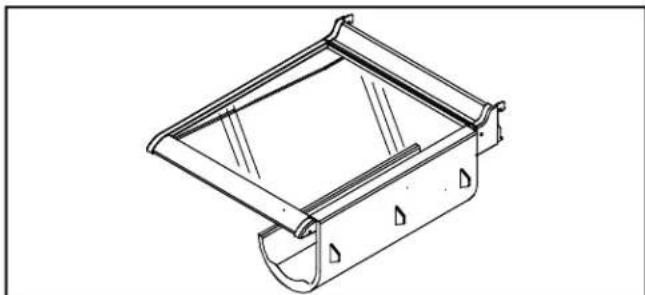

Storage Rack (some models)

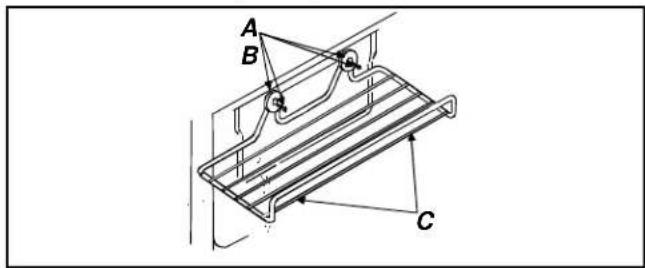

Storage rack provides convenient storage for a large bottle, eggs, etc.

- Hang rack by hooking over side of shelf.

Technical line drawing of a mechanical component with no visible text or symbols

Covered Storage Bucket (some models)

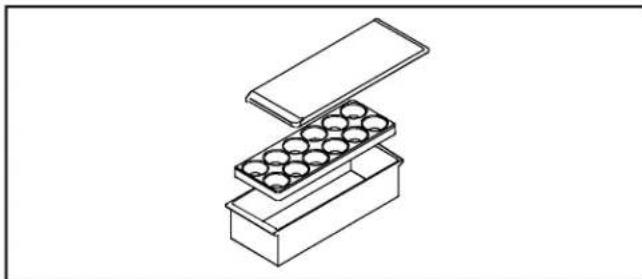

The covered storage bucket has a lid and removable egg tray. When tray is removed, bucket will accept standard egg carton, ice, etc.

Line drawing of a stacked box with multiple compartments (no text or symbols)

Dairy Center (some models)

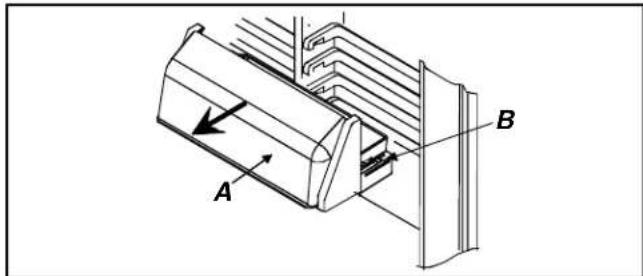

The dairy center provides convenient storage for butter, cheese, etc.

• Remove dairy center by lifting door (A), pushing tabs(B) of shelf down on both sides, and pulling out.
• Replace dairy center by sliding in until tabs (B) lock into place, then lower door(A).

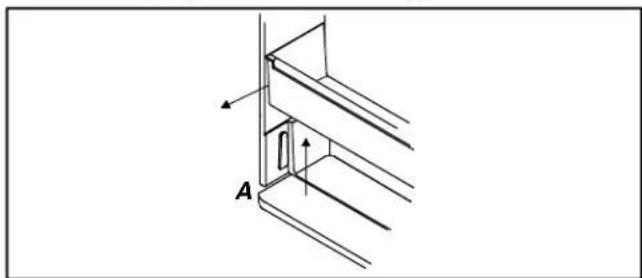

Door Buckets

Door buckets adjust to meet individual storage needs.

• Remove door buckets by pushing tabs (A) on both sides of shelves toward center and pulling bucket out.
• Replace door buckets by sliding in until tabs (A) lock into place.

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

Tall Package Retainer (some models)

Tall package retainer keeps tall items secure. Retainer fits on front edge of any refrigerator door bucket or door shelf.

Technical line drawing of a mechanical component with internal channels and a vertical panel (no text or symbols)

Door Shelves

• Remove door shelves by lifting ends and pulling out.
• Replace door shelves by placing shelf on glides (A) and sliding down.

Technical line drawing of a structural support frame with labeled component A (no text or symbols beyond label)

Adjustable Divider (some models)

Adjustable divider keeps items in place and adjusts to meet individual storage needs. Divider fits in any door bucket or door shelf.

Technical line drawing of a mechanical assembly with no visible text or symbols

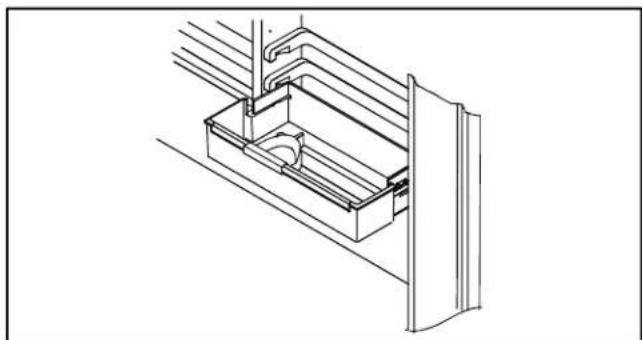

Bottle Holder (some models)

Bottle holder keeps items in place and adjusts to meet individual storage needs. Bottle holder fits in any door bucket or door shelf.

Technical line drawing of a mechanical assembly with no visible text or symbols

Freezer Features

Frost-Free System

The Fresh Food and freezer sections are completely frost-free. Defrosting is automatic under normal conditions. Fresh Food and freezer sections never have to be defrosted.

Ice Service Rack (some models)

Install ice service rack(C) by placing ice service rack on screws and washers(A & B) and sliding down.

Slideout Shelf (some models)

Slide out shelf pulls forward for easy access to items in back.

• Remove slideout shelf by sliding forward until ball point(B) beneath center rail(A) catches in molding groove.
• Grasp shelf by center rail (A), pull up, and remove.
• Slide in until ball point (B) falls into molding groove.

Technical line drawing of a metal grate structure with labeled points A and B (no text or symbols beyond labels)

Vertical Shelf Divider (some models)

Install vertical shelf divider by completing the following steps:

1. Slide prongs of shelf divider beneath desired grill work, slightly off-center from center rail.
2. Press top of divider down and slide hook assembly beneath center rail.

Fixed Wire Shelf (some models)

• Remove wire shelf by pulling out. A sharp tug may be necessary.
• Replace wire shelf by sliding in until back locks in place.

Isometric line drawing of a rectangular metal grate or grating structure (no text or symbols)

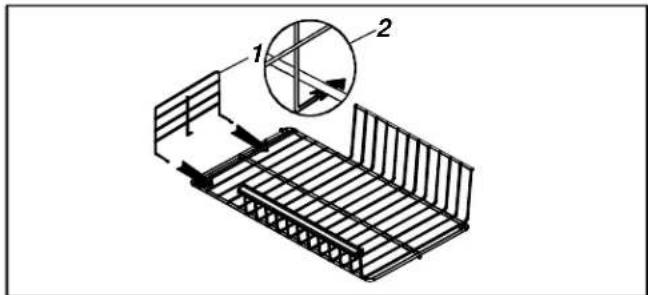

Wire Basket

Wire basket(A) slides out for easy access to items in back.

• Remove wire basket by lifting and pulling out.
• Replace wire basket by sliding in.

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols present)

Ice Bin (some models)

Ice bin(A) sits below the ice service rack on the wire freezer shelf.

Technical line drawing of a mechanical assembly with two views: top shows a rack and plate, bottom shows a slatted metal tray (no text or symbols)

Care and Cleaning

WARNING

Disconnect power to refrigerator before cleaning to avoid electrical shock which can cause severe personal injury or death. After cleaning, restore power.

CAUTION

Read and follow all manufacturer's cleaning directions to avoid personal injury or property damage.

General Cleaning

1. Wash surfaces and exterior with 60 mL baking soda dissolved in 1 liter warm water and a soft, clean cloth.
2. Rinse surfaces and exterior with warm water. Dry surfaces with a soft, clean cloth.
3. DO NOT USE the following items:

- abrasive or harsh cleaners, ammonia, chlorine bleach, etc.

• concentrated detergents or solvents

- metal scouring pads

These items can scratch, crack, and discolor surfaces.

1. Do not place buckets, shelves, etc., in dishwasher.

Odor Removal

1. Remove all food and disconnect power to refrigerator.

2. Clean all interior surfaces including ceiling, floor, and walls according to general cleaning instructions above. Pay special attention to corners, crevices, and grooves. Include all drawers, shelves, and gaskets.

3. Connect power to refrigerator and return food to refrigerator. Wash and dry all containers. Wrap foods in tightly sealed containers to prevent further odor. After 24 hours, check if odor has been eliminated.

Complete steps 4–10 if odor has not been eliminated.

1. Remove all food and disconnect power to refrigerator.
2. Clean all interior surfaces including ceiling, floor, and walls according to general cleaning instructions above. Pay special attention to corners, crevices, and grooves. Include all drawers, shelves, and gaskets.
3. Place crispers on top shelf of refrigerator section. Pack refrigerator and freezer sections, including doors, with crumpled sheets of newspaper.
4. Place charcoal briquettes randomly throughout newspaper.
5. Close doors and let stand 24–48 hours.
6. Remove charcoal briquettes and newspapers.
7. Connect power to refrigerator and return food to refrigerator. Wash and dry all containers. Wrap foods in tightly sealed containers to prevent further odor. After 24 hours, check if odor has been eliminated.

Adhesives

1. Remove adhesive residue from refrigerator surfaces by rubbing toothpaste into adhesive with fingers until adhesive loosens.
2. Rinse surface with warm water. Dry surface with a soft, clean cloth.

Door Gaskets

1. Clean door gaskets every 3 months according to general cleaning instructions. Clean any spills immediately.
2. Apply a light film of petroleum jelly to keep gaskets pliable.

Condenser Coils

Clean condenser coil behind toe grille every 3 months to ensure maximum performance of refrigerator.

Accumulated dust and lint may cause the following:

• reduced cooling performance
  • increased energy usage
  • premature part failure

• Remove toe grille by holding ends and pulling away from refrigerator.

• Clean front surface of condenser coil with a vacuum cleaner hose nozzle.

• Replace toe grille by inserting clips in holes and snapping in.
• Raise stabilizing legs (some models) by turning leg left.

CAUTION

Protect flooring with cardboard, rugs or other protective material to avoid property damage.

1. Pull refrigerator away from wall. Run a vacuum brush across grille on back of refrigerator.

Glass Shelves

CAUTION

Handle tempered glass shelves carefully to avoid personal injury or property damage. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change.

Remove shelf by lifting front, releasing hooks from metal track then pulling out. Place shelf on a towel. Allow shelf to adjust to room temperature before cleaning.

Clean crevices by completing the following:

1. Dilute mild detergent and brush solution into crevices using a plastic bristle brush. Let sit for 5 minutes.
2. Spray warm water into crevices using faucet spray attachment.
3. Dry shelf thoroughly and replace shelf by inserting hooks into metal track and lowering it from the front.

Light Bulb Replacement

WARNING

Disconnect power to refrigerator before replacing light bulb to avoid electrical shock which can cause severe personal injury or death. After replacing light bulb, restore power.

CAUTION

Observe the following to avoid personal injury or property damage.

• Allow light bulbs to cool
• Wear gloves when replacing light bulb.

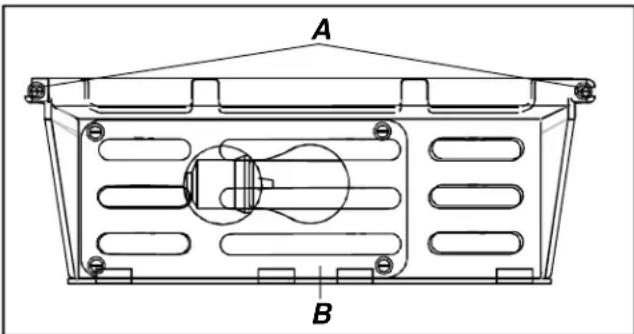

Fresh Food Light

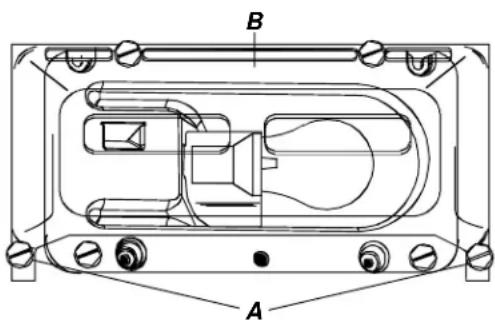

• Remove light bulb cover (B) by removing 14 " hex nut screws(A). Replace with appliance bulb no greater than 25 watts.
• Replace light bulb cover (B) by replacing 1/4 hex nut screws(A).

Freezer Light

• Remove light bulb cover (B) by removing 14 " hex nut screws(A). Replace with appliance bulb no greater than 25 watts.
• Replace light bulb cover (B) by replacing 1/4" hex nut screws (A).

Vacation Tips

Complete the following steps for short vacations.

1. Remove perishable foods.
2. If an ice maker is installed, move ice maker arm to Off position. (See "Automatic Ice Maker" section page 12)

Complete the following steps for long vacations.

1. Empty refrigerator and freezer sections.
2. Unplug refrigerator.
3. Clean refrigerator and door gaskets according to General Cleaning instructions in "Care and Cleaning" section.

4. Prop doors open, so air can circulate inside.

5. If an ice maker is installed, turn off water supply to refrigerator and move ice maker arm to Off position. (See "Automatic Ice Maker" section page 12)

Energy Tips

This refrigerator is designed to be one of the most energy efficient refrigerators available. Reduce energy use by observing the following.

• Operate in normal household temperatures of 13^ to 43^ away from heat sources and direct sunlight.
• Set refrigerator, freezer, and temperature controlled meat drawer system controls no colder than necessary.

- Keep freezer section full.

- Keep door gaskets clean and pliable. Replace gaskets if worn.

- Keep condenser coils clean.

Normal Operating Sounds

This new refrigerator may be replacing a differently designed, less efficient or smaller refrigerator. Today's refrigerators have new features and are more energy efficient. As a result, certain sounds may be unfamiliar. These sounds are normal and will soon become familiar to you. They also indicate refrigerator is operating and performing as designed.

1. Freezer control clicks when starting or stopping compressor.
2. Freezer fan air rushes and whirs.
3. Sealed system (evaporator and heat exchanger) refrigerant flow gurgles, pops or sounds like boiling water.
4. Defrost heater sizzles, hisses or pops.
5. Defrost timer sounds like an electric clock and snaps in and out of defrost cycle.
6. Condenser fan air rushes and whirs.
7. Compressor has a high pitched hum or pulsating sound and cycles on and off.
8. Ice cubes from ice maker (some models) drop into ice bucket.

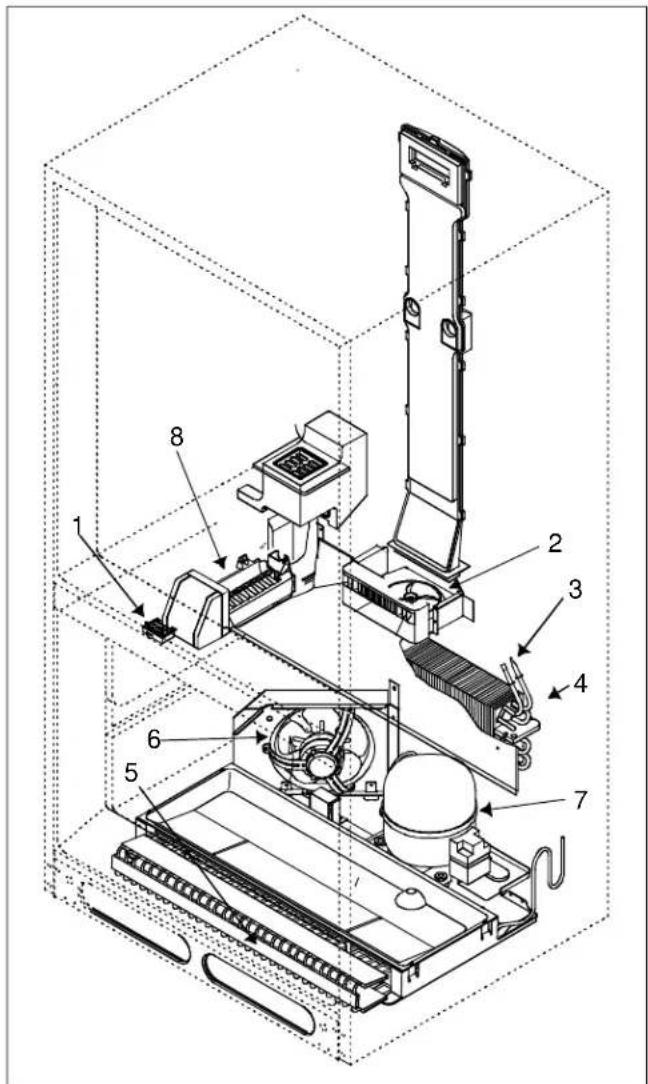

9. Ice maker water valve hookup (some models) --not shown here--buzzes when ice maker fills with water. This occurs whether or not refrigerator is connected to water supply. If refrigerator is not connected to water supply, stop sound by raising ice maker arm to Off position. Ice maker water valve hookup is located behind condenser fan in back of refrigerator.

Note: Foam insulation is very energy efficient and has excellent insulating capabilities. However, foam insulation is not as sound absorbent as previously used fiberglass insulation.

Problem Solution
Refrigerator does not operate.	Make sure freezer control is on.Make sure refrigerator is plugged in. If not, firmly plug the cord into a live outlet with proper voltage.Check fuse or circuit breaker. Plug in another item at that wall outlet. If outlet does not work, replace the fuse or reset the circuit.If freezer control is on, light works but 2 fans and compressor are not operating, refrigerator may be in defrost cycle. Wait 40 minutes to see if refrigerator restarts.
Refrigerator still will not operate.	Unplug refrigerator. Transfer food to another refrigerator or place dry ice in freezer section to preserve food. Call for service.
Food temperature appears too warm.	See above sections.Allow time for recently added warm food to reach Fresh Food or freezer temperature. Adding food warms the refrigerator. It can take a few hours for the refrigerator to return to normal temperature.Check gaskets for proper seal. Gaskets should seal tightly to cabinet.Clean condenser coils. See “Condenser Coils” instructions in “Care and Cleaning” section.Adjust Fresh Food and freezer control. See “Setting Controls” instructions in “Controls” section.Freezer or refrigerator light stays on. If light stays on, remove bulb and call service.Return air vents behind crisper are blocked restricting airflow. Locate return air vent behind crispers and remove any debris that blocks vents or restricts airflow.
Food temperature is too cold.	Clean condenser coils. See “Condenser Coils” instructions in “Care and Cleaning section.Adjust Fresh Food control. See “Setting Controls” instructions in “Controls” section.Adjust freezer control to warmer setting. See “Setting Controls” instructions in “Controls” section. Allow several hours for temperature to adjust.
Refrigerator runs too frequently.	It may be normal to maintain constant temperature.Doors have been opened frequently or for an extended period of time. When the door is opened warm humid air is allowed into the refrigerator. The more the door is opened the more warm air the refrigerator must cool.Allow time for recently added warm food to reach refrigerator or freezer temperature. It can take a few hours for the refrigerator to return to normal temperature.Clean condenser coils. See “Condenser Coils” instructions in “Care and Cleaning” section.Adjust freezer control. See “Setting Controls” instructions in “Controls” section.Check gaskets for proper seal. Gaskets should seal tightly to cabinet.Freezer light stays on. If light stays on, remove bulb and call serviceMake sure refrigerator is level. See “Leveling Refrigerator” section of Installation Instructions.
Water droplets form on inside of refrigerator.	It is normal during high humidity periods or if doors have been opened frequently.Wrap food tightly and wipe off damp containers prior to storing in the refrigerator to avoid moisture accumulation.
Water droplets form on outside of refrigerator.	Check door seals for proper seal. Gaskets should seal tightly to cabinet.It is normal during high humidity periods or if doors have been opened frequently.
Refrigerator has an odor.	See “Odor Removal” instructions in “Care and Cleaning” section.
Refrigerator makes unfamiliar sounds or seems too loud.	It may be normal. See “Normal Operating Sounds” section.
Ice cubes have an odor.	See “Odor Removal” instructions in “Care and Cleaning” section.Food has not been wrapped tightly in either refrigerator or freezer compartment. Rewrap foods since odors may migrate to the ice if food is not wrapped properly.Discard ice and clean ice bucket or trays more frequently. Ice cubes are porous and absorb odors easily.Water supply contains minerals such as sulfur. In some situations a filter may need to be installed to eliminate taste and odor problems.
Ice cubes stick together or “shrink”.	Empty ice cube bucket or trays more frequently. If used infrequently, ice cubes may stick together or shrink.

Limited One Year Warranty

Limited Five Year Warranty on Compressor

First Year

Amana will provide a free replacement part, f.o.b. Amana, Iowa, U.S.A., for any part which is defective due to workmanship or materials.

Second through Fifth Years

Amana will provide a free replacement part, f.o.b. Amana, Iowa, U.S.A., for any compressor which is defective due to workmanship or materials.

Warranty Limitations

• Begins at date of original purchase.
• Service must be performed by an authorized Amana technician.
• Serial plate is defaced.
• Product is used on a commercial, rental or leased basis.
• Product has defect or damage due to product accident, alteration, connection to an improper electrical supply, fire, flood, lightning, shipping and handling, or other conditions beyond the control of Amana.
• Product is improperly installed or used.

Warranty Is Void If

Owner's Responsibilities

• Provide proof of purchase (sales receipt).
• Provide normal care and maintenance. Replace owner replaceable items where directions appear in Owner's Manual.
• Make product reasonably accessible for service.
• Pay premium service costs for service outside technician's normal business hours.
• Pay for service calls related to product installation or usage.

In no event shall Amana be liable for incidental or consequential damages including food loss*.

Any questions regarding the above or to locate an authorized servicer, contact appliance supplier or:

International Division

Amana

2800 220th Trail

PO Box 8901

Amana, IA 52204-0001

USA

Telephone [phone]

Facsimilie 1-319-622-2180

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

Installeringsanvisninger

Indledning

Diagram of a mechanical or structural component with labeled point D and directional arrows (no text or symbols beyond labels)

Technical line drawing of a mechanical frame or support structure with no visible text or symbols

Garden Fresh™ grønsagsskuffer

Opbevaringsstativ (visse modeller)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a stacked box with multiple circular objects inside, no text or symbols present

Mejericenter (visse modeller)

Dørbeholdere

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

Technical line drawing of a rectangular mechanical component with internal channels and a vertical panel (no text or symbols)

Dørhylder

Pure technical line drawing of a mechanical component with no text or symbols

Indstillelig opdeler (visse modeller)

Technical line drawing of a mechanical assembly or housing component (no text or symbols)

Flaskeholder (visse modeller)

Technical line drawing of a mechanical assembly with no visible text or symbols

Fryserens funktioner

Isfrit system

Isometric technical drawing of a metal grate structure with labeled points A and B (no text or symbols beyond labels)

Lodret hyldeopdeler (visse modeller)

Isometric line drawing of a rectangular metal grate with vertical slats and a central horizontal bar (no text or symbols)

Trådkurv

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols present)

Isbeholder (visse modeller)

Isbeholderen (A) sidder under isservicestativet på trådhylden i fryseren.

Technical line drawing of a rack-mounted device with a labeled component 'A' (no text or symbols beyond label)

Pleje og rengøring

ADVARSEL

International Division

Amana

2800 220th Trail

PO Box 8901

Amana, IA 52204-0001

USA

Telefon [phone]

Fax [phone]

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Garden Fresh™ Schubladen

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a stacked box containing circular objects, no text or symbols present

Türkörbe

Technical line drawing of a mechanical component with internal channels and a separate panel (no text or symbols)

Technical line drawing of a rectangular enclosure or enclosure with internal partitions and a vertical panel on the right (no text or symbols)

Türfächer

Technical line drawing of a structural component with labeled point A and directional arrows (no text or symbols beyond labels)

Technical line drawing of a structural support frame with labeled component A (no text or symbols beyond label)

Technical line drawing of a mechanical assembly or housing component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Isometric line drawing of a metal grate structure with labeled points A and B (no text or symbols beyond labels)

Isometric line drawing of a rectangular metal grate or grating structure (no text or symbols)

Gitterkorb

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

Technical line drawing of a mechanical assembly with a bracket and slatted base (no text or symbols)

International Division

Amana

2800 220th Trail

PO Box 8901

Amana, IA 52204-0001

USA

Telefon [phone]

Fax [phone]

Line drawing of a refrigerator with open doors and stacked shelves (no text or symbols)

Technical line drawing of a mechanical frame or bracket assembly (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Isometric line drawing of a stacked box with a lid open, containing multiple circular objects (no text or symbols)

Bacs de porte

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

Technical line drawing of a rectangular mechanical component with internal channels and a vertical panel (no text or symbols)

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

Technical line drawing of a mechanical assembly or housing component (no text or symbols)

Technical line drawing of a mechanical assembly or housing component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Isometric technical drawing of a metal grate structure with labeled points A and B (no text or symbols beyond labels)

Isometric line drawing of a rectangular metal grate or filter structure (no text or symbols)

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols present)

Technical line drawing of a mechanical assembly with two views (top: top view, bottom: side view), no text or symbols present.

International Division

Amana

2800 220th Trail

PO Box 8901

Amana, IA 52204-0001

ETATS-UNIS

Tél. [phone]

Fax [phone]

Line drawing of a refrigerator with open door and partially open drawer (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

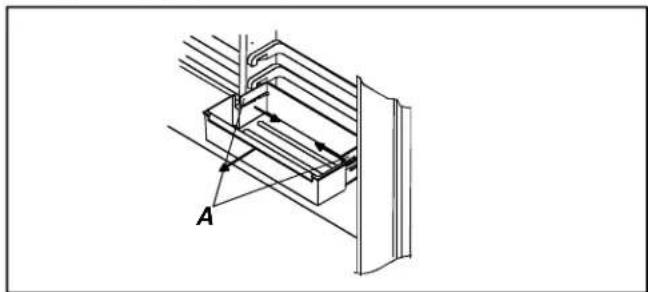

Contenedor Garden Fresh™

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a stacked box with a lid open, containing multiple circular objects (no text or symbols)

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

Technical line drawing of a mechanical component with internal channels and a vertical panel (no text or symbols)

Technical line drawing of a structural component with labeled section A (no text or symbols beyond label)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Isometric technical drawing of a metal grate structure with labeled points A and B (no text or symbols beyond labels)

Isometric line drawing of a rectangular metal grate with vertical slats and a central horizontal bar (no text or symbols)

Cesta de varillas

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols present)

Technical line drawing of a rack-mounted device with a labeled component 'A' (no text or symbols beyond label)

Atención y limpieza

AVISO

International Division

Amana

2800 220th Trail

PO Box 8901

Amana, IA 52204-0001

USA

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

Technical line drawing of a mechanical frame or bracket assembly (no text or symbols)

Garden Fresh™ groenteladen

Opbergrek (sommige modellen)

Technical line drawing of a mechanical component with no visible text or symbols

Isometric line drawing of a stacked box with multiple circular objects inside (no text or symbols)

Deurvakken

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

Technical line drawing of a mechanical component with internal channels and mounting bracket (no text or symbols)

Deurschappen

Pure technical line drawing of a mechanical component with no text or symbols

Verstelbare verdeler (sommige modellen)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a metal grate structure with labeled points A and B (no text or symbols beyond labels)

Verticale plankverdeler (sommige modellen)

Isometric line drawing of a rectangular metal grate or grating structure (no text or symbols)

Mand

Technical line drawing of a multi-level shelving unit with labeled component A (no text or symbols beyond label)

Technical diagram showing two mechanical components: a rack with a handle and a slatted base, labeled 'A' (no text or symbols beyond label)

International Division

Amana

280D 220th Trail

PO Box 8901

Amana, IA 52204-0001

USA

Telefoon: [phone]

Telefax: [phone]

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

1. Monter kjøleskapshåndtaket på motsatt side av døren med monteringsskruene fjernet under forrige punkt.
2. Snap håndtaksbeslaget på plass og sett på skruen.
3. Monter fryserhåndtaket på motsatt side av døren med monteringsskruene fjernet under forrige punkt.

- Plasser den forreste delen av håndtakshetten ned mot den bakerste delen av fryserhåndtaket. Se at den nederste tappen på fryserhetten glir under den bakerste delen av fryserhåndtaket. Snap den bakerste kanten av håndtakshetten på plass.

Technical line drawing of a mechanical frame or bracket assembly (no text or symbols)

Garden Fresh™ grønnsakskuffer

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a stacked box with multiple compartments (no text or symbols)

Meierivaresenter (noen modeller)

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

Technical line drawing of a mechanical component with internal ribs and a side panel (no text or symbols)

Dørhyller

Technical line drawing of a structural component with labeled point A and directional arrows (no text or symbols beyond label)

Justerbar deler (noen modeller)

Technical line drawing of a mechanical assembly or housing component (no text or symbols)

Flaskeholder (noen modeller)

Technical line drawing of a mechanical assembly with no visible text or symbols

Fryserfunksjoner

Frostfritt system

Isometric line drawing of a metal grate structure with labeled points A and B (no text or symbols beyond labels)

Vertikal hylledeler (noen modeller)

Isometric line drawing of a rectangular metal grate with slats and a central slot, no text or symbols present

Trådkurv

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

Isbeholder (noen modeller)

Technical line drawing of a mechanical assembly with a bracket and grid base (no text or symbols)

International Division

Amana

2800 220th Trail

PO Box 8901

Amana, IA 52204-0001

USA

Telefon: [phone]

Telefax: 1-319-622-2180

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

Diagram of a rectangular frame with a curved internal structure and labeled point D, showing directional arrows (no text or symbols beyond label)

Technical line drawing of a mechanical component with no visible text or symbols

Cassetti verdure e ortaggi Garden Fresh™

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a stacked box with a lid open, containing multiple circular objects (no text or symbols)

Vaschette incassate

Technical line drawing of a mechanical component with internal channels and a vertical panel (no text or symbols)

Technical line drawing of a structural component with labeled point A (no text or symbols beyond label)

Technical line drawing of a mechanical assembly or housing component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Isometric line drawing of a metal grate structure with labeled points A and B (no text or symbols beyond labels)

Isometric line drawing of a rectangular metal grate or grating structure (no text or symbols)

Isometric line drawing of a multi-level cabinet or shelf assembly with labeled component 'A' (no text or symbols beyond label)

Technical line drawing of a mechanical assembly with a bracket and slatted base (no text or symbols)

Cura e pulizia

International Division

Amana

2800 220th Trail

PO Box 8901

Amana, IA 52204-0001

USA

Telefono 1-319-622-5511

Fax [phone]

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

Diagram of a mechanical or structural component with labeled point D and directional arrows (no text or symbols beyond labels)

Technical line drawing of a mechanical frame or bracket assembly (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a stacked box with multiple round objects on top (no text or symbols)

Κάδοι Θυρών

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols present)

Technical line drawing of a mechanical component with internal channels and a vertical panel (no text or symbols)

Ράφια Πόρτας

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

Technical line drawing of a mechanical assembly or housing component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a metal grate structure with labeled points A and B (no text or symbols beyond labels)

Isometric line drawing of a rectangular metal grate or grating structure (no text or symbols)

Συρμάτινο Καλάθι

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols present)

Technical line drawing of a rack-mounted device with a labeled component 'A' (no text or symbols beyond label)

International Division

Amana

2800 220 ^th Trail

PO Box 8901

Amana' IA 52204-0001

USA

Τηλः 1-319-622-5511

Φαξ: 1-319-622-2180

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

Diagram of a rectangular frame with a curved line and labeled point D, showing directional arrows (no text or symbols beyond labels)

Technical line drawing of a mechanical component with no visible text or symbols

Gavetas para vegetais Garden Fresh™

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a stacked box with multiple circular objects inside (no text or symbols)

Caixas da porta

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

Technical line drawing of a mechanical component with internal channels and a vertical panel (no text or symbols)

Technical line drawing of a mechanical component with internal channels and a vertical panel (no text or symbols)

Technical line drawing of a structural component with labeled section A (no text or symbols beyond label)

Technical line drawing of a mechanical assembly or housing component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a metal grate structure with labeled points A and B (no text or symbols beyond labels)

Isometric line drawing of a rectangular metal grate or rack structure (no text or symbols)

Cesto de arame

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols beyond label)

Cuvete de gelo

Technical line drawing of a mechanical assembly with two views: top view shows a rack mounted on a bracket, bottom view shows a slatted platform (no text or symbols)

Cuidados e limpeza

ATENÇAO

International Division

Amana

2800 220th Trail

PO Box 8901

Amana, IA 52204-0001

E.U.A.

Telephone [phone]

Fax [phone]

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

Asennusohjeet

Johdanto

Diagram of a rectangular frame with a curved line and labeled point D, showing directional arrows (no text or symbols beyond labels)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a stacked box with multiple round objects on top (no text or symbols)

Ovikaukalot

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols present)

Technical line drawing of a rectangular metal enclosure with internal supports (no text or symbols)

Ovihyllyt

Technical line drawing of a structural bracket with labeled point A and directional arrows (no text or symbols beyond label)

Technical line drawing of a mechanical assembly or housing component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Isometric line drawing of a metal grate structure with labeled points A and B (no text or symbols beyond labels)

Isometric line drawing of a rectangular metal grate with vertical slats (no text or symbols)

Ritiläkori

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols present)

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

Hoito ja puhdistus

VAROITUS

International Division

Line drawing of a refrigerator with doors and shelves (no text or symbols)

Installationshandledning

Inledning

Diagram of a rectangular structure with internal curved lines and labeled point D, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Garden Fresh™ grönsaksfack

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a stacked box with circular indentations (no text or symbols)

Mejerivarubox (vissa modeller)

Dörrfacken

Technical line drawing of a mechanical assembly with labeled component A (no text or symbols present)

Technical line drawing of a mechanical component with internal channels and a vertical panel (no text or symbols)

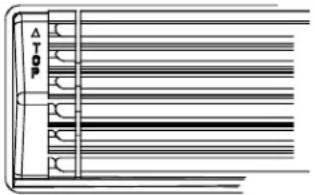

Dörrhyllor

Technical line drawing of a structural component with labeled section A (no text or symbols beyond label)

Justerbar avdelare (vissa modeller)

Technical line drawing of a mechanical assembly or housing component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Isometric line drawing of a metal grate structure with labeled points A and B (no text or symbols beyond labels)

Vertikal hyllavdelare (vissa modeller)

Fast trådhylla (vissa modeller)

Isometric line drawing of a rectangular metal grate with vertical slats (no text or symbols)

Trådkorg

Technical line drawing of a structural frame with labeled component 'A' (no text or symbols beyond label)

Technical line drawing of a mechanical assembly with two components labeled A (no text or symbols present)

Vård och rengöring

International Division

Amana

2800 220th Trail

PO Box 8901

Amana, IA 52204-0001

USA

Telefon: [phone]

Telefax: 1-319-622-2180
