Product Type	Immersion Blender
Brand	SilverCrest
Model	SSMS 600 D1
Rated Power	600 W
Mains Voltage	220-240 V ~, 50 Hz
Protection Class	II
Measuring cup capacity (max. fill)	700 ml
Max. processing capacity in the measuring cup	300 ml
Supplied accessories	Immersion blender, whisk, chopper (bowl + lid), measuring cup with lid/foot, instruction manual
Main functions	Blending, chopping, whisking, emulsifying
Speed control	Speed regulator (1-5), normal switch, turbo switch
Max. operating time (immersion blender)	1 minute, then 2 minutes cooling
Max. operating time (chopper)	1 minute, then 2 minutes cooling
Max. operating time (whisk)	2 minutes, then 2 minutes cooling
Care and cleaning	Hand washing; wipe motor block with damp cloth; wash other parts with water; do not put in dishwasher
Safety	Do not immerse motor block; blades are very sharp; keep out of reach of children; unplug before cleaning/assembly
Warranty	3 years
Intended use	Household, food processing in small quantities

Frequently Asked Questions - SSMS 600 D1 SILVERCREST

What accessories are supplied with the SilverCrest SSMS 600 D1 immersion blender?

The set includes an immersion blender, a whisk, a chopper (bowl + lid), a measuring cup with combined lid/foot, and the instruction manual.

How to assemble the immersion blender?

Insert the immersion blender onto the motor block aligning the arrow with the lock symbol , then turn until it clicks into place.

What is the maximum liquid capacity in the measuring cup?

The measuring cup can hold up to 700 ml, but for blending, do not pour more than 300 ml to avoid overflow.

Can you blend hot foods?

Yes, but they should not be too hot to avoid splashing burns. Let cool slightly if necessary.

How to clean the immersion blender?

Always unplug the appliance. Clean the motor block with a damp cloth; clean the other parts (blender, whisk, bowl, lid, blade) by hand with clear water. Do not put in dishwasher.

What is the maximum continuous use time?

Immersion blender and chopper: 1 minute then 2 minutes cooling. Whisk: 2 minutes then 2 minutes cooling.

Can I chop hard foods like nuts or Parmesan?

Yes, use the chopper. For hazelnuts/almonds: 30 sec on Turbo mode; for Parmesan: 30 sec on Turbo mode.

What to do if the appliance makes an abnormal noise?

Add a little neutral cooking oil to the drive shaft of the immersion blender to lubricate it.

How to use the whisk to whip egg whites?

Attach the whisk to the motor block, dip it into the egg whites and use normal or turbo speed until desired consistency is achieved.

What is the warranty on this product?

The warranty is 3 years from the date of purchase. It covers material and manufacturing defects, but not transport damage nor normal wear.

USER MANUAL SSMS 600 D1 SILVERCREST

HAND BLENDER SET SSMS 600 C3

GB IE

HAND BLENDER SET

Operating instructions

SE

STAVMIXER, SET

Bruksanvisning

FR BE

MIXEUR PLONGEANT

Mode d'emploi

DE AT CH

STABMIXER-SET

Bedienungsanleitung

FI

SAUVASEKOITINSARJA

Käyttöohje

DK

STAVBLENDER-SÄT

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FI

GB/IE Operating instructions Page 1

FI	Käyttöohje	Sivu	19
SE	Bruksanvisning	Sidan	37
DK	Betjeningsvejledning	Side	55
FR/BE Mode d'emploi Page 73
NL/BE Gebruiksaanwijzing Pagina 91
DE/AT/CH	Bedienungsanleitung			Seite 109

Index

Introduction 2

Copyright....2

Intended use 2

Items supplied 3

Disposal of the packaging.... 3

Description of appliance / Accessories 4

Technical data 4

Safety instructions .... 5

Utilisation 7

Assembling 8

To assemble the hand blender....8

Assembling the wire whisk....8

Assembling the liquidiser 8

Holding the appliance 9

Operation 10

Cleaning 12

Disposal of the appliance 13

Notes on the EC Declaration of Conformity 13

Importer 13

Warranty 14

Service....14

Recipes 15

Cream of Vegetable Soup....15

Pumpkin Soup 16

Sweet Fruit Spread.... 17

Chocolate Cream 18

Mayonnaise....18

Introduction

Congratulations on the purchase of your new appliance.

You have clearly decided in favour of a quality product. These operating instructions are a part of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use the product only as described and only for the specified areas of application. In addition, pass these documents on, together with the product, to any future owner.

Copyright

This documentation is copyright protected.

Any copying or reproduction, including as extracts, as well as the reproduction of images, also in an altered state, is only permitted with the written authorisation of the manufacturer.

Intended use

This hand blender is intended exclusively for processing foodstuffs in small quantities. It is intended exclusively for use in domestic households. This hand blender set is not intended for commercial applications.

WARNING

Danger from unintended use!

Danger can come from the appliance if used for unintended purposes and/or other types of use.

▶ Use the appliance exclusively for intended purposes.
▶ Observe the procedures described in these operating instructions.

NOTICE

Risks can be engendered if the appliance if used for unintended purposes and/or other types of use. Use the appliance exclusively for its intended purposes. Observe the procedures described in these operating instructions. Claims of any kind resulting from damage caused by improper use, incompetent repairs, unauthorized modifications or the use of non-approved spare parts will not be acknowledged. The operator alone bears liability.

Items supplied

The appliance is delivered with the following components as standard:

• Hand Blender Set
  ● Measuring beaker with combined lid/base
• Whisk
  ● Liquidiser (Blade and bowl with combined lid/base)
• Operating instructions

1) Remove all parts of the appliance and these operating instructions from the box.
2) Remove all packing material.
3) Clean all parts of the appliance as described in the chapter "Cleaning".

NOTICE

▶ Check the contents to make sure everything is there and for visible damage.
▶ If the contents are incomplete, or have been damaged due to defective packaging or transportation, contact the Service Hotline (see chapter Service).

Disposal of the packaging

The packaging protects the appliance from transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable.

The recirculation of packaging into the material circuit saves on raw material and reduces generated waste. Dispose of packaging material that is no longer needed according to the regionally established regulations.

NOTICE

▶ If possible preserve the appliance's original packaging during the warranty period so that in the case of a warranty claim you can package the appliance properly for return.

Description of appliance / Accessories

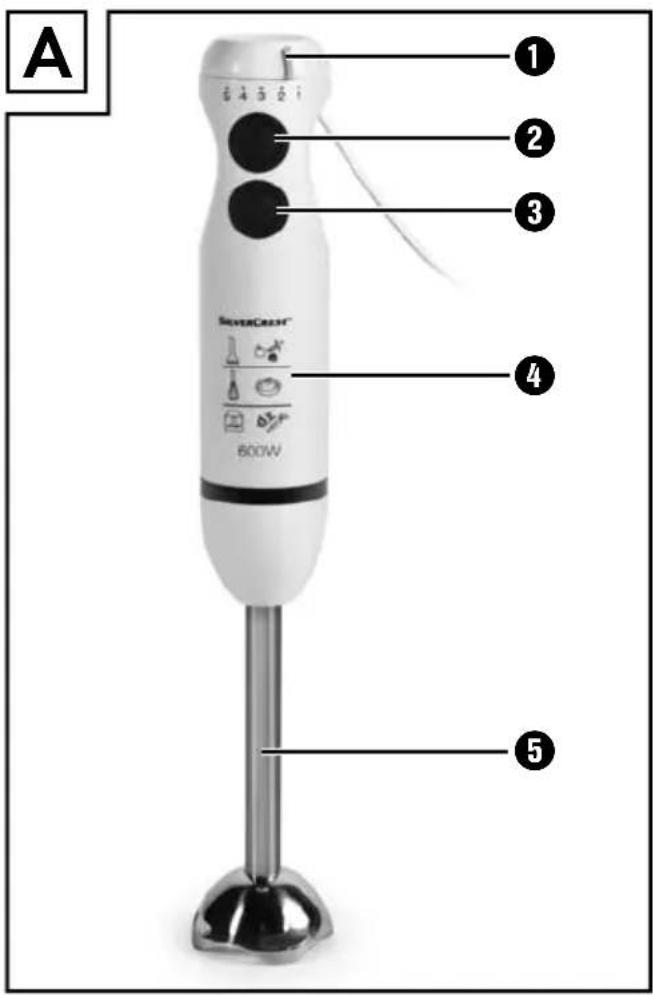

Illustration A (hand blender):

① Speed regulator
② Switch (Standard Speed)
③ Turbo-Switch (High Speed)
4 Motor unit
5 Hand blender

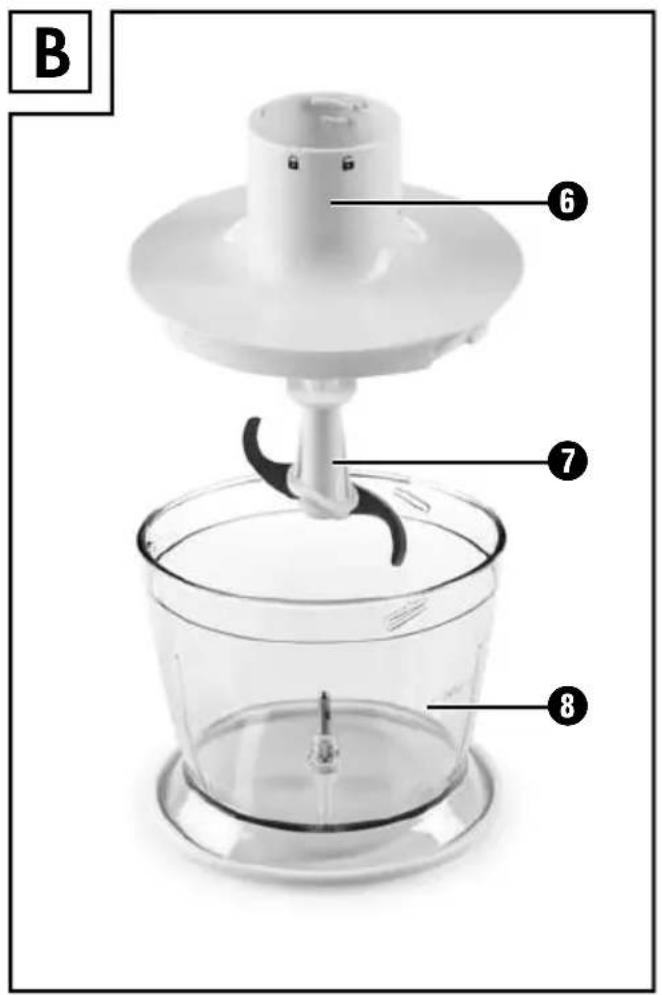

Illustration B (liquidiser):

6 Bowl lid
⑦ Blade
⑧ Bowl (with combined lid/base)

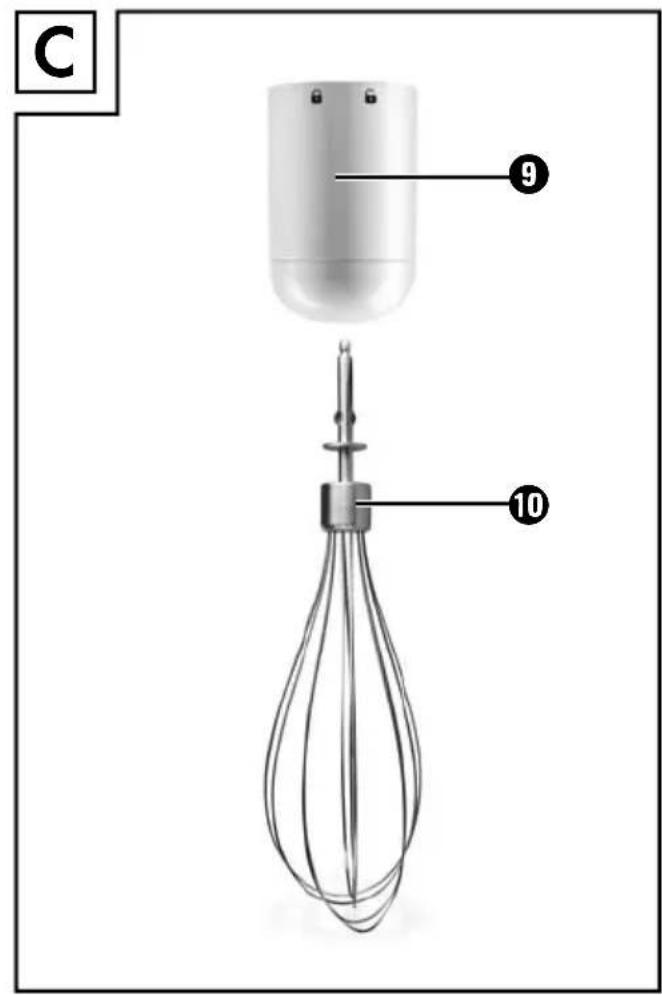

Illustration C (whisk):

9 Whisk holder
10 Whisk

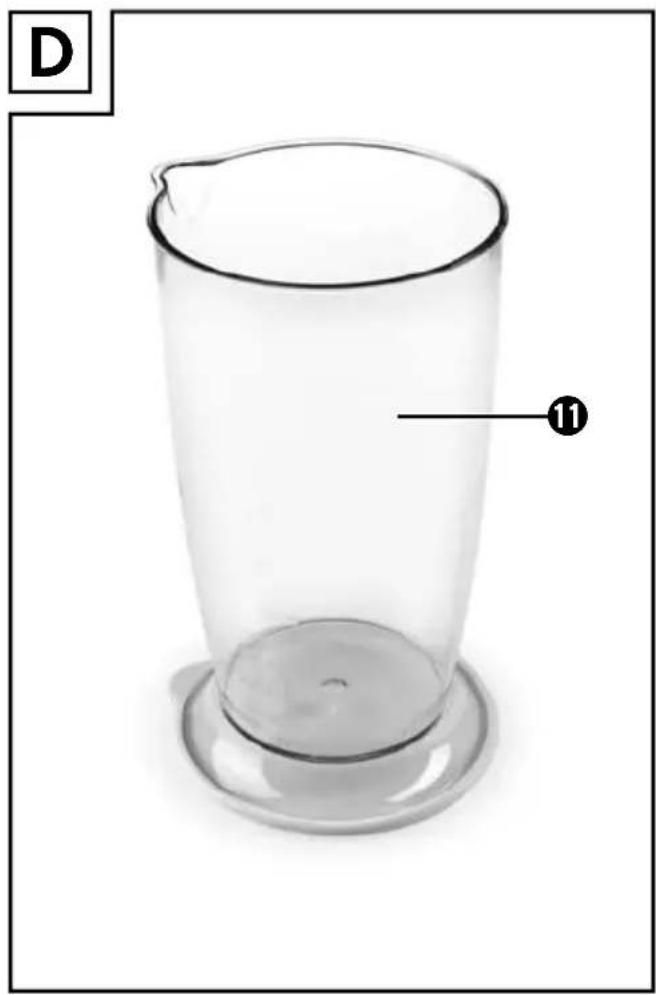

Illustration D (accessories):

⑪ Measuring beaker (with combined lid/base)

Technical data

Voltage 220 - 240 V	~, 50 Hz
Nominal Power Rating 600 W
Protection Class	II □
Capacity:Measuring beakerMax. fi ll volume for fl uids	700 ml300 ml

We recommend the following operating times:

Let the hand blender cool down for around 2 minutes after 1 minute of operation.

Let the liquidiser cool down for around 2 minutes after 1 minute of operation.

Let the whisk cool down for around 2 minutes after 2 minutes of operation.

If these operating times are exceeded the device can be damaged by overheating!

Safety instructions

RISK OF ELECTRIC SHOCK

• Connect the appliance only to mains power sockets supplying a mains power voltage of 220-240 V \~ / 50 Hz.
  ▶ Remove the plug from the mains power socket in event of operating malfunctions and before cleaning the appliance.
• Do not expose the appliance to moisture and do not use it outdoors.
  ▶ If liquid gets into the housing, disconnect the appliance from the mains power socket immediately and have it repaired by a qualified technician.
  ▶ Always pull on the plug to disconnect the appliance from the mains; never pull on the power cable itself.
  ▶ Do not kink or crush the power cable, and route the cable so that it cannot be stepped on or tripped over.
  ▶ To avoid risks, arrange for defective plugs and/or power cables to be replaced at once by qualified technicians or our Customer Service Department.
  This appliance may be used by people with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised and have been instructed in how to use the appliance safely and have understood the potential risks.
  The appliance and its connecting cable must be kept away from children.
• Do not attempt to open the hand blender's motor casing. If you do so, the safety of the appliance is no longer assured and the warranty will become void.

Never immerse the blender's motor unit in liquids, or allow liquids to get into the motor unit housing.

⚠ WARNING! RISK OF INJURY!

Before changing accessories or additional parts that are in motion during operation, the appliance must be switched off and disconnected from mains power.
▶ Disconnect the appliance from the mains power supply

-when the appliance is unsupervised,
-when you are cleaning the appliance,
-when you are assembling or dismantling it.

▶ This appliance may not be used by children.
▶ Children must not play with the appliance.
The appliance and its connecting cable must be kept away from children.
The blade is extremely sharp! Handle it with great care.
▶ Handle the extremely sharp blade with caution as it can cause injuries.
▶ Clean the appliance very carefully. The blades are extremely sharp!
▶ Always be careful when emptying the bowl! The blades are extremely sharp!
The appliance should always be disconnected from the mains when unattended and before assembly, disassembly or cleaning.

Utilisation

NOTICE

With the measuring beaker ⑪ you can measure volumes of fl uids up to 700 ml. For food processing, fi ll it to a maximun of 300 ml, otherwise fl uids could overfl ow from the measuring beaker ⑪.
Should you wish to keep liquids/foods in the measuring beaker 11, you can remove the base of the measuring beaker 11 and use it as a lid. Ensure that the spout of the measuring beaker 11 is also closed.

■ With this hand blender ⑤ you can prepare dips, sauces, soups or baby food. We recommend using the hand blender ⑤ for a maximum of 1 minute at a time and then letting it cool down.

WARNING - PROPERTY DAMAGE!

Do not use this hand blender ⑤ for the preparation of solid foods. This would lead to irreparable damage to the appliance!

■ With the whisk 10y can whip cream, beat egg whites and mix pastry, desserts or mayonnaise. We recommend using the whisk 10 for a maximum of 2 minutes at a time and then letting it cool down.

■ With the liquidiser, comprising of the blade ⑦, bøl ⑧ and bowl lid ⑥, you can also liquidise solid foods. We recommend using the liquidiser for a maximum of 1 minute at a time and then letting it cool down.

WARNING - PROPERTY DAMAGE!

▶ Do not use the liquidiser to process liquids. This would lead to irreparable damage to the appliance!

Assembling

WARNING! RISK OF INJURY!

▶ Only insert the plug into the power socket after you have assembled the appliance for use.

NOTICE

Before the first use, clean all parts as described in the chapter "Cleaning".

To assemble the hand blender

WARNING! RISK OF INJURY!

The blade is extremely sharp! Handle it with great care.

Place the hand blender ⑤ on the motor unit ④ so that the arrow points to the symbol ⏻. Turn the hand blender ⑤ until the arrow on the motor unit ④ points to the symbol ⏻.

Assembling the wire whisk

■ Insert the whisk ⑩ into the whisk holder ⑨.

Place the so assembled whisk ⑩ onto the motor block ④ so that the arrow points to the symbol 🎨 Turn the motor block ④ until the arrow points at the symbol 🔒.

Assembling the liquidiser

WARNING! RISK OF INJURY!

Theblade⑦ is extremely sharp! Handle it with great care.

- Carefully place the blade ⑦ onto its retainer in the bowl ⑧. Turn the blade ⑦ a little until it slides onto the holder.

NOTICE

The blade ⑦ is not tied firmly in the holder. This is normal. The blade ⑦ is only sits firmly when the bowl lid ⑥ is put on.

Fill the bowl with the foodstuff s you wish to liquidise ⑧.

NOTICE

▶ NEVER fi ll the bowl ⑧ BEYND the MAX marking. Otherwise, the appliance does not function optimally.

Place the bowl lid ⑥ onto the bowl ⑧ and turn it until tight. Thereby, the lugs on the edge of the bowl ⑧ must be guided into the rail on the bowl lid ⑥. Please ensure that the blade ⑦ is correctly engaged in the bowl lid ⑥.

Place the motor unit ④ on the bowl lid ⑥ so that the arrow points to the symbol ⑦. Turn the motor unit ④ until the arrow points to the symbol ⑧.

NOTICE

Should you wish to keep foodstuffs in the bowl ⑧ you can remove the base of the bowl ⑧ and use it as a lid. For this, carefully remove the bowl lid ⑥ and motor unit ④ and, if needs be, the blade ⑦. Loosen the base of the bowl ⑧ and then place it onto the bowl ⑧.

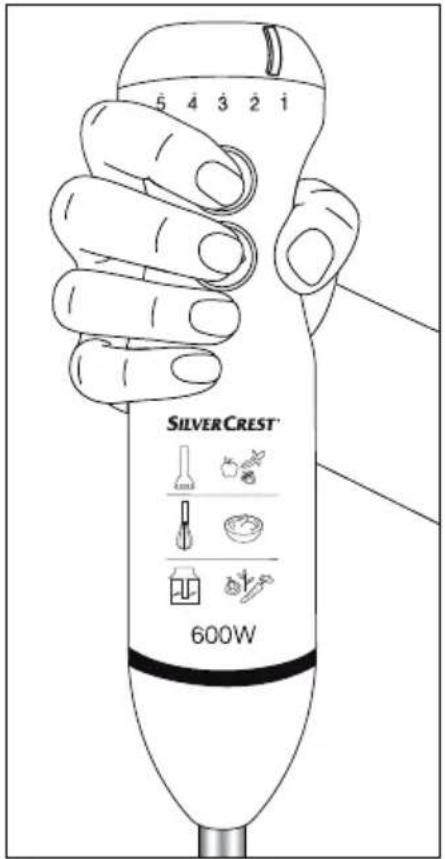

Holding the appliance

To operate the appliance, hold it as follows:

Operation

WARNING! RISK OF INJURY!

▶ Foodstuff s should not be too hot. Squirting contents may cause scalding.

NOTICE

When you beat cream with the whisk ⑩ hold the container at a slant during the beating. In this way the cream will be thicker quicker. Ensure that cream cannot be sprayed out of the container while it is being beaten. When whipping cream, slide the speed regulator ① to position "5".

When you have assembled the blender set as you wish to use it:

1) Insert the plug into a mains power socket.
2) Press and hold the switch ② to process foodstuffs at the standard speed. Slide the speed regulator ① in the direction of "5" to increase the speed. Slide the speed regulator ① in the direction of "1" to reduce the speed.
3) Press and hold the turbo-switch ③ to process foodstuffs at a higher speed. By pressing the turbo-switch ③ the maximum processing speed is available immediately.
4) When you have completed the processing of the foodstuff s, simply release the switch.

NOTICE

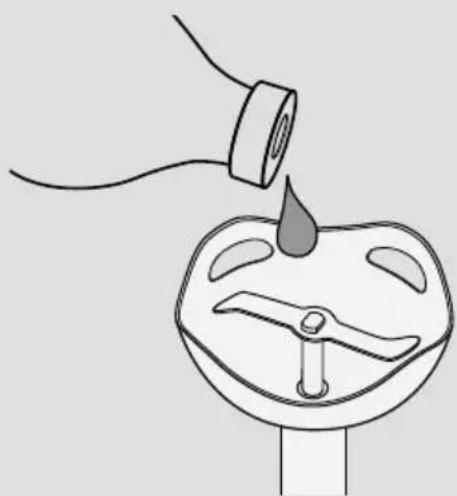

▶ Should unusual noises be heard during operation, such as squeaks or similar, lubricate the drive shaft of the blender with a few drops of neutral cooking oil:

Illustration of a hand pouring liquid into a mechanical component (no text or symbols)

Examples for the chopping and liquiding of various foods with the liquidiser:

Ingredients		max. amount	Processing time SPEED
Onions		200 g approx. 20 Sec. Level 1 - 3
Parsley		30 g approx. 20 Sec. Turbo
Garlic		20 cloves approx. 20 Sec. Level 1 - 5
Baby-carrots		200 g approx. 15 Sec. Level 1 - 5
Hazelnuts/ Almonds		200 g approx. 30 Sec. Turbo
Walnuts		200 g approx. 25 Sec. Level 3 - 4
Parmesan		250 g approx. 30 Sec. Turbo

Cleaning

WARNING - RISK OF ELECTRIC SHOCK!

Before you start to clean the hand blender, ALWAYS unplug the appliance from the mains power socket.

Under no circumstances may the motor unit ④ be cleaned by immersing it in water or holding it under running water.

WARNING - RISK OF PHYSICAL INJURY!

To avoid injuries, exercise caution when handling the extremely sharp blade ⑦. Reassemble the liquidiser after use and cleaning to prevent injury from the exposed blade. Keep the blade out of the reach of children.

WARNING - PROPERTY DAMAGE!

▶ DO NOT clean the accessories of your hand blender in the dishwasher as it may cause damage to them.
▶ Do not use aggressive, chemical or abrasive cleaning agents! They could irreparably damage the upper surfaces!

1) Disconnect the power cable.
2) Clean the motor block ④ and the whisk holder ⑨ with a moist cloth. Ensure that water cannot permeate through the openings on the motor block ④. For stubborn stains, put some mild detergent on the cloth. Wipe detergent residues off with a damp cloth.
3) Clean the blender ⑤, the bowl lid ⑥, the bowl ⑧, the whisk ⑩, the measuring beaker ⑪ and the blade ⑦ thoroughly in washing-up water and then remove the detergent residues by rinsing them with clean water.
4) Dry everything well with a dish towel and ensure that the appliance is completely dry before re-use.

Disposal of the appliance

Do not dispose of the appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU.

Dispose of this appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Notes on the EC Declaration of Conformity

In regard to compliance with fundamental requirements and other relevant provisions, this appliance fulfi lls the relevant regulations of the Electromagnetic Compatibility Directive 2004/108/EC, the ErP Directive 2009/125/EC and the Low Voltage Directive 2006/95/EC.

The complete original declaration of conformity can be obtained from the importer.

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Warranty

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery.

Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our service department. Only in this way can a post-free despatch for your goods be assured.

NOTICE

The warranty covers only claims for material and manufacturing defects, not for transport damages, wearing parts or for damage to fragile components, e.g. switches.

This product is for domestic use only and is not intended for commercial use. In the event of misuse and improper handling, use of force and modifications not carried out by our authorized service branch, the warranty will become void.

Your statutory rights are not restricted in any way by this warranty.

The warranty period is not extended by repairs made under the warranty. This applies also to replaced and repaired parts.

Damages and defects extant at the time of purchase must be reported immediately after unpacking, resp. no later than two days after the date of purchase.

Repairs made after the lapse of the warranty period are subject to charge.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 102804

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 102804

Hotline availability: Monday to Friday 08:00 - 20:00 (CET)

Recipes

Cream of Vegetable Soup

2 - 4 People

Ingredients

■ 2 - 3 tbsp Cooking oil
■ 200 g Onions
■ 200 g Potatoes (specially suitable are fl oury varieties)
200 g Carrots
■ 350 - 400 ml Vegetable stock (fresh or instant)
Salt, Pepper, Nutmeg
■ 5 g Parsley

Preparation

1) Peel and finely chop the onions. Wash, peel and cut the carrots into slices. Peel and rinse the potatoes, then cut them into approx. 2 cm cubes.
2) Heat the oil in a pan, sauté the onions until glassy. Add the carrots and potatoes and sauté them also. Pour in sufficient broth so that the vegetables are well covered and then boil everything for 10-15 minutes until soft. If necessary, add more broth if the vegetables are no longer completely covered.
3) Wash the parsley, shake it dry and remove the stems. Break the parsley into large pieces and add them to the soup. Puree everything with the hand blender ⑤ for about 1 minute. Season with salt, pepper and grated nutmeg.

Pumpkin Soup

4 People

Ingredients

■ 1 medium-sized Onion
■ 2 Garlic cloves
■ 10 - 20 g fresh Ginger
■ 3 tbsp Rapeseed oil
■ 400 g Pumpkin (ideally suited is Hokkaido pumpkin, because the shell becomes soft when cooked and it does not need to be peeled)
■ 250 - 300 ml Coconut milk
■ 250 - 500 ml Vegetable stock
■ Juice of 12 of an Orange
■ some dry white wine
■ 1 tsp. Sugar
Salt, Pepper

Preparation

1) Peel and chop the onion, the garlic also. Peel and finely chop the ginger. Firstly, sauté the onion and ginger in hot oil. After 2 minutes add the garlic and sauté this also.

2) Thoroughly clean the pumpkin under warm water with a vegetable brush, then cut it into 2-3 cm cubes. (If a pumpkin other than Hokkaido pumpkin is being used, it must be peeled in addition). Add the diced pumpkin to the onions and ginger and sauté them also. Fill with half the amount of coconut milk and sufficient vegetable broth to cover the pumpkin well. Cook for approx. 20-25 minutes with the lid on until soft. Mix everything with a hand blender ⑤ until smooth. Thereby, add additional coconut milk until the soup has the correct soft and creamy consistency.

3) Season the soup with orange juice, white wine, sugar, salt and pepper so that it has both a sweet and a balanced sour-salty note in addition to the sharp fl avour.

Sweet Fruit Spread

Ingredients

■ 250 g Strawberries or other fruit (fresh or frozen)
■ 1 packet (about 125 g) Preserving sugar without cooking
■ 1 dash of Lemon juice
■ 1 pinch of the pulp of a Vanilla pod

Preparation

1) Wash and clean the strawberries, at the same time removing the green stems. Drain well in a colander, so that you are rid of excess water and the spread is not too watery. Slice larger strawberries into small pieces.
2) Weigh 250 g of strawberries and place in a suitable blender jug.
3) Add a dash of lemon juice.
4) If desired, scrape out and add the pulp of a vanilla pod.
5) Add the contents of the packet of preserving sugar without cooking and mix thoroughly with a hand blender ⑤ for 45-60 seconds. If there are still large pieces in it, allow it to stand for 1 minute and then purée it again for 60 seconds.
6) Enjoy the fruit spread straight away or pour it into a glass jar with a screw cap and firmly seal it.

GB IE

Chocolate Cream

For 4 people

Ingredients

■ 350 g Whipping cream
■ 200 g Dark chocolate (> 60% Cocoa)
■ ½ Vanilla pod (Pulp)

Preparation

1) Bring the cream to a boil, crumble the chocolate and melt it slowly over low heat. Scrape out the pulp of half a vanilla pod and blend it into the mixture.
2) Allow it to cool and set completely in the refrigerator.
3) Before serving, stir with the whisk 10 until creamy.

Tip: This tastes good with fresh fruit.

Mayonnaise

■ 200 ml neutral vegetable oil, e.g. Rapeseed oil
■ 1 Egg (yolk and egg white)
■ 10 g mild Vinegar or Lemon juice
Salt and Pepper to taste

Preparation

1) Place the egg and lemon juice in the mixing jug, hold the whisk ⑩ perpendicular to the jug and press and hold the turbo switch ③.
2) Slowly add the cooking oil in a thin uniform stream (within 1:30 minutes), so that the oil combines with the other ingredients.
3) Finally, season to taste with salt and pepper.

Sisällysluettelo

Johdanto 20

Tekijänoikeus 20

Line drawing of a hand pouring liquid into a mechanical component (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Takuu

Line drawing of a hand pouring liquid into a small container with a handle (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Garanti

Illustration of a hand pouring liquid into a toothbrush (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Garanti

Illustration of a hand pouring liquid into a small container with a handle (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Garantie

⚠ WAARSCHUWING! LETSELGEVAAR!

WAARSCHUWING! LETSELGEVAAR!

⚠ WAARSCHUWING! LETSELGEVAAR!

⚠ WAARSCHUWING! LETSELGEVAAR!

WAARSCHUWING! LETSELGEVAAR!

Illustration of a hand pouring liquid into a mechanical component (no text or symbols)

WAARSCHUWING - GEVAAR VOOR STROOMSCHOKKEN!

WAARSCHUWING - LETSELGEVAAR!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Garantie

Diagram of a hand pouring liquid into a mechanical component (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Garantie

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND / GERMANY

www.kompernass.com

Last Information Update · Tietojen tila · Informationsstatus

Tilstand af information · Version des informations

Stand van de informatie · Stand der Informationen:

08 / 2014 · Ident.-No.: SSMS600C3-082014-1
