Product Type	Orbital Sander
Brand	Ferm
Model	ESM1007
Power Input	250 W
No-Load Speed	12,000 - 14,000 OPM
Orbit Diameter	2 mm
Sanding Pad Size	125 mm (5")
Dust Collection	Yes, dust bag included
Weight	1.5 kg
Dimensions (LxWxH)	220 x 120 x 150 mm
Power Supply	230 V ~ 50 Hz
Vibration Level	< 2.5 m/s²
Sound Pressure Level	80 dB(A)
Maintenance	Clean dust bag after each use; check brush wear regularly
Safety Features	Lock-on button for continuous operation; double insulation
Spare Parts Available	Yes, sanding pads, brushes, dust bags
Warranty	2 years

Frequently Asked Questions - ESM1007 Ferm

How do I attach sanding paper to the Ferm ESM1007?

The Ferm ESM1007 uses a hook-and-loop (Velcro) system. Simply press the sanding sheet onto the pad, ensuring it aligns with the holes for dust extraction.

Can I use this sander on vertical surfaces?

Yes, the ESM1007 is lightweight and has a comfortable grip, making it suitable for vertical sanding. The dust bag may be less effective on vertical surfaces but can still collect debris.

How do I empty the dust bag?

Unplug the sander, then remove the dust bag from the rear port. Open the zipper or clip and empty the contents. Tap the bag gently to remove fine dust before reattaching.

Is the speed adjustable on the Ferm ESM1007?

No, this model has a fixed speed. It operates at a no-load speed of 12,000 to 14,000 orbits per minute, which is suitable for most sanding tasks.

What size sanding sheets does the ESM1007 use?

It uses 125 mm (5-inch) hook-and-loop sanding discs. Standard sheets with holes for dust extraction are recommended.

Can I use the sander without the dust bag?

Yes, you can operate it without the dust bag, but it will release sanding dust into the air. It is safer to connect a vacuum cleaner to the dust port for better dust control.

How do I change the sanding pad?

Unplug the sander. The pad is attached to the drive plate. Remove the screws (usually 4) holding the pad, replace with a new pad, and tighten the screws securely.

What maintenance does the Ferm ESM1007 require?

Regularly empty the dust bag, check the carbon brushes (replace if worn to less than 6 mm), and clean the ventilation slots to prevent overheating.

Is the Ferm ESM1007 suitable for sanding paint?

Yes, it is effective for removing paint, varnish, and rust from wood, metal, and plastic. Use appropriate grit sandpaper (coarse for stripping, fine for finishing).

Why does my sander vibrate excessively?

Excessive vibration may indicate a worn sanding pad, unbalanced pad, or bearing damage. First, check the pad for wear and ensure the sanding sheet is properly attached. If the issue persists, inspect the bearings or consult a professional.

USER MANUAL ESM1007 Ferm

C

D

ORBITAL SANDER ESM1007

Thank you for buying this Ferm product.

By doing so you now have an excellent product, delivered by one of Europe's leading suppliers. All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive warranty. We hope you will enjoy using this product for many years to come.

SAFETY WARNINGS

WARNING

Read the enclosed safety warnings, the additional safety warnings and the instructions.

Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Keep the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Risk of personal injury.

Risk of electric shock.

Immediately remove the mains plug from the mains if the mains cable becomes damaged and during cleaning and maintenance.

Wear safety goggles.

Wear hearing protection.

Wear a dust mask.

Double insulated.

Do not dispose of the product in unsuitable containers.

The product is in accordance with the applicable safety standards in the European directives.

Additional safety warnings for orbital sanders

Contact with or inhalation of dust coming free during use (e.g. lead-painted surfaces, wood and metal) can endanger your health and the health of bystanders. Always wear appropriate protective equipment, such as a dust mask. Always use proper dust extraction during use.

• Do not work materials containing asbestos. Asbestos is considered carcinogenic.
• Do not use the machine for sanding magnesium workpieces.
• Wear safety goggles. Wear hearing protection. If necessary, use other protective means, such as safety gloves, safety shoes, etc.
• Hold the machine by the insulated gripping surfaces where the accessory may contact hidden wiring or the mains cable. If the accessory contacts a ,live' wire, the exposed metal parts of the machine can also become ,live'. Risk of electric shock.
• Be very careful when sanding painted surfaces.
• Before use, remove all nails and other metal objects from the workpiece.
• Make sure that the workpiece is properly supported or fixed.
• Only use sanding paper that is suitable for use with the machine.
• Only use sanding paper with the correct dimensions. Make sure that the sanding paper is properly mounted.
• Inspect the sanding paper before each use. Do not use sanding paper that is worn because of prolonged use.
• Never put the machine down on a table or a workbench before it has been switched off.

Electrical safety

Always check that the voltage of the power supply corresponds to the voltage on the rating plate.

• Do not use the machine if the mains cable or the mains plug is damaged.
• Only use extension cables that are suitable for the power rating of the machine with a minimum thickness of 1.5 mm^2 . If you use a extension cable reel, always fully unroll the cable.

Mains plug replacement (UK only)

If the moulded 3-pin plug attached to the unit is damaged and needs replacing, it is important that it is correctly destroyed and replaced by an approved BS 1363/3A fused plug and that the following wiring instructions are followed.

The wires in the mains cable are coloured in accordance with the following code: blue neutral brown live

As the colours of the wires in the mains cable of the unit may not correspond to the coloured markings identifying the terminals in the plug, proceed as follows:

• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

TECHNICAL DATA

ESM1007
Mains voltage V~ 230
Mains frequency Hz 50
Power input W 450
No-load speed min	-1 9,000 - 13,000
Protection class IP 20
Weight kg 2.3

NOISE AND VIBRATION

ESM1007
Sound pressure (Lpa) dB(A) 76
Acoustic power (Lwa) dB(A) 87
Uncertainty (K) dB(A) 3
Vibration	m/s2 5.5
Uncertainty (K) m/s	2 1.5

Wear hearing protection.

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

DESCRIPTION (FIG. A)

Your orbital sander has been designed for sanding wood, metal, plastics and painted surfaces.

1. On/off switch
2. Lock-on button
3. Speed adjustment wheel
4. Sanding pad
5. Main grip
6. Auxiliary grip
7. Dustbag connection

ASSEMBLY

Before assembly, always switch off the machine and remove the mains plug from the mains.

Mounting and removing the sanding paper (fig. B)

Mounting

• Mount sanding paper (8) with the required grain size onto the sanding pad (4). Make sure that the perforation in the sanding paper (8) corresponds with the perforation on the sanding pad (4).
• Use coarse sanding paper (grain 50) for sanding rough, uneven surfaces.
• Use medium sanding paper (grain 80) for removing the remaining scratches from the coarse sanding paper.
• Use fine sanding paper (grain 120) for finishing surfaces.

Removing

- Remove the sanding paper (8) from the sanding pad (4).

USE

Switching on and off (fig. A)

• To switch on the machine, press the on/off switch (1).
• To switch the machine to continuous mode, keep the on/off switch (1) pressed and simultaneously press the lock-on button (2).
• To switch off continuous mode, press the on/off switch (1) again.
• To switch off the machine, release the on/off switch (1).

Setting the speed (fig. A)

The speed adjustment wheel is used for setting the speed. The speed adjustment wheel can be set to 6 positions. The ideal speed depends on the required grain size and on the material to be worked.

Do not set the speed during use.

• Turn the speed adjustment wheel (3) to the required position.
• For hard materials, use sanding paper with a fine grain size and select a lower speed.
• For soft materials, use sanding paper with a coarse grain size and select a higher speed.

Dust extraction (fig. C)

• Insert the dustbag (9) into the dustbag connection (7).
• Turn the dustbag (9) clockwise until it locks into place.

Hints for optimum use

• Clamp the workpiece.
• Firmly hold the machine with both hands.
• Switch on the machine.
• Place the sanding pad with sanding paper on the workpiece.
• Slowly move the machine over the workpiece, firmly pressing the sanding pad against the workpiece.
• Do not apply too much pressure on the machine. Let the machine do the work.
• Switch off the machine and wait for the machine to come to a complete standstill before putting the machine down.

CLEANING AND MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the mains plug from the mains.

• Regularly clean the housing with a soft cloth.
• Keep the ventilation slots free from dust and dirt. If necessary, use a soft, moist cloth to remove dust and dirt from the ventilation slots.
• Regularly clean the sanding pad to avoid inaccuracies during use.

Replacing the sanding paper (fig. B)

• To remove the old sanding paper (8), proceed as described in the section "Mounting and removing the sanding paper".
• To mount the new sanding paper (8), proceed as described in the section "Mounting and removing the sanding paper".

Replacing the sanding pad (fig. D)

In case of wear, the sanding pad must be replaced.

• If necessary, remove the sanding paper.
• Loosen the screws (10) from the sanding pad (4).
• Remove the old sanding pad (4).
• Mount the new sanding pad (4).
• Tighten the screws (10) to the sanding pad (4).

WARRANTY

Consult the enclosed warranty terms.

ENVIRONMENT

Disposal

The product, the accessories, and the packaging must be sorted for environmentally friendly recycling.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

The product and the user manual are subject to change. Specifications can be changed without further notice.

EXZENTERSCHLEIFER ESM1007

BESCHRIJVING (FIG. A)

DECLARATION OF CONFORMITY

(GB) We declare under our sole responsibility that this product is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijk heid dat dit product voldoet aan, en in overeenstem ming is met, de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants:
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento:
(PT) Declaramos por nossa total responsabilida-de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem:
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti:
(SV) Vi garanterar på eget ansvar att denna produkt upp fyller och följer följande standarder och bestämmelser:
(FI) Vakuutamme yksinomaan omalla vastuullamme, että tämä tuote täyttää seuraavat standardit ja säädökset:
(NO) Vi erklærer under vårt eget ansvar at dette produktet er i samsvar med følgende standarder og regler:
(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser:
(HU) Felelősségünk teljes tudatában kijelentjük, hogy ez a termék teljes mértékben megfelel az alábbi szabványoknak és előírásoknak:
(CS) Na naši vlastní zodpovědnost prohlašujeme, že je tento výrobek v souladu s následujícími standardy a normami:

(SK) Vyhlasujeme na našu výhradnú zodpovednosť, že tento výrobok je v zhode a súlade s nasledujúcimi normami a predpismi:
(SL) S polno odgovornostjo izjavljamo, da je ta izdelek v skladu in da odgovarja naslednjim standardom terpredpisom:
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach:
(LT) Prisiimdami visą atsakomybę deklaruojame, kad šis gaminys atitinka žemiau paminėtus standartus arba nuostatus:
(LV) Apgalvojam ar visu atbildību, ka šis produkts ir saskaņā un atbilst sekojošiem standartiem un nolikumiem:
(ET) Deklareerime meie ainuvastutusel, et see toode on vastavuses ja kooskõlas järgmiste standardite ja määrustega:
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu următoarele standarde sau directive:
(HR) Izjavljujemo pod vlastitom odgovornošu da je strojem ukladan sa slijedešim standardima ili standardiziranim dokumentima i u skladu sa odredbama:
(SR) Pod punom odgovornošću izjavljujemo da je usaglašen sa sledećim standardima ili normama:
(RU) Под свою ответственность заявляем, что данное изделие соответствует следующим стандартам и нормам:
(UK) На свою власну відповідальність заявляемо, що дане обладнання відповідає наступним стандартам і нормативам:
(EL) Δηλώνουμε υπεύθυνα ότι προϊόν αυτό συμφωνεί και τηρεί τους παρακάτω κανονισμο ύς και πρότυπα:
(BG) Ние заявяваме, по своя собствена отговорност, че този продукт отговаря на следните стандарти и директиви

EN 55014-1, EN 55014-2, EN 60745-1, EN 60745-2-4, EN 61000-3-2, EN 61000-3-3

2006/42/EC, 2006/95/EC, 2004/108/EC, 2002/96/EC, 2002/95/EC

Zwolle, 01-01-2010

J.A. Bakker-van logen

CEO Ferm BV

It is our policy to continuously improve our products and we therefore reserve the right to change the product specification without prior notice.

Ferm BV • Lingenstraat 6 • 8028 PM • Zwolle The Netherlands

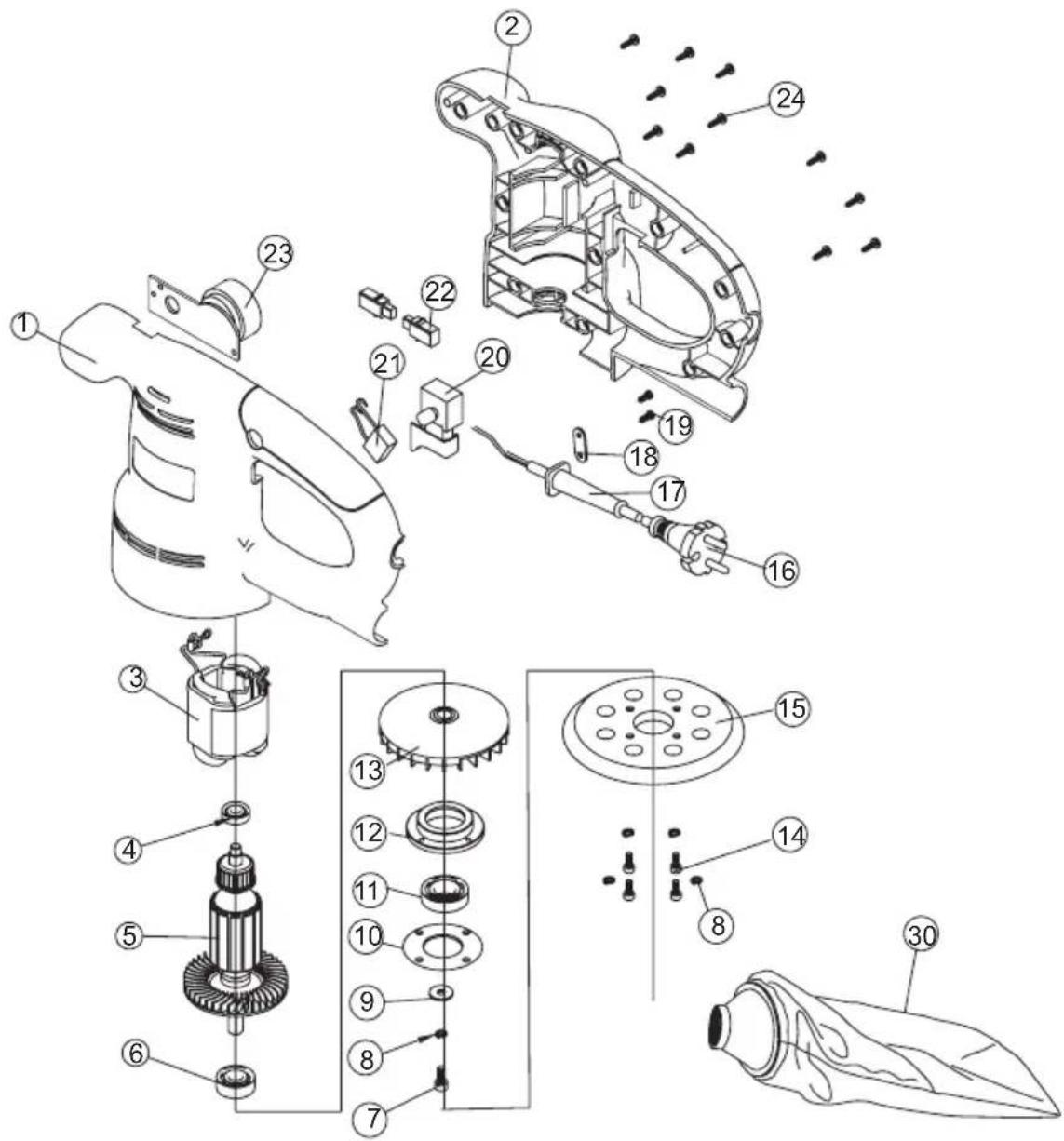

Spare parts list

Position Description No.
15 Base plate 408258
20 On/off switch 408216
22 Carbon brush (set) 408259
23 Speed adjuster	4	0
30 Dust bag 408260
