BSM1022 - Orbital sander Ferm - Free user manual and instructions

Brand	Ferm
Model	BSM1022
Product type	Belt sander
Power	950 W
Mains voltage	230 V ~
Frequency	50 Hz
No-load speed	400 min-1
Sanding belt size	75 x 533 mm
Sanding pad size	76 x 135 mm
Weight	3.65 kg
Protection class	IP20
Double insulation	Yes
Sound pressure level	92 dB(A)
Sound power level	106 dB(A)
Vibration (main handle)	1.90 m/s²
Vibration (auxiliary handle)	2.4 m/s²
Main functions	On/off switch, continuous locking, belt centering, dust extraction
Included accessories	Dust bag
Maintenance	Regular cleaning of the housing and ventilation slots, replacement of carbon brushes and sanding belt
Safety	Wear protective goggles, hearing protection and dust mask recommended; double insulation
Spare parts available	Carbon brushes

Frequently Asked Questions - BSM1022 Ferm

How do I change the sanding belt on the Ferm BSM1022 belt sander?

Place the machine on its side, belt cover downwards. Release the clamping lever, remove the old belt, install the new belt following the arrow direction, tighten the lever. Check the centering.

How do I center the sanding belt?

Turn the centering knob: clockwise to move the belt inward, counterclockwise to move it outward, until it is parallel to the housing.

Can the sander be used for wet sanding?

No, the machine is designed only for dry sanding. Wet use can damage the tool and poses a risk of electric shock.

What belt grits to use for different jobs?

Use coarse grit (50) for uneven surfaces, medium (80) for scratches, and fine (120) for finishing. Adjust the grit to the material (wood, metal, plastic).

How do I replace the carbon brushes?

Remove the brush holders with a screwdriver, clean the brushes. If they are worn, replace both at the same time. After replacement, let the machine run idle for 15 minutes.

What are the essential safety precautions?

Wear protective goggles, hearing protection and a dust mask. Hold the machine by the insulated handles. Secure the workpiece. Unplug before maintenance.

How do I clean the sander?

Unplug the tool. Clean the housing with a soft cloth. Clear dust from ventilation slots. Clean the pad and belt rollers regularly.

What to do if the belt slips or does not turn?

Check that the belt is correctly mounted and centered, and that the clamping lever is tightened. If the problem persists, check the condition of the carbon brushes.

Can the sander be used on metal?

Yes, it is suitable for sanding metal. Use appropriate belts and wear a dust mask due to metal particles.

How do I install and use the dust bag?

Insert the dust bag into its connector on the machine. Make sure it is securely attached. Empty it regularly to maintain good suction.

USER MANUAL BSM1022 Ferm

BELT SANDER BSM1022

Thank you for buying this Ferm product.

By doing so you now have an excellent product, delivered by one of Europe's leading suppliers.

All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive warranty. We hope you will enjoy using this product for many years to come.

SAFETY WARNINGS

WARNING

Read the enclosed safety warnings, the additional safety warnings and the instructions.

Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury.

Keep the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Risk of personal injury.

Risk of electric shock.

Immediately remove the mains plug from the mains if the mains cable becomes damaged and during cleaning and maintenance.

Wear safety goggles. Wear hearing protection.

Wear a dust mask.

Double insulated.

Do not dispose of the product in unsuitable containers.

The product is in accordance with the applicable safety standards in the European directives.

Additional safety warnings for belt sanders

Contact with or inhalation of dust coming free during use (e.g. lead-painted surfaces, wood and metal) can endanger your health and the health of bystanders. Always wear appropriate protective equipment, such as a dust mask. Always use proper dust extraction during use.

• Do not work materials containing asbestos. Asbestos is considered carcinogenic.
• Do not use the machine for sanding magnesium workpieces.
• Do not use the machine for wet sanding.
• Be very careful when sanding painted surfaces.
• Wear safety goggles, hearing protection and if necessary other protective means, such as safety gloves, safety shoes, etc.
  • Always hold the machine with two hands.
• Hold the machine by the insulated gripping surfaces where the accessory may contact hidden wiring or the mains cable. If the accessory contacts a 'live' wire, the exposed metal parts of the machine can also become 'live'. Risk of electric shock.
• Before use, remove all nails and other metal objects from the workpiece.
• Make sure that the workpiece is properly supported or fixed.
• Only use sanding belts that are suitable for use with the machine.
• Only use sanding belts with the correct dimensions. Make sure that the sanding belt is properly mounted.
• Inspect the sanding belt before each use. Do not use sanding belts that are worn because of prolonged use.
• Never put the machine down on a table or a workbench before it has been switched off.

Electrical safety

Always check that the voltage of the power supply corresponds to the voltage on the rating plate.

• Do not use the machine if the mains cable or the mains plug is damaged.
• Only use extension cables that are suitable for the power rating of the machine with a minimum thickness of 1.5 mm^2 . If you use a extension cable reel, always fully unroll the cable.

Mains plug replacement (UK only)

If the moulded 3-pin plug attached to the unit is damaged and needs replacing, it is important that it is correctly destroyed and replaced by an approved BS 1363/5A fused plug and that the following wiring instructions are followed.

The wires in the mains cable are coloured in accordance with the following code: blue neutral brown live

As the colours of the wires in the mains cable of the unit may not correspond to the coloured markings identifying the terminals in the plug, proceed as follows:

• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

TECHNICAL DATA

BSM1022
Mains voltage V~ 230
Mains frequency Hz 50
Power input W 950
No-load speed min	-1 400
Sanding belt size mm 75 x 533
Sanding pad size mm 76 x 135
Protection class IP 20
Weight kg 3.65

NOISE AND VIBRATION

BSM1022
Sound pressure (Lpa) dB(A) 92
Acoustic power (Lwa)	dB(A) 106
Uncertainty (K)	dB(A) 3
Vibration (main grip)	m/s2 1.90
Vibration (auxiliary grip)	m/s2 2.4
Uncertainty (K) m/s	2 1.5

Wear hearing protection.

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of

exposure to vibration when using the tool for the applications mentioned

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

DESCRIPTION (FIG. A)

Your belt sander has been designed for rough sanding applications on wood, metal, plastics and painted surfaces.

1. On/off switch
2. Lock-on button
3. Sanding pad
4. Sanding belt roller
5. Clamping lever for sanding belt
6. Centring knob for sanding belt
7. Main grip
8. Auxiliary grip
9. Dustbag connection
10. Carbon brush holder
11. V-belt cover

ASSEMBLY

Before assembly, always switch off the machine and remove the mains plug from the mains.

Mounting and removing the sanding belt (fig. A & B)

Mounting

• Place the machine on its side with the V-belt cover (11) facing downwards.
• Release the clamping lever (5).
• Mount a sanding belt (12) with the required grain size around the sanding pad (3) and the sanding belt rollers (4). Make sure that the arrow on the inside of the sanding belt points in the same direction as the arrow on the housing.
• Use a coarse sanding belt (grain 50) for sanding rough, uneven surfaces.
• Use a medium sanding belt (grain 80) for removing the remaining scratches from the

coarse sanding belt.

- Use a fine sanding belt (grain 120) for finishing surfaces.

• Make sure that the sanding belt (12) is straight and centred around the sanding pad (3) and the sanding belt rollers (4).
• Tighten the clamping lever (5).

Removing

• Place the machine on its side with the V-belt cover (11) facing downwards.
• Release the clamping lever (5).
• Remove the sanding belt (12).
• Tighten the clamping lever (5).

Centring the sanding belt (fig. B)

If the sanding belt does not run parallel with the outer edge of the housing, the sanding belt must be centred.

• Turn the centring knob (6) clockwise to move the sanding belt (12) to the inside.
• Turn the centring knob (6) counterclockwise to move the sanding belt (12) to the outside.

USE

Switching on and off (fig. A)

• To switch on the machine, press the on/off switch (1).
• To switch the machine to continuous mode, keep the on/off switch (1) pressed and simultaneously press the lock-on button (2).
• To switch off continuous mode, press the on/off switch (1) again.
• To switch off the machine, release the on/off switch (1).

Dust extraction (fig. C)

- Insert the dustbag (13) into the dustbag connection (9).

Hints for optimum use

• Clamp the workpiece.
• Hold the machine with one hand on the main grip and the other hand on the auxiliary grip.
• Switch on the machine.
• Place the sanding belt on the workpiece.
• Slowly move the machine over the workpiece, firmly pressing the sanding belt against the workpiece.
• Do not apply too much pressure on the machine. Let the machine do the work.
• Switch off the machine and wait for the machine to come to a complete standstill before putting the machine down.

CLEANING AND MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the mains plug from the mains.

• Regularly clean the housing with a soft cloth.
• Keep the ventilation slots free from dust and dirt. If necessary, use a soft, moist cloth to remove dust and dirt from the ventilation slots.
• Regularly clean the sanding pad and the sanding belt rollers to avoid inaccuracies during use.

Replacing the sanding belt (fig. B)

• To remove the old sanding belt (12), proceed as described in the section "Mounting and removing the sanding belt".
• To mount the new sanding belt (12), proceed as described in the section "Mounting and removing the sanding belt".

Checking and replacing the carbon brushes (fig. A)

The carbon brushes must be checked regularly. If the carbon brushes are worn, the machine will start to run unevenly.

Only use the correct type of carbon brushes.

• Remove the carbon brush holders (10) using a screwdriver.
• Clean the carbon brushes.
• In case of wear, replace both carbon brushes at the same time.
• Mount the carbon brush holders (10) using a screwdriver.
• After mounting the new carbon brushes, let the machine run at no load for 15 minutes.

WARRANTY

Consult the enclosed warranty terms.

ENVIRONMENT

Disposal

The product, the accessories, and the packaging must be sorted for environmentally friendly recycling.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

The product and the user manual are subject to change. Specifications can be changed without further notice.

BANDSCHLEIFER BSM1022

BESCHRIJVING (FIG. A)

DECLARATION OF CONFORMITY

FDHD-1100

(GB) We declare under our sole responsibility that this product is in conformity and accordance with the following standards and regulations:
(D) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijk heid dat dit product voldoet aan, en in overeenstem ming is met, de volgende standaarden en reguleringen:
(F) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants:
(E) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento:
(P) Declaramos por nossa total responsabilida-de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem:
(I) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti:
(S) Vi garanterar på eget ansvar att denna produkt upp fyller och följer följande standarder och bestämmelser:
(FIN) Vakuutamme yksinomaan omalla vastuullamme, että tämä tuote täyttää seuraavat standardit ja säädökset:
(N) Vi erklærer under vårt eget ansvar at dette produktet er i samsvar med følgende standarder og regler:
(DK) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser:
(H) Felelősségünk teljes tudatában kijelentjük, hogy ez a termék teljes mértékben megfelel az alábbi szabványoknak és előírásoknak:

(CZ) Na naši vlastní zodpovědnost prohlašujeme, že je tento výrobek v souladu s následujícími standardy a normami:
(SK) Vyhlasujeme na našu výhradnú zodpovednosť, že tento výrobok je v zhode a súlade s nasledujúcimi normami a predpismi:
(SLO) S polno odgovornostjo izjavljamo, da je ta izdelek v skladu in da odgovarja naslednjim standardom terpredpisom:
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach:
(LT) Prisiimdami visą atsakomybę deklaruojame, kad šis gaminys atitinka žemiau paminėtus standartus arba nuostatus:
(LV) Apgalvojam ar visu atbildību, ka šis produkts ir saskaņā un atbilst sekojošiem standartiem un nolikumiem:
(EST) Deklareerime meie ainuvastutusel, et see toode on vastavuses ja kooskõlas järgmiste standardite ja määrustega:
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu următoarele standarde sau directive:
(HR) Izjavljujemo pod vlastitom odgovornoLšu da je strojem ukladan sa slijedešim standardima ili standardiziranim dokumentima i u skladu sa odredbama:
(SB) Pod punom odgovornošću izjavljujemo da je usaglašen sa sledećim standardima ili normama:
(RUS) Под свою ответственность заявляем, что данное изделие соответствует следующим стандартам и нормам:
(UA) На свою власну відповідальність заявляемо, що дане обладнання відповідає наступним стандартам і нормативам:
(GR) Δηλώνουμε υπεύθυνα ότι προϊόν αυτό συμφωνεί και τηρεί τους παρακάτω κανονισμο ύς και πρότυπα:

EN 55014-1, EN 55014-2, EN 60745-1, EN 60745-2-4,

EN 61000-3-2, EN 61000-3-3

2006/42/EC, 2006/95/EC, 2004/108/EC, 2002/96/EC, 2006/95/EC

Zwolle, 01-01-2010

Bakker-van Ingen

CEO Ferm BV

It is our policy to continuously improve our products and we therefore reserve the right to change the product specification without prior notice.

Ferm BV • Lingenstraat 6 • 8028 PM • Zwolle The Netherlands

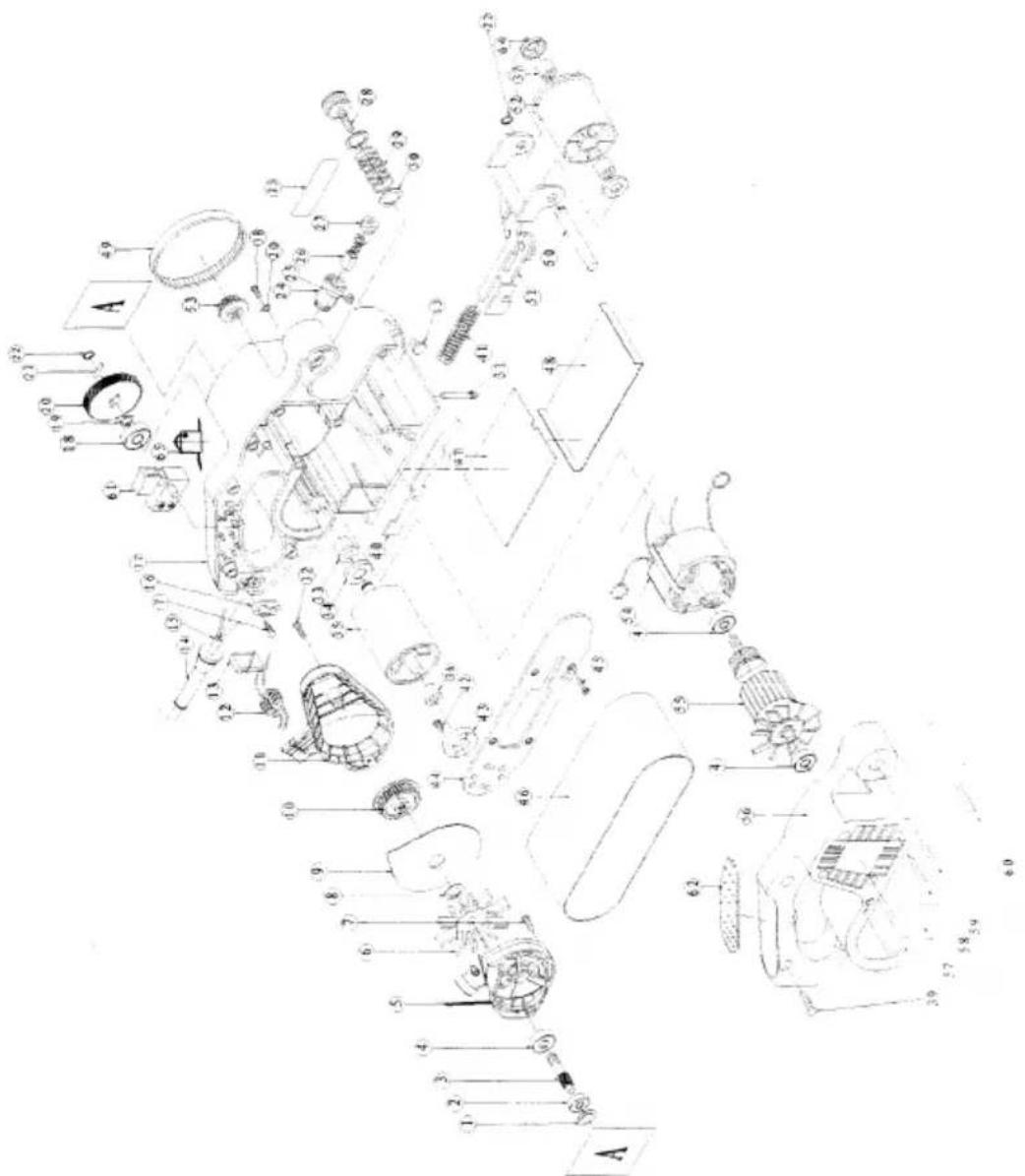

Exploded view

Spare parts list

No.	Description Position
409290	Middle cover 5
409291	Fan 6
409232	Carbon brush (set) 26
409233	Adjusting knob 28 TILL 30
409234	Rear wheel 35
409235	Bottom plate 48
409226	Driving belt 106XL-031 49
409251	Rotor 55
409237	Switch 61
409238	Dustbag -
