Product type	Cordless 2-in-1 vacuum cleaner (stick + handheld)
Brand	Grundig
Model	VCH 9832
Power supply	Mains charger 100-240 V~, 50/60 Hz, 0.5 A
Output voltage	27 V
Output power	13.5 W
Filter	Washable EPA E10 (H10), captures 99.9% of particles >0.1-0.3 µm
Included accessories	Turbo brush, dusting brush, furniture brush, charging station with storage compartment
Indicators	Charging LED, power indicator
Speed adjustment	Speed adjustment button (modes)
Usage modes	Stick vacuum or handheld vacuum (detachable)
Use	Household use only, commercial use voids warranty
Safety	Disconnect before cleaning; do not use without filter; do not use on wet surfaces or wet objects
Maintenance	Removable dust tank, water-washable filter
Charger efficiency	88.10% at full load, 81.41% at low load
No-load consumption of charger	0.068 W
Accessory compatibility	Use exclusively original Grundig accessories
Minimum user age	8 years and older under supervision
Storage	Disconnect and store out of reach of children
Transport	Keep original packaging for transport

Frequently Asked Questions - VCH 9832 GRUNDIG

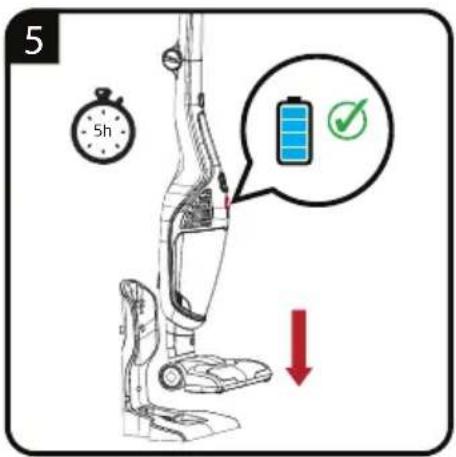

How do I charge the Grundig VCH 9832 vacuum cleaner?

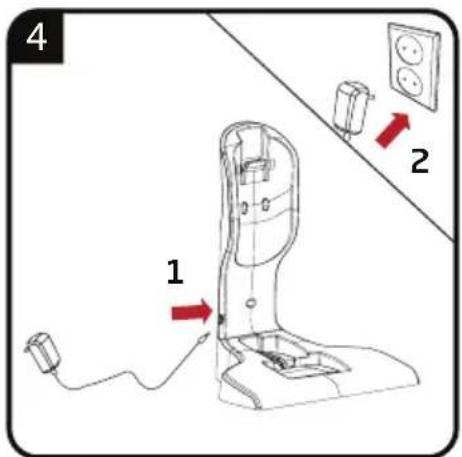

Plug the charger (JOD-S-270050GS) into a 100-240 V~ wall outlet and connect it to the charging unit of the vacuum cleaner. The charging LED indicates the status. Unplug after full charge.

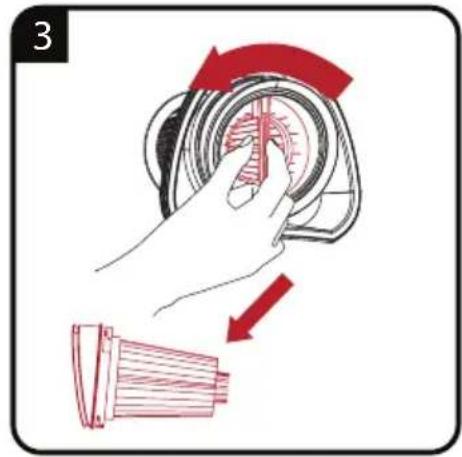

How do I clean the EPA E10 filter?

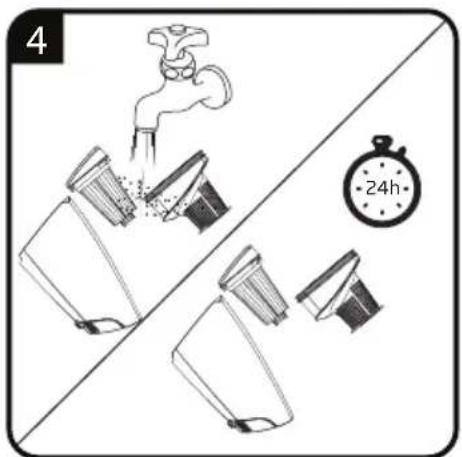

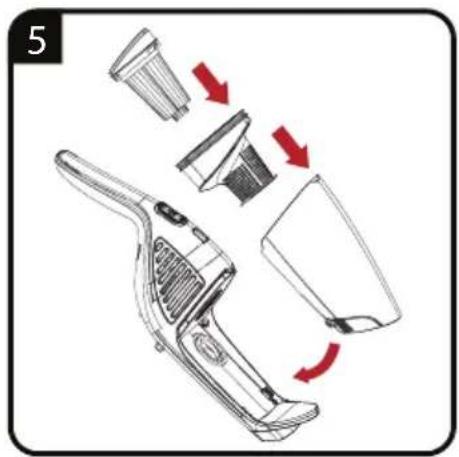

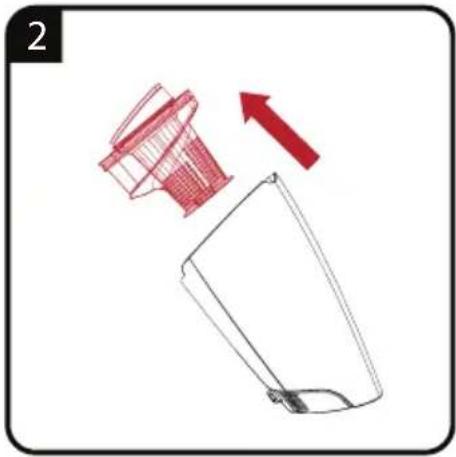

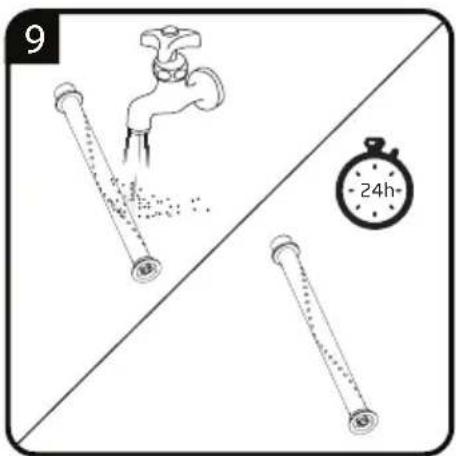

The EPA E10 filter is washable. Remove the dust tank, take out the filter and rinse it with cold water. Let it dry completely before putting it back. Replace it if damaged.

How do I empty the dust tank?

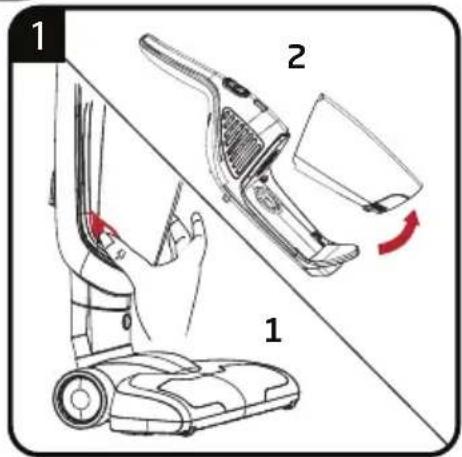

Press the dust tank release button (at the bottom of the device), empty the contents into a trash bin. You can clean the tank with a damp cloth if necessary.

Can I use the vacuum cleaner on carpets and rugs?

Yes, the vacuum cleaner is equipped with a turbo brush suitable for hard floors and carpets. For thick rugs, use the furniture brush or reduce power.

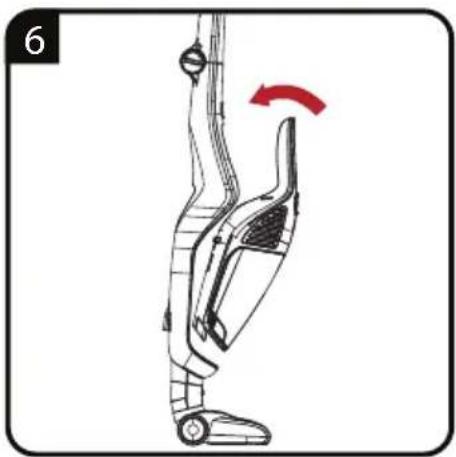

How do I switch from stick mode to handheld mode?

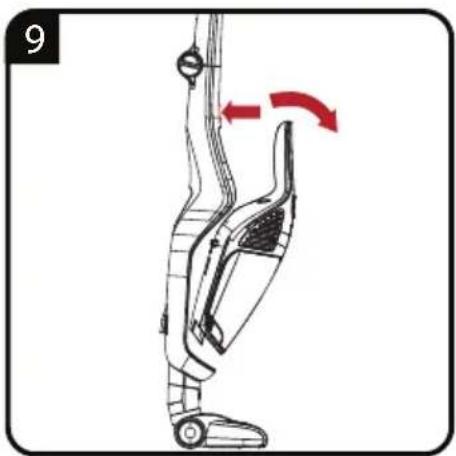

Press the cordless vacuum release button (E) located on the handle, then remove the handheld vacuum. Reverse the operation to put it back.

What does EPA E10 mean?

EPA E10 is a high-efficiency filter that captures 99.9% of dust particles ranging from 0.1 to 0.3 micrometers, including viruses, pollen, dust mites, etc.

What are the important safety precautions?

Never use without filter, on wet surfaces, or with wet hands. Disconnect before cleaning. Do not use on cigarette butts or hot ashes. Keep out of reach of children.

Can I use the vacuum cleaner to suck up liquids?

No, the vacuum cleaner is designed for dry dirt and dust only. Never vacuum liquids, as this would damage the device and void the warranty.

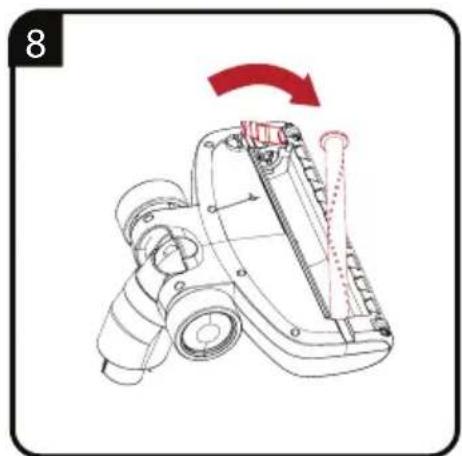

How do I maintain the turbo brush?

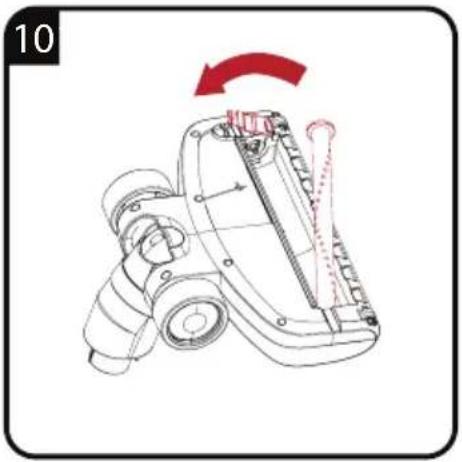

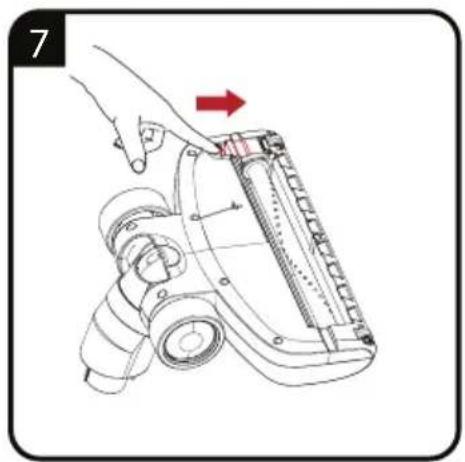

Remove the turbo brush by pressing the button (J). Clean the bristles and remove tangled hair or threads with scissors. It can be slightly dampened, but not machine washed.

What should I do if the vacuum cleaner does not turn on?

Check that the battery is charged (plug in the charger). If the indicator does not light up, try a different outlet. If the problem persists, contact Grundig customer service.

USER MANUAL VCH 9832 GRUNDIG

2 In 1 Cordless Stick Vacuum Cleaner

User Manual

Two abstract geometric patterns: a woven bamboo design and a square with circular motifs (no text or symbols)

VCH 9832

Illustration of various electronic components including a switch, battery pack, and paperclip (no text or symbols)

Diagram of a robotic vacuum cleaner with directional arrows indicating motion (no text or symbols)

Line drawing of a mechanical device with a red arrow indicating downward motion (no text or symbols)

Diagram of a person's lower body with a red directional arrow indicating motion (no text or symbols)

Diagram showing a red arrow pointing to a red wireframe object inside a container (no text or symbols)

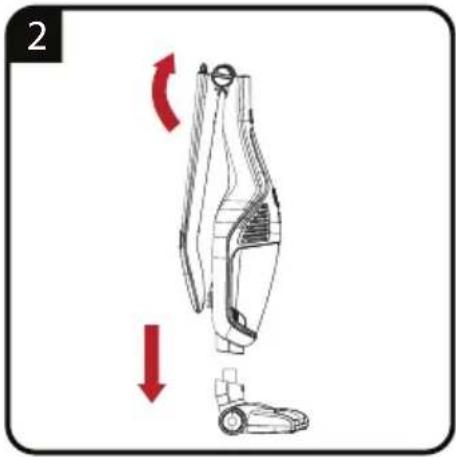

Diagram of a hand-operated vacuum cleaner with red arrows indicating motion (no text or symbols)

Diagram of a robotic vacuum cleaner with a red curved arrow indicating motion (no text or symbols)

Line drawing of a hand using a vacuum cleaner to clean or adjust the component (no text or symbols present)

Mechanical assembly diagram showing a motor or gearbox with a red arrow indicating rotation (no text or symbols present)

Mechanical diagram showing a vehicle with a red arrow indicating rotation or motion, no text or symbols present

Illustration of a robotic vacuum cleaner with red motion arrows and a close-up of its open button (no text or symbols)

DE	BETRIEB REINIGUNG UND PFLEGE
EN	OPERATION CLEANING AND CARE
TR	KULLANIM TEMİZLEME VE BAKIM
ES	FUNCIONAMIENTO LIMPIEZA Y CUIDADOS
FR	FONCTIONNEMENT NETTOYAGE ET ENTRETIEN
HR	RAD ČIŠĆENJE I ODRŽAVANJE
PL	OBSŁUGA CZYSZCZENIE I KONSERWACJA
SV	ANVÄNDNING RENGÖRING OCH SKÖTSEL
NO	DRIFT RENGJ∅RING OG PLEIE
FI	KÄYTTÖ ČIŠĆENJE I ODRŽAVANJE
DA	BETJENING RENG∅RING OG VEDLIGEHOLDELSE

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damages due to improper use!

Keep the instruction manual for future reference. Should this appliance be given to a third party, then this instruction manual must also be handed over.

■ Always keep hair, clothing and any other utensils away from the appliance during operation in order to prevent injury and damages.

■ The appliance is designed for domestic use only. Warranty will be voided if the appliance is used for industrial or commercial purposes.

- Observe these instructions in order to prevent damage to the appliance or danger arising from improper use.

■ Do not use on wet surfaces and do not attempt to use on wet objects.

■ Do not use the appliance in wet surroundings.

■ Do not use the appliance with wet hands.

■ This appliance is designed for vacuuming dirt and dust particles. Do not attempt to use it on large objects which could block and damage the appliance.

■ Do not use to clean cigarette stubs, ash from a fireplace or matches. This could cause a fire.

■ This appliance is not designed for cleaning people or animals.

■ Do not insert any foreign objects into the suction intake. Always keep the suction intake free of all objects.

■ Never operate the appliance without the filter.

■ Clean the filter when necessary.

■ Only use original GRUNDIG accessories when replacing parts.

■ Check if the mains voltage on the rating label corresponds to your local mains supply.

■ Always pull out the power cord after the charging process, before cleaning or carrying out any maintenance on the appliance or the charging unit.

■ Avoid using extension cables or multipoint connectors. Plug the appliance directly in a wall socket if possible.

■ For additional protection, this appliance should be connected to a household residual current device with a maximum rating of 30 mA. Consult your electrician for advice.

■ Do not disconnect the plug by pulling on the cable.

■ Never use the appliance if it or the power cord is visibly damaged. This also applies if the appliance has accidentally become wet. Please contact a service centre in this case.

- Our GRUNDIG Household Appliances meet all applicable safety standards; thus if the appliance or the power cord is damaged, it must be replaced by the dealer, a service centre or a similarly qualified and authorised service person to avoid any danger arising. Faulty or unqualified repair work may cause danger and risk to the user.

- Keep the appliance away from children.

■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

■ Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage resulting from improper handling.

■ Do not use the appliance if the air duct and the ventilation slot are blocked. Always keep the air duct and ventilation slot free of dirt, hair and any other elements which could obstruct or block the air flow.

■ Only use the power cord provided.

Dear Customer,

Congratulations on the purchase of your new GRUNDIG 2 in 1 rechargeable vertical vacuum cleaner VCH 9832.

Please read the following user notes carefully so that you can enjoy your quality Grundig product for many years to come.

A responsible approach!

GRUNDIG focuses on contractually agreed social working conditions with fair wages for both internal employees and suppliers, as well as on the efficient use of raw materials with continual

waste reduction of several tonnes of plastic each year – and availability of at least 5 years for all accessories.

For a future worth living. For a good reason. Grundig.

EPA E10 filter

EPA E10 stands for High Efficiency Particulate Air. EPA E10 filters are particulate air filters, which filter more than 99.9% of all dust particles larger than 0.1 to 0.3 micrometres out of the air. Viruses, respirable dusts, mite eggs and mite excrement, pollen, smoke particles, asbestos, bacteria, diverse toxic dusts and aerosols are removed from the air.

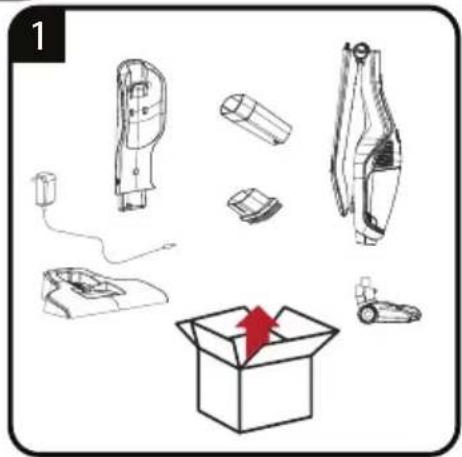

Extra accessories:

■ Washable EPA E10 H10 filter
■ Dust brush suitable for the cleaning of curtains, and sensitive and fragile objects
■ Upholstery tool for floors, stairs, cars, sofas and armchairs
■ Charging station with accessory compartment

Controls parts

See image on page 3.

A Stick vacuum cleaner handle

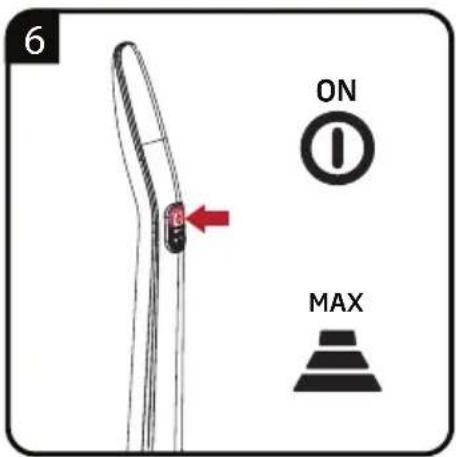

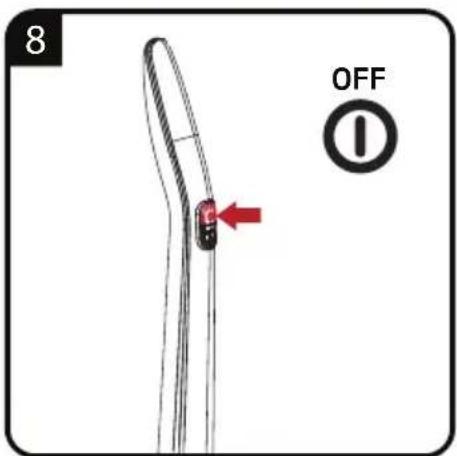

B Stick vacuum cleaner on/off button

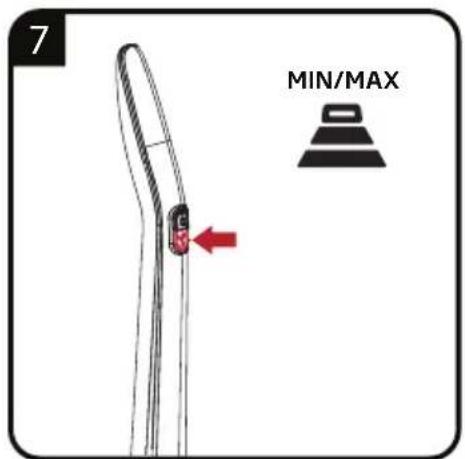

C Speed adjustment button
D Handle collapsing button
E Cordless vacuum cleaner removal button
F Cordless vacuum cleaner handle

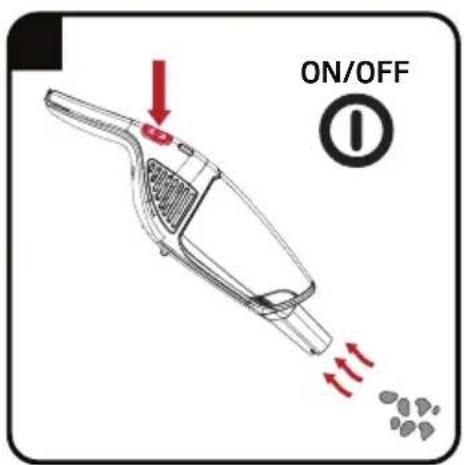

G Cordless vacuum cleaner on/off button
H LED light and charging indicator
I Dust container
J Turbo brush removal button
K Turbo brush
L Charging unit
M Power indicator
N Accessory storage compartment
Dust container removal button

Usage areas of accessories

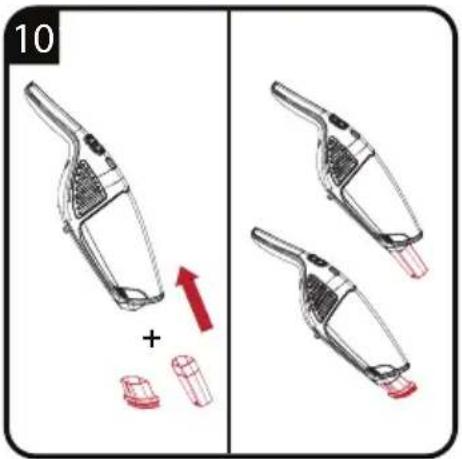

Dust brush: Suitable for cleaning the curtains, and sensitive and fragile objects.

Upholstery tool: Suitable for cleaning the floorings, stair steps, inside of the cars, sofas, armchairs etc.

Cleaning and care

Switch off and unplug the appliance, before cleaning it.

Warning

7 Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

Storage

7 If you do not intend to use the appliance for a long time, store it carefully.
7 Unplug the appliance.
^7 Keep the appliance out of the reach of children.

Handling and transportation

7 During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
7 Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
7 Dropping the appliance may render it non-operational or cause permanent damage.

Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Package of the product is made of recyclable materials in accordance with our National Legislation. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

Parameter of External Power Supply

Manufacturer : Shenzhen Jodeway Technology Co., Ltd

Model Identifier : JOD-S-270050GS

Output Current : 0.5A

Output Power : 13.5W

Average active efficiency : 88.10%

Efficiency at low load(10%) : 81.41%

No-load power consumption : 0.068W

Technical and design modifications reserved!
