Product Type	Sandwich Toaster
Power Rating	750 W
Voltage	230 V ~ 50 Hz
Protection Class	I
Non-Stick Coating	Yes
Indicator Lights	Red (power), Green (ready)
Lid Lock	Yes
Cable Storage	Yes, on bottom
Moulds	2 sandwich slots
Browning Adjustment	By toasting time (4–8 min)
Intended Use	Private households, sandwiches only
Cleaning Method	Wipe with damp cloth; do not immerse
Safety Features	Hot surface warning, lid handle, automatic temperature control
First Use	Heat empty for 10–15 min to burn off residues
Warranty	3 years from purchase

Frequently Asked Questions - SSWMD 750 A1 SILVERCREST

How do I use the sandwich maker for the first time?

Before first use, heat the empty appliance for 10–15 minutes to evaporate protective oils. Allow it to cool, then clean the plates with a damp cloth.

How long does it take to toast sandwiches?

Typically 4–8 minutes depending on bread thickness and desired browning. The green indicator light goes off during toasting and comes back on when ready to check.

Can I use metal utensils on the non-stick plates?

No, only wooden or heat-resistant plastic utensils. Metal may damage the non-stick coating.

How do I clean the sandwich maker?

Unplug and let it cool completely. Wipe the interior and exterior with a soft, damp cloth. Use a little mild detergent if needed, then rinse with clean water. Never immerse in water.

What should I do if the appliance doesn't heat up?

Check that the mains plug is fully inserted and the socket is working. The red indicator light should be on. If not, contact the service centre.

Can I make other foods besides sandwiches?

No, the appliance is intended solely for toasting sandwiches. Other foods may cause damage or uneven cooking.

Is it safe to leave the appliance unattended while toasting?

No, never leave it unsupervised. If a fault occurs, you need to intervene promptly. Always unplug after use.

How do I lock the lid?

Close the lid fully and push the lock down until it snaps into position. To open, pull the lock up.

What is the warranty period and how do I claim?

The warranty is 3 years from purchase. Keep your till receipt. Contact the service centre by phone or email, then send the defective product with proof of purchase.

Can I store the cable?

Yes, the appliance has a cable store on the bottom. Wind the cable and secure it for compact storage.

USER MANUAL SSWMD 750 A1 SILVERCREST

Color palette bar with grayscale shades and a crosshair symbol (no text or labels)

SILVER CREST®

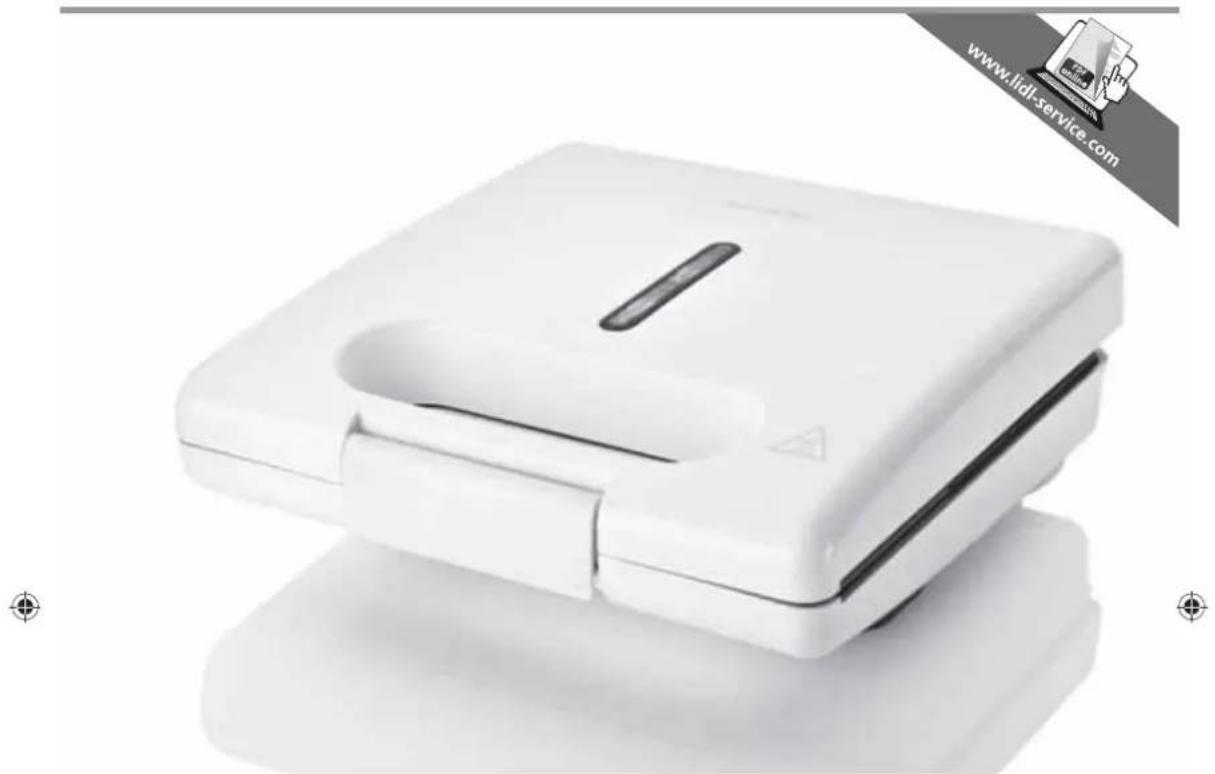

White electronic device with a black handle and display screen, placed on a reflective surface (no visible text or symbols)

SANDWICH TOASTER SSWMD 750 A1

GB IE

SANDWICH TOASTER

Operating instructions

SE

SMÖRGÅSGRILL

Bruksanvisning

DE AT CH

SANDWICHMAKER

Bedienungsanleitung

FI

VOILEIPÄGRILLI

Käyttöohje

DK

SANDWICHMAKER

Be sure to note the fold-out page.

Suomi 12

Huomioi taittosivu

Svenska 22

Beakta utvikssidan

Dansk 31

1. Device description .... 2
2. Part names (see foldout page) 3
3. Technical data.... 3
4. Safety information 3
5. Before using for the first time....6
6. Preparing sandwiches....7
7. Cleaning....8
8. Recipes.... 8
9. Disposal....9
10. HOYER Handel GmbH Warranty.... 10

Congratulations on the purchase of your new product.

You have selected a high-quality product. The operating instructions are a constituent part of this product. They contain important information about safety, use and disposal.

Familiarize yourself with all the operating and safety instructions before using the product. Use the product only as described and for the stated spheres of application.

If you pass the product on to a third party, always pass on all the documentation as well.

1. Device description

1.1 Intended purpose

The SilverCrest SSWMD 750 A1 sandwich maker is suitable for preparing sandwiches. The preparation of other foods is not permissible.

Only use the sandwich maker indoors, never outside.

This product is intended for use in private households and is not suitable for commercial purposes.

The appliance is likewise suitable for:

• use in staff kitchens in shops, offices and other commercial areas,
  • use in agricultural settings,

• customers in hotels, motels and other accommodation,
  • bed-and-breakfast establishments.

1.2 Scope of supply

• 1 Sandwich maker
- 1 Set of user instructions

1.3 Symbols on the appliance

Symbol 6 Location Meaning
	Lid 3 Warns against hot surfaces

2 GB

2. Part names (see foldout page)

1 Red indicator light

- comes on when the appliance is connected to the mains supply

2 Green indicator light

- comes on as soon as the temperature for toasting has been reached

3 Lid

4 Lid handle

5 Lock

6 Warning symbol "Warns against hot surfaces"

7 Moulds

- into which the prepared sandwiches are inserted

8 Cable store (on the bottom)

3. Technical data

Power supply: 230 V

\~/50 Hz

Rated power: 750 W

Protection class: I

C ∈

4. Safety information

4.1 Explanation of terms

The following keywords are used in these user instructions:

Warning!

High risk: ignoring this warning could result in a risk to life and limb.

Caution!

Medium risk: ignoring this warning may result in damage.

Note:

Low risk: points to be noted when handling the appliance.

4.2 Special informations for this appliance

Warning! To avoid injury, please observe the following information.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

SSWMD 750 A1 3

GB

Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
  • The surfaces of the appliance can get hot. You should therefore only hold the appliance by the lid handle 4 when in use.
  • Always remove the plug from the mains socket before starting to clean the appliance.
• Never immerse the appliance in water, and protect it from splashes and water droplets.
• Before cleaning, allow the appliance to cool down to avoid the risk of burns.

Caution! To avoid material damage, please observe the following conditions.

• Never use abrasive, corrosive or caustic cleaning materials. These could damage the appliance as well as the non-stick coating.
  • The appliance must not be operated with an external time switch or separate remote control system, such as a wireless remote control socket.

4.3 General information

• Please read these user instructions carefully before use. They are a constituent part of the appliance and must be kept to hand at all times.
• Use the appliance only for the purpose described (see "1.1 Intended purpose" on page 2).
• To prevent damage, check that the mains voltage required (see type plate on the appliance) is compatible with your mains voltage.
• Please note that any claim under the warranty or for liability will be invalid if accessories are used that are not recommended in these user instructions, or if original spare parts are not used for repairs. This also applies to repairs undertaken by unqualified persons. You will find the service address in "Service Centre" on page 11.
• If the appliance should develop a fault during the warranty period, it may only be repaired by our Service Centre. Otherwise all claims under warranty are null and void. You will find the service address in "Service Centre" on page 11.
  • To ensure you can intervene promptly if a fault occurs, never leave the appliance unsupervised during operation.
• Check that the power socket is easily accessible since the appliance does not have an On/Off switch.

4.4 Protection against electric shock

Warning! The following safety information is intended to protect you against electric shock.

- The appliance must not under any circumstances be used if it is damaged. Have the device repaired in such cases

by a qualified specialist. You will find the service address in "Service Centre" on page 11.

- If the mains cable for this appliance is damaged, it must be replaced by the manufacturer or a person with similar qualifications in order to avoid a hazard.

• Water or other liquids must never be allowed to enter the appliance. For this reason:

• never use it outdoors
• never immerse it in liquids
• never place liquid-filled objects, e.g. pans, on the appliance
• never use in very humid environments.

If liquid should enter the appliance, unplug the mains plug immediately and have the appliance repaired by a qualified technician. You will find the service address in "Service Centre" on page 11.

• The appliance must be connected up to a mains socket with earthing contact.

• Avoid using extension cables. An extension cable may only be used under very specific conditions:

• the extension cable must be suitable for the current rating of the appliance;

• the extension cable must be routed across surfaces or the floor (not allowed to hang in mid air); ensure the cable is out of the reach of children and does not pose a tripping hazard;
• never use a damaged extension cable;
• do not connect any other appliances to the mains socket as this could overload the mains supply (do not use multi-sockets).

- Do not touch the appliance, the mains cable or the mains plug with wet hands.

• Always unplug the mains cable by pulling out the plug. Never pull on the cable to remove the plug.
- Never carry the appliance by the mains cable.
- Ensure that the mains cable is not kinked, twisted or crushed.
- Fully unwind the mains cable during use to avoid overheating and scorching.
- Keep the mains cable away from hot surfaces, such as cooker hotplates.
- If you are not going to use the appliance for a while, remove the plug from the wall socket. This is the only way to ensure that the machine is completely free of current.

4.5 Protection against the danger of fire

Warning! As the appliance works at high temperatures, please observe the following safety information to prevent fire.

• The appliance may only be used on a firm, level, dry and non-flammable surface. This will prevent it from tipping over, sliding or setting fire to the surface and causing damage.
• Maintain a distance of at least 50 cm from other objects to prevent them from catching fire.

4.6 Protection against injury

Warning! To avoid injury, please observe the following information.

• Please note that hot steam may escape from the sides of the appliance while the sandwiches are toasting.
  • Take care when removing the toasted sandwiches - they are also very hot.

• Do not move the appliance during use as it becomes hot. This will ensure you avoid sustaining any burns.
  • Always allow the appliance to cool down before transporting or cleaning.
• Ensure that it is not possible for anyone to trip over or to get caught up in or step on the mains cable and injure themselves.

4.7 For the safety of your child

Warning! Children are often unaware of danger and are injured as a result. Please note therefore:

• Only allow children to use this appliance under the supervision of an adult.
• Ensure the appliance is always kept out of the reach of children.
• Ensure that children cannot pull the appliance down onto themselves with the cable.
• Ensure that the packing foil does not become a deadly trap for a child. Packing foils are not toys.

4.8 Material damage

Caution! To avoid material damage, please observe the following conditions.

• The appliance must not be placed on hot stoves, put in a hot oven or set up in the vicinity of gas heaters and on-demand water heaters, as this could cause damage.
• Only use implements made from wood or heat-resistant plastic. Metal implements may damage the coated surfaces.
• Surface cleaners (furniture and work surfaces) may contain ingredients that could attack and soften the rubber feet. In this case, place the appliance on a non-flammable surface.
• Do not place any items on the appliance.
• If the appliance is connected to the mains it may be damaged by lightning during thunderstorms.

5. Before using for the first time

During manufacture, many parts are given a thin film of protective oil. Before using the appliance for the first time, heat it up without sandwiches so that any residues can evaporate.

Note: When heating up for the first few time a slight smell may be produced. Make sure the room is adequately ventilated.

1. Take the appliance and all the accessory parts out of the packaging.
2. Check that the appliance shows no signs of damage.
3. Clean the appliance before using it for the first time. Observe the information in

the section entitled "7. Cleaning" on page 8.

1. Select a location that is firm, level and not flammable. Maintain a distance of approx. 50 cm from other objects.
2. Unwind the mains cable completely.
3. Insert the plug into a suitable mains socket.

The red indicator light 1 now lights up and the appliance heats up.

As soon as the operating temperature has been reached, the green indicator light 2 lights up.

6 GB

1. Leave the appliance switched on for around 10 - 15 minutes.

2. Push up the lock 5 and open the lid 3 by the lid handle 4.

3. Unplug the mains plug and allow the appliance to cool down.

4. Clean the appliance again. Observe the information in the section entitled "7. Cleaning" on page 8.

Note: For reasons of taste you should not eat the first toasted bread slices but should throw them away.

6. Preparing sandwiches

Notes:

• We recommend toast bread for making sandwiches.
• Prepare the sandwiches before switching on the appliance.
- As far as possible, spread the filling so that the sandwiches are evenly thick.

1. Select a location that is firm, level and not flammable. Maintain a distance of approx. 50 cm from other objects.

2. Unwind the mains cable completely.

3. Release the lid 3 by pulling up the lock 5 and open up the lid 3 fully by the lid handle 4.

4. Remove any dust that may be present using a dry cloth.

5. Close the lid 3.

6. Insert the plug into a suitable mains socket.

The red indicator light 1 now lights up and the appliance heats up.

As soon as the operating temperature has been reached, the green indicator light 2 lights up.

The appliance is now ready to use.

1. Release the lid 3 by pulling up the lock 5 and open up the lid 3 fully by the lid handle 4.

2. Lay the prepared sandwiches in the moulds 7.

3. Close the lid 3.

4. Lock the lid 3 by pushing the lock 5 down until it snaps into position.

Note: Depending on the thickness of the sandwiches and the required degree of browning, toasting takes some minutes (about 4 - 8 minutes).

Warning! When you open the lid 3 hot steam may rise towards you. You should therefore protect your hands with a tea towel or kitchen gloves.

Note: The green indicator light 2 will go off at first during toasting. As soon as it lights up again, it is time to check the progress.

1. Check whether the sandwiches are already as brown as you require. If not, close the lid 3 again.
2. As soon as the sandwiches have been toasted to your taste, remove them from the appliance.

Caution! Only use implements made from wood or heat-resistant plastic. Metal implements may damage the coated surfaces.

1. Remove the plug from the mains socket after use. This is the only way to ensure that the machine is completely free of current.

7. Cleaning

Warning! To avoid the danger of an electric shock or burning:

• Always remove the plug from the mains socket before starting to clean the appliance.
• Never immerse the appliance in water, and protect it from splashes and water droplets.
  -Before cleaning, allow the appliance to cool down to avoid the risk of burns.

Caution! Never use abrasive, corrosive or caustic cleaning materials. These could damage the appliance as well as the non-stick coating.

Note: Do not leave it too long before cleaning the appliance, otherwise food residue may harden and be difficult to remove.

1. Remove crumbs and larger food residues.

2. Wipe the appliance inside and out with a soft, damp cloth. You may also use a little mild washing-up liquid, but must then wipe the appliance again using clean water to avoid any aftertaste affecting the flavour of the sandwiches.

3. Dry with a cloth.

8. Recipes

8.1 Dutch tomato sandwich

Ingredients:

• Toast bread
• Spring onions
• Tomatoes
• Butter (or herb butter/garlic butter)
  • Cookedham
  • Sliced young Gouda cheese
• Salt and pepper

Preparation:

1. Wash and drain the spring onions.

2. Cut the spring onions into long, narrow strips.

3. Blanch the strips in boiling, salted water for about one minute.
4. Drain the strips into a sieve.
5. Rinse with cold water to retain the fresh colour and drain.
6. Wash, dry and thinly slice the tomatoes.
7. Butter a slice of bread.
8. Place the ham on the bread.
9. Spread the spring onions and sliced tomatoes on top.

10.Season with salt and pepper.
11. Top with a slice of Gouda.
12.Cover with a second slice of buttered bread.

8.2 Italian sandwich

Ingredients:

• Toast bread
• Tomato purée
• Tomatoes
  • Mayonnaise
• Herbs of Provence
  • Sliced mozzarella cheese
• Salt and pepper

Preparation:

1. Stir together the tomato purée, mayonnaise, salt, pepper and herbs of Provence to make a paste.
2. Spread the paste onto the slices of bread.
3. Wash, dry and thinly slice the tomatoes.
4. Fill one of the ready-spread bread slices with slices of tomato and mozzarella cheese.
5. Cover with a second slice of buttered bread.

9. Disposal

9.1 Appliance

The symbol with the crossed-out rubbish bin on wheels means that within the European Union, the product must be disposed of to a sorted rubbish collection. This applies to the

product and all accessories which are marked with this symbol. Marked products must not be disposed of via the regular domestic waste but must be handed in to a recycling centre for electrical or electronic devices. Recycling helps to reduce the use of raw materials and to relieve the environment. You can obtain information about disposal and the location of your nearest recycling centre from your local waste management service, for example, or Yellow Pages.

9.2 Packaging

If you wish to discard the packaging, please observe the applicable environmental regulations in your country.

You have a warranty on this product which is valid for 3 years from the date of purchase. In the event of this product being defective, you have statutory rights against the seller of the product. These statutory rights are not limited by our warranty as set out below.

Warranty conditions

The warranty period begins with the date of purchase. Please keep the original till receipt in a safe place. This is required as your proof of purchase.

If a defect in materials or workmanship occurs within three years of the date your product was purchased, we will repair or replace the product at our discretion at no charge to you. This service under warranty assumes that the defective product and the proof of purchase (till receipt) are submitted within the three-year period and that a brief description in writing is provided of what the defect is and when it occurred.

If the defect is covered by our warranty, the repaired product or a new one will be sent back to you. There is no new warranty period following repair or replacement of the product.

Warranty period and statutory claims relating to defects

The warranty period is not extended when a service is provided under warranty. This also applies to replaced and repaired parts. Any damage or defects present at purchase must be reported immediately the product is unpacked. Repairs incurred once the warranty period has expired are chargeable.

Scope of warranty

The product has been carefully manufactured in accordance with strict quality guidelines and was thoroughly checked before being delivered.

The warranty applies to defective materials or workmanship. This warranty does not extend to product parts exposed to normal wear and tear (and which can therefore be considered wear parts) or to damage to fragile parts such as switches, batteries or parts made of glass.

This warranty is void if the product is damaged or if it is not used or maintained properly. All the information in the operating instructions should be observed precisely to ensure that the product is used properly.

It is essential to avoid intended uses and actions which are discouraged or warned against in the operating instructions.

The product is intended for only private use and not for commercial purposes.

The warranty is void in the event of misuse, incorrect treatment, use of force or interference by anyone other than our authorized service centre.

Warranty process

Please follow the instructions below to ensure that your claim is processed quickly.

- In case of any enquiry, please keep the article number (for this product: IAN 86359) and the till receipt as proof of purchase.

- The article number can be found on the rating plate, as an engraving, on the cover sheet of your instructions (bottom left) or as a label on the back or underside of your appliance.

• If malfunctions or any other defects should occur, in the first instance contact the Service Centre mentioned below by telephone or e-mail.
• Once a product has been recorded as defective, you can then send it Freepost to the service address you are given, enclosing the proof of purchase (till receipt) and quoting what the defect is and when it occurred.

You can download these instructions and many other manuals, product videos and software from www.lidl-service.com.

Service Centre

GB Service Great Britain Tel.: [phone] (£ 0.10/Min.) E-Mail: [e-mail]

IR Service Ireland Tel.: [phone] (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: [e-mail]

CY Service Cyprus Tel.: [phone] E-Mail: [e-mail]

MT Service Malta Tel.: [phone] E-Mail: [e-mail]

IAN: 86359

Supplier

Please note that the address below is not a service address. In the first instance, contact the service centre mentioned above.

Three geometric diagrams with crosshairs and central dots, no text or symbols present

Pure geometric diagram with crosshair and circular target-like shapes (no text or symbols)

Three geometric diagrams with crosshairs and central circles, no text or symbols present

Pure geometric diagram with crosshair and circular target-like shapes (no text or symbols)

Pure geometric crosshair symbol with concentric circles and a central circle, no text or labels present

Pure geometric diagram with crosshair and circular target-like shapes (no text or symbols)

Pure geometric crosshair symbol with concentric circles and dots, no text or labels present

Pure geometric diagram with crosshair and circular target-like shapes (no text or symbols)

Pure color palette bar with no text or symbols, rendered in grayscale without any readable content.

HOYER HANDEL GMBH

Kühnehöfe 5

D-22761 Hamburg

Status of information · Tiedot päivitetty · Informationsstatus ·
