Vanilje XL ICM-2SB - Ice Maker WILFA - Free user manual and instructions

Product Type	Ice Cream Maker
Model	Vanilje XL ICM-2SB
Brand	Wilfa
Power Supply	220-240V ~ 50Hz, 180W
Capacity	1 liter (recipe yield)
Functions	Ice Cream, Cooling Only, Mixing Only
Timer Range	Adjustable via knob; default times: 60 min (ice cream), 30 min (cooling), 10 min (mixing)
Keep Cool Function	Automatic 10-minute keep cool after cycle
Motor Protection	Stops motor if overloaded to extend life
Control Type	Electronic with LCD display, knob, and buttons
Bowl Material	Removable bowl (plastic/metal not specified)
Paddle Material	Plastic (likely)
Lid Material	Transparent plastic with refill lid
Dimensions (approx.)	30 x 25 x 25 cm
Weight (approx.)	5 kg
Cleaning	Remove paddle and bowl; wipe with damp cloth; do not immerse
Safety Features	Grounding required; do not immerse; keep away from heat; use on flat surface
Special Features	Integrated compressor (no pre-freezing needed); refill opening; timer memory
Accessories Included	Removable bowl, paddle, transparent lid, refill lid, measuring cup, spoon
Warranty	Standard manufacturer warranty (not specified)
Intended Use	Household only

Frequently Asked Questions - Vanilje XL ICM-2SB WILFA

Do I need to pre-freeze the bowl before making ice cream?

No, the Vanilje XL ICM-2SB has an integrated compressor that freezes the mixture during operation, so no pre-freezing is required.

What is the maximum amount of ingredients I can use?

To avoid overflow, do not fill the removable bowl beyond 60% of its capacity, as the mixture expands during freezing.

Can I add mix-ins like chocolate chips during operation?

Yes, you can add ingredients through the refill lid during the last 5 minutes of mixing for best results.

How do I clean the ice cream maker?

Unplug the appliance. Remove the paddle and bowl, wipe with a damp cloth. Clean the lid and body with a damp cloth. Do not immerse in water.

What should I do if the paddle stops moving?

The motor protection function stops the paddle if the ice cream becomes too hard. This extends motor life. Simply turn off the machine and let it sit, or use a softer recipe.

How long does it take to make ice cream?

The default ice cream mode runs for 60 minutes. You can adjust the time using the knob for softer or firmer consistency.

Can I use the machine only for cooling or mixing?

Yes, the machine has three modes: Ice Cream (freezing + mixing), Cooling Only (freezing without mixing), and Mixing Only (mixing without freezing).

What type of recipes can I use?

Any ice cream recipe works. The manual includes a vanilla base recipe and variations like mint chip, butter pecan, and cookies & cream.

How do I store leftover ice cream?

Transfer the finished ice cream to another container using a plastic or wooden scoop. Avoid metal to prevent scratching the bowl.

Why does the machine turn off automatically?

After the ice cream cycle ends, the machine enters a 10-minute Keep Cool function, then switches to standby mode to save energy.

USER MANUAL Vanilje XL ICM-2SB WILFA

Modern microwave oven with digital display showing 6:00 setting, no visible text or symbols on the device itself.

Vanilje XL

Ice cream machine

Bruksanvisning

Bruksanvisning

Operating Instructions

ICM-2SB

Iskremmaskin

VIKTIGE MERKNADER ....3

DELER OG FUNKSJONER 6

DRIFT 9

VEDLIKEHOLD....10

SPESIFIKASJONER 11

Line drawing of a microwave oven with control panel and fan (no text or symbols)

Trinn 3

Trinn 4

DRIFT

Line drawing of a microwave oven with control panel and fan (no text or symbols)

Steg 3

Steg 4

RECEPT PÅ VANILJGLASS

Ger 1 liter glass

3 dl tjock grädde

2 dl helmjölk

150 gram socker*

1-2 msk vaniljsocker eller vaniljextrakt

6 äggulor

Line drawing of a microwave oven with control panel and side-mounted screen (no text or symbols)

Simple line drawing of a laboratory setup with a beaker and a dropping funnel (no text or symbols)

Trin 3

Trin 4

BETJENING

Kølefunktion

TEKNISET TIEDOT ....11

Line drawing of a microwave oven with control panel and fan (no text or symbols)

Vaihe 3

Vaihe 4

KÄYTTÖ

PARTS & FEATURES ....6

OPERATION....9

MAINTENANCE 10

SPECIFICATIONS....11

Read this booklet thoroughly before using and save it for future reference.

IMPORTANT NOTICES

When using an electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury, including the following:

• Read all instructions before using.
  ■ Ensure the voltage is compliant with the voltage range stated on the rating label, and ensure the grounding of the socket is in good condition.
  If the power cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
  ■ Do not upend this product or incline it by more than a 45^ angle.
  ■ To protect against risk of electric shock, do not pour water on cord, plug and ventilation, or immerse the appliance in water or any other liquid.
  ■ Unplug the appliance after using or before cleaning.
• Keep the appliance 3" from other objects to ensure good heat release.
  ■ Do not use accessories which are not recommended by the manufacturer.

■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are supervised.

- Keep the appliance and its cord out of reach of children aged less than 8 years.

■ Do not use the appliance close to flames, hotplates or stoves.

■ Do not switch on the power button frequently (ensure 5 min. interval at least) to avoid damage to the compressor.

■ To avoid fire and short circuits, no metal sheets or other electrical objects may be inserted into the appliance.

■ To protect the bowl from damage when removing the ice cream, do not knock the bowl or edge of the bowl.

■ Do not switch on the power before installing the bowl or paddle.

■ The initial temperature of the ingredients is 25 ± 5^ . Do not put the ingredients into a freezer to pre-freeze them, as this could easily cause the paddle to stop moving before the ice cream is in good condition.

■ Do not remove the paddle while the appliance is operating.

■ Do not use outdoors. Never clean with scouring powder or hard implements.

■ Please retain the instruction manual.
■ Warning: do not store explosive items such as aerosol cans with a fl ammable propellant in this appliance.
■ This appliance is intended for use in household only.

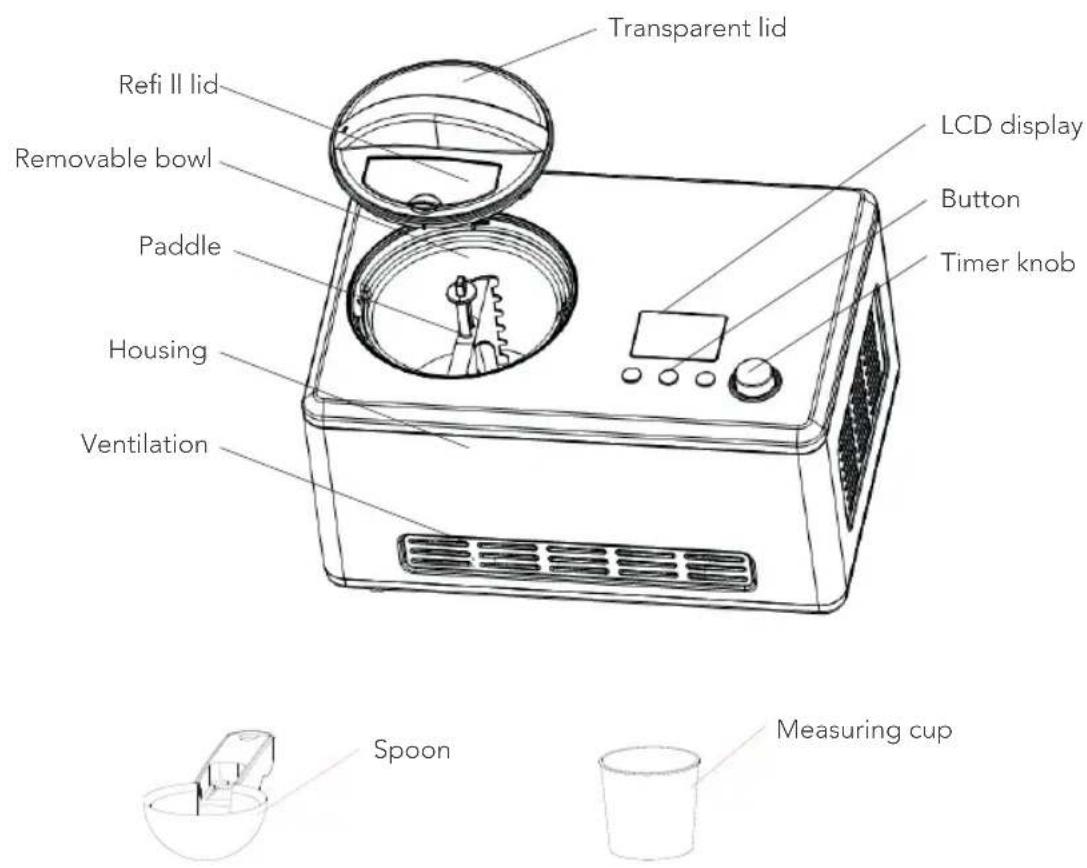

PARTS & FEATURES Construction

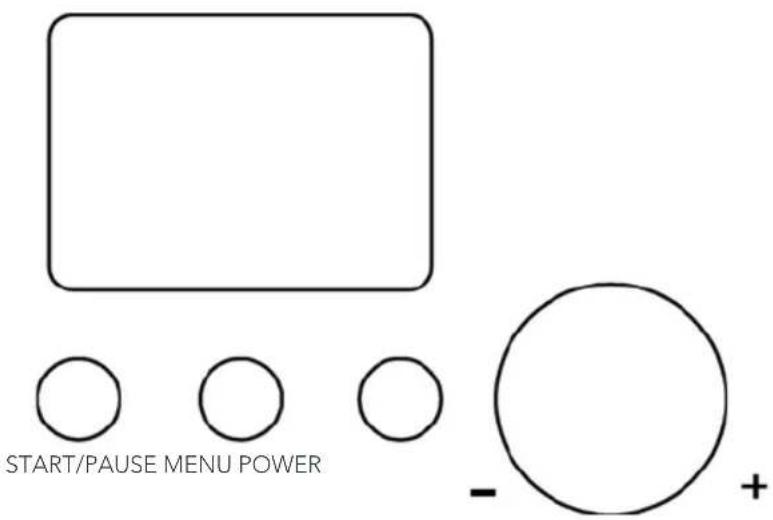

Function buttons

[POWER]: After power up, the machine enters standby mode. Press the [POWER] button to enter the settings mode, and LCD will display "60:00". Press the [POWER] button during settings mode and the machine will enter the standby mode again.

[MENU]: Pressing this button brings up 3 operating modes, namely, [ICE CREAM], [COOLING ONLY] and [MIXING ONLY]. Hold this button for 3 seconds during operation and the machine will return to menu selection.

Timer knob: Turn the knob to set operating time; the default operating times for [ICE CREAM], [COOLING ONLY] and [MIXING ONLY] are 60 min, 30 min and 10 min, respectively. Rotating the knob to the left decreases the operating time. Conversely; rotating to the right will increase the time.

[START/PAUSE]: After setting the menu and time, press this button to start the operating mode. Pressing this button during operation will pause the mixing process, and the time countdown will pause also. Once in pause mode, pressing this button again will cause the machine to continue the previous unfinished operation.

Making Ice Cream:

Cleanness: Before use, thoroughly wash all parts that will come into contact with the ice cream (including the fi xed bowl, removable bowl, paddle, transparent lid, refi ll lid, measuring cup and spoon).

Warning: Please be sure the power cord is not plugged in.

Important: Always place the Ice Cream Maker upright on a flat surface to allow the integral compressor to provide the best performance.

Step 1. Prepare recipe ingredients:

Prepare recipe ingredients from your own recipe or use the recipe provided here. Note: You do not need to freeze the bowl for hours in a freezer in advance, as this machine has an integral compressor that freezes the recipe ingredients in operation, thus producing the ice cream.

Step 2. Pour the well prepared recipe ingredients into the removable bowl.

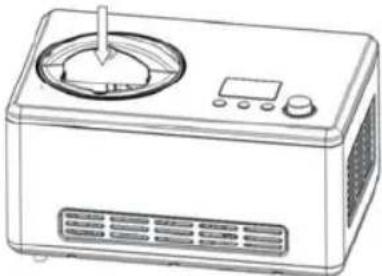

Step 3. Put the removable bowl into the machine and slightly turn the bowl to ensure it is well fitted in the fixed bowl

Step 4. Place the paddle in the removable bowl and make sure the bottom hole of the paddle is properly fitted in the motor shaft. Then put the transparent lid onto the machine and lock it anticlockwise

Step 5. Plug in power, and press the [POWER] button to turn the machine on.

Step 3

Step 4

Step 6. Press the [MENU] button to choose the operating mode.

Step 7. Turn the knob to set the operating time.

Step 8. Press the [START/PAUSE] button to start operation.

Step 9. You can add your preferred ingredients by opening the refill cover (See illustration below).

Open the refi lling lid, and add the ingredients

Line drawing of a microwave oven with control panel and fan (no text or symbols)

Step 10. After the operation is over, turn off the machine first, and then take out the removable bowl.

OPERATION

Keep cool function

To avoid melting the ice cream, the machine has a keep cool function. After the ice cream is finished and no further operation is taking place, the machine will start the keep cool function automatically, and keep the ice cream cool for ten minutes. Ten minutes later, machine will enter standby mode.

Motor protection function

As the ice cream becomes harder, the mixing motor may be prevented from operating. In order to preserve the service life of the motor, the protection device stops the motor.

Limiting the volume of the ingredients

To avoid overflow and waste, please make sure that the ingredients do not exceed 60% of capacity of the removable bowl (Note: Ice cream expands during freezing).

The modes:

1. Ice cream mode: the default operating time is 60 minutes. Detailed operation is as above.
2. Cooling only mode, the default operating time is 30 minutes. The operation is similar to ice cream mode, but there is no mixing function.
3. Mixing only mode, the default operating time is 10 minutes. The operation is similar to ice cream mode, but there is no freezing function.

STORAGE OF ICE CREAM

Transfer fi nished ice cream into another container using a plastic scoop or a wooden spoon; do not use a metal scoop in order to avoid scratching the inside of the removable bowl.

MAINTENANCE

Caution: The plug must be removed before cleaning to avoid electric shock.

1. Remove the paddle, wipe it with a damp cloth.
2. Take out the removable bowl, clean it with a soft damp cloth.
3. Wipe the transparent lid and refi ll lid with a damp cloth.
4. Remove any dirt on the body or other places with a damp cloth, and do not pour water over cord, plug or ventilation, or immerse the appliance in water or any other liquid.
5. Dry thoroughly with a dry cloth, then return the components to the home position.

VANILLA ICE CREAM RECIPE

Makes 1 liter of ice cream

3 dl heavy cream

2 dl whole milk

150 gram sugar*

1-2 ts vanilla sugar or vanilla extract

6 egg yolks

In a medium mixing bowl whisk the egg yolks until they lighten in color. Gradually add the sugar and whisk to combine. Add the cream, milk and vanilla sugar into the eggs and sugar and mix well. Pour the mixture into the freezer bowl through the ingredient spout and let mix until thickened, around 60 minutes.

* Add sugar to suit your desired level of sweatness. We also recommend reducing the amount of sugar if you plan to add fl avour or cookies to your ice cream.

VARIATIONS:

Mint Chip: Omit the vanilla and replace with 1 to 1-1/2 teaspoons pure peppermint extract (to taste). Chop your favorite 4-ounce bittersweet or semi-sweet chocolate bar into tiny uneven pieces. Add the chopped chocolate during the last 5 minutes of mixing.

Butter Pecan: Melt 1 stick unsalted butter in a 10-inch skillet. Add 1 cup roughly chopped pecans and 1 teaspoon kosher salt. Cook over medium-low heat, stirring frequently until the pecans are lightly browned. Remove from the heat, strain (the butter will have a pecan fl avor and may be reserved for another use). Allow the pecans to cool completely. Add the toasted

buttered pecans during the last 5 minutes of mixing.

Cookies & Cream: Add 3/4 cup coarsely chopped cookies or your favorite candy (chocolate chip, Oreos, Mint Oreos, etc.) during the last 5 minutes of mixing.

Technical specifications:

220 \~240V/50 Hz 180 W

Under the Waste Electrical and Electronic Equipment Directive (WEEE), such waste must be collected separately and processed. If in future you need to discard this product, please do not throw it out with your normal rubbish. Please send this product to a collection point where one is available.

AS WILFA

Industriveien 25

1481 Hagan

Norway

wilfa.com
