Vanilla XS ICMT-700SI - Ice Maker WILFA - Free user manual and instructions

Product Type	Countertop Ice Maker
Brand	Wilfa
Model	Vanilla XS ICMT-700SI
Ice Production Capacity	12 kg per 24 hours
Water Tank Capacity	2.0 liters
Ice Shape	Bullet-shaped
Cycle Time	Approx. 10 minutes per batch
Ice Storage Capacity	Approx. 1.5 kg
Power Consumption	150 W
Power Supply	220-240 V ~ 50 Hz
Dimensions (W x D x H)	30 x 20 x 30 cm
Weight	10 kg
Noise Level	< 45 dB
Refrigerant	R600a (environmentally friendly)
Ice Making Method	Automatic with water circulation
Control Panel	Button and indicator lights
Self-Cleaning Function	Yes, with clean cycle indicator
Water Level Sensor	Automatic shut-off when full
Ice Full Sensor	Automatic shut-off when basket full
Included Accessories	Ice scoop, drip tray
Maintenance	Regular cleaning with vinegar solution recommended
Warranty	2 years (subject to terms)

Frequently Asked Questions - Vanilla XS ICMT-700SI WILFA

How do I start making ice with the Vanilla XS ICMT-700SI?

Fill the water tank up to the MAX line, plug in the unit, and press the ON button. The indicator light will turn on, and ice production will begin automatically. The first batch may take up to 15 minutes.

What type of water should I use for the ice maker?

Use fresh, cold tap water or filtered water. Avoid distilled or hot water as it may affect ice quality and production speed.

How do I clean the ice maker?

Run the self-cleaning cycle using a mixture of white vinegar and water (1:3 ratio) every few weeks. Afterwards, rinse thoroughly with fresh water. Wipe the exterior with a damp cloth.

Why is my ice maker not producing ice?

Check if the water tank is empty, the unit is level, and the room temperature is between 10-35°C. Also ensure the drain plug is properly closed and the ice basket is not full.

How long does it take to make ice?

Each cycle takes approximately 10-15 minutes, producing 9-12 ice bullets. The first batch may take slightly longer.

Can I store the ice maker on its side?

No. After moving or transporting, let the ice maker stand upright for at least 4 hours before plugging in to allow the refrigerant to settle.

What does the 'Add Water' indicator mean?

It means the water tank is low or empty. Refill with fresh water to the MAX level to resume ice production.

How do I prevent ice from sticking together?

Use fresh water and ensure the ice basket is not overloaded. Ice should be transferred to a freezer bag if not used immediately.

Is the ice maker safe to leave on overnight?

Yes, it is designed for continuous operation. It will automatically shut off when the ice basket is full or water level is low.

What should I do if the unit shows error codes?

Refer to the user manual. Common codes: E1 (water sensor issue), E2 (ice full sensor issue). Try unplugging for 5 minutes then restart. If persists, contact Wilfa support.

USER MANUAL Vanilla XS ICMT-700SI WILFA

Exterior view of a modern kitchen appliance with a lid and control panel (no visible text or symbols)

Wilfa VANILLA XS

Ice Cream Maker

Bruksanvisning

Bruksanvisning

Operating Instructions

ICMT-700SI

LES ALLE ANVISNINGER F∅R BRUK

LÄS IGENOM ALLA INSTRUKTIONER INNAN PRODUKTEN ANVÄNDS

LÆS ALLE VEJLEDNINGER INDEN BRUG

LUE OHJEET HUOLELLISESTI ENNEN KÄYTTÖÄ

READ ALL INSTRUCTIONS BEFORE USING

BRUKSANVISNING

ANVÄNDARINSTRUKTIONER

BRUGERVEJLEDNING

KÄYTTÖOHJEET

Read all instructions before use. Read carefully and keep for future reference.

IMPORTANT SAFETY INSTRUCTIONS....5

Product overview 7

Instructions for use 8

Adjust settings....8

Cooling capacity 8

Cleaning 9

Recipes....9

Troubleshooting....10

IMPORTANT SAFETY INSTRUCTIONS

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be performed by children without supervision.
• Ensure the ice cream maker is unplugged before cleaning or if the ice cream maker is not in use.
• It is not recommended to use this ice cream maker with an extension cord or power board. Please ensure that the appliance is plugged directly into the electrical outlet.
• The appliance is only to be used with the power supply unit provided with the appliance.
• Do not place hot food or drink inside the ice cream maker before it cools down to room temperature.
• Close the ice cream maker lid immediately after putting in any items so the inside temperature will not rise dramatically.

• Keep appliance away from any heat source or direct sunlight.

• The appliance must be placed on a flat and solid surface

• The ice cream maker is an electrical appliance. To avoid injury or death from electrical shock do not operate the ice cream maker with wet hands, while standing on a wet surface or while standing in water.
• Do not use outdoors or in wet conditions.
• When positioned or if moving the appliance ensure that it is not placed horizontally or tilted more than 45° or turned upside down.
• Never pull the cord to disconnect it from the outlet. Grasp the plug and pull it from the outlet.
• Never lift or carry the ice cream maker by the cord.
• Keep the cord away from heated surfaces.
• This ice cream maker is for household use only. Any other use will void the warranty.
• Do not connect the main power cord to the power socket before setup is completed.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

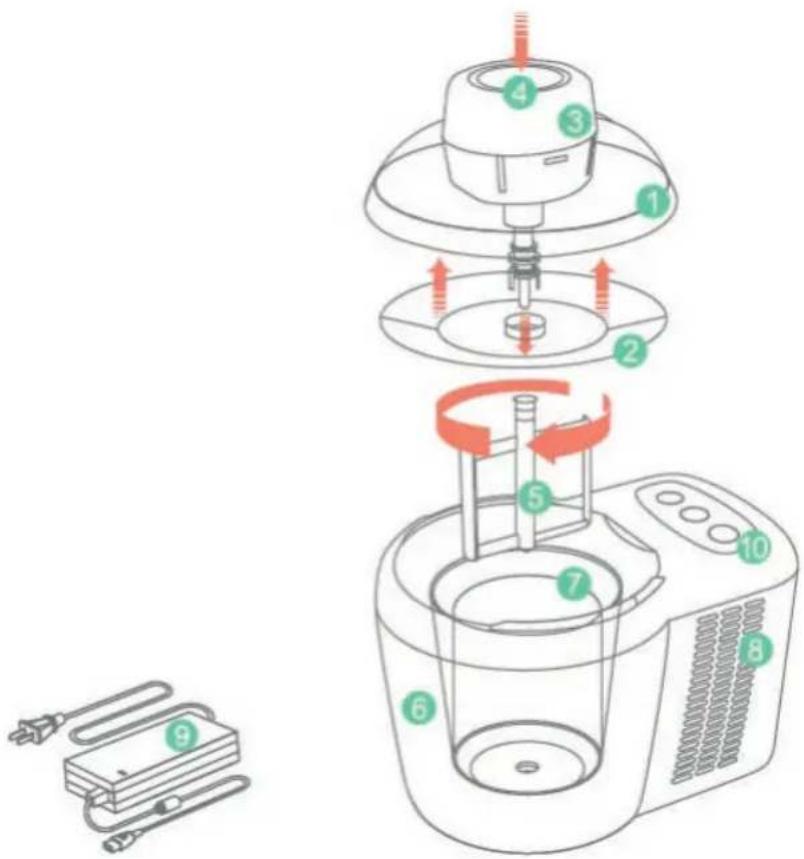

PRODUCT OVERVIEW

① Top lid*
② Bottom lid*
③ Mixing motor
④ Release button for motor unit
⑤ Ice cream paddle
⑥ Housing
⑦ Aluminium bowl
⑧ Back cover
⑨ AC adapter
⑩ Control panel

*Note that part numbers 1-2 can be separated from each other by pressing the release pins on part 2.

INSTRUCTIONS FOR USE

1. After removing all interior and exterior packaging materials, use hot water to clean the aluminium bowl and top lid of the ice cream maker before using.
2. Please connect the input cord of the adapter to the ice cream maker before connecting the power plug to the power socket. Make sure the power socket is 220-240 V.
3. Pour the mixture into the bowl of the ice cream maker. Do not exceed the maximum limit of 300ml marked on the bowl and then close the lid.
4. Allow 1-2 hours of operation, the ice cream maker will make a beep once the ice cream maker is finished.
5. Unplug ice cream maker from the wall outlet when the appliance is not in use.

ADJUST SETTINGS

Use the control buttons to control and adjust the taste and texture of the ice cream. Available modes are "Hard" and "Soft". The ice cream maker stop switch controls the cooling system stop.

Hard

Soft

Stop

Once you press the control button "Hard" or "soft", the related display will light up.

COOLING CAPACITY

The temperature in the aluminium bowl will be cooled to -15^ in 2 hours (empty unit).

With a fully loaded unit it may take up to 2 hours for the ice cream maker to finish (at a room temperature of 25^ C).

CLEANING

General:

Never submerge the base unit into any liquid. Make sure the unit is disconnected from the power outlet before cleaning.

Cleaners:

To clean the ice cream maker, use only mild detergents.

Exterior and motor unit:

Wipe with damp cloth and let dry.

Top/Bottom lid:

Separate the top lid and bottom lid assembly by pressing the release pins located near the centre of the bottom lid part. Wash all the detachable parts in warm soapy water, rinse and dry.

Aluminium bowl:

Do not submerge the base unit into any liquid, use the handle that is located on the back of the unit to hold the unit while carefully cleaning the aluminium bowl with warm soapy water.

RECIPES

Basic recipe:

1 egg

2 tbsp sugar

1.5 dl full cream

1 dl milk

Instructions:

1. Beat the egg lightly for 1-2 minutes. Add the sugar a little at a time. Add the cream and milk.
2. Pour the mixture into the bowl and switch on the machine.
3. The machine should run for about 1 - 2 hours.

Flavours:

Add crushed Oreo biscuits, chocolate, liquorice sprinkles, fruit, berries, etc, of your choice.

TROUBLESHOOTING

Symptoms Possible causes Solutions
The ice cream maker does not work.	There is a power failure.A house fuse has blown.Overload fuse on the power supply board is not connected properly.	Ensure the ice cream maker is plugged in and the power socket is turned on.Replace the broken fuse in your meter box.Ensure the fuse is connected properly
The ice cream maker has poor cooling capacity.	The ice cream maker is placed too close to a heat source.Insufficient ventilation.The lid is opened too frequently or for a long period of time.	Keep the cooler away from sunshine or other heat sources.Place the ice cream maker in a location with good ventilation and keep any items away from the fans.Close the lid tightly and do not open the lid too frequently while in operation.

Under the Waste Electrical and Electronic Equipment Directive (WEEE), such waste must be collected separately and processed. If in future you need to discard this product, please do not throw it out with your normal rubbish. Please send this product to a collection point where one is available.

in homes since 1948
