ICE-125 - Ice Maker WILFA - Free user manual and instructions

Product Type	Portable Ice Maker
Brand	Wilfa
Model	ICE-125
Ice Production	12 kg (26.5 lbs) per 24 hours
Ice Cube Size	Small / Large (selectable)
Water Tank Capacity	2.2 L
Ice Storage Capacity	600 g
Dimensions (W x D x H)	29.5 x 19.5 x 28.5 cm
Weight	8.5 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	120 W
Refrigerant	R600a
Control Panel	Touch button with indicator lights
Self-Cleaning Function	Yes
Automatic Ice Full Shut-off	Yes
Low Water Indicator	Yes
Maintenance	Regular descaling with citric acid solution recommended
Safety Features	Auto shut-off when ice basket full, low water alert, overheat protection
Spare Parts Availability	Ice basket, water filter (optional) – contact Wilfa support
User Manual Included	Yes (digital download available)

Frequently Asked Questions - ICE-125 WILFA

How do I start making ice for the first time?

Unpack the ice maker and place it on a level surface. Remove the ice basket and fill the water tank with fresh water (max 2.2 L). Replace the basket, plug in the unit, and press the power button. Select ice cube size if desired. The first batch may take 6-8 minutes, and the first few batches might be smaller or irregular.

Why is the ice maker not producing ice?

Check that the water tank is filled above the minimum level and that the unit is plugged in and turned on. Ensure the ambient temperature is between 10-32°C. If the 'Add Water' light is on, refill. Also, clean the condenser filter if dusty.

How often should I clean the ice maker?

We recommend cleaning the interior and water tank every 1-2 weeks with a mild soap solution. Descale every 1-2 months using a citric acid or vinegar solution to remove mineral buildup. Follow the self-cleaning cycle if available.

What size ice cubes does the ICE-125 produce?

You can select between small (bullet-shaped) and large ice cubes. The default is small. Press the size button during operation to toggle.

Can I leave the ice maker on overnight?

Yes, the unit has an auto shut-off when the ice basket is full. However, the ice will eventually melt and refreeze, so it's safe but not energy-efficient. For best results, empty the basket regularly.

How long does it take to make ice?

The first batch typically takes 6-10 minutes. Subsequent batches may be faster. The actual time depends on water temperature and room temperature.

What does the 'Self-Cleaning' function do?

The self-cleaning function circulates water through the system to flush out impurities. Add a mixture of water and cleaning solution (e.g., vinegar) to the tank, then activate self-clean. After the cycle, drain and rinse.

How do I store the ice maker when not in use?

Empty the water tank and ice basket completely. Dry all interior surfaces with a soft cloth. Leave the lid open to air out. Store in a cool, dry place.

What should I do if the ice cubes are too small or hollow?

This often indicates low water level or a dirty condenser. Check water level, clean the condenser filter, and consider descaling the unit. Also, ensure the room temperature is not too high.

Where can I get spare parts or service?

Contact Wilfa customer support or visit their official website. Spare parts like the ice basket or water tank are available. For repairs, an authorized service center is recommended.

USER MANUAL ICE-125 WILFA

Exterior view of a modern stainless steel ice cream maker and a glass of ice with a slice of water (no text or symbols visible)

Frostbitt

Ice maker

Bruksanvisning

Bruksanvisning

Brugsanvisning

Käyttöohje

Instruction manual

Line drawing of a modern kitchen appliance with a circular vent and side panel (no text or symbols)

Kontrollpanel

Isbitmaskinen betjenes enkelt med to knapper på kontrollpanelet.

Kjølemedium R134a/62g

Netto Vekt 9.2Kg

Line drawing of a modern kitchen appliance with a circular vent and side panel (no text or symbols)

Kontrollpanel

Kylmedium R134a/62 g

Nettovikt 9,2 kg

Line drawing of a modern kitchen appliance with a side panel and ventilation grille (no text or symbols)

Kontrolpanel

Isterningemaskinen betjenes nemt med to knapper på kontrolpanelet.

The image contains only background horizontal lines, which are stylistic or background elements. According to Rule 2, such lines must be ignored by the OCR result. Therefore, the corrected OCR text is:

[Empty String]

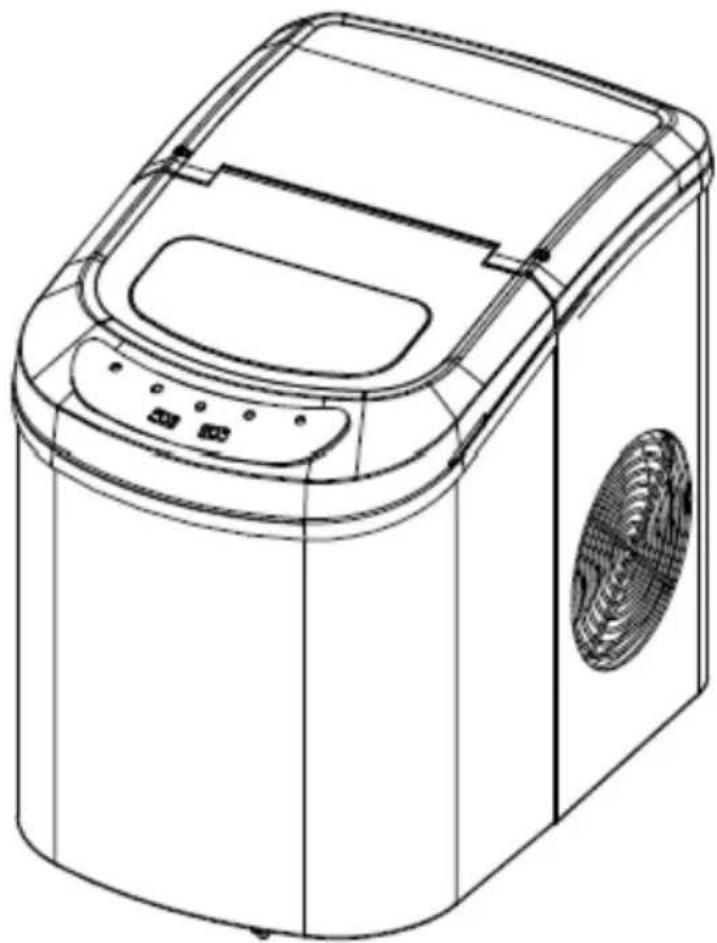

Line drawing of a modern kitchen appliance with a circular vent and side panel (no text or symbols)

Ohjauspaneeli

Before using your Wilfa appliance ....3

Safety warnings ....4

Description 5

Control panel 6

Before using the appliance for the first time ....7

Cleaning and maintenance of your ice cube maker ....7

Operation 8

Line drawing of a modern kitchen appliance with a circular vent and side panel (no text or symbols)

Before using your Wilfa appliance

Please read these instructions carefully and keep for future reference.

Safety warnings

When using electrical appliances it is important to observe basic safety rules to reduce the risk of fire, electric shock and damage to persons or property. Please read all instructions carefully before using an appliance.

- Do not use this or other appliances if the power cord is damaged. Should the power cord become damaged, it must be replaced by the manufacturer, the manufacturer's service workshop or a similarly qualified person in order to avoid danger. Ensure that the plug is fully inserted into the socket.

■ Please ensure that the ice cube maker is connected directly to an earthed power outlet (do not use extension cords with one or more power outlets). The voltage of the power outlet must correspond with the voltage indicated on the label at the base of the appliance.

■ Remove the plug before cleaning.
■ Do not use strong detergents when cleaning the appliance.
■ Do not immerse the appliance in water or other liquid.
■ Do not use the ice cube maker outdoors. Position the ice cube maker away from direct sunlight and ensure that there is at least 10cm distance between the back of the unit and the wall. Ensure that there is a distance of at least 10cm on either side of the unit.

■ Do not use liquids other than water to make ice cubes.
■ The appliance must not be used in a potentially explosive environment (easily combustible gases/liquids, etc.).
■ The appliance must not be turned upside down or on its side. This could result in serious damage to the cooling system.

If the ice cube maker is transported during winter, it should be left to stand for a few hours at room temperature before starting up.

This unit is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or who have limited experience and knowledge, unless they are under the supervision of or have been trained to use the unit by a person responsible for their safety.

■ Children should be supervised to ensure that they do not play with the appliance.

■ The appliance is only intended for use in private households and not in restaurants, cafeterias, etc.

■ The appliance must always be placed on a stable, dry and even surface.

The appliance should be left to stand for at least 1 hour before being started up again after moving or re-positioning. This is to allow the cooling system to stabilise.

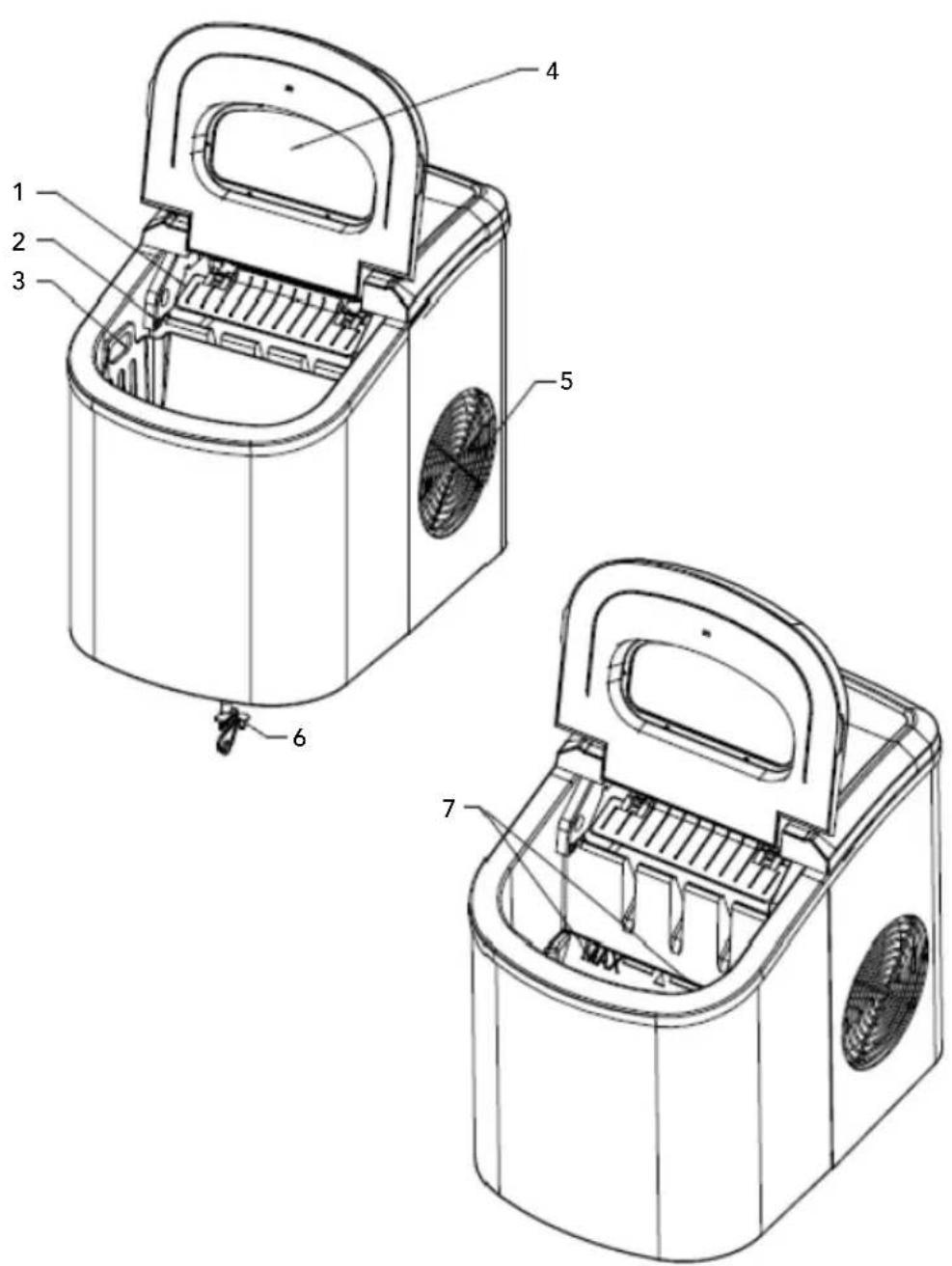

Description

1. Ice tray
2. Sensor
3. Ice basket
4. Top cover with transparent window
5. Fan
6. Water outlet
7. Maximum water level: ----▲----

Remove the ice basket to see the water level marks.

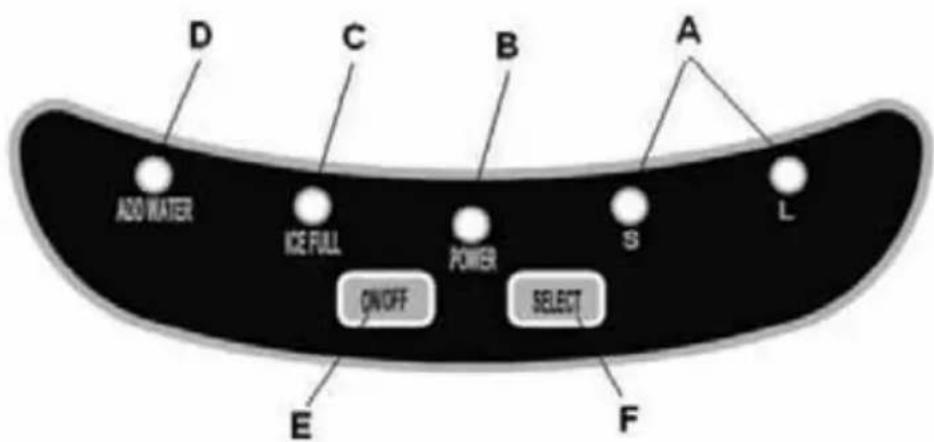

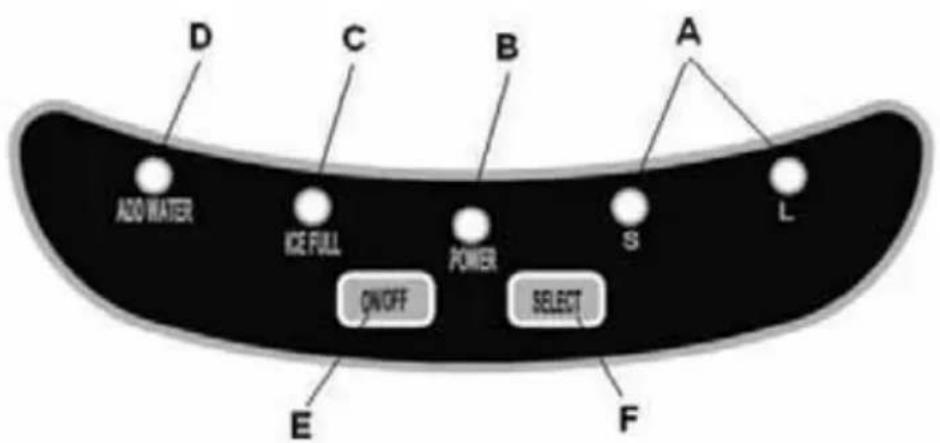

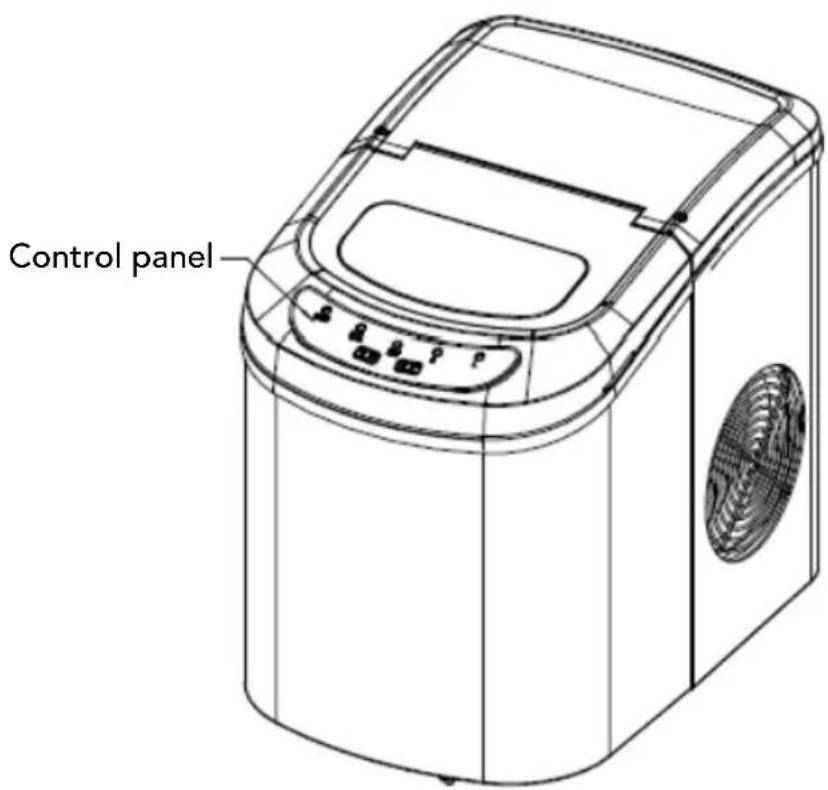

Control panel

The ice cube maker is easily operated using two buttons on the control panel.

A. Size selection: Small and Large
B. Power indicator
C. Indicator showing that the ice basket is full
D. Indicator showing that the water container needs filling
E. On/off button for the unit
F. Button for selecting ice cube size

Before using the appliance for the first time

1. Remove external and internal packaging.
2. Remove tape fastened over the ice spoon, ice basket and ice tray. Clean the container and the ice basket.
3. Place the ice cube maker on an even surface, away from direct sunlight and other heat sources (i.e.: hobs, ovens, radiators). Place the appliance so that there is at least 10cm distance between the back and sides of the appliance and the wall.
4. The appliance should be left to stand for at least 1 hour before starting it up. This is to allow the cooling system to stabilise.

WARNING: Use drinking water only.

Cleaning and maintenance of your ice cube maker

It is recommended to carefully clean the ice cube maker before using it.

1. Remove the ice basket.
2. Clean internally using diluted detergent, warm water and a soft cloth.
3. Use water to rinse the internal parts and empty the water by removing the outlet plug on the front of the base.
4. The ice cube maker exterior should be cleaned regularly using a mild detergent and warm water.
5. Dry internally and externally using a clean, soft cloth.
6. When the appliance is not in use, empty out all water and dry the container.

Operation

1. Open the cover, remove the basket and pour water into the container.
2. Ensure that the water level is kept below the maximum water level.
3. Press the "ON/OFF" button on the control panel to turn the appliance on.
4. Select ice cube size by pressing the "SELECT" button. If the room temperature is lower than 15 °C, we recommend selecting small ice cubes in order to prevent the ice from sticking together.
5. The ice cube cycle is between 6 and 13 minutes, depending on ice cube size and room temperature. The recommended room temperature is 10^ to 43^ .
6. If the "Add Water" indicator is lit up, water must be refilled before the ice cube cycle starts again. Press the "ON/OFF" button, fill water up to the maximum water level and press the "ON/OFF" button again to turn the unit back on. Allow the appliance to rest for at least 3 minutes before starting it again.
7. If the "Ice Full" indicator is lit up, the unit will stop and the ice cubes must be removed from the basket.
8. For reasons of hygiene, the water in the container should be changed at least once a day.

Warning: Direct sunlight or glare from sunlight could result in infrared sensor failure. The sensors in the appliance will then not function optimally. Keep the unit away from sunlight.

PROBLEM POSSIBLE REASON SOLUTION
The "Add Water" indicator is on	Lack of water. Stop the ice cube maker	aker, fill water and press the "ON/OFF" button again to start the unit.
"Ice Full" is on	The ice basket is full. Remove ice from the ice basket.
Ice cubes are stuck together	The ice cube cycle is too long. Stop the ice cube maker, restart it when the ice cubes have melted. Select the smallest ice cube size.
	The water temperature in the internal container is too low.	Replace the water.The recommended water temperature is 8-32 °C
The ice cube cycle is normal, but no ice is being made	The room temperature or water temperature in the internal container is too high.	The room temperature should be 10-43 °C, the water temperature should be 8 to 32 °C
	Cooling system leak Must be checked by a qualified technician.
	The copper pipe to the cooling system is blocked.	Must be checked by a qualified technician.

Technical information:

Voltage 220-240V/50Hz 100W

Cooling media R134a/62g

Net weight 9.2Kg

According to the Waste Electrical and Electronic Equipment (WEEE) Directive, this type of waste must be collected and treated separately. If it becomes necessary to dispose of this product at some point, kindly make sure that it is not discarded with your everyday household refuse. Instead, bring the product to your closest WEEE collection centre.
