Product Type	Food Processor
Brand	OBH Nordica
Model	Pro 2000 Chilli 6798
Power Consumption	500 W
Voltage	220-240 V AC
Frequency	50/60 Hz
Bowl Capacity (max)	2.0 L
Recommended Max Fill	1.2 L
Included Accessories	Steel knife, plastic kneading/mixing knife, whisk, carving disc (fine/coarse), grating disc (fine/coarse), french fry cutting disc, disc holder, pusher
Functions	Blending, chopping, grating, carving, mixing, kneading, whisking
Speed Settings	2 speeds + Pulse (moment) function
Safety Features	Locking lid and bowl to prevent start if not correctly assembled; overheat protection with automatic shut-off
Cleaning Method	Motor part: wipe with damp cloth; all plastic parts: dishwasher safe; blades: hand wash with warm soapy water
Warranty	2 years limited (Sweden, Norway, Denmark, Finland)
Bowl Material	Plastic
Blade Material	Stainless steel
Disc Material	Stainless steel cutting edges
Overheat Protection	Yes

Frequently Asked Questions - Pro 2000 Chilli 6798 OBH NORDICA

How do I correctly assemble the food processor?

To assemble, first mount the driving shaft on the motor part. Place the bowl on the motor part and turn clockwise until you hear a click. Insert the desired accessory onto the driving shaft, then place the lid on the bowl with the plastic rod to the right of the grip. Turn the lid clockwise until it clicks. The appliance will only start when both bowl and lid are correctly positioned.

Why won't my food processor start?

If the food processor does not start, check that the bowl and lid are correctly locked into place. Also, if the appliance has been running for too long or with too much load, the overheat protection may have been triggered. Unplug and let it cool for at least 30 minutes before restarting.

Can I immerse the motor part in water?

No, never immerse the motor part in water or any liquid. Clean it only with a damp cloth. The bowl and plastic parts are dishwasher safe, but the motor unit must be wiped clean.

What foods can I chop with the steel knife?

The steel knife is ideal for chopping chocolate, cheese, meat, spices, fruits, and vegetables such as onions. Cut ingredients into 3 cm cubes for best results. Use pulse for coarse chopping or setting 2 for finer chopping.

How do I use the pulse function?

Turn the speed selector to the "Pulse" position (moment). The food processor will only run while you hold the selector in that position. Release to stop. This gives you short bursts of power, ideal for controlling the texture of your ingredients.

Can I wash the plastic parts in the dishwasher?

Yes, all plastic parts such as the bowl, lid, pusher, and disc holder are dishwasher safe. However, the motor part must not be placed in the dishwasher. The knife and discs should be hand washed with warm soapy water due to sharp edges.

What is the maximum capacity of the bowl?

The bowl has a maximum capacity of 2.0 litres, but to avoid overfilling and ensure proper operation, do not exceed 1.2 litres of ingredients. This is especially important for certain tasks like kneading dough.

How should I clean the blades and discs?

The blades and cutting discs are very sharp. Rinse them under warm water with washing-up liquid and wipe carefully. Use a soft brush for any congealed remains after soaking. Always handle with care to avoid cuts.

What does the overheat protection do?

If the motor runs too long or is overloaded, the overheat protection automatically shuts off the appliance to prevent damage. If this happens, unplug the food processor and let it cool for at least 30 minutes before using again.

How do I use the plastic kneading/mixing knife?

Mount the plastic knife on the driving shaft after positioning the bowl. Use setting 2 for kneading dough or mixing. The typical time is 30-180 seconds. If the speed slows, add a little water. Hold the lid with one hand while operating. The maximum flour capacity is about 600g.

USER MANUAL Pro 2000 Chilli 6798 OBH NORDICA

DESIGNING GOOD LIFE

Food Processor PRO 2000 CHILL9

Shred, slice, cut and blend with elegance

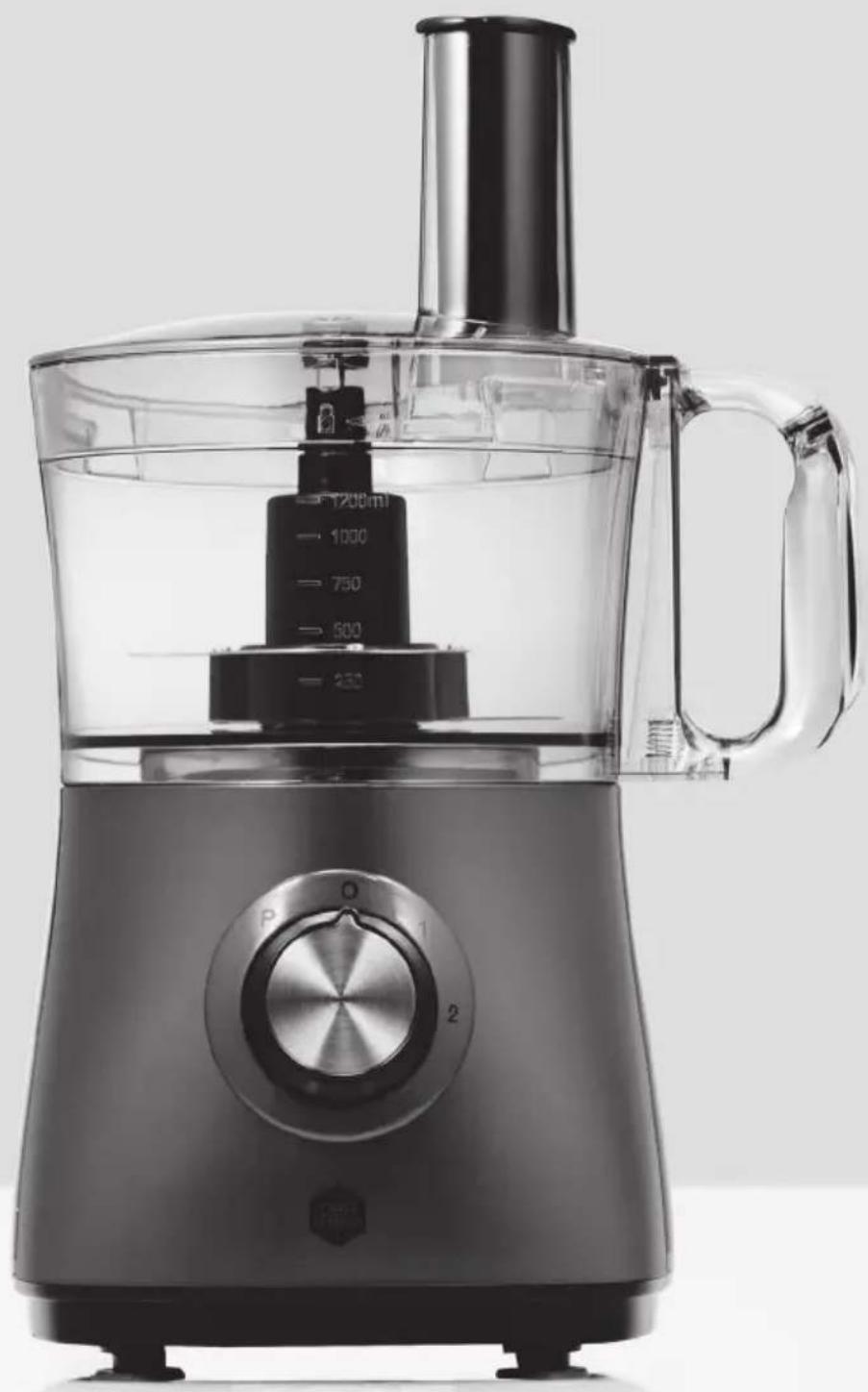

Exterior view of a modern kitchen blender with a handle and control knob (no visible text or symbols)

Making good!

Bruksanvisning - svenska ....sida 3 - 10
Brugsanvisning - dansk ......side 11 - 19
Bruksanvisning - norsk ....side 20 - 28
Käyttöohjeet - suomi......sivu 29 - 37
Instruction manual - english......page 38 - 46

Användning

Sådan bruges foodprocessoren

BEGRENSET GARANTI for OBH Nordica

Garantien

1. Read the instruction manual carefully before use, and save it for future use.
2. Plug the appliance to a household outlet of 220-240V only, and use the appliance only for the intended use.
3. Always unplug the appliance from the mains supply when disorder is experienced, when not in use, when parts are applied or removed from the appliance and before cleaning and maintenance.
4. The appliance must not be immersed into water or other liquids.
5. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
6. Cleaning and user maintenance shall not be made by children. Children shall be supervised to ensure that they do not play with the appliance.
7. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
8. Check that the cord is not hanging over the edge of the table.
9. Do not place the appliance on or near hotplates, open fire or the like.
10. The appliance should only be used under supervision.
11. Always pay attention to operate the appliance correct. The appliance should be handled with care, as the knives and the cutting edge of the blades are very sharp! Do not touch the knives or the cutting edge of the blades while they are operating. Be careful when handling the sharp knife and cutting blades, emptying the bowl and during cleaning.

12. Always examine appliance, cord and plug for damage before use. If the supply cord is damaged, it must be replaced by the manufacturer, or his service agent or a similarly qualified person in order to avoid a hazard.

13. For additional protection the installation of a residual current device (RCD) with a rated residual operating current not exceeding 30 mA is recommended. Ask your installer for advice.

14. The appliance is for domestic use only.
15. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

Before use

Wash all removable parts in warm water with a washing-up liquid before use.

NOTE: The knife is extremely sharp and should be handled with extreme care.

Parts of the appliance

1. Motor part
2. Driving shaft
3. Bowl
4. Holder for accessories
5. Lid
6. Pusher
7. Disc holder
8. Carving disc - fine and coarse cutting

9. Grating disc - fine and coarse cutting

10. French fry cutting disc

11.Knife (steel)

1. Kneading and mixing knife (plastic)

13.Whisk

How to use the food processor

The food processor can be used to blend, chop, grate, carve and mix food.

The motor of the food processor drives the cutting blades at high speed to ensure a good and homogeneous result. Consequently, it is important always to place the appliance on an even and dry surface before use.

Make sure that the bowl and lid are correctly positioned on the motor part. If not, the food processor cannot start. To position the bowl correctly, mount the driving shaft on the motor part. Put the bowl on the motor part and turn the handle of the bowl clockwise. You will hear a click when the bowl has been properly engaged. Mount the wanted accessory (see section "Mounting of accessories"). Put the lid on the bowl. The plastic rod on the outer side of the lid shall be to the right of the grip of the bowl. Turn the lid clockwise. The lid has been correctly positioned when you hear a click. Please note that the appliance cannot be started until the bowl and the lid have been correctly positioned.

Always be sure that there are ingredients in the bowl before starting the food processor.

The maximum capacity of the bowl is 2.0 L, but in order to be sure that the bowl is not overfilled, the amount should be max 1.2 L. When preparing certain kinds of food, the capacity will be less. As to details of maximum quantities, please see the table in section "Quantities and guiding times of preparation". Use the measurement scale on the bowl as an indication.

When the bowl and the lid have been correctly positioned, the food processor is ready for use. Check that the speed selector is at position "0" and then plug the appliance in the mains supply. Turn the speed selector to the wanted speed for a few seconds. Then turn it back to "0" and see whether you get the result you want. The process is very fast, so do not work too long at a time. Take off the lid by grabbing the hopper and turn counter-clockwise to remove the lid.

Use the function “Pulse” (moment) for short intervals. Keep the contact in that position to make the food processor work. As soon as the button is released, the food processor will stop.

Mounting of accessories

All accessories shall be mounted on the driving shaft in the centre of the bowl. Mount the driving shaft on the motor part. Be sure to position the bowl correctly.

Knife (steel) (11)

Remove the cover. Please note that the knife is extremely sharp, so please do not touch the blades! Mount the knife in the bowl on the driving shaft by pressing the accessory holder until it is locked onto the driving shaft and then remount the knife. Put on the lid as previously described. Set the speed selector at "2". The total operation time should not exceed 1 minute.

After use, turn the speed selector back to "O". Remove the knife and the accessory holder from the driving shaft by lifting the knife off the accessory holder and pull the accessory holder. Then remove the bowl from the motor part by turning it counter-clockwise.

Use the "Pulse" function to avoid that the ingredients are too finely chopped.

Normal cooking time is about 30-60 seconds.

The steel knife is used to chop chocolate, cheese, meat, spices, fruit, and vegetables (e.g. onions).

Kneading and mixing knife (12)

Put the bowl on the motor part and mount the plastic knife on the driving shaft by pressing down the accessory holder until it locks onto the driving shaft and then mount the knife. Put the lid on the bowl as previously described. Set the speed selector at "2". Normal cooking time is about 30-180 seconds.

NOTE: Add water if the speed is slowing down or the food processor stops during use in order to avoid that the motor is damaged. Hold on to the lid with one hand during kneading/mixing and hold on to the grip at the same with the other hand. The kneading/mixing takes about 30-180 seconds.

After use, set the speed selector back to "0". Remove the knife and the accessory holder from the driving shaft by first lifting the knife out of the accessory holder and then pull the accessory holder. Now remove the bowl from the motor part by turning it counter-clockwise.

Whisk (13)

Mount the whisk by first positioning the accessory holder on the driving shaft. Then mount the whisk on the accessory holder. Mount the lid as previously described. Set the speed selector at "1" or "2".

The whisk is for whipping egg whites, cream etc.

Disc for grating, carving and French fry cutting (7, 8, 9,10)

Mount the bowl and the driving shaft on the food processor. Then choose the wanted disc. Mount the disc in the disc holder (7) with the cutting blade facing upwards and place the disc holder on the driving shaft. Position the lid on the disc and turn the lid clockwise until it engages. Set the speed selector at "1" or "2".

The grating and carving disc can be used for cutting potatoes, onions, cucumbers, roots, apples, and carrots etc.

Pusher (6)

Always use the pusher to push firm ingredients into the hopper. NEVER use your fingers, a spatula or utensils other than the delivered pusher for this purpose. Liquid and small ingredients can advantageously be added via the hopper.

Quantities and indicative cooking times

Accessory	To be used for:	Max. capacity	Setting Cooking time	Comments
Knife Chopping e.g.: Meat and onion Fruit and vegetables Cheese Chocolate Spices	Approx. 500 g 100-300 g Approx. 200 g Approx. 100 g Approx. 50-100 g	Pulse (moment) or 2	15 – 20 sec.	Cut the ingredients in suitable pieces (cubes or bars of about 3 cm). Pulse setting is perfect for a coarser chopping, whereas you can use setting 2 for finer chopping.
Plastic knife	Mixing of e.g. shortcrust pastry	Approx. 300 g	2 Max. 1 minute

	Kneading of e.g. pastry	Approx. 1 kg 2	Max. 1	minute
	Kneading of e.g. yeast dough	Flour approx. 600 gWater about 400 g	2 20 sec.
Slicing discs	Cutting e.g. vegetables, cheese, potatoes, slicing of fruit	Approx. 1.2 l 1	or 2 Cut the ingredients in		suitable pieces (cubes or bars of about 3-4 cm).
Rive-plader	Rive f.eks.grøntsager, ost, kartofler, chokolade, frugt	Approx. 1.2 l 1	or 2 Cut the ingredients in		suitable pieces (cubes or bars of about 3-4 cm).
French fry cutting disc	Grating potato bars	Approx. 1.2 l 1	or 2 Cut the potatoes in		suitable pieces to fit the hopper.
Whisk Whip	egg whites 2-5	eggs 2 30-70 sec. Use at least 2 and			max 5 egg whites.
	Whip cream 125-350 ml 2 20 sec. Be careful not to whip				too long – it is preferable to whip in more turns.

NOTE!

• The temperature of warm liquids and ingredients must not exceed about 50°C, when put in the bowl.
• Hard spices (such as e.g. nutmeg, coffee beans or ice tubes) must not be chopped in the food processor as this might damage the knife.

How to disassemble the appliance

1. Remove the pusher. Turn the lid counter-clockwise, lift it and take it off.
2. Remove the knife, the whisk or the disc.
3. Remove the accessory holder.
4. Turn the bowl counter-clockwise to remove it from the motor part.
5. Remove the driving shaft.

Cleaning and maintenance

Always unplug the appliance before cleaning. The motor part should never be immersed in water or other liquids. Use a damp cloth for cleaning the motor part. All plastic parts can be cleaned in a dishwashing machine. Do not use scouring powder or other aggressive detergents as these may scratch or dull the surface.

ATTENTION!

The knife and the cutting blades of the discs are very sharp. So be careful. Rinse the knives and the discs in warm water with a washing-up liquid and wipe carefully before storing the appliance.

Remove any congealed remains after a short soaking with a mild detergent and a soft brush.

IMPORTANT: NEVER IMMERSE THE MOTOR PART INTO ANY KIND OF LIQUID!

Trouble shooting

The appliance does not work: Check that the food processor has been correctly assembled

If the appliance is hot because it has been run for longer than one minute and/or with too much in it, the overheat protection may be triggered and the appliance will therefore not start. Unplug the appliance and allow it to cool for at least half an hour before starting it again.

The appliance suddenly stops: If the appliance is run for longer than one minute, or run with too much in it, the overheat protection may be triggered to protect the motor. Unplug the appliance and allow it to cool for at least half an hour before starting it again.NB! The bowl may come loose if the appliance is run with too much in it.

The motor is running, but the ingredients do not move: Check that the driving shaft has been correctly mounted.

Disposal of the appliance

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

OBH Nordica LIMITED GUARANTEE

The Guarantee

OBH Nordica guarantees this product against any manufacturing defect in materials or workmanship during 2 years within Sweden, Norway, Denmark and Finland, starting from the initial date of purchase or delivery date.

This manufacturer's commercial guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At OBH Nordicas choice, a replacement product may be provided

instead of repairing a defective product. OBH Nordicas sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

OBH Nordica shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The defective product may be returned to the store of purchase.

This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow OBH Nordica instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• mechanical damages, overloading
• damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification
• ingress of water, dust or insects into the product
• scaling (any de-scaling must be carried out according to the instructions for use)
• damage as a result of lightning or power surges
• damage to any glass or porcelain ware in the product
• accidents including fire, flood, etc
• professional or commercial use

Consumer Statutory Rights

OBH Nordica's commercial guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from Country to Country. The consumer may assert any such rights at his sole discretion.

These instructions are also available on our website www.obhnordica.com.

TEFAL - OBH Nordica Group AB

Löfströms Allé 5

172 66 Sundbyberg

Phone [phone]

www.obhnordica.com

Technical data

OBH Nordica 6798

220-240 volt AC

500 watt

Capacity 2 litres

These instructions are subject to alterations or improvements.
