Product Type	Waffle Maker
Brand	Logik
Model	LDWM15E
Dimensions (W x D x H)	Approx. 23 x 18 x 9 cm
Weight	Approx. 1.2 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	750 W
Non-stick Coating	Yes
Indicator Light	Power and ready lights
Temperature Control	Adjustable thermostat
Number of Waffles	1 round waffle (approx. 15 cm diameter)
Cord Length	Approx. 0.8 m
Cleaning	Wipe with damp cloth, do not immerse
Safety Features	Cool-touch handle, non-slip feet, auto shut-off
Spare Parts Available	Replacement plates not available separately
Warranty	1 year limited
Manual Languages	English, Finnish, Norwegian, Swedish, Danish

Frequently Asked Questions - LDWM15E Logik

How do I use the Logik LDWM15E waffle maker for the first time?

Before first use, wipe the plates with a damp cloth. Preheat with the lid closed for about 5 minutes until the ready light turns on. Lightly grease the plates and pour batter. Close and cook until steam stops, typically 3-5 minutes.

What type of batter should I use?

You can use any standard waffle batter. For best results, use a batter that is slightly thicker than pancake batter. Avoid overfilling; about 120 ml is sufficient.

How do I clean the waffle maker?

Unplug and let it cool completely. Wipe the plates with a damp cloth or paper towel. Do not immerse in water or use abrasive cleaners. The non-stick coating can be wiped with a soft sponge.

Why is the ready light not turning on?

Ensure the appliance is plugged into a working outlet. The thermostat controls the light; if the unit is already hot, the light may cycle. If still not working, contact support.

Can I make gluten-free waffles?

Yes, gluten-free batter works fine. Ensure the batter is not too thin to avoid sticking. The non-stick plates help, but a light spray of oil is recommended.

How do I store the waffle maker?

Store in a dry place, preferably with the lid closed and locked (if a locking mechanism is available). Wrap the cord around the base.

What is the maximum cooking time?

Typically 5-6 minutes for a golden waffle. The auto shut-off (if present) may activate after 30 minutes. Always supervise use.

Can I use the waffle maker for other foods?

It is designed for waffle batter only. Do not use for raw meat or other foods that may damage the non-stick surface.

How do I know when the waffle is cooked?

The indicator light may turn off or change color when the set temperature is reached. Additionally, steam will decrease. Open slightly to check for golden brown color.

Where can I find the manual in other languages?

On the notice-facile.com page for this model, you can request a translation by selecting your language and entering your email. The manual is available in several languages.

USER MANUAL LDWM15E Logik

Stainless Steel Double Waffle Maker

GB

Instruksjonsmanual

Dobbelt vaffeljerni Rustfritt Stål

NO

Instruktionsbok

Close-up of a Logitik device with a black lid and silver casing, no visible text or symbols on the main body.

Contents

GB

Safety Warnings 5

Unpacking....20

Product Overview 21

First Time Use....21

Waffle Making....23

Cleaning and Maintenance....25

Hints to Make Perfect Waffles 25

Specifications....26

Innhold

NO

Do not touch the surface of the appliance during operation.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years old and are supervised.
• Keep the appliance and its mains cable out of the reach of children less than 8 years old.
• Your appliance should be used in such a way that it is protected from moisture e.g., condensation, splashed water etc. Do not place or store your appliance where it can fall or be pulled into water or any other liquid. Do not reach for the appliance if it has fallen in any water or any other liquid. Unplug immediately. Stand your appliance on a stable, level surface during use. Do not allow your appliance to sit on top of the mains cable.
• Make sure that children cannot touch the appliance when hot or pull the mains cable.

- It is dangerous to insert fingers or other objects into the appliance.

- Your appliance must not be used near or below curtains or other combustible materials. It must be watched when in use. Do not leave your appliance unattended. Your appliance should be placed away from heat sources such as radiators, gas/electric fires and direct sunlight.

- Keep the mains cable away from any heated surfaces.

- Use the appliance only for its intended use, as described in this manual.

- Do not use outdoors.

- Never use your appliance if it is damaged in any way. Do not remove any fixed covers.

- Never use this appliance if it is not working properly, or if it has been dropped or damaged.

- If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

- Caution: Danger of scalding! Hot steam can escape from the appliance during operation. Be careful when you open the lid. Do not transport the appliance while it is in use. There is a risk of scalding from batter mixture or steam escaping from the device.

- This appliance is not intended to be operated by means of an external timer or separate remote-control system.

• The outer surface may get hot when the appliance is operating.
• This appliance is intended to be used in household and other residential environments only and not intended for commercial applications.
• This appliance is intended to be used to bake waffles only.
• Clean the appliance thoroughly before using it for the first time and after each use.
  • After each use, unplug the appliance from the mains socket, make sure the appliance is cool down completely before cleaning and storage.
  • Always unplug the appliance when it is not in use.
• Never immerse the appliance, mains cable or mains plug in water or any other liquid.

FORSIKTIG: Varm overflate

Thank you for purchasing your new Logik Waffle Maker.

We recommend that you spend some time reading this instruction manual in order to fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Technical line drawing of a mechanical component with no visible text or symbols

The Main Unit Instruction Manual

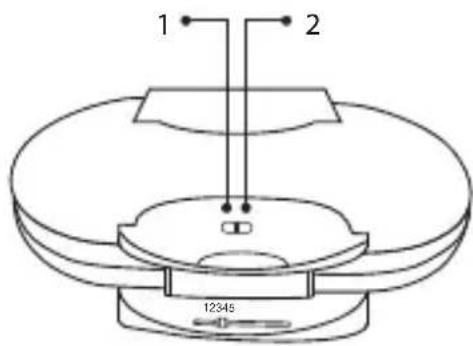

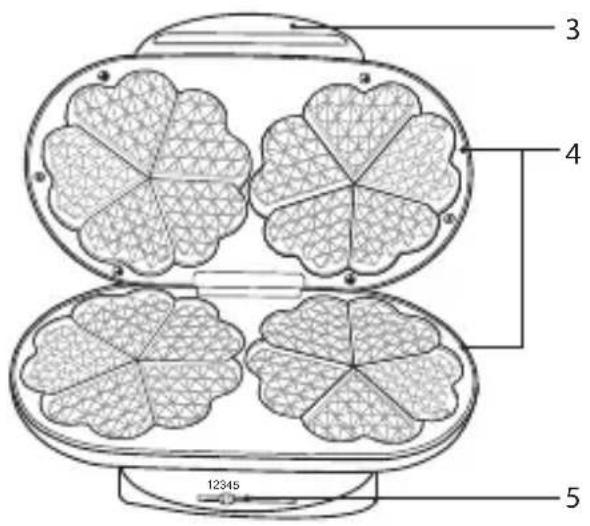

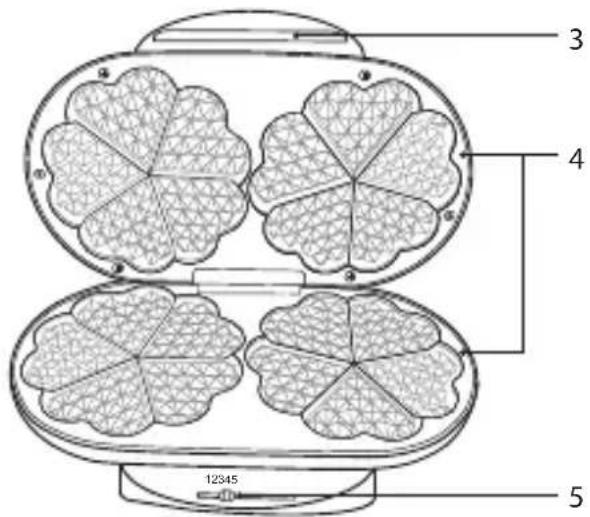

Product Overview

1. Power Indicator
2. Temperature Indicator
3. Handle

1. Cooking Plate
2. Temperature Control Lever

First Time Use

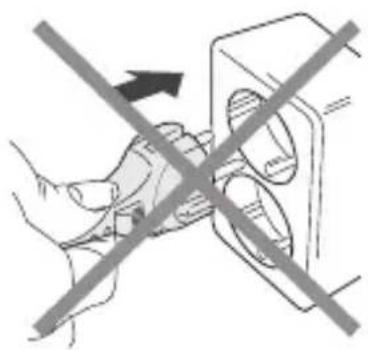

Do not connect to the mains socket yet.

Illustration of hands using a tool to adjust or install a mechanical component, crossed by a diagonal line (no text or symbols)

GB

1. Lift the lid of the waffle maker. Clean the surface of the cooking plates with a damp cloth and wipe dry.

Illustration of a hand placing four leaf-shaped objects into a circular tray (no text or symbols)

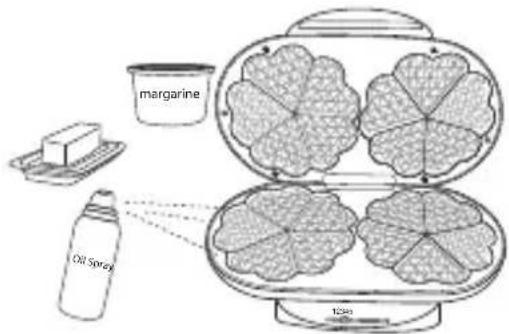

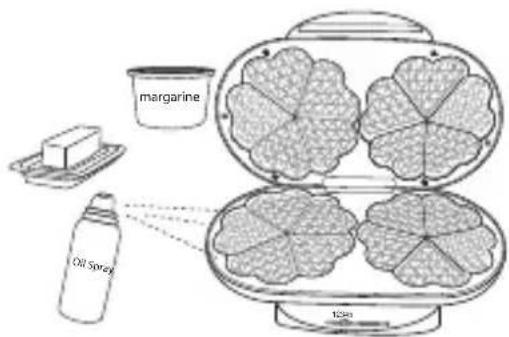

1. Smear a layer of butter, margarine or cooking fat over the cooking plates.

1. Close the waffle maker and connect the plug to the mains socket.

Hand inserting a plug into a component (no text or symbols visible)

1. Turn the power on at the mains socket. The red power indicator will light up. After several minutes, the green temperature indicator will light up.

1. Lift the lid and pour a small ladle of batter onto the centre of the lower waffle grid. Use a heat-proof plastic spatula to spread batter evenly over the grids. Close the lid and press for a short while, the green indicator will blink out.

Do not touch the surface of the cooking plates as they get very hot.

Line drawing of a hand pouring liquid into a four-leaf clover-shaped food item on a stand (no text or symbols)

GB

1. Wait until the green temperature indicator lights up again. Open the lid and remove the waffle from the cooking plates with a wooden utensil.

Never use a metal object to remove your waffle as it may damage the cooking plates.

Please do not eat the first waffle.

Waffle Making

This unit makes 2 waffles each time.

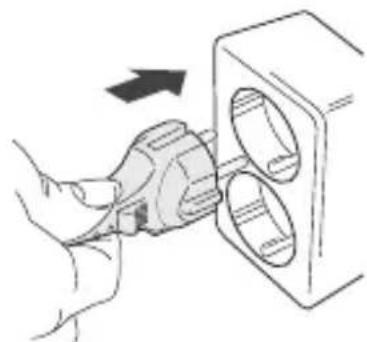

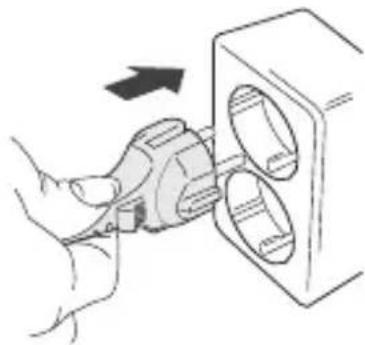

1. Close the lid and connect the plug to the mains socket and switch on.

2. The power indicator will light up red. Slide the Temperature Control Lever to choose how hot you want the unit to be. When the temperature indicator lights up green, the unit is ready to make waffles.

Levels 1 - 3 are recommended for pre-heating the unit.

Illustration of a hand inserting a plug into a socket (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

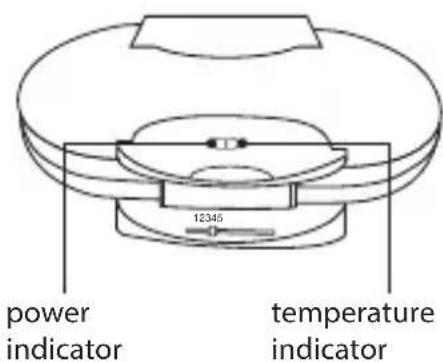

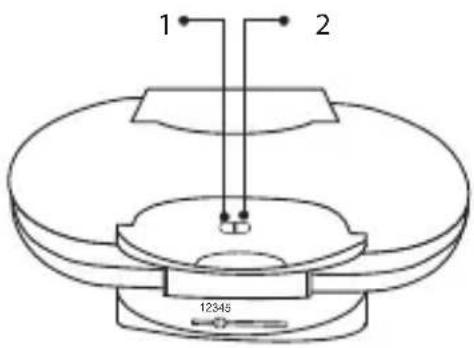

power indicator

temperature indicator

1. Select the level of browning by sliding the Temperature Control Lever left or right. There are 5-setting levels:

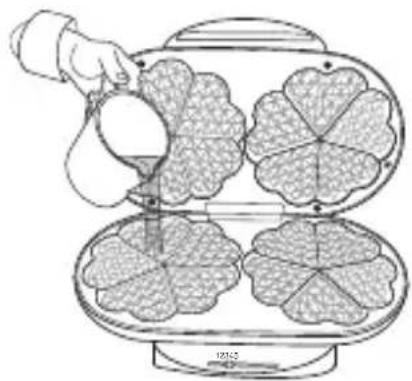

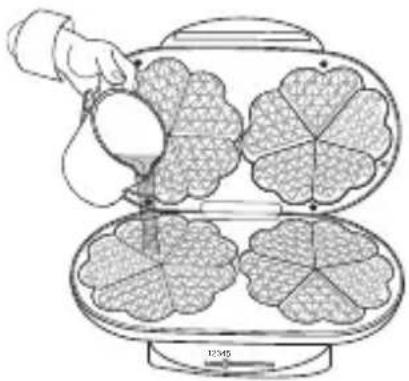

1. Lift up the lid and pour a small amount of batter onto the centre of the lower waffle grid. Use a heat-proof utensil (not metal) to spread the batter evenly over the grid.

• Do not touch the surface of the cooking plates as they get very hot.
  • Fill the grid(s) quickly, or the waffles will not brown evenly.

Illustration of a hand pouring liquid into a waffle-shaped griddle on a scale (no text or symbols)

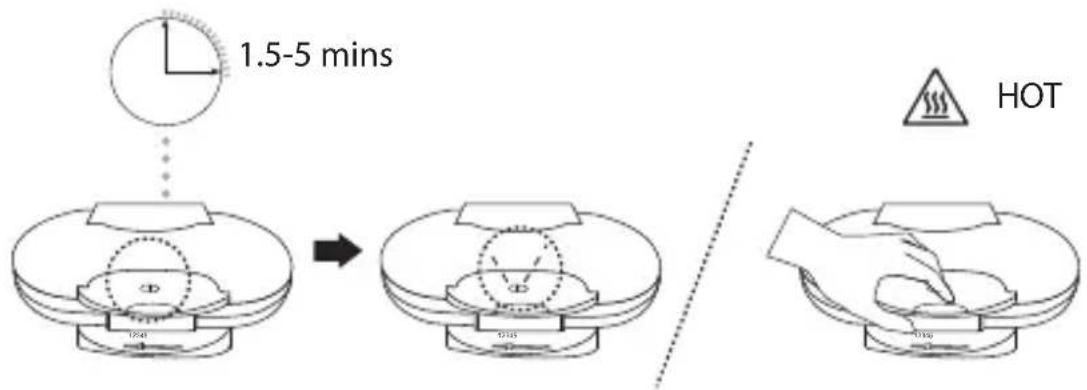

1. Close the lid and press for a moment. Depending on the browning level selected, the temperature indicator will wink out. Once the waffles are ready, the temperature indicator will light up green. Leave the unit closed for another 1 - 2 minutes to ensure food is thoroughly cooked.

1. Remove the waffles from the unit using a wooden or heat-resistant utensil (not metal). Pour more batter to continue making waffles, or unplug the unit.

Cleaning and Maintenance

Do not use harsh cleaners, solvents or scouring pads as they may damage the casing.

1. Fully unplug the plug from the mains socket. Wait until the unit has cooled down before cleaning.

Illustration of a hand inserting a plug into a socket (no text or symbols)

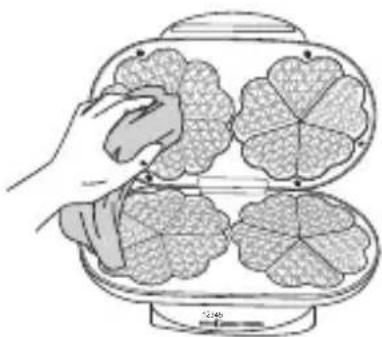

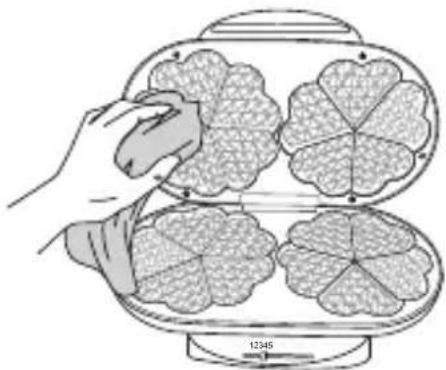

1. Use a dry paper towel or a damp cloth to wipe away crumbs and soak up excess oil on the waffle grid. Clean the surface of the cooking plates with a damp cloth and wipe dry. Make sure you do not allow water to seep into the controls or heating elements.

Illustration of a hand placing a flower-shaped object into a pan with another flower-shaped object inside (no text or symbols)

A non-metal, heat-resistant utensil and a paper towel can help clean the waffle maker thoroughly. A metal utensil may damage the cooking plates.

Hints to Make Perfect Waffles

• For evenly filled waffles, pour the batter onto the centre of the waffle grid and close the lid immediately.
• Baked waffles will accumulate steam between them and lose their crispness if stacked or cooled on a solid surface. For best results, move waffles to a wire cooling rack and do not stack.
• Finished waffles may be kept warm by placing them directly on a rack in a 100°C oven.
• Place in a baking pan while in the oven. Waffles wrapped in foil may lose their crispiness.
• Cooked waffles may be frozen. Stack the waffles, separating each layer with grease-proof paper then insert into a suitable container. Heat up in a toaster or toaster oven.

Model LDWM15E
Mains supply 220V-240V ~ 50/60 Hz
Power consumption 1100-1300 W

Features and specifications are subject to change without prior notice.

Technical line drawing of a mechanical component with no visible text or symbols

NO

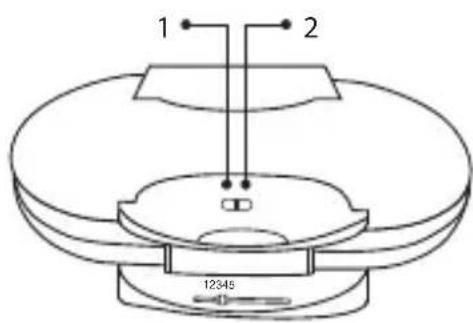

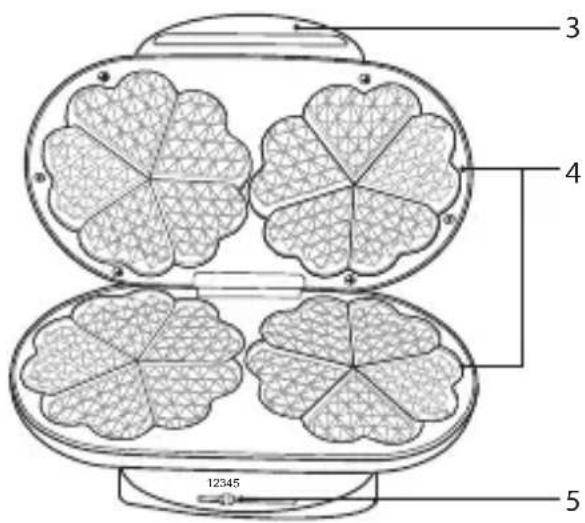

Produktoversikt

1. Strømindikator
2. Temperaturindikator
3. Håndtak

1. Stekeplate
2. Temperaturkontroll

Førstegangsbruk

Illustration of hands using a tool to switch or adjust a component, crossed by a diagonal line (no text or symbols)

Illustration of a hand placing a flower-shaped object into a pan with another flower inside, no text or symbols present.

NO

Illustration of a hand inserting a plug into a component with two circular cavities (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

strømindikator temperaturindikator

NO

Illustration of a hand pouring liquid into a multi-gourd-shaped food item on a stand (no text or symbols)

Illustration of a hand inserting a plug into a socket (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

strømindikator

temperaturindikator

1. Velg bruningsnivået ved å skru på temperaturkontrollen. Det er 5 innstillingsnivåer:

Lysest (1)

Simple curved line drawing without any text, numbers, or symbols

Mørkest (5)

Illustration of a hand pouring liquid into a waffle-shaped pan with four leaf patterns (no text or symbols)

Illustration of a hand using a power adapter to adjust or install a component into a rectangular block (no text or symbols)

Illustration of a hand placing four flower-shaped objects into a circular container (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Produktöversikt

Illustration of a hand using a device to switch or adjust a circular component, with no visible text or symbols.

SE

Illustration of a hand placing four leaf-shaped objects into a circular container (no text or symbols)

Illustration of a hand inserting a plug into a component with two circular cutouts (no text or symbols)

Pure technical diagram of a mechanical component with no text or symbols

strömindikator temperaturindikator

SE

Line drawing of a hand pouring liquid into a four-leaf clover-shaped food item on a stand (no text or symbols)

SE

Illustration of a hand inserting a plug into a socket (no text or symbols)

Technical line drawing of a mechanical component with circular base and rectangular components (no text or symbols)

strömindikator temperaturindikator

Hand inserting a plug into a socket (no text or symbols visible)

Illustration of a hand placing a flower-shaped object into a pan with another flower inside (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Laite Käyttöopas

Illustration of a hand using a tool to switch a component, crossed out by a diagonal line (no text or symbols)

Illustration of a hand placing a leafy vegetable on a plate with a scale bar (no text or symbols)

FI

Illustration of a hand inserting a plug into a device (no text or symbols visible)

Illustration of a hand pouring liquid into a multi-gourd-shaped food item on a stand (no text or symbols)

FI

Illustration of a hand inserting a plug into a socket (no text or symbols)

Illustration of a hand pouring liquid into a four-leaf-shaped waffle on a rotating stand (no text or symbols)

Illustration of a hand using a power plug to adjust or install a component into a rectangular block (no text or symbols)

Illustration of a hand placing a leafy vegetable on top of a pan with four leafy vegetable pieces (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

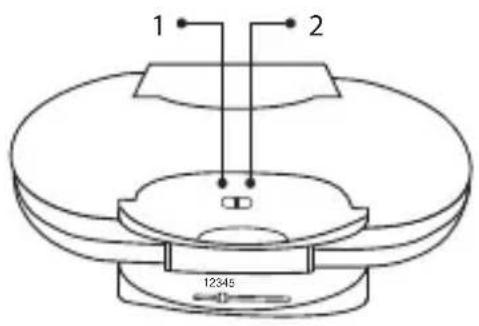

Produktoversigt

1. Strømindikator
2. Temperaturindikator
3. Håndtag

1. Kogeplade
2. Temperaturjusteringsknap

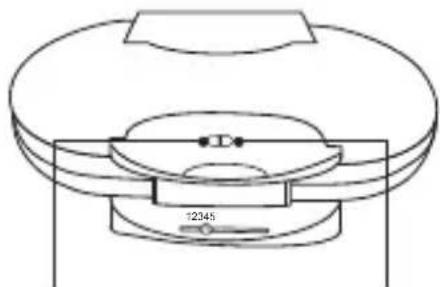

Ved første brug

Illustration of hands using a device to switch or adjust a component, crossed by a diagonal line (no text or symbols)

Illustration of a hand placing four leaf-shaped food items into a pan (no text or symbols)

Illustration of a hand inserting a plug into a socket (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Strømindikator Temperaturindikator

Illustration of a hand using a watermelon to spread four-petal flower-shaped molds on a stand (no text or symbols)

DK

Illustration of a hand inserting a plug into a rectangular device (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Strømindikator Temperaturindikator

Illustration of a hand pouring liquid into a two-folded cake pan with leaf patterns (no text or symbols)

Illustration of a hand inserting a plug into a socket (no text or symbols)

DK

Illustration of a hand placing a flower-shaped object into a pan with another flower inside (no text or symbols)

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.
