Product Type	8kg/6kg Washer Dryer
Brand	Logik
Model	LI8W6D17
Wash Capacity	8 kg
Drying Capacity	6 kg
Maximum Spin Speed	1400 rpm
Rated Voltage	220-240 V~ 50 Hz
Maximum Current	10 A
Rated Power Input	1900 W (wash), 1300 W (drying)
Energy Efficiency Class	A (on a scale from A to G)
Dimensions (H x W x D)	Approx. 815 x 595 x 540 mm
Net Weight	64 kg
Water Consumption (wash & spin)	64 litres per cycle
Water Consumption (wash, spin & dry)	152 litres per cycle
Noise Level (Wash)	52 dB(A)
Noise Level (Spin)	74 dB(A)
Noise Level (Drying)	62 dB(A)
Programmes	Cotton Eco, Sport Wear, Express, Delicate, Wool, Colour, Jeans, Spin Only, Rinse & Spin, Baby Care, Dry Only, Mix, Synthetic, Cotton, 1 Hour W/D
Delay Start	0-24 hours
Child Lock	Yes, with key combination
Maintenance	Drum cleaning, detergent drawer, door seal, drain filter
Safety Features	Overheat protection, child lock, door lock, anti-leak hose
Spare Parts Availability	Available via Partmaster.co.uk (UK only)
Included Accessories	Water supply hose, drain hose holder, levelling tool kit, transit bolt covers, door drill template

Frequently Asked Questions - LI8W6D17 Logik

How do I remove the transit bolts before first use?

Before installing, remove the four transit bolts at the rear using a spanner. Pull them out horizontally, then insert the four cover caps provided into the holes. Keep the bolts safe if you need to move the machine later. Failure to remove them can cause excessive vibrations.

What is the maximum load for washing and drying?

The maximum wash capacity is 8 kg and the maximum drying capacity is 6 kg. For different fabric types, the load limit is lower, e.g., 4 kg for synthetics, 2.5 kg for delicates and 2 kg for wool.

How do I activate the child lock?

While the machine is operating, pause it, then press and hold the Wash Temp and Speed buttons simultaneously for 3 seconds. The Child Lock icon lights up. To deactivate, repeat the same key combination until the icon disappears.

Why doesn't the door open after a cycle?

The door remains locked for about 1 minute after the program stops. If it still won't open, the door lock may be active or the water temperature/level is too high. Check for any active error codes and wait for the machine to cool down.

How do I clean the drain filter?

Switch off and unplug the machine. Carefully loosen the drain filter — some water may drain out. Unscrew it fully, remove lint and debris, then replace and screw clockwise to close. Be careful of hot water if you've just used a high-temperature wash.

Can I connect this washer dryer to a hot water supply?

No, the machine operates with cold water only. Do not connect to a hot water tap, as it may damage the appliance or cause performance issues.

What should I do if the machine doesn't start?

Check that the door is closed tightly, the power plug is inserted, the water tap is open, and the Power and Start/Pause buttons are pressed. Also verify that the child lock is not activated.

What does error code E10 mean?

E10 indicates a water inlet problem during washing. Open the water tap, check if the inlet hose is kinked or squashed, ensure the inlet filter is not blocked, and verify the water pressure is sufficient.

How can I delay the start of a wash programme?

Select a programme, then press the Delay button repeatedly to set the delay time from 0 to 24 hours. Press Start/Pause to confirm. Once the delay is set, the machine will start automatically after the countdown.

How do I mute the keypad sounds?

Press and hold the Wash Temp button for 3 seconds to mute all sounds. Repeat the same action to turn the sound back on.

USER MANUAL LI8W6D17 Logik

LOGIK

8kg/6kg Washer Dryer

Instruction / Installation Manual

LI8W6D17

Safety Warnings....4

Unpacking......8

Installing Your Washer Dryer 9

Choosing the Right Location for Your Washer Dryer 9

Moving and Installing 10

Removing the Transit Bolts 10

Removing the Polystyrene Foam....10

Moving the Washer Dryer from One Location to Another 10

Hose and Cable Lengths 11

Levelling the Washer Dryer 11

Water Supply Hose....11

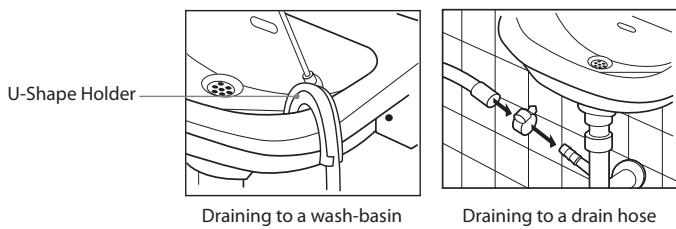

Water Drain Hose....12

Installing into Kitchen Furniture 13

Connecting to the Mains Supply 15

Product Overview....16

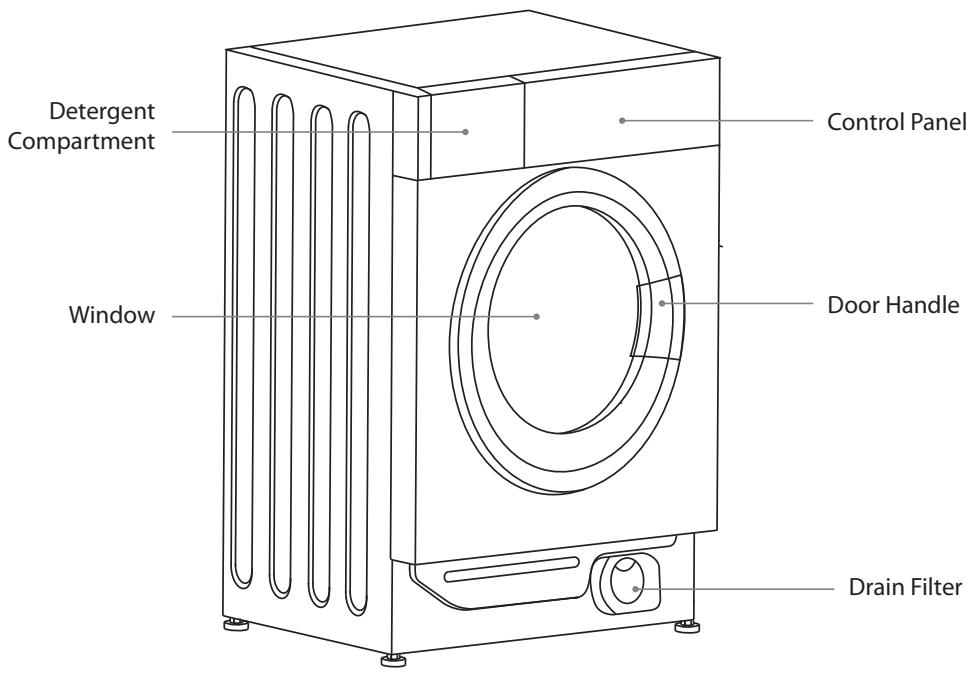

The unit 16

The Control Panel 17

Preparation 18

Organising Laundry....18

Preparing Laundry 18

Adding Detergent and Softener 19

Before First Use....20

Wash Setting....20

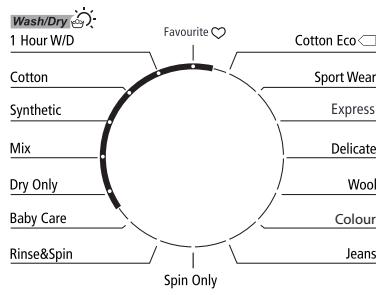

Standard Washing 20

Selecting the Programme....20

Delay Start the Programme 22

Removing Washing (Once programme is finished)....22

Important Information....23

Washing Delicates (wool and silk) 23

Adding Delicate Laundry Items to the Drum 23

Which Detergent to Use....23

How to Set the Child Lock....23

Muting & Turning On the Sound....23

Maintenance – Cleaning the Washer Dryer 24

Cleaning the Drum....24

Cleaning the Exterior of your Washer Dryer 24

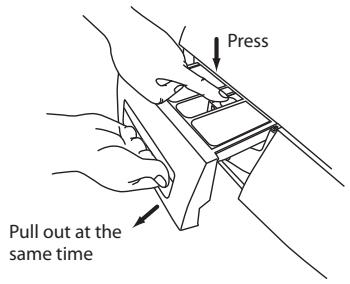

Cleaning the Detergent Drawer 24

Cleaning the Door Seal and Window 24

Cleaning the Drain Filter 25

Preventing a Frozen Water Supply Hose 25

Cleaning the Filter Net of the Water Supply Hose 25

Hints and Tips ......26

Questions and Answers....28

Error Codes 29

Specifications....29

Product Fiche 30

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

WARNING!

• Never stop the appliance before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
• The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.
• If you will not be using the machine for a while such as when you go on holiday, disconnect the plug from the mains supply and turn off the water supply. This is particularly important if there is no drainage around the machine.
• If the water supply is left on, water pressure may build up and cause a leak. Turn off water supply after use.

General Use

• Transit bolts are used to transport the machine. You should remove these using a spanner or similar tool before you install the machine. If you do not, it will cause strong vibrations when the machine is spinning.
• Do not install your machine anywhere that is damp or exposed to explosive materials. If you do, it may cause an electric shock, fire, failure or deterioration.
• Do not pour water directly onto any part of the machine. It may cause a short circuit or electric shock.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
• Items such as foam rubber (latex foam), shower caps, water-proof textiles, rubber-backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the appliance.
• The machine can be used on textiles suitable for machine washing and drying.
• CAUTION: Do not connect the machine to hot water. The machine works with cold water only.

• The appliance is to be connected to the water mains using the new hose-set supplied. Old hose-sets should not be reused.

• Before you start using the machine, turn the tap on to check that the hose is properly connected. If it's not, there may be a water leak.

• Do not put too much laundry or detergent into the machine. It may cause issues with the machine or laundry.
• The appliance is not to be used if industrial chemicals have been used for cleaning.
• Lint must not be allowed to accumulate around the appliance.
• Do not dry unwashed items in the appliance.
• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the appliance, in such a way that a full opening of the appliance door is restricted.
• Be careful not to get your laundry caught in the door when you close it. This could cause a water leak or damage your laundry.

• This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• This appliance is not intended to be used in areas for communal use in blocks of flats or in launderettes. It is for indoor use only and not intended to be built-in.

• Adequate ventilation should be provided. The ventilation openings in the base of the machine must not be obstructed by a carpet.
• Your product is suitable to operate in ambient temperatures between 0° C and 40° C.
• Ambient temperatures between 15°C and 25°C are ideal temperatures for your product.

Power Source and Cable

• Use an independent household dedicated mains socket, rated at 13 Amp 220V to 240V AC. If the machine is plugged in with other appliances, it may overheat and cause a fire.
• Make sure the mains plug is pushed firmly into the socket. A loose connection may overheat and cause electrical shock or a fire.
• Check the mains lead and mains plug for any damage. If the mains cable

is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Unplug from the power socket before cleaning and maintenance of the machine.
• Do not touch the mains lead or mains plug with wet hands. It may cause an electric shock.
• Check the mains plug regularly for dirt. If dirt accumulates on the mains plug, it could cause a fire. To prevent this, unplug the cable and clean the mains plug with a dry rag.
• If you disconnect the mains plug, hold onto the mains plug not the cable. Pulling the cable may cause an electric shock or a fire.
• Do not use a mains plug adapter or extension cable. It may overheat and cause a fire.
• Make sure your home voltage matches the voltage displayed on the machine. If you are not sure, contact an electrician.
• The mains plug must remain accessible to allow disconnection or an all pole switch must be incorporated in the fixed wiring in accordance with the wiring regulations.

To Prevent Injury / Damage

• Do not climb on the machine. You may hurt yourself or damage the machine. Pets and children may climb into the machine. Check the machine before every operation.
• When opening and closing the door ensure you keep fingers away from the door hinge, or this could lead to injury.
• Check your washing for objects such as nails, pins, coins, clips etc. They could damage your laundry or the machine.
• To prevent any large, heavy objects (e.g., buckles, large buttons, etc.) from hitting the glass door, turn your clothing inside out or remove the heavy objects. They could damage your laundry or the machine.
• Do not wash, rinse or spin water-proof sheets or clothing. These may cause vibration or machine failure during spin-drying, which could lead to injury, damage to the machine or damage due to water leaking.
• Remove all objects from pockets such as lighters and matches.
• The door may be very hot during operation. Keep pets and children away.
• Be careful when draining hot water or any detergent from the drum.

• Do not dismantle, repair or modify the machine. It could malfunction and cause a fire or injury.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Children should be supervised to ensure that they do not play with the appliance.
• Children of less than 3 years should be kept away unless continuously supervised.
• Do not touch the laundry inside the machine, until the drum has completely stopped. Even if the drum is spinning at low speed it can cause an injury. Take particular care of children in this respect.
• Never place heavy items or wet washing directly on top of the appliance.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Read operator's manual

Thank you for purchasing your new product.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

The Main Unit

Magnet x 2

Hinge x 2

Screw A x 8

Screw B x 6

Spacer x 2

Transport Bolt Cover x 4

U-Shape Drain Hose Holder

Water Supply Hose

Levelling Tool Kit

Instruction Manual

Door Drill Template

If items are missing or damaged please contact Partmaster (UK only).

Tel: [phone] for assistance.

Installing Your Washer Dryer

Please read and follow the instructions carefully.

• In addition to the instructions mentioned here, special regulations of the relevant water and power supply companies may apply. If in doubt, have the machine connected by a qualified technician.
• The machine is heavy - caution when lifting it. Do not lift by projecting components (e.g. machine door).
• Warning: Frozen hoses may tear/burst. Do not install machine in outdoor areas or where there is a risk of frost.
• Lay hoses and cables in such a way that there is no risk of tripping over them.

An additional space (approximately 120mm) is required at the rear of the machine. This is to allow enough space for the water hose and drain hose connections.

Choosing the Right Location for Your Washer Dryer

• Make sure there's enough space for your machine.
  • Install your machine on a flat, stable surface to avoid excessive vibrations and noise.
• Don't install your machine in direct sunlight or in a place where temperatures can reach freezing.
• The ventilation openings in the base of the machine must not be obstructed by carpet.

x Sloping surface

x Unstable

x Bumpy surface

Two or more people are required to move the machine.

• Start by tilting the machine backwards.
- One person should stand behind it, holding the rear of the top panel. The other person should grip the bottom feet at the front.
- Check that you have all the required accessories for installation.
• We recommend that you entrust the installation of the machine to a qualified technician.

Moving and Installing

Removing the Transit Bolts

Four transit bolts keep the interior of the machine in place while it's being moved.

They need to be removed before installation. Use a spanner (not supplied) and follow the instructions detailed below.

Don't run the machine without removing the transit bolts, as this can cause excessive vibrations and may damage your machine.

To remove the transit bolts:

1. Use a spanner to loosen the four bolts. They are located at the rear of the machine.
2. Pull the bolts out horizontally. Make sure the entire bolt is removed.
3. Push the four cover caps (included with your accessories) into the respective bolt holes.

You'll need the transit bolts again if you move the machine, so make sure you keep them in a safe place.

Removing the Polystyrene Foam

Polystyrene foam is attached on the underside of the appliance for protection and support during transportation. It needs to be removed before installation. Check and ensure the underside is clear of polystyrene foam by tilting the appliance and have someone check the underside of any un-removed foam.

Moving the Washer Dryer from One Location to Another

Before you move the machine:

• Shut off the tap and run the machine to drain the water. Drain any remaining water from the pump hose.
• Disconnect the mains cable.
• Attach the transit bolts.

Make sure to fix the transit bolts prior to moving the machine.

Hose and Cable Lengths

How to connect from the left side
How to connect from the right side

Levelling the Washer Dryer

There are levelling feet on the underside. They must be adjusted to make sure the machine is level. Use the levelling tool kit supplied.

1. On each foot, loosen the lock ring by turning it clockwise.
2. Adjust all feet by rotating each upwards or downwards.
3. Use a spirit level to ensure the machine is level.
4. Tighten each lock ring by turning them anti-clockwise (towards the machine body).

Ensure all lock rings are tightened securely. Check that the feet are still bolted to the machine - if they're unbolted, the machine will move around.

Water Supply Hose

Points to remember

• Follow the instructions in this section to avoid water leaks.
• Don't connect the hose to a combination tap.
• Don't twist, squash, modify or cut the hose.
• This machine is designed to connect to the cold water supply. Do not connect to the hot water supply.
• Use only the new water supply hose supplied. Old hose sets should not be reused.

Connecting the Water Supply Hose

1. To prevent leakage from the connection joints, ensure the rubber washer seals are fitted to each end of the water supply hose. Do not use without the seals in place.
2. Fit the straight end of the water supply hose to the cold water tap.
3. Connect the angled end of the hose to the water inlet valve on the machine. Hand tighten the plastic parts of the connections. If you are unsure, please call a qualified plumber for safer connections.
4. Open the tap slowly and check that there are no leaks around the connection joints.

Water Drain Hose

Points to remember:

• Don't twist, pull out or bend the drain hose.
• Your machine should be no more than 85cm from the drain outlet.
• The water drain hose should be mounted at a height of minimum 60 cm, maximum 100 cm from the ground.

Draining to a sink or wash-basin

• Secure the drain hose in position, so it can't drop out of the basin.
• Don't block the basin's drain outlet, and make sure that the drainage through it is sufficient to prevent overflowing.
• Don't let the tip of the drain hose dip into the drained water, as this can cause the water to flow back into the machine.

Before connecting to the waste pipe, make sure to check the waste pipe and remove any stopper or blockage inside, otherwise the unit may not be able to expel the waste water properly.

Installing into Kitchen Furniture

This appliance is designed to be built into kitchen furniture. Follow the measurement below for correct installation.

During installation, make sure the hoses are placed out of the way. This can prevent the hoses from being kinked or trapped.

This appliance is also designed for the assembled cabinet door (16-22 mm thick) to open from the left or right.

Door open from left to right

Door open from right to left

1. Mark on the cabinet door the measurement and dimension of the cupboard and machine.

1. Decide from which direction the cabinet door will open.

Door open from left to right

Door open from right to left

1. Depending on the direction the cabinet door will open and close, drill holes (hinge ∅ 35 mm; screw ∅ 2 mm) on the cabinet door according to the markings and measurements on the Door Drill Template.

1. Screw the hinges on the cabinet door using screw A.

2. Screw the spacers on the cabinet door using screw A.

3. Depending on the direction the cabinet door will close, screw the magnets on the machine using screw B.

1. Fix the cabinet door on the machine. Screw the hinges on the machine using screw B.
2. Close the cabinet door. Spacers on the cabinet door shall attract to the magnets on the machine.

Connecting to the Mains Supply

For your safety:

• Do not use a mains plug adapter or extension cable.
• If the mains cable or mains plug are damaged, stop using them and call a qualified technician for assistance.
• An earthed plug has been attached to the power cable of your machine. This plug must be inserted into an earthed socket capable of supplying 13 Amps. If you have no such sockets and fuses in your house, call a qualified electrician.
• The mains plug must remain accessible to allow disconnection or an all pole switch must be incorporated in the fixed wiring in accordance with the wiring rules.

Installation Check List

By now, you should have installed the machine.

Let's go through the checklist to ensure that the installation has been done correctly!

Questions		Checkbox
Transit bolts - Have you removed them and attached the cover caps properly?
Polystyrene foam - Have you removed all the polystyrene foam from the underside of the appliance?
Levelling feet	Levelling Feet - Are they bolted securely to the machine?
	Feet Cushions - Are they standing flat?
Power supply - Is the household dedicated mains socket rated for 220V - 240V AC and can supply 13 Amps?
Location - Is your machine on a flat, stable surface?
Water Supply Hose - Is it free from leaks and is the water supply normal?

The unit

The Control Panel

• If you need to change a setting after the wash has started, turn the power OFF then ON again. Re-select the programme, spin speed and optional functions, and then press the Start / Pause button. (Ensure the Child Lock is off, otherwise the original programme will continue.)
• Water is poured into the machine to perform an inspection at the time of shipment from the factory, so there may be drops of water or condensation in the machine. This is not an indication of a malfunction.

During initial start-up and use of the unit, there may be a slight smell while the motor is settling in. This is not a fault; this is normal operation.

Read the following to understand how best to prepare your laundry for washing.

Organising Laundry

• Read the washing label on each garment to help you sort your washing into different loads.
• Sort the laundry by colour, type of fabric and by how soiled it is. This will help you choose the correct programme and temperature for each wash.
  • Do not exceed the maximum load!

Fabric Type	Maximum Loading Capacity (kg)
Cotton	8.0
Synthetics	4.0
Wool	2.0
Delicates	2.5

Preparing Laundry

• Treat stains before washing.
- Some items should be put into a cleaning net before going into the machine. i.e. bras with metal wires, tights and lace clothing to prevent damage.
- Check that pockets do not contain any objects which may damage your clothes and the machine.
- Tie up any loose strings on laundry, close zippers and reverse clothing with zips inside out.
- To prevent any large, heavy objects (e.g., buckles, large buttons, etc.) from hitting the glass door, turn your clothing inside out, or remove the heavy objects. These could damage your laundry or the machine.
- Remove any surplus hair, animal fur, sand, and other materials with a brush before washing.
• If clothes have raised fabric, turn them inside out.
• Clothes that are not colour fast should be washed separately.
- Insert your clothes into the machine. Close the machine door. Ensure that you do not trap any items of clothing between the loading door and the rubber seal.
- Do not wash clothes stained with kerosene, alcohol, gasoline and other flammable materials.

Adding Detergent and Softener

• Add detergent into the appropriate dispenser.
• Apply softener before you start washing.
• Apply detergent and softener according to the washing amount, the soiling level, the water hardness in your area and the manufacturer's instructions of these products.
• For slightly dirty clothes, put a small amount of detergent into compartment II of the detergent drawer.

- For excessively dirty clothes, put 1/4 of the detergent to be used into compartment I of the detergent drawer and the remaining amount into compartment II.

- Do not use the machine when the detergent drawer is removed. It may cause a water leak or it may not work normally.

- To prevent powder detergent from staying in the drawer, dry the inside of the drawer with a cloth. Make sure the powder isn't lumpy when you add it into the drawer.

- If the rinse cycle isn't removing all the detergent from your wash, use less detergent.

- Softener and liquid detergent should not exceed the MAX level in the compartment.

- Wash out unused softener with a splash of water or a damp cloth after the programme has finished.

- You can use liquid detergent in all programmes. For this, pour the required amount of liquid detergent into compartment II of the detergent drawer.

Dilute viscous fabric softener and fabric conditioner with water.

Before washing your clothes for the first time, run a full wash programme first:

1. Connect the machine to the mains power supply and the water supply.
2. Put a small amount of detergent in the detergent drawer. Close the drawer.
3. Press the Power button.
4. Select a wash programme and other function options.
5. Press the Start / Pause button.

Wash Setting

Standard Washing

1. Pull the door handle and put the laundry in the drum. (Refer to Preparation to sort your laundry before it goes into the drum.) Make sure no washing gets caught in the door. Close the door.
2. Press the Power button and turn the Programme Dial to select your wash programme.
3. Select other functions if desired.
4. Press the Dry Level button continuously to select dry level options: Gentle Dry (clothes are slightly dried), Normal Dry (the normal drying procedure) and Extra Dry (clothes are dried very quickly).

• Clothes could be dried after spinning, if suitable for drying.
- Classify fabrics according to their types and drying level.
- Proper drying time should be set for drying synthetic.
- If you want to iron the clothes after drying, choose Gentle Dry level.
• Clothes not suitable for drying:
- Particularly delicate items such as synthetic curtains, woolen and silk, clothes with metal inserts, nylon stockings, bulky clothes such as anoraks, bedcovers, quilts, sleeping bags and duvets
- Clothes padded with foam-rubber or materials similar to foam-rubber
- Fabrics containing residues of setting lotions or hair sprays, nail solvents or similar solutions

1. Add detergent into the detergent drawer. The quantity of detergent will depend on the amount of laundry, the degree of soiling and the water hardness. Use the amount of detergent suggested on the packaging.

2. Press the Start / Pause button to start the washing.

3. The machine will sound when the programme is completed.

If the door is locked and you switched the machine off and then on - or if there's a power cut - it will stay locked for 1 minute.

Selecting the Programme

Here are the available programmes. Water temperature can be selected separately for certain programmes.

Programme	Wash/ Dry Load (kg)	Detergent Box			Default Temp. (°C)	Default Time (hr)	Default Speed (rpm)
		Case I	Case II	Softener Case
Cotton Eco	8.0	X	●	O	30	1:07	800
Sport Wear	4.0	X	●	O	40	1:19	800
Express	2.0	X	●	O	Cold	0:15	800
Delicate	2.5	X	●	O	30	1:00	600
Wool	2.0	X	●	O	40	1:07	400
Colour	8.0	X	●	O	Cold	1:00	800
Jeans	8.0	X	●	O	40	1:48	800
Spin Only	8.0	X	X	X	-	0:12	800
Rinse & Spin	8.0	X	X	O	-	0:31	800
Baby Care	4.0	X	●	O	60	1:45	1000
Dry Only	-/6.0	X	X	X	-	4:28	1400
Mix	8.0/6.0	X	●	O	40	1:13	1000
Synthetic	8.0/4.0	X	●	O	40	2:20	1200
Cotton	8.0/6.0	X	●	O	40	2:40	1400
1 Hour W/D	1.0/1.0	X	●	O	Cold	1:00	1400

Energy test programme: Cotton Eco 60°C (under the highest speed; others as the default)

- Means must

O Means optional

X Means not applicable

The energy class is A

Half load for 8.0kg machine: 4.0kg.

"Cotton Eco 60°" is the standard washing programme and "Dry Only" is the standard drying programme to which the information in the label and the fiche relates, and they are suitable to clean normally soiled cotton laundry and they are the most efficient programmes in terms of combined energy and water consumption for washing that type of cotton laundry, the actual water temperature may differ from the declared cycle temperature.

Note: The parameters in this table are only for user's reference. It may differ from the normal time when using depending on the temperature and the load.

"1 Hour W/D" programme is suitable for the washing and drying of small and thin synthetic items. For big and thick items (such as big towels and jeans), using this programme may not dry the thick items completely.

• Washing times depend on programme and temperature settings selected.
• Washing times may be longer if the laundry in the drum needs to be balanced.

Delay Start the Programme

1. Select a wash programme.
2. Press the Delay button repeatedly to set the delay hours for the programme to start (0-24 hr).
3. Press the Start / Pause button to confirm and commence the delay function.

To cancel the delay function:

• before the programme starts, press the Delay button repeatedly until 0 hr
• while the programme is running, press the Power button to Off.

Removing Washing (Once programme is finished)

Door remains locked for 1 minute after wash stopped.

• Open the machine door and remove your washing.
• Remove any foreign objects to avoid risk of rusting.
• Leave the door and detergent drawer open so that residual water can evaporate.

Washing Delicates (wool and silk)

• Silk laundry loads: 2kg or less
• Approximate Weights:

• Wool sweater (400g)
• Silk blouse / under garment (200g)
• Trousers (400g)

Adding Delicate Laundry Items to the Drum

• Close zips and buttons.
• Add items one by one on top of each other.
• Don't overload the drum as it may cause excessive vibrations or damage the machine.

Which Detergent to Use

• For woolen items, use a mild liquid detergent. Other detergents may damage your woolen clothes.
• With wool or silk, you may need to use an extra rinse cycle to remove excess detergent from your clothes. This depends on the amount of detergent you use, and the amount of foam that develops in the main wash cycle.

How to Set the Child Lock

The Child Lock prevents children from accidentally changing a wash programme.

1. Switch on the machine.
2. When the machine is operating, pause the operation then press and hold the Wash Temp and Speed buttons at the same time for 3 seconds to set the child lock. The Child Lock icon will light to indicate that the child lock is active.
3. If a function button is pressed while the child lock is active, the machine will beep to indicate that the child lock is in effect.
4. To deactivate the child lock, press and hold the Wash Temp and Speed buttons until the Child Lock icon disappears.

Your machine will deactivate the function buttons except the Power button when the child lock is activated.

Muting & Turning On the Sound

The machine will beep when buttons are pressed.

• To mute the sound, press "Wash Temp" for 3 seconds.
- To turn on the sound, press "Wash Temp" again for 3 seconds.

Always unplug the machine before cleaning.

To prevent build-up of detergent residue, it is recommended to wash the appliance without any load or detergent once a month.

Cleaning the Drum

Any rust left inside the drum by metal articles must be removed immediately with chlorine-free detergent. Never use steel wool.

Cleaning the Exterior of your Washer Dryer

• Clean the outside of your machine with a soft cloth and mild detergent such as kitchen detergent.
• Don't splash water over the machine.
• Do not use cream cleansers, thinners or products containing alcohol or kerosene.

Cleaning the Detergent Drawer

1. Remove the detergent drawer by pulling and pressing gently on the rear centre part of the softener compartment.
2. Wash out old detergent from the drawer with water. (Use a cloth to clean the machine.) Residue detergent soon builds up if you don't clean the drawer regularly, and can develop mold.
3. Return drawer to original position.

Cleaning the Door Seal and Window

• Wipe the window and seal after each wash to remove lint and stains. If lint builds up, it can cause leaks.
• Remove any coins, buttons and other objects from the door seal after each wash.

Cleaning the Drain Filter

Be careful not to burn yourself while cleaning the drain filter. Water draining from the filter compartment may be hot after a high temperature wash.

Before cleaning the drain filter, switch off and unplug the machine.

1. Carefully loosen the drain filter. Water may drain out - this is normal.
2. Unscrew the filter to remove it.
3. Remove any lint and debris before carefully replacing the filter.
4. Turn the filter clockwise to screw back into place.

Preventing a Frozen Water Supply Hose

If your machine is delivered in freezing weather conditions, leave it at room temperature for 24 hours after you've set it up before using it. This ensures there's no ice blocking the water supply hose. If your water supply hose freezes, add 2 or 3 litres of warm water to the drum. Then run "Express" programme without detergent.

Cleaning the Filter Net of the Water Supply Hose

1. Turn the water supply off at the tap.
2. Remove the water supply hose from the tap.
3. Manually remove the filter net located on the tap side of the water supply hose and clean using a small brush (e.g. a toothbrush).
4. Return the filter net to its original position.
5. Re-connect the water supply hose to the tap and turn the tap back on, checking for leaks.

Issues	Solutions
Buttons don’t work.	Child lock is activated. Deactivate the child lock function.The machine is operating a programme.TheProgramme Dialwas turned to a different programme.
Door doesn’t open.	Door lock may be active.The water temperature or level could be too high.
If you start a wrong programme accidentally.	Turn the power OFF then ON again. Re-select the programme, spin speed and optional functions, and then press theStart / Pausebutton. (Note: We suggest that you do not change the programme after the machine has been running for 3 minutes.)
Unusual odour.	Rubber parts and the motors may give off a smell when you first start using the machine, but this goes away over time.You should wash the drum once a month.
You can’t see any water.	This is normal: The water level is below the window.
There’s no water going into the machine.	The water tap might be turned off.The water hose or water-supply hose may be frozen.Your water supply may be disrupted.The water-supply valve filter may be clogged.
There’s only a small amount of water.	If you have paused the programme and you restart, the machine may drain some water.Don’t pour water in through the door.
Water adds up during washing.	This is normal: water is supplied automatically as the level lowers, and with heavy loads the water may fill up repeatedly.
The machine does not spin.	If a small load is in the machine, it may be detected as an unbalanced load and may stop spinning after a number of attempts. Manually set the spin speed to continue.
There’s no water going into the machine during rinse operation.	Before rinsing, the machine spins to drain water remaining from the wash. The water will fill up after that.
During the spin-dry, the drum stops and rotates several times.	This is normal. The machine has detected an unbalanced load and is trying to correct it.
Foam and water remain in the door or door seal.	Although foam and water may remain, it does not have any influence on the performance of a rinse.
Spin starting is repeated.	This is normal. Although spin starting may be repeated, it is a function made to spin quietly.
There's not much foam.	This can happen if you've put powder detergent directly into the drum – you must put it in the detergent drawer.The amount of foam can vary, depending on the temperature, level and softness of your water.You may not be using enough detergent.You may be using a reduced-foam type of detergent.Heavily soiled laundry can reduce the amount of foam.Larger loads of laundry can also reduce the amount of foam.
There's a lot of foam.	The amount of foam can vary depending on the temperature, level and softness of your water.You may have used too much detergent.The type of detergent you use could cause excessive foam.
Fabric softener overflows.	You may have exceeded the MAX level in the softener drawer.You may have spilt the liquid by closing the softener drawer too sharply.
There's a residue of powder detergent at the end of the wash.	This can happen if you've put powder detergent directly into the drum – you must put it in the detergent drawer.
There's a noise when the water drains away.	This is normal, it's the pump starting and stopping.
The electricity supply cuts out while the machine is on.	The machine will stop (do not open the door if the machine is full of water). When the power comes back on, the machine will continue the programme.
The water supply is disrupted.	When the water comes back on, it may be impure at first.You'll need to disconnect the water-supply hose and drain any impure water through the tap before using your machine again.Remember to re-connect the water supply hose first.

Questions and Answers

Issues	Reasons	Solutions
Machine cannot start up		Check if the door is closed tightly.Check if power plug is inserted properly.Check if water supply tap is opened.Check ifStart/Pausebutton is pressed.Check ifPowerbutton is On.
Door cannot be opened	Machine's safety protection design working.	Disconnect the power.
Heating fault	NTC is damaged and heating pipe is aging.	Cold wash only.Contact the service center promptly.
Water leakage	The connection between inlet pipe or outlet hose and tap of machine is not tight.Drain pipe in the room is blocked.	Check and fasten water pipes.Clean up outlet hose and ask a specialized person to repair it when necessary.
Water is overflowed from the bottom of the machine	The inlet pipe is not connected firmly.Outlet hose has water leakage.	Fix the inlet pipe.Replace the drain hose.
Indicator or display does not light	Power is disconnected.PC board has problems.Harness has connection problem.	Check if the power is shut down and power plug is connected correctly.If not, please call the service line.
Detergent residues in the box	Washing powder is dampened and agglomerated.	Clean and wipe the box.Use liquid detergents or change detergent.
Washing effects are not good	The clothes are too dirty.Insufficient detergent quantity.	Select a proper procedure.Add the proper detergent quantity according to the instructions in detergent package.
Abnormal noise Great vibration		Check if the fixing (bolts) has been removed.Check if cabinet is installed on solid and level floor.Check if there are any buckles or metal articles inside.Check if the feet in the machine are adjusted level.

Error Codes

Display LED	Description	Solutions
E10	Inlet water problem while washing	Open the water tap, to check if the inlet hose is squashed or kinked. Straighten the inlet hose.Check if the filter in the inlet valve is blocked or not.Wash the inlet hose.Check if the water pressure is too low.
E12	Water overflow	Reset the machine by switching off the power, then on again.
E21	Drain water problem while washing	Check if the drain pump is blocked.
E30	Door lock problem	Check if the door of the machine is closed.Check if the clothes are pinned by the door.
Others	Please call the service line if there is any other problem.

Specifications

Model	LI8W6D17
Rated voltage	220 - 240 V~ 50 Hz
Maximum current	10 A
Rated power input	1900 W
Drying	1300 W
Dimension (H x W x D)	Approx. 815 mm x 595 mm x 540 mm
Net weight	64 kg
Maximum wash capacity	8 kg
Maximum dry capacity	6 kg
Maximum spin speed	1400 rpm
Inlet water pressure	Minimum 0.05 MPa; Maximum 1 MPa

Features and specifications are subject to change without prior notice.

Brand: Logik

Model: LI8W6D17

Energy efficiency class [on a scale of A (more efficient) to G (less efficient)]: A

Energy consumption per kg (washing, spinning & drying): 0.68

EU Eco-label: N/A

Energy consumption (washing, spinning & drying): 5.44 kWh

Energy consumption (washing & spinning only): 0.92 kWh

Washing performance class [on a scale of A (higher) to G (lower)]: A

Water remaining after spin: 44%

Maximum spin speed: 1400 rpm

Washing capacity: 8 kg

Drying capacity: 6 kg

Water consumption (washing, spinning & drying): 152 litres

Water consumption (washing & spinning): 64 litres

Programme time (washing & spinning): 310 min

Programme time (drying): 360 min

Estimated annual energy consumption for a four-person household, always using the drier (200 cycles): 1088 kWh

Estimated annual water consumption for a four-person household, always using the drier (200 cycles): 30400 litres

Estimated annual energy consumption for a four-person household, never using the drier (200 cycles): 184 kWh

Estimated annual water consumption for a four-person household, never using the drier (200 cycles): 12800 litres

Noise (washing): 52 dB(A) re 1 pW

Noise (spinning): 74 dB(A) re 1 pW

Noise (drying): 62 dB(A) re 1 pW

Cycle (programme and setting) for testing in accordance with applicable standard EN 50229 and Commission Directive 96/60/EC

Standard 60°C cotton cycle: Cotton Eco + Water temp 60°C + Spin 1400 rpm

'dry cotton' drying cycle: Dry only

Currys.co.uk

All the support you need.

Whether it's a tech emergency or you need plain good advice, we're always on hand to help.

UK: 0344 561 1234

IRE: 1890818 575

Partmaster .co.uk

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the

very next day. Visit www.partmaster.co.uk or call 0344 800 3456 (UK customers only) Calls charged at National Rate.

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.

The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

DSG Retail Ltd. (co. no. 504877)

1 Portal Way, London, W3 6RS, UK

EU Representative

DSG Retail Ireland Ltd (259460)

3rd Floor Office Suite,

Omni Park SC, Santry, Dublin 9, Republic of Ireland
