FAMILY PAD 2 - Tablet ARCHOS - Free user manual and instructions

Product type	Touchscreen tablet
Brand	ARCHOS
Model	FAMILY PAD 2
Operating system	Android (version not specified, estimated 4.0)
Screen	Capacitive touchscreen, diagonal approximately 10 inches
Screen resolution	Not specified, estimated 1024x600 pixels
Processor	Not specified, estimated ARM Cortex-A8 1 GHz
RAM	Not specified, estimated 512 MB to 1 GB
Internal storage	Not specified, estimated 4 GB to 8 GB
Wireless connectivity	Wi-Fi 802.11 b/g/n
Connectors	1x micro-USB (host), 1x micro-SD, 1x mini-HDMI, 1x 3.5mm audio jack, 1x power connector
Camera	Front webcam, rear camera (details not specified)
Buttons	Volume +/-, Power, Reset
Power supply	AC adapter included, charging via dedicated connector
Battery	Rechargeable lithium-ion, estimated battery life 4-6 hours
Dimensions	Not specified, estimated 240 x 170 x 12 mm
Weight	Not specified, estimated 450-550 g
Box contents	Tablet, AC adapter, quick start guide, warranty
Main functions	Web browsing, email, Android apps, multimedia playback, games
Care and cleaning	Turn off device before cleaning, use a soft dry cloth, avoid liquids
Security	Screen lock by pattern, PIN code or password
Spare parts and repairability	Not specified, contact ARCHOS support
General information	Manual available in multiple languages, software updates at archos.com/support

Frequently Asked Questions - FAMILY PAD 2 ARCHOS

How to turn on the ARCHOS FAMILY PAD 2 tablet?

Press and hold the ON/OFF button until the screen turns on. If the tablet does not respond, hold the button for 10 seconds or use the Reset button with a pointed object.

How to connect the tablet to a WiFi network?

Access quick settings by selecting the time in the status bar, then enable WiFi. The tablet searches for available networks. Select yours and enter the password if necessary. Check 'Show password' to avoid typing errors.

How to charge the battery of the FAMILY PAD 2?

Connect the provided power cable to the tablet's power connector and to a wall outlet. The charging indicator is red during charging and turns green when the battery is full. You can use the tablet while charging.

What to do if the touch screen stops responding?

Try restarting the tablet by pressing and holding the ON/OFF button for 10 seconds. If that doesn't work, use the Reset button (hole on the back) with a paperclip. If the problem persists, check the FAQs at www.archos.com.

How to set up a Google account on the tablet?

Go to Settings > Accounts > Add account, select Google and follow the on-screen instructions to enter your email and password. A Google account is required to access the Play Store and Google services.

How to transfer files from the tablet to a computer?

Connect the tablet to the computer via the micro-USB cable (host port). On the tablet, a notification appears to enable file transfer. Select File transfer (MTP) to access storage from the computer.

The tablet does not turn on, what should I do?

Make sure the battery is charged. Plug in the AC adapter and wait a few minutes. Then press and hold the ON/OFF button for 10 seconds. If nothing happens, use the Reset button with a paperclip.

How to perform a factory reset?

The manual does not describe a hardware reset procedure. You can go to Settings > Backup & reset > Factory data reset. Note: This action erases all personal data.

How to extend battery life?

Reduce screen brightness and disable WiFi, Bluetooth or other wireless connections when not in use. Close background apps via the recent apps menu.

Where to find software updates?

Go to www.archos.com/support to check for firmware updates. Follow the provided instructions to download and install the update on your tablet.

USER MANUAL FAMILY PAD 2 ARCHOS

Package contents....2

Getting started....3

Description of the device....4

Through the wizard....6

Connecting to a WiFi network....7

The Android ^TM interface....8

Getting familiar with Android ^TM ....12

Troubleshooting....14

For more information, please consult the FAQs on www.archos.com. Make sure to read them before considering any product return. Your deal may be no big deal. As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide.

Package Content

Blank tablet screen with no visible text, numbers, or symbols on the screen area

ARCHOS FamilyPad 2

Quick stand

Black cable with a connector icon (no text or symbols)

USB cable

ARCHOS

QSG booklet

Warranty

Warranty, legal & safety booklet

Simple black line drawing of a plug connected to a coiled cable (no text or symbols)

Charger

Getting Started

Charging

1. Connect the supplied power cable to the ARCHOS and to a wall outlet.

The ARCHOS device will start charging.

1. Press the ON/OFF button to turn on the device.

The charging indicator light is red while the battery is charging.

It will turn green when the battery is fully charged.

You can use your ARCHOS whilst it charges.

Installing the tablet on the stand

1. Open the quick stand.
2. Place the tablet on the quick stand.

Two 3D models of electronic devices: a blank rectangle and a black-and-white model with a plus sign, both without any text or symbols.

TIPS:

To receive more complete service, please register your product.

From a computer, go to www.archos.com/register.

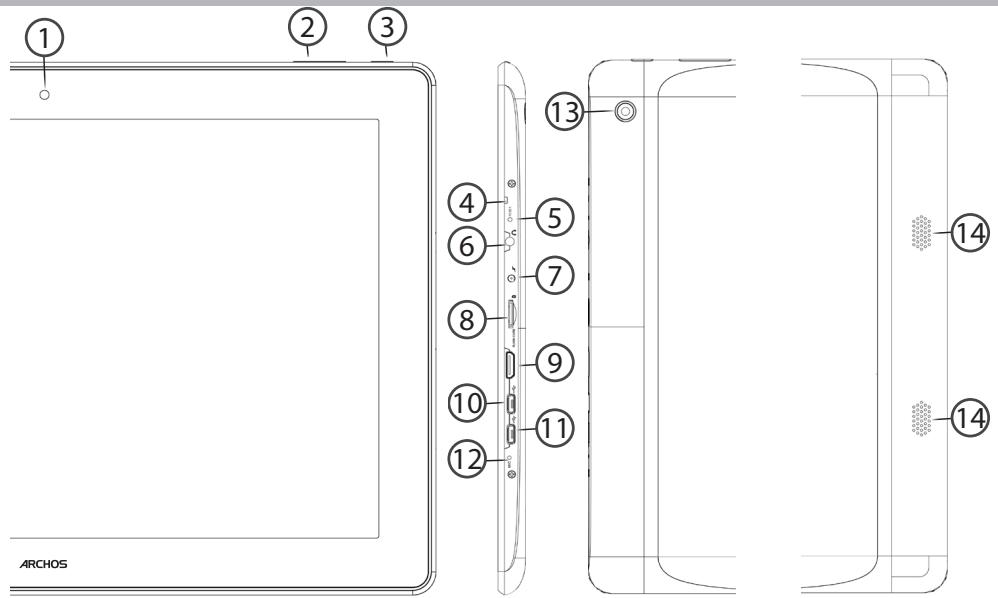

Description of the device

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ARCHOS 13 14 14

① Webcam
② Volume buttons
③ On/Off button
④ Charging indicator
⑤ Hardware reset
⑥ Headphone jack
⑦ Power connector
⑧ Micro-SD card slot

⑨ Mini-HDMI video output ^(1)
⑩ Host port ^(2)
⑪ Micro-USB port
⑫ Microphone
13 Camera
14 Loudspeakers

Through the Wizard

The first time you start up your ARCHOS, the installation wizard will help you set up your device:

• Touch-screen calibration
• Language
• Date & time
• WiFi connection
• Location service options
• 3rd party apps

TIPS:

We recommend that you set up your device in the WiFi zone of the network that you will regularly be using.

Connecting to a WiFi Network

WARNING: Make sure that you are in a WiFi zone. You can access the WiFi settings quickly from the status bar in the bottom right corner of the screen.

1. Touch the time in the status bar.
   The status dashboard is displayed.
2. Touch the time a second time in the status dashboard.
   The quick settings will be displayed.
3. Touch "Settings" to open the WiFi settings menu.
4. If the WiFi is off, slide the WiFi switch to the "ON" position.

Once the WiFi is on, the ARCHOS will scan for WiFi networks in range.

1. Touch the name of network you want to connect to.

Private networks are shown with a lock icon and will require you to enter your password.

TIPS:

• When entering a WiFi password, we recommend that you select "Show password" so you can see the characters you are typing.
• To get the correct WiFi password (or settings) for the network, contact the WiFi network provider.
• If your WiFi is on and you are in range of a network that you previously connected to, your ARCHOS will automatically attempt to connect to it.

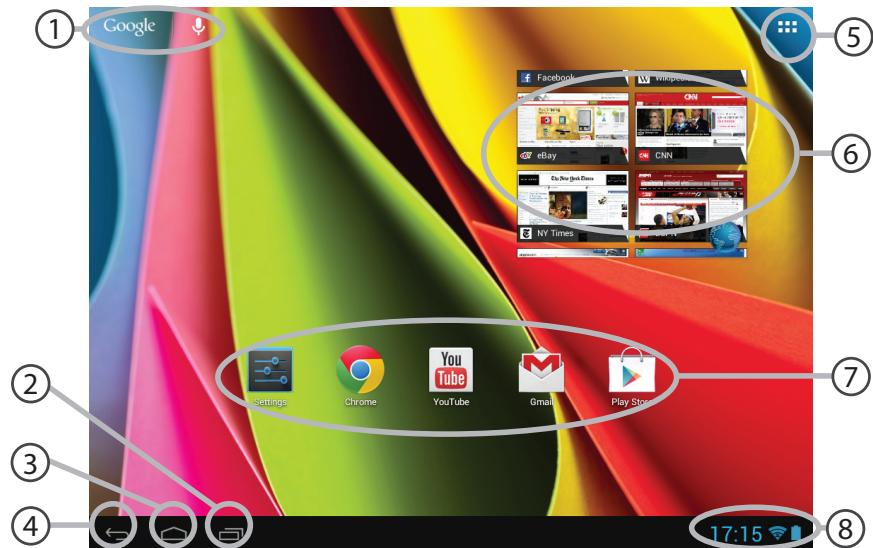

The Android™ Interface

① Google ② Settings ③ Chrome ④ Play Store ⑤ Facebook ⑥ YouTube ⑦ Gmail 17:15

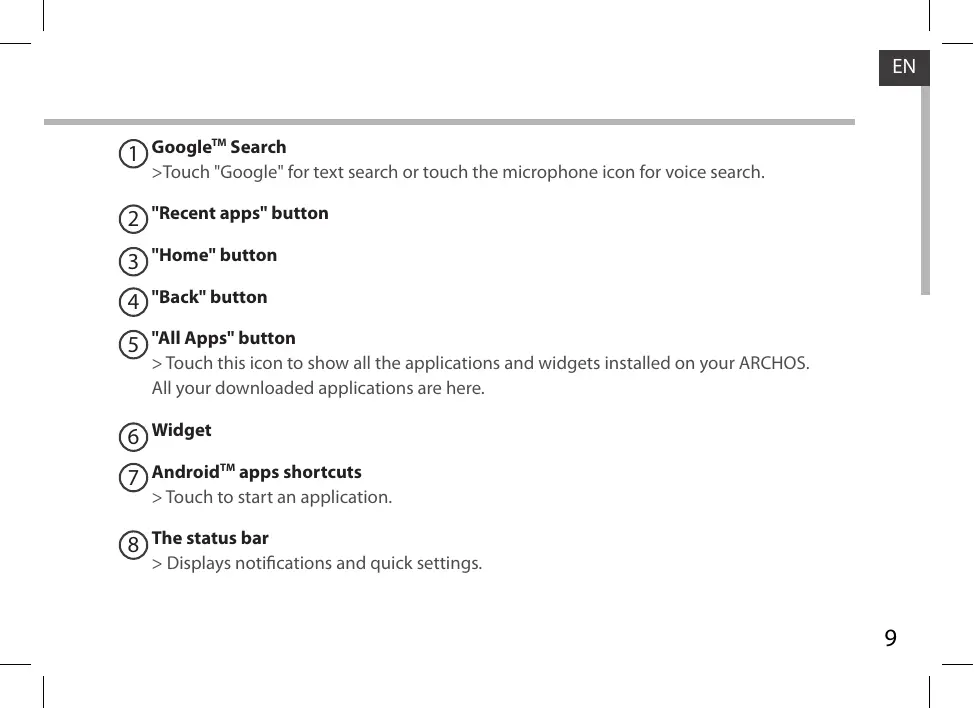

① Google™ Search

Touch "Google" for text search or touch the microphone icon for voice search.
② "Recent apps" button
③ "Home" button
④ "Back" button
⑤ "All Apps" button

Touch this icon to show all the applications and widgets installed on your ARCHOS. All your downloaded applications are here.

⑥ Widget
⑦ Android™ apps shortcuts

Touch to start an application.

⑧ The status bar

Displays notifications and quick settings.

The Android™ Interface

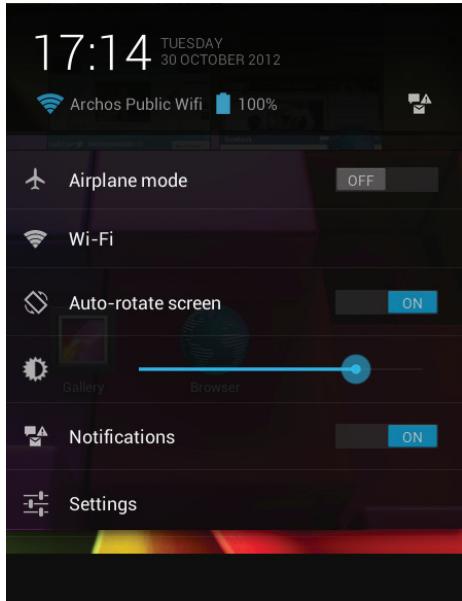

17:14 TUESDAY 30 OCTOBER 2012 Archos Public Wifi 100% Airplane mode OFF Wi-Fi Auto-rotate screen ON Gallery Browser Notifications ON Settings

The Quick settings

• Airplane mode:
  To activate/deactivate all wireless connections, especially when flying.
• WiFi:
  To turn on/off your WiFi connection.
• Auto-rotate screen:
  To activate/deactivate automatic screen orientation as you turn your ARCHOS.
• Brightness:
  To adjust the screen brightness.
• Notifications:
  To activate/deactivate incoming notifications.
• Settings:
  To access all your settings.

Gallery Chrome Google Mail Play Store AVENGERS Apple Books Movie LUMBER SLIM MUSIC TVX

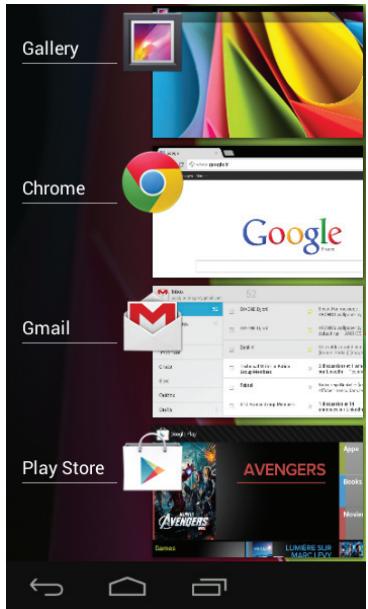

The Recent Apps

Opens a list of thumbnail images of apps you've worked with recently:

• To open an app, touch it.
• To close an app, swipe it left or right.

Getting familiar with Android™

Google account

A Google account lets you take full advantage of any Google apps and services that you may want to use.

1. Go to "Settings" > "Accounts" > "Add account".
2. Select the account type "Google" to add.
3. Follow the onscreen steps to enter information about the account.

The extended home screen:

Navigate between different home screen panels by swiping left and right.

Moving a home screen item:

Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Removing a home screen item:

Touch and hold it, slide your finger towards the top of the screen and drop it over the "Remove" icon.

Uninstalling an item:

From the "All apps" screens, touch and hold it, slide your finger towards the top of the screen and drop it over "Uninstall" bin.

Creating application folders:

Drop one app icon over another on a home screen and the two icons will be combined.

Widgets:

Touch the "All Apps" icon on your home screen. Touch "Widgets" at the top of the screen. From the main Widget screen, you can move around widgets just as you do for app icons.

Changing your wallpaper:

Hold your finger on a home screen at an empty location, then choose from the list.

Locking the touchscreen:

From the quick settings dashboard in the status bar, touch "Settings". In "Settings", scroll down and touch "Security". Touch "Screen lock". Touch the type of lock you would like to use. After you set a lock, a lock screen is displayed whenever your screen wakes up, requesting the pattern, pin or other specified key.

Troubleshooting

If your device is frozen:

Press the ON/OFF button for 10 seconds or use the reset button. To use the reset button, press the "pinhole reset" button by using a sharp object such as a toothpick.

If your device doesn't turn on:

1. Charge your device.
2. Press the ON/OFF button for 10 seconds or use the reset button. To use the reset button, press the "pinhole reset" button by using a sharp object such as a toothpick.

If you want to extend the life of your battery:

Decrease the screen brightness and turn off the wireless connections if not in use.

If your device functioning is too slow:

Close all apps which are not currently used.

If your WiFi reception is too low:

Make sure you are not far from the WiFi hotspot.
Update the firmware of the device: http://www.archos.com/support.
Reset and redefine your connection parameters.
Contact your WiFi connection provider.

Table des matières

Blank tablet screen with no visible text, numbers, or symbols on the screen area

ARCHOS FamilyPad 2

Quick stand

Black cable with a connector icon (no text or symbols)

Câble USB

ARCHOS

Simple black-and-white line drawing of a plug connected to a coiled cable (no text or symbols)

Chargeur

Mise en route

Charger la batterie

Two 3D model views of a table with one blank and one black, showing a plus sign and equals sign (no text or symbols present)

ASTUCES:

Blank tablet device with no visible text, labels, or symbols on the screen face

ARCHOS FamilyPad 2

Quick stand

Black cable with a connector icon (no text or symbols)

USB Kabel

ARCHOS

Benutzerhandbuch

Warranty

Simple line drawing of a plug connected to a coiled cable (no text or symbols)

Ladegerät

Erste Schritte

Aufladen des Akkus

Two 3D model views of a tablet device, one blank and one with a plus sign, both shown in different orientations (no text or symbols on the devices themselves)

TIPP:

Blank tablet device with no visible text, labels, or symbols on the screen face

ARCHOS FamilyPad 2

Quick stand

Black cable with a connector icon (no text or symbols)

Cable USB

ARCHOS

Guía de usuario

Warranty

Simple line drawing of a plug connected to a coiled cable (no text or symbols)

Cargador

Two 3D geometric shapes: a white rectangle and a black rectangular base, both with a plus sign and equals sign (no text or symbols on the shapes themselves)

CONSEJOS:

Blank tablet device with no visible text, numbers, or symbols on the screen face

ARCHOS FamilyPad 2

Quick stand

Black cable with a connector icon (no text or symbols)

Cavo USB

ARCHOS

Guida dell'utente

Warranty

Simple line drawing of a plug connected to a coiled cable (no text or symbols)

Caricatore

Avvio

Two 3D geometric shapes: a white rectangle and a black rectangular base, both with a plus sign and equals sign (no text or symbols on the shapes themselves)

CONSIGLI:

Blank tablet device with no visible text, numbers, or symbols on the screen face

ARCHOS FamilyPad 2

Quick stand

Black cable with connector icon (no text or symbols)

USB-kabel

ARCHOS

Simple line drawing of a plug connected to a coiled cable (no text or symbols)

Lader

Aan de slag

De batterijen laden

Two 3D objects: a white rectangular box and a gray mechanical bracket with a plus sign, both arranged on a stand (no text or symbols present)

TIPS:

Registreer uw product om de volledige service te ontvangen.

Blank tablet device with no visible text, labels, or symbols on the screen face

ARCHOS FamilyPad 2

Quick stand

Black cable with a connector icon (no text or symbols)

Cabo USB

ARCHOS

Guia do usuário

Warranty

Simple line drawing of a plug connected to a coiled cable (no text or symbols)

Carregador

Início

Carregar a bateria

Two 3D objects: a white rectangular box and a gray mechanical bracket with a plus sign, both arranged on a stand (no text or symbols present)

SUGESTÕES:

Blank tablet device with no visible text, labels, or symbols on the screen face

ARCHOS FamilyPad 2

Quick stand

Black cable with a connector icon (no text or symbols)

Кабель USB

ARCHOS

Краткое руководство

Warranty

Simple line drawing of a plug connected to a coiled cable (no text or symbols)

Зарядное устройство

Начало работы

Зарядка

Two 3D objects: a white rectangular box and a gray mechanical bracket with a plus sign, both arranged on a stand (no text or symbols present)

COBET:

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Country	Restriction	Reason/remark
Bulgaria	None	General authorization required for outdoor use and public service
France	Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz	Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012
Italy	None	If used outside of own premises, general authorization is required.
Luxembourg	None	General authorization required for network and service supply (not for spectrum)
Norway	Implemented	This subsection does not apply for the geographical aera within a radius of 20 km from the centre of Ny-Alesund
Russian Federation	None	Only for indoor applications

Note: Frequency 2454-2483.5MHZ are restricted to indoor use in France.

Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html

Open Source Software Offer

The software bundled with this product includes software files subject to certain open source license requirements. Such open source software files are subject solely to the terms of the relevant open source software license. Such open source software is provided on an "AS IS" basis to the maximum extent permitted by applicable law.

For the open source files contained herein, please access "Open source license" section located at: Settings\About tablet\Legal information on the device for the relevant copyright and licensing terms. You may obtain a copy of Apache License, Version 2.0 at http://www.apache.org/licenses/LICENSE-2.0. You may also obtain a copy of GNU General Public License, Version 2 at the Free Software Foundation, INC, 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.

Until the date that is three years after our last shipment of this product, you may obtain a copy of the source code corresponding to the binaries for any GPL-Licensed file by contacting ARCHOS customer service at http://www.archos.com and ARCHOS will send you a link to such source code or will provide instructions to get the source on a physical medium.

This offer is valid to anyone in receipt of this information.
