Brand	Exibel
Model	38-5544
Product Type	Wall mount for TV/monitor
Maximum Load Capacity	20 kg
Tilt Range	±12°
VESA Compatibility	100x100, 200x100, 200x200 mm
Wall Distance	70 mm
Materials	Steel bracket
Included Tools	Spanner, Allen key
Fasteners Included	M4x14 (x4), M5x14 (x4), M6x14 (x4), M8x20 (x4), M5 washer (x4), M8 washer (x4), small spacer (x8), wall screws ST5.5x50 (x3), masonry plugs (x3), M6 washer (x3)
Intended Use	Indoor use only
Safety Features	Overtightening prevention, load testing before mounting
Maintenance	Check mounting security every 3 months
Compatible Walls	Wood stud, masonry (brick/concrete)
Installation Difficulty	Moderate; two-person recommended for heavy TVs

Frequently Asked Questions - 38-5544 Exibel

What is the maximum weight the Exibel 38-5544 wall mount can support?

The maximum load capacity is 20 kg. Always ensure your TV/monitor does not exceed this weight.

Which VESA patterns are compatible with this mount?

The mount supports VESA patterns 100x100 mm, 200x100 mm, and 200x200 mm.

Can I tilt or swivel the TV after installation?

Yes, the mount allows a tilt range of ±12°. Loosen the bolts slightly, adjust the angle, then retighten.

What tools are included with the wall mount?

The package includes a spanner and an Allen key for installation.

How do I install the mount on a wooden wall?

Use a stud finder to locate studs, drill pilot holes 50 mm deep with a 4 mm drill bit, then screw the wall bracket into the studs using the provided ST5.5x50 screws.

How do I install the mount on a masonry wall?

Drill holes 60 mm deep using an 8 mm hammer drill bit, insert masonry plugs, then screw the wall bracket with the provided screws.

Is it safe to install the mount alone?

It is recommended to use two people when mounting a heavy TV to avoid injury or property damage.

How often should I check the mount's security?

Regularly check the wall bracket every 3 months to ensure it remains securely mounted.

What should I do if the mounting screws don't fit my TV?

Use the provided spacers and washers to achieve a secure fit. Ensure the screw depth matches the TV's mounting holes.

Can this mount be used outdoors?

No, the wall bracket is indoor use only. Outdoor use may cause failure and property damage.

USER MANUAL 38-5544 Exibel

Adjustable TV/Monitor Bracket

Art.no.

38-5544

English 3

Svenska 11

Norsk 19

Suomi 27

Deutsch 35

Adjustable TV/Monitor Bracket

Art.no 38-5544

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. If you have any questions regarding technical problems please contact our Customer Services.

Safety

• Ensure that you have read and understood all of the mounting instructions.
• The wall or surface to which the bracket is to be attached must be able to bear the weight of both the bracket and the attached TV or monitor. If the wall has studding, try to screw into the middle of the studding. The use of an stud detector is recommended.
• Use the appropriate tools and always use two people when attempting to mount a heavy TV/monitor onto the wall bracket. Trying to mount the TV alone can result in injury both to person and property.
• Do not overtighten the screws, doing so might damage and weaken the bracket.
• Always take into consideration the ventilation requirements of your TV/monitor by consulting the device's instruction manual.
  • Max load 20 kg.
• Consult an expert if you are unsure how to mount the bracket.
• This wall bracket is only intended for indoor use. Using the bracket outdoors could cause it to break, resulting in property damage or personal injury.

Note:

• Avoid laying the TV face down on the screen. If it is unavoidable, ensure that you have something soft under it, like a blanket to protect the screen.
• Never tilt a plasma screen more than is recommended in the instruction manual.
• Tighten the TV fastening bolts by hand at first. Stop when you notice any resistance, remove the bolts and investigate the cause of the problem.

Important:

The included mounting screws might not be suitable for the material of the wall or surface to which the bracket is to be mounted. Substitute the screws for some more suitable for the supporting material if necessary.

Always check the depth of the TV's mounting holes before beginning installation.

Contents

Check that no parts are missing.

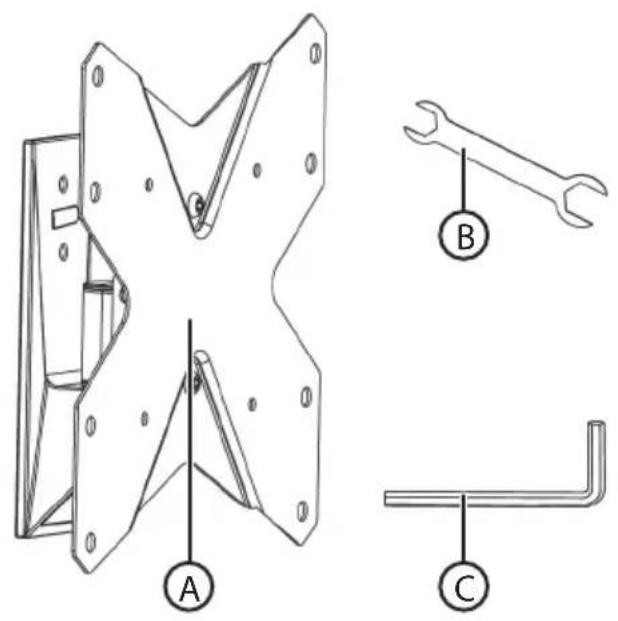

A. Wall bracket with VESA mount
B. Spanner
C. Allen key

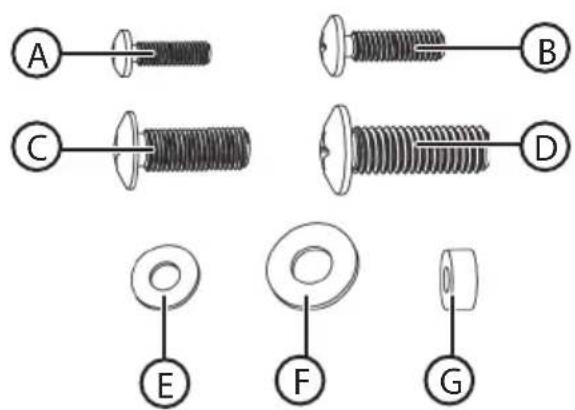

Pack M (fasteners)

A. M4×14 (×4)
B. M5x14 (x4)
C. M6×14 (×4)
D. M8×20 (×4)
E. M5 washer (x4)
F. M8 washer (x4)
G. Small spacer (x8)

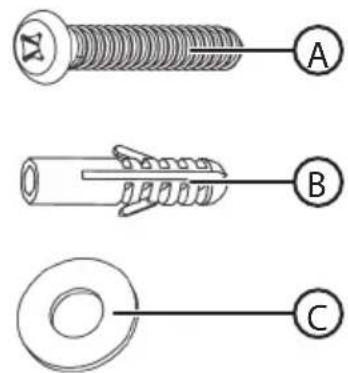

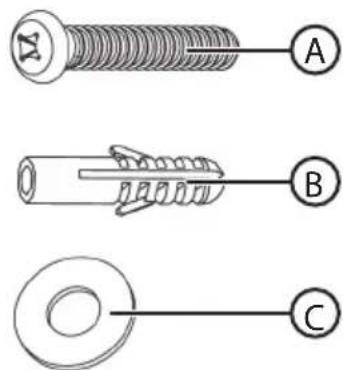

Pack W (fasteners for wall mounting)

A. ST 5.5×50 (x3)
B. Masonry wall plug (x3)
C. M6 washer (x3)

Assembly

Warning! Make sure that the wall you intend to attach the wall bracket to can bear the combined weight of the bracket and TV. If you are unsure, contact a tradesman. Make sure that you test the capacity of the bracket with a load of equal weight as the TV before mounting the TV onto it.

Screwing the wall bracket to the wall

1. Detach the VESA mount from the wall bracket.

1. Screwing the wall bracket to the wall

Important: The holes must be at least as deep as the length of the screws. If drilling into brick, drill at least 25 mm away from the edge of the brick. Do not drill into the mortar.

Wooden wall

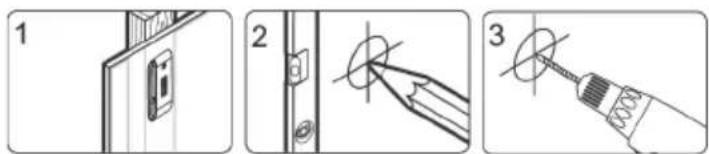

- 1-3. Measure, mark out and drill pilot holes. It is a good idea to use a stud detector on stud walls to help drill into the centre of the stud.

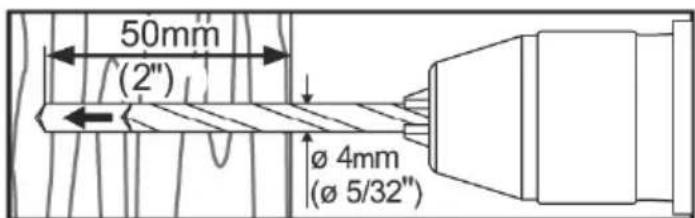

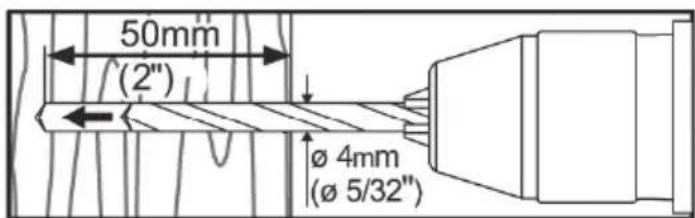

- 4. Drill the mounting holes 50 mm deep using a ∅ 4 mm (5/32") drill bit.

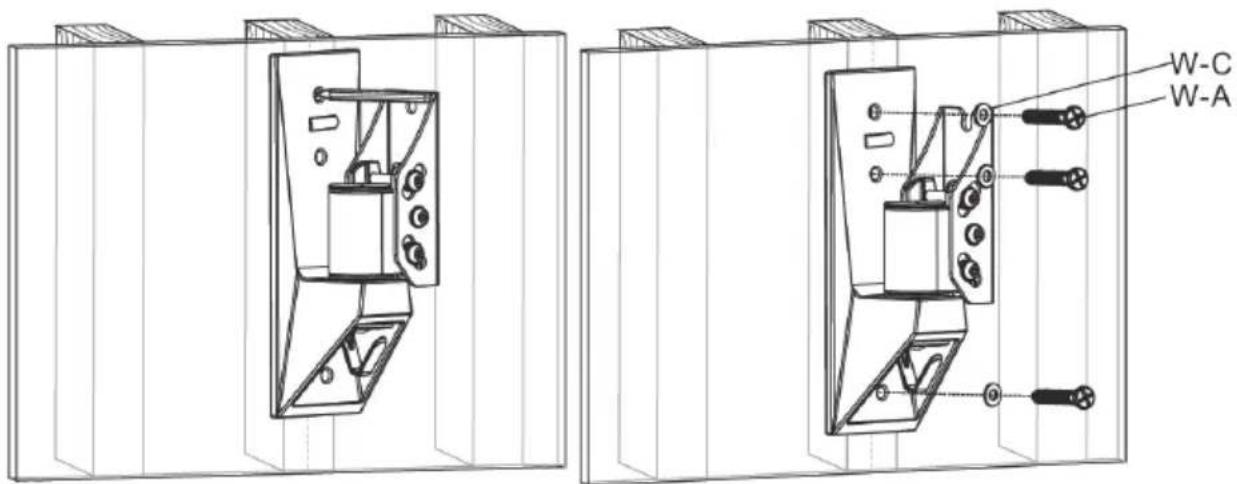

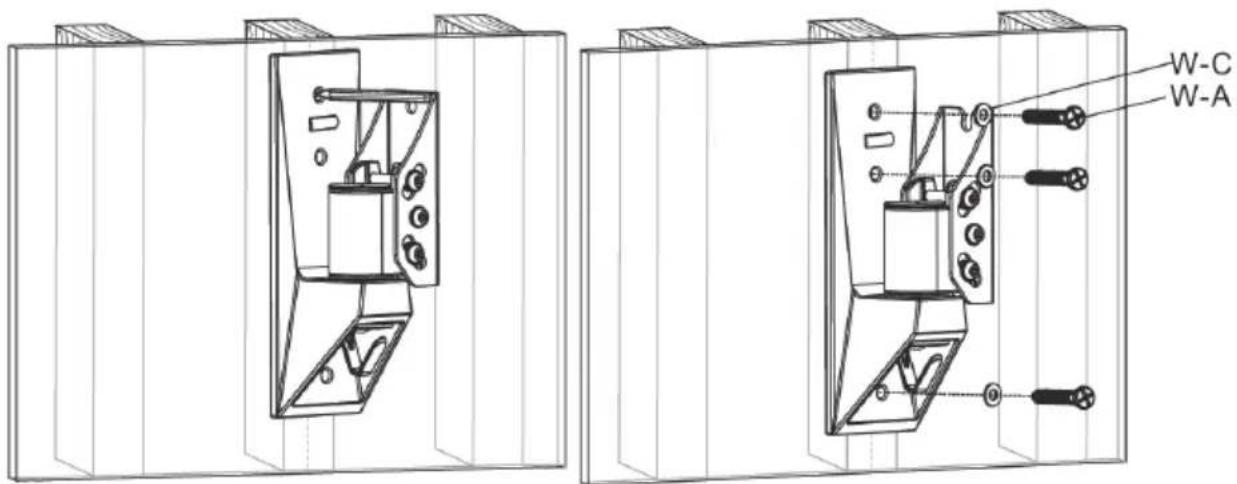

- 5. Screw the wall bracket to the wall.

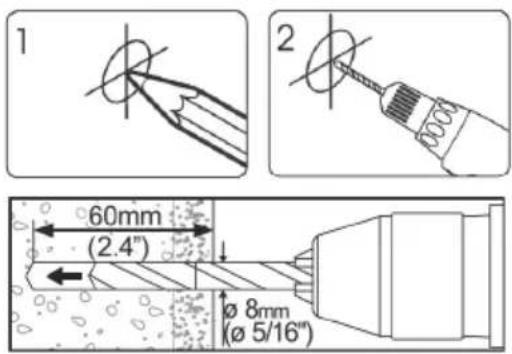

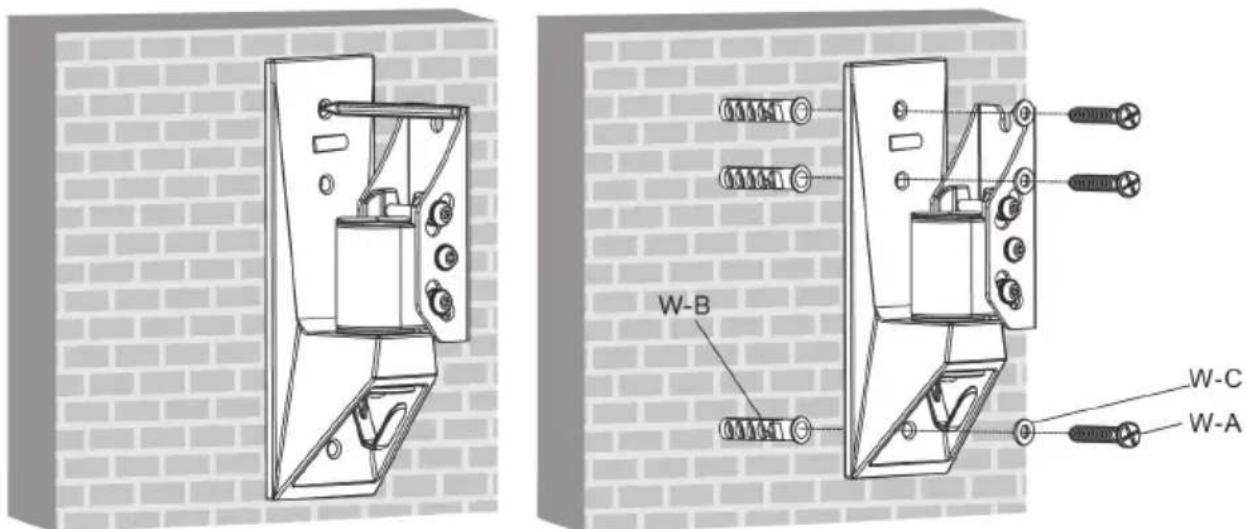

Masonry wall

• 1-2. Measure, mark out and drill pilot holes. Use a hammer drill.

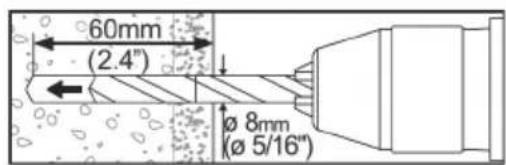

• 1. Drill the mounting holes 60 mm deep using a ∅ 8 mm (5/16") drill bit.

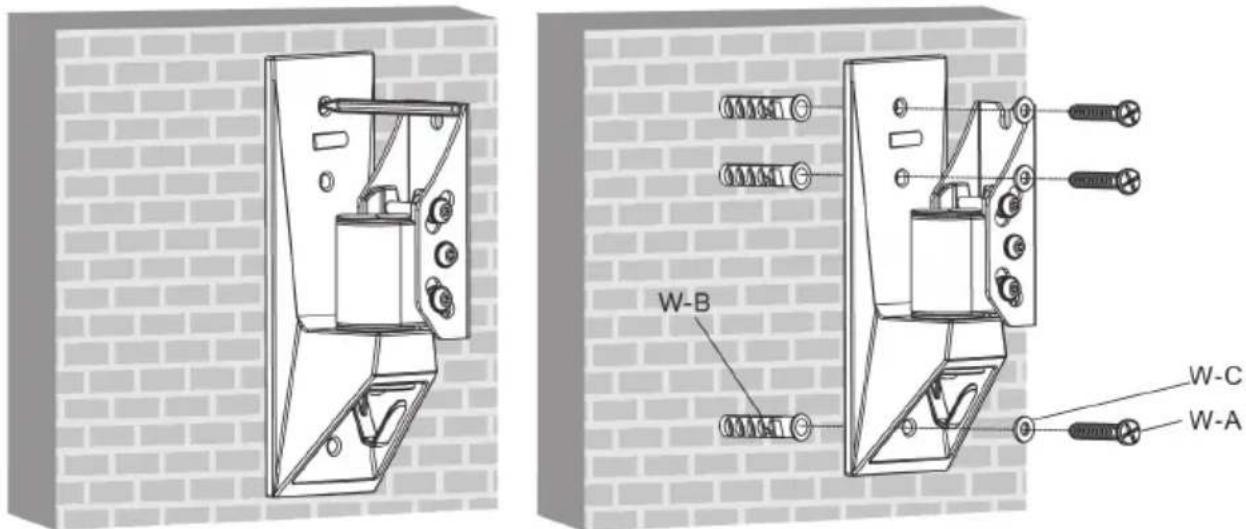

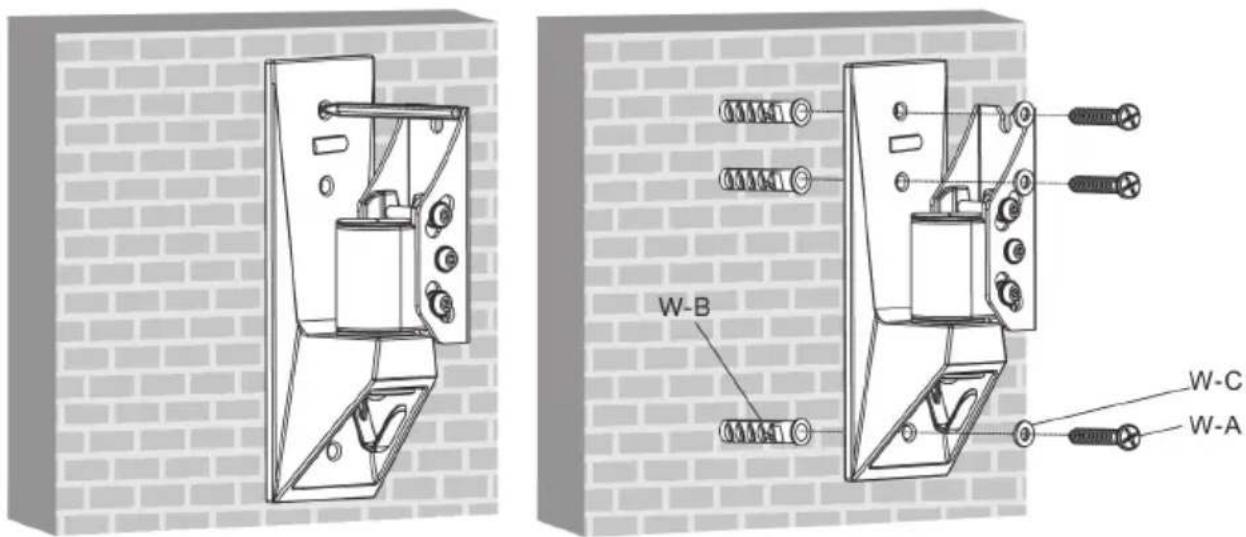

- 4. Screw the wall bracket to the wall.

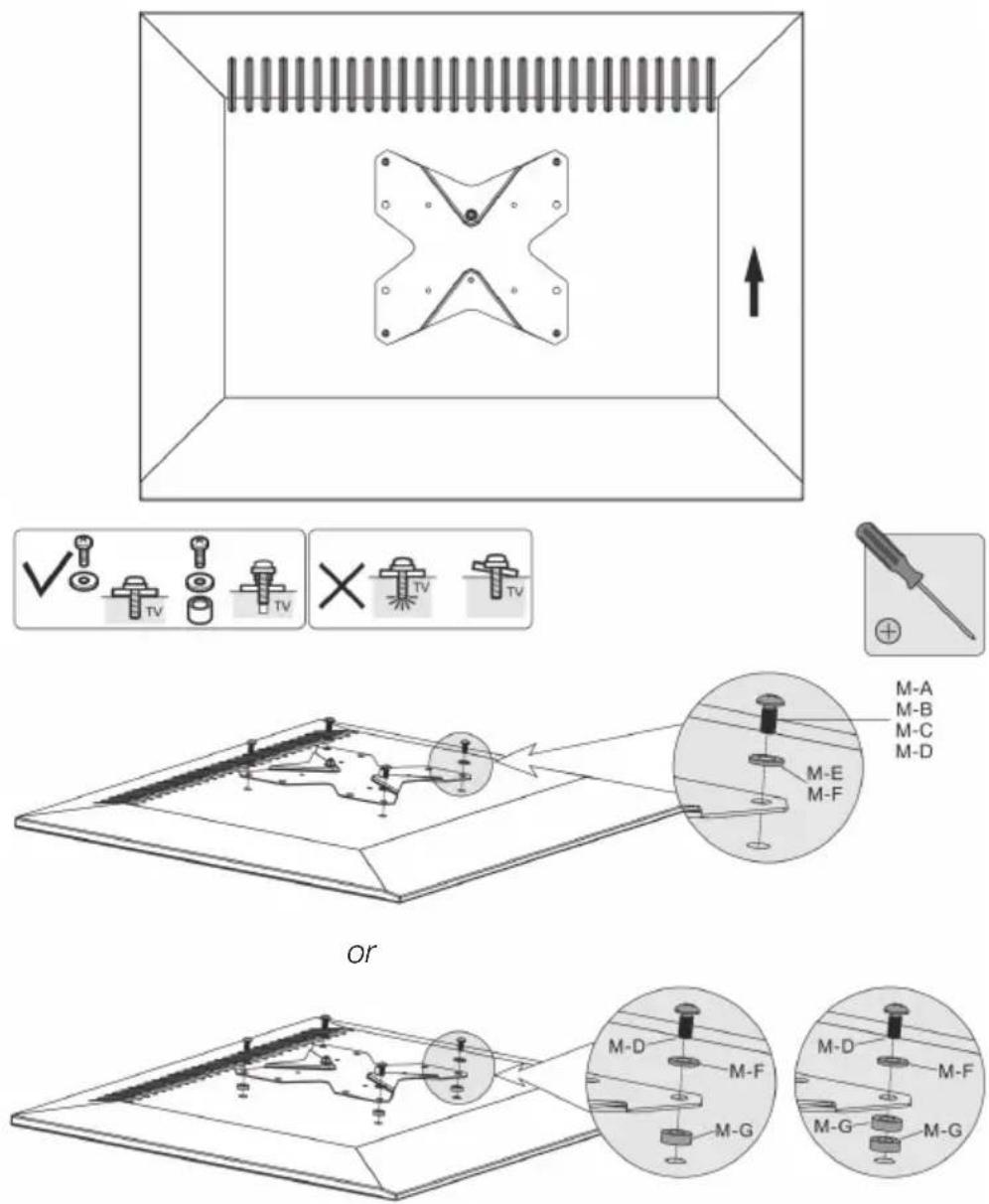

Attaching the VESA mount to the TV/monitor

1. Align the VESA mount with the mounting holes in the back of the TV/monitor and attach the mount using suitable fasteners from Pack M.
2. Tighten the fasteners using the spanner.

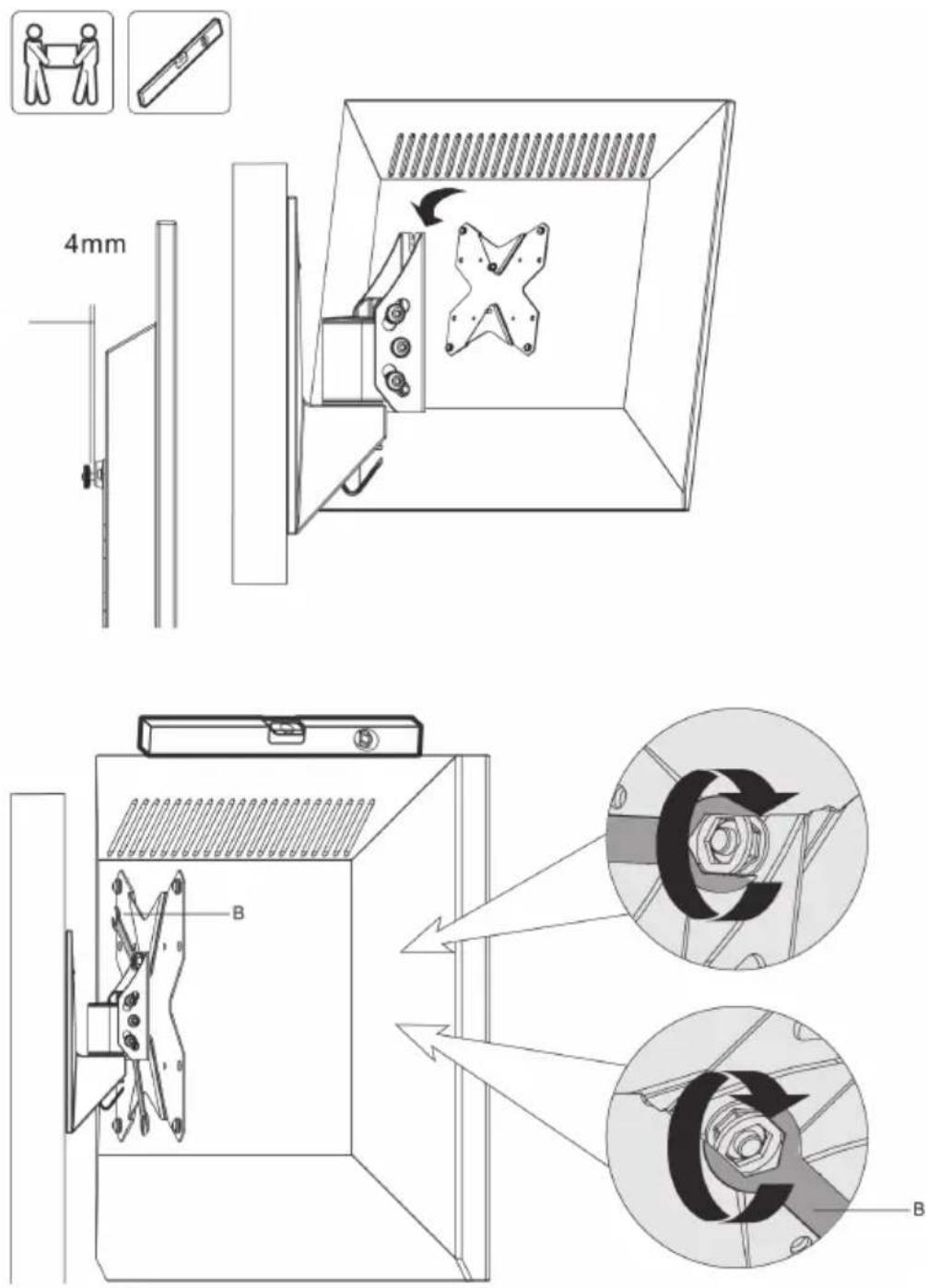

Attaching the TV/monitor to the wall bracket

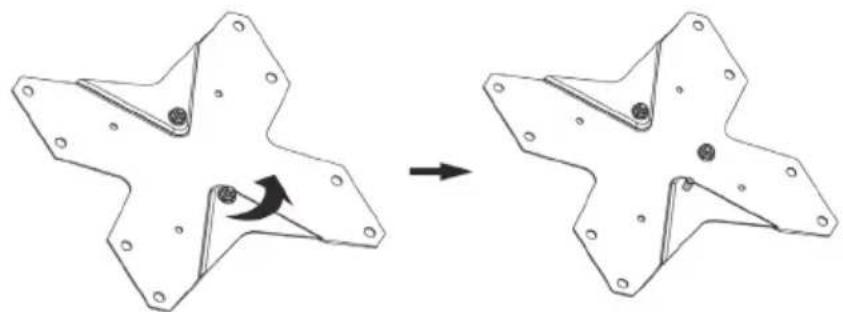

1. Undo the upper nut on the VESA mount by 4 mm.
2. Hang the TV/monitor and the VESA mount onto the wall bracket.
3. Use a spirit level to make sure that the TV/monitor is level.
4. Screw on the lower nut and then tighten both the upper and lower nuts.

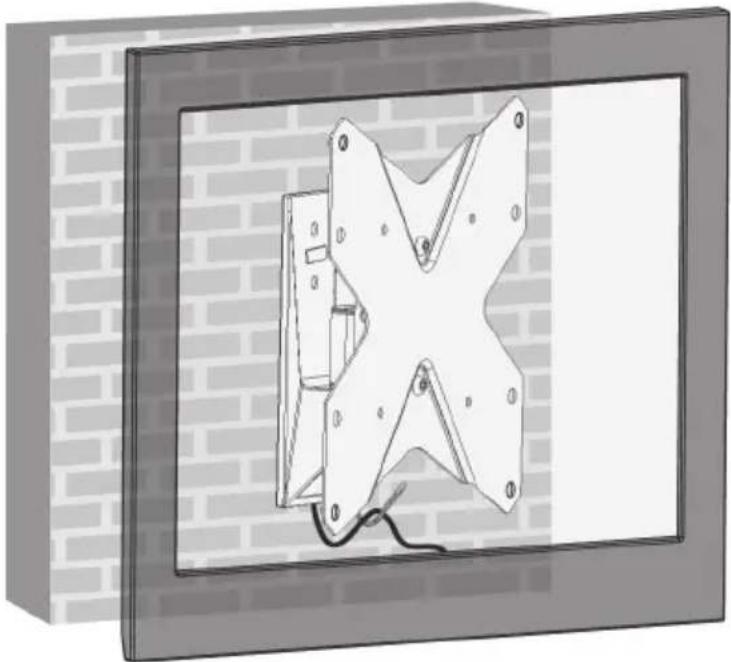

Hanging the cables

Hang the cables over the hook on the wall bracket. Leave a little slack on the cable to allow for adjustment of the TV/monitor angle.

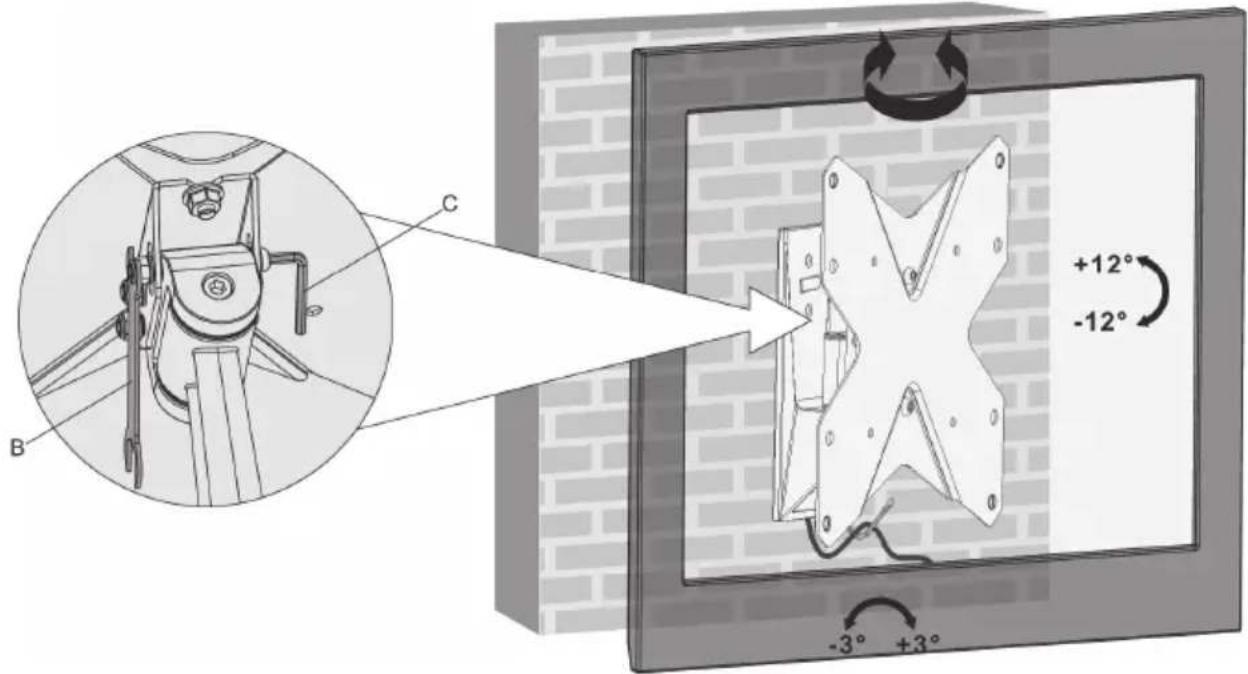

Adjusting the swivel and tilt angle

Loosen the bolts a little, adjust the angle and then retighten.

Regularly check that the wall bracket is securely mounted (at least every 3 months).

Disposal

This product should be disposed of in accordance with local regulations. If you are unsure how to proceed, contact your local authority.

Specifications

Tilt ± 12°

Mount VESA 100x100, 200x100 and 200x200 mm

Wall distance 70 mm

Load capacity 20 kg

A. ST 5,5x50 (x3)
B. Betongplugg (x3)
C. M6-bricka (x3)

Montering

Forpakning M (festedetaljer)

A. M4×14 (×4)
B. M5x14 (x4)
C. M6×14 (×4)
D. M8×20 (×4)
E. M5-skive (x4)
F. M8-skive (x4)
G. Distansestykke, kort (x8)

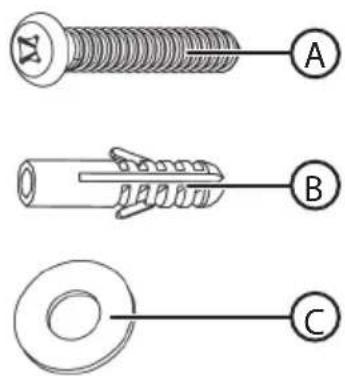

Forpakning W (festedetaljer for veggmontering)

A. ST 5,5×50 (×3)
B. Betongplugg (x3)
C. M6-skive (x3)

Montering

Advarsel! Forviss deg om at veggen du monterer festet på kan bære TV-apparatets og festets sammenlagte vekt. Rådfør deg med fagfolk hvis du er usikker.

1. Skru veggfestet fast på veggen.

Viktig! Borehullene må ha en min. dybde som tilsvarer skruenes lengde. Det må bores minst 25 mm fra nærmeste kant på teglsteinen. Ikke bor i fugene mellom teglsteinene.

Trevegg

- 5. Skru opp veggfestet.

Tegl- eller betongvegg

- 4. Skru opp veggfestet.

Monter VESA-festet på TV-apparatet/monitoren

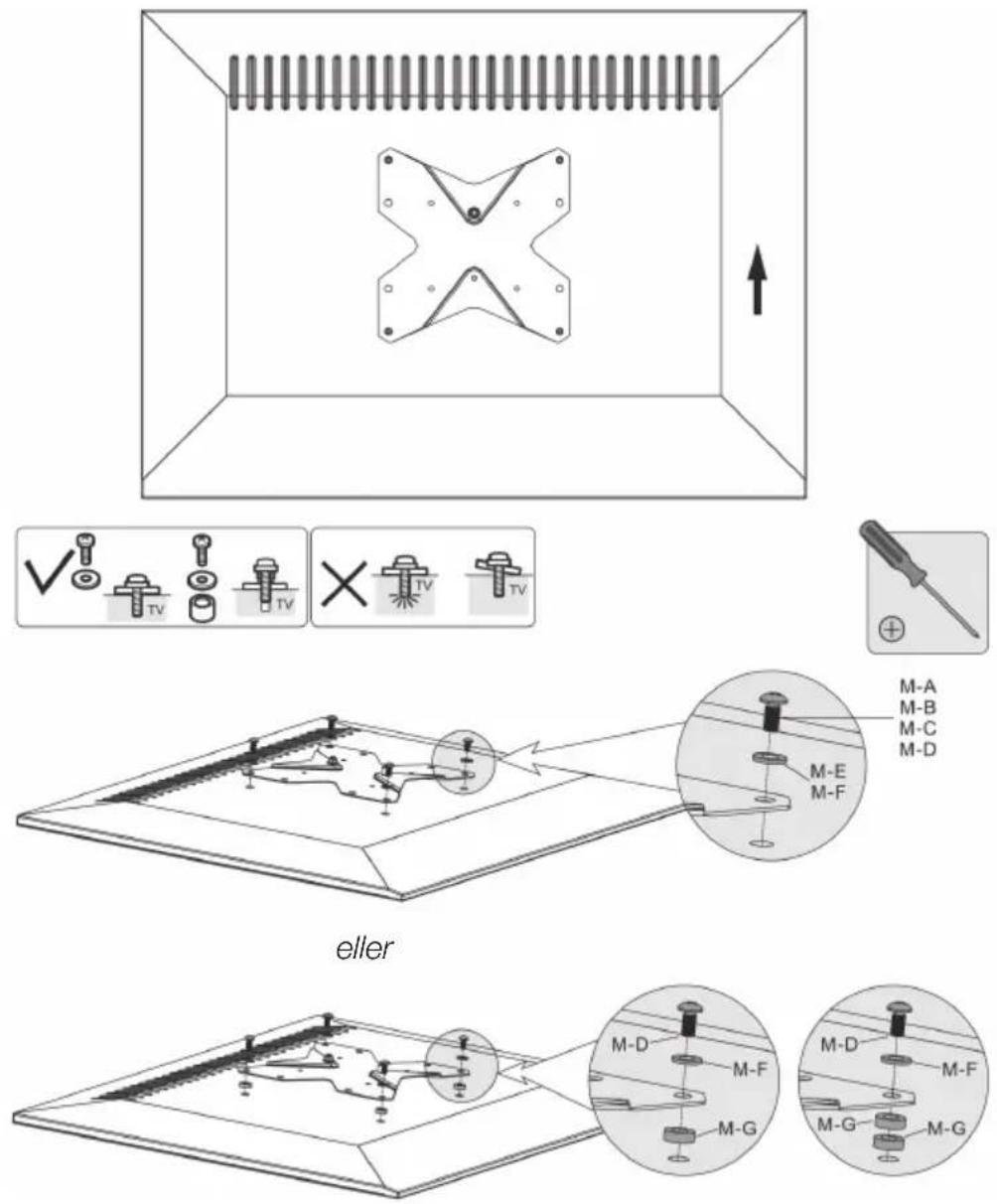

1. Plasser VESA-festet slik at det passer til festehullene på apparatet. Velg riktige festeskruer og eventuelt distansestykker.
