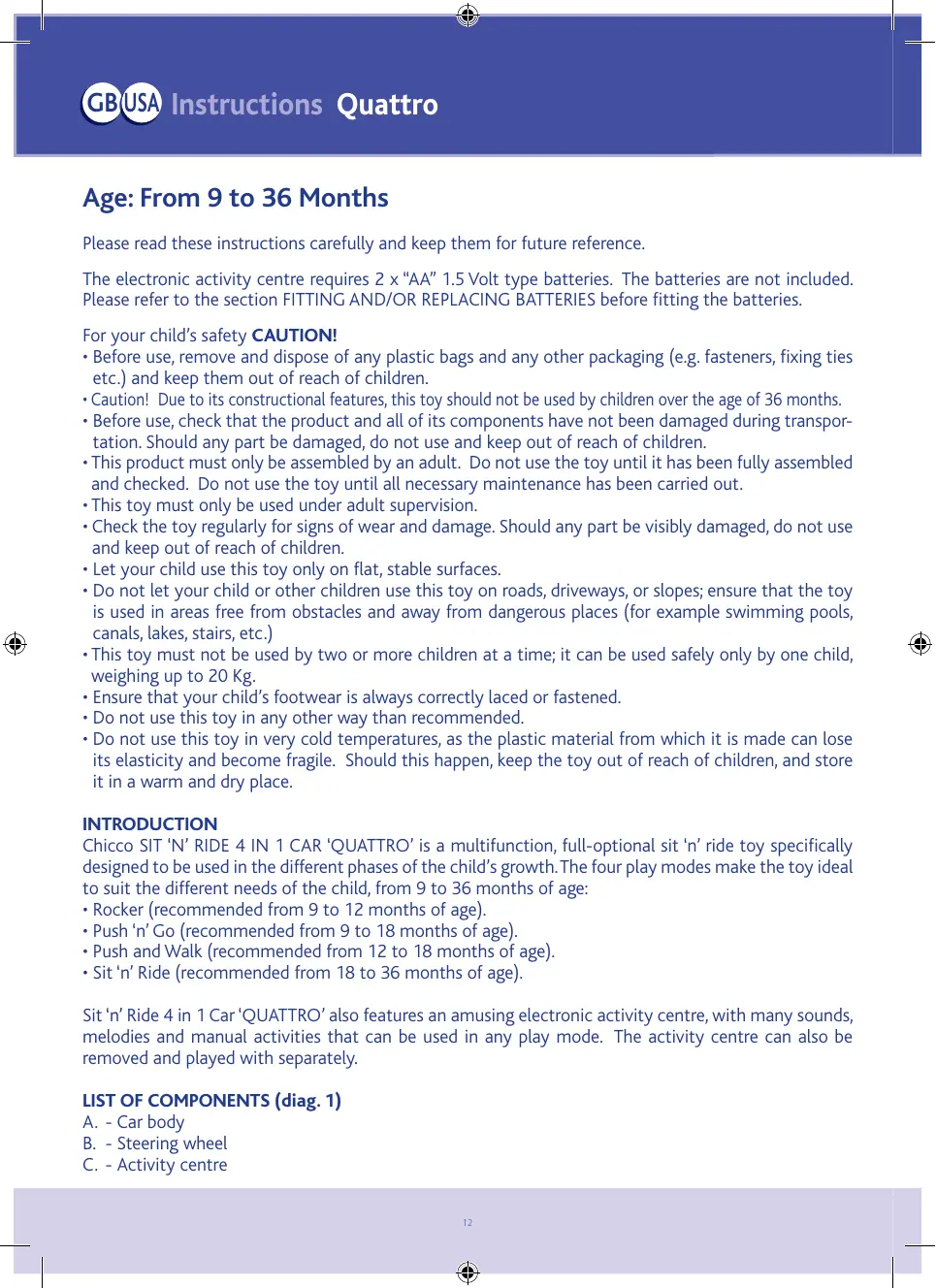

Age: From 9 to 36 Months

Please read these instructions carefully and keep them for future reference.

The electronic activity centre requires 2 x "AA" 1.5 Volt type batteries. The batteries are not included. Please refer to the section FITTING AND/OR REPLACING BATTERIES before fitting the batteries.

For your child's safety CAUTION!

• Before use, remove and dispose of any plastic bags and any other packaging (e.g. fasteners, fixing ties etc.) and keep them out of reach of children.
• Caution! Due to its constructional features, this toy should not be used by children over the age of 36 months.
• Before use, check that the product and all of its components have not been damaged during transportation. Should any part be damaged, do not use and keep out of reach of children.
• This product must only be assembled by an adult. Do not use the toy until it has been fully assembled and checked. Do not use the toy until all necessary maintenance has been carried out.
• This toy must only be used under adult supervision.
• Check the toy regularly for signs of wear and damage. Should any part be visibly damaged, do not use and keep out of reach of children.
• Let your child use this toy only on flat, stable surfaces.
• Do not let your child or other children use this toy on roads, driveways, or slopes; ensure that the toy is used in areas free from obstacles and away from dangerous places (for example swimming pools, canals, lakes, stairs, etc.)
• This toy must not be used by two or more children at a time; it can be used safely only by one child, weighing up to 20 Kg.
• Ensure that your child's footwear is always correctly laced or fastened.
• Do not use this toy in any other way than recommended.
• Do not use this toy in very cold temperatures, as the plastic material from which it is made can lose its elasticity and become fragile. Should this happen, keep the toy out of reach of children, and store it in a warm and dry place.

INTRODUCTION

Chicco SIT 'N' RIDE 4 IN 1 CAR 'QUATTRO' is a multifunction, full-optional sit 'n' ride toy specifically designed to be used in the different phases of the child's growth. The four play modes make the toy ideal to suit the different needs of the child, from 9 to 36 months of age:

• Rocker (recommended from 9 to 12 months of age).
• Push 'n' Go (recommended from 9 to 18 months of age).
• Push and Walk (recommended from 12 to 18 months of age).
• Sit 'n' Ride (recommended from 18 to 36 months of age).

Sit 'n' Ride 4 in 1 Car 'QUATTRO' also features an amusing electronic activity centre, with many sounds, melodies and manual activities that can be used in any play mode. The activity centre can also be removed and played with separately.

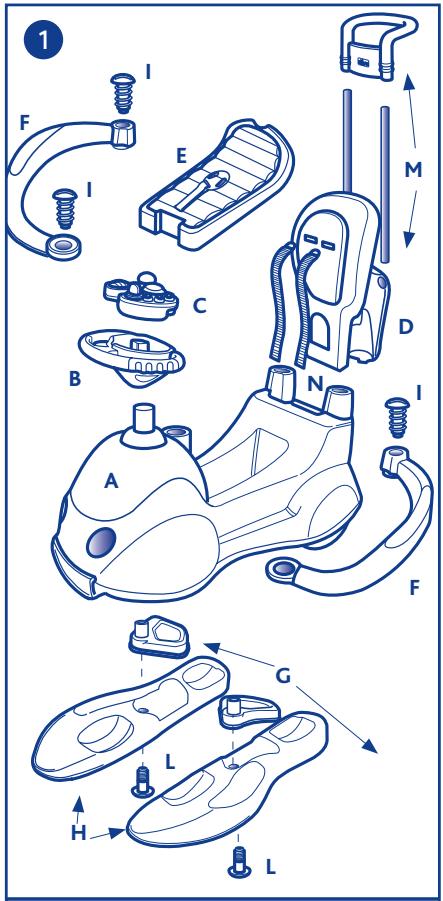

LIST OF COMPONENTS (diag. 1)

A. - Car body
B. - Steering wheel
C. - Activity centre

D. - Backrest /handy support for children

E. - Seat

F. - Left and right safety armrests

G. - Left and right retractable footrest

H. - Left and right stability-weighted bases

I. - No. 3 screws for fitting the armrests (2 rear and 1 front)

L. - No. 2 screws for fitting the footrest and weighted bases

M. - Parent handle for pushing the toy, comprising handle and two tubes

N. - Safety belt

HOW TO ASSEMBLE THE TOY

After purchasing this toy, carry out the following assembly operations, regardless of the play mode desired:

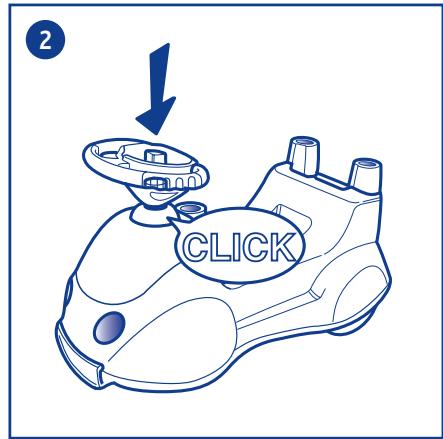

• Fit the steering wheel, as shown in diagram 2. For the correct assembly and use of the steering wheel, fit the component only as shown in the diagram. Push the steering wheel in a downward direction, until a click is heard, indicating that it is correctly fitted into position. Check that the steering wheel is safely locked into position, by pulling it towards you.

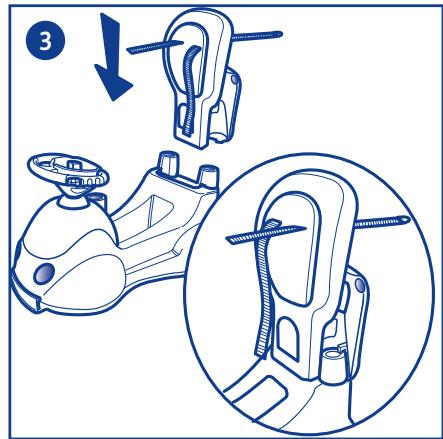

• Fit the backrest, as shown in diagram 3. Push the backrest in a downward direction, until a click is heard, indicating that it is correctly locked into position. Check that the backrest is safely locked into position, by pulling it towards you.
• To fit the safety belt, slide it from the rear of the backrest through the openings, until the hook located at the end of the safety belt locks inside the hole. Pull the belt until a click is heard, indicating that it is locked into position (diag. 3).
  • To remove the safety belt, press on the tab, located at the end of the safety belt. This will release the tab and allow you to slide the belt from the hole located on the seat.

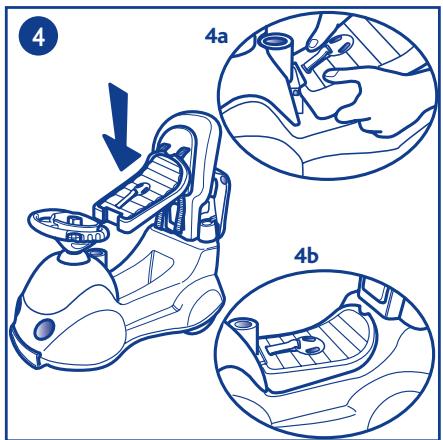

• Fit the seat as shown in diagram 4, locking the front part to the devices located in the car body (diag. 4-A), and maintaining the rear part raised, until it is safely locked into position. At the end of the operation, position the rear part of the seat as shown in diagram 4-B.
• Fit the batteries in the activity centre (diag. 5), following the instructions provided below:

INSERTING AND REMOVING REPLACEABLE BATTERIES

• Battery replacement must always be performed on behalf of an adult.
• To replace batteries: loosen the screw on the battery compartment hatch (fig. A-2) with a screwdriver, remove the hatch, remove flat batteries from the battery compartment, insert new batteries making sure the polarity is correct (as indicated on the product), replace the hatch and tighten the screw firmly.
• Use same or equivalent alkaline batteries as those recommended to operate this product.
• Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries.
• Keep batteries or other tools out of children’s reach.
• Do not short circuit feed clamps.
  • Always remove flat batteries from the product to avoid damages to the product by possible leakage.
  • Always remove batteries in case the product is not used for long periods.
• Remove batteries from the product before disposal.
• Do not throw flat batteries into fire or disperse in the environment, but dispose through separate refuse collection.

• Should batteries leak, replace them immediately after cleaning the battery compartment and wash hands thoroughly in case they have come into contact with the leaking liquid.

• Do not try recharging unchargeable batteries: they may explode.

• The use of rechargeable batteries is not recommended as they may decrease the toy's functionality.
• When using rechargeable batteries, remove them from the toy before recharging and recharge only under adult supervision.
• The toy is not designed to operate on Lithium replaceable batteries.

HOW TO ASSEMBLE THE TOY FOR USE IN THE ROCKER PLAY MODE

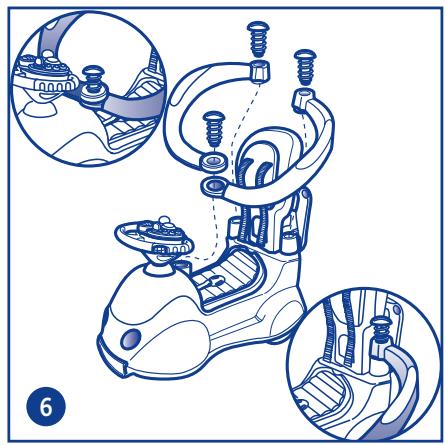

• Fit the two armrests, first the right armrest (facing the toy from the front) and then the left armrest. Ensure that the front ring of the right armrest is placed under the front ring of the left armrest, as shown in diagram 6. Insert the three screws (diag. 1-I), and screw them tightly to the end. The two identical, longer screws should be screwed into the rear housings (diag. 6-A), while the shorter screw should be screwed into the front housing (diag. 6-B). It is recommended to carry out this operation with a coin, which should be kept out of reach of children after use.

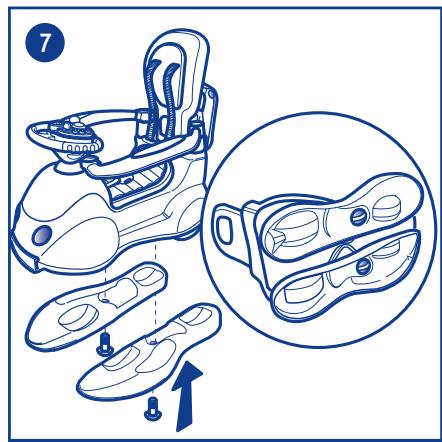

• Fit weighted bases as follows. Turn the toy on one side, then proceed in the following order: fit the weighted bases into the appropriate housings; lock the weighted bases to the car body using the screws (indicated by an L in diag. 1), ensuring that the left and right sides are fitted correctly into position (see diag. 7). Screw the screws tightly. It is recommended to carry out this operation with a coin, which should be kept out of reach of children after use.

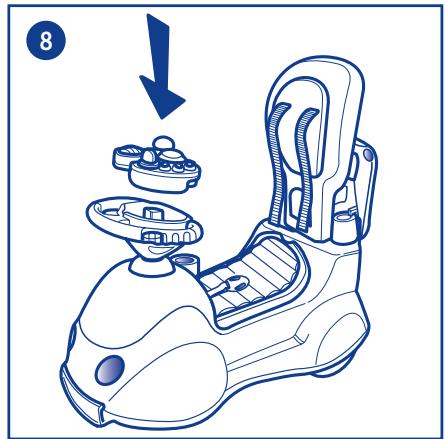

• Fit the activity centre onto the steering wheel, exercising simply a slight pressure (diag. 8).

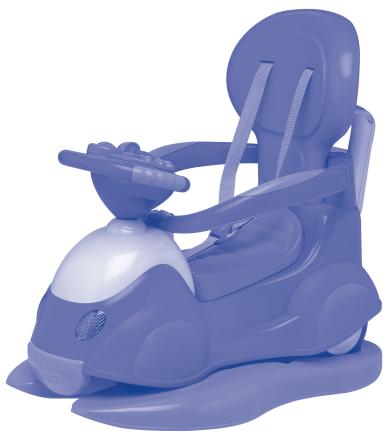

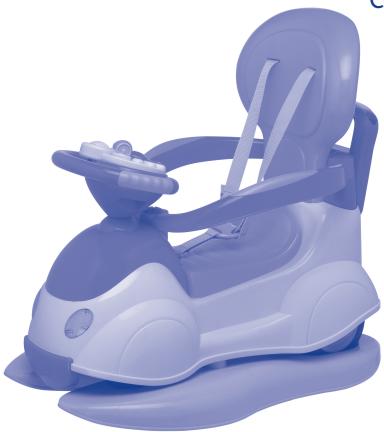

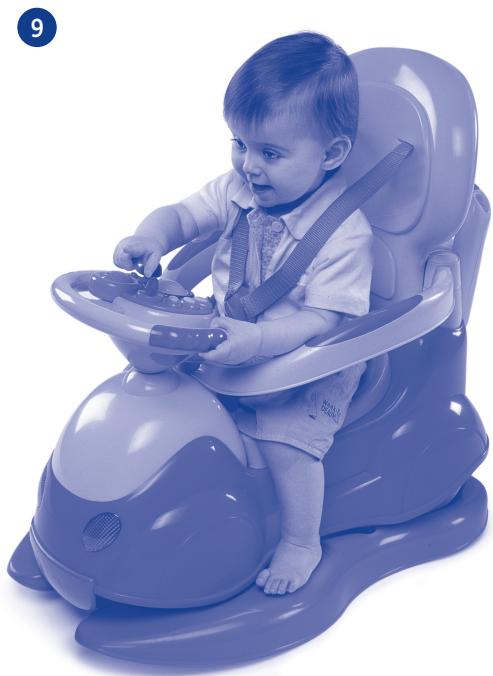

• The toy is ready to be used in the ROCKER PLAY mode (diag. 9).

Warning!

Remember to fasten the safety belts, and to adjust them to the size of the child's body.

HOW TO ASSEMBLE THE TOY FOR USE IN THE PUSH 'N' GO PLAY MODE

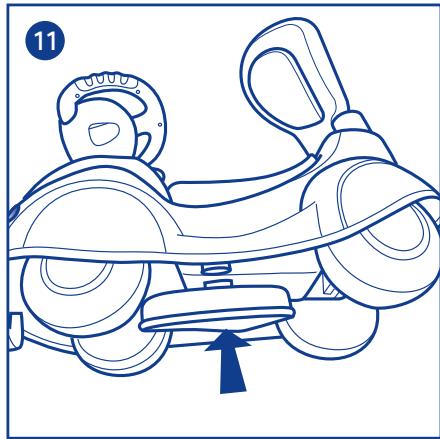

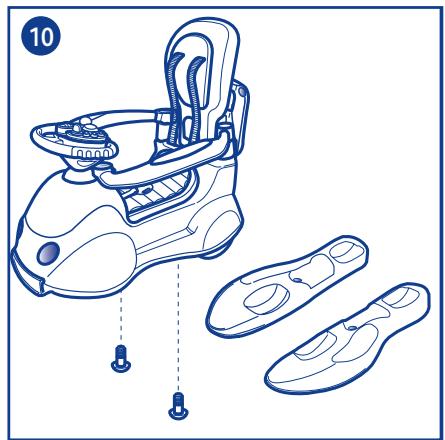

• Remove the weighted bases, as shown in diagram 10. Unscrew the L screws, remove the bases and insert the footrest into its appropriate housing (diag. 11). Screw the screws tightly to the end.

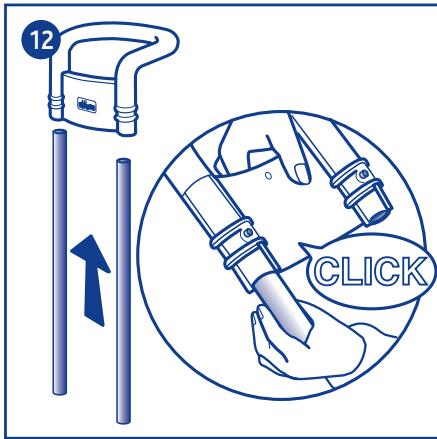

• Fit the parent push handle, inserting it as shown in diagram 12. Fit the tubes into the housings of the handle, until a click is heard, indicating that they are correctly fitted into position (the tubes are symmetrical, therefore, they can be fitted into whichever housing). Ensure the tubes are safely fitted into position, pulling them in the opposite direction of the handle.

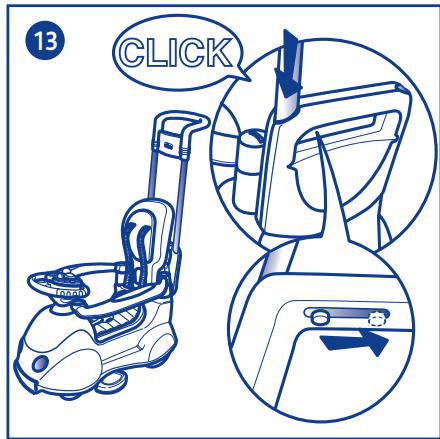

• Fit the lower part of the tubes (the end opposite to the handle) into the correct holes, located in the rear yellow handle, opening the sliding closures by means of the buttons located under the handle (diag. 13). When fitting the tubes, it is necessary to push back their locking pins, and then insert the tubes to the end, until a click is heard, indicating that they are correctly locked into position. Ensure that the tubes are locked correctly, checking that the position of the tubes' locking pins corresponds to the position shown in diagram 14, and by pulling the handle in an upward direction.
• The toy is now ready to be used in the PUSH 'N' GO PLAY MODE (diag. 15).

Warning!

• If the child is still not able to sit on its own, it is recommended to hold the toy by the specific handle to avoid any overturning.
• When the child is sitting in the toy, do not use the handle to lift the toy, avoid obstacles or to hold the toy on slopes.

HOW TO ASSEMBLE THE TOY FOR USE IN THE PUSH 'N'WALK PLAY MODE

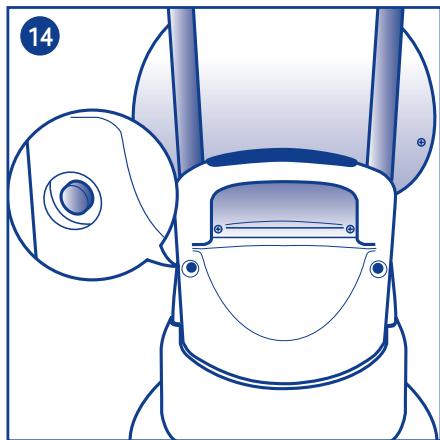

• Remove the parent push handle. First press the lower locking pins of the tubes (diag. 14) and then slide the handle out, pulling it in an upward direction. Ensure that the sliding closures of the yellow handle are closed.
  • To remove the footrest, unscrew the L screws and remove it. After the operation, tighten the screws to the end.
  • The toy is now assembled in the PUSH 'N' WALK PLAY MODE (diag. 16). By leaning on the yellow handle, the child can support itself during its first walks.

HOW TO ASSEMBLE THE TOY FOR USE IN THE SIT 'N' RIDE PLAY MODE

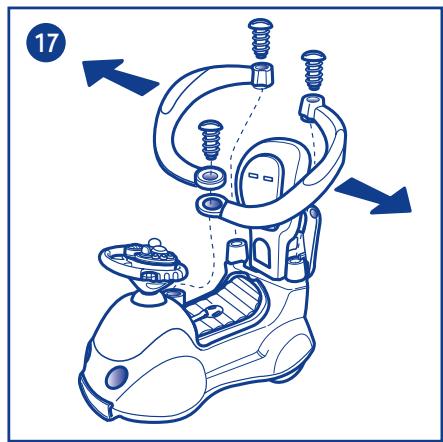

• Remove the armrests (diag. 17) repeating, in the reverse order, the assembly operations described above. After carrying out this operation, it is recommended to screw back the screws into the appropriate housings, located in the car body.

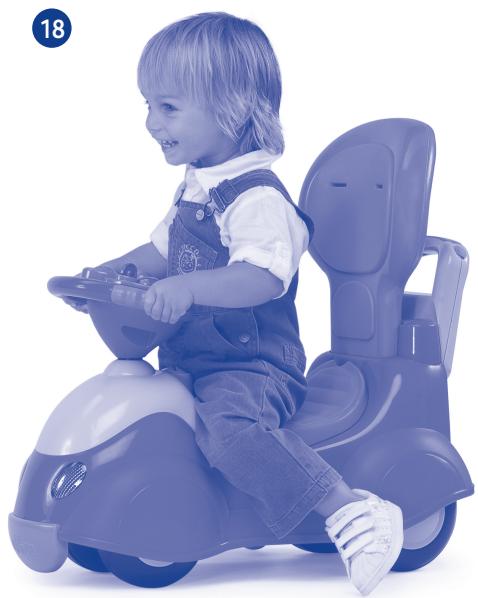

• The toy is now assembled in the SIT 'N' RIDE PLAY MODE (diag. 18).

For a correct and safe use of the product in this configuration, remove the product's seat belts.

Warning!

• Use the toy in the Sit ‘n’ Ride play mode only when the child is able to sit on its own.
• Never use the toy in the Sit ‘n’ Ride play mode with the armrests assembled to avoid the overturning of the toy.

CARE AND MAINTENANCE

- Clean the toy with a damp, soft cloth if needed. Do not submerge the toy in water.

- Clean the Activity Centre with a soft, dry cloth.

- Protect the toy from shocks, heat, dust, sand, humidity and water

Made in China
