Product Type	Spray Paint
Brand	Power Craft
Model	89040
Capacity	400 ml (typical)
Container Type	Aerosol Can
Dimensions (H x D)	200 mm x 65 mm (typical)
Weight	400 g (typical)
Propellant	Butane/Propane Mix
Application	Multi-surface Paint (Wood, Metal, Plastic, etc.)
Drying Time	Touch Dry in 30 min, Fully Dry in 24 hours
Coverage	Approx. 2-3 sq ft per can
Operating Temperature	50°F - 90°F (10°C - 32°C)
Shelf Life	3 years from manufacture date
Storage	Store in a cool, dry place away from heat and sunlight
Safety	Flammable aerosol. Use in well-ventilated area. Avoid inhalation and contact with eyes.
Maintenance	Clean nozzle after each use by inverting can and spraying until clear gas escapes
Spare Parts	Replacement nozzles available separately
Reparability	Not repairable; replace entire can if defective or empty
Usage	Shake well before each use. Test on a small area first.
Surface Preparation	Ensure surface is clean, dry, and free of grease and dust
Environmental Disposal	Recycle empty can when fully depleted. Do not puncture or incinerate.

Frequently Asked Questions - 89040 Power Craft

How do I use the Power Craft 89040 spray paint?

Shake the can vigorously for 1 minute before use. Hold the can 20-30 cm (8-12 inches) from the surface. Apply in thin, even coats using a sweeping motion. Allow 10-15 minutes between coats. For best results, apply multiple thin coats rather than one thick coat.

What safety precautions should I take?

Always use in a well-ventilated area. Avoid breathing fumes. Wear a respirator mask if necessary. Keep away from heat, sparks, and open flames. Do not smoke while using. Avoid contact with skin and eyes; if contact occurs, rinse thoroughly with water.

Can I use this spray paint on plastic or metal?

Yes, the Power Craft 89040 is suitable for multiple surfaces including wood, metal, plastic, and more. However, always test on a small, inconspicuous area first to ensure compatibility and adhesion.

How do I clean the nozzle after use?

After use, turn the can upside down and press the nozzle for 3-5 seconds until only clear gas escapes. This prevents clogging. If the nozzle is already clogged, soak it in paint thinner or replace it.

What if the nozzle clogs?

Remove the nozzle and soak it in paint thinner or acetone for a few minutes. Use a pin to clear any blockage. If it remains clogged, replace the nozzle with a compatible spare part.

How long does it take to dry?

The paint becomes touch dry in about 30 minutes under normal conditions. Full cure takes approximately 24 hours. Avoid handling or placing objects on the painted surface until fully cured. Drying time may vary with humidity and temperature.

How should I store the spray paint can?

Store the can upright in a cool, dry place away from direct sunlight and heat sources. Ideal storage temperature is between 50°F and 80°F (10°C - 27°C). Do not expose to temperatures above 120°F (49°C) as it may burst.

What is the shelf life of this paint?

The shelf life is typically 3 years from the date of manufacture when stored properly. Check the can for the expiration date. Do not use if the can is damaged or if the paint has separated or developed a foul odor.

How do I dispose of an empty can?

Ensure the can is completely empty by spraying until no more paint comes out. Do not puncture or incinerate. Recycle the metal can according to local regulations. Dispose of partially full cans as hazardous waste if required.

Is the paint waterproof after drying?

Once fully cured (after 24 hours), the paint provides a water-resistant finish. It can withstand light moisture but is not intended for permanent submersion. For outdoor use, consider applying a clear sealer for added protection.

USER MANUAL 89040 Power Craft

Exterior view of a spray gun with a white spray bottle and gray handle (no text or symbols visible)

Fremstillet i P.R.C.

6001 - Hangzhou Todd, Zhejiang

EU-Importør:

HP Værktøj A/S

7080 Børkop

Danmark

Manufactured in P.R.C.

6001 - Hangzhou Todd, Zhejiang

EU importer:

HP Værktøj A/S

7080 Børkop

Denmark

All rights reserved. The content of this user guide may not be reproduced in part or whole in any way, electronically or mechanically (e.g. photocopying or scanning), translated or stored in a database and retrieval system without the prior written consent of HP Værktøj A/S.

Produsert i P.R.C.

6001 - Hangzhou Todd, Zhejiang

EU-importør

HP Værktøj A/S

7080 Børkop

Danmark

Pumpe cylinder Special blanding

Pumpe stempel Special stål. ∅ 5 min.

Pumpe studs 0,8 mm.

Fortyndelsesmaling (DIN)

Pumpcylinder: Special blandning.

Pumpstämpel: Special stål. f 5 min.

Volume capacity: 1,000 ml.

Pump cylinder Special mixing

Pump cylinder Special steel. 5 min. diameter

Pump nozzle 0.8 mm.

Sound pressure max. 90 dB

Use

Congratulations on the purchase of your Powercraft spray gun.

Before use, please read this manually carefully. Keep the manual in a safe place for future reference.

This apparatus requires careful cleaning and maintenance for optimum function.

IMPORTANT: Always clean thoroughly after use.

Failure to do so will affect performance and invalidate the guarantee.

Safety instructions

NOTE: Do not point at other people or animals. Doing so entails a high risk of injury.

If paint or solvents come in contact with the skin, seek medical help immediately and advise the doctor of the type of paint or solvents involved.

• For use with paint and solvents with a flashpoint over 21^ C. (32 °C in the UK) only.
• Indoor use: Ensure adequate ventilation.
• Naked flames and smoking during use are strictly forbidden.
• Not a toy! Keep well away from children and do not allow them to play with it.

• Always disconnect from mains electricity before performing any type of cleaning or maintenance.
- Never use for inflammable liquids.
- Never clean with inflammable liquids.
- Check carefully the content of liquids used. (See manufacturer's recommendations)
- Never use liquids with properties you are unsure of.

General safety instructions

WARNING!

When using electrical tools, always take precautions to reduce the risk of fire, electric shock and personal injury, including:

1. Keep work area clean. Cluttered, dirty work areas cause accidents.
2. Check work area before starting. Do not expose to rain. Do not use in damp or humid areas. Do not use if there is any risk of fire or explosion.
3. Protect against electric shock. Avoid coming in contact with earthed surfaces, such as pipes, radiators and fridges.
4. Keep well away from children. Do not allow others to touch the tool or cable. All visitors should be kept away from work place.
5. Unused tools should be stored in a dry, safe place, well out of the reach of children.
6. Do not overload. The tool will perform better and more safely if the use of force is avoided.
7. Use right tool Do not force a tool which is too small to do the work of a large tool.
8. Wear the right clothing. Never wear loose-fitting clothes or jewellery, as they can get caught in the moving parts. Rubber gloves and non-slip footwear are recommended for working outdoors. Hairnets are recommended for long hair.

INSTRUCTION MANUAL

1. Use safety goggles Always wear a face- or dust mask if a lot of fine spray is produced.

2. If a vacuum cleaner is used to extract fine spray, check it is connected correctly.

3. Do not mistreat the cable. Never carry by the cable, and never pull the plug out by the cable. Keep the cable away from hot or sharp objects.

4. Use screw cramps to hold materials to be painted.

5. Ensure you have a good stance and correct balance when working.

6. Keep tools sharp and clean for better, safer results. Follow lubrication and replacement of accessories guide. Check cable regularly. If damaged, get it repaired by an authorised dealer. Keep handle dry and clean.

7. Switch off at mains when not in use or changing accessories.

8. Before start, check machine is in 0 position.

9. When using outdoors, check extension cable is suitable for outdoor use.

10. Do not carry with a finger on the on/off button.

11. Stay alert. Use the machine with care. Do not use if tired or unwell.

12. Check for damaged parts. Always check other parts before use. Assess whether machine's ability to operate will be affected. Damaged parts must be replaced or repaired by an authorised technician. Damaged switches must be replaced by the manufacturer. Do not use if the ON/OFF button is defective.

13. When the machine is to be repaired, always use an authorised dealer which uses only original spare parts. Failure to do so can cause injury.

14. Switches and cables must be replaced by a professional.

General remarks

Method of use

Pour liquids in through spray nozzle. Under pressure, the liquid is forced out in a fine spray.

Painting without compressed air is best as it avoids waste.

Use

Ideal for painting woodwork, fences, indoor and outdoor furniture, windows, doors, etc.

FOLLOWING ARE NOT SUITABLE FOR PAINTING WITH THIS GUN.

• Materials containing abrasives.
• Glazing products.
• Materials containing various types of paint.
  • Corrosive and alkaline materials.

Use of such products can cause damage to the gun and invalidate the guarantee.

Preparing material to be sprayed

Thin the paint to be used to the required DIN value.

Thinners (DIN)

1. Stir thoroughly.
2. Submerge measuring cup under the surface.
3. Lift cup and time how long it takes to empty totally in seconds. This time is known as the 'DIN time'. Written as DIN/sec.

Vibrations transferred to arm are less than 2.5 m/s ^4

INSTRUCTION MANUAL

Scale for thinning

Spray liquids: Thinning DIN/sec.

Impregnation fluids, Unthinned - 30

primer, varnish and lacquer.

Synthetic plastic 15 - 30

paint and clear lacquer.

Acrylic paint 20 - 30

Wood preservative, Unthinned - (Max. 30)

pesticides, oils.

Aluminium paint 15 - 30

Cleaning agents and Unthinned - (Max. 30)

polishes.

Start up

Before connecting to the mains, check that mains electricity complies with that stated on label attached to gun.

NOTE: Do not use with no liquid in the container. This will ruin the pump and invalidate the guarantee.

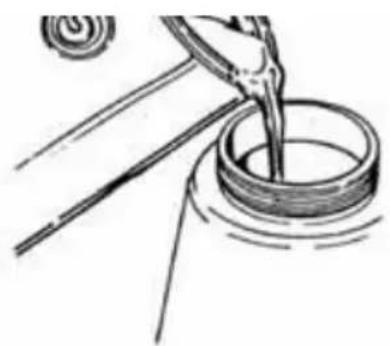

Refilling the container (2)

1. Place container on a piece of paper and fill.

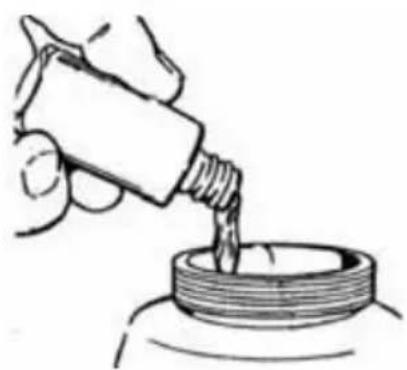

2. Check correct thinning. (3)

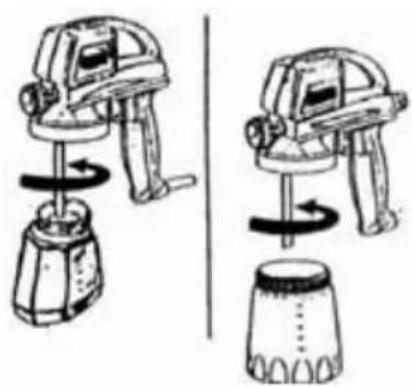

3. Screw gun onto container (4).

Adjust spray with adjustment knob (5)

1. Before starting, turn adjustment knob anticlockwise to maximum.
2. Press Start button and turn adjustment knob backwards until best result is achieved.

- Clockwise reduces pressure.

- Anticlockwise increases pressure.

Correct spray technique

1. To achieve best result hold spray gun 23-30 cm from surface to be sprayed. This prevents air getting into the pump until the liquid runs out.
2. Uneven spray movements will cause bubbles and runs in the paint. Always use smooth, even arm movements.

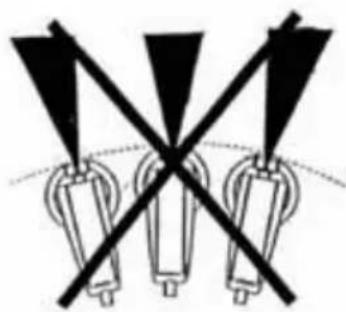

3. Use arm, not wrist. (6 - 7)

Some tips

• Always clean the surface first for the best result. Clean and protect surface from dust.
• Check for correct setting by trying out on a price of board or the like.
• Use good quality paint. This will help avoid runs. If applying more than one coat, allow each coat to dry properly before applying the next.
• Cover all other surfaces to avoid accidental spraying.

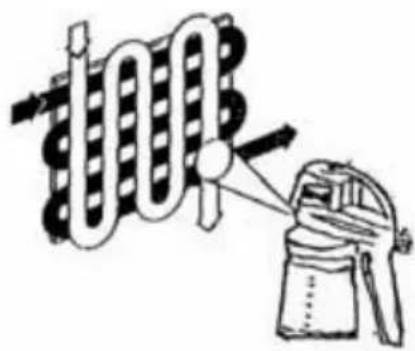

• See illustration number (8) for the best method.
• Remember that excess paint can fall on the surrounding areas.

Cleaning

1. Always fill with a little thinners after painting is finished to clean internal parts. Remember not to exceed the flashpoint of 21° C.
2. Disconnect from the mains.
3. Dry outer surfaces and parts with a dry cloth. Never submerge the gun in a liquid. (9)

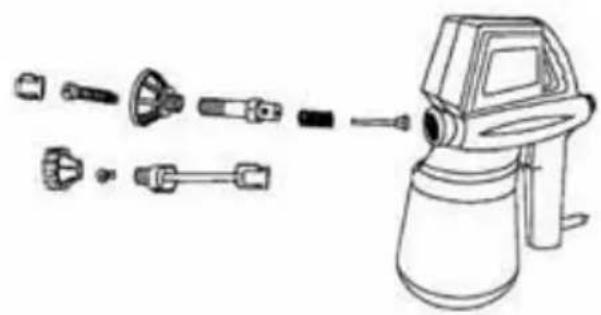

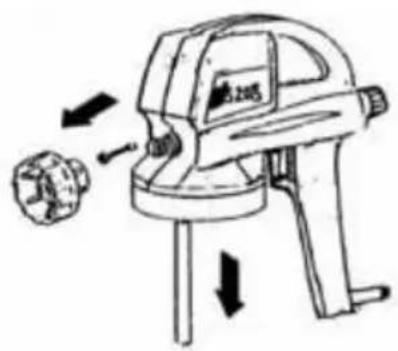

4. Remove the container, valves and paint nozzle. Remove suction pipe. (10)
5. Clean bowl, valves, nozzle and suction hose with a brush (11)
6. Place a couple of drops of oil in the pump to protect against corrosion. (12)

INSTRUCTION MANUAL

Protecting the environment

Never pour paint or solvents into the sewers.

Take them to your local environmental refuse station for disposal.

Environmental information

You can help protect the environment! Follow local environmental regulations: Dispose of unwanted electrical equipment at an approved refuse disposal centre.

GEBRAUCHSANWEISUNG

Technische Daten

Simple line drawing of a funnel pouring liquid into a container with an arrow indicating flow (no text or symbols)

5

Line drawing of a mechanical device with curved arrows indicating motion or rotation (no text or symbols)

2

Illustration of a hand pouring liquid into a cylindrical container with a tool, no text or symbols present

6

Three identical mechanical components with black triangular blades and white base, connected by a dashed line (no text or symbols)

3

Hand pouring liquid into a jar (no text or symbols visible)

7

Pure electrical circuit lines without any symbols

4

Illustration of a spray gun with two different actions: one performing a rolling motion, the other showing a rotating brush (no text or symbols present)

8

Diagram of a mechanical device with a spring-like structure and a lever mechanism (no text or symbols)

ILLUSTRATIONS

9

Illustration of hands using a spray gun to handle a cylindrical container (no text or symbols visible)

Line drawing of a spray gun with exploded view showing internal components (no text or symbols)

10

Line drawing of a spray gun with directional arrows indicating motion (no text or symbols)

11

Simple line drawing of a tool applying paint to a surface, with no text or symbols present.

12

Simple line drawing of a pipette dispensing liquid into a container (no text or symbols)

CE-ERKLÆRING

CE mark placed: 2006

EC-DECLARATION OF CONFORMITY

Hereby, on our own responsibility declare that:

Is manufactured in compliance with the following:

98/37/EC: Safety of machinery with amendments.

73/23/EEC: Low tension directive.

89/336/EEC: EMC- directive + (amendments 93/68/EEC)

STANDARDER, NORMER, NORMER, NORMIT, STANDARDS, NORMEN:

EN 50144-2-7:2000
