Product Type	Vacuum Cleaner
Brand	Menuett
Model	800-246
Rated Voltage	230 V
Rated Frequency	50 Hz
Rated Input Power	700 W
Energy Efficiency Class	A
Carpet Cleaning Performance Class	D
Hard Floor Cleaning Performance Class	B
Dust Re-emission Class	C
Sound Power Level	78 dB
Annual Energy Consumption	26 kWh/year
Dust Container Type	Bagless
Filter Type	Intake filter and HEPA filter
Accessories Included	Radiator nozzle, brush nozzle, small nozzle
Power Cord	Auto rewind with yellow (suitable length) and red (max length) marks
Safety Plug	Earthed plug
Usage	Dry vacuuming only
Maintenance	Empty dust container when indicator red; clean intake filter twice a year; clean HEPA filter when clogged

Frequently Asked Questions - 800-246 Menuett

How do I assemble the vacuum cleaner?

To assemble, fit the suction hose into the intake opening until it clicks. Then attach the tube, extension, and finally the floor nozzle. Refer to diagrams in the manual.

How do I empty the dust container?

When the full filter indicator is red with the nozzle raised, turn off and unplug. Remove hose and handle, turn the release button, and remove the dust container. Press the release on the bottom casing, open the cover, and empty. Replace and lock.

How do I clean the HEPA filter?

Open the HEPA filter cover, remove the unit, and pull out the filter. Rinse both the holder and filter in lukewarm water and allow to dry completely. The filter can be brushed clean. Never use a washing machine or hair dryer.

What accessories are included?

The vacuum comes with a radiator nozzle (for hard-to-reach areas), a brush nozzle (for walls, furniture, curtains), and a small nozzle (for upholstered furniture).

What is the power rating?

The rated input power is 700 W, with a voltage of 230 V and frequency 50 Hz. It has energy efficiency class A.

Can I use it to vacuum up water?

No, this vacuum cleaner is for dry vacuuming only. Do not use on wet surfaces or to pick up liquids to avoid risk of electric shock.

How do I rewind the power cord?

Press the rewind button on the vacuum. The cord winds in automatically. Always hold the plug while rewinding to prevent damage or injury.

What should I do if suction is weak?

Check if the dust container is full (indicator red) or if filters are clogged. Empty the container or clean the intake filter and HEPA filter. Also ensure hose, tube, and nozzle are not blocked.

Is it safe to use on stairs?

Yes, but be careful when vacuuming stairs. Keep the power cord away from steps to avoid tripping. Never leave the vacuum unattended on stairs.

How often should I clean the filters?

Clean the intake filter at least twice a year or when visibly clogged. Clean the HEPA filter when it becomes clogged. Always let filters dry completely before reinstalling.

USER MANUAL 800-246 Menuett

Red and black vacuum cleaner with coiled hose, no visible text or symbols

SE Bruksanvisning för dammsugare
NO Bruksanvisning for støvsuger
PL Instrukcja obsługi odkurzacza
EN User instructions for Vacuum cleaner

SE - Bruksanvisning i original

EN - Operating instructions (Translation of the original instructions)

Jula reserves the right to make changes. In the event of problems, please contact our service department.

www.jula.com

Tillverkare/ Produsent / Produenci/ Manufacturer

Jula AB, Box 363, 532 24 SKARA

Importör/ Importør/ Importer/ Importer

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

SVENSKA....6

SÄKERHETSANVISNINGAR....6

TEKNISKA DATA....7

BESKRIVNING 8

MONTERING 9

Tillbehör....10

HANDHAVANDE 10

UNDERHÅLL 11

SAFETY INSTRUCTIONS 30

TECHNICAL DATA 31

DESCRIPTION 32

ASSEMBLY....33

Accessories 34

USE....34

MAINTENANCE 35

Emptying the dust container 35

Cleaning 35

DECLARATION OF CONFORMITY 37

SÄKERHETSANVISNINGAR

MONTERING

Line drawing of a vacuum cleaner with attached cable, showing no text or symbols

Line drawing of a hand holding a tool with an arrow indicating direction (no text or symbols)

Pure diagram of a pipe or tube with directional arrows indicating flow or movement (no text or symbols)

Diagram of a vacuum cleaner with a pipe being inserted, showing motion direction (no text or symbols)

TILLBEHÖR

OBS!

Line drawing of a robotic vacuum cleaner with open lid and wheels (no text or symbols)

Technical line drawing of a mechanical component with a grid-like structure and an arrow pointing to a feature (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating a downward transformation (no text or symbols present)

RENGÖRING

OBS!

Line drawing of a cleaning or cleaning device with a grid panel and handle (no text or symbols)

Line drawing of a vacuum cleaner with internal components and a separate panel (no text or symbols)

Rengöring / byte av HEPA-filter

Line drawing of a vacuum cleaner with attached cable, showing no text or symbols

Line drawing of a hand holding a tool with an arrow indicating direction (no text or symbols)

Pure diagram of a pipe or tube with directional arrows indicating flow or movement (no text or symbols)

Diagram of a vacuum cleaner with a pipe being inserted, showing motion direction (no text or symbols)

TILBEH∅R

OBS!

T∅MME ST∅VBEHOLDEREN

Line drawing of a robotic vacuum cleaner with open lid and wheels (no text or symbols)

Technical line drawing of a mechanical component with a grid-like internal structure and an arrow pointing to a feature (no text or symbols present)

Technical line drawing of a device housing with internal components, showing a 3D model before and after assembly (no text or symbols)

RENGJ∅RING

OBS!

Line drawing of a mechanical device with a grid-patterned base and a side panel (no text or symbols)

Technical line drawing of a vacuum cleaner with internal components and a separate panel (no text or symbols)

Line drawing of a vacuum cleaner with attached cable, showing no text or symbols

Line drawing of a hand holding a tool with an arrow indicating direction (no text or symbols)

Pure diagram of parallel lines with a central rectangular block and two black arrows indicating direction (no text or symbols)

Diagram showing a device being processed with a cylindrical component, no text or symbols present

AKCESORIA

UWAGA!

Line drawing of a robotic vacuum cleaner with open lid and wheels (no text or symbols)

Technical line drawing of a mechanical component with a grid-like structure and an arrow pointing to a feature (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating a downward transformation (no text or symbols present)

CZYSZCZENIE

UWAGA!

Line drawing of a cleaning or cleaning device with a grid panel and handle (no text or symbols)

Line drawing of a vacuum cleaner with internal components and a separate panel (no text or symbols)

Read the User Instructions carefully before use.

Save these instructions for future reference.

• Always take basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock or personal injury.
• WARNING: To reduce the risk of electric shock, the vacuum cleaner is fitted with an earthed plug that only fits earthed mains outlets. If the plug does not fit the mains outlet, contact an authorised electrician to install an earthed mains outlet. Never modify the plug in any way.
• Never leave the vacuum cleaner unattended when the power cord is plugged in. Unplug the power cord before cleaning and/or maintenance, and when the vacuum cleaner is not in use.
• Do not use the vacuum cleaner outdoors or on wet surfaces – risk of electric shock.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Keep children under supervision to make sure they do not play with the vacuum cleaner. Keep the vacuum cleaner under careful supervision when it is used by, or near children.
• The vacuum cleaner must only be used as it is intended to be used and in accordance with these instructions. Only use accessories recommended by the manufacturer.
• Do not use the vacuum cleaner if the power cord or plug are damaged. Do not use the product if the power cord or plug are damaged, if the product is not working properly, if it has been exposed to water, or if it is damaged in any other way. Take it to an authorised service centre.
• Do not carry or pull the vacuum cleaner by the power cord.

• Keep the power cord away from heat, oil and sharp edges.

• Do not pull the vacuum cleaner over the power cord.

• Do not handle the vacuum cleaner, power cord or the plug with wet hands.
• Never insert any objects or body parts in the openings on the vacuum cleaner. Keep the ventilation openings clean.
• Keep your hair, clothes, hands and other parts of your body away from the moving parts.
• Set all the controls in the off position before pulling out the power cord.
• Be careful when vacuum cleaning stairs.
• Do not use the vacuum cleaner to clean up flammable liquids or use in the vicinity of such liquids.
  • Always hold on to the plug when winding in the power cord.
• Unplug the power cord before connecting the hose.
• Do not use the vacuum cleaner to clean up burning or glowing objects such as cigarettes or hot ash.
• Do not use the vacuum cleaner without the dust filter bag and filter.
• A damaged power cord must be replaced by an authorised service centre, or other qualified personnel, to ensure safe use.
• Switch off the vacuum cleaner immediately if the hose, tube or nozzle are blocked. Remove blockage before starting the vacuum cleaner again.
• Do not vacuum clean hot objects, such as heaters or radiators. Do not use the vacuum cleaner to clean up burning or glowing objects such as cigarettes or hot ash.
• Do not touch the vacuum cleaner, the power cord or the plug with wet hands or wet parts of your body.
• Before starting the vacuum cleaner remove any large and sharp objects that can damage the paper filter from the work area.
• Do not pull the power cord to unplug the plug from the wall socket.
• A damaged power cord must be replaced by an authorised service centre, or qualified person, to ensure safe use.

TECHNICAL DATA

Rated voltage 230 v

Rated frequency 50Hz

Nominal input power 700W

DESCRIPTION

1. Extension tube
2. Handle
3. Hose
4. Tube
5. Release button
6. Power button
7. Power switch
8. Floor nozzle

ASSEMBLY

1. Fit the suction hose in the intake opening until it clicks into place (diagram 1). Remove by pressing in the release button and pulling the suction hose out of the intake opening.

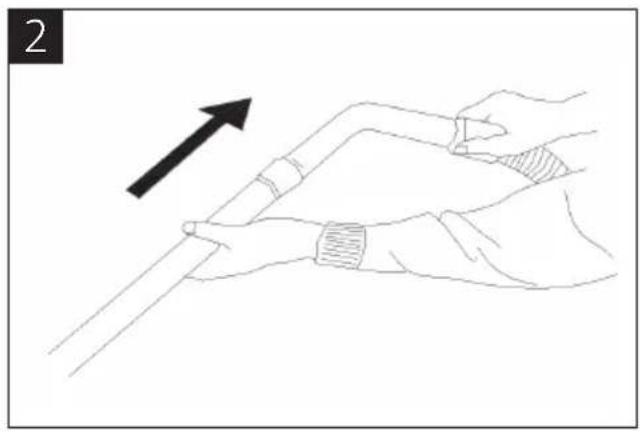

2. Fit the tube (diagram 2).

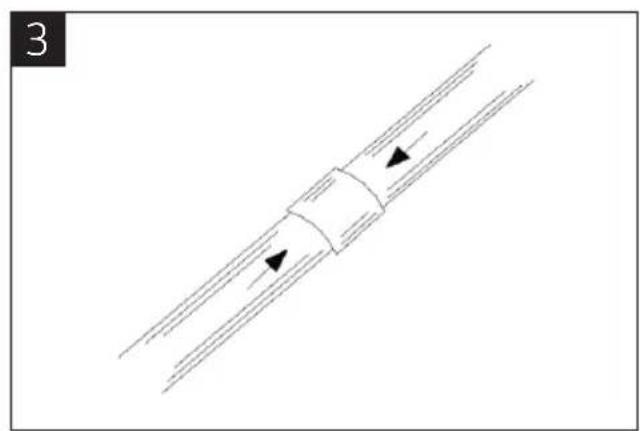

3. Fit the extension (diagram 3).

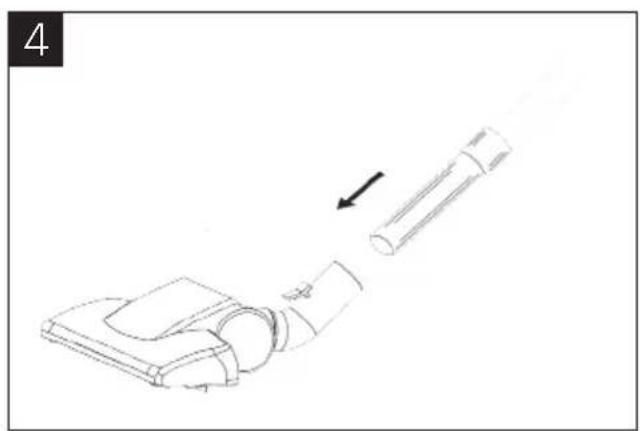

4. Fit the floor nozzle (diagram 4).

Line drawing of a vacuum cleaner with attached cable, showing no text or symbols

Line drawing of a hand holding a tool with an arrow indicating direction (no text or symbols)

Pure diagram of a pipe or tube with directional arrows indicating flow or movement (no text or symbols)

Diagram of a vacuum cleaner with a pipe being inserted, showing motion direction (no text or symbols)

ACCESSORIES

NOTE:

• Always unplug the power cord from the wall socket before changing accessories.
- There is a radiator nozzle and brush nozzle in the accessory holder.

	Radiator nozzleUse the radiator nozzle in areas that are hard to reach, such as under objects and between cushions, etc.
	Brush nozzleUse the brush nozzle for walls, furniture, curtains, corners and narrow spaces.
	Use the small nozzle for upholstered furniture.

USE

1. After fitting the accessories, pull out the power cord to the required length and plug in the plug. A yellow mark on the power cord shows a suitable extension length. Do not pull out the power cord further than the red mark.
2. Start the vacuum cleaner by pressing the power switch once.
3. Wind in the power cord by pressing the rewind button. The power cord on the vacuum cleaner winds in automatically. Always hold on to the plug when winding in the power cord.
4. Adjust the required suction power with the power button.

MAINTENANCE

EMPTYING THE DUST CONTAINER

NOTE: Never use the vacuum cleaner without the dust container.

Empty the dust container when the full filter indicator is red when the vacuum cleaner is working at full power and the nozzle is raised from the surface.

1. Remove the hose and the handle, and turn the release button.
2. Remove the dust container (diagram 5).

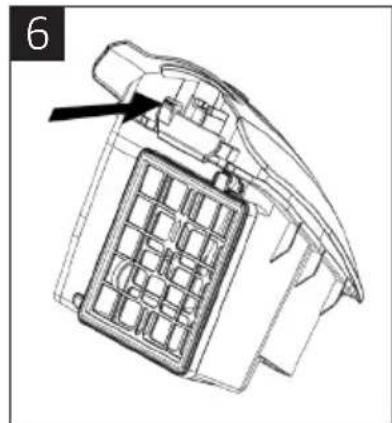

3. Press the release on the bottom casing on the vacuum cleaner (diagram 6).

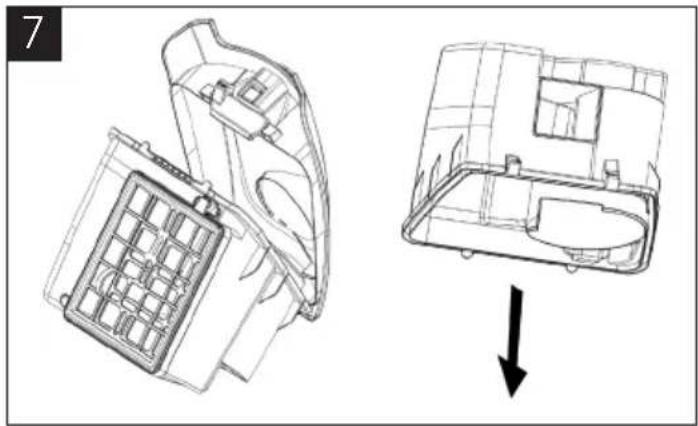

4. Open the cover and empty the container (diagram 7).
5. Replace the dust container and lock in place.

Line drawing of a robotic vacuum cleaner with open lid and wheels (no text or symbols)

Technical line drawing of a mechanical component with a grid-like structure and an arrow pointing to a feature (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating a downward transformation (no text or symbols present)

CLEANING

NOTE:

- Never use the vacuum cleaner without the intake filter and HEPA filter.

This can reduce the suction power and/or damage the motor.

- Switch off the vacuum cleaner and unplug the power cord before cleaning or changing the filter.

- Do not wash the filter in a washing machine.

- Do not dry the filter with a hair dryer or equivalent.

Cleaning/ changing the intake filter

Clean the intake filter at least 2 times a year, or when you can see that it is clogged. Change the intake filter when necessary.

1. Remove the intake filter (diagram 8).
2. Rinse the filter in lukewarm water and allow to completely dry.

Line drawing of a cleaning or cleaning tool with a grid-patterned holder and a rectangular container (no text or symbols)

Line drawing of a vacuum cleaner with internal components and a separate panel (no text or symbols)

Cleaning/ changing the HEPA filter

Clean the HEPA filter when it is clogged. Change the HEPA filter when necessary.

1. Open the cover over the HEPA filter.

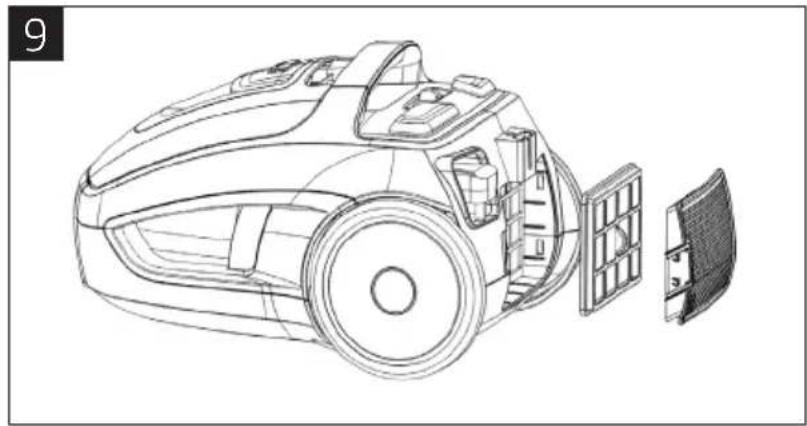

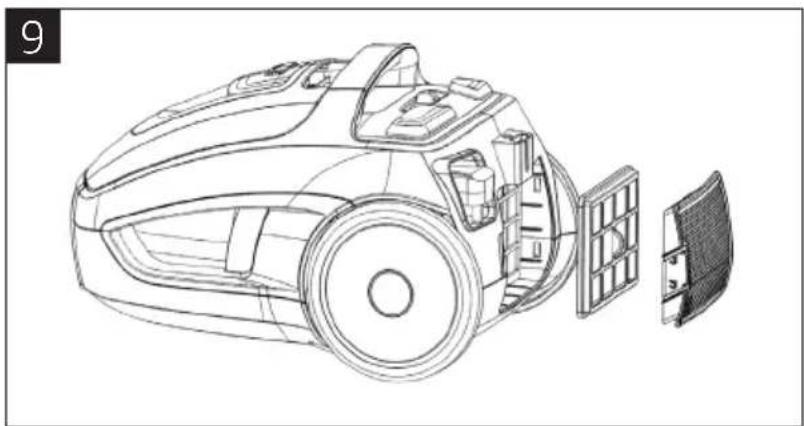

2. Remove the HEPA filter unit (diagram 9). Pull out the HEPA filter.
3. Rinse the holder and HEPA filter in lukewarm water and allow to completely dry. The HEPA filter can be brushed clean.
4. Close the cover.

DECLARATION OF CONFORMITY

We; JULA AB

Julagatan 2, 532 37 Skara, SWEDEN

Declare that the product detailed below:

Product: General purpose Vacuum Cleaner

Model: 800246

Satisfies the requirement of the Council Directives:

COMMISSION DELEGATED REGULATION (EU) No 665/2013 of 3 May 2013

supplementing Directive 2010/30/EU of the European Parliament and of the Council with regard to energy labelling of vacuum cleaners

COMMISSION REGULATION (EU) No 666/2013 of 8 July 2013

implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for vacuum cleaners

and technical parameters measured and calculated in accordance with (EU) No 665/2013:

Indicative annual energy consumption 26 (kWh per year), based on 50 cleaning tasks. Actual annual energy consumption will depend on how the appliance is used.

The energy efficiency class: Class A

The carpet cleaning performance class: Class D

The hard floor cleaning performance class: Class B

The dust re-emission class: Class C

The sound power level: 78dB

The rated input power: 700W
