Product Type	Canister vacuum cleaner
Brand	Menuett
Model	002-348
Dimensions (L x W x H)	Approx. 40 x 25 x 30 cm
Weight	Approx. 5 kg
Power Supply	Mains cord, 1200W
Dust Capacity	2 L bag
Filtration System	Standard cloth filter
Cleaning Type	Dry vacuuming
Included Accessories	Crevice tool, floor brush, upholstery nozzle
Cord Length	Approx. 5 m
Noise Level	~75 dB(A)
Suction Power	Adjustable, max 250 air watts
Maintenance	Empty bag when full; clean filter monthly; check hose for blockages
Safety	Do not vacuum liquids; unplug before servicing; keep away from water
Repairability	Replaceable filter, bag, and brush roll; motor serviceable by technician
Warranty	2 years (refer to retailer)

Frequently Asked Questions - 002-348 Menuett

How do I change the dust bag?

Open the bag compartment lid, remove the full bag by pulling the tab, and insert a new bag firmly. Ensure the bag is properly seated before closing the lid.

What should I do if the vacuum loses suction?

Check if the dust bag is full, the filter is clogged, or there is a blockage in the hose or brush head. Clean or replace as needed.

Can I use the vacuum for wet spills?

No, this model is designed for dry vacuuming only. Using it on liquids can damage the motor and pose an electrical hazard.

How often should I clean the filter?

Clean the filter every month or when suction decreases. Tap it gently to remove dust, or wash with mild soap and water if the manual permits. Let it dry completely before reinstalling.

My vacuum overheats and shuts off. What's wrong?

Overheating is often caused by a blocked filter, full bag, or obstruction in the hose. Turn off the vacuum, unplug it, and let it cool for 30 minutes. Remove the blockage, then restart.

Can I use an extension cord?

Yes, but use a cord rated for at least 10A and keep it fully uncoiled. Avoid daisy-chaining multiple cords.

Where can I purchase replacement filters or bags?

Replacement parts are available from Menuett retailers or online. Check the manual for compatible part numbers.

How do I clean the brush roll?

Remove the brush roll cover and take out the brush. Use scissors to cut away tangled hair or threads, then wipe with a damp cloth. Ensure it's dry before reinstalling.

The power cord is damaged. Can I replace it?

Cord replacement should be done by a qualified technician. Contact Menuett customer service or an authorized repair center to avoid safety risks.

Can I use the vacuum on delicate rugs?

Yes, but reduce the suction power using the regulator or use the upholstery nozzle to avoid damaging fibers.

USER MANUAL 002-348 Menuett

Exterior view of a black handheld vacuum cleaner (no text or symbols visible)

SE HANDDAMMSUGARE

Bruksanvisning i original

Operating instructions

(Translation of the original instructions)

Important! Read the user instructions carefully before use.

Save them for future reference.

Värna om miljön!

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

Jula reserves the right to make changes. In the event of problems, please contact our service department.

www.jula.com

Tillverkare/ Produsent/ Producenci/ Manufacturer

Jula AB, Box 363, 532 24 SKARA

Distributör/ Distributør/ Dystrybutor/ Distributor

Jula Poland Sp. z o.o., ul.

Technical line drawing of a robotic vacuum cleaner with directional arrows indicating motion (no text or symbols)

Line drawing of a handheld vacuum cleaner with a small component inserted, showing no text or symbols.

Line drawing of a handheld vacuum cleaner with a detached insert, showing internal structure and part (no text or symbols)

Technical line drawing of a hand-operated device with multiple ports and arrows indicating assembly or movement (no text or symbols)

Technical line drawing of a mechanical device with a circular arrow indicating rotation (no text or symbols)

Technical illustration of a mechanical device with a gear and lever assembly (no text or symbols)

SÄKERHETSANVISNINGAR

• Always follow these basic safety instructions when using electrical appliances.

- The vacuum cleaner is designed to suck up dry materials, do not use to suck up liquids.

- Do not immerse the vacuum cleaner or the charger in water or any other liquid when cleaning.

- Do not use the vacuum cleaner on or near a hot stove or in a hot oven.

- Do not block the ventilation openings on the vacuum cleaner.

- Do not use the vacuum cleaner to clean up flammable liquids or use it in the vicinity of such liquids.

- Check that the mains voltage corresponds to the rated voltage on the type plate.

- Do not use the vacuum cleaner if the charger, power cord or plug are damaged.

- Only charge with the supplied charger. Never use

the charger to charge other appliances.

- Disconnect the power supply to the charger before cleaning.

- Do not use the vacuum cleaner if it is damaged or not working properly, or if the power cord and/or plug are damaged. Take the vacuum cleaner to an authorised service centre to be checked, repaired or adjusted. Never use the battery for anything other than its intended purpose.

- The battery must be disposed of in accordance with applicable regulations. Do not burn batteries – risk of explosion.

- This vacuum cleaner can be used by children from eight years and upwards and by persons with physical, sensorial or mental disabilities, or persons who lack experience or knowledge, if they are supervised or receive instructions concerning the safe use of the vacuum cleaner and understand the risks involved with its use.

• Do not allow children to play with the vacuum cleaner.
• Do not use accessories other than those recommended by the manufacturer – risk of personal injury.
• Never use the vacuum cleaner for anything other than its intended purpose.
• Do not use the vacuum cleaner outdoors.

Symbols

	Class III.
	Approved as per applicable directives.
	Recycle a discarded product in accordance with applicable regulations.

TECHNICAL DATA

Input voltage, transformer 230 V ~ 50 Hz

Output voltage, transformer 27 V DC

Output 115 W

Battery 14.4 V Li-Ion

DESCRIPTION

1. Power switch
2. Power regulation
3. Hinge
4. Release button for handheld unit

5. Power switch

6. Release button for dust container

7. Release button for brush nozzle
8. Floor nozzle

FIG. 1

ASSEMBLY

Assembling the case and the floor nozzle

1. Insert the floor nozzle into the case.
2. Close the handle.

Assembling the charger and holder

Place the charger in the holder and use the screws to secure the whole unit on a wall or place it on a horizontal surface.

USE

1. Press the power switch to start the vacuum cleaner.
2. Press the power control to lower the suction power.
3. Press once power control again to return to the normal suction power.
4. Press the power switch to switch off the vacuum cleaner.
5. Check the charging indicator while vacuuming. The indicator lamps go out as the battery discharges and the vacuum cleaner switches off when all the charging indicator have gone out.

Using the handheld unit

1. Press down the handheld unit's release button and lift off the handheld unit.

FIG. 2

EN

1. Press the power switch on the handheld unit to start it and press it again to switch it off.
2. If you need to use the brush, this is attached to the suction nozzle. Now start the handheld unit again. The same applies to the flat suction nozzle.

FIG. 3

FIG. 4

Charging

1. Connect the mains adapter to the connector on the side of the charger.
2. Insert the plug on the mains adapter into a power outlet.
3. Place the vacuum cleaner in the charger. Ensure that the vacuum cleaner hooks correctly into the charger.
4. The charging indicators come on. The charging indicators go out when the vacuum cleaner is fully charged.

NOTE:

The vacuum cleaner must not be started during charging.

MAINTENANCE

1. Loosen the vacuum cleaner from the handheld unit by pressing the release buttons on the right and left-hand side of the vacuum cleaner, so that it releases from the handheld unit.

FIG. 5

1. Grip the filter handle and lift out the filter unit from the vacuum cleaner. Empty the dust collector and rinse with water. Let the dust collector dry.

2. Grip the filter handle and turn it clockwise to loosen the HEPA filter. Empty the filter cover and rinse with water. Let the filter cover dry.

3. Clean the HEPA filter with water when the appliance does not work correctly. Allow to dry completely after cleaning.
4. When the dust collector has been cleaned, first refit the HEPA filter in the filter cover and then refit the unit on the dust collector. Refit the dust collector in the handheld unit.
5. If there is air on the floor nozzle's roller, press the release button to loosen the roller.

FIG. 6

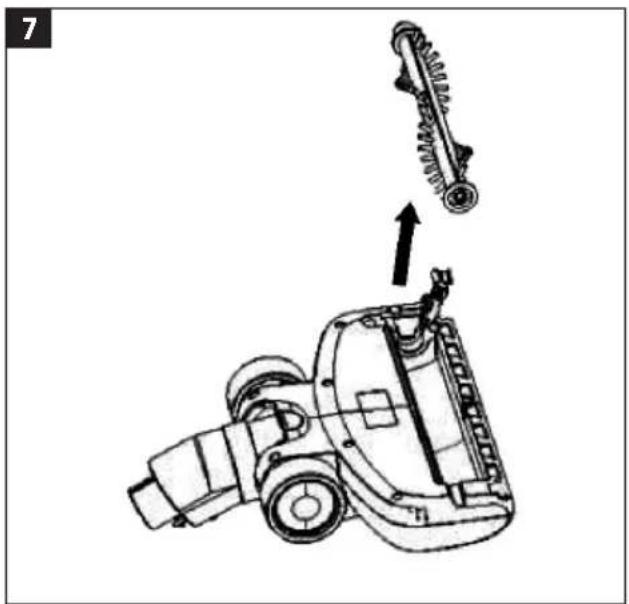

FIG. 7

1. Clean the roller.

2. Refit the roller in the nozzle and ensure fits correctly.

NOTE:

• The dust collector does not need to be cleaned after each use.
• If the HEPA filter becomes clogged with dust, clean and replace it in time.
• Hair can fasten in the roller. Clean in time so that the vacuum cleaner works efficiently.
