Product Type	Handheld Vacuum Cleaner with floor nozzle and stand
Brand	Menuett
Model	002201
Input Voltage (Charger)	230 V ~ 50 Hz
Output Voltage (Charger)	20 V DC
Battery Type	12 V NiMH
Power Output	100 W
Charging Time (First)	Up to 14 hours
Suction Nozzle	Extendable, with small brush nozzle
Floor Nozzle	Included with roller
Dust Container	Detachable, washable
Filter	Washable filter unit and filter element
Safety Class	Class III
Certifications	Approved as per applicable directives
Usage	Indoor use only, dry materials only
Cordless	Yes
Handheld Release	Button to detach handheld unit
Charging Indicator	LED light
Cleaning Tools	Small brush nozzle, floor nozzle
Maintenance	Clean dust container, filter, and roller periodically

Frequently Asked Questions - 002201 Menuett

How long does it take to fully charge the vacuum cleaner?

The first charge takes up to 14 hours. Subsequent charges may be shorter but are not specified in the manual.

Can I use this vacuum cleaner to pick up liquids?

No, the vacuum cleaner is designed for dry materials only. Do not use it to suck up liquids.

How do I clean the filter?

Remove the filter unit and filter element from the dust container. Rinse with water and allow to dry completely before reinserting.

How do I empty the dust container?

Press the release button on top of the handheld unit to loosen the dust collector. Empty the contents and rinse with water if needed. Let it dry before refitting.

Can I use the handheld unit separately?

Yes, press the release button on the handheld unit to detach it from the floor nozzle and stand. It can be used as a portable handheld vacuum.

What should I do if the battery does not charge?

Check that the adapter is properly connected and the power outlet is working. If the charging indicator does not light, contact an authorized service center.

How do I remove hair from the floor nozzle roller?

Loosen the cover on the front of the floor nozzle, clean the roller thoroughly, and replace the cover. Do this periodically to maintain performance.

Can I use a different charger?

Only use the supplied charger that came with the vacuum cleaner. Using other chargers may damage the battery or cause safety risks.

Is this vacuum cleaner safe for use on stairs?

Yes, the handheld unit is lightweight and easy to carry, making it suitable for stairs. Ensure you hold it securely.

How should I store the vacuum cleaner?

Place the vacuum cleaner in the charging stand when not in use. Keep it indoors and away from heat sources or liquids.

USER MANUAL 002201 Menuett

Black handheld vacuum cleaner with extended arm and stand (no visible text or symbols)

SE HANDDAMMSUGARE

Operating instructions (Translation of the original instructions) Important! Read the user instructions carefully before use. Save them for future reference.

Värna om miljön!

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

Jula reserves the right to make changes. In the event of problems, please contact our service department.

www.jula.com

Tillverkare/ Produsent/ Produenci/ Manufacturer

Jula AB, Box 363, 532 24 SKARA

Distributör/ Distributør/ Dystrybutor/ Distributor

Jula Poland Sp. z o.o., ul.

Mechanical assembly diagram showing a robotic arm with a downward force and a right-hand view of the base (no text or symbols)

Line drawing of a handheld vacuum cleaner device (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating a feature (no text or symbols present)

Line drawing of a device with internal components, showing a split open and closed (no text or symbols)

Technical line drawing of two mechanical components with textured surfaces (no text or symbols)

Line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical device with attached components (no text or symbols)

SÄKERHETSANVISNINGAR

• Always follow these basic safety instructions when using electrical appliances.
- The vacuum cleaner is designed to suck up dry materials, do not use to suck up liquids.
- Do not immerse the vacuum cleaner or the charger in water or any other liquid when cleaning.
- Do not use the vacuum cleaner on or near a hot stove or in a hot oven.
- Do not block the ventilation openings on the vacuum cleaner.
- Do not use the vacuum cleaner to clean up flammable liquids or use it in the vicinity of such liquids.
- Check that the mains voltage corresponds to the rated voltage on the type plate.
- Do not use the vacuum cleaner if the charger, power cord or plug are damaged.
- Only charge with the supplied charger. Never use

the charger to charge other appliances.

- Disconnect the power supply to the charger before cleaning.

- Do not use the vacuum cleaner if it is damaged or not working properly, or if the power cord and/or plug are damaged. Take the vacuum cleaner to an authorised service centre to be checked, repaired or adjusted. Never use the battery for anything other than its intended purpose.

- The battery must be disposed of in accordance with applicable regulations. Do not burn batteries – risk of explosion.

- This vacuum cleaner can be used by children from eight years and upwards and by persons with physical, sensorial or mental disabilities, or persons who lack experience or knowledge, if they are supervised or receive instructions concerning the safe use of the vacuum

cleaner and understand the risks involved with its use.

• Do not allow children to play with the vacuum cleaner.
• Do not use accessories other than those recommended by the manufacturer – risk of personal injury.
• Never use the vacuum cleaner for anything other than its intended purpose.
• Do not use the vacuum cleaner outdoors.

Symbols

	Class III.
	Approved as per applicable directives.
	Recycle a discarded product in accordance with applicable regulations.

TECHNICAL DATA

Input voltage, transformer 230 V	~50 Hz
Output voltage, transformer 20 V DC
Output	100 W
Battery 12 V NiMH

DESCRIPTION

1. Power switch
2. Release button for folding handle
3. Hinge
4. Release button for handheld unit
5. Power point
6. Power switch
7. Release button for dust container
8. Small brush nozzle
9. Floor nozzle

FIG. 1

INSTALLATION

1. Insert the floor nozzle into the case.

FIG. 2

1. Close the handle.

USE

1. Press the power switch to start the vacuum cleaner.
2. Press the power switch to switch off the vacuum cleaner.
3. Check the charging indicator while vacuuming. The battery indicator is lit constantly when the battery is fully charged.

Charging

1. Connect the power point adapter to the handheld unit.
2. Insert the plug on the mains adapter into a power outlet.
3. Place the vacuum cleaner in the charger. Ensure that the vacuum cleaner hooks correctly into the charger.

4. The charging indicator comes on.

5. The charging indicator goes out when the vacuum cleaner is fully charged.

NOTE:

The first time it takes up to 14 hours for the batteries to be fully charged.

Using the handheld unit

1. Press in the handheld unit's release button and lift off the handheld unit.
2. Press the power switch on the handheld unit to start it, and press it again to switch it off.
3. The handheld unit has an extendable suction nozzle that can be used in areas difficult to access.

FIG. 3

1. If you need to use the small brush nozzle, this is attached to the suction nozzle.

MAINTENANCE

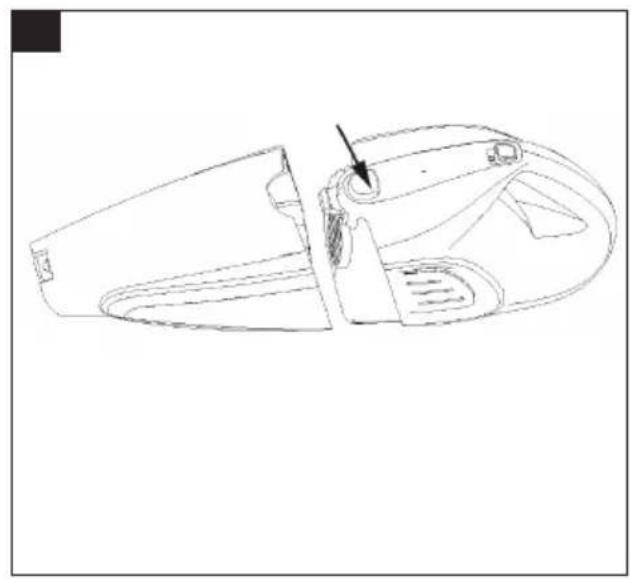

1. Loosen the dust collector from the handheld unit by pressing the release button on top of the handheld unit.

FIG. 4

1. Remove the filter unit and filter element from the dust collector.

FIG. 5

FIG. 6

1. Empty the dust collector and rinse with water. Let the dust collector dry.
2. Rinse the filter unit and filter element with water. Allow to dry.
3. Refit the filter unit and filter element in the dust collector.
4. Refit the dust collector in the handheld unit.
5. If there is hair on the floor nozzle's roller, loosen the cover on the front of the nozzle.

FIG. 7

FIG. 8

1. Clean the roller.
2. Replace the cover on the nozzle.

NOTE:

• The dust collector does not need to be cleaned after each use.
• Hair can fasten in the roller. Clean in time so that the vacuum cleaner works efficiently.
